Technical Data383
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

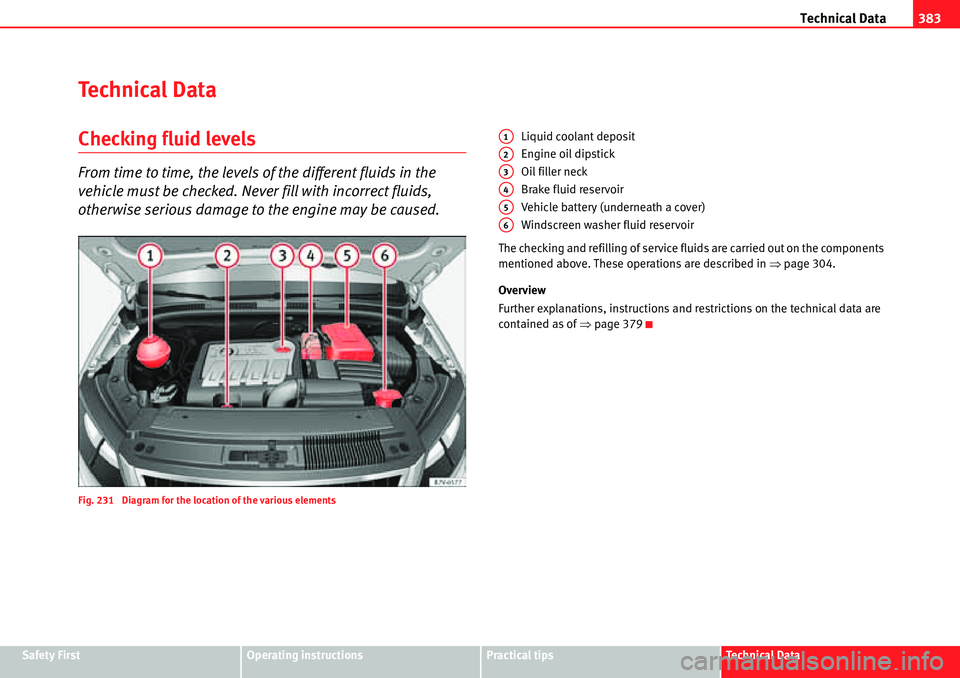

Technical Data
Checking fluid levels
From time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Fig. 231 Diagram for the location of the various elements
Liquid coolant deposit
Engine oil dipstick
Oil filler neck
Brake fluid reservoir
Vehicle battery (underneath a cover)
Windscreen washer fluid reservoir
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in Ÿpage 304.
Overview
Further explanations, instructions and restrictions on the technical data are
contained as of Ÿpage 379A1
A2
A3
A4
A5
A6

Technical Data 384

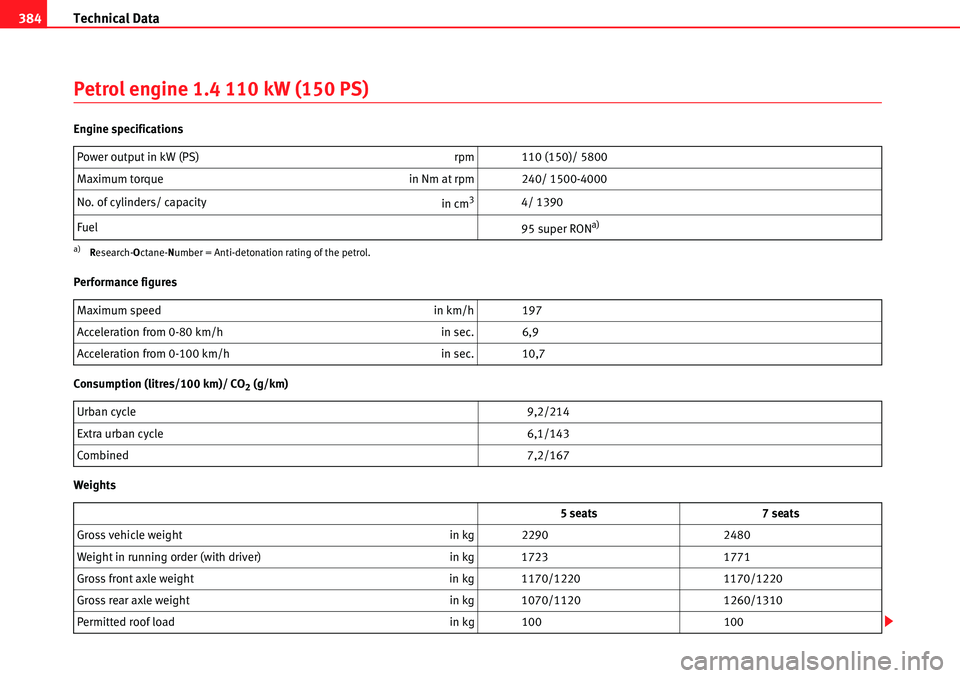

Petrol engine 1.4 110 kW (150 PS)
Engine specifications
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
WeightsPower output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 240/ 1500-4000
No. of cylinders/ capacity
in cm
34/ 1390
Fuel
95 super RON
a)
a)Research-Octane-Number = Anti-detonation rating of the petrol.
Maximum speed in km/h 197
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,7
Urban cycle9,2/214
Extra urban cycle 6,1/143
Combined7,2/167
5 seats 7 seats
Gross vehicle weight in kg 2290 2480
Weight in running order (with driver) in kg 1723 1771
Gross front axle weight in kg 1170/1220 1170/1220
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100

Technical Data385

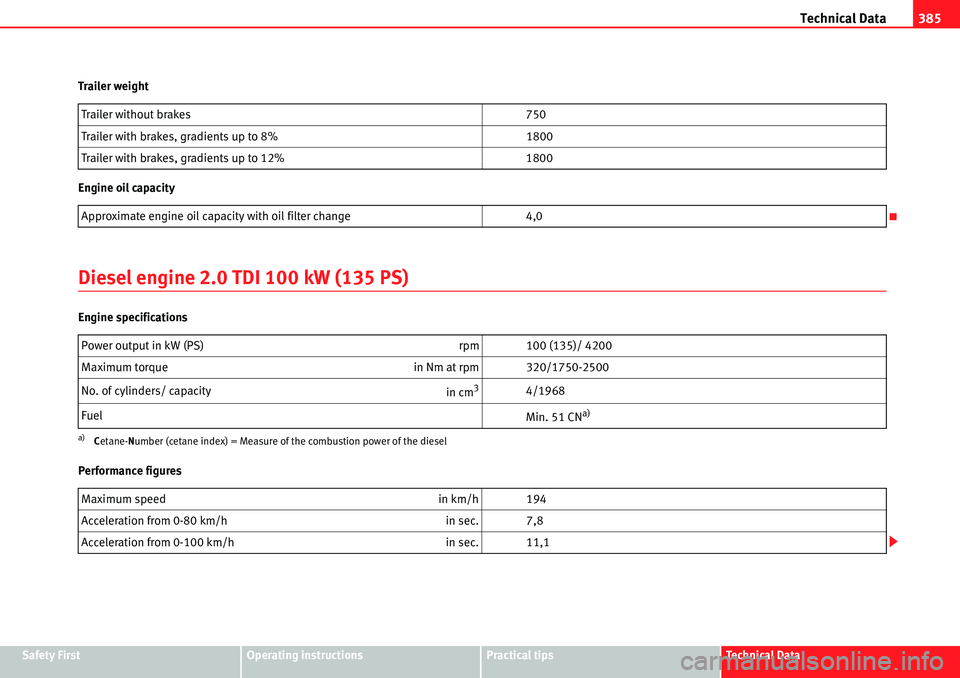

Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Trailer weight
Engine oil capacity
Diesel engine 2.0 TDI 100 kW (135 PS)
Engine specifications
Performance figuresTrailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800
Approximate engine oil capacity with oil filter change 4,0
Power output in kW (PS) rpm 100 (135)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/ capacity
in cm
34/1968
Fuel
Min. 51 CN
a)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel
Maximum speed in km/h 194
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,1

Technical Data 386

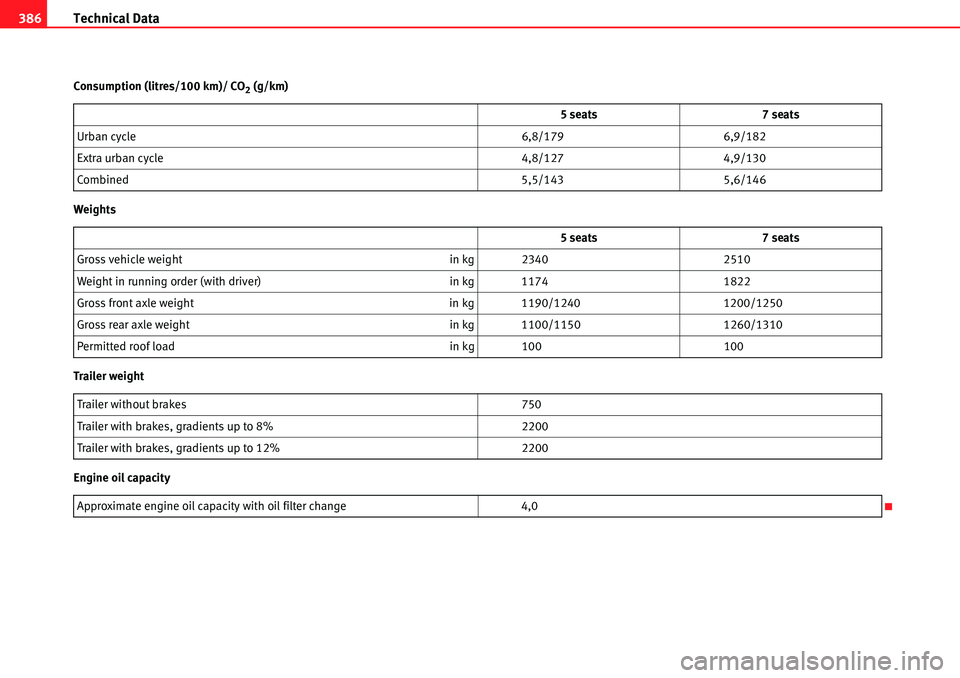

Consumption (litres/100 km)/ CO2 (g/km)
Weights
Trailer weight
Engine oil capacity5 seats 7 seats
Urban cycle 6,8/179 6,9/182
Extra urban cycle 4,8/127 4,9/130
Combined5,5/143 5,6/146
5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Approximate engine oil capacity with oil filter change 4,0

Technical Data387
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

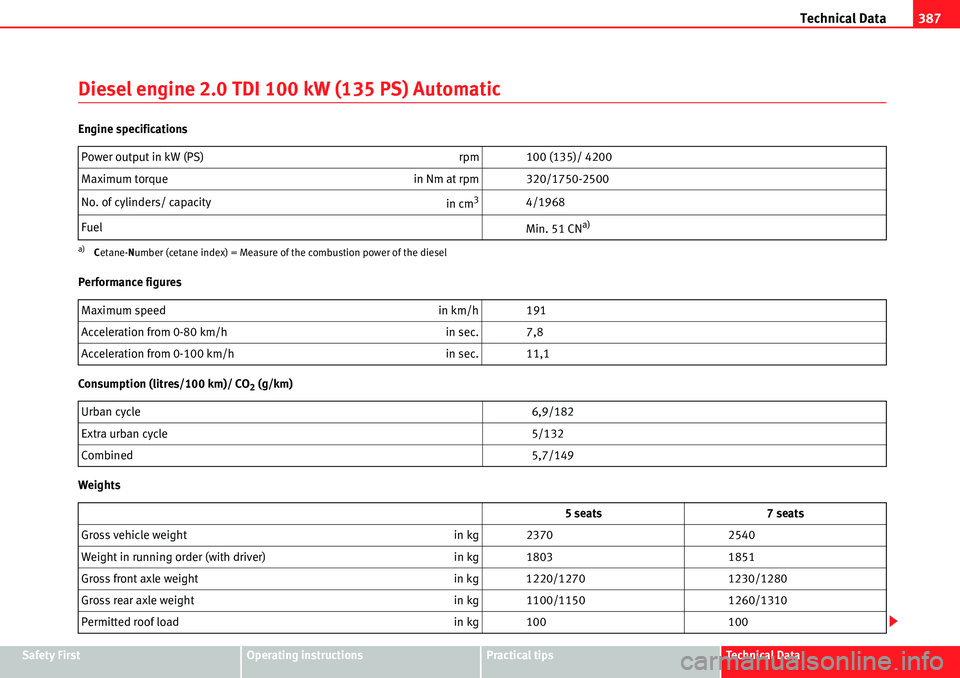

Diesel engine 2.0 TDI 100 kW (135 PS) Automatic
Engine specifications
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
WeightsPower output in kW (PS) rpm 100 (135)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/ capacity
in cm
34/1968
Fuel
Min. 51 CN
a)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel
Maximum speed in km/h 191
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,1
Urban cycle6,9/182
Extra urban cycle 5/132
Combined5,7/149
5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100

Technical Data 388

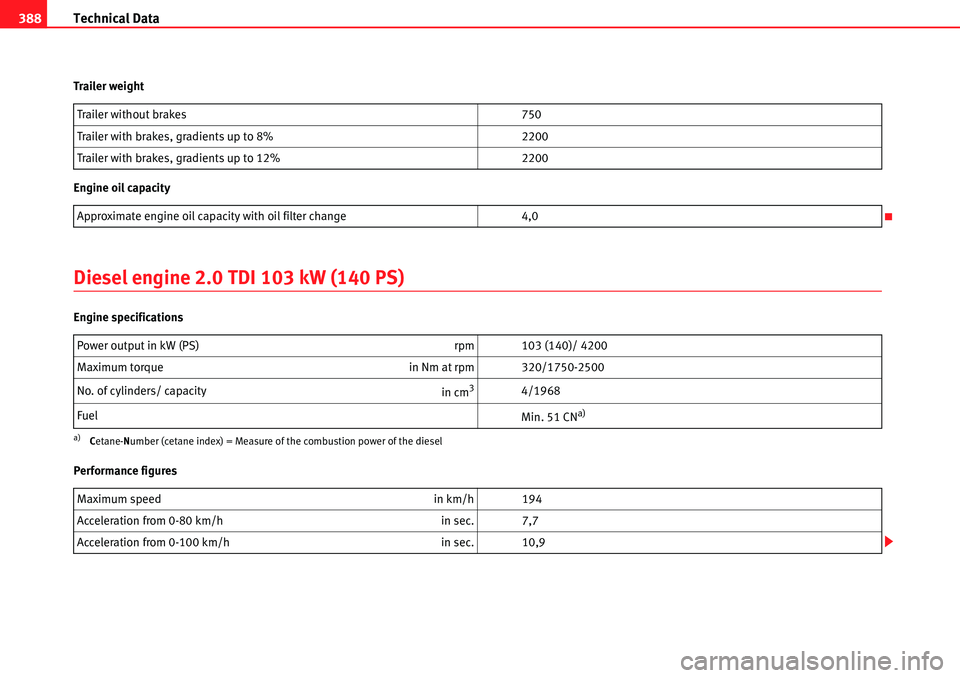

Trailer weight
Engine oil capacity
Diesel engine 2.0 TDI 103 kW (140 PS)
Engine specifications
Performance figuresTrailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Approximate engine oil capacity with oil filter change 4,0
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/ capacity
in cm
34/1968
Fuel
Min. 51 CN
a)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel
Maximum speed in km/h 194
Acceleration from 0-80 km/h in sec. 7,7
Acceleration from 0-100 km/h in sec. 10,9

Technical Data389

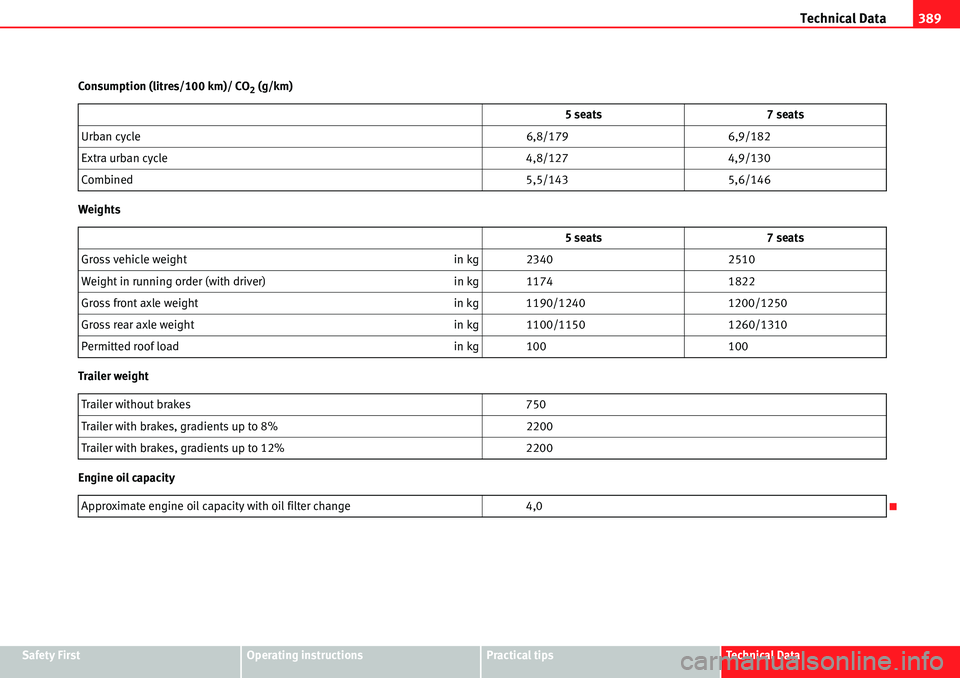

Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weight
Engine oil capacity5 seats 7 seats
Urban cycle 6,8/179 6,9/182
Extra urban cycle 4,8/127 4,9/130
Combined5,5/143 5,6/146
5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Approximate engine oil capacity with oil filter change 4,0

Technical Data 390

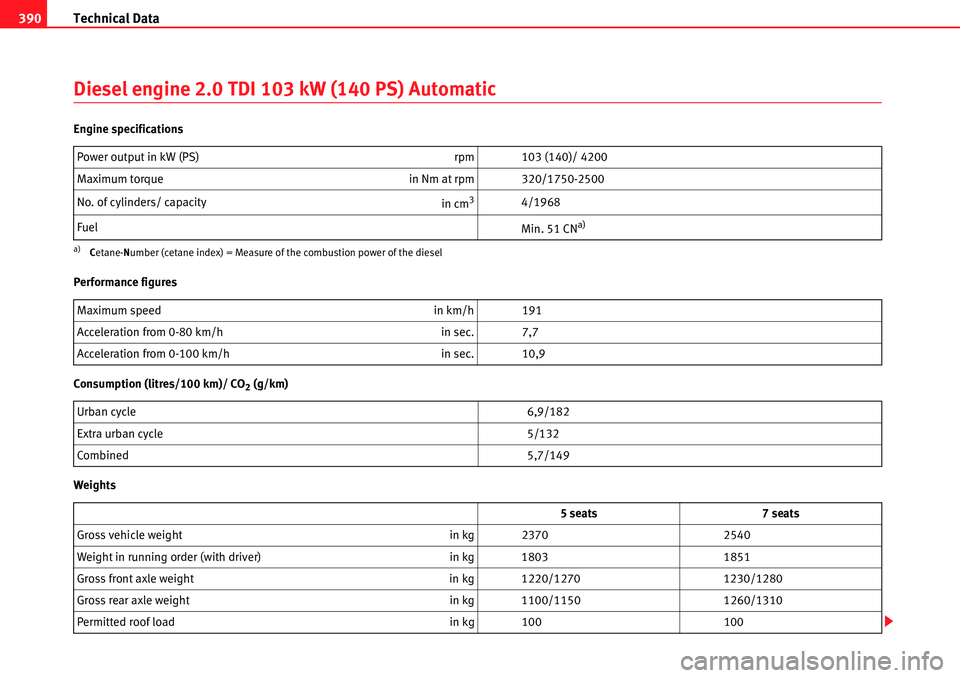

Diesel engine 2.0 TDI 103 kW (140 PS) Automatic
Engine specifications
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
WeightsPower output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/ capacity
in cm
34/1968
Fuel
Min. 51 CN
a)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel
Maximum speed in km/h 191
Acceleration from 0-80 km/h in sec. 7,7
Acceleration from 0-100 km/h in sec. 10,9
Urban cycle6,9/182
Extra urban cycle 5/132
Combined5,7/149
5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100

Technical Data391

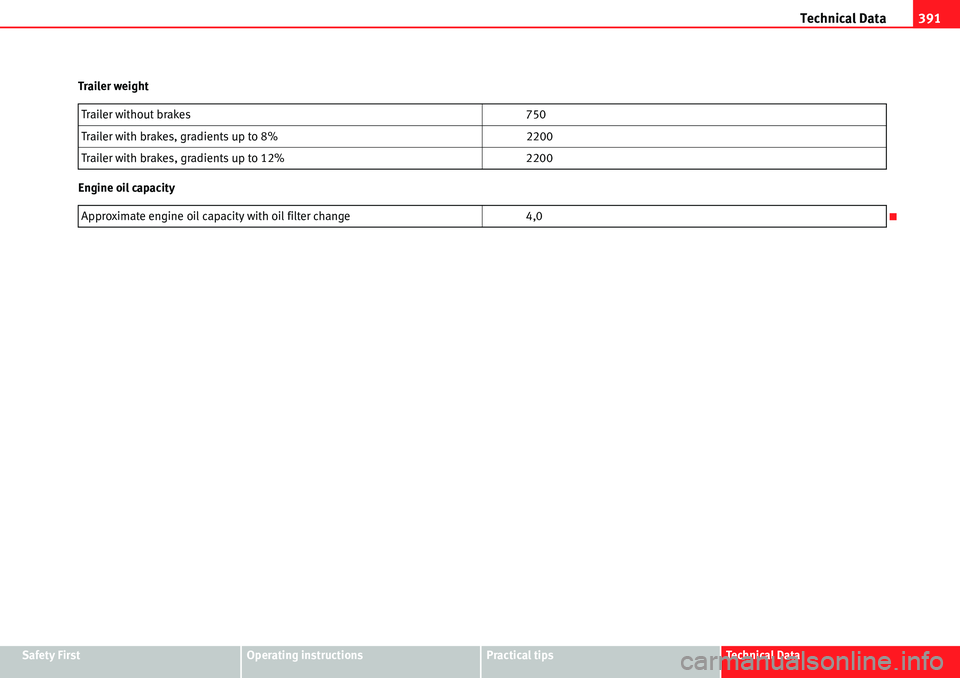

Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Trailer weight
Engine oil capacityTrailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Approximate engine oil capacity with oil filter change 4,0

Technical Data 392

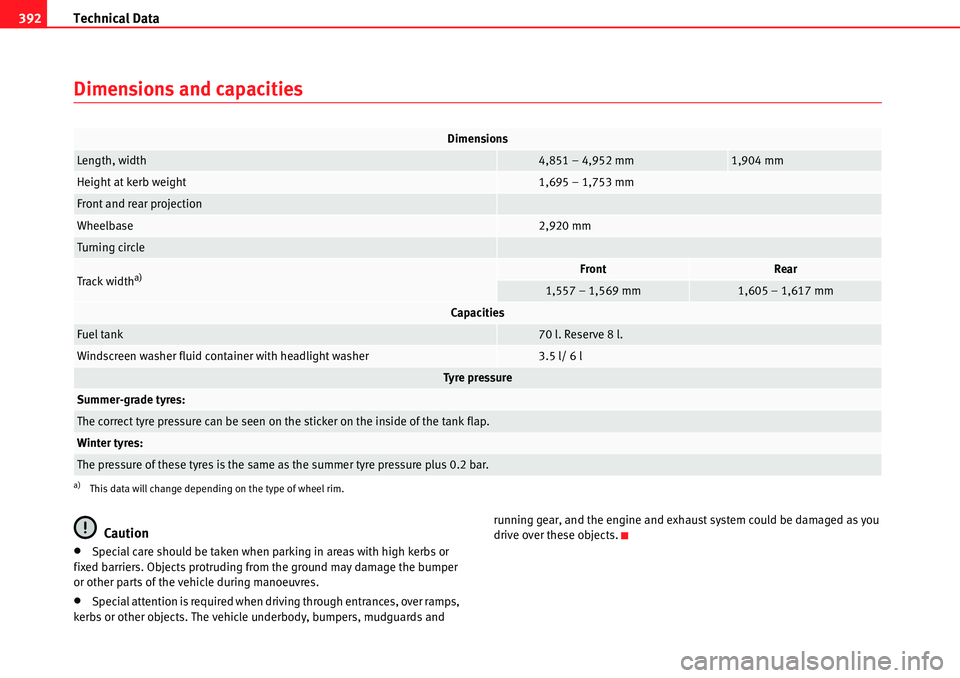

Dimensions and capacities
Caution
xSpecial care should be taken when parking in areas with high kerbs or
fixed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres.
xSpecial attention is required when driving through entrances, over ramps,
kerbs or other objects. The vehicle underbody, bumpers, mudguards and running gear, and the engine and exhaust system could be damaged as you
drive over these objects.
Dimensions
Length, width4,851 – 4,952 mm1,904 mm
Height at kerb weight1,695 – 1,753 mm
Front and rear projection
Wheelbase2,920 mm
Turning circle
Track widtha)
a)This data will change depending on the type of wheel rim.
FrontRear
1,557 – 1,569 mm1,605 – 1,617 mm
Capacities
Fuel tank70 l. Reserve 8 l.
Windscreen washer fluid container with headlight washer3.5 l/ 6 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
