Accessories, parts replacement and modifications291
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Jacking points for raising vehicle
Always use the jacking points indicated in the figures Ÿfig. 167 and
Ÿfig. 168 when raising the vehicle. If the vehicle is not lifted at these points,
it could be seriously damaged Ÿ or lead to serious injury Ÿ.The vehicle should not be lifted using lifting platforms with lift pads
containing fluid.
When raising a vehicle using a platform or jack, a series of precautionary
measures are required. Never raise the vehicle with a lifting platform or jack
unless you have received training in how to do so and know how to lift the
vehicle safely.
Notes on raising the vehicle with a jack Ÿpage 342.
WARNING
The improper use of the lifting platform or the jack when raising the vehicle
may result in accidents or serious injury.
xBefore raising the vehicle, please observe the manufacturer's instruc-
tions for the platform or jack, and the legal requirements, where appli-
cable.
xThere should not be anyone inside the vehicle when it is being raised or
once it is in the air.
xOnly use the jacking points indicated in the figures Ÿfig. 167 and
Ÿfig. 168 when raising the vehicle. If the vehicle is not lifted at the indi-
cated points, it may fall from the platform while the engine or gearbox is
being dismounted, for example.
xThe jacking points should be centrally aligned and firmly positioned on
the platform support plates.
xNever start the engine when the vehicle is raised! The vehicle may fall
from the platform due to the engine vibrations.
xIf it is necessary to work underneath the vehicle while it is raised, you
should check that the supporting stands have an adequate load capacity.
xNever climb onto the lifting platform.
xAlways make sure that the weight of the vehicle does not exceed the
lifting platform load capacity.
Fig. 167 Front jacking
points for raising vehicle
with lifting platform or
jack.
Fig. 168 Rear jacking
points for raising vehicle
with lifting platform or
jack.

Accessories, parts replacement and modifications 292

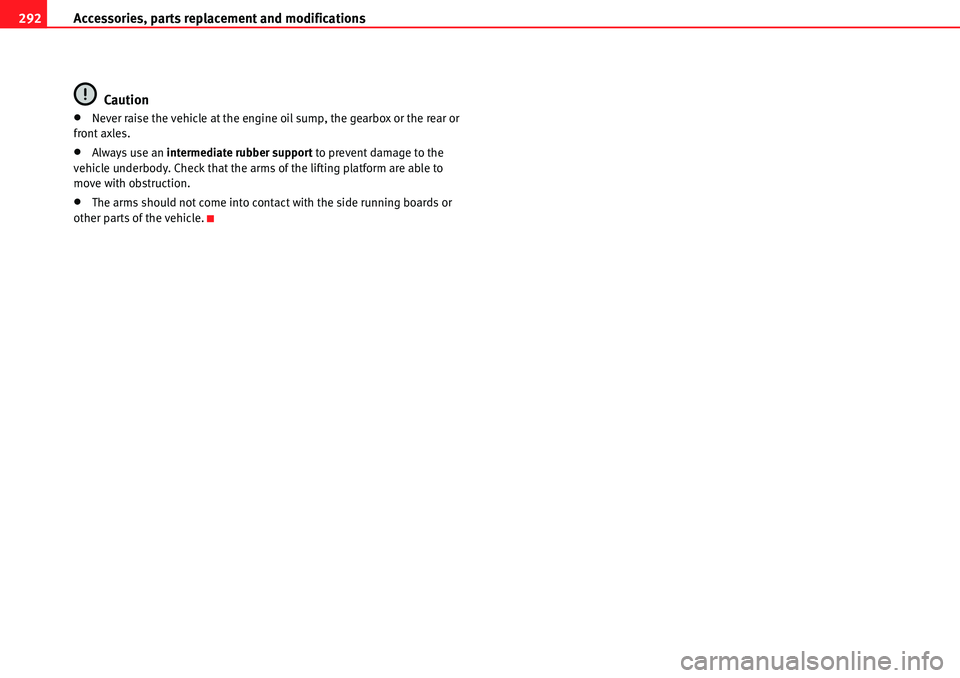

Caution
xNever raise the vehicle at the engine oil sump, the gearbox or the rear or
front axles.
xAlways use an intermediate rubber support to prevent damage to the
vehicle underbody. Check that the arms of the lifting platform are able to
move with obstruction.
xThe arms should not come into contact with the side running boards or
other parts of the vehicle.

Checking and refilling levels293
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

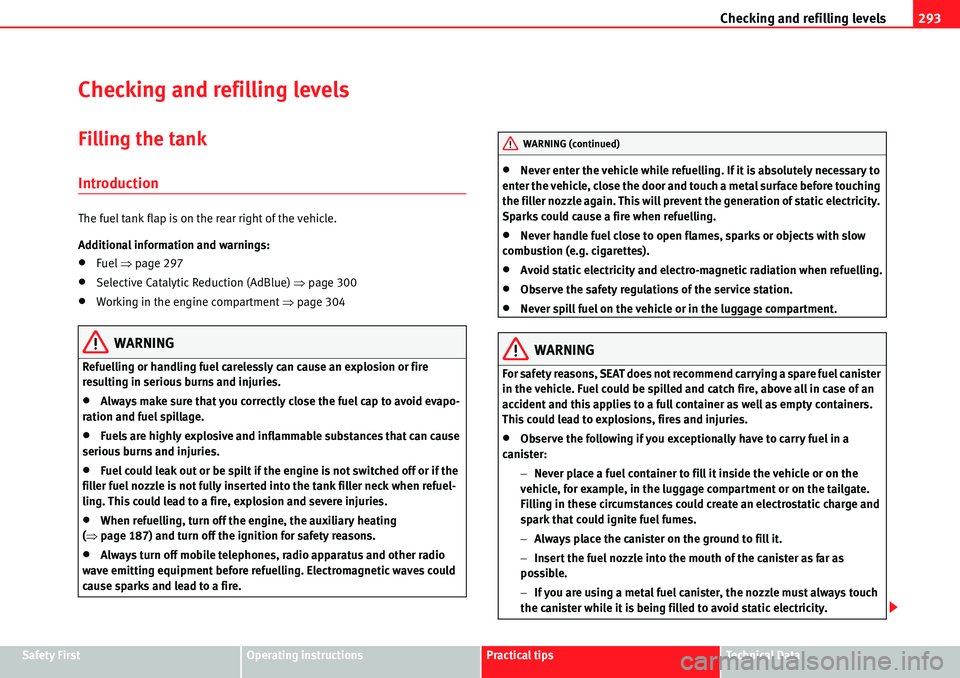

Checking and refilling levels
Filling the tank
Introduction
The fuel tank flap is on the rear right of the vehicle.
Additional information and warnings:
xFuel Ÿpage 297
xSelective Catalytic Reduction (AdBlue) Ÿpage 300
xWorking in the engine compartment Ÿpage 304
WARNING
Refuelling or handling fuel carelessly can cause an explosion or fire
resulting in serious burns and injuries.
xAlways make sure that you correctly close the fuel cap to avoid evapo-
ration and fuel spillage.
xFuels are highly explosive and inflammable substances that can cause
serious burns and injuries.
xFuel could leak out or be spilt if the engine is not switched off or if the
filler fuel nozzle is not fully inserted into the tank filler neck when refuel-
ling. This could lead to a fire, explosion and severe injuries.
xWhen refuelling, turn off the engine, the auxiliary heating
(Ÿpage 187) and turn off the ignition for safety reasons.
xAlways turn off mobile telephones, radio apparatus and other radio
wave emitting equipment before refuelling. Electromagnetic waves could
cause sparks and lead to a fire.
xNever enter the vehicle while refuelling. If it is absolutely necessary to
enter the vehicle, close the door and touch a metal surface before touching
the filler nozzle again. This will prevent the generation of static electricity.
Sparks could cause a fire when refuelling.
xNever handle fuel close to open flames, sparks or objects with slow
combustion (e.g. cigarettes).
xAvoid static electricity and electro-magnetic radiation when refuelling.
xObserve the safety regulations of the service station.
xNever spill fuel on the vehicle or in the luggage compartment.
WARNING
For safety reasons, SEAT does not recommend carrying a spare fuel canister
in the vehicle. Fuel could be spilled and catch fire, above all in case of an
accident and this applies to a full container as well as empty containers.
This could lead to explosions, fires and injuries.
xObserve the following if you exceptionally have to carry fuel in a
canister:
Never place a fuel container to fill it inside the vehicle or on the
vehicle, for example, in the luggage compartment or on the tailgate.
Filling in these circumstances could create an electrostatic charge and
spark that could ignite fuel fumes.
Always place the canister on the ground to fill it.
Insert the fuel nozzle into the mouth of the canister as far as
possible.
If you are using a metal fuel canister, the nozzle must always touch
the canister while it is being filled to avoid static electricity.
WARNING (continued)

Checking and refilling levels 294
Follow the legal requirements for the use, storage and transport of
spare fuel canisters.
Insure that the fuel container complies with manufacturing stand-
ards, for example, ANSI or ASTM F852-86.
Caution
xAlways remove any fuel spilled on the vehicle paintwork immediately to
avoid damage to the wheel housing, the tyre and vehicle paintwork.
xRefuelling a petrol engine with diesel or a diesel engine with petrol can
cause serious engine and fuel system damage; the resulting malfunctions
are not covered by the SEAT warranty. If you refuel with the wrong type of fuel,
never start the engine. This applies to even the smallest amount of the wrong
fuel. You should obtain professional assistance. With the engine running, the
composition of the wrong fuel could significantly damage the fuel system and
the engine itself.
xIn vehicles with a diesel engine, under no circumstances should you
refuel or drive with petrol, kerosene, heating oil or any other type of different
fuel. Other types of fuels could cause serious damage to the engine and to
the fuel supply system and the resulting problems are not covered by the
SEAT warranty.
For the sake of the environment
Fuels can contaminate the environment. Collect any spilt service fluids and
allow a professional to dispose of them.
Note
There is no emergency mechanism for the manual release of the tank flap. If
necessary, request assistance from specialised personnel.
Control lamps and fuel gauge
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
The auxiliary heater and the auxiliary heater running off petrol will automati-
cally switch off when the indicator
z or  lights.
WARNING (continued)
lights upGauge position
Ÿfig. 169Possible cause ŸSolution
Red mark
(arrow)
The fuel tank is almost
empty.
The reserve tank is
being used
Ÿpage 392.
Refuel as soon as
possible Ÿ.
§Fuel tank not closed
correctly.Stop the vehicle and
close the tank flap
properly.
Fig. 169 On the instru-
ment panel: Fuel gauge for
petrol and diesel.

Checking and refilling levels295
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
WARNING
Driving with insufficient fuel reserve could result in the vehicle breaking
down in traffic and a serious accident.
xIf the fuel level is too low then the fuel supply to the engine can become
irregular especially on slopes.
xIf the engine “is choked” or stalls due to lack of or irregularity of the
fuel supply, the power steering as well as all of the driver assistance
systems including braking assistance will stop working.
xAlways refuel when there is only one quarter of the fuel tank left to
avoid running out of fuel.
Caution
xAlways pay attention to any lit lamps and to the corresponding descrip-
tions and instructions to avoid damage to the vehicle.
xNever run the tank completely dry. An irregular fuel supply may lead to
ignition faults and unburnt fuel could enter the exhaust system. This could
damage the catalytic converter filter or the diesel particulate filter!
Note
The arrow next to the fuel pump symbol on the instrument panel Ÿpage 294,
fig. 169 indicates the side of the vehicle on which the tank flap is located.

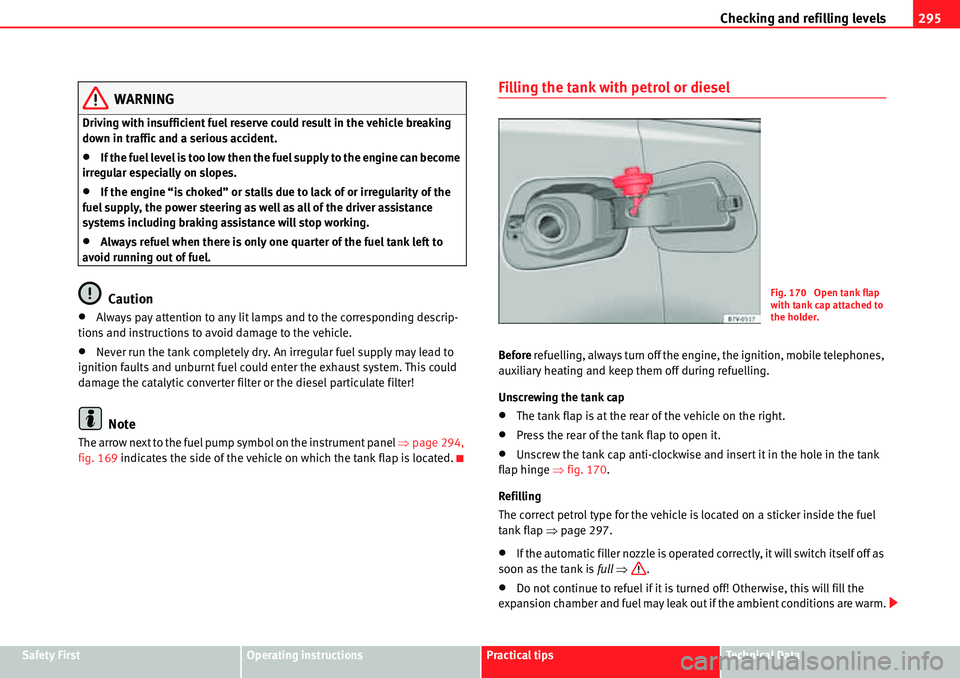

Filling the tank with petrol or diesel
Before refuelling, always turn off the engine, the ignition, mobile telephones,
auxiliary heating and keep them off during refuelling.
Unscrewing the tank cap
xThe tank flap is at the rear of the vehicle on the right.
xPress the rear of the tank flap to open it.
xUnscrew the tank cap anti-clockwise and insert it in the hole in the tank
flap hinge Ÿfig. 170.
Refilling
The correct petrol type for the vehicle is located on a sticker inside the fuel
tank flap Ÿpage 297.
xIf the automatic filler nozzle is operated correctly, it will switch itself off as
soon as the tank is full Ÿ.
xDo not continue to refuel if it is turned off! Otherwise, this will fill the
expansion chamber and fuel may leak out if the ambient conditions are warm.
Fig. 170 Open tank flap
with tank cap attached to
the holder.

Checking and refilling levels 296
Closing the tank cap
xScrew on the tank cap clockwise until it you hear it click into position.
xPress the tank flap until you hear it click into place. The tank flap must be
flush with the body contour.
WARNING
Do not continue refilling once the fuel nozzle has switched itself off. The
fuel tank may be filled too much. As a result, fuel may spurt out and spill.
This could lead to a fire, explosion and severe injuries.
Caution
xAlways remove any fuel spilled on the vehicle paintwork immediately to
avoid damage to the wheel housing, the tyre and vehicle paintwork.
For the sake of the environment
Spilt fuel can contaminate the environment.
Refilling precautions
Information on bulb replacement Ÿpage 360.
Checklist
Never work on the engine or in the engine compartment if you are not familiar
with the operations to be carried out, the applicable safety standards and
especially if you do not have the instruments, liquids and tools necessary
Ÿpage 304, “Working in the engine compartment”! Have the work carried
out by a qualified workshop if you are uncertain. Check the following regu-
larly, preferably when you refuel:
xWindscreen washer fluid level Ÿpage 124
xEngine oil level Ÿpage 309
xEngine coolant level Ÿpage 313
xBrake fluid level Ÿpage 210
xTyre pressure Ÿpage 323
xVehicle lighting required to guarantee road safety:
–Indicators
– Side lights, dipped headlights and full beam headlights
– Rear lights
–Brake lights
– Rear fog light Ÿpage 116
WARNING
Not following the checklist prepared for your own safety could lead to acci-
dents and severe injuries.
xAlways follow the check list and perform the necessary operations.

Checking and refilling levels297
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

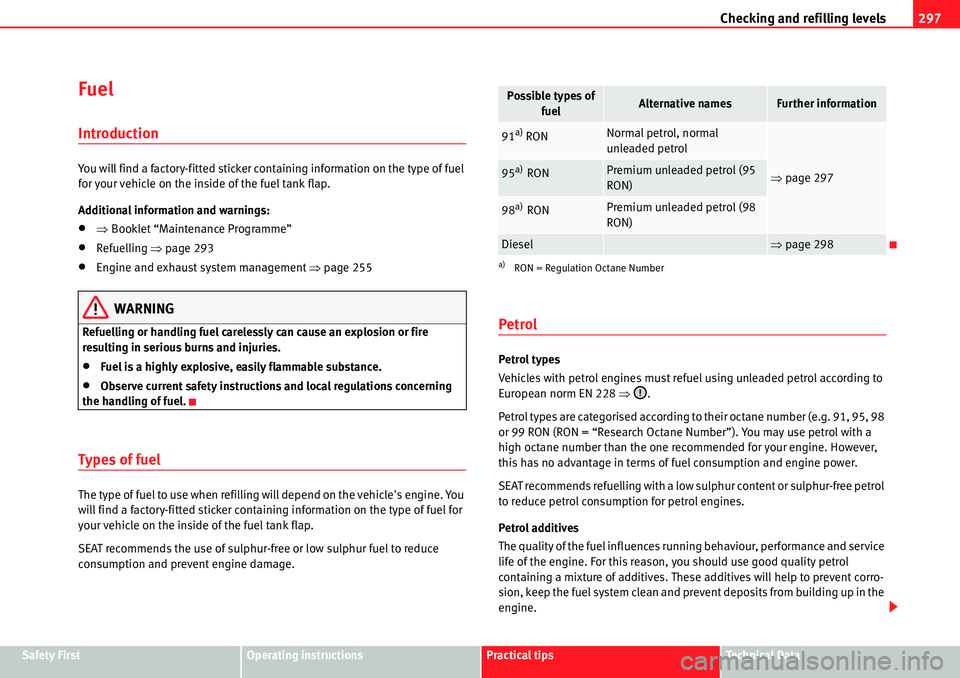

Fuel
Introduction
You will find a factory-fitted sticker containing information on the type of fuel
for your vehicle on the inside of the fuel tank flap.
Additional information and warnings:
xŸBooklet “Maintenance Programme”
xRefuelling Ÿpage 293
xEngine and exhaust system management Ÿpage 255
WARNING
Refuelling or handling fuel carelessly can cause an explosion or fire
resulting in serious burns and injuries.
xFuel is a highly explosive, easily flammable substance.
xObserve current safety instructions and local regulations concerning
the handling of fuel.
Types of fuel
The type of fuel to use when refilling will depend on the vehicle's engine. You
will find a factory-fitted sticker containing information on the type of fuel for
your vehicle on the inside of the fuel tank flap.
SEAT recommends the use of sulphur-free or low sulphur fuel to reduce
consumption and prevent engine damage.
Petrol
Petrol types
Vehicles with petrol engines must refuel using unleaded petrol according to
European norm EN 228 Ÿ.
Petrol types are categorised according to their octane number (e.g. 91, 95, 98
or 99 RON (RON = “Research Octane Number”). You may use petrol with a
high octane number than the one recommended for your engine. However,
this has no advantage in terms of fuel consumption and engine power.
SEAT recommends refuelling with a low sulphur content or sulphur-free petrol
to reduce petrol consumption for petrol engines.
Petrol additives
The quality of the fuel influences running behaviour, performance and service
life of the engine. For this reason, you should use good quality petrol
containing a mixture of additives. These additives will help to prevent corro-
sion, keep the fuel system clean and prevent deposits from building up in the
engine.
Possible types of
fuelAlternative namesFurther information
91a) RON
a)RON = Regulation Octane Number
Normal petrol, normal
unleaded petrol
Ÿpage 29795a) RONPremium unleaded petrol (95
RON)
98a) RONPremium unleaded petrol (98
RON)
DieselŸpage 298

Checking and refilling levels 298
If good quality petrol with additives is not available or engine problems arise,
the necessary additives must be added when refuelling.
Not all petrol additives have been shown to be effective. The use of unsuit-
able petrol additives could damage the engine. These additives are available
from qualified workshops, who will inform you of their application.
Caution
xOnly use fuel with an octane rating that is in line with the norm EN 228,
otherwise significant damage could be caused to the engine and fuel system.
Furthermore, it could lead to a loss of performance with the consequent
engine fault.
xThe use of unsuitable petrol additives could damage the engine.
xIf, in exceptional circumstances, petrol with a lower octane rating to that
recommended is used, only use moderate engine speeds and a light throttle.
Avoid using full throttle and overloading the engine. Otherwise you may
damage the engine. Fill up with fuel of a suitable octane rating as soon as
possible.
xDo not refuel if the filler indicates that the fuel contains metal. LRP (lead
replacement petrol) fuels also contain high concentrations of metal addi-
tives. This could damage the engine!
xJust one full tank of leaded fuel would seriously impair the efficiency of
the catalytic converter and could damage it.
Diesel
Diesel fuel
Diesel fuel must correspond to European standard EN 590 (In Germany, EN
590 or DIN 51628).
The use of diesel fuel with a high sulphur percentage requires shorter service
intervals ŸBooklet “Maintenance Programme” Ÿ. Your qualified work-shop will be able to tell you which countries have diesel with a high sulphur
content.
Do not mix fuel additives (thinners, or similar additives) with diesel fuel.
Winter-grade diesel
When using “summer-grade diesel fuel”, difficulties may be experienced at
temperatures below 0 °C (+32 °F) because the fuel thickens due to wax sepa-
ration. For this reason, “winter-grade diesel fuel” is available in Germany, for
example, during the cold months. It can be used at temperatures as low as
-20 °C (-4 °F).
In countries with different climatic conditions, other types of diesel fuel are
available that are suitable to local temperatures. SEAT qualified workshops
and filling stations in the country concerned will inform you on the type of
diesel fuels available.
A cold diesel engine makes more noise during winter temperatures than
summer temperatures. Furthermore, the exhaust fumes may turn slightly
bluish while the engine is heating. The quantity of exhaust gases will depend
on the outside temperature.
Filter pre-heater
Vehicles with a diesel engine are fitted with a fuel filter pre-heater. This
ensures that the fuel system remains operational to approx. -24 °C (-11.2 °F),
provided you use winter-grade diesel which is safe to -15 °C (+5.00 °F).
However, if the fuel has waxed to such an extent that the engine will not start
at temperatures of under -24 °C (-11.2 °F), simply place the vehicle in a warm
garage or workshop for a while to heat up.
Auxiliary heater
Vehicles with a diesel engine may be fitted with an auxiliary heater. The
heater runs off the fuel from the fuel tank. On doing so, smells and steam may
be noticed outside the vehicle for a short period. This is normal and it is not
an indication of a fault in the vehicle.

Checking and refilling levels299
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Whenever there is little fuel in the tank (reserve), the auxiliary heater auto-
matically switches off.
WARNING
Never use start boosters. An aerosol start booster could explode or cause
a sudden rise in engine speed leading to engine damage and serious injury.
Caution
xThe vehicle is not prepared for the use of biodiesel. Under no circum-
stances should this fuel be used. It could damage the fuel system and subse-
quently lead to engine faults!
xThe addition of biodiesel to diesel by the diesel producer according to
Standard EN 590 or other equivalent (DIN 51628 in Germany, for example) is
authorised and causes no type of damage to the engine or the fuel system.
xThe diesel engine has been designed for to use diesel fuel exclusively.
Therefore, never use petrol, fuel oil or other unsuitable fuels. The composition
of these fuels may significantly damage the fuel system and the engine.
xThe use of diesel fuels with a high sulphur percentage could considerably
reduce the service life of the diesel particulate filter. Your qualified workshop
will be able to tell you which countries have diesel with a high sulphur
content.
Information on fuel consumption
The consumption and emission values indicated do not refer to one specific
vehicle. They are only to be used to compare the values of the different
vehicle versions. The fuel consumption and CO
2 emissions of a vehicle not
only depend on the effective use of fuel. They also depend on your driving
style and other non-technical factors.Calculating fuel consumption
Fuel consumption and emission values are determined according to the
current version of the 715/2007/EC or 80/1268/EEC regulation and are valid
for the vehicle kerb weight. The specifications do not refer to an individual
vehicle. Two measuring cycles are carried out on a rolling road test bed. The
test criteria are as follows:
Note
The kerb weight may vary according to the vehicle equipment. This could
raise consumption and the CO
2 emissions slightly.
Note
In practice, consumption values could be different to the values calculated
based on the 715/2007/EC or 80/1268/EEC regulations.
Urban cycleMeasurement of the urban cycle starts with an engine cold
start. City driving is then simulated at between 0 and 50
km/h.
Road cycleIn the road cycle simulation, the car undergoes frequent
acceleration and braking in all gears, as in normal everyday
driving. The road speed ranges from 0 to 120 km/h.
CombinedThe average combined consumption is calculated with a
weighting of around 37 % for the urban cycle and 63 % for
the road cycle.
CO2 emis-
sions of the
combination The exhaust gases are collected during both driving cycles to
calculate carbon dioxide emissions (urban and road). The
gas composition is then analysed to evaluate the CO
2 con-
tent and other emissions.

Checking and refilling levels 300
Selective Catalytic Reduction* (AdBlue)
Introduction
The AdBlue fill level must be checked when the vehicle is being serviced
ŸBooklet “Maintenance Programme”.
Additional information and warnings:
xLuggage compartment Ÿpage 146
xFuel Ÿpage 297
xWheels and tyres Ÿpage 323
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
If the AdBlue fill level is too low, the vehicle may not restart after switching
the ignition off. The emergency start or jump start will not be possible
either!
xTop up with AdBlue at the latest 1000 km or 600 miles before it runs
out.
xDo not allow the AdBlue to run too low.
WARNING
AdBlue is an irritant, corrosive liquid that can cause injuries if it touches
the skin, eyes or respiratory organs.
xIf AdBlue get in contact with eyes and skin, rinse for at least 15 minutes
with plenty of water and seek medical help.
xIf the AdBlue is swallowed, wash the mouth with plenty of water for at
least 15 minutes. Do not try to provoke vomiting unless recommended by a
Doctor. Seek medical advice immediately.
Caution
AdBlue damages surfaces such as painted vehicle parts, plastic, items of
clothing and carpets. Spilt AdBlue should be removed as quickly as possible
using a damp cloth and plenty of cold water.
xIf the AdBlue has crystallised, remove with warm water and a sponge.
Control and warning lamps
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
lights upPossible cause ŸSolution
b (red)The engine cannot be
restarted! The level of AdBlue
is too low.Stop the vehicle in a suitable,
safe and flat area then top up
with the minimum quantity of
AdBlue required Ÿpage 302.
b (red)
with
>
The engine cannot be
restarted! AdBlue system
malfunction.Contact a specialist workshop.
Have the system checked there.
b (yel-
low)The AdBlue reserve is low.
Refill AdBlue over the next kilo-
metres or miles as indicated
Ÿpage 302. SEAT recommends
contacting a specialist work-
shop.
b (red)
with

>
There is a fault in the AdBlue
system or unsuitable AdBlue
fluid has been used.Contact a specialist workshop.
Have the system checked there.
