Overview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays.
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking button 0 1. . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch for adjusting the exterior mirrors . . . . . . . . . . . . . . . . .
Exterior mirror adjustment , 2
Heated exterior mirrors ?
Folding exterior mirrors #
Instrument panel controls and lighting control  . . . . . . . . .
Headlamp range adjustment . . . . . . . . . . . . . . . . . . . . . . . .
Light switch “. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light off --
Automatic headlight control -!54/-
Side/dipped lights
Fog lights

Controls on the multi-function steering wheel . . . . . . . . . . . .
Volume control for radio, navigation system and phone
conversations & – '
Radio mute or voice control activation Activate telephone main menu or accept an incoming
call -
SEAT information system control buttons ƒ, „, OK, E
Lever for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main beam headlights
Headlight flasher
Turn signals
Parking lights
Instrument panel:
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (works only when the ignition is on)/Front driver airbag
Windscreen wiper/ windscreen wash lever . . . . . . . . . . . . . . .
Windscreen wipers ()'( – ,/7
Intermittent wipe
u
“Brief wipe” x
Windscreen wipers U
Automatic windscreen wash/wipe W
Rear window wiper Z
Automatic rear window wash/wipe \
Lever with buttons for controlling the SEAT information
system 42)0- , /+/2%3%4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Left seat heating controls A. . . . . . . . . . . . . . . . . . . . . . . . . . .
A192
A283
A3130
A4113
A5113
A6113
A770
A8113
A9
64
64
61
A1033
A11124
70
A12137

Lights and visibility 132
Exterior mirrors
Synchronised mirror adjustment
xIn the menu Settings - Convenience select whether or not the mirrors
should move in synchronisation Ÿpage 70.
xTurn the knob to position L.
xAdjust the left-hand exterior mirror. The right exterior mirror will be
adjusted at the same time (synchronised).
xIf necessary the right exterior mirror adjustment may need correcting. Turn
the knob to position R.
Automatic anti-dazzle exterior mirror, driver's side
The automatic anti-dazzle exterior mirror is controlled in the same way as the
automatic anti-dazzle rear vision mirror Ÿpage 131.
Store the reverse settings for the passenger exterior mirror
xSelect the vehicle key in which the setting is to be stored.
xUse this key to unlock the vehicle.
xConnect the automatic parking brake.
xSwitch the ignition on.
xMove the gear lever to neutral.
xIn the menu Settings - Convenience activate the function Mirror
adjustment.
xSelect reverse gear.
xAdjust the front passenger exterior mirror so that you can see, for
example, the kerb area.
xThe new position of the mirror will be stored automatically and allocated
to the vehicle key that was used to unlock the vehicle. For vehicles with seat
memory, please see Ÿpage 137.
Activating the passenger exterior mirror settings
xTurn the exterior mirror knob to position R.
xWith the ignition switched on, select reverse gear.
xThe stored position of the passenger exterior mirror for reverse gear is
deleted when driving forwards at 15 km/h, or if the knob is turned from posi-
tion R to another position.
Turn the knob to the required position:
#Electric folding exterior mirrors Ÿ.
?Switch on the exterior mirror heating This only heats up if the
ambient temperature is less than +20 °C (+68 °F).
,Adjust the left-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
2Adjust the right-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
Zero position. Exterior mirror unfolded, exterior mirror heating
off, adjustment of exterior mirror not possible.
Fig. 80 In the driver door:
exterior mirror controls

Seats and storage compartments 134
Seats and storage compartments

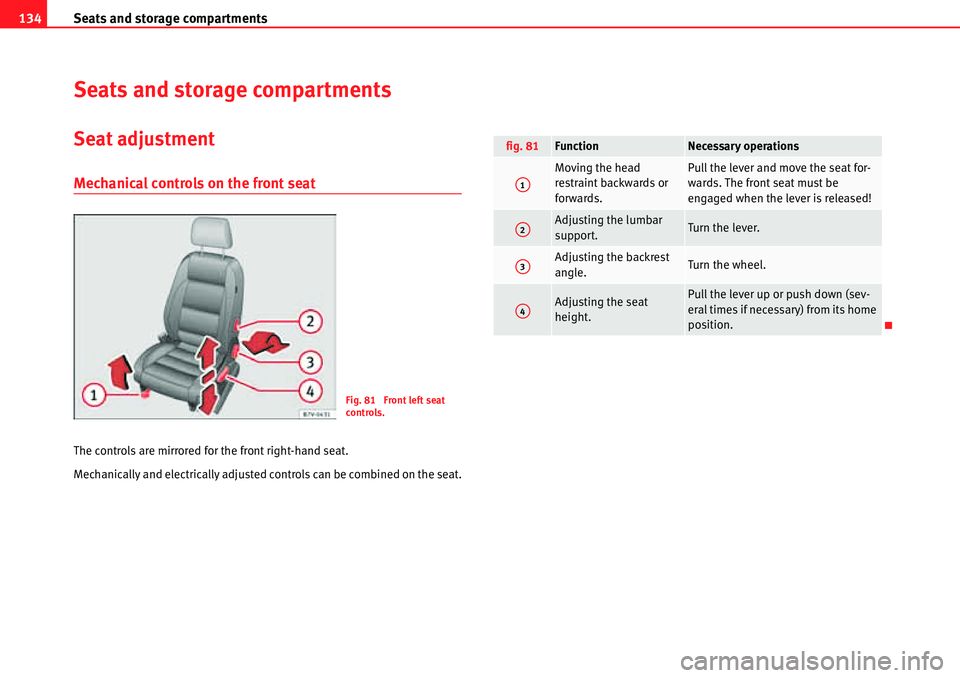

Seat adjustment
Mechanical controls on the front seat
The controls are mirrored for the front right-hand seat.
Mechanically and electrically adjusted controls can be combined on the seat.
Fig. 81 Front left seat
controls.
fig. 81FunctionNecessary operations
Moving the head
restraint backwards or
forwards.Pull the lever and move the seat for-
wards. The front seat must be
engaged when the lever is released!
Adjusting the lumbar
support.Turn the lever.
Adjusting the backrest
angle.Turn the wheel.
Adjusting the seat
height.Pull the lever up or push down (sev-
eral times if necessary) from its home
position.
A1
A2
A3
A4

Seats and storage compartments135
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

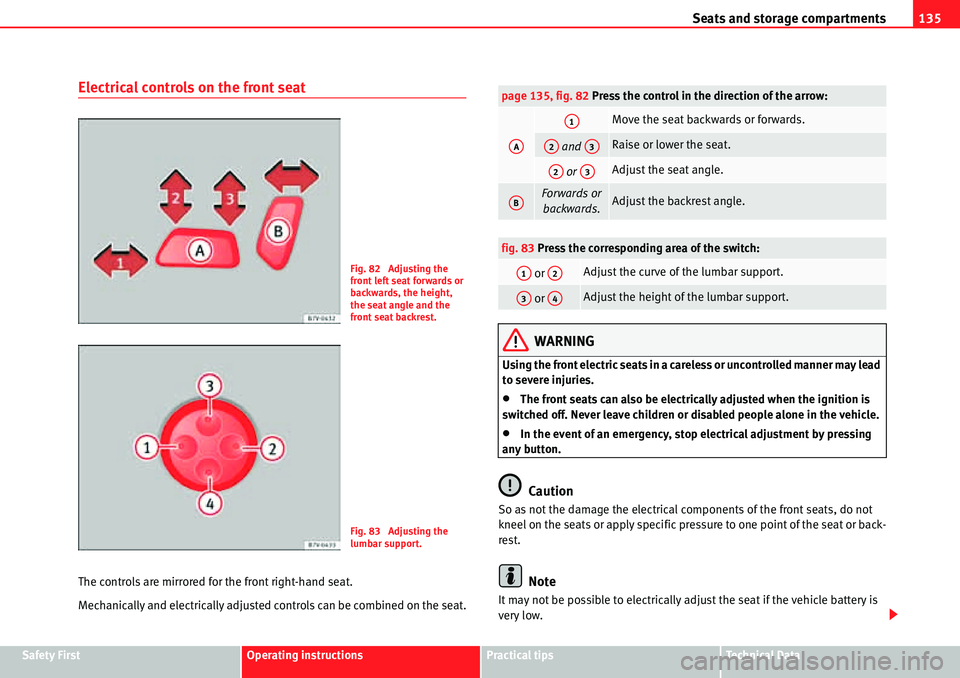

Electrical controls on the front seat
The controls are mirrored for the front right-hand seat.
Mechanically and electrically adjusted controls can be combined on the seat.
WARNING
Using the front electric seats in a careless or uncontrolled manner may lead
to severe injuries.
xThe front seats can also be electrically adjusted when the ignition is
switched off. Never leave children or disabled people alone in the vehicle.
xIn the event of an emergency, stop electrical adjustment by pressing
any button.
Caution
So as not the damage the electrical components of the front seats, do not
kneel on the seats or apply specific pressure to one point of the seat or back-
rest.
Note
It may not be possible to electrically adjust the seat if the vehicle battery is
very low.
Fig. 82 Adjusting the
front left seat forwards or
backwards, the height,
the seat angle and the
front seat backrest.
Fig. 83 Adjusting the
lumbar support.
page 135, fig. 82 Press the control in the direction of the arrow:
Move the seat backwards or forwards.
and Raise or lower the seat.
or Adjust the seat angle.
Forwards or
backwards.Adjust the backrest angle.
fig. 83 Press the corresponding area of the switch:
or Adjust the curve of the lumbar support.
or Adjust the height of the lumbar support.
AA
A1
A2A3
A2A3
AB
A1A2
A3A4

Seats and storage compartments137
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

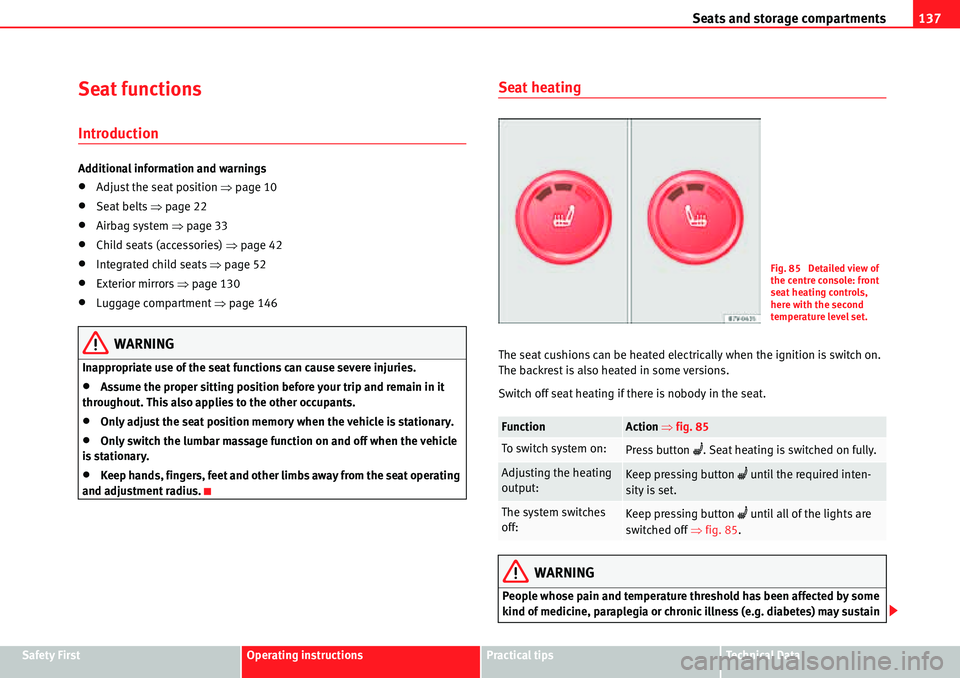

Seat functions
Introduction
Additional information and warnings
xAdjust the seat position Ÿpage 10
xSeat belts Ÿpage 22
xAirbag system Ÿpage 33
xChild seats (accessories) Ÿpage 42
xIntegrated child seats Ÿpage 52
xExterior mirrors Ÿpage 130
xLuggage compartment Ÿpage 146
WARNING
Inappropriate use of the seat functions can cause severe injuries.
xAssume the proper sitting position before your trip and remain in it
throughout. This also applies to the other occupants.
xOnly adjust the seat position memory when the vehicle is stationary.
xOnly switch the lumbar massage function on and off when the vehicle
is stationary.
xKeep hands, fingers, feet and other limbs away from the seat operating
and adjustment radius.
Seat heating
The seat cushions can be heated electrically when the ignition is switch on.
The backrest is also heated in some versions.
Switch off seat heating if there is nobody in the seat.
WARNING
People whose pain and temperature threshold has been affected by some
kind of medicine, paraplegia or chronic illness (e.g. diabetes) may sustain
FunctionAction Ÿfig. 85
To switch system on:Press button A. Seat heating is switched on fully.
Adjusting the heating
output:Keep pressing button A until the required inten-
sity is set.
The system switches
off:Keep pressing button A until all of the lights are
switched off Ÿfig. 85.
Fig. 85 Detailed view of
the centre console: front
seat heating controls,
here with the second
temperature level set.
