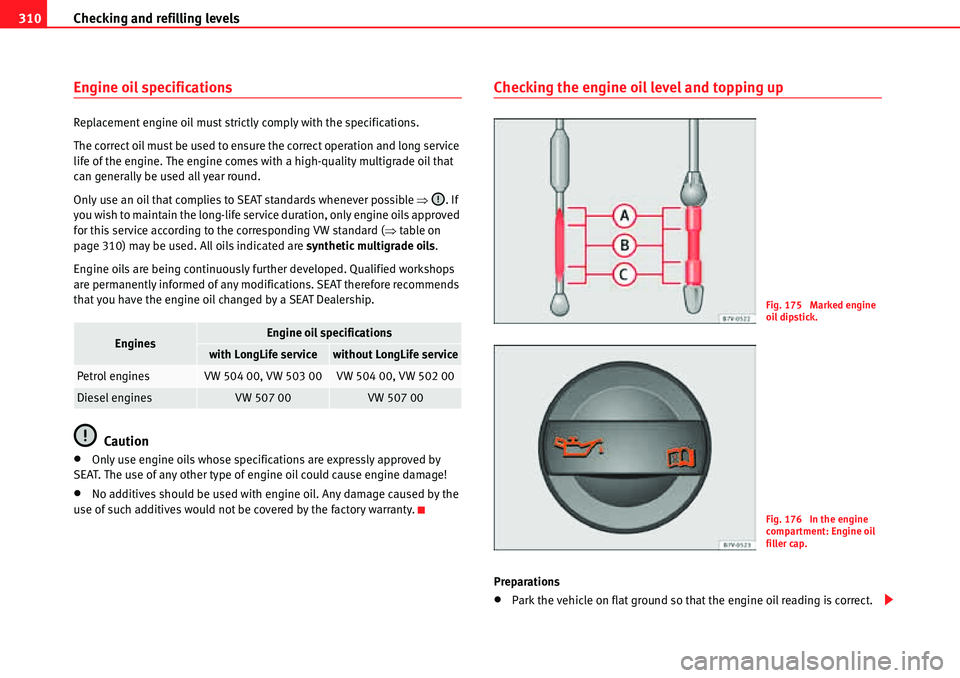

Checking and refilling levels 310
Engine oil specifications
Replacement engine oil must strictly comply with the specifications.
The correct oil must be used to ensure the correct operation and long service
life of the engine. The engine comes with a high-quality multigrade oil that
can generally be used all year round.
Only use an oil that complies to SEAT standards whenever possible Ÿ. If
you wish to maintain the long-life service duration, only engine oils approved
for this service according to the corresponding VW standard (Ÿtable on
page 310) may be used. All oils indicated are synthetic multigrade oils.
Engine oils are being continuously further developed. Qualified workshops
are permanently informed of any modifications. SEAT therefore recommends
that you have the engine oil changed by a SEAT Dealership.
Caution
xOnly use engine oils whose specifications are expressly approved by
SEAT. The use of any other type of engine oil could cause engine damage!
xNo additives should be used with engine oil. Any damage caused by the
use of such additives would not be covered by the factory warranty.
Checking the engine oil level and topping up
Preparations
xPark the vehicle on flat ground so that the engine oil reading is correct.
EnginesEngine oil specifications
with LongLife servicewithout LongLife service
Petrol enginesVW 504 00, VW 503 00VW 504 00, VW 502 00
Diesel enginesVW 507 00VW 507 00
Fig. 175 Marked engine
oil dipstick.
Fig. 176 In the engine
compartment: Engine oil
filler cap.

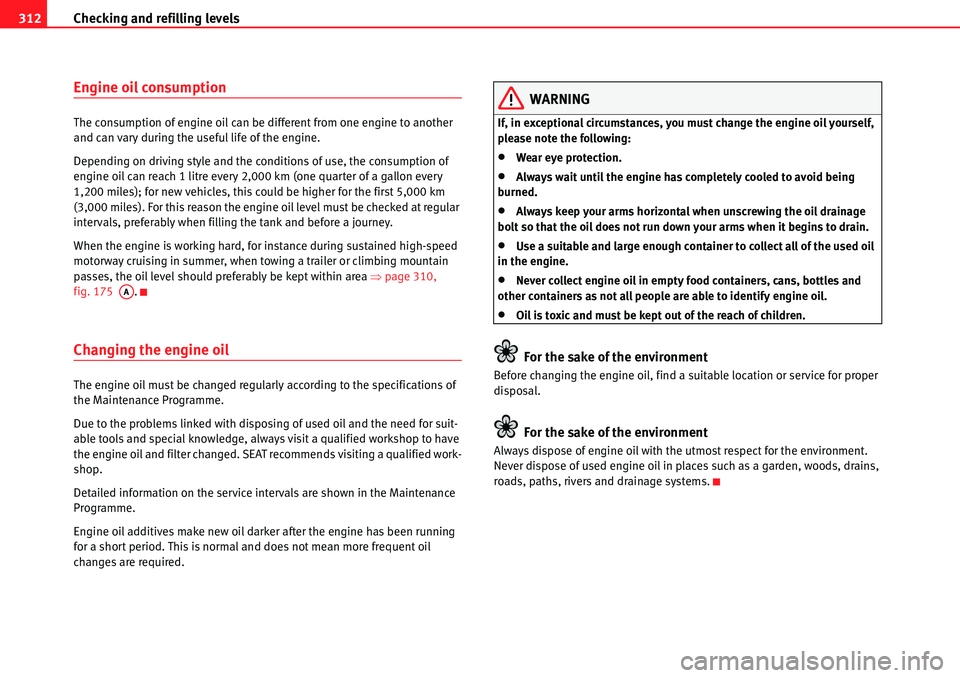

Checking and refilling levels 312
Engine oil consumption
The consumption of engine oil can be different from one engine to another
and can vary during the useful life of the engine.
Depending on driving style and the conditions of use, the consumption of
engine oil can reach 1 litre every 2,000 km (one quarter of a gallon every
1,200 miles); for new vehicles, this could be higher for the first 5,000 km
(3,000 miles). For this reason the engine oil level must be checked at regular
intervals, preferably when filling the tank and before a journey.
When the engine is working hard, for instance during sustained high-speed
motorway cruising in summer, when towing a trailer or climbing mountain
passes, the oil level should preferably be kept within area Ÿpage 310,
fig. 175 .
Changing the engine oil
The engine oil must be changed regularly according to the specifications of
the Maintenance Programme.
Due to the problems linked with disposing of used oil and the need for suit-
able tools and special knowledge, always visit a qualified workshop to have
the engine oil and filter changed. SEAT recommends visiting a qualified work-
shop.
Detailed information on the service intervals are shown in the Maintenance
Programme.
Engine oil additives make new oil darker after the engine has been running
for a short period. This is normal and does not mean more frequent oil
changes are required.
WARNING
If, in exceptional circumstances, you must change the engine oil yourself,
please note the following:
xWear eye protection.
xAlways wait until the engine has completely cooled to avoid being
burned.
xAlways keep your arms horizontal when unscrewing the oil drainage
bolt so that the oil does not run down your arms when it begins to drain.
xUse a suitable and large enough container to collect all of the used oil
in the engine.
xNever collect engine oil in empty food containers, cans, bottles and
other containers as not all people are able to identify engine oil.
xOil is toxic and must be kept out of the reach of children.
For the sake of the environment
Before changing the engine oil, find a suitable location or service for proper
disposal.
For the sake of the environment
Always dispose of engine oil with the utmost respect for the environment.
Never dispose of used engine oil in places such as a garden, woods, drains,
roads, paths, rivers and drainage systems.
AA

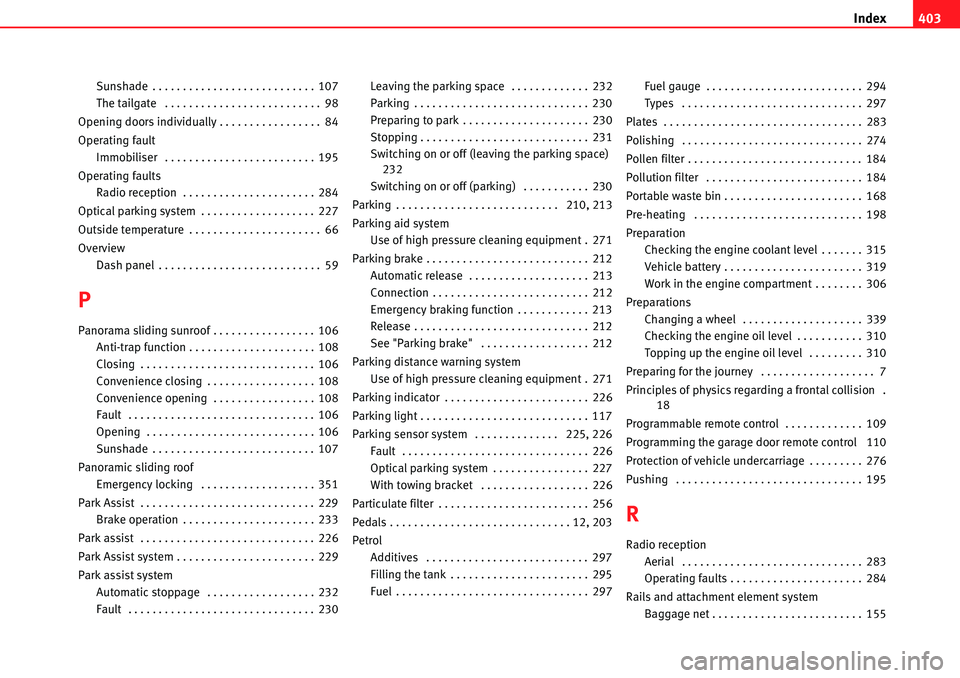

Index403
