Lights and visibility

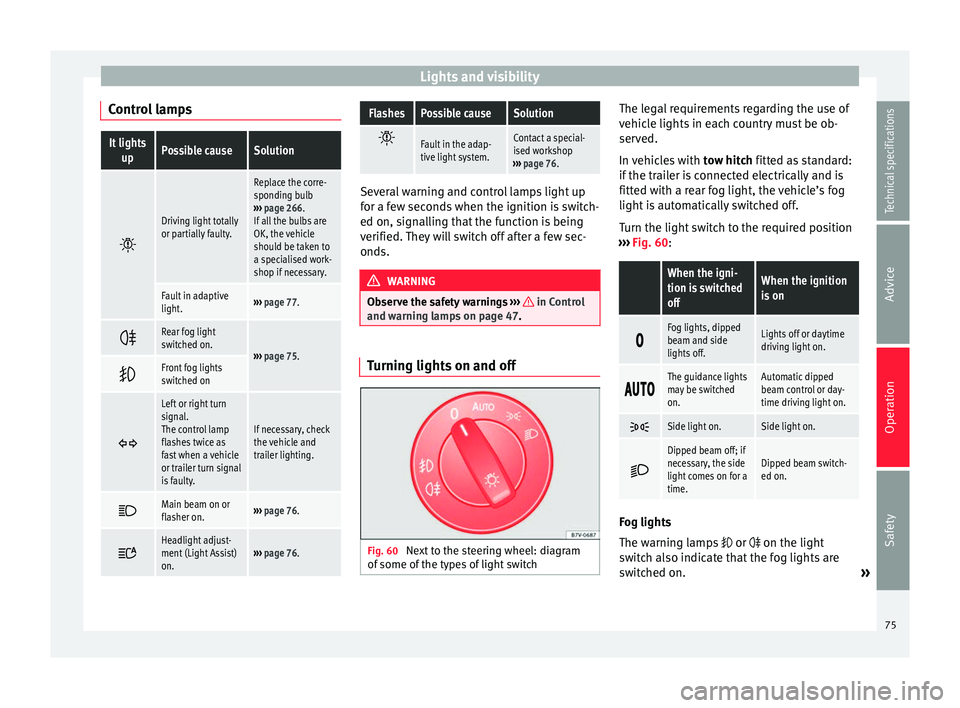

Control lampsIt lights upPossible causeSolution 
Driving light totally
or partially faulty.
Replace the corre-
sponding bulb
››› page 266.
If all the bulbs are
OK, the vehicle
should be taken to
a specialised work-
shop if necessary.
Fault in adaptive
light.››› page 77. 
Rear fog light
switched on.
›››
page 75. Front fog lights
switched on

Left or right turn
signal.
The control lamp
flashes twice as
fast when a vehicle
or trailer turn signal
is faulty.
If necessary, check
the vehicle and
trailer lighting.

Main beam on or
flasher on.›››
page 76. 
Headlight adjust-
ment (Light Assist)
on.›››
page 76.
FlashesPossible causeSolution 
Fault in the adap-
tive light system.Contact a special-
ised workshop
››› page 76. Several warning and control lamps light up
for a few seconds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds.
WARNING
Observe the safety warnings ››› in Control
and warning lamps on page 47. Turning lights on and off
Fig. 60
Next to the steering wheel: diagram
of some of the types of light switch The legal requirements regarding the use of
vehicle lights in each country must be ob-
served.
In vehicles with
tow hitch fitted as standard:
if the trailer is connected electrically and is
fitted with a rear fog light, the vehicle’s fog
light is automatically switched off.
Turn the light switch to the required position
››› Fig. 60 :
When the igni-
tion is switched
offWhen the ignition
is on 
Fog lights, dipped
beam and side
lights off.Lights off or daytime
driving light on.

The guidance lights
may be switched
on.Automatic dipped
beam control or day-
time driving light on.

Side light on.Side light on.

Dipped beam off; if
necessary, the side
light comes on for a
time.Dipped beam switch-
ed on.
Fog lights
The warning lamps
 or  on the light
switch also indicate that the fog lights are
switched on. »
75
Technical specifications
Advice
Operation
Safety

Advice

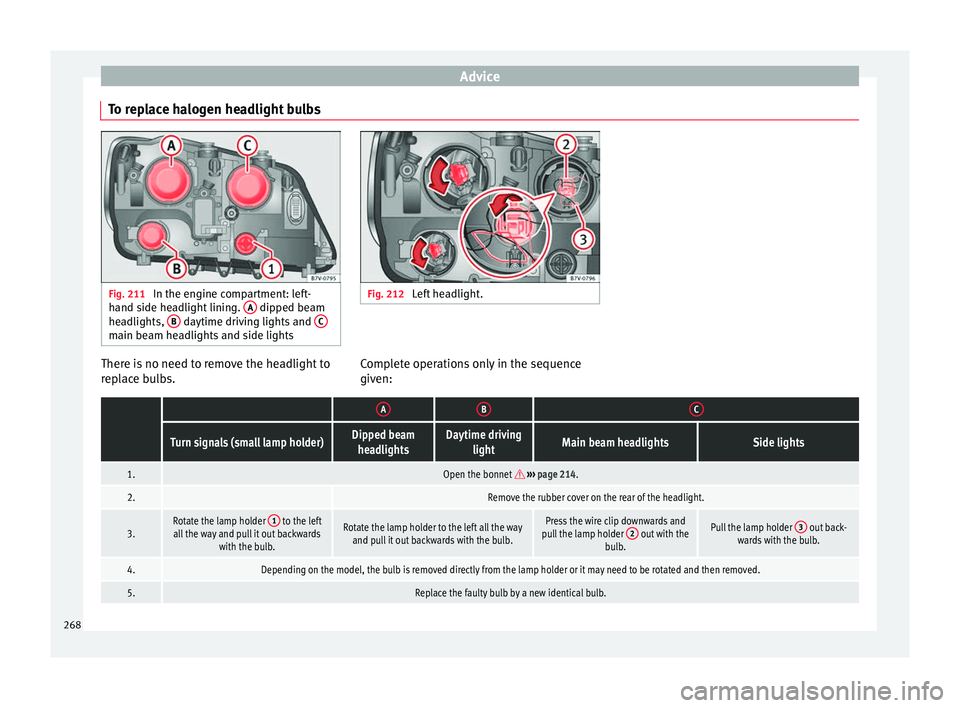

To replace halogen headlight bulbs Fig. 211
In the engine compartment: left-
hand side headlight lining. A dipped beam
headlights, B daytime driving lights and
Cmain beam headlights and side lights Fig. 212
Left headlight. There is no need to remove the headlight to
replace bulbs.
Complete operations only in the sequence
given:
ABC
Turn signals (small lamp holder)Dipped beam
headlightsDaytime driving lightMain beam headlightsSide lights
1.Open the bonnet  ››› page 214.
2. Remove the rubber cover on the rear of the headlight.
3.Rotate the lamp holder 1 to the left
all the way and pull it out backwards with the bulb.Rotate the lamp holder to the left all the wayand pull it out backwards with the bulb.Press the wire clip downwards and
pull the lamp holder 2 out with the
bulb.Pull the lamp holder 3 out back-
wards with the bulb.
4.Depending on the model, the bulb is removed directly from the lamp holder or it may need to be rotated and then removed.
5.Replace the faulty bulb by a new identical bulb. 268

Fuses and bulbs
ABC
Turn signals (small lamp holder)Dipped beam
headlightsDaytime driving lightMain beam headlightsSide lights
6.Place the bulb holder in the headlight and rotate to the right all the way.Place the lamp holder in the head-
light and pull the wire clip upwards until it clicks into place.Place the lamp holder in the head-light and insert completely.
7. Insert the rubber cover. Note
The images show the left hand headlight
from behind. The structure of the right hand
side headlight is symmetric. To replace the xenon headlights bulb
Fig. 213
In the engine compartment: turn sig-
nal indicator cover. Fig. 214
Turn signal lamp holder 1 and turn-
ing light 2 There is no need to remove the headlight to
replace bulbs.
Complete operations only in the sequence
given:
Turn signals
1Turning lights 2
1.Open the bonnet 
››› page 214.
2.Rotate the cover ››› Fig. 213 in the direction of the
arrow and remove it.
Turn signals 1Turning lights 2
3.
Rotate the lamp holder
1 ››› Fig. 214 to the
left all the way and pull
it out backwards with
the bulb.Press the wire clip
downwards and pull the
lamp holder 2
›››
Fig. 214 out with the
bulb.
4.Depending on the model, the bulb is removed di-
rectly from the lamp holder or it may need to be ro- tated and then removed.
5.Replace the faulty bulb by a new identical bulb.
6.
Place the bulb holder in
the headlight and ro-
tate to the right all the
way.Place the lamp holder
in the headlight and
pull the wire clip up-
wards until it clicks into
place.
7.Rotate the cover ››› Fig. 213 in the opposite direc-
tion to the arrow as far as it will go. Always seek the help of a specialist when
changing the Xenon dipped beam and main
beam headlamps
››› in Introduction on
page 267. »
269
Technical specifications
Advice
Operation
Safety

Advice
Note
The illustrations show the left hand head-
light. The structure of the right hand side

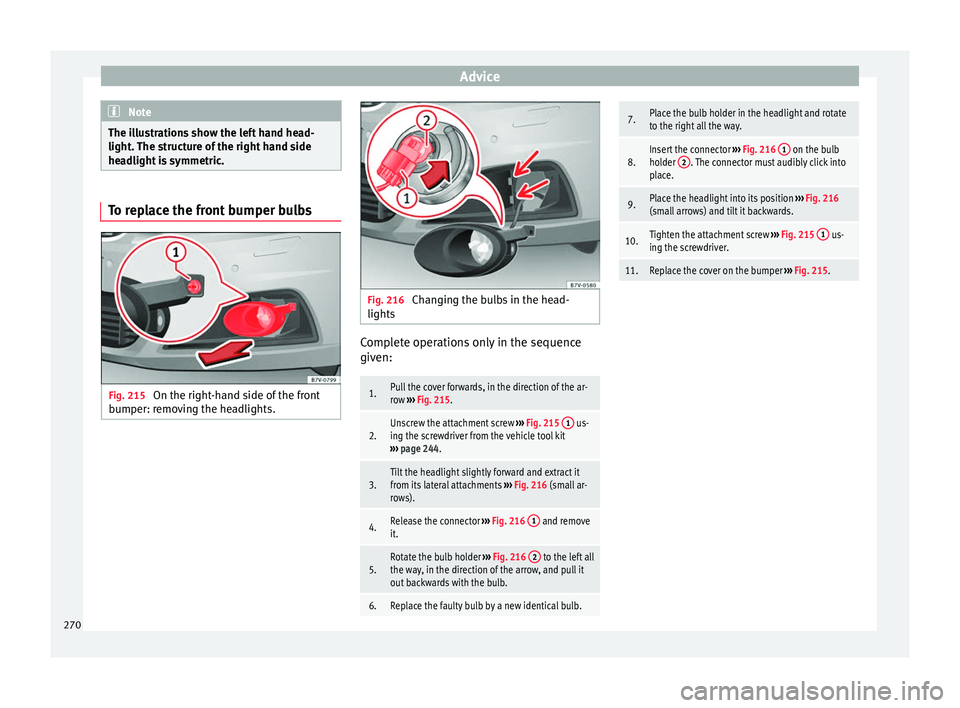

headlight is symmetric. To replace the front bumper bulbs
Fig. 215
On the right-hand side of the front
bumper: removing the headlights. Fig. 216
Changing the bulbs in the head-
lights Complete operations only in the sequence
given:1.Pull the cover forwards, in the direction of the ar-
row
››› Fig. 215.
2.Unscrew the attachment screw ››› Fig. 215 1 us-
ing the screwdriver from the vehicle tool kit
››› page 244.
3.Tilt the headlight slightly forward and extract it
from its lateral attachments ››› Fig. 216 (small ar-
rows).
4.Release the connector ››› Fig. 216 1 and remove
it.
5.Rotate the bulb holder ››› Fig. 216 2 to the left all
the way, in the direction of the arrow, and pull it
out backwards with the bulb.
6.Replace the faulty bulb by a new identical bulb.
7.Place the bulb holder in the headlight and rotate
to the right all the way.
8.Insert the connector ››› Fig. 216 1 on the bulb
holder 2. The connector must audibly click into
place.
9.Place the headlight into its position ››› Fig. 216
(small arrows) and tilt it backwards.
10.Tighten the attachment screw ››› Fig. 215 1 us-
ing the screwdriver.
11.Replace the cover on the bumper ››› Fig. 215. 270

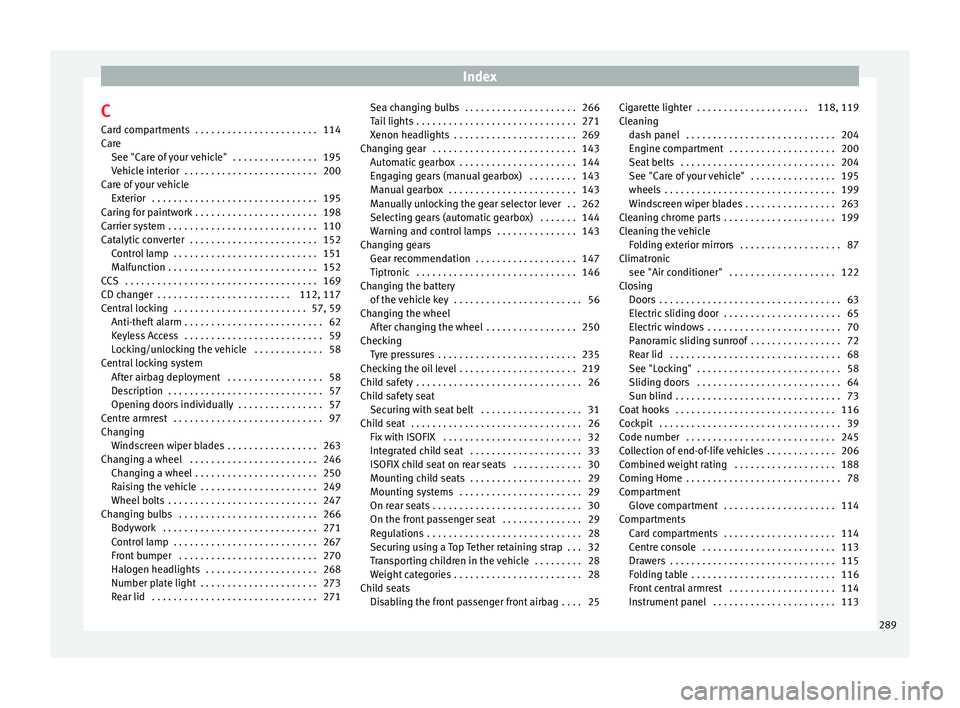

Index
