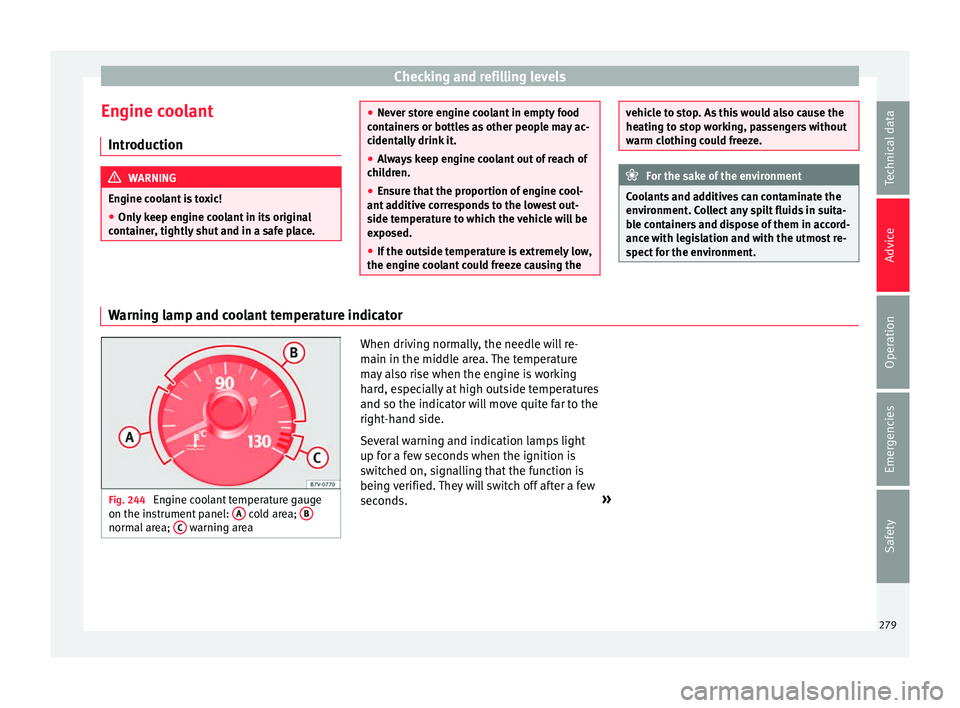

Checking and refilling levels
Engine coolant Intr oduction WARNING
Engine coolant is toxic!
● Only keep engine coolant in its original
cont ainer
, tightly shut and in a safe place. ●
Never s t

ore engine coolant in empty food
containers or bottles as other people may ac-
cidentally drink it.
● Always keep engine coolant out of reach of
chil
dren.
● Ensure that the proportion of engine cool-
ant ad
ditive corresponds to the lowest out-
side temperature to which the vehicle will be
exposed.
● If the outside temperature is extremely low,
the engine coo
lant could freeze causing the vehicle to stop. As this would also cause the
heatin
g t

o stop working, passengers without
warm clothing could freeze. For the sake of the environment
Coolants and additives can contaminate the
en vir

onment. Collect any spilt fluids in suita-
ble containers and dispose of them in accord-
ance with legislation and with the utmost re-
spect for the environment. Warning lamp and coolant temperature indicator
Fig. 244
Engine coolant temperature gauge
on the ins trument

panel: A cold area;
B normal area;
C warning area When driving normally, the needle will re-
m
ain in the mid
dl

e area. The temperature
may also rise when the engine is working
hard, especially at high outside temperatures
and so the indicator will move quite far to the
right-hand side.
Several warning and indication lamps light
up for a few seconds when the ignition is
switched on, signalling that the function is
being verified. They will switch off after a few
seconds. »
279
Technical data
Advice
Operation
Emergencies
Safety

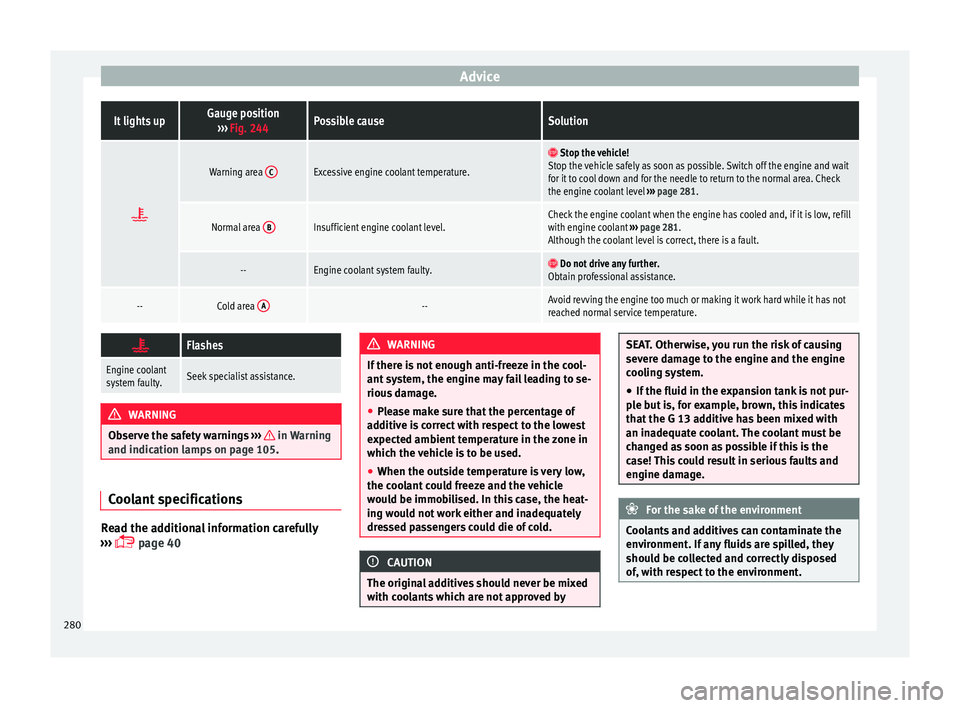

AdviceIt lights upGauge position
››› Fig. 244Possible causeSolution 
Warning area
CExcessive engine coolant temperature. 
Stop the vehicle!
Stop the vehicle safely as soon as possible. Switch off the engine and wait
for it to cool down and for the needle to return to the normal area. Check
the engine coolant level ››› page 281.
Normal area BInsufficient engine coolant level.Check the engine coolant when the engine has cooled and, if it is low, refill
with engine coolant
››› page 281.
Although the coolant level is correct, there is a fault.
--Engine coolant system faulty.  Do not drive any further.
Obtain professional assistance.
--Cold area A--Avoid revving the engine too much or making it work hard while it has not
reached normal service temperature. 
Flashes
Engine coolant
system faulty.Seek specialist assistance.
WARNING
Observe the safety warnings ›››
in Warning
and indication l amp
s on page 105. Coolant specifications
Read the additional information carefully
› ››

 page 40 WARNING
If there is not enough anti-freeze in the cool-
ant sy s

tem, the engine may fail leading to se-
rious damage.
● Please make sure that the percentage of
additiv
e is correct with respect to the lowest
expected ambient temperature in the zone in
which the vehicle is to be used.
● When the outside temperature is very low,
the cool
ant could freeze and the vehicle
would be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold. CAUTION
The original additives should never be mixed
with c oo

lants which are not approved by SEAT. Otherwise, you run the risk of causing
sever
e d

amage to the engine and the engine
cooling system.
● If the fluid in the expansion tank is not pur-
ple b
ut is, for example, brown, this indicates
that the G 13 additive has been mixed with
an inadequate coolant. The coolant must be
changed as soon as possible if this is the
case! This could result in serious faults and
engine damage. For the sake of the environment
Coolants and additives can contaminate the
en vir

onment. If any fluids are spilled, they
should be collected and correctly disposed
of, with respect to the environment. 280

Checking and refilling levels

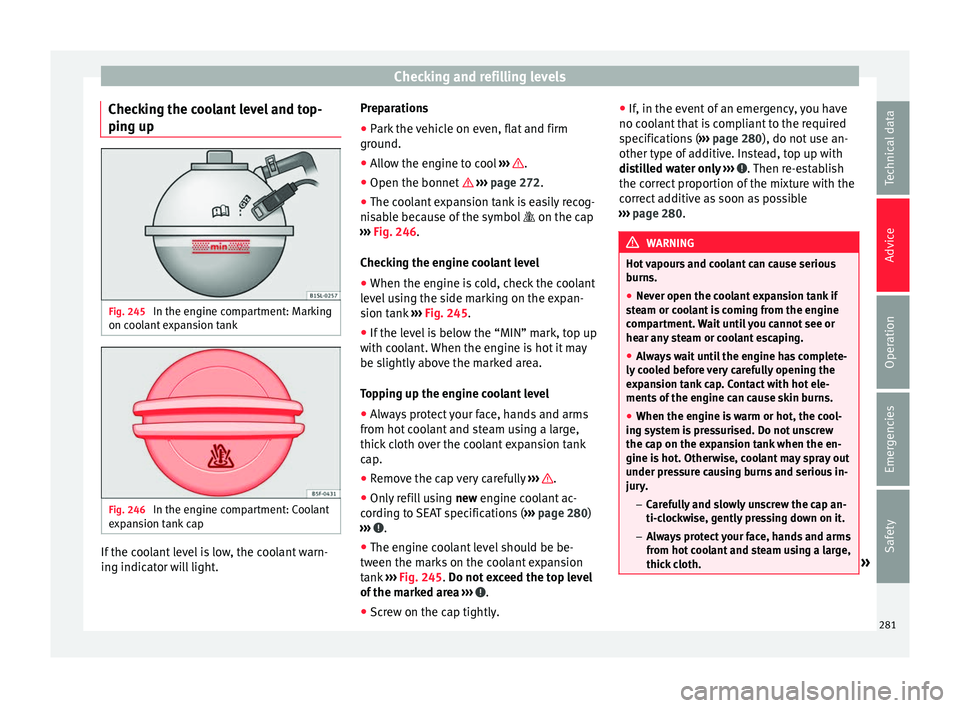

Checking the coolant level and top-
pin g up Fig. 245
In the engine compartment: Marking
on c oo
l
ant expansion tank Fig. 246
In the engine compartment: Coolant
e xp
an

sion tank cap If the coolant level is low, the coolant warn-
in
g indic
at

or will light. Preparations
● Park the vehicle on even, flat and firm
ground.
● A

llow the engine to cool ›››
.
● Open the bonnet  › ›
›
page 272.
● The coolant expansion tank is easily recog-
nisab
le because of the symbol  on the cap
››› Fig. 246.
Checking the engine coolant level ● When the engine is cold, check the coolant
level
using the side marking on the expan-
sion tank ››› Fig. 245.
● If the level is below the “MIN” mark, top up
with coo
lant. When the engine is hot it may
be slightly above the marked area.
Topping up the engine coolant level
● Always protect your face, hands and arms
from hot c
oolant and steam using a large,
thick cloth over the coolant expansion tank
cap.
● Remove the cap very carefully ›››
.
● Only refill using new engine c
oo
lant ac-
cording to SEAT specifications ( ››› page 280)
››› .
● The engine coolant level should be be-
tw een the m
ark

s on the coolant expansion
tank ››› Fig. 245. Do not exceed the top level
of the marked area ››› .
● Screw on the cap tightly. ●
If, in the ev
ent

of an emergency, you have
no coolant that is compliant to the required
specifications ( ››› page 280), do not use an-
other type of additive. Instead, top up with
distilled water only ››› . Then re-establish
the c orr
ect

proportion of the mixture with the
correct additive as soon as possible
››› page 280. WARNING
Hot vapours and coolant can cause serious
burn s.
● Nev

er open the coolant expansion tank if
ste
am or coolant is coming from the engine
compartment. Wait until you cannot see or
hear any steam or coolant escaping.
● Always wait until the engine has complete-
ly coo
led before very carefully opening the
expansion tank cap. Contact with hot ele-
ments of the engine can cause skin burns.
● When the engine is warm or hot, the cool-
ing sys
tem is pressurised. Do not unscrew
the cap on the expansion tank when the en-
gine is hot. Otherwise, coolant may spray out
under pressure causing burns and serious in-
jury.
– Carefully and slowly unscrew the cap an-
ti-clockwise, gently pressing down on it.
– Always protect your face, hands and arms
from hot coolant and steam using a large,
thick cloth. » 281
Technical data
Advice
Operation
Emergencies
Safety

Advice

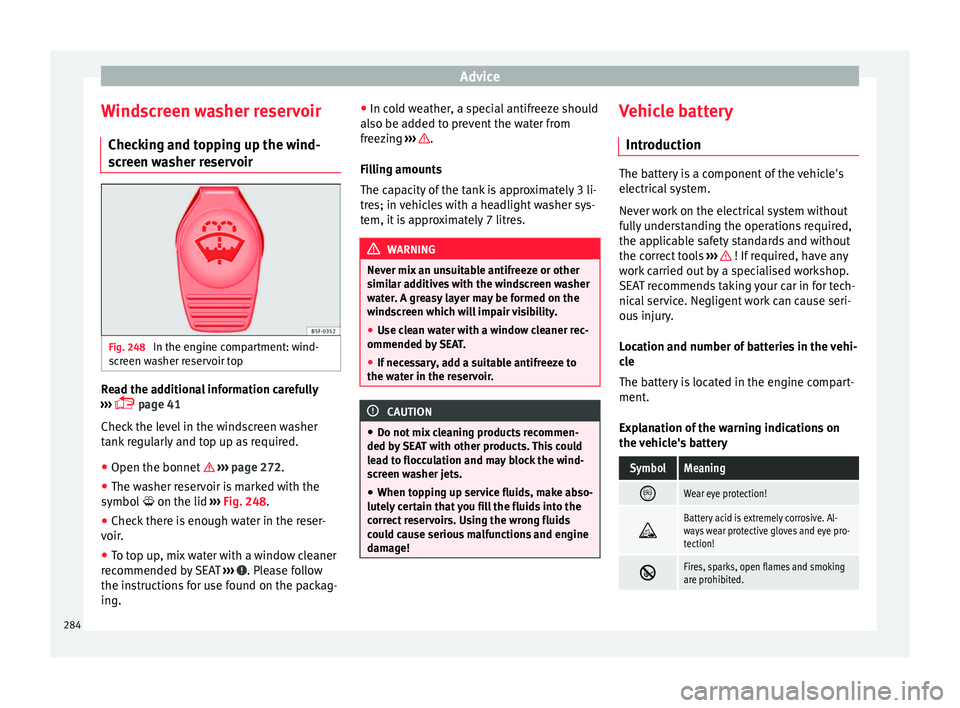

Windscreen washer reservoir Chec k
in
g and topping up the wind-
screen washer reservoir Fig. 248
In the engine compartment: wind-
s c
r

een washer reservoir top Read the additional information carefully
› ›
›

 page 41
Check the level in the windscreen washer
tank regularly and top up as required.
● Open the bonnet  ›››
page 272.
● The washer reservoir is marked with the
symbol 

on the lid ››› Fig. 248.
● Check there is enough water in the reser-
voir.
● T

o top up, mix water with a window cleaner
recommended b
y SEAT ››› . Please follow
the in struction
s for use found on the packag-
ing. ●
In col
d weather, a special antifreeze should
also be added to prevent the water from
freezing ››› .
Fi l
lin

g amounts
The capacity of the tank is approximately 3 li-
tres; in vehicles with a headlight washer sys-
tem, it is approximately 7 litres. WARNING
Never mix an unsuitable antifreeze or other
simi l

ar additives with the windscreen washer
water. A greasy layer may be formed on the
windscreen which will impair visibility.
● Use clean water with a window cleaner rec-
ommended by
SEAT.
● If necessary, add a suitable antifreeze to
the water in the r
eservoir. CAUTION
● Do not mi x

cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely c
ertain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage! Vehicle battery
Intr oduction The battery is a component of the vehicle's
electric
al

system.
Never work on the electrical system without
fully understanding the operations required,
the applicable safety standards and without
the correct tools ››› ! If required, have any
work c

arried out by a specialised workshop.
SEAT recommends taking your car in for tech-
nical service. Negligent work can cause seri-
ous injury.
Location and number of batteries in the vehi-
cle
The battery is located in the engine compart-
ment.
Explanation of the warning indications on
the vehicle's battery
SymbolMeaning 
Wear eye protection!

Battery acid is extremely corrosive. Al-
ways wear protective gloves and eye pro-
tection!

Fires, sparks, open flames and smoking
are prohibited.
284

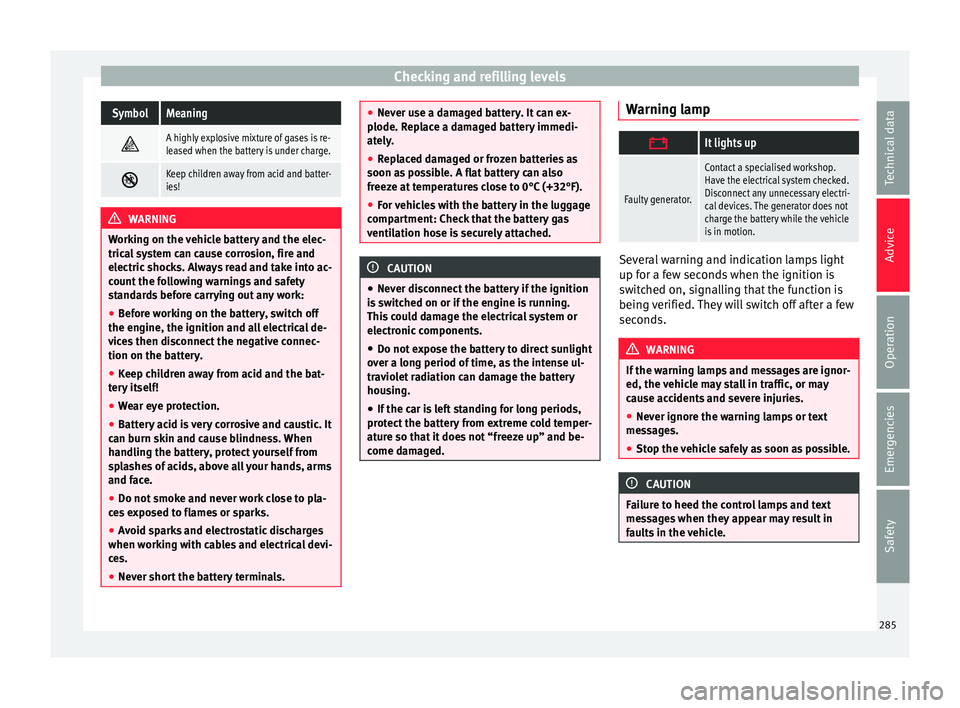

Checking and refilling levelsSymbolMeaning

A highly explosive mixture of gases is re-
leased when the battery is under charge.

Keep children away from acid and batter-
ies!
WARNING
Working on the vehicle battery and the elec-
trica l

system can cause corrosion, fire and
electric shocks. Always read and take into ac-
count the following warnings and safety
standards before carrying out any work:
● Before working on the battery, switch off
the engine, the ignition and al
l electrical de-
vices then disconnect the negative connec-
tion on the battery.
● Keep children away from acid and the bat-
tery
itself!
● Wear eye protection.
● Battery acid is very corrosive and caustic. It
can burn sk
in and cause blindness. When
handling the battery, protect yourself from
splashes of acids, above all your hands, arms
and face.
● Do not smoke and never work close to pla-
ces
exposed to flames or sparks.
● Avoid sparks and electrostatic discharges
when workin
g with cables and electrical devi-
ces.
● Never short the battery terminals. ●
Never u se a d

amaged battery. It can ex-
plode. Replace a damaged battery immedi-
ately.
● Replaced damaged or frozen batteries as
soon as po
ssible. A flat battery can also
freeze at temperatures close to 0°C (+32°F).
● For vehicles with the battery in the luggage
compar
tment: Check that the battery gas
ventilation hose is securely attached. CAUTION
● Nev er di s

connect the battery if the ignition
is switched on or if the engine is running.
This could damage the electrical system or
electronic components.
● Do not expose the battery to direct sunlight
over a lon
g period of time, as the intense ul-
traviolet radiation can damage the battery
housing.
● If the car is left standing for long periods,
protect
the battery from extreme cold temper-
ature so that it does not “freeze up” and be-
come damaged. Warning lamp

It lights up
Faulty generator.
Contact a specialised workshop.
Have the electrical system checked.
Disconnect any unnecessary electri-
cal devices. The generator does not
charge the battery while the vehicle
is in motion.
Several warning and indication lamps light
up for a f
ew sec

onds when the ignition is
switched on, signalling that the function is
being verified. They will switch off after a few
seconds. WARNING
If the warning lamps and messages are ignor-
ed, the v ehic

le may stall in traffic, or may
cause accidents and severe injuries.
● Never ignore the warning lamps or text
mess
ages.
● Stop the vehicle safely as soon as possible. CAUTION
Failure to heed the control lamps and text
mes s

ages when they appear may result in
faults in the vehicle. 285
Technical data
Advice
Operation
Emergencies
Safety

Advice
Checking the electrolyte level of the
v ehic
l
e battery Fig. 249
In the engine compartment: remove
the lid fr om the
v

ehicle's battery. Fig. 250
In the engine compartment: lift off
the c o
v

er from the vehicle's battery. Read the additional information carefully
› ›
›

 page 41
The battery's electrolyte level should be
checked regularly in high-mileage vehicles, in hot countries and in older batteries. Other
batterie

s do not require maintenance.
Start-Stop systems ( ››› page 209) are equip-
ped with a special battery labelled “AGM”.
For technical reasons, it is not possible to
check the electrolyte level of these batteries
Preparations
● Prepare the vehicle for work in the engine
compar
tment ››› page 272
● Open the bonnet  ›››
page 272.
Opening the battery cover
The battery covers are different depending on
the engine size of the vehicle:
● In the case of a lid: pres
s the tab ››› Fig. 249
A in the direction of the arrow and pull the
c o
v
er upwards.
● In the case of a cover: fol
d the cover to one
side to remove ››› Fig. 250.
Checking the battery electrolyte level
● Make sure there is sufficient lighting to
cle
arly recognise the colours. Never use
flames or flashing objects as a light source.
● Depending on the level of acid, the Magic
eye on the top of
the battery will change col-
our.
Colour in-
dicatorNecessary operations
Light yellow
or ColourlessThe electrolyte level of the vehicle's bat-
tery is too low. Have the battery checked
and, where applicable, replaced by a
specialised workshop.
BlackThe electrolyte level of the vehicle's bat-
tery is correct. WARNING
Working with the vehicle battery involves a
risk of

corrosion, explosions or electric
shock.
● Never tilt the vehicle battery. Battery acid
coul
d spill out of the openings for the release
of gases and cause corrosion damage.
● Never open the vehicle battery.
● If battery acid splashes on you, immediate-
ly rinse
your eyes and skin abundantly with
water for several minutes. Then seek medical
care immediately.
● If acid is swallowed by mistake, consult a
doctor immediat
ely. Charging, replacing and connecting or
di
s
c

onnecting the battery Charging the battery
The
vehic

le battery should be charged by a
specialised workshop only, as batteries us-
ing special technology have been installed
286

Checking and refilling levels

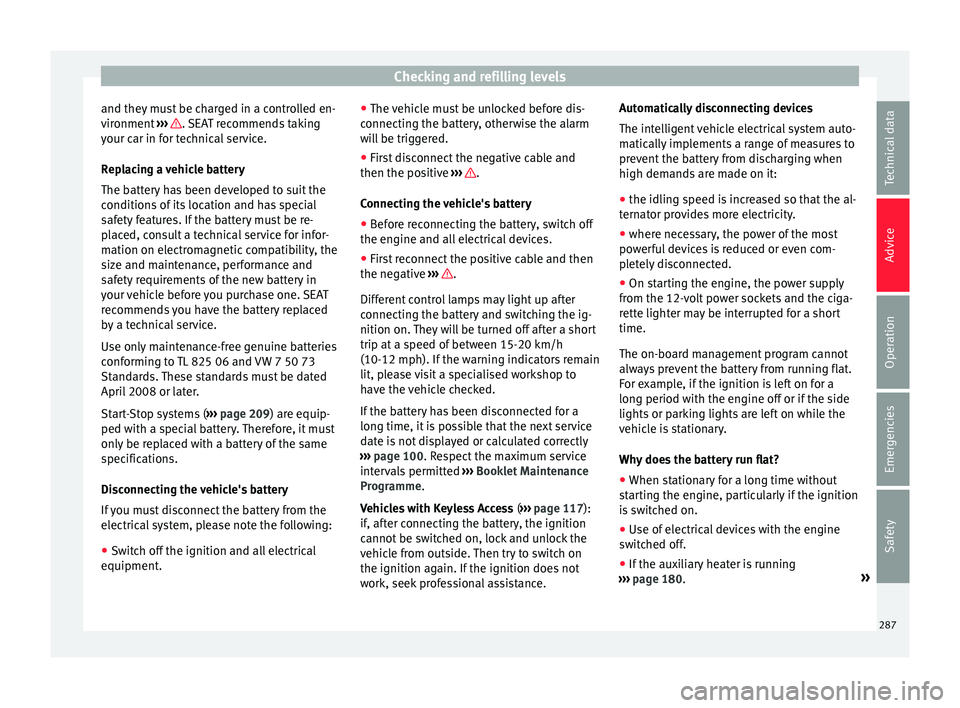

and they must be charged in a controlled en-
v ir
onment
››› . SEAT recommends taking
y our c
ar in f
or technical service.
Replacing a vehicle battery
The battery has been developed to suit the
conditions of its location and has special
safety features. If the battery must be re-
placed, consult a technical service for infor-
mation on electromagnetic compatibility, the
size and maintenance, performance and
safety requirements of the new battery in
your vehicle before you purchase one. SEAT
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Start-Stop systems ( ››› page 209) are equip-
ped with a special battery. Therefore, it must
only be replaced with a battery of the same
specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment. ●
The vehic le must be unlocked before dis-
connecting the battery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positiv
e ››› .
C onnectin
g the
vehicle's battery
● Before reconnecting the battery, switch off
the engine and all
electrical devices.
● First reconnect the positive cable and then
the negativ
e ››› .
Diff er
ent
control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short
trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 100. Respect the maximum service
intervals permitted ››› Booklet Maintenance
Programme.
Vehicles with Keyless Access (››› page 117):
if, after connecting the battery, the ignition
cannot be switched on, lock and unlock the
vehicle from outside. Then try to switch on
the ignition again. If the ignition does not
work, seek professional assistance. Automatically disconnecting devices
The intellig

ent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● the idling speed is increased so that the al-
ternat
or provides more electricity.
● where necessary, the power of the most
power
ful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-v
olt power sockets and the ciga-
rette lighter may be interrupted for a short
time.
The on-board management program cannot
always prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary.
Why does the battery run flat?
● When stationary for a long time without
star
ting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switc
hed off.
● If the auxiliary heater is running
›››
page 180. »
287
Technical data
Advice
Operation
Emergencies
Safety

Index
Central locking system . . . . . . . . . . . . . . . . . . . . . 114 aft
er airb
ag deployment . . . . . . . . . . . . . . . . . 115
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 119
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Emergency locking and unlocking . . . . . . . . . . . . 9
keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 117
opening doors individually . . . . . . . . . . . . . . . 115
remote control key . . . . . . . . . . . . . . . . . . . . . . 115
Centre armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 45, 84 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . 49
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
halogen headlights . . . . . . . . . . . . . . . . . . . . . . 92
number plate light . . . . . . . . . . . . . . . . . . . . . . . 97
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
xenon headlights . . . . . . . . . . . . . . . . . . . . . . . . 93
Changing gear Control and warning lamps . . . . . . . . . . . . . . . 195
Changing gears automatically . . . . . . . . . . . . . . . 196
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 87
Changing windscreen wipers . . . . . . . . . . . . . . . . 54
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 51
Checking tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . 275
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 deactivating the passenger front airbag . . . . . . 18
disabling the front passenger front airbag . . . . 73
integrated child seat . . . . . . . . . . . . . . . . . . . . . 78
in the passenger seat . . . . . . . . . . . . . . . . . . . . . 76
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 mounting systems . . . . . . . . . . . . . . . . . . . . . . . 22
on rear se
ats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
safety instructions . . . . . . . . . . . . . . . . . . . . 20, 75
securing with seat belt . . . . . . . . . . . . . . . . . . . . 22
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 23
transporting children in the vehicle . . . . . . . . . 75
weight categories . . . . . . . . . . . . . . . . . . . . . . . . 76
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 172, 173
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253 compartments . . . . . . . . . . . . . . . . . . . . . . . . . 262
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
engine compartment . . . . . . . . . . . . . . . . . . . . 258
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
folding the rear view mirrors . . . . . . . . . . . . . . 142
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 261
seatbelts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
synthetic leather . . . . . . . . . . . . . . . . . . . . . . . . 261
textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 253
Washing the vehicle with high pressure clean-ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Cleaning the vehicle high pressure cleaners . . . . . . . . . . . . . . . . . . . 255
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 176
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
luggage compartment . . . . . . . . . . . . . . . 10, 125
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 12
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 83
Combined weight rating . . . . . . . . . . . . . . . . . . . 245 Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Compar
tments
centre console . . . . . . . . . . . . . . . . . . . . . . . . . 167
Front central armrest . . . . . . . . . . . . . . . . . . . . 168
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Connectors faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Consumption how it is determined . . . . . . . . . . . . . . . . . . . . 269
information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Control and warning lamps Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . 195
for the seat belt . . . . . . . . . . . . . . . . . . . . . . . . . 62
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Lane Assist system . . . . . . . . . . . . . . . . . . . . . . 223
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Control of function rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Controls on the steering wheel operating the audio system . . . . . . . . . . . . . . . 107
operating the audio system and telephone . . 108
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 reprogramming . . . . . . . . . . . . . . . . . . . . . . . . . 250
Convenience closing windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Convenience functions Reprogramming . . . . . . . . . . . . . . . . . . . . . . . . 250
Convenience opening windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Convenient entry function for the third row of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Cooling system checking the coolant . . . . . . . . . . . . . . . . . . . . 279
topping up with coolant . . . . . . . . . . . . . . . . . . 279
309

Index
Electronic drive torque management (XDS) . . . . 206
El ectr
onic
immobiliser . . . . . . . . . . . . . . . . . . . . . 189
operating fault . . . . . . . . . . . . . . . . . . . . . . . . . 185
Electronic Stability Control (ESC) . . . . . . . . . . . . 205
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 45
emergency towing of the vehicle . . . . . . . . . . . . 50
extinguishers . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Hazard warning lights . . . . . . . . . . . . . . . . . . . 134
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 43
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 82
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . 82
Emergency braking function . . . . . . . . . . . . . . . . 192
Emergency locking and unlocking . . . . . . . . . . . . 89 driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
panoramic sliding sunroof . . . . . . . . . . . . . . . . . 12
Passenger side door . . . . . . . . . . . . . . . . . . . . . . . 9
Emergency locking of the doors . . . . . . . . . . . . . . . 9
Emergency unlocking boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Emergency unlocking the boot hatch boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emergency warning triangle . . . . . . . . . . . . . . . . 134
Emission control system warning and indication lamps . . . . . . . . . . . . . 202
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 51
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . 185
12 vo lt power sockets . . . . . . . . . . . . . . . . . . . 173
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
starting the engine . . . . . . . . . . . . . . . . . 185, 187
starting the engine with Keyless Access . . . . . 186
stopping the engine . . . . . . . . . . . . . . . . . . . . . 188
unauthorised vehicle key . . . . . . . . . . . . . . . . . 185
Engine bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Engine compartment . . . . . . . . . . . . . . . . . . 11, 272 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 284
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 41, 282
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 279
engine oil . . . . . . . . . . . . . . . . . . . . . 39, 276, 278
opening and closing . . . . . . . . . . . . . . . . . . . . 274
windscreen washer reservoir . . . . . . . . . . 41, 284
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 checking the level . . . . . . . . . . . . . . . . . . 279, 281
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . 40, 280
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 40
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 280
specifications . . . . . . . . . . . . . . . . . . . . . . 40, 280
tank filler neck . . . . . . . . . . . . . . . . . . . . . . . . . 281
temperature indicator . . . . . . . . . . . . . . . . . . . 279
topping-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
warning and indication lamps . . . . . . . . . . . . . 279
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Engine management . . . . . . . . . . . . . . . . . . . . . . 202 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 276 checking oil level . . . . . . . . . . . . . . . . . . . . . . . 277
consumption . . . . . . . . . . . . . . . . . . . . . . 277, 278
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 276
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
warning and indication lamps . . . . . . . . . . . . . 276 Environment
ecologic al driving . . . . . . . . . . . . . . . . . . . . . . . 200
Environmental compatibility . . . . . . . . . . . . . . 200
Environmental tip refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
ESC electronic stability control . . . . . . . . . . . . . . . . 205
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . 250
Exhaust gas purification system . . . . . . . . . . . . . 202
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Exterior rear view mirrors control of the function . . . . . . . . . . . . . . . . . . . 142
electric exterior mirrors . . . . . . . . . . . . . . . . . . 142
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
folding the rear view mirrors . . . . . . . . . . . . . . 142
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
Extinguisher driving with a trailer . . . . . . . . . . . . . . . . . . . . . 239
F Fabrics: cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 259
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Fault dynamic chassis control (DCC) . . . . . . . . . . . . 234
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . 129
Park assist system . . . . . . . . . . . . . . . . . . . . . . 215
Parking distance warning system . . . . . . . . . . 212
rear assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Fault memory connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Filling capacities AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 264, 266
311

Index
protection of vehicle undercarriage . . . . . . . . 258
rubber se al
s
. . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Special features . . . . . . . . . . . . . . . . . . . . . . . . 254
vehicle paintwork . . . . . . . . . . . . . . . . . . . . . . . 256
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Wooden trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Vehicle care products . . . . . . . . . . . . . . . . . . . . . . 253
Vehicle code Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . 298
Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . 298
Vehicle key set . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 45, 82 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Vehicle undercarriage guard . . . . . . . . . . . . . . . . . 56
Vibrations steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
W Warning and control lamp ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
adBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
blind spot detector (BSD) . . . . . . . . . . . . . . . . 225
brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 202
changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 92
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Cruise Control System (CCS) . . . . . . . . . . . . . . 221
door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
emission control system . . . . . . . . . . . . . . . . . 202
engine management . . . . . . . . . . . . . . . . . . . . 202
engine oil sensor . . . . . . . . . . . . . . . . . . . . . . . 276
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285 indication of break pad wear . . . . . . . . . . . . . . 190
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
lock
ing the steering column . . . . . . . . . . . . . . 184
overview . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 105
parking assistance (RTA) . . . . . . . . . . . . . . . . . 225
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 181
tyre monitoring indicator . . . . . . . . . . . . . . . . . 235
vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 285
windscreen washer fluid level . . . . . . . . . . . . . 137
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 253 sensors . . . . . . . . . . . . . . . . . . . . . . . . . . 211, 214
special features . . . . . . . . . . . . . . . . . . . . . . . . 254
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 84, 300 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . 45, 83, 84
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
loosen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
tightening torque . . . . . . . . . . . . . . . . . . . . . . . . 47
Wheel load capacity . . . . . . . . . . . . . . . . . . . . . . . 295
Wheel rims beadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
bolted trims . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Wheels . . . . . . . . . . . . . . . . . . . . . . . . 288, 290, 300 changing a wheel . . . . . . . . . . . . . . . . . 45, 48, 84
hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Wheels and tyres speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Wheel trim hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Windows
automatic operation . . . . . . . . . . . . . . . . . . . . . 127
automatic raising/lowering . . . . . . . . . . . . . . . 127
convenience closing . . . . . . . . . . . . . . . . . . . . . 127
convenience opening . . . . . . . . . . . . . . . . . . . . 127
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
roll-back function . . . . . . . . . . . . . . . . . . . . . . . 128
Window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Window wiper blade . . . . . . . . . . . . . . . . . . . . . . . . 26
Windscreen and rear window wiper blades . . . . . 87
Windscreen washer . . . . . . . . . . . . . . . . . . . 41, 137
Windscreen washer fluid checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Windscreen wipers . . . . . . . . . . . . . . . . . . . . 26, 137 functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
headlight washer system . . . . . . . . . . . . . . . . . 138
heated windscreen washer jets . . . . . . . . . . . . 138
lifting the wiper blade . . . . . . . . . . . . . . . . . . . . 54
rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
replacing the wiper blade . . . . . . . . . . . . . . . . . 54
service position . . . . . . . . . . . . . . . . . . . . . . . . . 54
special features . . . . . . . . . . . . . . . . . . . . . . . . 138
window wiper lever . . . . . . . . . . . . . . . . . . . . . . 137
Windscreen wipers service position . . . . . . . . . . . 54
Wing mirrors driving with a trailer . . . . . . . . . . . . . . . . . . . . . 238
Winter additional heater . . . . . . . . . . . . . . . . . . . . . . . 180
menu configuration . . . . . . . . . . . . . . . . . . . . . . 30
Winter driving Driving with a trailer . . . . . . . . . . . . . . . . . . . . . 237
filter pre-heater . . . . . . . . . . . . . . . . . . . . . . . . . 268
winter-grade diesel . . . . . . . . . . . . . . . . . . . . . 268
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
319
