Checking and refilling levels
and they must be charged in a controlled en-
v ir
onment
››› . SEAT recommends taking
y our c
ar in f
or technical service.
Replacing a vehicle battery
The battery has been developed to suit the
conditions of its location and has special
safety features. If the battery must be re-
placed, consult a technical service for infor-
mation on electromagnetic compatibility, the
size and maintenance, performance and
safety requirements of the new battery in
your vehicle before you purchase one. SEAT
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Start-Stop systems ( ››› page 207) are equip-
ped with a special battery. Therefore, it must
only be replaced with a battery of the same
specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment. ●
The vehic le must be unlocked before dis-
connecting the battery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positiv
e ››› .
C onnectin
g the
vehicle's battery
● Before reconnecting the battery, switch off
the engine and all
electrical devices.
● First reconnect the positive cable and then
the negativ
e ››› .
Diff er
ent
control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short
trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 100. Respect the maximum service
intervals permitted ››› Booklet Maintenance
Programme.
Vehicles with Keyless Access (››› page 115):
if, after connecting the battery, the ignition
cannot be switched on, lock and unlock the
vehicle from outside. Then try to switch on
the ignition again. If the ignition does not
work, seek professional assistance. Automatically disconnecting devices
The intellig

ent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● the idling speed is increased so that the al-
ternat
or provides more electricity.
● where necessary, the power of the most
power
ful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-v
olt power sockets and the ciga-
rette lighter may be interrupted for a short
time.
The on-board management program cannot
always prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary.
Why does the battery run flat?
● When stationary for a long time without
star
ting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switc
hed off.
● If the auxiliary heater is running
›››
page 177. »
283
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Technical data
T ec
hnic
al features
Important information Important The information in the vehicle documentation
alwa
y

s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s

section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly
used to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 254
Vehicle identification number. Vehicle identification number
The
v
ehic

le identification number (chassis
number) can be read from outside the vehicle through a viewer in the windscreen
›››
Fig. 254. This viewer is located in the lower
part of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
 ››› page 268.
Vehicle data plate
The vehicle data plate is attached to the lug-
gage compartment, and contains the follow-
ing information:
● Vehicle identification number (chassis
number).
● Vehicle type, engine power, gearbox type.
● Engine and gearbox code, paint number,
interior equipment.
● Option

al extras, PR numbers.
These dat
a are also provided in the Mainte-
nance Programme.
Type plate
The type plate is visible when the driver door
is opened, on the lower part of the strut. Ve-
hicles for certain export countries do not
have a type plate.
The manufacturer's type plate contains the
following data:
294

Index
tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
ty r
e pr
essures . . . . . . . . . . . . . . . . . . . . . . . . . . 288
windscreen washer bottle . . . . . . . . . . . . . . . . 253
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Driving through water . . . . . . . . . . . . . . . . . . . . . 202
Driving tips for a loaded vehicle . . . . . . . . . . . . . . . . . . . . . 150
Driving with a trailer extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
technical requirements . . . . . . . . . . . . . . . . . . 235
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Dynamic chassis control (DCC) control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Dynamic Chassis Control (DCC) . . . . . . . . . . . . . . 230 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Dynamic headlight range control . . . . . . . . . . . . 133
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 264
EDL see Electronic differential lock . . . . . . . . . . . . . 203
EDS see Braking assist systems . . . . . . . . . . . . . . . 204
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical devices . . . . . . . . . . . . . . . . 171, 181, 239
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Electric child safety lock . . . . . . . . . . . . . . . . . . . 121
Electric sliding door opening and closing . . . . . . . . . . . . . . . . . . . . 120
Electric sliding doors rollback anti-trap function . . . . . . . . . . . . . . . . 121
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Electronic differential lock . . . . . . . . . . . . . . . . . . 203
Electronic
differential lock system (EDS) . . . . . . 204
Electronic drive torque management (XDS) . . . . 204
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 186 operating fault . . . . . . . . . . . . . . . . . . . . . . . . . 182
Electronic Stability Control (ESC) . . . . . . . . . . . . 203
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 45
emergency towing of the vehicle . . . . . . . . . . . . 50
extinguishers . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
hazard warning lights . . . . . . . . . . . . . . . . . . . 132
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 43
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 82
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . 82
Emergency braking function . . . . . . . . . . . . . . . . 189
Emergency locking and unlocking . . . . . . . . . . . . 89 driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
panoramic sliding sunroof . . . . . . . . . . . . . . . . . 13
passenger side door . . . . . . . . . . . . . . . . . . . . . . . 9
Emergency unlocking boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Emergency unlocking the boot hatch boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emission control system control and warning lamps . . . . . . . . . . . . . . . 200
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 51
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . 182
12 vo lt power sockets . . . . . . . . . . . . . . . . . . . 171
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
starting the engine . . . . . . . . . . . . . . . . . 183, 185
starting the engine with Keyless Access . . . . . 184
stopping the engine . . . . . . . . . . . . . . . . . . . . . 186
unauthorised vehicle key . . . . . . . . . . . . . . . . . 183
Engine bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Engine compartment . . . . . . . . . . . . . . . . . . 11, 268 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 280
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 41, 278
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 274
engine oil . . . . . . . . . . . . . . . . . . . . . 39, 271, 274
opening and closing . . . . . . . . . . . . . . . . . . . . 270
windscreen washer reservoir . . . . . . . . . . 41, 280
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 checking the level . . . . . . . . . . . . . . . . . . 274, 277
control and warning lamps . . . . . . . . . . . . . . . 275
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 40, 276
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 276
specifications . . . . . . . . . . . . . . . . . . . . . . 40, 276
tank filler neck . . . . . . . . . . . . . . . . . . . . . . . . . 277
temperature indicator . . . . . . . . . . . . . . . . . . . 275
topping-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Engine management . . . . . . . . . . . . . . . . . . . . . . 200 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 271 checking oil level . . . . . . . . . . . . . . . . . . . . . . . 273
consumption . . . . . . . . . . . . . . . . . . . . . . 273, 274
control and warning lamps . . . . . . . . . . . . . . . 272
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 272
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
307

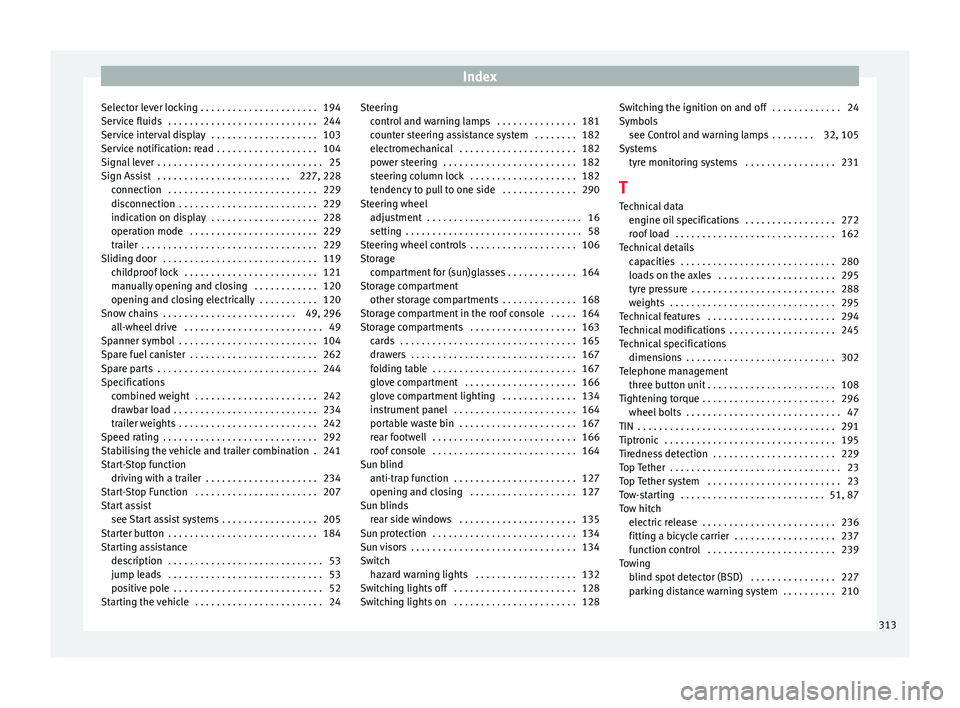

Index
Selector lever locking . . . . . . . . . . . . . . . . . . . . . . 194
Ser v
ic
e fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Service interval display . . . . . . . . . . . . . . . . . . . . 103
Service notification: read . . . . . . . . . . . . . . . . . . . 104
Signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Sign Assist . . . . . . . . . . . . . . . . . . . . . . . . . 227, 228 connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
disconnection . . . . . . . . . . . . . . . . . . . . . . . . . . 229
indication on display . . . . . . . . . . . . . . . . . . . . 228
operation mode . . . . . . . . . . . . . . . . . . . . . . . . 229
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Sliding door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . 121
manually opening and closing . . . . . . . . . . . . 120
opening and closing electrically . . . . . . . . . . . 120
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 49, 296 all-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Spare fuel canister . . . . . . . . . . . . . . . . . . . . . . . . 262
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Specifications combined weight . . . . . . . . . . . . . . . . . . . . . . . 242
drawbar load . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Stabilising the vehicle and trailer combination . 241
Start-Stop function driving with a trailer . . . . . . . . . . . . . . . . . . . . . 234
Start-Stop Function . . . . . . . . . . . . . . . . . . . . . . . 207
Start assist see Start assist systems . . . . . . . . . . . . . . . . . . 205
Starter button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Starting assistance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
positive pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 24 Steering
contro l and warning lamps . . . . . . . . . . . . . . . 181
counter steering assistance system . . . . . . . . 182
electromechanical . . . . . . . . . . . . . . . . . . . . . . 182
power steering . . . . . . . . . . . . . . . . . . . . . . . . . 182
steering column lock . . . . . . . . . . . . . . . . . . . . 182
tendency to pull to one side . . . . . . . . . . . . . . 290
Steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 106
Storage compartment for (sun)glasses . . . . . . . . . . . . . 164
Storage compartment other storage compartments . . . . . . . . . . . . . . 168
Storage compartment in the roof console . . . . . 164
Storage compartments . . . . . . . . . . . . . . . . . . . . 163 cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
glove compartment . . . . . . . . . . . . . . . . . . . . . 166
glove compartment lighting . . . . . . . . . . . . . . 134
instrument panel . . . . . . . . . . . . . . . . . . . . . . . 164
portable waste bin . . . . . . . . . . . . . . . . . . . . . . 167
rear footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
roof console . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Sun blind anti-trap function . . . . . . . . . . . . . . . . . . . . . . . 127
opening and closing . . . . . . . . . . . . . . . . . . . . 127
Sun blinds rear side windows . . . . . . . . . . . . . . . . . . . . . . 135
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 132
Switching lights off . . . . . . . . . . . . . . . . . . . . . . . 128
Switching lights on . . . . . . . . . . . . . . . . . . . . . . . 128 Switching the ignition on and off . . . . . . . . . . . . . 24
Symbol
s
see Control and warning lamps . . . . . . . . 32, 105
Systems tyre monitoring systems . . . . . . . . . . . . . . . . . 231
T Technical data engine oil specifications . . . . . . . . . . . . . . . . . 272
roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Technical details capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
loads on the axles . . . . . . . . . . . . . . . . . . . . . . 295
tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Technical features . . . . . . . . . . . . . . . . . . . . . . . . 294
Technical modifications . . . . . . . . . . . . . . . . . . . . 245
Technical specifications dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Telephone management three button unit . . . . . . . . . . . . . . . . . . . . . . . . 108
Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . 296 wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Tiredness detection . . . . . . . . . . . . . . . . . . . . . . . 229
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 51, 87
Tow hitch electric release . . . . . . . . . . . . . . . . . . . . . . . . . 236
fitting a bicycle carrier . . . . . . . . . . . . . . . . . . . 237
function control . . . . . . . . . . . . . . . . . . . . . . . . 239
Towing blind spot detector (BSD) . . . . . . . . . . . . . . . . 227
parking distance warning system . . . . . . . . . . 210
313
