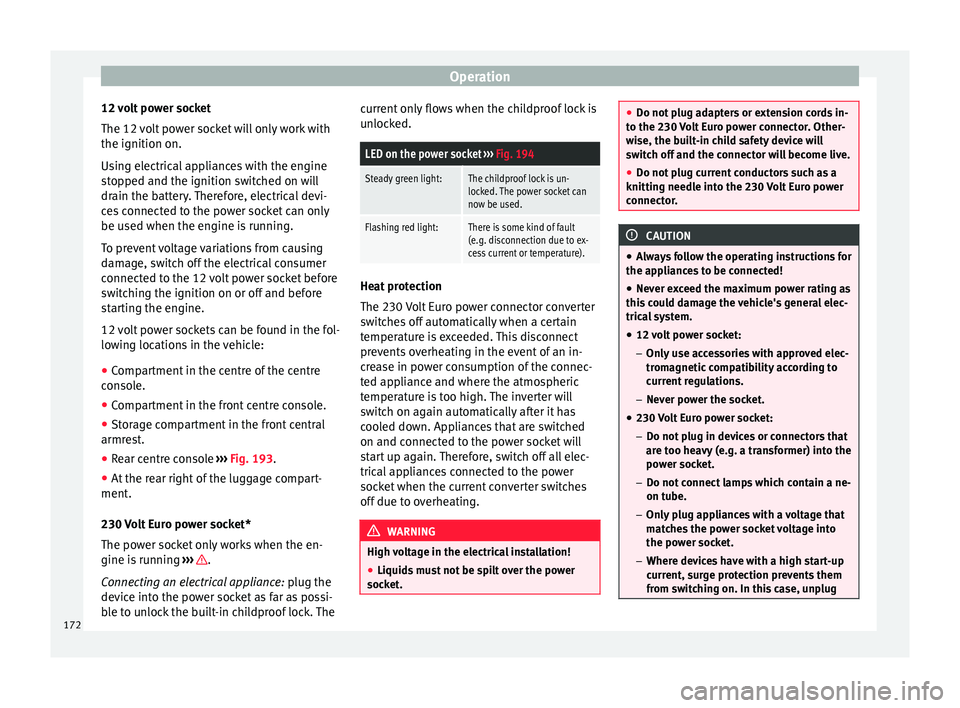

Operation
12 volt power socket
The 12 v
o
lt power socket will only work with
the ignition on.
Using electrical appliances with the engine
stopped and the ignition switched on will
drain the battery. Therefore, electrical devi-
ces connected to the power socket can only
be used when the engine is running.
To prevent voltage variations from causing
damage, switch off the electrical consumer
connected to the 12 volt power socket before
switching the ignition on or off and before
starting the engine.
12 volt power sockets can be found in the fol-
lowing locations in the vehicle:
● Compartment in the centre of the centre
conso
le.
● Compartment in the front centre console.
● Storage compartment in the front central
armres
t.
● Rear centre console ›››
Fig. 193.
● At the rear right of the luggage compart-
ment.
230 V

olt Euro power socket*
The power socket only works when the en-
gine is running ››› .
C onn e

cting an electrical appliance: plug the
device into the power socket as far as possi-
ble to unlock the built-in childproof lock. The current only flows when the childproof lock is
unloc

ked.
LED on the power socket ››› Fig. 194
Steady green light:The childproof lock is un-
locked. The power socket can
now be used.
Flashing red light:There is some kind of fault
(e.g. disconnection due to ex-
cess current or temperature). Heat protection
The 230
V
o

lt Euro power connector converter
switches off automatically when a certain
temperature is exceeded. This disconnect
prevents overheating in the event of an in-
crease in power consumption of the connec-
ted appliance and where the atmospheric
temperature is too high. The inverter will
switch on again automatically after it has
cooled down. Appliances that are switched
on and connected to the power socket will
start up again. Therefore, switch off all elec-
trical appliances connected to the power
socket when the current converter switches
off due to overheating. WARNING
High voltage in the electrical installation!
● Liquids must not be spilt over the power
sock et

. ●
Do not p lug a

dapters or extension cords in-
to the 230 Volt Euro power connector. Other-
wise, the built-in child safety device will
switch off and the connector will become live.
● Do not plug current conductors such as a
knitting needle int
o the 230 Volt Euro power
connector. CAUTION
● Alw a

ys follow the operating instructions for
the appliances to be connected!
● Never exceed the maximum power rating as
this c
ould damage the vehicle's general elec-
trical system.
● 12 volt power socket:
– Only u

se accessories with approved elec-
tromagnetic compatibility according to
current regulations.
– Never power the socket.
● 230 Volt Euro power socket:
– Do not plug in dev

ices or connectors that
are too heavy (e.g. a transformer) into the
power socket.
– Do not connect lamps which contain a ne-
on tube.
– Only plug appliances with a voltage that
matches the power socket voltage into
the power socket.
– Where devices have with a high start-up
current, surge protection prevents them
from switching on. In this case, unplug 172

Checking and refilling levels
●
Aft er c
losing the bonnet, always check that
it is properly secured by the locking mecha-
nism in the lock carrier. The bonnet must be
flush with the surrounding body panels.
● While driving, if you notice that the bonnet
is not
correctly closed then stop immediately
and close it correctly.
● Only open and close the bonnet when there
is no
body within its range. CAUTION
● To av oid d

amage to the bonnet and to the
windscreen wiper arms, only open it when
the windscreen wipers are in place against
the windscreen.
● Before driving, always lower the wiper
arms. Checking fluid levels
Fig. 240
Diagram for the location of the vari-
ou s
el

ements. From time to time, the levels of the different
fluid
s
in the

vehicle must be checked. Never
fill with incorrect fluids, otherwise serious
damage to the engine may be caused.
Coolant fluid deposit
Engine oil dipstick
Oil filler neck
Brake fluid reservoir
Vehicle battery (underneath a cover)
Windscreen washer fluid reservoir
The checking and refilling of service fluids
are carried out on the components men- 1 2
3
4
5
6 tioned above. These operations are descri-
bed in
››
›

page 268.
Overview
Further explanations, instructions and restric-
tions on the technical data are contained as
of ››› page 294
Engine oil Introduction WARNING
Incorrectly handling engine oil can cause in-
jury and seriou

s burns.
● Always protect your eyes when handling
engine oil
.
● Oil is toxic and must be kept out of the
reac
h of children.
● Engine oil should only be kept in its origi-
nal
packaging; the same goes for used oil un-
til it is disposed of.
● Never store engine oil in empty food con-
tainers
or bottles as other people may acci-
dentally drink it.
● Regular contact with engine oil can be bad
for the skin. If
you come into contact with en-
gine oil, wash your skin with soap and water.
● With the engine running, the engine oil
gets
extremely hot and can cause severe skin » 271
Technical data
Advice
Operation
Emergencies
Safety

Advice
Windscreen washer reservoir Chec k
in
g and topping up the wind-
screen washer reservoir Fig. 247
In the engine compartment: wind-
s c
r

een washer reservoir top Read the additional information carefully
› ›
›

 page 41
Check the level in the windscreen washer
tank regularly and top up as required.
● Open the bonnet  ›››
page 268.
● The washer reservoir is marked with the
symbol 

on the lid ››› Fig. 247.
● Check there is enough water in the reser-
voir.
● T

o top up, mix water with a window cleaner
recommended b
y SEAT ››› . Please follow
the in struction
s for use found on the packag-
ing. ●
In col
d weather, a special antifreeze should
also be added to prevent the water from
freezing ››› .
Fi l
lin

g amounts
The capacity of the tank is approximately 3 li-
tres; in vehicles with a headlight washer sys-
tem, it is approximately 7 litres. WARNING
Never mix an unsuitable antifreeze or other
simi l

ar additives with the windscreen washer
water. A greasy layer may be formed on the
windscreen which will impair visibility.
● Use clean water with a window cleaner rec-
ommended by
SEAT.
● If necessary, add a suitable antifreeze to
the water in the r
eservoir. CAUTION
● Do not mi x

cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely c
ertain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage! Vehicle battery
Intr oduction The battery is a component of the vehicle's
electric
al

system.
Never work on the electrical system without
fully understanding the operations required,
the applicable safety standards and without
the correct tools ››› ! If required, have any
work c

arried out by a specialised workshop.
SEAT recommends taking your car in for tech-
nical service. Negligent work can cause seri-
ous injury.
Location and number of batteries in the vehi-
cle
The battery is located in the engine compart-
ment.
Explanation of the warning indications on
the vehicle's battery
SymbolMeaning 
Wear eye protection!

Battery acid is extremely corrosive. Al-
ways wear protective gloves and eye pro-
tection!

Fires, sparks, open flames and smoking
are prohibited.
280

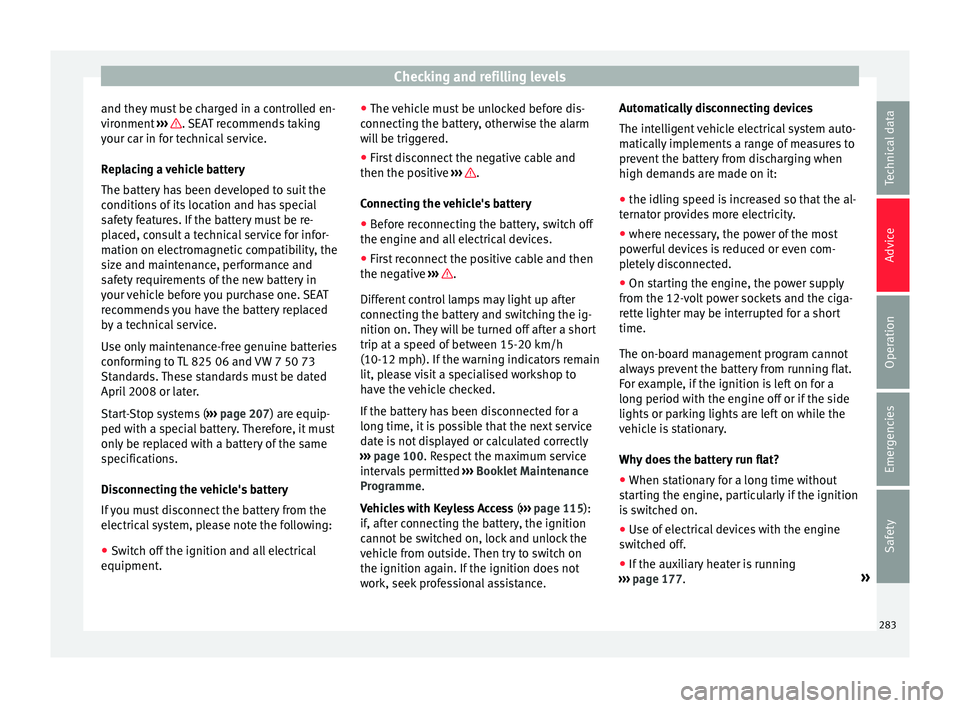

Checking and refilling levels
and they must be charged in a controlled en-
v ir
onment
››› . SEAT recommends taking
y our c
ar in f
or technical service.
Replacing a vehicle battery
The battery has been developed to suit the
conditions of its location and has special
safety features. If the battery must be re-
placed, consult a technical service for infor-
mation on electromagnetic compatibility, the
size and maintenance, performance and
safety requirements of the new battery in
your vehicle before you purchase one. SEAT
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Start-Stop systems ( ››› page 207) are equip-
ped with a special battery. Therefore, it must
only be replaced with a battery of the same
specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment. ●
The vehic le must be unlocked before dis-
connecting the battery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positiv
e ››› .
C onnectin
g the
vehicle's battery
● Before reconnecting the battery, switch off
the engine and all
electrical devices.
● First reconnect the positive cable and then
the negativ
e ››› .
Diff er
ent
control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short
trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 100. Respect the maximum service
intervals permitted ››› Booklet Maintenance
Programme.
Vehicles with Keyless Access (››› page 115):
if, after connecting the battery, the ignition
cannot be switched on, lock and unlock the
vehicle from outside. Then try to switch on
the ignition again. If the ignition does not
work, seek professional assistance. Automatically disconnecting devices
The intellig

ent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● the idling speed is increased so that the al-
ternat
or provides more electricity.
● where necessary, the power of the most
power
ful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-v
olt power sockets and the ciga-
rette lighter may be interrupted for a short
time.
The on-board management program cannot
always prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary.
Why does the battery run flat?
● When stationary for a long time without
star
ting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switc
hed off.
● If the auxiliary heater is running
›››
page 177. »
283
Technical data
Advice
Operation
Emergencies
Safety

Index
wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 289
wheel b
al
ancing . . . . . . . . . . . . . . . . . . . . . . . . 290
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
with directional tread pattern . . . . . . . . . . . . . . 49
Tyres with directional tread pattern . . . . . . . . . . 292
Tyre tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . . . 289, 290
U Unfastening the seat belt . . . . . . . . . . . . . . . . . . . 15
Unfastening your seat belt . . . . . . . . . . . . . . . . . . 64
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . 8 by remote control . . . . . . . . . . . . . . . . . . . . . . . 113
door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
from inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Upholstery cleaning textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Upholstery: cleaning upholstery . . . . . . . . . . . . . . . . . . . . . . . . 256, 257
USB/AUX-IN input . . . . . . . . . . . . . . . . . . . . . . . . 108
USB/AUX-IN Input . . . . . . . . . . . . . . . . . . . . . . . . 163
V Valve caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Vehicle chassis number . . . . . . . . . . . . . . . . . . . . . . . . 294
data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
identification data . . . . . . . . . . . . . . . . . . . . . . 294
identification number . . . . . . . . . . . . . . . . . . . . 294
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
parking downhill . . . . . . . . . . . . . . . . . . . . . . . . 190
parking uphill . . . . . . . . . . . . . . . . . . . . . . . . . . 190
raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261 Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 41, 280
acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
a
ssisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 51
automatically disconnecting devices . . . . . . . 283
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
checking the battery electrolyte level . . . . . . . 282
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
control and warning lamps . . . . . . . . . . . . . . . 281
discharging . . . . . . . . . . . . . . . . . . . . . . . 181, 184
disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . 282
positive terminal for starting assistance . . . . . . 52
preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
starting assistance . . . . . . . . . . . . . . . . . . . . . . . 53
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 airbag modules (dash panel) . . . . . . . . . . . . . 259
anodized surfaces . . . . . . . . . . . . . . . . . . . . . . 254
antenna incorporated in window . . . . . . . . . . . 260
chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
cleaning wheels . . . . . . . . . . . . . . . . . . . . . . . . 254
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
de-icing the door lock cylinder . . . . . . . . . . . . 255
engine compartment . . . . . . . . . . . . . . . . . . . . 255
exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 252
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
protection of vehicle undercarriage . . . . . . . . 255
rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
special features . . . . . . . . . . . . . . . . . . . . . . . . 251
vehicle paintwork . . . . . . . . . . . . . . . . . . . . . . . 253
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
wooden trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Vehicle care products . . . . . . . . . . . . . . . . . . . . . . 250
Vehicle code vehicle data label . . . . . . . . . . . . . . . . . . . . . . . 294
Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . 294 Vehicle interior monitoring . . . . . . . . . . . . . . . . . 118
Vehicl
e key set . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 45, 82 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Vehicle undercarriage guard . . . . . . . . . . . . . . . . . 56
Vehicle's battery running flat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Vibrations steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
W Warning and control lamp cruise control system (CCS) . . . . . . . . . . . . . . . 219
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Warning triangle . . . . . . . . . . . . . . . . . . . . . . 82, 132
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 250 sensors . . . . . . . . . . . . . . . . . . . . . . . . . . 209, 212
special features . . . . . . . . . . . . . . . . . . . . . . . . 251
stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 84, 296 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . 45, 83, 84
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46loosening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
tightening torque . . . . . . . . . . . . . . . . . . . . . . . . 47
Wheel load capacity . . . . . . . . . . . . . . . . . . . . . . . 291
Wheel rims beadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
bolted trims . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Wheels . . . . . . . . . . . . . . . . . . . . . . . . 284, 286, 296 changing a wheel . . . . . . . . . . . . . . . . . . . . . 48, 84
315
