Seat Alhambra 2020 Owner's Manual

Driver assistance systems
Special driving recommendations Fig. 254
 Vehicle on a bend.
 Motor
cyclist
ahead, out of r ange of the radar sensor. Fig. 255
 Vehicle changing lanes.  One
vehicl e t

urning and another stationary. The ACC has certain limitations inherent to
the syst
em. Cert
ain reactions, under cert
ain
cir

cumstances, may be unexpected or come
late from the driver

Driving
Narrow or misaligned vehicles
The r adar sensor can only det
ect narro
w v
e-
hicles or vehicles that circulate out of align-
ment when they enter its range

Driver assistance systems

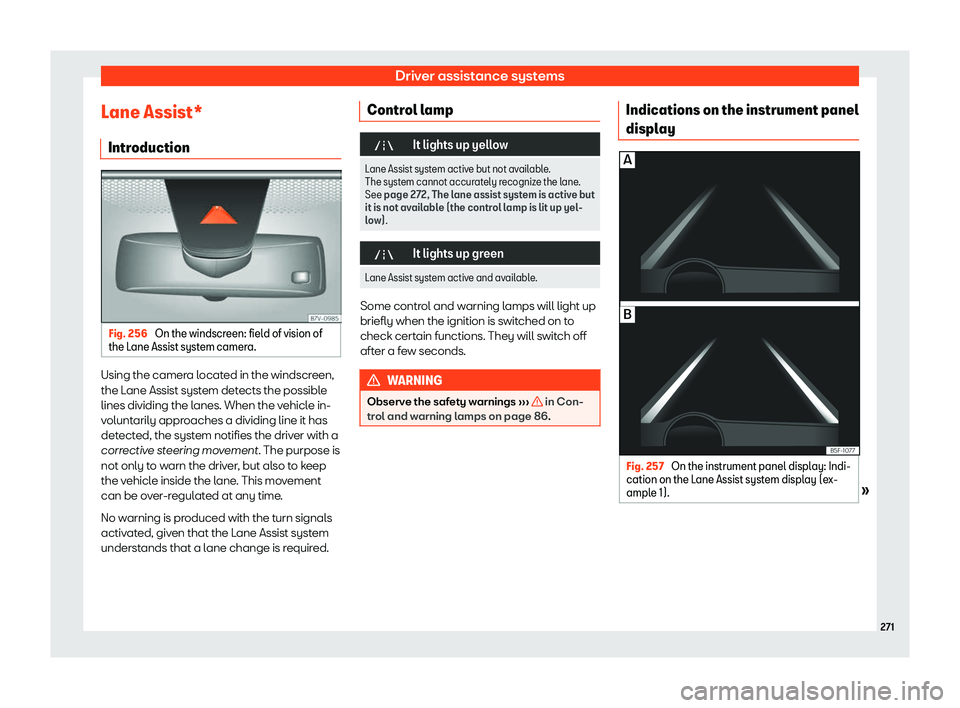

Lane Assist* Intr oduction Fig. 256
On the windscreen: field of vision of
the L ane Assist syst em camer
a. Using the camera located in the windscreen,
the L
ane Assist syst
em detects the possibl
e
lines dividing the l
anes. When the vehicle in-
voluntarily approaches a dividing line it has
detected, the system notifies the driver with a
corrective steering movement. The purpose is
not only to warn the driver, but also to keep
the vehicle inside the lane. This movement
can be over-regulated at any time.
No warning is produced with the turn signals
activated, given that the Lane Assist system
understands that a lane change is required. Control lamp "
It lights up yellow
Lane Assist system active but not available.
The system cannot accurately recogniz
e the lane.
See page 272, The lane assist system is active but
it is not available (the control lamp is lit up yel-
low). "
It lights up green
Lane Assist system active and available. Some control and warning lamps will light up
briefly when the ignition is s
wit
ched on t o
check cert ain functions. They will s

witch off
after a few seconds. WARNING
Observe the safety warnings

Driving
Fig. 258
On the instrument panel display: In-
dication on the Lane Assist system display (e x-
ampl
e 2). Status display
Fig. 257  : The system is activ
e, but not
av ail

able, either because the minimum
speed has not been reached or because
the lane lines are not recognised.
Fig. 257 : The system is active and available, both lane lines are recognised.
The steering angle is not being correc-
ted at this moment.
Fig. 258  : The system is operational,
the highlighted line 1 indicates that
ther e w
as a risk of inv olunt
arily cr

ossing
the lane line and that the steering is be-
ing adjusted to correct the angle.

Driver assistance systems

Driving

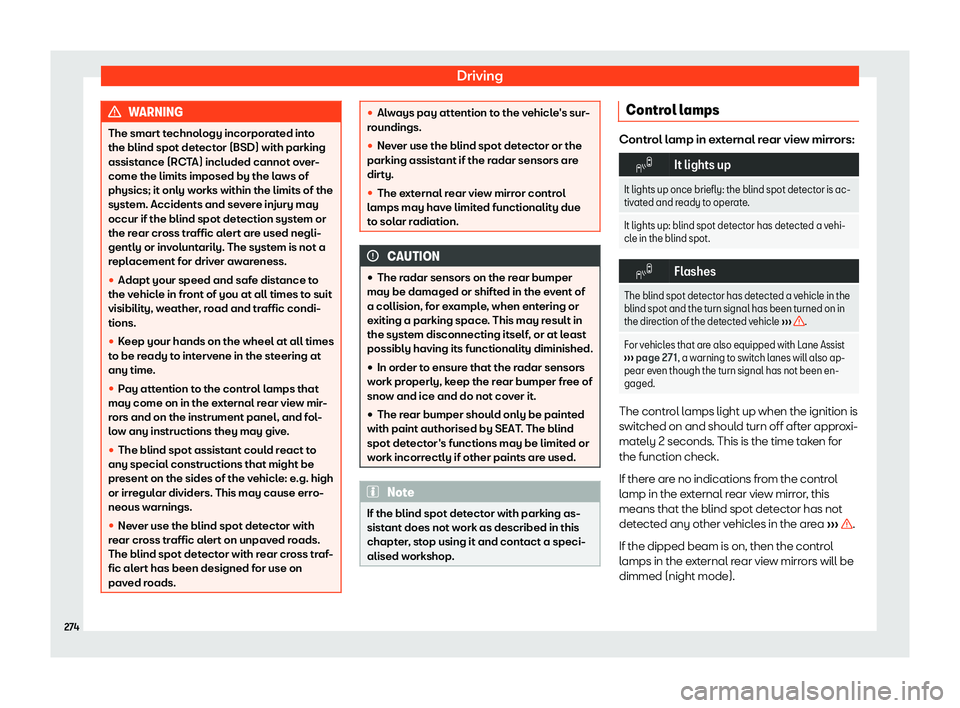

WARNING
The smart technology incorporated into
the blind spot detector (BSD) with parking
assistance (RC T
A) included cannot over-
come the limits imposed by the laws of
physics; it only works within the limits of the
system. Accidents and severe injury may
occur if the blind spot detection system or
the rear cross traffic alert are used negli-
gently or involuntarily. The system is not a
replacement for driver awareness.

Driver assistance systems

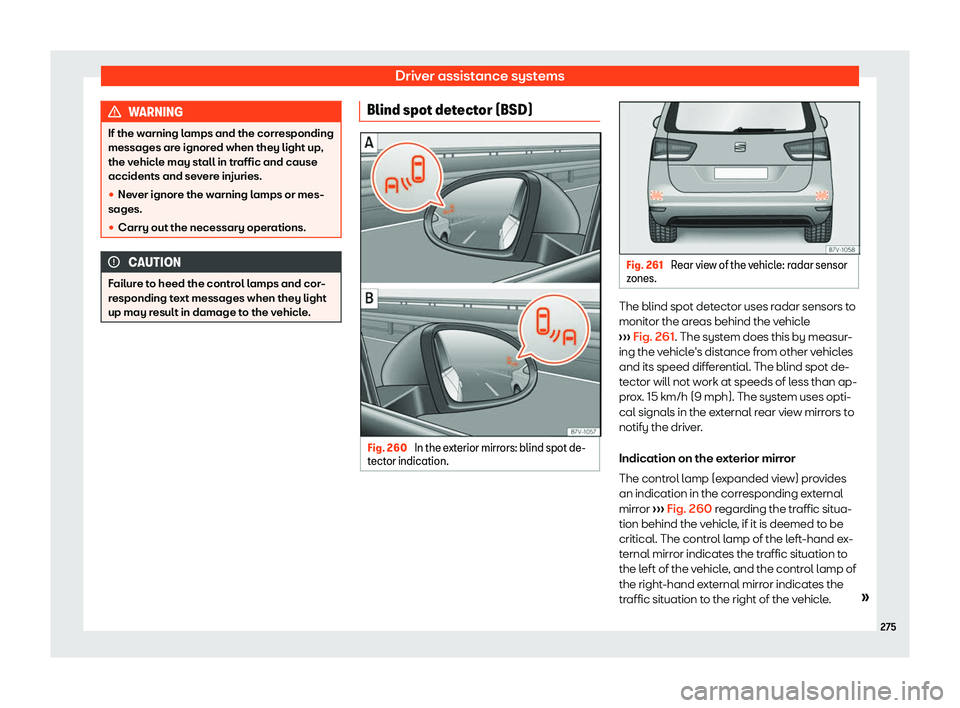

WARNING
If the warning lamps and the corresponding
messages are ignored when they light up,
the v ehicl
e may stall in traffic and cause
accidents and severe injuries.

Driving
In the case of retrofitted tinted windows or
windo ws with tint
ed film, the indications of the
e xt
ernal mirr
ors may not be seen clearly or
correctly.
Keep the external mirrors clean and free of
snow and ice, and do not cover them with ad-
hesives or other similar materials.
Radar sensors
The radar sensors are located on the left and
right of the bumper and are not visible from the outside

Driver assistance systems

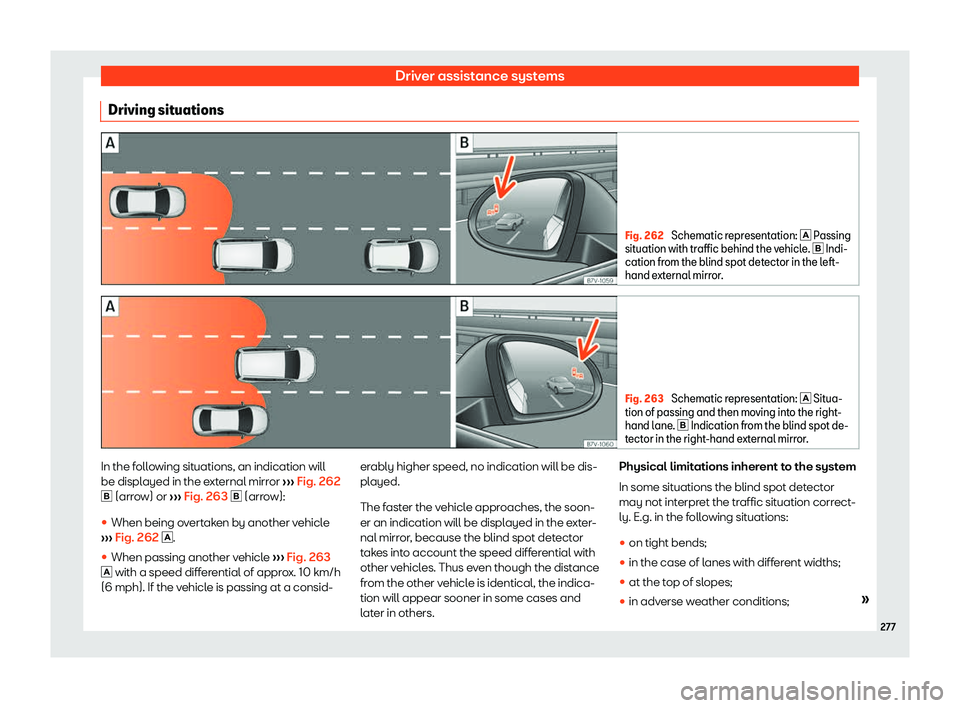

Driving situations Fig. 262
Schematic representation:  Passing
situation with traffic behind the v ehicl
e.  Indi-
cation from the blind spot detector in the left-
hand external mirror. Fig. 263
Schematic representation:  Situa-
tion of passing and then moving into the right -
hand l

ane.  Indication from the blind spot de-
tector in the right-hand external mirror. In the following situations, an indication will
be displ
ayed in the e
xternal mirr
or
