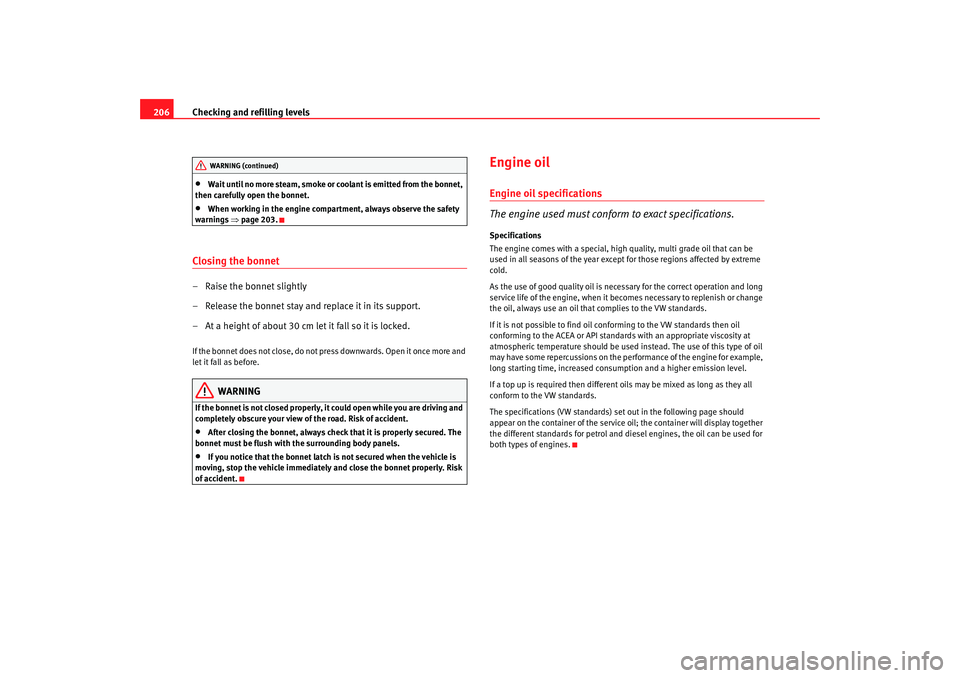

Checking and refilling levels
206•
Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 203 .
Closing the bonnet– Raise the bonnet slightly
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not press downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•
After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•
If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oilEngine oil specifications
The engine used must conform to exact specifications.Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of good quality oil is nec essary for the correct operation and long
service life of the engine, when it becomes necessary to replenish or change
the oil, always use an oil that complies to the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used in stead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
altea_ingles Seite 206 Dienstag, 4. Oktober 2005 6:57 18

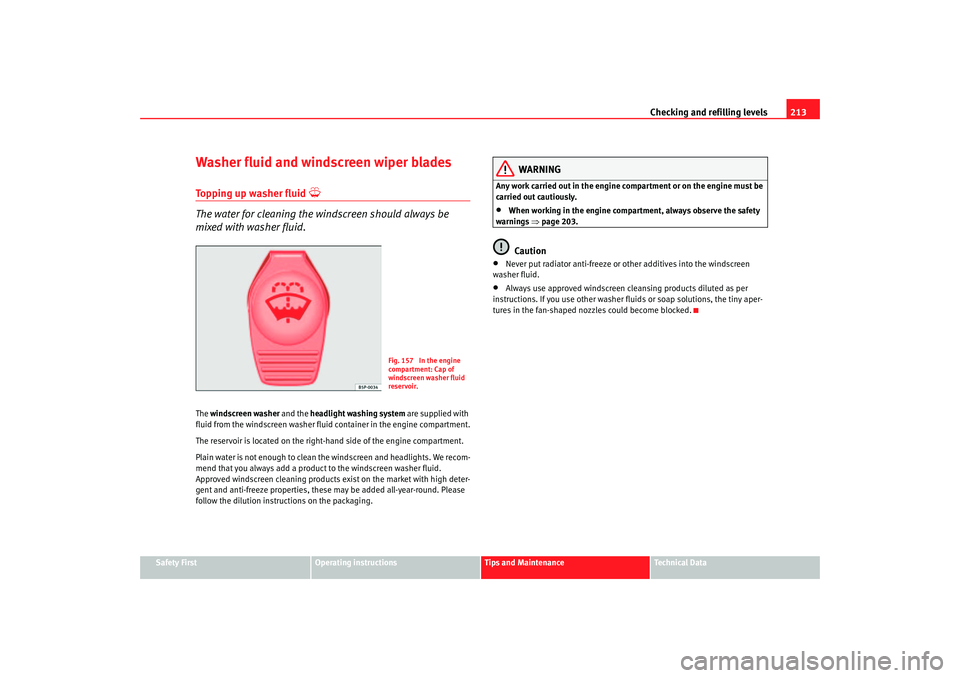

Checking and refilling levels213
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Washer fluid and windscreen wiper bladesTopping up washer fluid

The water for cleaning the windscreen should always be
mixed with washer fluid.The windscreen washer and the headlight washing system are supplied with
fluid from the windscreen washer flui d container in the engine compartment.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean the windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, these may be added all-year-round. Please
follow the dilution instructions on the packaging.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•
When working in the engine compartm ent, always observe the safety
wa rnings ⇒ page
203.
Caution
•
Never put radiator anti-freeze or other additives into the windscreen
washer fluid.
•
Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fl uids or soap solutions, the tiny aper-
tures in the fan-shaped nozzles could become blocked.
Fig. 157 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
altea_ingles Seite 213 Dienstag, 4. Oktober 2005 6:57 18

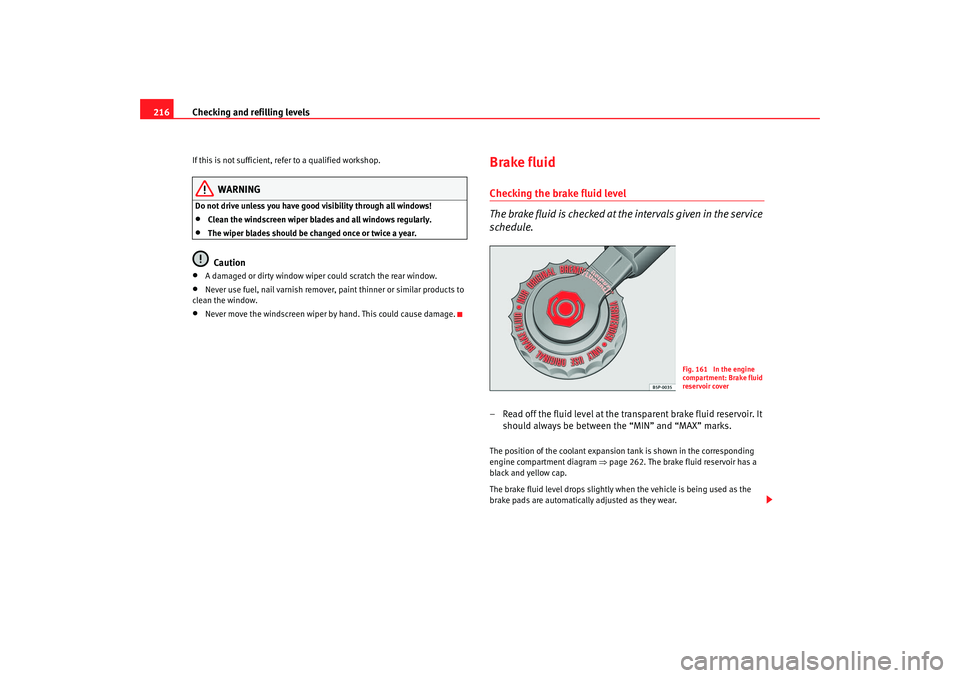

Checking and refilling levels
216If this is not sufficient, refer to a qualified workshop.
WARNING
Do not drive unless you have good visibility through all windows!•
Clean the windscreen wiper blades and all windows regularly.
•
The wiper blades should be changed once or twice a year.Caution
•
A damaged or dirty window wiper could scratch the rear window.
•
Never use fuel, nail varnish remover, paint thinner or similar products to
clean the window.
•
Never move the windscreen wiper by hand. This could cause damage.
Brake fluidChecking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.– Read off the fluid level at the transparent brake fluid reservoir. It should always be between the “MIN” and “MAX” marks.The position of the coolant expansion tank is shown in the corresponding
engine compartment diagram ⇒page 262. The brake fluid reservoir has a
black and yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
Fig. 161 In the engine
compartment: Brake fluid
reservoir cover
altea_ingles Seite 216 Dienstag, 4. Oktober 2005 6:57 18

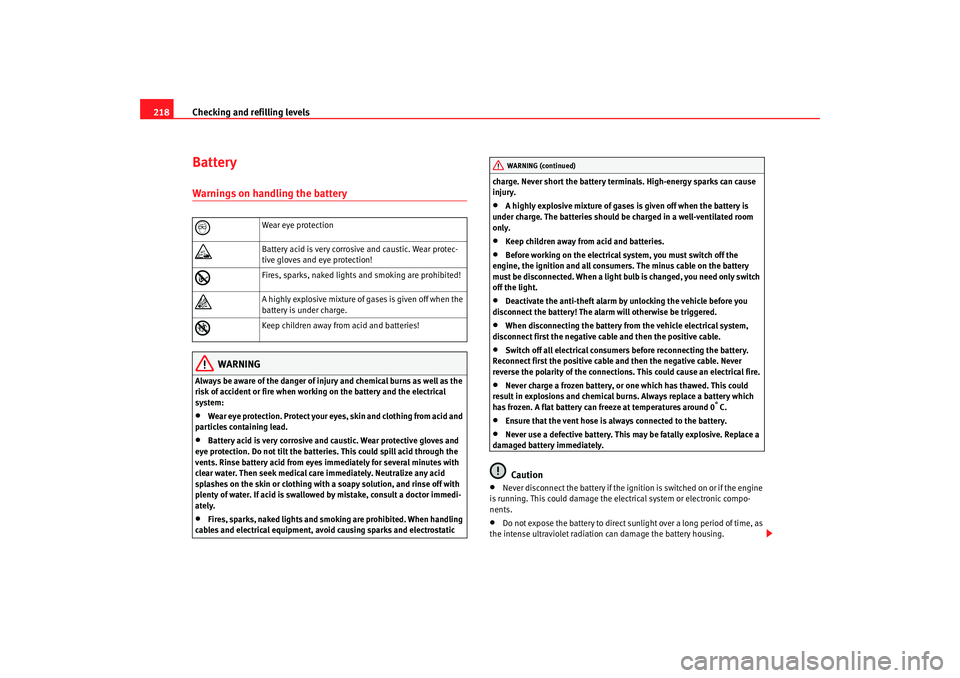

Checking and refilling levels
218BatteryWarnings on handling the battery
WARNING
Always be aware of the danger of injury and chemical burns as well as the
risk of accident or fire when working on the battery and the electrical
system:•
Wear eye protection. Protect your ey es, skin and clothing from acid and
particles containing lead.
•
Battery acid is very corrosive and caustic. Wear protective gloves and
eye protection. Do not tilt the batteries. This could spill acid through the
vents. Rinse battery acid from eyes immediately for several minutes with
clear water. Then seek medical care immediately. Neutralize any acid
splashes on the skin or clothing with a soapy solution, and rinse off with
plenty of water. If acid is swallowed by mistake, consult a doctor immedi-
ately.
•
Fires, sparks, naked lights and smoki ng are prohibited. When handling
cables and electrical equipment, avoid causing sparks and electrostatic charge. Never short the battery terminals. High-energy sparks can cause
injury.
•
A highly explosive mixture of gases is given off when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
•
Keep children away from acid and batteries.
•
Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The minus cable on the battery
must be disconnected. When a light bu lb is changed, you need only switch
off the light.
•
Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alar m will otherwise be triggered.
•
When disconnecting the battery from the vehicle electrical system,
disconnect first the negative ca ble and then the positive cable.
•
Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.
•
Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0
°C.
•
Ensure that the vent hose is always connected to the battery.
•
Never use a defective battery. This may be fatally explosive. Replace a
damaged battery immediately.Caution
•
Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the elec trical system or electronic compo-
nents.
•
Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.

Wear eye protection

Battery acid is very corrosive and caustic. Wear protec-
tive gloves and eye protection!

Fires, sparks, naked lights and smoking are prohibited!

A highly explosive mixture of gases is given off when the
battery is under charge.

Keep children away from acid and batteries!
WARNING (continued)
altea_ingles Seite 218 Dienstag, 4. Oktober 2005 6:57 18

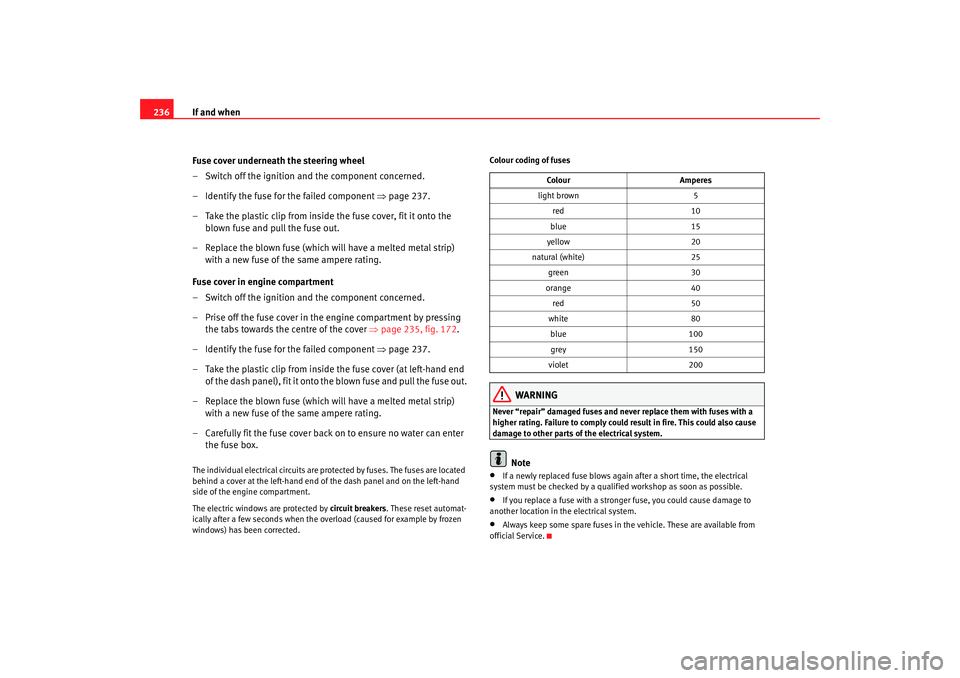

If and when
236
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse for the failed component ⇒page 237.
– Take the plastic clip from inside the fuse cover, fit it onto the
blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and the component concerned.
– Prise off the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒page 235, fig. 172 .
– Identify the fuse for the failed component ⇒page 237.
– Take the plastic clip from inside the fuse cover (at left-hand end of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter
the fuse box.The individual electrical circuits are pr otected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment.
The electric windows are protected by circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected. Colour coding of fuses
WARNING
Never “repair” damaged fuses and neve
r replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualifi ed workshop as soon as possible.
•
If you replace a fuse with a stronger fuse, you could cause damage to
another location in th e electrical system.
•
Always keep some spare fuses in the vehicle. These are available from
official Service. Colour
Amperes
light brown 5
red 10
blue 15
yellow 20
natural (white) 25
green 30
orange 40
red 50
white 80
blue 100
grey 150
violet 200
altea_ingles Seite 236 Dienstag, 4. Oktober 2005 6:57 18

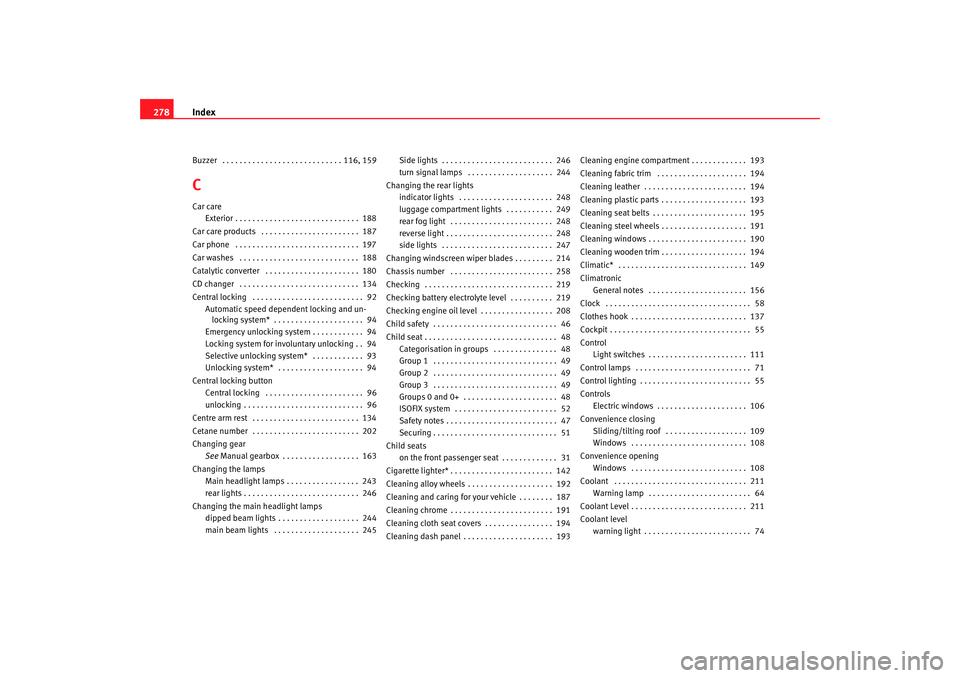

Index
278Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 159CCar care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Car care products . . . . . . . . . . . . . . . . . . . . . . . 187
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 180
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 94
Emergency unlocking system . . . . . . . . . . . . 94
Locking system for invo luntary unlocking . . 94
Selective unlocking system* . . . . . . . . . . . . 93
Unlocking system* . . . . . . . . . . . . . . . . . . . . 94
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 96
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Centre arm rest . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 202
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 163
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 243
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Changing the main headlight lamps
dipped beam lights . . . . . . . . . . . . . . . . . . . 244
main beam lights . . . . . . . . . . . . . . . . . . . . 245 Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 246
turn signal lamps . . . . . . . . . . . . . . . . . . . . 244
Changing the rear lights indicator lights . . . . . . . . . . . . . . . . . . . . . . 248
luggage compartment lights . . . . . . . . . . . 249
rear fog light . . . . . . . . . . . . . . . . . . . . . . . . 248
reverse light . . . . . . . . . . . . . . . . . . . . . . . . . 248
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Changing windscreen wiper blades . . . . . . . . . 214
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 258
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Checking battery electrolyte level . . . . . . . . . . 219
Checking engine oil level . . . . . . . . . . . . . . . . . 208
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 52
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Child seats on the front passenger seat . . . . . . . . . . . . . 31
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . . 142
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 192
Cleaning and caring for your vehicle . . . . . . . . 187
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 191
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 194
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 193 Cleaning engine compartment . . . . . . . . . . . . . 193
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . 194
Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 194
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 193
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 195
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 191
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 190
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 194
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Climatronic
General notes . . . . . . . . . . . . . . . . . . . . . . . 156
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . 111
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 106
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 109
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 64
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 74
altea_ingles Seite 278 Dienstag, 4. Oktober 2005 6:57 18

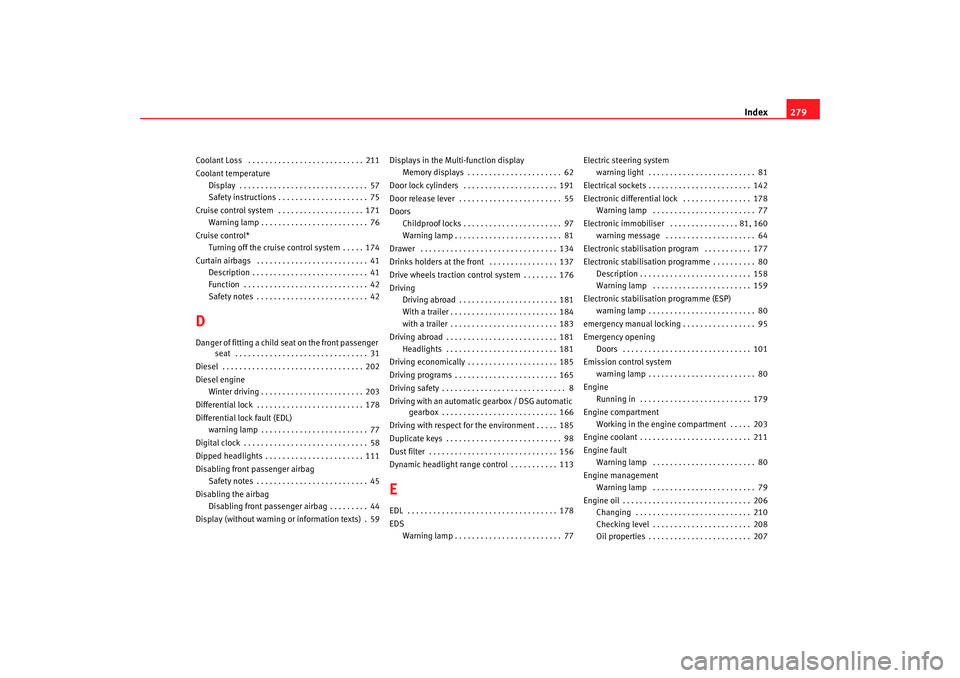

Index279
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Coolant temperature
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Safety instructions . . . . . . . . . . . . . . . . . . . . . 75
Cruise control system . . . . . . . . . . . . . . . . . . . . 171 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Cruise control* Turning off the cruise control system . . . . . 174
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 203
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 178
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 111
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 44
Display (without warning or information texts) . 59Displays in the Mult
i-function display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 62
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 191
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 97
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Drinks holders at the front . . . . . . . . . . . . . . . . 137
Drive wheels traction control system . . . . . . . . 176
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 181
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 184
with a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 183
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 181 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Driving economically . . . . . . . . . . . . . . . . . . . . . 185
Driving programs . . . . . . . . . . . . . . . . . . . . . . . . 165
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Driving with respect for the environment . . . . . 185
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Dynamic headlight range control . . . . . . . . . . . 113
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77 Electric steering system
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 81
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 142
Electronic differential lock . . . . . . . . . . . . . . . . 178 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Electronic immobiliser . . . . . . . . . . . . . . . . 81, 160 warning message . . . . . . . . . . . . . . . . . . . . . 64
Electronic stabilisation program . . . . . . . . . . . 177
Electronic stabilisation programme . . . . . . . . . . 80 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 159
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
emergency manual locking . . . . . . . . . . . . . . . . . 95
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Engine compartment Working in the engine compartment . . . . . 203
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 79
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Checking level . . . . . . . . . . . . . . . . . . . . . . . 208
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 207
altea_ingles Seite 279 Dienstag, 4. Oktober 2005 6:57 18

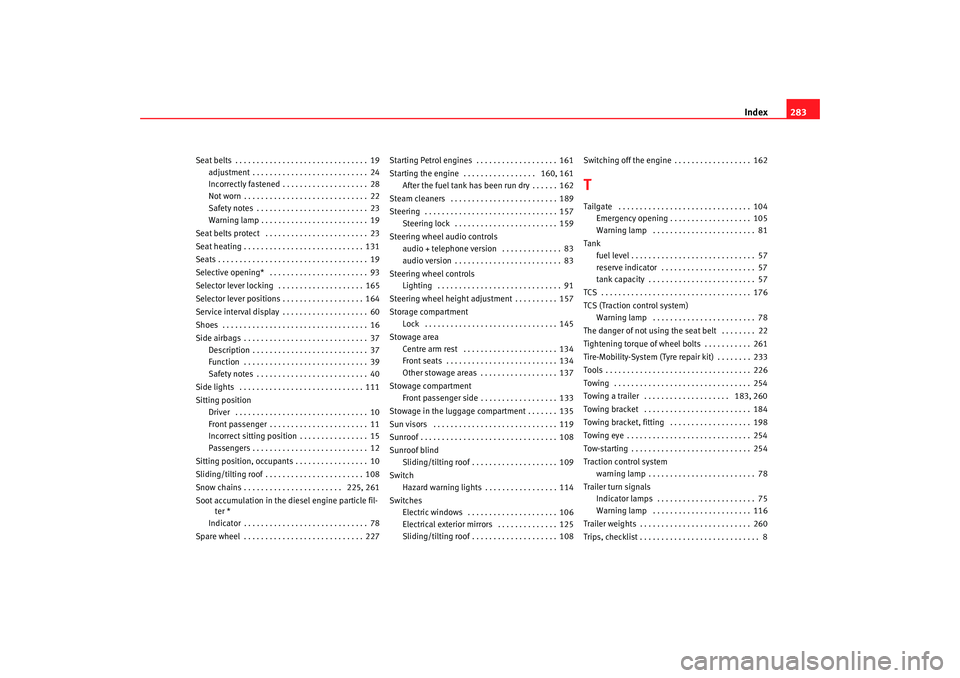

Index283
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Incorrectly fastened . . . . . . . . . . . . . . . . . . . . 28
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Seat belts protect . . . . . . . . . . . . . . . . . . . . . . . . 23
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 93
Selector lever locking . . . . . . . . . . . . . . . . . . . . 165
Selector lever positions . . . . . . . . . . . . . . . . . . . 164
Service interval display . . . . . . . . . . . . . . . . . . . . 60
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . . 15
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sitting position, occupants . . . . . . . . . . . . . . . . . 10
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 108
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 225, 261
Soot accumulation in the diesel engine particle fil- ter *
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227 Starting Petrol engines . . . . . . . . . . . . . . . . . . . 161
Starting the engine . . . . . . . . . . . . . . . . . 160, 161
After the fuel tank has been run dry . . . . . . 162
Steam cleaners . . . . . . . . . . . . . . . . . . . . . . . . . 189
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 159
Steering wheel audio controls audio + telephone version . . . . . . . . . . . . . . 83
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 83
Steering wheel controls Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Steering wheel height adjustment . . . . . . . . . . 157
Storage compartment Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Stowage area Centre arm rest . . . . . . . . . . . . . . . . . . . . . . 134
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Other stowage areas . . . . . . . . . . . . . . . . . . 137
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . . 133
Stowage in the luggage compartment . . . . . . . 135
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Switch Hazard warning lights . . . . . . . . . . . . . . . . . 114
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . 106
Electrical exterior mirrors . . . . . . . . . . . . . . 125
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 108 Switching off the engine . . . . . . . . . . . . . . . . . . 162
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Emergency opening . . . . . . . . . . . . . . . . . . . 105
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 57
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 57
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bo lts . . . . . . . . . . . 261
Tire-Mobility-System (Tyre r epair kit) . . . . . . . . 233
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Towing a trailer . . . . . . . . . . . . . . . . . . . . 183, 260
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 184
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 198
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 75
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 116
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
altea_ingles Seite 283 Dienstag, 4. Oktober 2005 6:57 18
