Safe driving11
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
–Fasten your seat belt correctly ⇒page 19.
– Keep both feet in the foot well so that you have the vehicle under control at all times.Adjustment of the driver's seat ⇒page 127.
WARNING
•
An incorrect sitting position of the driver can lead to severe injuries.
•
Adjust the driver's seat so that ther e is at least 25 cm distance between
the centre of the chest and the hub of the steering wheel ⇒page 10, fig. 1 .
If you are sitting nearer than 25 cm, the airbag system cannot protect you
properly.
•
If your physical constitution prevents you from maintaining the
minimum distance of 25 cm, contact a qualified workshop. The workshop
will help you decide if special specific modifications are necessary.
•
When driving, always hold the steering wheel with both hands on the
outside of the ring at the 9 o'clock and 3 o'clock positions. This reduces the
risk of injury when the driver airbag is triggered.
•
Never hold the steering wheel at the 12 o'clock position, or in any other
manner (e.g. in the centre of the steering wheel). In such cases, you may
sustain injuries to the arms, hands and head.
•
To reduce the risk of injury to the driver during sudden braking manoeu-
vres or an accident, never drive with the backrest tilted far back! The airbag
system and seat belts can only provide optimal protection when the back-
rest is in an upright position and the driver is wearing his or her seat belt
properly. The further the backrests are ti lted to the rear, the greater the risk
of injury due to incorrect positioning of the belt web or the incorrect sitting
position!
•
Adjust the head restraint properly to achieve optimal protection.
Proper sitting position for front passenger
The front passenger must sit at least 25 cm away from the
dash panel so that the airbag can provide the greatest
possible protection in the event that it is triggered.For your own safety and to reduce the risk of injury in the event of an
accident, we recommend the following adjustments for the front
passenger:
– Move the front passenger seat back as far as possible ⇒ .
– Move the backrest to an upright position so that your back rests completely against it.
– Adjust the head restraint so that its upper edge is at the same level as the top of your head, or as close as possible to the same
level as the top of your head ⇒page 13.
– Keep both feet in the foot well in front of the front passenger
seat.
– Fasten your seat belt correctly ⇒page 19.It is possible to deactivate the passenger airbag in exceptional circum-
stances ⇒ page 25.
For detailed information on how to adjust the front passenger's seat, see
⇒ page 130.
WARNING
•
An incorrect sitting position of the front passenger can lead to severe
injuries.
altea_ingles Seite 11 Dienstag, 4. Oktober 2005 6:57 18

Airbag system

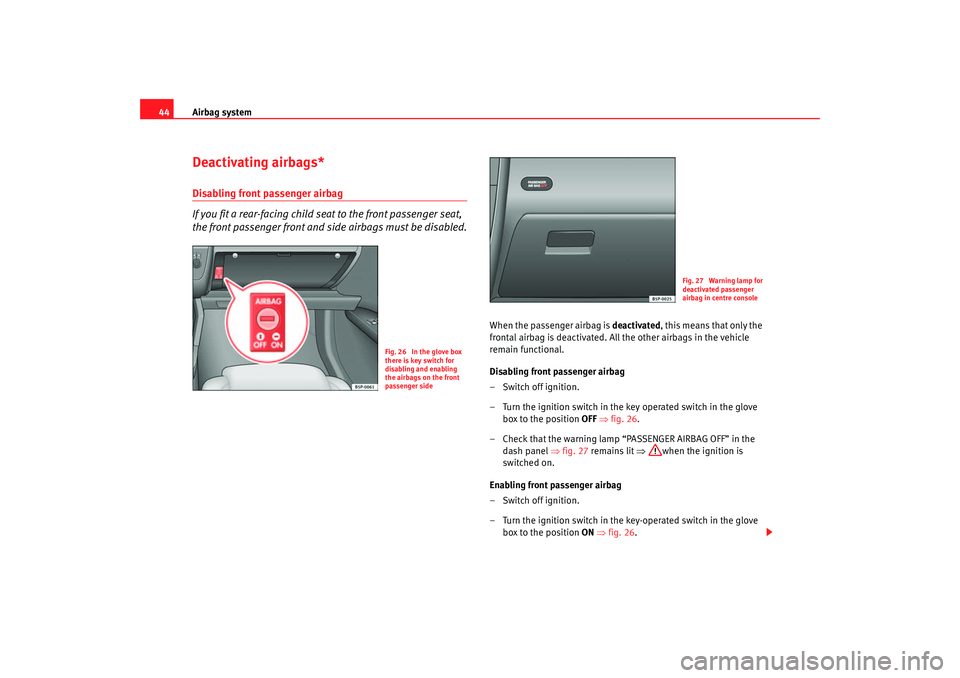

44Deactivating airbags*Disabling front passenger airbag
If you fit a rear-facing child seat to the front passenger seat,
the front passenger front and side airbags must be disabled.
When the passenger airbag is deactivated, this means that only the
frontal airbag is deactivated. All the other airbags in the vehicle
remain functional.
Disabling front passenger airbag
– Switch off ignition.
– Turn the ignition switch in the key operated switch in the glove box to the position OFF ⇒ fig. 26 .
– Check that the warning lamp “PASSENGER AIRBAG OFF” in the dash panel ⇒fig. 27 remains lit ⇒ when the ignition is
switched on.
Enabling front passenger airbag
– Switch off ignition.
– Turn the ignition switch in the key-operated switch in the glove box to the position ON ⇒fig. 26 .
Fig. 26 In the glove box
there is key switch for
disabling and enabling
the airbags on the front
passenger side
Fig. 27 Warning lamp for
deactivated passenger
airbag in centre console
altea_ingles Seite 44 Dienstag, 4. Oktober 2005 6:57 18

Airbag system45
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

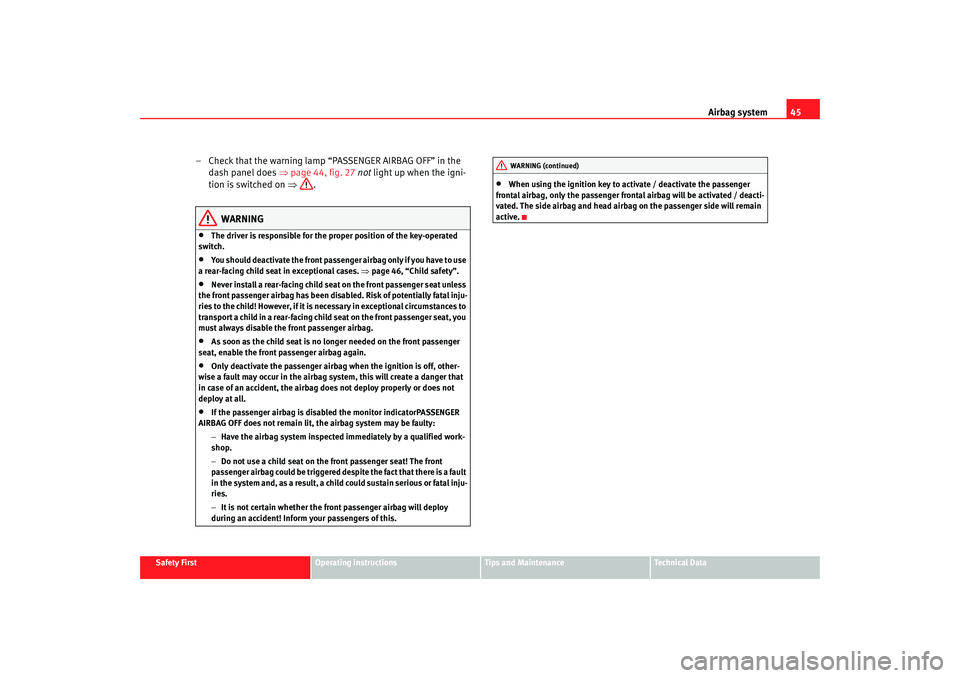

– Check that the warning lamp “PASSENGER AIRBAG OFF” in the
dash panel does ⇒ page 44, fig. 27 not light u p
when the igni-
tion is switched on ⇒.
WARNING
•
The driver is responsible for the proper position of the key-operated
switch.
•
You should deactivate the front passenger airbag only if you have to use
a rear-facing child seat in exceptional cases. ⇒ page 46, “Child safety”.
•
Never install a rear-facing child seat on the front passenger seat unless
the front passenger airbag has been disabled. Risk of potentially fatal inju-
ries to the child! However, if it is necessary in exceptional circumstances to
transport a child in a rear-facing child seat on the front passenger seat, you
must always disable the front passenger airbag.
•
As soon as the child seat is no longer needed on the front passenger
seat, enable the front passenger airbag again.
•
Only deactivate the passenger airbag when the ignition is off, other-
wise a fault may occur in the airbag system, this will create a danger that
in case of an accident, the airbag do es not deploy properly or does not
deploy at all.
•
If the passenger airbag is disabled the monitor indicatorPASSENGER
AIRBAG OFF does not remain lit, the airbag system may be faulty:
−Have the airbag system inspected immediately by a qualified work-
shop.
− Do not use a child seat on the front passenger seat! The front
passenger airbag could be triggered despite the fact that there is a fault
in the system and, as a result, a child could sustain serious or fatal inju-
ries.
− It is not certain whether the front passenger airbag will deploy
during an accident! Inform your passengers of this.
•
When using the ignition key to activate / deactivate the passenger
frontal airbag, only the passenger frontal airbag will be activated / deacti-
vated. The side airbag and head airbag on the passenger side will remain
active.WARNING (continued)
altea_ingles Seite 45 Dienstag, 4. Oktober 2005 6:57 18

Cockpit55
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Operating instructionsCockpitOverviewOverview of the instrument panel
This overview will help you to familiarise yourself with the
controls and displays quickly.
Door release lever
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air vent
Lighting control for instrument and control lighting . . . . . . . .
Headlight range control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal and main beam lever and cruise control system* .
Instrument panel:
− Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Indication lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (works only when the igni tion is on)/ and driver front
airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windscreen wiper and windscreen wash lever and operation of
the multi-function display * . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thumb wheel for left seat heating . . . . . . . . . . . . . . . . . . . . . . .
Controls for
− Heating* and ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −
Air conditioner* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio
Thumb wheel for right seat heating . . . . . . . . . . . . . . . . . . . . . .
Indication lamp for deactivated front passenger airbag . . . . .
Front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove compartment lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handbrake
Pedals
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handle for releasing the bonnet . . . . . . . . . . . . . . . . . . . . . . . .
Button for opening and closing the front windows . . . . . . . . .
Safety switch* for the rear windows . . . . . . . . . . . . . . . . . . . . .
Control* for opening and closing the rear windows . . . . . . . . .
Note
Some of the items of equipment listed here are fitted only on certain models
or are optional extras.
A1A2
111
A3A4
113
A5
113
A6
115
A7
56
59
71
A8
30
A9
120, 61
A10
131
A11
147
149 152
A12A13
131
A14
44
A15
30
A16
133
A17
164
A18
137
A19A20A21
159
A22
203
A23
106
A24
106
A25
106
altea_ingles Seite 55 Dienstag, 4. Oktober 2005 6:57 18

Index
280
Specifications . . . . . . . . . . . . . . . . . . . . . . . 206
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 208
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . 64, 77
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 201
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 177
Example of menu use Open the configuration menu . . . . . . . . . . . 67
Program a speed limit warning . . . . . . . . . . 67
To activate and deactivate the speed limit warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Examples of menu use Open the main menu . . . . . . . . . . . . . . . . . . 67
Open the winter tyres menu . . . . . . . . . . . . . 67
To close the winter tyres menu . . . . . . . . . . . 68
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 190
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 197
FFastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 144
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Folding the seat backrests down . . . . . . . . . . . 132
Foot brake Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80 Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front passenger airbag deactivation . . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . . 118
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 130
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 200
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 74
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 163
General overview of the engine compartment 262
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 133
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 162 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168Warning lamp . . . . . . . . . . . . . . . . . . . . 76, 169
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 114
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 128, 129
adjustment of the head restraint angle . . . 129
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
head restraints, correct adjustment . . . . . . . . . 13 In-use and non-use positions . . . . . . . . . . . 14
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . 115
Headlight range control . . . . . . . . . . . . . . . . . . 113
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 181
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Washer system . . . . . . . . . . . . . . . . . . . . . . 124
Heated front seats . . . . . . . . . . . . . . . . . . . . . . 131
Heated window 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 153
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
High pressure cleaners . . . . . . . . . . . . . . . . . . . 189
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55IIdentification number . . . . . . . . . . . . . . . . . . . . 258
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Indicator lights indication lamp . . . . . . . . . . . . . . . . . . . . . . . 75
altea_ingles Seite 280 Dienstag, 4. Oktober 2005 6:57 18
