Cockpit59
Safety First
Operating instructions
Practical tips
Technical Data
Stop the car and switch off the engine.
Check the coolant level ⇒page 233
⇒ .
Even if the coolant level is correct do not continue driving. You should obtain
technical assistance.
WARNING
When working in the engine compartment, always observe the safety warn-
ings ⇒page 226.
Caution
Accessories in front of the air inlet reduce the cooling effect of the coolant. At
high outside temperatures and high engine loads, there is a risk of the
engine overheating.Rev counter
The rev. counter displays the engine speed in revolutions per
minute.The start of the red zone ⇒page 57, fig. 33 indicates the maximum
engine speed operating at service temperature. However, it is advisable to
change up a into a higher gear, move the selector lever to D or lift your foot
off the accelerator before the needle reaches the red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
Changing up into higher gears early will help you to save fuel and minimise
engine noise.SpeedometerThe speedometer is equipped with a digital odometer and a trip counter, in
addition to a service intervals display.
During the running-in period, the instructions shown on ⇒page 200 should
be followed.Setting the digital clock*
The digital clock is located in the dash panel display.– Turn the setting knob ⇒ page 57, fig. 33 clockwise until the
first “click” to set the hour. The hour will flash. To change the
hour, press the button.
– Turn the setting knob clockwise to the second “click” to set the minutes. The minutes will flash. To change the minutes, press the
button.
A4
A5
altea_EN Seite 59 Mittwoch, 26. August 2009 6:00 18
Page 62 of 310

Cockpit

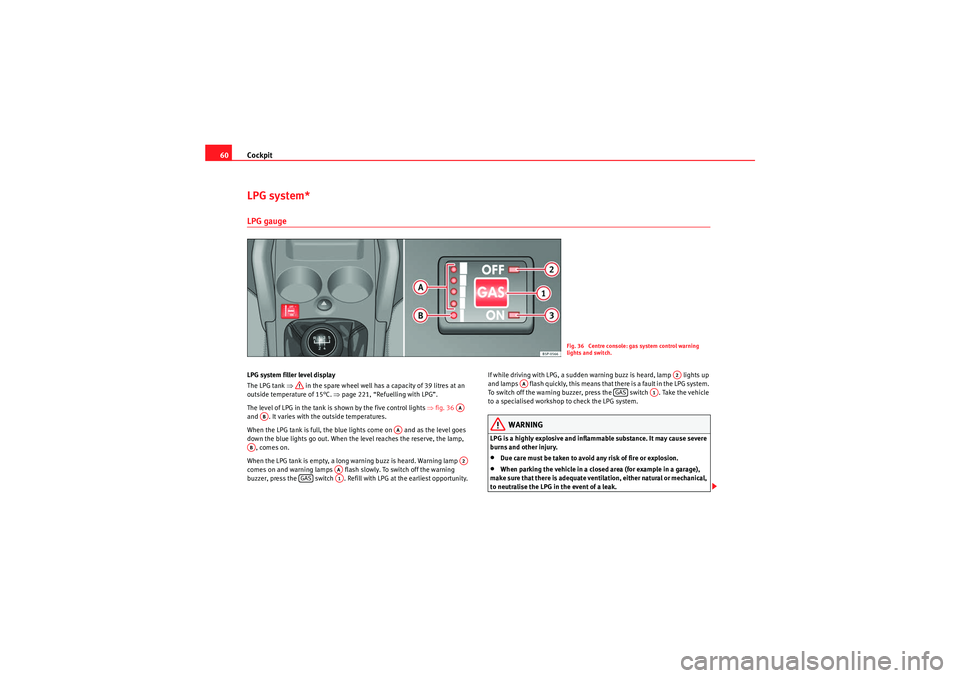

60LPG system*LPG gaugeLPG system filler level display
The LPG tank ⇒ in the spare wheel well has a capacity of 39 litres at an
outside temperature of 15°C. ⇒ page 221, “Refuelling with LPG”.
The level of LPG in the tank is shown by the five control lights ⇒fig. 36
and . It varies with the outside temperatures.
When the LPG tank is full, the blue lights come on and as the level goes
down the blue lights go out. When the level reaches the reserve, the lamp, , comes on.
When the LPG tank is empty, a long warning buzz is heard. Warning lamp
comes on and warning lamps flash slowly. To switch off the warning
buzzer, press the switch . Refill with LPG at the earliest opportunity. If while driving with LPG, a sudden warning buzz is heard, lamp lights up
and lamps flash quickly, this means that there is a fault in the LPG system.
To switch off the warning buzzer, press the switch . Take the vehicle
to a specialised workshop to check the LPG system.
WARNING
LPG is a highly explosive and inflammable substance. It may cause severe
burns and other injury.•Due care must be taken to avoid any risk of fire or explosion.•When parking the vehicle in a closed area (for example in a garage),
make sure that there is adequate ventilation, either natural or mechanical,
to neutralise the LPG in the event of a leak.
Fig. 36 Centre console: gas system control warning
lights and switch.
AA
AB
AA
AB
A2
AA
GAS
A1
A2
AA
GAS
A1
altea_EN Seite 60 Mittwoch, 26. August 2009 6:00 18
Page 63 of 310

Cockpit61
Safety First
Operating instructions
Practical tips
Technical Data
Note
•The values shown in the average fuel consumption and the fuel remaining
displays on the MFA display
5) on the dash panel insert are approximate value
only.
•Please check the fuel level on the petrol tank fuel level indicator on the
dash panel ⇒ page 58.•If frequent short journeys are made, especially when the outside temper-
ature is low, the vehicle will tend to run on petrol more often than on LPG.
Therefore, the petrol tank may empty before the LPG tank.
Digital display in the dash panelDisplay (without warning or information texts)
The display in the dash panel shows, amongst other things,
the mileage and trip recorder as well as the selector lever
position.
Digital clock display ⇒page 59. On the right of the display: Selector
lever position display for the automatic gearbox*. The current position of
the selector lever or the gear which is engaged (for Tiptronic)* is high-
lighted.
Ambient temperature.
Distance display or flexible service interval display*.
5)Optional equipment
Fig. 37 Detail of the dash
panel insert: screen with
different indicators
A1A2A3
altea_EN Seite 61 Mittwoch, 26. August 2009 6:00 18
Page 64 of 310

Cockpit
62Displayed categories*
The display on the dash panel shows the mileage and trip
recorder as well as the selector lever position.
Clock: “Setting the time”. On the right of the display: Selector lever posi-
tion display for the automatic gearbox*. The current position of the
selector lever or the gear which is engaged (for Tiptronic) is highlighted.
There are optional and automatic displays in this field.
– Optional indicators: e.g. those on the multi-function display (MFD)
– Automatic indicators: Information texts and warnings.
– Menus providing further information and which can be used to make diverse settings are also shown: “Dash panel menus”
Ambient temperature.
Distance display or flexible service interval display.
Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are driving in the correct gear, a dot
will be shown next to the gear display. If you are not in the correct gear, an
arrow will appear next to the gear display indicating whether you should
change up or down.Mileage display or Service Interval DisplayDistance display
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the short journeys. The last digit indicates
steps of 100 metres. The trip recorder counter may be reset by holding down
the reset button ⇒page 57, fig. 33 for a few seconds.
Fig. 38 Digital display in
the dash panel
A1A2A3A4
Fig. 39 Gear display
A6
altea_EN Seite 62 Mittwoch, 26. August 2009 6:00 18
Page 65 of 310

Cockpit63
Safety First
Operating instructions
Practical tips
Technical Data
Service interval display
A
Service pre-warning will appear in the mileage displays if a service is due
soon. A “spanner” symbol appears and the display “km” with the distance
that can be driven until the next service appointment is due. The display will
change after approximately 10 seconds. A “clock symbol” appears and the
number of days until the service appointment should be carried out. The
following message is shown in the dash panel display: SERV. IN... KM OR...
DAYS . The service message will disappear approximately 20 seconds after
the ignition is switched on or the engine is running. The normal display can
be resumed by pressing the reset button on the trip counter or by pressing the
rocker switch of the MFI ⇒fig. 40 .
With the ignition switched on, you can call up the current service message by
pressing the trip counter reset knob for 2 seconds.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Display with multi-function display (MFD)*
The multi-function display (MFD) shows you information on
the journey and fuel consumption.
AB
Fig. 40 Rocker buttons A
and B. Steering wheel
controls.Fig. 41 Digital display in
the dash panel
altea_EN Seite 63 Mittwoch, 26. August 2009 6:00 18
Page 66 of 310

Cockpit
64
The multi-function system uses two automatic memories: 1 - Actual
memory and 2 - Total memory . The selected memory will be shown
in the upper right-hand corner of the display.
Selecting a memory
– When the ignition is on, briefly press button ⇒page 63, fig. 40
on the windscreen wiper lever to change from one memory to
another or press button on the steering wheel controls
⇒ page 63, fig. 40 .
Resetting a memory
– Select the memory that you would like to reset.
– Hold down button on the windscreen wiper lever or button on the steering wheel controls for at least 2 seconds.The trip memory 1 collects the travel and consumption rates from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The total memory 2 collects the trip data for any number of individual jour-
neys (even if the ignition is switched off for longer than two hours) up to a
total of 19 hours and 59 minutes travel time or 1999 km distance travelle d.
The memory will automatically be deleted if one of the named values is
reached.
Displays in the multi-function display (MFD)* You can switch between the following displays in the multi-function display
(MFD) by operating the rocker switch ⇒fig. 42 on the windscreen wiper
lever.
AA
AA
AA
AA
Fig. 42 Rocker buttons A
and B. Steering wheel
controls.Fig. 43 Digital dash
panel display: average
fuel consumption indi-
cator.
AB
altea_EN Seite 64 Mittwoch, 26. August 2009 6:00 18
Page 67 of 310

Cockpit65
Safety First
Operating instructions
Practical tips
Technical Data
Memory displays
•Driving speed•Journey duration•Average speed•Distance•Distance to empty (the distance you can travel with the remaining fuel)•Average fuel consumption•Current fuel consumption•Ambient temperature display•Speed warning
km/h - Driving speed
Driving speed is digitally shown on the display.
min - Journey duration
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both memories is 19 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Økm/h - Average speed
The average speed will be shown after running a distance of approximately
100 metres. Dashes will appear in the display until that time. The display will
be updated every 5 seconds while the vehicle is in motion.
km - Distance travelled
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 1,999 km. The memory will
automatically be deleted once this value has been reached.
Km - Fuel range
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference.
Ø litre/100 km - Average fuel consumption
The average fuel consumption will be shown ⇒page 64, fig. 43 after a
distance of approximately 100 metres has been travelled. Dashes will appear
in the display until that time. The display will be updated every 5 seconds
while the vehicle is in motion. The amount of fuel used will not be shown.
ltr/100 km or ltr/hr - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion ⇒page 202.
Ambient temperature display
The measurement margin extends from -45°C to +58°C. At temperatures
lower than +4°C, an “ice crystal symbol” is displayed and a “warning” sounds
if the vehicle is moving at more than 20 km/h (ice warning). This symbol will
flash for about 10 seconds and remains lit until the exterior temperature rises
above +4°C or 6°C if it was already lit.
Set speed indicator
When driving at the required speed, enter the speed indicator mode and
press the button (Reset), the display remembers the indicated speed. If
the indicated speed is exceeded, a warning text is displayed on the screen
6)
and a warning signal sounds.
This may be deactivated by pressing the button (Reset).
6)Depending on the model version, the message on the screen may vary and may be
represented by flashing of the speed indication or by a speed message.
AA
AA
altea_EN Seite 65 Mittwoch, 26. August 2009 6:00 18
Page 68 of 310

Cockpit
66The speed may be altered using the rocker switch in steps of 5 km/h
within 5 seconds of the initial memory value.
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. You should, for this reason, not rely exclusively on this
display - Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual ambient temperature as
a result of the heat radiated from the engine.Warning or information text in the display
Faults are shown in the display with warning lamps and
warning/information reports.The system runs a check on certain components and functions when the igni-
tion is switched on and while the vehicle is moving. Functional faults are indi-
cated by symbols with warnings and information texts in the display. An
audible warning is given in certain cases.
Warning symbols
There are red warning symbols (priority 1) and yellow warning symbols
(priority 2)
Information text
In addition to warning messages given on a fault, you will receive information
in the display on procedures or will be asked to carry out certain tasks.
Note
In the case of screens without warning or information texts, faults are indi-
cated exclusively by the warning lamps.Warning reports, Priority 1 (red)If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings . This is a danger warning. Stop
the car and switch off the engine. Check the fault and correct it. Obtain profes-
sional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time and will continue
until the fault is corrected.
No menus will be shown in the display for the duration of a priority 1 warning
report.
Examples of priority 1 warning reports (red)•Brake system symbol
with the warning text STOP BRAKE FLUID
SERVICE MANUAL or STOP BRAKE FAULT SERVICE MANUAL .
•Coolant symbol
with the warning text STOP SEE COOLANT SERVICE
MANUAL .
•Engine oil pressure symbol
with the warning text STOP ENGINE OIL
PRESSURE LOW! SERVICE MANUAL .
Warning reports, Priority 2 (yellow)If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning . The function should be checked as soon as possible.
AB
altea_EN Seite 66 Mittwoch, 26. August 2009 6:00 18
Page 69 of 310

Cockpit67
Safety First
Operating instructions
Practical tips
Technical Data
If several priority 2 warning reports are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time. After
a set time, the information text will disappear and the symbol will be shown
as a reminder at the side of the display.
Priority 2
warning reports will not be shown until all Priority 1 warning
reports have been dealt with!
Examples of priority 2 warning reports (yellow):
7)
•Fuel warning light with the information text PLEASE REFUEL. •Windscreen washer fluid symbol
with the information text REFILL
WINDSCREEN WASHER FLUID . Refill the windscreen washer tank
⇒ page 235.
7)Depending on the version of the model.
altea_EN Seite 67 Mittwoch, 26. August 2009 6:00 18
Page 70 of 310

Cockpit
68Dash panel menus*Example of menu use
All the menus on the dash panel may be used according to
the following procedure. The dash panel menus may vary
according to the version of the model.
The settin g of a speed warning will be used as an e xample of how to
use the menus. This is a good idea if you are, for example, using
winter tyres which are not suited for the top speed of the vehicle.
1. Open the main menu with the MFD lever
– Switch the ignition on.
– Hold down button for two seconds to return to main menu
from other menu. It may be necessary to repeat this operation
until the main menu is displayed.
2. Open the menu “Configuration” with the MFD lever
– To choose an option from the menu, press the upper or lower end of the rocker switch. The selected option is displayed between
two lines and there will also be a triangle on the right.
– Select menu Configuration.
Fig. 44 Windscreen wiper
lever: button A to confirm
the menu selection and
rocker switch B to change
the menu
Fig. 45 Steering wheel
controls: button A to
confirm the menu selec-
tion and switch B to
ch ange th e m enu
AB
altea_EN Seite 68 Mittwoch, 26. August 2009 6:00 18
