technical specifications Seat Altea 2010 Owner's Manual

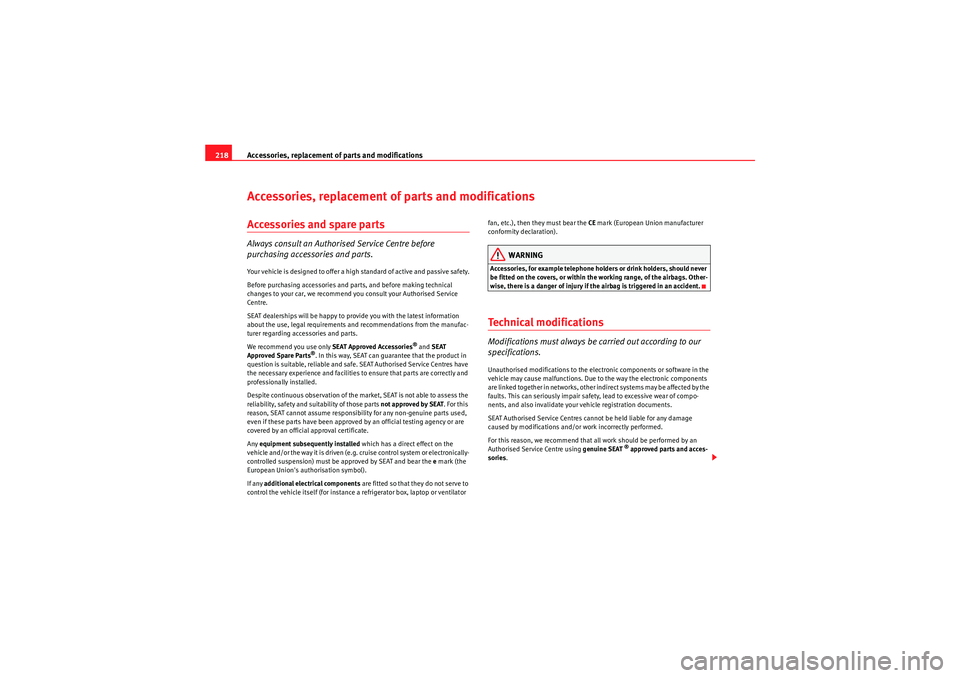

Accessories, replacement of parts and modifications
218Accessories, replacement of parts and modificationsAccessories and spare partsAlways consult an Authorised Service Centre before
purchasing accessories and parts.Your vehicle is designed to offer a high standard of active and passive safety.
Before purchasing accessories and parts, and before making technical
changes to your car, we recommend you consult your Authorised Service
Centre.
SEAT dealerships will be happy to provide you with the latest information
about the use, legal requirements and recommendations from the manufac-
turer regarding accessories and parts.
We recommend you use only SEAT Approved Accessories
® and SEAT
Approved Spare Parts
®. In this way, SEAT can guarantee that the product in
question is suitable, reliable and safe. SEAT Authorised Service Centres have
the necessary experience and facilities to ensure that parts are correctly and
professionally installed.
Despite continuous observation of the market, SEAT is not able to assess the
reliability, safety and suitability of those parts not approved by SEAT . For this
reason, SEAT cannot assume responsibility for any non-genuine parts used,
even if these parts have been approved by an official testing agency or are
covered by an official approval certificate.
Any equipment subsequently installed which has a direct effect on the
vehicle and/or the way it is driven (e.g. cruise control system or electronically-
controlled suspension) must be approved by SEAT and bear the e mark (the
European Union's authorisation symbol).
If any additional electrical components are fitted so that they do not serve to
control the vehicle itself (for instance a refrigerator box, laptop or ventilator fan, etc.), then they must bear the
CE mark (European Union manufacturer
conformity declaration).
WARNING
Accessories, for example telephone holders or drink holders, should never
be fitted on the covers, or within the working range, of the airbags. Other-
wise, there is a danger of injury if the airbag is triggered in an accident.Technical modificationsModifications must always be carried out according to our
specifications.Unauthorised modifications to the electronic components or software in the
vehicle may cause malfunctions. Due to the way the electronic components
are linked together in networks, other indirect systems may be affected by the
faults. This can seriously impair safety, lead to excessive wear of compo-
nents, and also invalidate your vehicle registration documents.
SEAT Authorised Service Centres cannot be held liable for any damage
caused by modifications and/or work incorrectly performed.
For this reason, we recommend that all work should be performed by an
Authorised Service Centre using genuine SEAT
® approved parts and acces-
sories .
altea_EN Seite 218 Mittwoch, 26. August 2009 6:00 18

Checking and refilling levels229
Safety First
Operating instructions
Practical tips
Technical Data
•Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.•When working in the engine compartment, always observe the safety
warnings ⇒page 226.
Closing the bonnet– Raise the bonnet slightly.
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not press downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.•If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oilEngine oil specifications
The engine oil used must conf orm with exact specifications.Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of good quality oil is necessary for the correct operation and long
service life of the engine, when it becomes necessary to replenish or change
the oil, always use an oil that complies to the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used instead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
altea_EN Seite 229 Mittwoch, 26. August 2009 6:00 18

Checking and refilling levels233
Safety First
Operating instructions
Practical tips
Technical Data
•Never pour oil down drains or into the ground.•Use a suitable container when draining the used oil. It has to be large
enough to hold all the engine oilCoolantCoolant specifications
Coolant is a mixture of water and at least 40% coolant addi-
tive.The cooling system must be filled with a mixture of water and at least 40 % of
our coolant additive G12+ or an additive with the specification TT-VW 774 F (it
is dyed purple). This mixture gives the necessary frost protection down to -
25°C and protects the alloy parts of the cooling system against corrosion. It
also prevents scaling and raises the boiling point of the coolant.
The concentration of coolant must always be at least 40% - even if frost
protection is not required.
If greater frost protection is required in very cold climates, the proportion of
the antifreeze additive G12+ can be increased. However, the percentage of
coolant additives should not exceed 60%, as this would reduce the frost
protection. It would also reduce the cooling effect. A mixture with 60%
coolant additive will give frost protection to approx. -40°C.
WARNING
•The coolant additive is toxic. There is a toxic risk. Always keep the
coolant additive in the original container which should be stored out of the
reach of children. The same applies to coolant which you have drained off.
•The coolant additive G12+ must be added in sufficient quantities to
provide anti-freeze protection at the coldest ambient temperatures that
can be expected. At extremely cold ambient temperatures, the coolant
could freeze, causing the vehicle to breakdown. As the heater would also
not work in this situation, there is a risk of suffering exposure!Caution
•Other additives may give considerably inferior corrosion protection. The
resulting corrosion in the cooling system can lead to a loss of coolant,
causing serious damage to the engine.•The coolant additive G12+ (purple) can be mixed with the additive G12
(red) or G11. Never mix G12 (red colour) with G11.WARNING (continued)
altea_EN Seite 233 Mittwoch, 26. August 2009 6:00 18

Technical Data
286Petrol engine 1.4 63 kW (85 bhp)Engine specifications
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3600-3800
No. of cylinders, capacity in cm
3
4/ 1390
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power loss.Maximum speedin km/h 169
Acceleration from 0-80 km/h in seconds 9,7
Acceleration from 0-100 km/h in seconds 14,8
Gross vehicle weight in kg 1886
Weight in working order (with driver) in kg 1366
Front gross axle weight in kg 940
Rear gross axle weight in kg 984
Permitted roof load in kg 75
Trailer without brakes 680
With brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
altea_EN Seite 286 Mittwoch, 26. August 2009 6:00 18

Technical Data287
Safety First
Operating instructions
Practical tips
Technical Data
Engine oil capacity
Petrol engine 1.4 92 kW (125 bhp)Engine specifications
Performance figures
Weights
Approximate engine oil capacity with oil filter change
2.8 litres
Power output in kW (bhp) rpm 92 (125)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders, capacity in cm
3
4/ 1390
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 194
Acceleration from 0-80 km/h in seconds 6,9
Acceleration from 0-100 km/h in seconds 10,3
Gross vehicle weight in kg 1959
Weight in working order (with driver) in kg 1439
Front gross axle weight in kg 1008
Rear gross axle weight in kg 987
Permitted roof load in kg 75
altea_EN Seite 287 Mittwoch, 26. August 2009 6:00 18

Technical Data
288Trailer weights
Engine oil capacityPetrol engine 1.6 75 kW (102 bhp)Engine specifications
Performance figures Trailer without brakes
710
With brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1300
Approximate engine oil capacity with oil filter change 3.3 litres
Running on LPG Running on petrol
Power output in kW (bhp) rpm 72 (98)/ 560075 (102)/ 5600
Maximum torque in Nm at rpm 144/ 3800148/ 3800
No. of cylinders, capacity in cm
3
4/ 15954/ 1595
Fuel LPGSuper 95 octane rating or Regular 91
octane rating
a)
a)Slight power loss.
Running on LPG
Running on petrol
Maximum speed in km/h 178181
Acceleration from 0-80 km/h in seconds 9,28,9
Acceleration from 0-100 km/h in seconds 13,813,2
altea_EN Seite 288 Mittwoch, 26. August 2009 6:00 18

Technical Data289
Safety First
Operating instructions
Practical tips
Technical Data
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.8 l 118 kW (160 HP)Engine specifications
Gross vehicle weight
in kg 1951
Weight in working order (with driver) in kg 1456
Gross front axle weight in kg 965
Gross rear axle weight in kg 1000
Permitted roof load in kg 75
Trailer without brakes 720
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (HP) rpm 118 (160)4500-6200
Maximum torque in Nm at rpm 250/1500-4500
No. of cylinders, capacity in cm
3
4/1798
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power loss.
altea_EN Seite 289 Mittwoch, 26. August 2009 6:00 18

Technical Data291
Safety First
Operating instructions
Practical tips
Technical Data
Diesel engine 1.9 l TDI 66 kW (90 bhp)Engine specifications
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/1800
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in seconds 8,4
Acceleration from 0-100 km/h in seconds 12,6
Gross vehicle weight in kg 2000
Weight in working order (with driver) in kg 1480
Front gross axle weight in kg 1045
Rear gross axle weight in kg 980
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
altea_EN Seite 291 Mittwoch, 26. August 2009 6:00 18

Technical Data
292Engine oil capacityDiesel engine 1.9 l TDI 77 kW (105 bhp)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (HP) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
Manual Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in seconds 8,28,1
Acceleration from 0-100 km/h in seconds 12,312,5
Manual Automatic
Gross vehicle weight in kg 20052030
Weight in working order (with driver) in kg 14801510
altea_EN Seite 292 Mittwoch, 26. August 2009 6:00 18

Technical Data293
Safety First
Operating instructions
Practical tips
Technical Data
Trailer weights
Engine oil capacity
Diesel engine 2.0 l TDI 103 kW (140 HP)Engine specifications
Gross front axle weight
in kg 10451074
Gross rear axle weight in kg 983982
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 740750
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
altea_EN Seite 293 Mittwoch, 26. August 2009 6:00 18
