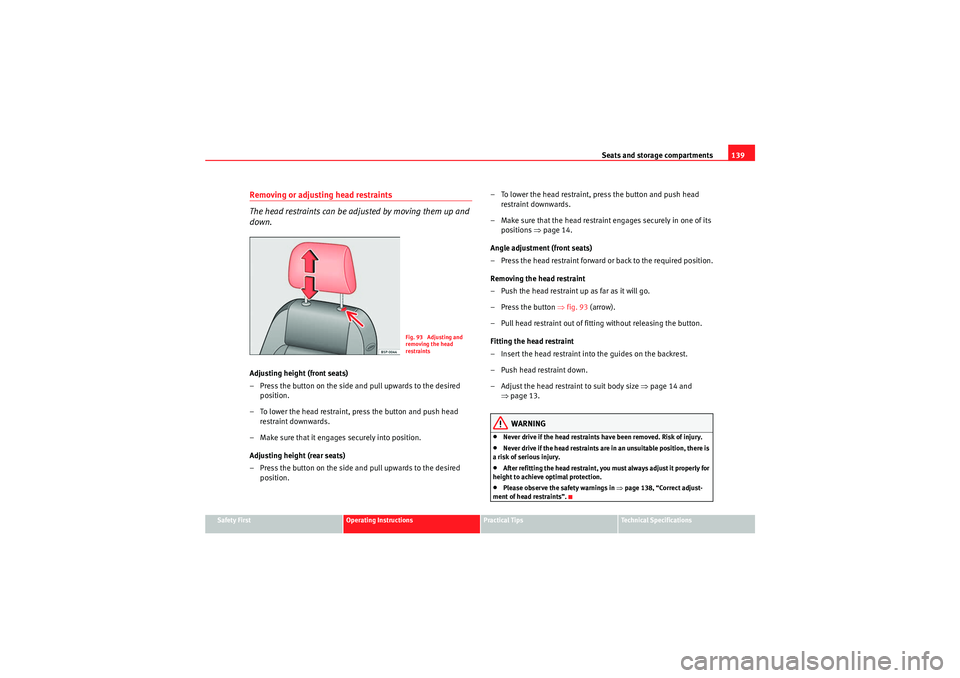

Removing or adjusting head restraints
The head restraints can be adjusted by moving them up and
down.Adjusting height (front seats)
– Press the button on the side and pull upwards to the desired
position.
– To lower the head restraint, press the button and push head
restraint downwards.
– Make sure that it engages securely into position.
Adjusting height (rear seats)
– Press the button on the side and pull upwards to the desired position. – To lower the head restraint,
press the button and push head
restraint downwards.
– Make sure that the head restraint engages securely in one of its positions ⇒page 14.
Angle adjustment (front seats)
– Press the head restraint forward or back to the required position.
Removing the head restraint
– Push the head restraint up as far as it will go.
– Press the button ⇒fig. 93 (arrow).
– Pull head restraint out of fitting without releasing the button.
Fitting the head restraint
– Insert the head restraint into the guides on the backrest.
– Push head restraint down.
– Adjust the head restraint to suit body size ⇒page 14 and
⇒ page 13.
WARNING
•Never drive if the head restraints have been removed. Risk of injury.•Never drive if the head restraints are in an unsuitable position, there is
a risk of serious injury.•After refitting the head restraint, you must always adjust it properly for
height to achieve optimal protection.•Please observe the safety warnings in ⇒page 138, “Correct adjust-
ment of head restraints”.
Fig. 93 Adjusting and
removing the head
restraints
Altea_EN.book Seite 139 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments
140 Front seatsAdjustment of the front seats The control elements in ⇒fig. 94 are mirrored for the front right-
hand seat.
Adjusting the seat forwards and backwards
– Pull up the grip and move the seat forwards or backwards.
– Then release the grip and move the seat further until the catch engages.
Adjusting the seat height*
– Pull the lever up or push down (several times if necessary) from its home position. This adjust s the seat height in stages. Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
Adjusting the lumbar support*
– Take your weight off the backrest and turn the hand wheel to adjust the lumbar support.
As you make the adjustments, the curvature of the cushioned area of the
lumbar region becomes more or less acute. In this way, it adapts to the
natural curvature of the spine.
WARNING
•Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adjust the driver or front passenger seat
only when the vehicle is stationary.•To reduce the risk of injury to the driver and front passenger in case of
a sudden braking or an accident, never drive with the backrest tilted
towards the rear. The maximum protection of the seat belt can be achieved
only when the backrests are in an upright position and the driver and front
passenger have properly adjusted their seat belts. The further the back-
rests are tilted to the rear, the greater the risk of injury due to improper
positioning of the belt web!•Exercise caution when securing the seat height into forwards/back-
wards position. Injuries can be caused if the seat height is adjusted
without due care and attention.
Fig. 94 Front left seat
controls
A1
A1
A2
A3A4
Altea_EN.book Seite 140 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments141
Safety First
Operating Instructions
Practical Tips
Technical Specifications

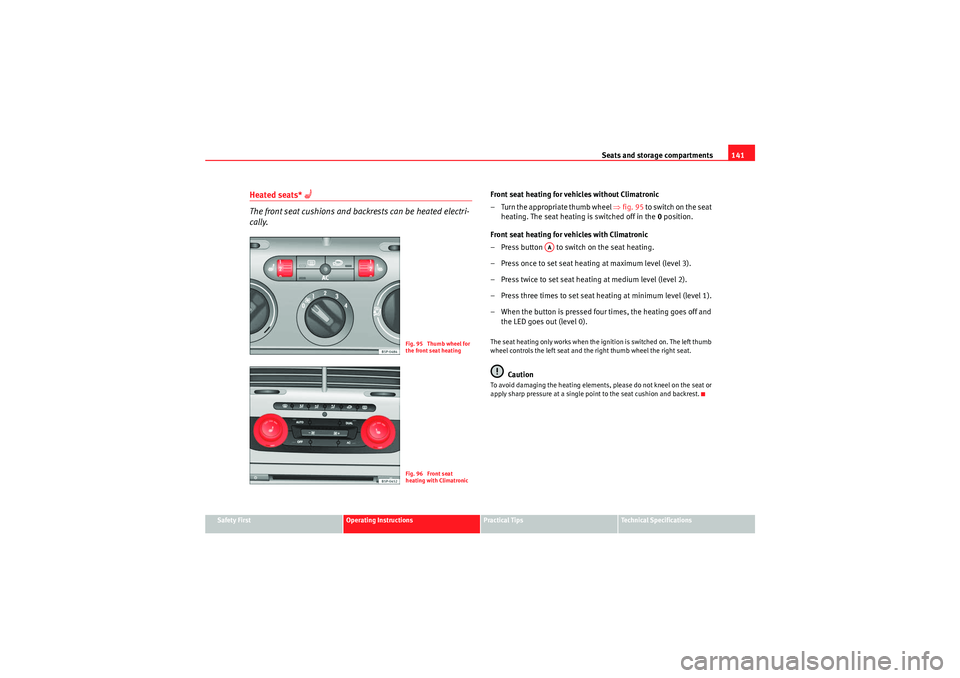

Heated seats*
A
The front seat cushions and backrests can be heated electri-
cally.
Front seat heating for vehicles without Climatronic
– Turn the appropriate thumb wheel ⇒fig. 95 t o s w i t ch o n t h e s e a t
heating. The seat heating is switched off in the 0 position.
Front seat heating for vehicles with Climatronic
– Press button to switch on the seat heating.
– Press once to set seat heating at maximum level (level 3).
– Press twice to set seat heating at medium level (level 2).
– Press three times to set seat heating at minimum level (level 1).
– When the button is pressed four times, the heating goes off and the LED goes out (level 0).The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Fig. 95 Thumb wheel for
the front seat heatingFig. 96 Front seat
heating with Climatronic
AA
Altea_EN.book Seite 141 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments

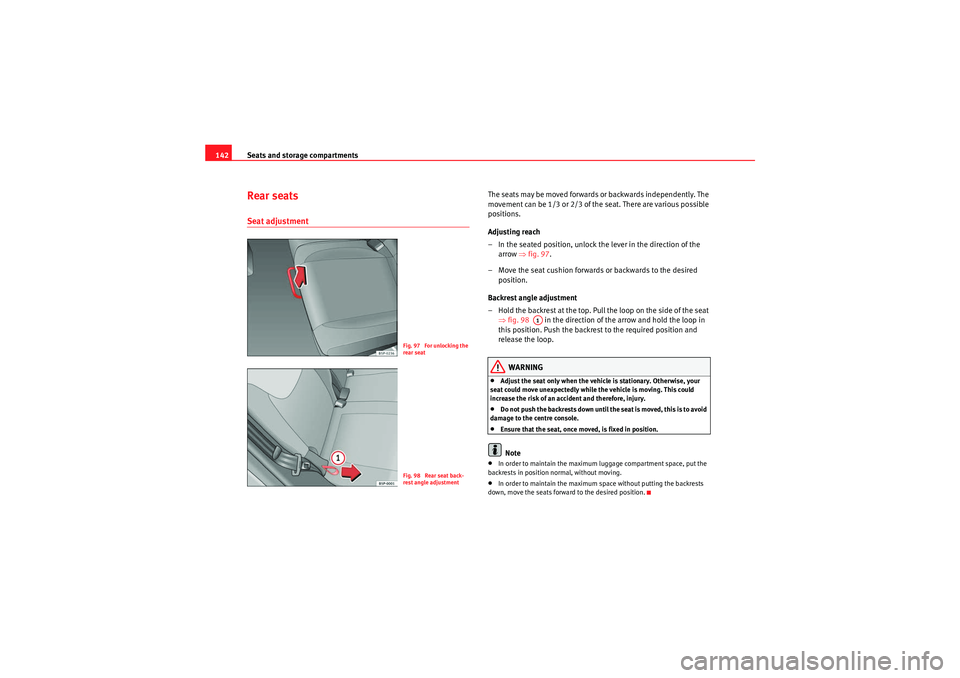

142Rear seatsSeat adjustment
The seats may be moved forwards or backwards independently. The
movement can be 1/3 or 2/3 of the seat. There are various possible
positions.
Adjusting reach
– In the seated position, unlock the lever in the direction of the
arrow ⇒fig. 97 .
– Move the seat cushion forwards or backwards to the desired position.
Backrest angle adjustment
– Hold the backrest at the top. Pull the loop on the side of the seat ⇒fig. 98 in the direction of the arrow and hold the loop in
this position. Push the backrest to the required position and
release the loop.
WARNING
•Adjust the seat only when the vehicle is stationary. Otherwise, your
seat could move unexpectedly while the vehicle is moving. This could
increase the risk of an accident and therefore, injury.•Do not push the backrests down until the seat is moved, this is to avoid
damage to the centre console.•Ensure that the seat, once moved, is fixed in position.Note
•In order to maintain the maximum luggage compartment space, put the
backrests in position normal, without moving.•In order to maintain the maximum space without putting the backrests
down, move the seats forward to the desired position.
Fig. 97 For unlocking the
rear seatFig. 98 Rear seat back-
rest angle adjustment
A1
Altea_EN.book Seite 142 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments143
Safety First
Operating Instructions
Practical Tips
Technical Specifications

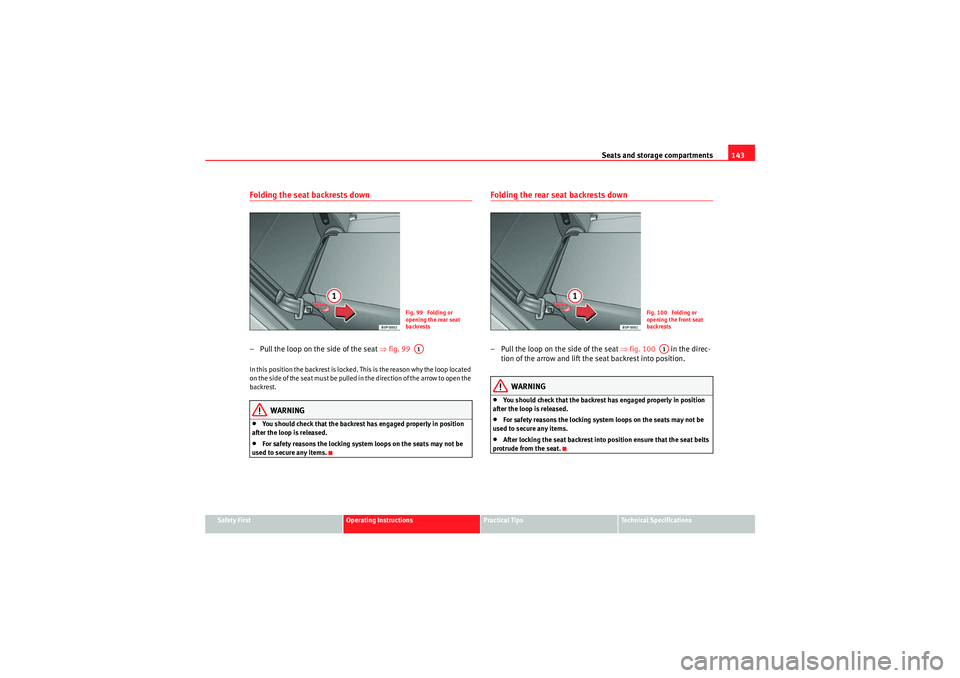

Folding the seat backrests down – Pull the loop on the side of the seat ⇒fig. 99 In this position the backrest is locked. This is the reason why the loop located
o n the si d e of the sea t m us t be pulled in th e d ire ct io n of t he a r row to op e n t he
backrest.
WARNING
•You should check that the backrest has engaged properly in position
after the loop is released.•For safety reasons the locking system loops on the seats may not be
used to secure any items.
Folding the rear seat backrests down– Pull the loop on the side of the seat ⇒fig. 100 in the direc-
tion of the arrow and lift the seat backrest into position.
WARNING
•You should check that the backrest has engaged properly in position
after the loop is released.•For safety reasons the locking system loops on the seats may not be
used to secure any items.•After locking the seat backrest into position ensure that the seat belts
protrude from the seat.
Fig. 99 Folding or
opening the rear seat
backrestsA1
Fig. 100 Folding or
opening the front seat
backrests
A1
Altea_EN.book Seite 143 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments

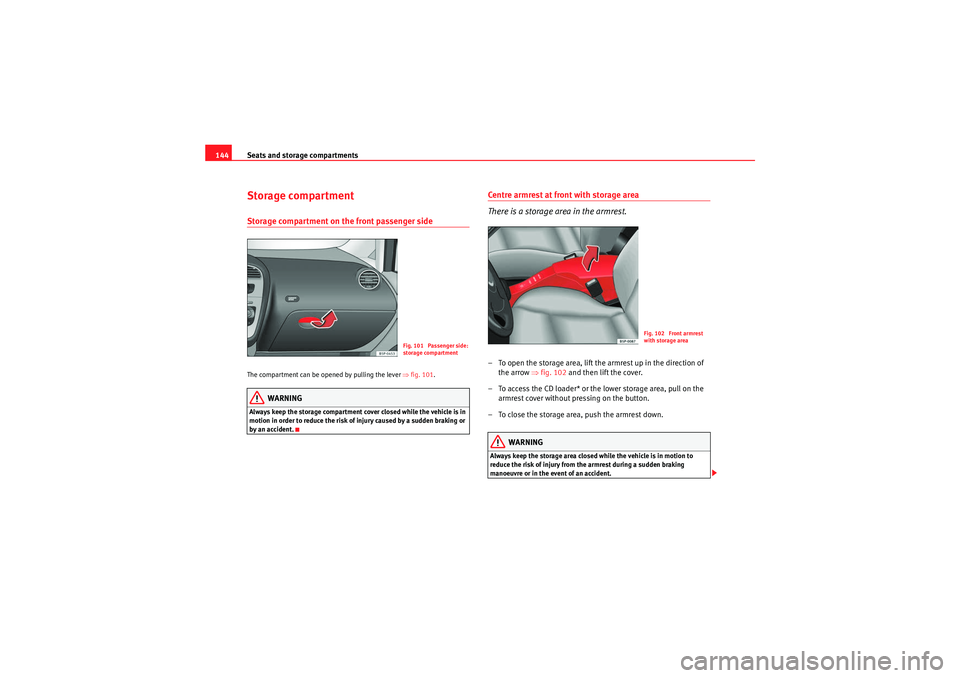

144Storage compartmentStorage compartment on the front passenger side The compartment can be opened by pulling the lever ⇒fig. 101 .
WARNING
Always keep the storage compartment cover closed while the vehicle is in
motion in order to reduce the risk of injury caused by a sudden braking or
by an accident.
Centre armrest at front with storage area
There is a storage area in the armrest.– To open the storage area, lift the armrest up in the direction of
the arrow ⇒fig. 102 and then lift the cover.
– To access the CD loader* or the lower storage area, pull on the armrest cover without pressing on the button.
– To close the storage area, push the armrest down.
WARNING
Always keep the storage area closed while the vehicle is in motion to
reduce the risk of injury from the armrest during a sudden braking
manoeuvre or in the event of an accident.
Fig. 101 Passenger side:
storage compartment
Fig. 102 Front armrest
with storage area
Altea_EN.book Seite 144 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments145
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note

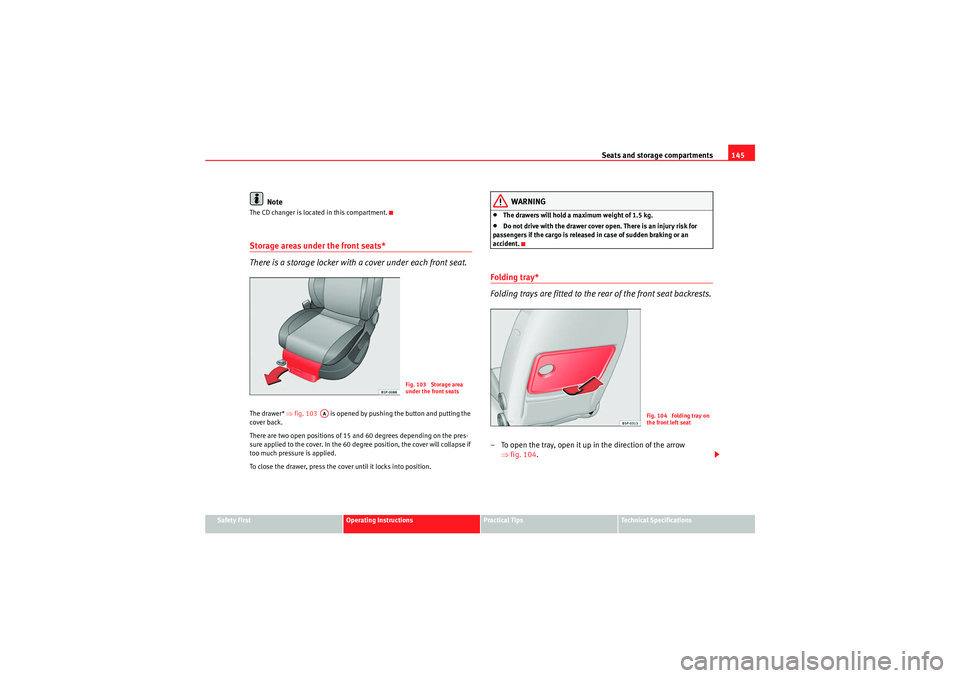

The CD changer is located in this compartment.Storage areas under the front seats*
There is a storage locker with a cover under each front seat.The drawer* ⇒fig. 103 is opened by pushing the button and putting the
cover back.
There are two open positions of 15 and 60 degrees depending on the pres-
sure applied to the cover. In the 60 degree position, the cover will collapse if
too much pressure is applied.
To close the drawer, press the cover until it locks into position.
WARNING
•The drawers will hold a maximum weight of 1.5 kg.•Do not drive with the drawer cover open. There is an injury risk for
passengers if the cargo is released in case of sudden braking or an
accident.
Folding tray*
Folding trays are fitted to the rear of the front seat backrests.– To open the tray, open it up in the direction of the arrow ⇒fig. 104 .
Fig. 103 Storage area
under the front seats
AA
Fig. 104 Folding tray on
the front left seat
Altea_EN.book Seite 145 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments
146
WARNING

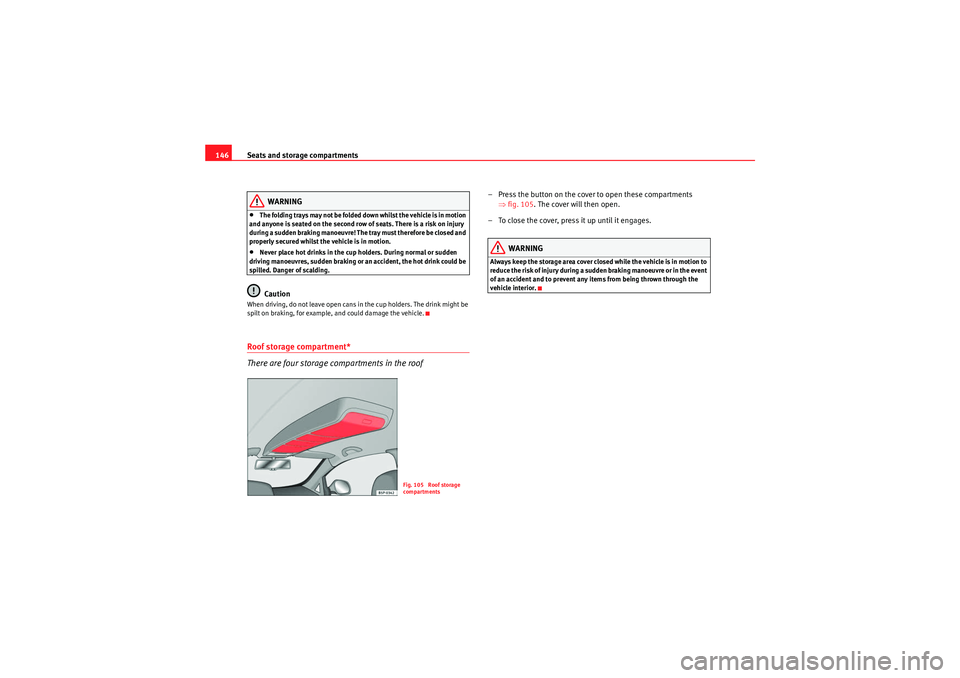

•The folding trays may not be folded down whilst the vehicle is in motion
and anyone is seated on the second row of seats. There is a risk on injury
during a sudden braking manoeuvre! The tray must therefore be closed and
properly secured whilst the vehicle is in motion.•Never place hot drinks in the cup holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.Caution
When driving, do not leave open cans in the cup holders. The drink might be
spilt on braking, for example, and could damage the vehicle.Roof storage compartment*
There are four storage compartments in the roof
– Press the button on the cover to open these compartments ⇒fig. 105 . The cover will then open.
– To close the cover, press it up until it engages.
WARNING
Always keep the storage area cover closed while the vehicle is in motion to
reduce the risk of injury during a sudden braking manoeuvre or in the event
of an accident and to prevent any items from being thrown through the
vehicle interior.
Fig. 105 Roof storage
compartments
Altea_EN.book Seite 146 Donnerstag, 2. September 2010 2:00 14

Seats and storage compartments147
Safety First
Operating Instructions
Practical Tips
Technical Specifications

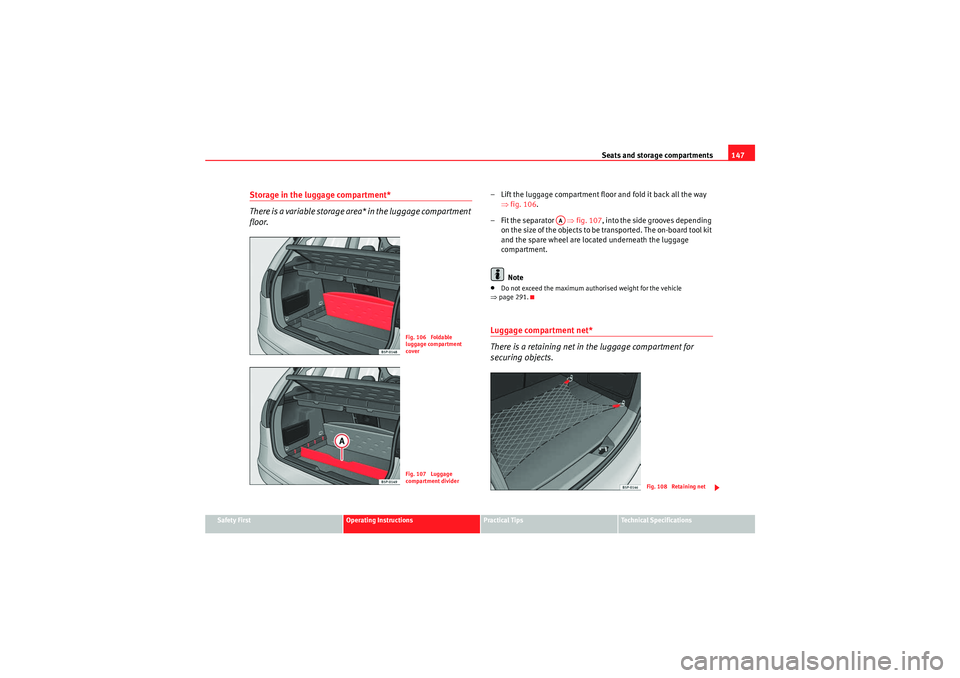

Storage in the luggage compartment*
There is a variable storage area* in the luggage compartment
floor.
– Lift the luggage compartment floor and fold it back all the way
⇒fig. 106 .
– Fit the separator ⇒fig. 107 , into the side grooves depending
on the size of the objects to be transported. The on-board tool kit
and the spare wheel are located underneath the luggage
compartment.
Note•Do not exceed the maximum authorised weight for the vehicle
⇒ page 291.Luggage compartment net*
There is a retaining net in the luggage compartment for
securing objects.
Fig. 106 Foldable
luggage compartment
coverFig. 107 Luggage
compartment divider
AA
Fig. 108 Retaining net
Altea_EN.book Seite 147 Donnerstag, 2. September 2010 2:00 14

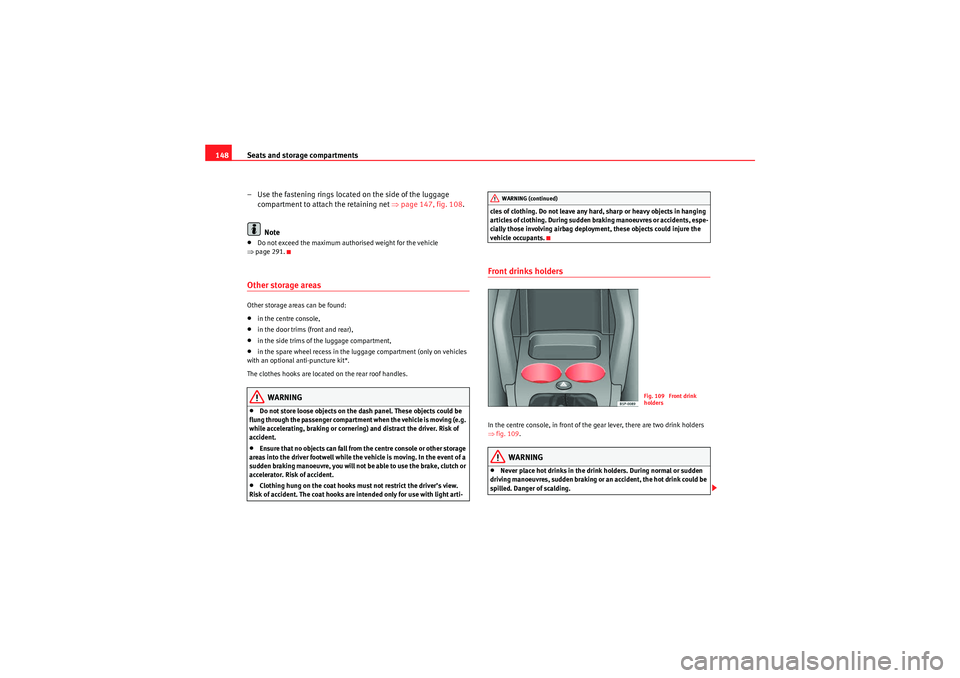

Seats and storage compartments
148
– Use the fastening rings located on the side of the luggage compartment to attach the retaining net ⇒ page 147, fig. 108.
Note•Do not exceed the maximum authorised weight for the vehicle
⇒ page 291.Other storage areasOther storage areas can be found:•in the centre console,•in the door trims (front and rear),•in the side trims of the luggage compartment,•in the spare wheel recess in the luggage compartment (only on vehicles
with an optional anti-puncture kit*.
The clothes hooks are located on the rear roof handles.WARNING
•Do not store loose objects on the dash panel. These objects could be
flung through the passenger compartment when the vehicle is moving (e.g.
while accelerating, braking or cornering) and distract the driver. Risk of
accident.•Ensure that no objects can fall from the centre console or other storage
areas into the driver footwell while the vehicle is moving. In the event of a
sudden braking manoeuvre, you will not be able to use the brake, clutch or
accelerator. Risk of accident.•Clothing hung on the coat hooks must not restrict the driver’s view.
Risk of accident. The coat hooks are intended only for use with light arti- cles of clothing. Do not leave any hard, sharp or heavy objects in hanging
articles of clothing. During sudden br
aking manoeuvres or accidents, espe-
cially those involving airbag deployment, these objects could injure the
vehicle occupants.
Front drinks holdersIn the centre console, in front of the gear lever, there are two drink holders
⇒ fig. 109.
WARNING
•Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.WARNING (continued)
Fig. 109 Front drink
holders
Altea_EN.book Seite 148 Donnerstag, 2. September 2010 2:00 14
