Driving
174Parking
The handbrake should always be firmly applied when the
vehicle is parked.Always note the following points when parking the vehicle:
– Use the foot brake to stop the vehicle.
–Apply the handbrake.
– The first gear should also be selected.
– Switch off the engine and remove the key from the ignition lock.
Turn the steering wheel slightly to engage the steering lock.
– Always take you car keys with you when you leave the vehicle ⇒ .Additional notes on parking the vehicle on gradients:
Turn the steering wheel so that the vehicle would roll against the kerb if it did
start to roll.•
If the vehicle is facing downhill, turn the front wheels so that they point
towards the kerb.
•
If the vehicle is facing uphill, turn the front wheels so that they point away
from the kerb .
•
Secure the vehicle as normal by applying the handbrake firmly and
selecting first gear.
WARNING
•
Take measures to reduce the risk of injury when you leave your vehicle
unattended.
•
Never park where the hot exhaust system could ignite inflammable
materials, such as dry grass, low bushes, spilt fuel etc.
•
Never allow vehicle occupants to remain in the vehicle when it is
locked. They would be unable to open the vehicle from the inside, and
could become trapped in the vehicle in an emergency. In the event of an
emergency, locked doors will delay assistance to occupants.
•
Never leave children unsupervised in the vehicle. They could set the
vehicle in motion, for example, by releasing the handbrake or the gear
lever / selector lever.
•
Depending on weather conditions, it may become extremely hot or cold
inside the vehicle. This can be fatal.
Acoustic parking aid system*Rear parking aid
The parking aid system will use an acoustic signal to warn of
the approach of any object towards the rear of the vehicle.Description
The acoustic parking aid system will measure the distance between the rear
of the vehicle and any possible obstacle using four ultrasonic sensors located
on the rear bumper. The measuring range of the sensors starts at approxi-
mately and depending on the nature of the obstacle at a distance of:•
side of the rear bumper: 0.8 m
•
middle of the rear bumper: 1.5 mWARNING (continued)
altea_xl ingles.book Seite 174 Donnerstag, 12. April 2007 12:56 12

Driving175
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Activation
The system is activated by engagement of the reverse gear. A brief acoustic
signal confirms the activation and correct function of the system.
Reversing
The distance warning will begin as soon as an obstacle is detected by the
system. The frequency of the bleeps emitted by the system will increase
rapidly as the vehicle approaches the obstacle.
Within a short distance of about 25 cm, a continuous signal sounds (stop
signal). The driver should not reverse any further.
Trailer towing
For vehicles fitted with a tow bar by the manufacturer, the parking aid system
will not be activated by the engagement of the reverse gear when pulling a
trailer, as the trailer's electric conn
ecter will be plugged into the vehicle.
Possible faults
If a continuous bleep sounds for some seconds when the reverse gear is
engaged, this indicates that there is a fault in the parking aid system.
If the fault continues until the ignition is turned off, the acoustic signal
warning of the fault will not be emitted every time the system is reactivated
(by engaging the reverse gear). Thus, the system ready indication will not
sound either. Have the fault repaired by an Authorised Service Centre as soon
as possible.
If there is no ready signal or no acou stic warning signal then the parking aid
loudspeaker is faulty and may not warn of obstacles.
To ensure that the system works properly, the sensors must be kept clean and
free of ice and snow.
WARNING
•
The sensors have blind spots in which obstacles may not be detected.
•
Always look out for small children and animals because the system will
not always detect them. Always pay attention when reversing to avoid acci-
dents.
•
The parking aid is not a replacement for driver awareness. The driver
must take full responsibility for parking and other manoeuvres.Caution
•
Please note that low obstacles detected by the system may no longer be
registered by the sensors as the car moves closer, so the system will not give
any further warning. Certain kinds of ob stacles (such as wire fences, chains,
thin posts or trailer draw bars, high kerbs or painted railings etc) may not
always be detected by the system, so there is a risk of damaging the vehicle
in such cases.
•
In some cases, obstacles with uniform edges and bumps may not be
detected immediately by the system due to their geometry. Take special care
around this type of obstacle such as co rners, rectangular objects, etc.., these
can cause damage to the vehicle.
•
Be especially carefully when mano euvring into a corner between two
perpendicular walls. Survey the approach of the wall to the side of the vehicle
(using the mirrors)
•
The parking aid system does not replace use of the mirrors for manoeu-
vres.
•
Distant ultra-sonic sources (hammers , tyres, construction machinery,
other vehicles with PDC) may interfere with the operation of the system.
•
Periodic cleaning of the sensors, take care not to damage or scratch them.
When cleaning with high pressure washers or steam cleaners, the sensors
should be sprayed for only a very short period and from a distance of more
than 10 cm.WARNING (continued)
altea_xl ingles.book Seite 175 Donnerstag, 12. April 2007 12:56 12

Intelligent technology
184
Caution•
In order to ensure that ESP functions correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.
•
Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS, EDL, ESP and TCS.Note
To disconnect using the ESP button ⇒page 162.Anti-lock brake system (ABS)The anti-lock brake system prevents the wheels locking during braking
⇒page 182Electronic differential lock (EDL)*
The electronic differential lock helps prevent the loss of trac-
tion caused if one of the driven wheels starts spinning.EDL helps the vehicle to start moving, accelerate and climb a gradient in slip-
pery conditions where this may otherwise be difficult or even impossible.
The system will control the revolutions of the drive wheels using the ABS
sensors (in case of an EDL fault the warning lamp for ABS lights up)
⇒page 78.
At speeds of up to approximately 80 km/h, it is able to balance out differ-
ences in the speed of the driven wheel s of approximately 100 rpm caused by a slippery road surface on
one side of the vehicle. It does this by braking the
wheel which has lost traction and distributing more driving force to the other
driven wheel via the differential.
To prevent the disc brake of the braked wheel from overheating, the EDL cuts
out automatically if subjected to excessive loads. The vehicle will continue to
function normally without EDL. For this reason, the driver is not informed that
the EDL has been switched off.
The EDL will switch on again automatically when the brake has cooled down.
WARNING
•
When accelerating on a slippery surface, for example on ice and snow,
press the accelerator carefully. Despite EDL, the driven wheels may start to
spin. This could impair the vehicle’s stability.
•
Always adapt your driving style to su it road conditions and the traffic
situation. Do not let the extra safety afforded by EDL tempt you into taking
any risks when driving, this can cause accidents.Caution
Modifications to the vehi cle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the EDL ⇒page 204.The traction control system (TCS)The traction control system prevents the drive wheels from spinning when the
car is accelerating ⇒page 182.
altea_xl ingles.book Seite 184 Donnerstag, 12. April 2007 12:56 12

If and when
250
20 Park Pilot (Parking assistant) / Gear lever/ ESP switchboard 10
21 Cable control unit 7,5
22 Volumetric alarm sensor/ Alarm horn 5
23 Diagnosis / Rain sensor / Light switch 10
24 Towing hook kit (assisted solution) 15
25 Switchboard coupling automatic gearbox 20
26 Vacuum pump 20
27 RSE input (roof screen) 10
28 Rear wiper motor / Switchboard wiring 20
29 Vacant
30 Cigarette lighter / socket 20
31 Vacant
32 Vacant
33 Heater 40
34 Vacant
35 Vacant
36 2.0 l 147 kW Engine 10
37 2.0 l 147 kW Engine 10
38 2.0 l 147 kW Engine 10
39 Trailer control unit (coupling) 15
40 Trailer control unit (indicat ors, brakes and left side) 20
41 Trailer control unit (fog light, reversing light and right side) 20
42 Vacant
43 Trailer pre-installation 40
Number
Electrical equipment Amperes
altea_xl ingles.book Seite 250 Donnerstag, 12. April 2007 12:56 12

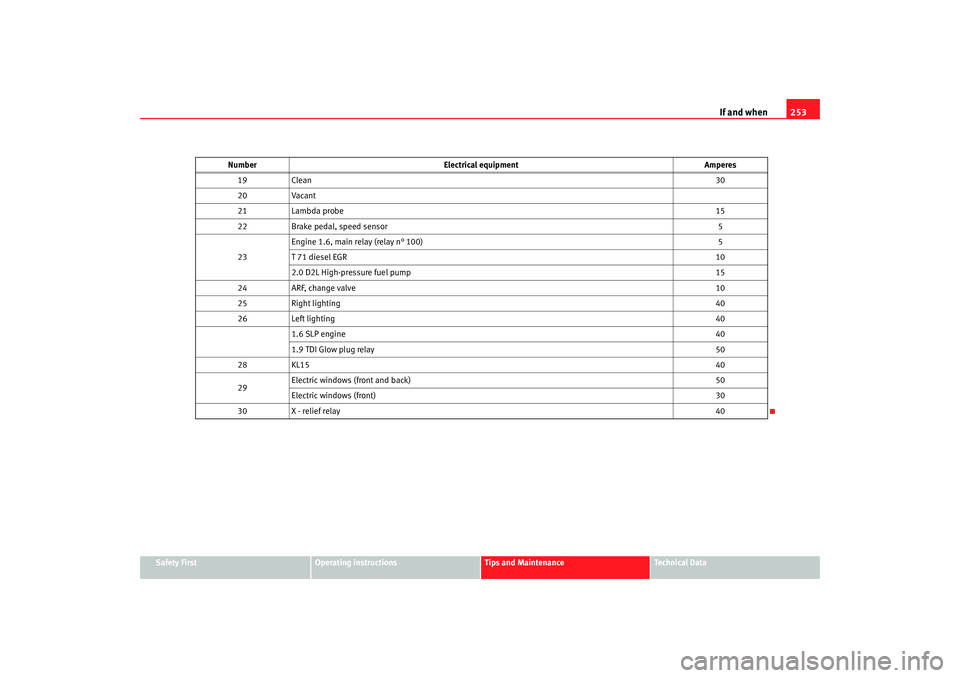

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
19
Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine 1.6, main relay (relay n° 100)
5
T 71 diesel EGR 10
2.0 D2L High-pressure fuel pump 15
24 ARF, change valve 10
25 Right lighting 40
26 Left lighting 40
1.6 SLP engine 40
1.9 TDI Glow plug relay 50
28 KL15 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 X - relief relay 40
Number
Electrical equipment Amperes
altea_xl ingles.book Seite 253 Donnerstag, 12. April 2007 12:56 12

Index
306One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . 107
Opening and locking . . . . . . . . . . . . . . . . . . . . 104
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 72
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 55
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 72PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 Trips to foreign countries . . . . . . . . . . . . . . 188
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 210
Petrol engines, starting . . . . . . . . . . . . . . . . . . 164
Physical principles of a frontal collision . . . . . . 21
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . 101 Radio navigation Steering wheel controls
audio + telephone version . . . . . . . . . . . . . . 88
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 88
Radio wave remote control . . . . . . . . . . . . . . . . 100
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear drink holder* Armrest* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Rear fog light Indication lamp . . . . . . . . . . . . . . . . . . . . . . 111
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 119
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 119
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 132
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 199
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 124
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 125
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Registration light . . . . . . . . . . . . . . . . . . . . . . . . 262
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 101
Removing and fitting the wheel . . . . . . . . . . . . 243
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 99
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 167 RME fuel (biodiesel) . . . . . . . . . . . . . . . . . . . . . 210
Roll-back function
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Roof stowage compartment* . . . . . . . . . . . . . . 136
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Running in Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 186
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Running in tyres . . . . . . . . . . . . . . . . . . . . . . . . 186
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 76
Safety notes Belt tension devices . . . . . . . . . . . . . . . . . . . 28
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Disabling front passenger airbag . . . . . . . . 45
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 37
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using child seats . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 23
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 93
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
altea_xl ingles.book Seite 306 Donnerstag, 12. April 2007 12:56 12

Index
308Traction control system
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 76
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 117
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Warning lamp . . . . . . . . . . . . . . . . . . . . 76, 117
Turning on the emergency indicators . . . . . . . 115
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Tyre Mobility-System (Tyre repair kit) . . . . . . . 237
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 80
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 229
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 237, 245
Tyre-Mobility-System (Tyre repair kit) . . . . . . . 245
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 232
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 230
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 230
Tyres with directional tread pattern . . . . . . . . . 228UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 201
USB* connection . . . . . . . . . . . . . . . . . . . . . . . . 146
Using the Tiptronic gear system . . . . . . . . . . . . 172
VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 225
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Vehicle identification data . . . . . . . . . . . . . . . . 272
Vehicle identification number . . . . . . . . . . . . . 272
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . 195
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 134
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . 103WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Warning reportsRed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning texts in the display . . . . . . . . . . . . . . . . 63
Warning triangle and first-aid kit . . . . . . . . . . . 146
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 196
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 196
Washing with high pressure cleaners . . . . . . . 197
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Water in the windscreen washer tank . . . . . . . 220
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 230
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Why assume the correct sitting position? . . . . . 30
Why should head restraints be correctly adjusted? . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 21
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 30
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Windscreen washer fluid Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 121 Changing blades . . . . . . . . . . . . . . . . . . . . . 221
Changing the rear blade . . . . . . . . . . . . . . . 223
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 211
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Wiper/wash automatic function . . . . . . . . . . . 121
Working in the engine compartment . . . . . . . . 211
altea_xl ingles.book Seite 308 Donnerstag, 12. April 2007 12:56 12
