technical data Seat Altea Freetrack 2008 Owner's Guide

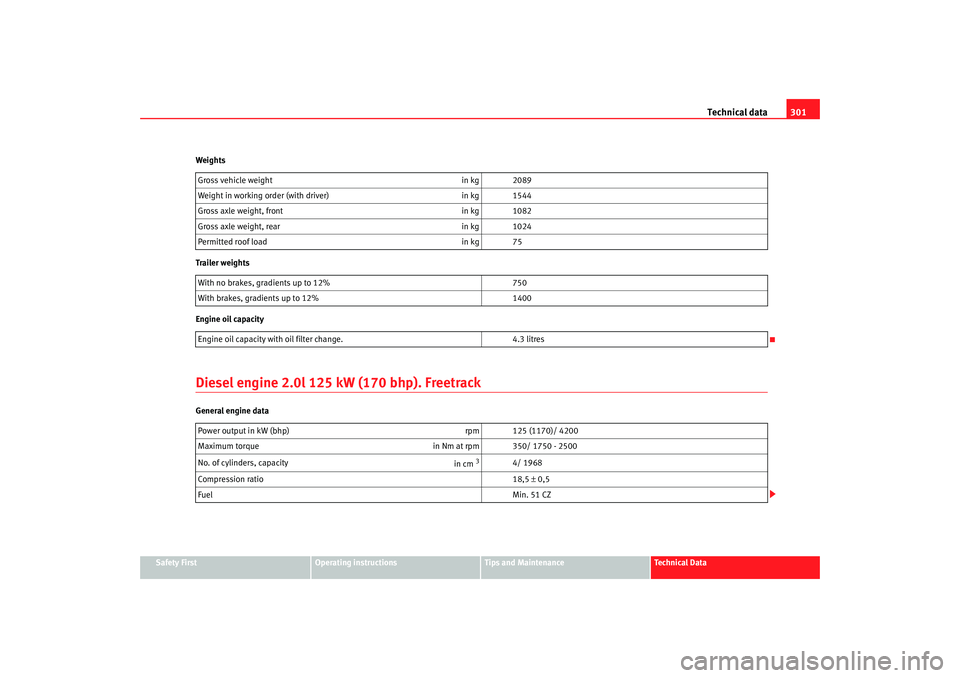

Technical data301
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0l 125 kW (170 bhp). FreetrackGeneral engine data
Gross vehicle weight
in kg 2089
Weight in working order (with driver) in kg 1544
Gross axle weight, front in kg 1082
Gross axle weight, rear in kg 1024
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Power output in kW (bhp) rpm 125 (1170)/ 4200
Maximum torque in Nm at rpm 350/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
altea_XL ingles.book Seite 301 Donnerstag, 13. September 2007 10:36 10

Technical data
302Performance figures
28)
Weights
29)
Trailer weights
Engine oil capacity28)Four-wheel driveMaximum speed in km/h 204
Acceleration from 0-80 km/h in sec. 5,9
Acceleration from 0-100 km/h in sec. 8,729)Four-wheel driveGross vehicle weight in kg 2168
Weight in working order (with driver) in kg 1643
Gross axle weight, front in kg 1115
Gross axle weight, rear in kg 1086
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
altea_XL ingles.book Seite 302 Donnerstag, 13. September 2007 10:36 10

Technical data303
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Dimensions and capacities
Dimensions
Length, width 4,467 mm/ 1,768 mm
Height at kerb weight 1,575 mm
Front and rear projection 913 mm/ 976 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,527 mm 1,506 mm
1,535 mm 1,514 mm
Capacities
Fuel tank 55 litres, reserve 7 litres
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
altea_XL ingles.book Seite 303 Donnerstag, 13. September 2007 10:36 10

Technical data
304Dimensions and capacities. Freetrack
Dimensions
Length, width 4,493 mm/ 1,778 mm
Height at kerb weight 1,615 mm
Front and rear projection 940 mm/ 977 mm
Wheelbase 2,576 mm
Turning circle 10,7
Track width Front
Rear
1,542 mm 1,527 mm
Capacities
Fuel tank 60 l. Reserve 8l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
