audio Seat Altea Freetrack 2009 Owner's Manual

Contents3
ContentsManual structure
. . . . . . . . . . . . . . . . . . . .
Content
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety First
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Proper sitting position for occupants . . . . . . . . .
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stowing luggage . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Why wear seat belts? . . . . . . . . . . . . . . . . . . . . . .
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Belt tension devices . . . . . . . . . . . . . . . . . . . . . .
Airbag system
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . .
Deactivating airbags* . . . . . . . . . . . . . . . . . . . . .
Child safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing child seats . . . . . . . . . . . . . . . . . . . . . .
Operating instructions
. . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital display in the instrument panel . . . . . . .
Instrument panel menus* . . . . . . . . . . . . . . . . . .
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel controls*
. . . . . . . . . . . . . . . . . .
General information . . . . . . . . . . . . . . . . . . . . . .
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio navigation system . . . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . .
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio frequency remote control . . . . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . .
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sliding/tilting roof* . . . . . . . . . . . . . . . . . . . . . . .
Lights and visibility
. . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . .
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and stowage
. . . . . . . . . . . . . . . . . . . . . . .
The importance of correct seat adjustment . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . .
Stowage compartments . . . . . . . . . . . . . . . . . . . Ashtrays*, cigarette lighter* and electrical
sockets* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
First-aid kit, warning triangle, fire extinguisher
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating, Ventilation and Air conditioning
. .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . .
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and stopping the engine . . . . . . . . . . .
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox* / DSG automatic gearbox*
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking aid acoustic system* . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . .
Practical tips
. . . . . . . . . . . . . . . . . . . . . . . . .
Intelligent technology
. . . . . . . . . . . . . . . . . . . . .
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-lock brake system and traction control M-ABS
(ABS and TCS) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic stabilisation programme (ESP)* . . . .
Driving and the environment
. . . . . . . . . . . . . .
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust gasses purification system . . . . . . . . . .
Economical and ecological driving . . . . . . . . . .
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
7
7
7
10
16
17
19
19
21
24
28
30
30
34
37
41
44
46
46
48
51 55
55
55
57
60
66
75
85
85
85
89
93
93
99
100
102
104
106
108
111
111
119
122
123
127
130
130
131
133
135
137 146
149
150
153
153
155
159
163
165
165
166
167
168
171
172
176
178
180
185
185
185
186
187
192
192
193
194
196
altea_freetrack_ingles.book Seite 3 Montag, 16. Februar 2009 10:48 10

Cockpit
68Main menu
The menu provides access to the different display functions
(only with the MFD lever).
Open main menu
– Switch the ignition on.
– Press and hold the eject button for at least 2 seconds. It may
be necessary to repeat this operation until the main menu is
displayed.
Select a menu from the main menu
– To choose an option from the menu, press the upper or lower end of rocker switch . The selected option is displayed between
two horizontal lines.
– Press button to select the entry.Example of menu use ⇒page 66
Fig. 45 Windscreen wiper
lever (MFD): button A to
confirm the menu selec-
t i o n an d ro cke r s wi t ch B t o
change the menuFig. 46 Digital instru-
ment panel display: Main
menu
Main menu
Function
Multi-function dis-
play
Change to the multi-function display (MFD): “Multi-
function display (MFD)”
Audio
The current station will be shown when the radio is
switched on.
Navigation
This menu is only available if the vehicle is fitted with
a navigation system. The navigation system must be
switched on. When the route guidance is activated,
the turning arrows and proximity bars are displayed.
The display is similar to that of the Navigation sys-
tem.
If the route guidance is not activated, the direction of
travel (compass) and the name of the street along
which you are driving are shown.
AB
AB
AA
altea_freetrack_ingles.book Seite 68 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*85
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Steering wheel controls*General informationThe steering wheel includes a multifunction module from where it is possible
to control the audio, telephone and radio navigation functions, and the auto-
matic gearbox*, without needing to distract the driver.
There are two versions of the multifunction module:
•
Audio version, to control the available audio functions from the steering
wheel.
•
Audio + Telephone version, to control the available audio functions and
the telephone system from the steering wheel.
Both versions may be used to control the Audio system (Radio, CD Audio, CD
mp3, CD Changer) and the radio / navigation System, in which case they also
control the Navigation system.
•
Version for automatic gearbox* ⇒page 175.
Audio systemSteering wheel audio version controls
Fig. 50 Controls on the
steering wheel
Fig. 51 Steering wheel
controls (depending on
version of model)
altea_freetrack_ingles.book Seite 85 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*
86Button Radio CD/MP3/USB*/iPod*
AUX
a)
a)Only if the panel is in Audio menu.
Vol u m e u pVol u m e u pVol u m e u p
Vol u m e d ow n Vol u m e d ow nVol u m e d ow n
Search for next station Next track
Hold down: Fast forward No specified function
Search for last station Previous track
Hold down: Rewind No function specified
No function specified No function specifiedNo function specified
Silence PauseSilence
b)
b)Depending on the model version
Operates on Instrument panel display Operates on Instrument panel display Operates on Instrument panel display
Next preset
a)
Next track
a)
No function specified
a)
b)
Operates on Instrument panel display Operates on Instrument panel display Operates on Instrument panel display Previous preset
a)
Previous track
a)
No function specified
a)
b)
Next preset Change folderNo function specified
Change menu on instrument panel Change menu on instrument panelChange menu on instrument panel
b)
Previous preset Change folderNo function specified
Change menu on instrument panel Change menu on instrument panelChange menu on instrument panel
Operates on instrument panel Operates on instrument panelOperates on instrument panel
b)
Change source Change sourceChange source
Operates on instrument panel Operates on instrument panelOperates on instrument panel
AAABACADAEAFAGAHAIAJAKAL
altea_freetrack_ingles.book Seite 86 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*87
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Steering wheel Audio + Telephone version controls
Fig. 52 Controls on the
steering wheel
Fig. 53 Steering wheel
controls (depending on
version of model)
ButtonRadio CD/MP3/USB*/iPod* AUXTELEPHONE
Volume up Volume upVolume upVolume up
Volume down Volume downVolume downVolume down
Search for next station Next track
Hold down: Fast forward No function specified No function specified
Search for last station Last track
Hold down:Rewind No function specified No function specified
Access telephone menu on instrument panel Access telephone menu on instrument
panel Access telephone menu on
instrument panel Make call
Accept incoming call End call
Hold down: reject incoming call
Enable voice recognition Enable voice recognitionEnable voice recognition Enable voice recognitionAAABACADAEAF
altea_freetrack_ingles.book Seite 87 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*
88
Next preset
a)
Next track
a)
No function specified Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Previous preset
a)
Previous track
a)
No function specified Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel Change menu on instrument
panel
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel Change menu on instrument
panel
Operates on instrument panel Operates on instrument panel Operates on instrument panel Confirm
Operates on instrument panel Operates on instrument panel Operates on instrument panel Return to MULTIFUNCTION DIS-
PLAY menu
a)Only if the instrument panel is in Audio menu.AGAHAIAJAKAL
altea_freetrack_ingles.book Seite 88 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*89
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Radio navigation systemSteering wheel audio version controls
Fig. 54 Controls on the
steering wheel
Fig. 55 Steering wheel
controls (depending on
version of model)
ButtonRadio CD/MP3/USB*/iPod* AUXNAVIGATOR
Volume up Volume upVolume upVolume up
Volume down Volume downVolume downVolume down
Search for next station Next track
Hold down: Fast forward No function specified No function specified
Search for last station Last track
Hold down:Rewind No function specified No function specified
Access telephone menu on instrument panel Access telephone menu on instrument
panel Access telephone menu on
instrument panel No function specified
Enable voice recognition Enable voice recognitionEnable voice recognition Enable voice recognitionAAABACADAEAF
altea_freetrack_ingles.book Seite 89 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*
90Steering wheel Audio + Telephone controls
Next preset
a)
Next track
a)
No function specified Operates on instrument panel
Previous preset
a)
Previous track
a)
No function specified Operates on instrument panel
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel No function specified
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel No function specified
Operates on instrument panel Operates on instrument panel Operates on instrument panel Operates on instrument panel
Operates on instrument panel Operates on instrument panel Operates on instrument panel Operates on instrument panel
a)Only if the panel is in Audio menu.AGAHAIAJAKAL
Fig. 56 Controls on the
steering wheel
Fig. 57 Steering wheel
controls (depending on
version of model)
altea_freetrack_ingles.book Seite 90 Montag, 16. Februar 2009 10:48 10

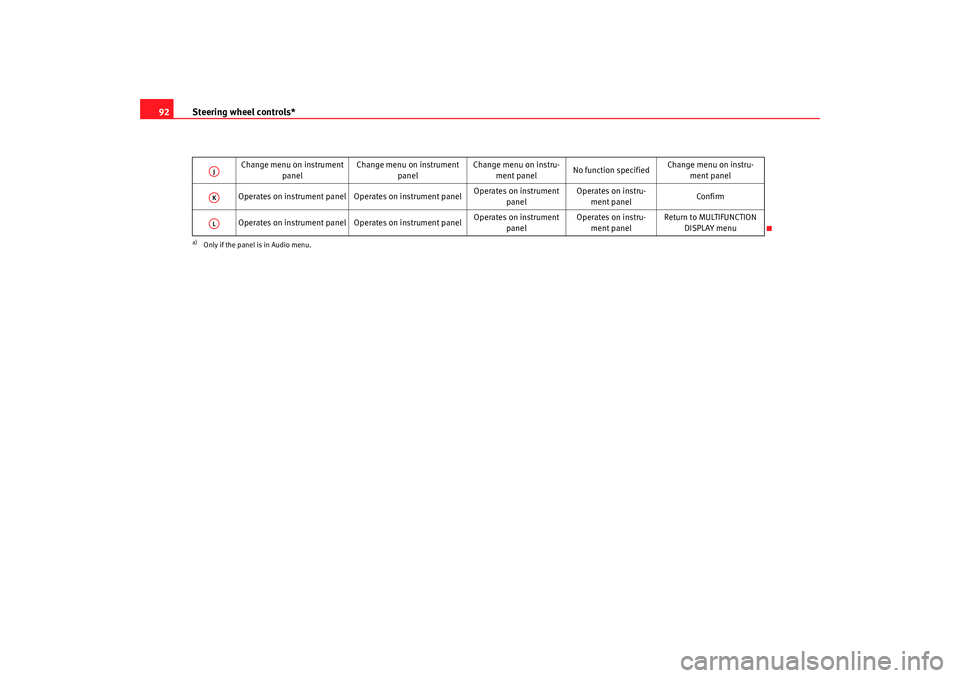

Steering wheel controls*
92
Change menu on instrument
panel Change menu on instrument
panel Change menu on instru-
ment panel No function specified Change menu on instru-
ment panel
Operates on instrument panel Operates on instrument panel Operates on instrument
panel Operates on instru-
ment panel Confirm
Operates on instrument panel Operates on instrument panel Operates on instrument
panel Operates on instru-
ment panel Return to MULTIFUNCTION
DISPLAY menu
a)Only if the panel is in Audio menu.AJAKAL
altea_freetrack_ingles.book Seite 92 Montag, 16. Februar 2009 10:48 10

Seats and stowage
148Auxiliary audio co nnection (AUX-IN)*– Lift the AUX. cover ⇒fig. 120 .
– Insert the pin as far as possible (see Radio manual).
AUX RSE connection*This connector may be used as an audio input (red and white connectors) or
audio and video connector (red, white and yellow connectors). For more
details about the use of this audio and video source, see the RSE manual.
Fig. 120 Auxiliary audio
connection
Fig. 121 AUX RSE
connection
altea_freetrack_ingles.book Seite 148 Montag, 16. Februar 2009 10:48 10
