173
Driving
Activating and deactivating the Start-Stop function
Fig. 137 The Start-Stop
function button.
Every time the ignition is switched on, the Start-Stop function is au-
tomatically switched on.
Manually deactivating the Start-Stop function
– Press the A
⇒ Fig. 137 located in the centre console. When the
Start-Stop function is deactivated, the pushbutton indicator
lights.
– If the Start-Stop function is operating then the engine starts im-
mediately.
Switching the Start-Stop function on manually
– Press the A
⇒ Fig. 137 located in the centre console. The indi-
cator on the button will go out. Driver messages
Fig. 138 Display on the
instrument panel during
Start-Stop function oper-
ation.
When the engine is turned off by the Start-Stop function, this is displayed
on the instrument panel.
Note
There are different versions of the dash panel; the display of indications on
the screen may differ. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

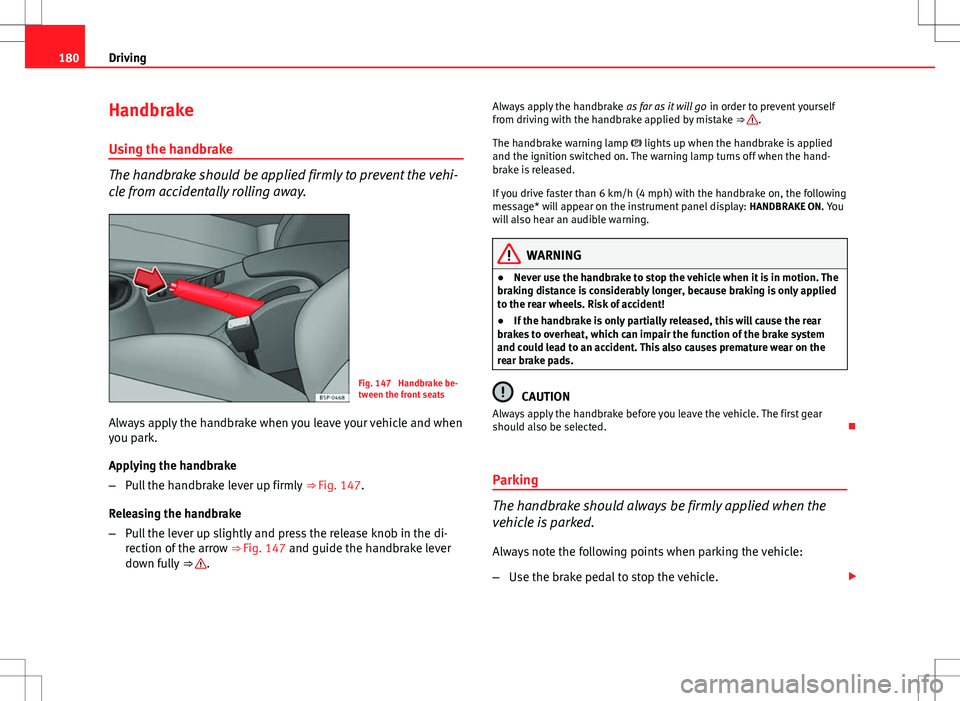

180Driving
Handbrake
Using the handbrake
The handbrake should be applied firmly to prevent the vehi-
cle from accidentally rolling away.
Fig. 147 Handbrake be-
tween the front seats
Always apply the handbrake when you leave your vehicle and when
you park.
Applying the handbrake
– Pull the handbrake lever up firmly ⇒ Fig. 147.
Releasing the handbrake
– Pull the lever up slightly and press the release knob in the di-
rection of the arrow ⇒ Fig. 147 and guide the handbrake lever
down fully ⇒ 
. Always apply the handbrake
as far as it will go in order to prevent yourself
from driving with the handbrake applied by mistake ⇒ 
.
The handbrake warning lamp  lights up when the handbrake is applied
and the ignition switched on. The warning lamp turns off when the hand-
brake is released.
If you drive faster than 6 km/h (4 mph) with the handbrake on, the following
message* will appear on the instrument panel display: HANDBRAKE ON. You
will also hear an audible warning.
WARNING
● Never use the handbrake to stop the vehicle when it is in motion. The
braking distance is considerably longer, because braking is only applied
to the rear wheels. Risk of accident!
● If the handbrake is only partially released, this will cause the rear
brakes to overheat, which can impair the function of the brake system
and could lead to an accident. This also causes premature wear on the
rear brake pads.
CAUTION
Always apply the handbrake before you leave the vehicle. The first gear
should also be selected. 
Parking
The handbrake should always be firmly applied when the
vehicle is parked.
Always note the following points when parking the vehicle:
– Use the brake pedal to stop the vehicle. 

225
Checking and refilling levels
WARNING
If the bonnet is not closed properly, it could open while you are driving
and completely obscure your view of the road. Risk of accident.
● After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
● If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly.
Risk of accident.

Engine oil General notes
The engine comes with a special, multi-grade oil that can be used all year
round.
Because the use of high-quality oil is essential for the correct operation of
the engine and its long useful life, when topping up or changing oil, use on-
ly those oils that comply with VW standards.
The specifications (VW standards) set out in the following page should ap-
pear on the container of the service oil; when the container displays the
specific standards for petrol and diesel engines together, it means that the
oil can be used for both types of engines.
We recommend that the oil change, indicated in the Maintenance Pro-
gramme, be performed by a Technical Service or a specialised workshop.
The correct oil specifications for your engine are listed in the ⇒ page 226,
Oil properties. Service intervals
Service intervals can be flexible (LongLife service) or fixed (dependent on
time/distance travelled).
If the PR code that appears on the back of the “Maintenance Programme”
booklet is PR QI6, this means that your vehicle has the LongLife service pro-
grammed. If it lists the codes QI1, QI2, QI3, QI4 or QI7, the interval service
is dependent on time/distance travelled.
Flexible service intervals (LongLife service intervals*)
Special oils and processes have been developed which, depending on the
characteristics and individual driving profiles, enable the extension of the
oil change service (LongLife service intervals).
Because this oil is essential for extending the service intervals, it
must only
be used observing the following indications:
● Avoid mixing it with oil for fixed service intervals.
● Only in exceptional circumstances, if the engine oil level is too low
⇒ page 226 and LongLife oil is not available, it is permitted to top up
(once) with oil for fixed service intervals ⇒  page 226 (up to a maximum of
0.5 litres).
Fixed service intervals*
If your vehicle does not have the “LongLife service interval” or it has been
disabled (by request), you may use oils for fixed service intervals, which al-
so appear in ⇒ page 226, Oil properties. In this case, your vehicle must be
serviced after a fixed interval of 1 year/15 000 km (10 000 miles)(whatever
comes first) ⇒ Booklet Maintenance Programme.
● In exceptional circumstances, if the engine oil level is too low
⇒ page 226 and you cannot obtain the oil specified for your vehicle, you
can put in a small quantity of oil conforming to the specification ACEA A2 or
ACEA A3 (petrol engines) or ACEA B3 or ACEA B4 (diesel engines) (up to 0.5
l). 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

234Checking and refilling levels
WARNING
Do not drive unless you have good visibility through all windows!
● Clean the windscreen wiper blades and all windows regularly.
● The wiper blades should be changed once or twice a year.
CAUTION
● A damaged or dirty window wiper could scratch the rear window.
● Never use fuel, nail varnish remover, paint thinner or similar products to
clean the window.
● Never move the windscreen wiper by hand. This could cause damage. Brake fluid
Checking the brake fluid level
The brake fluid is checked at the intervals given in the serv-
ice schedule.
Fig. 165 In the engine
compartment: Brake fluid
reservoir cover
– Read off the fluid level at the transparent brake fluid reservoir. It
should always be between the “MIN” and “MAX” marks.
The position of the brake fluid reservoir is shown in the corresponding en-
gine compartment illustration ⇒ page 281. The brake fluid reservoir has a
black and yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
However, if the level goes down noticeably in a short time, or drops below
the “MIN” mark, there may be a leak in the brake system. A display on the
instrument panel will warn you if the brake fluid level is too low ⇒ page 76.


237
Checking and refilling levels
CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponents.
● Do not expose the battery to direct sunlight over a long period of time,
as the intense ultraviolet radiation can damage the battery housing.
● If the vehicle is left standing in cold conditions for a long period, protect
the battery from freezing. If it freezes it will be damaged. 
Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries. – Open the engine bonnet and the battery cover ⇒ 
in Safety in-
structions on working in the engine compartment on page 222
⇒ 
in Warnings on handling the battery on page 236.
– Check the colour display in the "magic eye" on the top of the
battery.
– If there are air bubbles in the window, tap the window gently
until they disperse.
The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒ page 281.
The “magic eye” indicator, located on the top of the battery changes colour,
depending on the charge state and electrolyte level of the battery.
There are two different colours: ●
Black: correct charge status.
● Transparent/clear yellow: the battery must be replaced. Contact a speci-
alised workshop. 
Charging and changing the vehicle battery
The battery is maintenance-free and is checked during the
inspection service. All work on the vehicle battery requires
specialist knowledge.
If you often drive short distances or if the vehicle is not driven for long peri-
ods, the battery should be checked by a specialised workshop between the
scheduled services.
If the battery has discharged and you have problems starting the vehicle,
the battery might be damaged. If this happens, we recommend you have
the vehicle battery checked by a Technical Service where it will be re-charg-
ed or replaced.
Charging the battery
The vehicle battery should be charged by a specialised workshop only, as
batteries using special technology have been installed and they must be
charged in a controlled environment.
Replacing a vehicle battery
The battery has been developed to suit the conditions of its location and
has special safety features.
Genuine SEAT batteries fulfil the maintenance, performance and safety
specifications of your vehicle. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

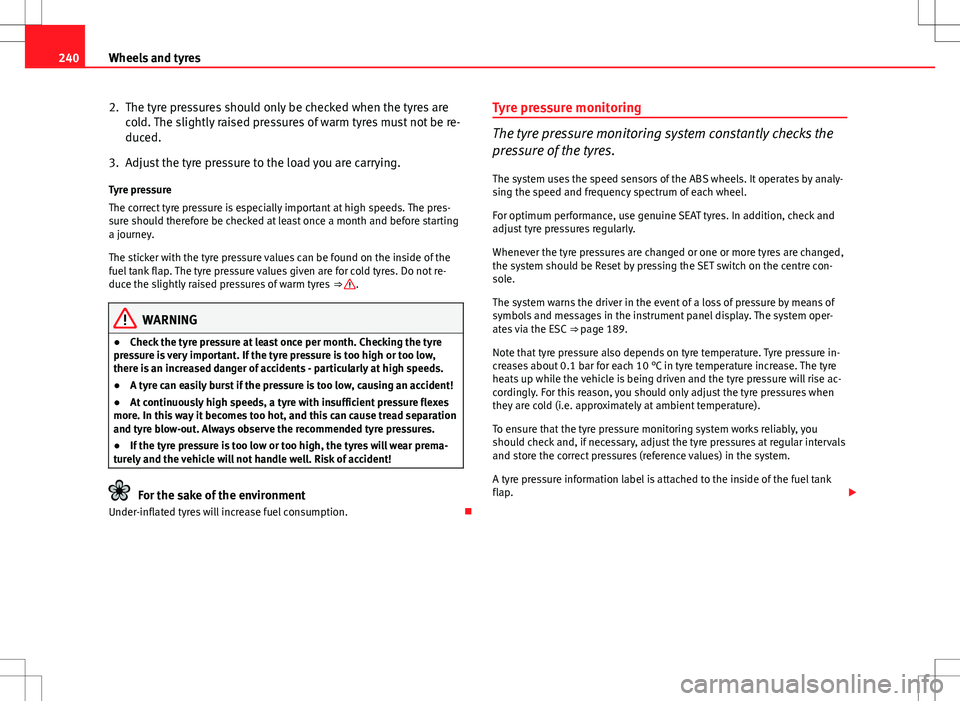

240Wheels and tyres
2. The tyre pressures should only be checked when the tyres are
cold. The slightly raised pressures of warm tyres must not be re-
duced.
3. Adjust the tyre pressure to the load you are carrying.
Tyre pressure
The correct tyre pressure is especially important at high speeds. The pres-
sure should therefore be checked at least once a month and before starting
a journey.
The sticker with the tyre pressure values can be found on the inside of the
fuel tank flap. The tyre pressure values given are for cold tyres. Do not re-
duce the slightly raised pressures of warm tyres ⇒ 
.
WARNING
● Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low,
there is an increased danger of accidents - particularly at high speeds.
● A tyre can easily burst if the pressure is too low, causing an accident!
● At continuously high speeds, a tyre with insufficient pressure flexes
more. In this way it becomes too hot, and this can cause tread separation
and tyre blow-out. Always observe the recommended tyre pressures.
● If the tyre pressure is too low or too high, the tyres will wear prema-
turely and the vehicle will not handle well. Risk of accident!
For the sake of the environment
Under-inflated tyres will increase fuel consumption. Tyre pressure monitoring
The tyre pressure monitoring system constantly checks the
pressure of the tyres.
The system uses the speed sensors of the ABS wheels. It operates by analy-
sing the speed and frequency spectrum of each wheel.
For optimum performance, use genuine SEAT tyres. In addition, check and
adjust tyre pressures regularly.
Whenever the tyre pressures are changed or one or more tyres are changed,
the system should be Reset by pressing the SET switch on the centre con-
sole.
The system warns the driver in the event of a loss of pressure by means of
symbols and messages in the instrument panel display. The system oper-
ates via the ESC ⇒ page 189.
Note that tyre pressure also depends on tyre temperature. Tyre pressure in-
creases about 0.1 bar for each 10 °C in tyre temperature increase. The tyre
heats up while the vehicle is being driven and the tyre pressure will rise ac-
cordingly. For this reason, you should only adjust the tyre pressures when
they are cold (i.e. approximately at ambient temperature).
To ensure that the tyre pressure monitoring system works reliably, you
should check and, if necessary, adjust the tyre pressures at regular intervals
and store the correct pressures (reference values) in the system.
A tyre pressure information label is attached to the inside of the fuel tank
flap. 

241
Wheels and tyres
WARNING
● Never adjust tyre pressure when the tyres are hot. This may damage
or even burst the tyres. Risk of accident!
● An insufficiently inflated tyre flexes a lot more at high speeds and
causes significant heating of the tyre. Under these conditions, the tyre
bead may be released or the tyre may burst. Risk of accident!
For the sake of the environment
Under-inflated tyres lead to increased fuel consumption and tyre wear. 
Significant tyre pressure loss
The tyre symbol  is displayed and indicates that the tyre pressure
of at least one tyre is insufficient.
– Stop the vehicle.
– Switch the engine off.
– Check the tyre(s).
– Change the wheel if necessary ⇒ 
page 250. Tyre useful life
The useful life of tyres is dependent on tyre pressure, driving
style and fitting.
Fig. 166 Tyre tread wear
indicators
Fig. 167 Diagram for
changing wheels

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

243
Wheels and tyres
Run-flat tyres
Run-flat tyres allow you to continue driving even with a
punctured tyre, in the majority of cases.
In vehicles that are factory-fitted with run-flat tyres 1)
the loss of tyre
pressure is indicated on the instrument panel.
Driving with run-flat tyres (emergency running)
– Leave the ESC/ASR on (Electronic Stability Control), or switch it
on ⇒  page 189.
– Continue driving carefully and slowly (80 km/h (50 mph) maxi-
mum).
– Avoid sudden manoeuvres and sharp turns.
– Avoid driving over obstacles (for example kerbs) or potholes.
– Pay attention if the ESC/ASR activates often, if smoke comes
from the tyres or there is a smell of rubber, the vehicle vibrates
or there are clattering noises. If any of these occur, stop the ve-
hicle.
The run-flat tyres have a tag on the side of the tyre, with the description:
“DSST”, “Eufonia”, “RFT”, “ROF”, “RSC”, “SSR” or “ZP”.
The sides of this type of tyre are reinforced. When the tyres lose air they are
supported on the sides (emergency driving).
The loss of pressure in the tyre is shown on the instrument panel. You can
then drive a maximum of 80 km (50 miles) and if the circumstances are fa-
vourable (for example, low load), even more. The damaged tyre should be changed as soon as possible. The rim should
be checked in a specialised workshop to detect possible damage and re-
place it if necessary. We recommend you contact Technical Service. If more
than one tyre is being used under emergency conditions, this reduces the
distance which can be travelled.
Starting driving in emergency conditions
When loss in tyre pressure is displayed on the instrument panel, this means
that at least one tyre is being driven in emergency conditions
⇒ 
.
End of emergency operation
Do not drive on if:
● smoke is coming from one of the tyres,
● there is a smell of rubber,
● the vehicle vibrates,
● there is a rattling noise.
When is it no longer possible to continue driving even using run-flat tyres?
● If one of the tyres has been severely damaged in an accident, etc. If a
tyre has been badly damaged there is a risk that parts of the tread can be
thrown off and cause damage to the fuel lines, brake pipes or fuel filler.
● It is also advisable to stop driving if severe vibrations occur, or if the
wheel starts overheating and gives off smoke. 
1)
Depending upon version and country.
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

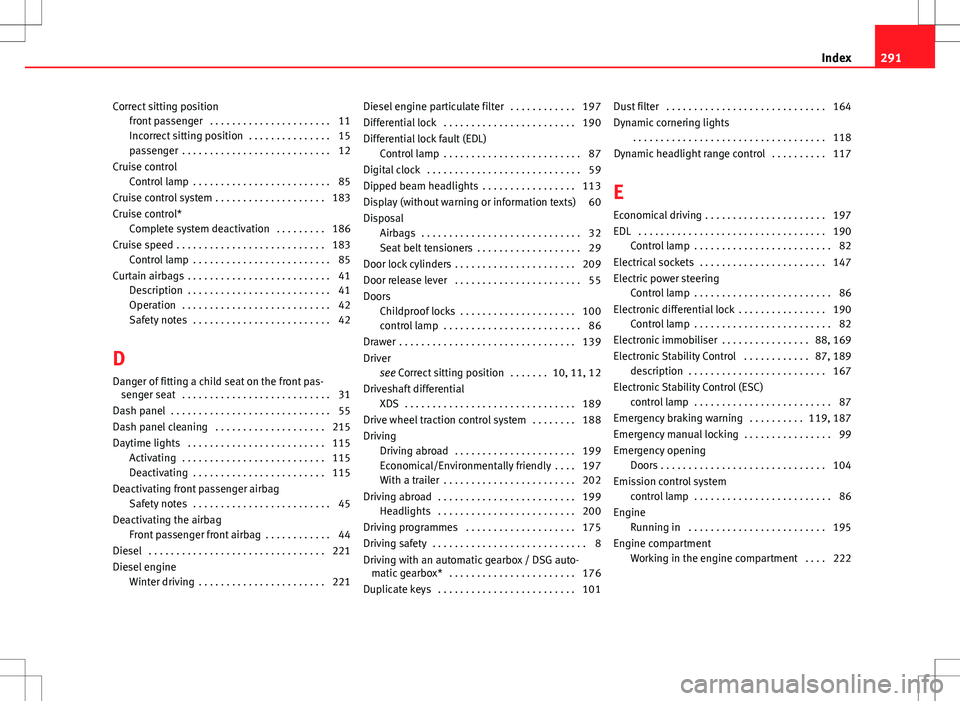

Correct sitting positionfront passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 15
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cruise control Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cruise control system . . . . . . . . . . . . . . . . . . . . 183
Cruise control* Complete system deactivation . . . . . . . . . 186
Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 85
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 42
D Danger of fitting a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . 215
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . 115 Activating . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 115
Deactivating front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 45
Deactivating the airbag Front passenger front airbag . . . . . . . . . . . . 44
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . 221 Diesel engine particulate filter . . . . . . . . . . . . 197
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . 190
Differential lock fault (EDL)
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Dipped beam headlights . . . . . . . . . . . . . . . . . 113
Display (without warning or information texts) 60
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 29
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 209
Door release lever . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . 100
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 86
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Driver see Correct sitting position . . . . . . . 10, 11, 12
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Drive wheel traction control system . . . . . . . . 188
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . 199
Economical/Environmentally friendly . . . . 197
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . 202
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 199 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 200
Driving programmes . . . . . . . . . . . . . . . . . . . . 175
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automatic gearbox / DSG auto- matic gearbox* . . . . . . . . . . . . . . . . . . . . . . . 176
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . 101 Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Dynamic cornering lights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Dynamic headlight range control . . . . . . . . . . 117
E
Economical driving . . . . . . . . . . . . . . . . . . . . . . 197
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . 147
Electric power steering Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 86
Electronic differential lock . . . . . . . . . . . . . . . . 190 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Electronic immobiliser . . . . . . . . . . . . . . . . 88, 169
Electronic Stability Control . . . . . . . . . . . . 87, 189 description . . . . . . . . . . . . . . . . . . . . . . . . . 167
Electronic Stability Control (ESC) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Emergency braking warning . . . . . . . . . . 119, 187
Emergency manual locking . . . . . . . . . . . . . . . . 99
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Emission control system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 86
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 195
Engine compartment Working in the engine compartment . . . . 222
291
Index

Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 229G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 229
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Specifications . . . . . . . . . . . . . . . . . . . . . . . 229
Engine fault Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine management control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Checking engine oil level . . . . . . . . . . . . . . 226
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 226
Specifications . . . . . . . . . . . . . . . . . . . . . . . 225
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 227
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 226
Engine oil pressure control lamp . . . . . . . . . . . . . . . . . . . . . . 65, 85
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 Environmental friendliness . . . . . . . . . . . . 199
Environmentally friendly driving . . . . . . . . . . . 197
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 220
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 167, 189 see also Electronic Stability Control . . . . . 167
Example of menu use Program a speed limit warning . . . . . . . . . . 68
To activate and deactivate the speed limitwarning . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Example of the use of the menus Open the Configuration menu with the MFIlever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Open the Configuration menu with the steering wheel controls . . . . . . . . . . . . . . 68 Examples of menu use
Open the main menu . . . . . . . . . . . . . . . . . . 67
Open the winter tyres menu . . . . . . . . . . . . 68
To close the winter tyres menu . . . . . . . . . . 68
Exhaust gas purification system . . . . . . . . . . . 196
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 208
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fire extinguisher* . . . . . . . . . . . . . . . . . . . . . . . 150
Flexible service interval display . . . . . . . . . . . . 61
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Folding the seat backrests down . . . . . . . . . . 137
Folding tray* . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front drinks holders . . . . . . . . . . . . . . . . . . . . . 142
Front interior light type 1 Switching light off . . . . . . . . . . . . . . . . . . . 121
Switching light on . . . . . . . . . . . . . . . . . . . 121
Front interior light type 2 Switching light off . . . . . . . . . . . . . . . . . . . 121
Switching light on . . . . . . . . . . . . . . . . . . . 121
Front passenger airbag deactivation . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . 122
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . 134 Fuel
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 197
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 278
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Warning message . . . . . . . . . . . . . . . . . . . . . 66
Fuel tank see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 79
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 219
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
G
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 174
General overview of the engine compartment 281
Glove compartment . . . . . . . . . . . . . . . . . . . . . 138
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 170 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 85
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 180
Hazard warning lights . . . . . . . . . . . . . . . . . . . 118
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . 120
292 Index
