Position in engine compartment: side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations.Bulb changeGeneral notesBefore changing any bulb first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency. A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signals - PY21W
Number
Electrical equipment Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator > 500 W / Ventilator < 500 W 80/50
F1 PTCs (Supplementary electrical heating using air) 100
G1 Trailer fuse voltage supply in internal fuse box 50
H1 Central locking control unit (4F8 with autolock)
AlteaXL_DEF_ingles Seite 249 Freitag, 25. August 2006 2:19 14
Page 252 of 298

If and when
250Xenon headlights
22) /directional
Dipped and full beam - D1S
23)
Flashing and extra full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Fixed rear light
Stop/Position - P21W
24)
Turn signals - P21W
Rear tailgate light unit
Anti fog (driver side) - P21W
Reverse (passenger side) - P21W
Position - W5W
Indicator
Indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the bulbs except for the fog lights and interior bulbs.

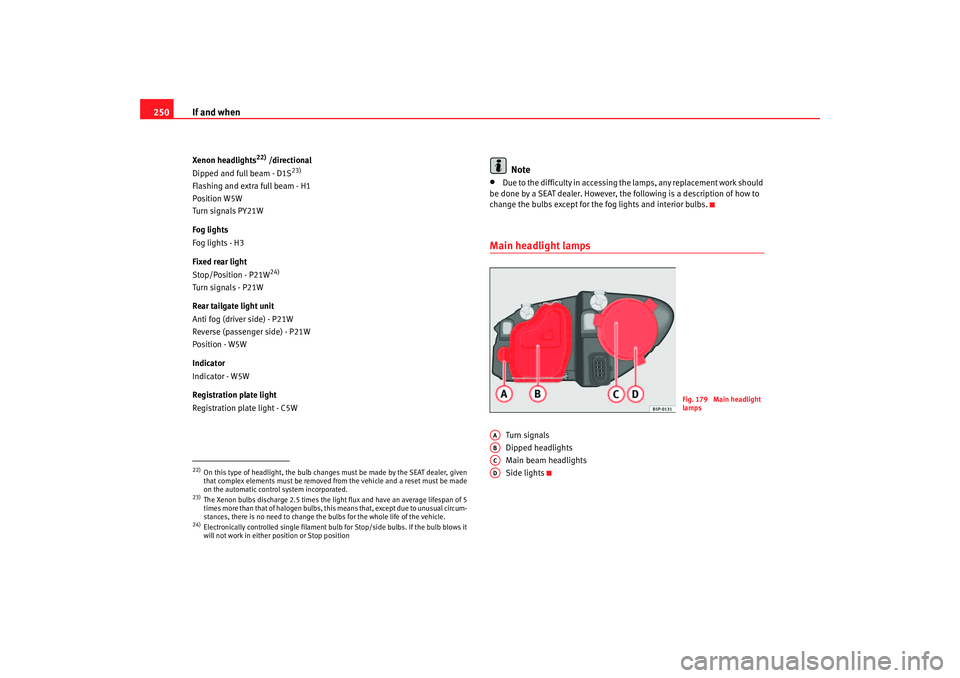

Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
22)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.23)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.24)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop position
Fig. 179 Main headlight
lamps
AAABACAD
AlteaXL_DEF_ingles Seite 250 Freitag, 25. August 2006 2:19 14
Page 253 of 298

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

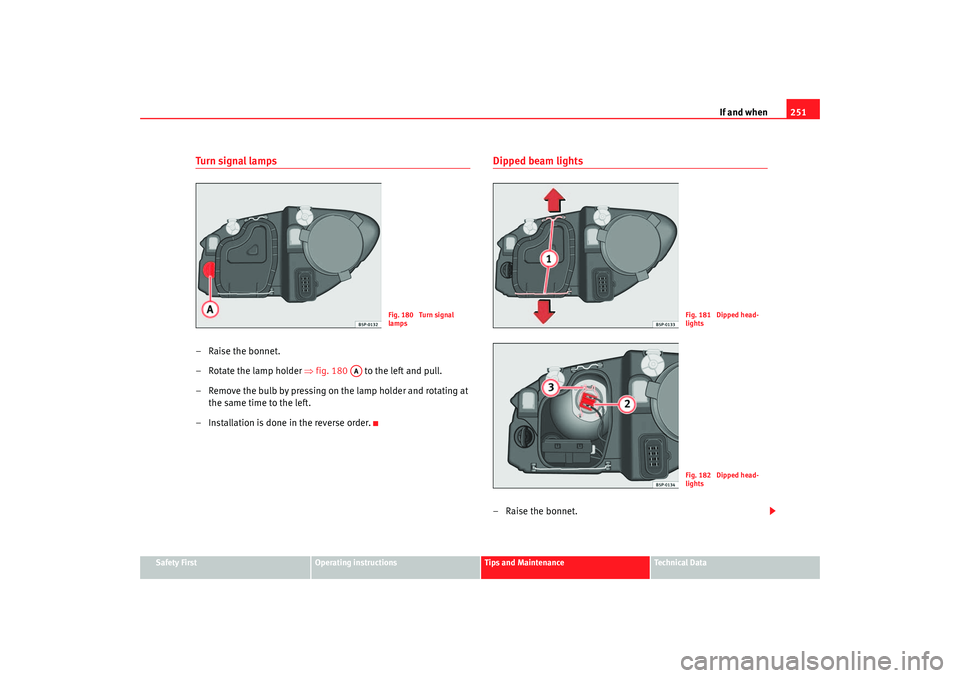

Turn signal lamps–Raise the bonnet.
– Rotate the lamp holder ⇒fig. 180 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights– Raise the bonnet.
Fig. 180 Turn signal
lamps
AA
Fig. 181 Dipped head-
lightsFig. 182 Dipped head-
lights
AlteaXL_DEF_ingles Seite 251 Freitag, 25. August 2006 2:19 14
Page 254 of 298

If and when
252
– Remove the loops ⇒page 251, fig. 181 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 251, fig. 182 from the bulb.
– Disengage the retainer spring ⇒ page 251, fig. 182 pressing
inwards and to the right.

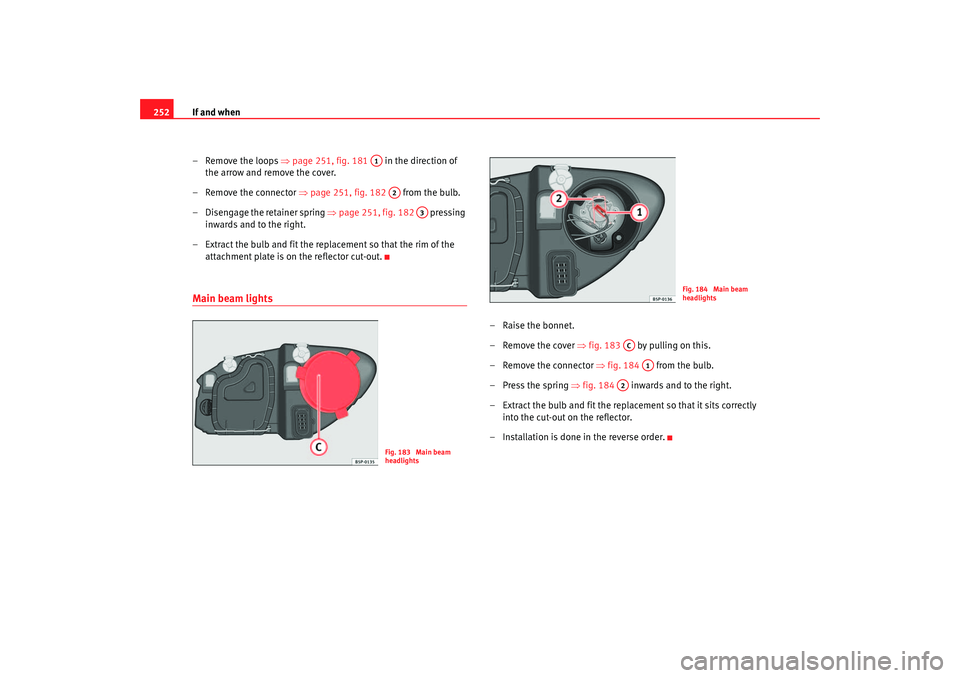

– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
–Raise the bonnet.
– Remove the cover ⇒fig. 183 by pulling on this.
– Remove the connector ⇒fig. 184 from the bulb.
– Press the spring ⇒fig. 184 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 183 Main beam
headlights
Fig. 184 Main beam
headlights
AC
A1
A2
AlteaXL_DEF_ingles Seite 252 Freitag, 25. August 2006 2:19 14
Page 255 of 298

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

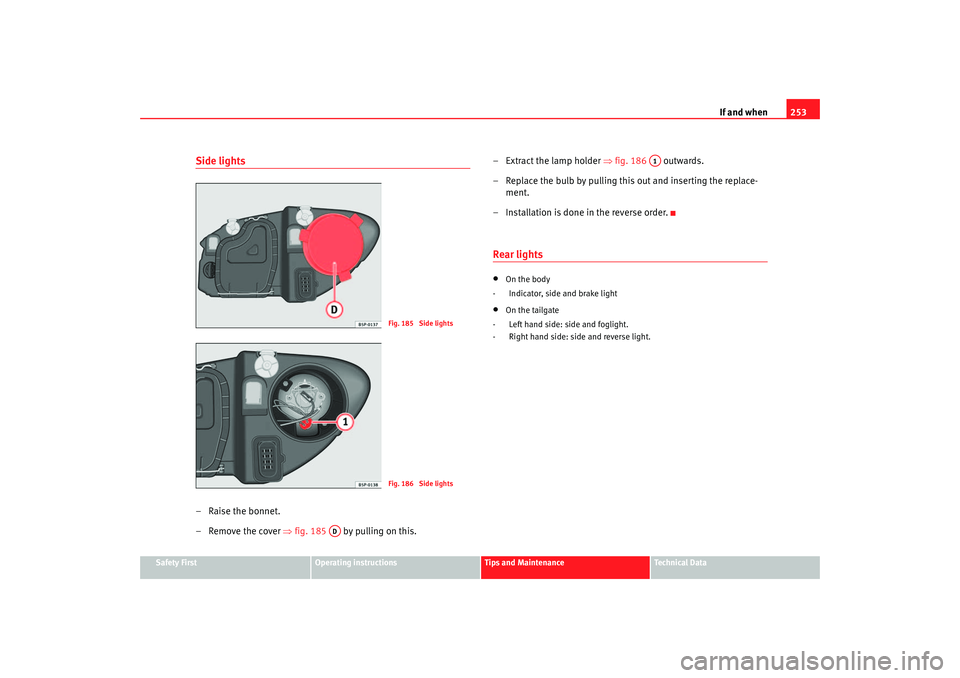

Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 185 by pulling on this. – Extract the lamp holder
⇒fig. 186 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- Indicator, side and brake light
•
On the tailgate
- Left hand side: side and foglight.
- Right hand side: side and reverse light.
Fig. 185 Side lightsFig. 186 Side lights
AD
A1
AlteaXL_DEF_ingles Seite 253 Freitag, 25. August 2006 2:19 14
Page 256 of 298

If and when

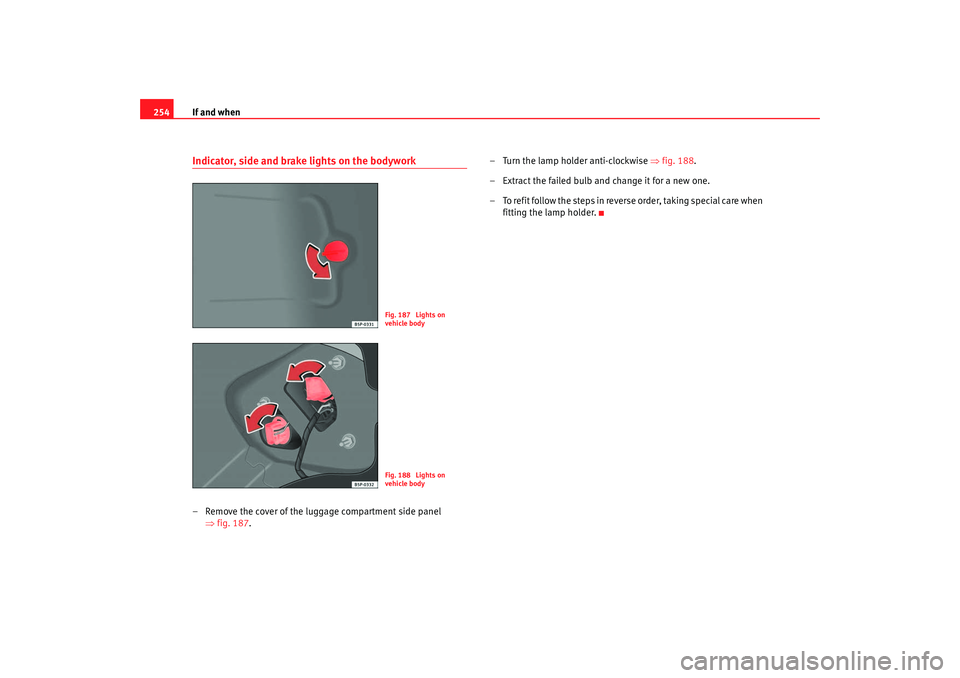

254Indicator, side and brake lights on the bodywork– Remove the cover of the luggage compartment side panel
⇒fig. 187. – Turn the lamp holder anti-clockwise
⇒fig. 188 .
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Fig. 187 Lights on
vehicle bodyFig. 188 Lights on
vehicle body
AlteaXL_DEF_ingles Seite 254 Freitag, 25. August 2006 2:19 14
Page 257 of 298

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

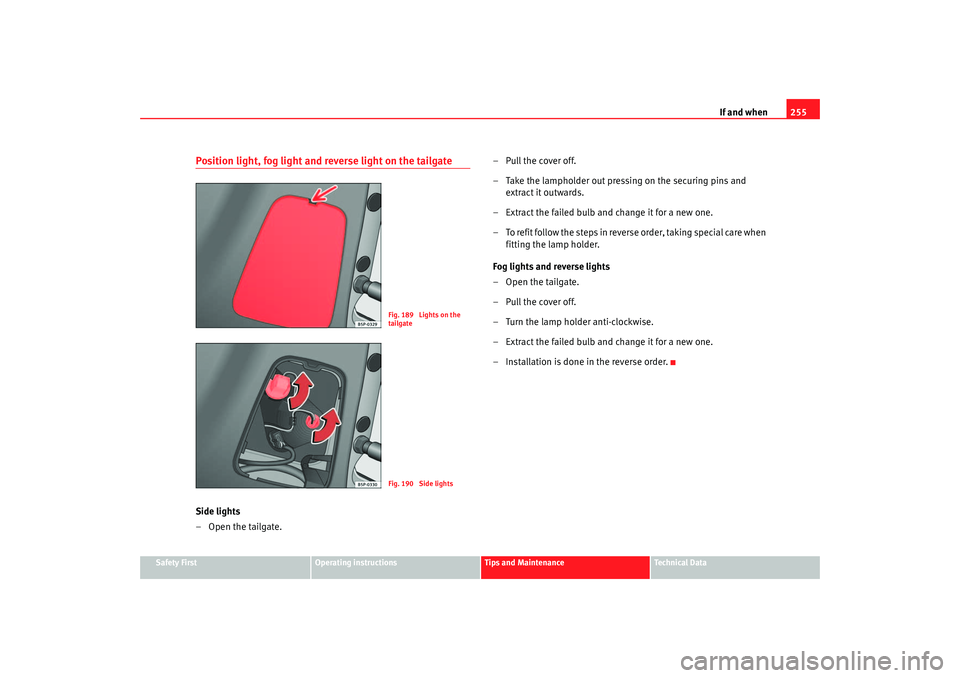

Position light, fog light and reverse light on the tailgateSide lights
– Open the tailgate. –Pull the cover off.
– Take the lampholder out pressing on the securing pins and
extract it outwards.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Fog lights and reverse lights
–Open the tailgate.
–Pull the cover off.
– Turn the lamp holder anti-clockwise.
– Extract the failed bulb and change it for a new one.
– Installation is done in the reverse order.
Fig. 189 Lights on the
tailgateFig. 190 Side lights
AlteaXL_DEF_ingles Seite 255 Freitag, 25. August 2006 2:19 14
Page 258 of 298

If and when

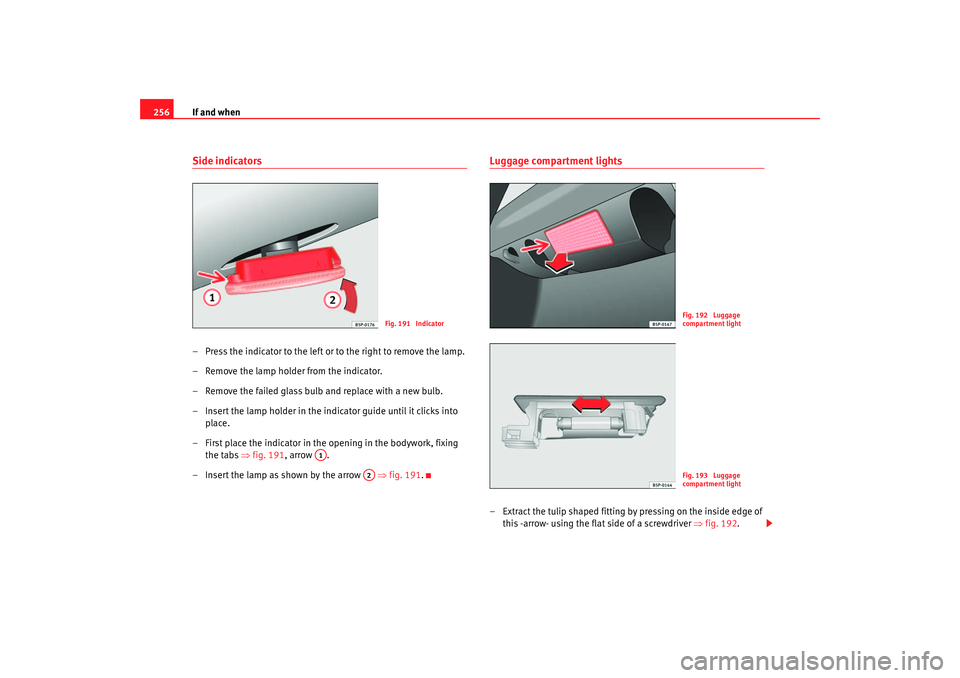

256Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒fig. 191 , arrow .
– Insert the lamp as shown by the arrow ⇒fig. 191 .
Luggage compartment lights– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver ⇒fig. 192.
Fig. 191 Indicator
A1
A2
Fig. 192 Luggage
compartment lightFig. 193 Luggage
compartment light
AlteaXL_DEF_ingles Seite 256 Freitag, 25. August 2006 2:19 14
Page 259 of 298

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
– Press the lamp sideways and remove it from the allotment

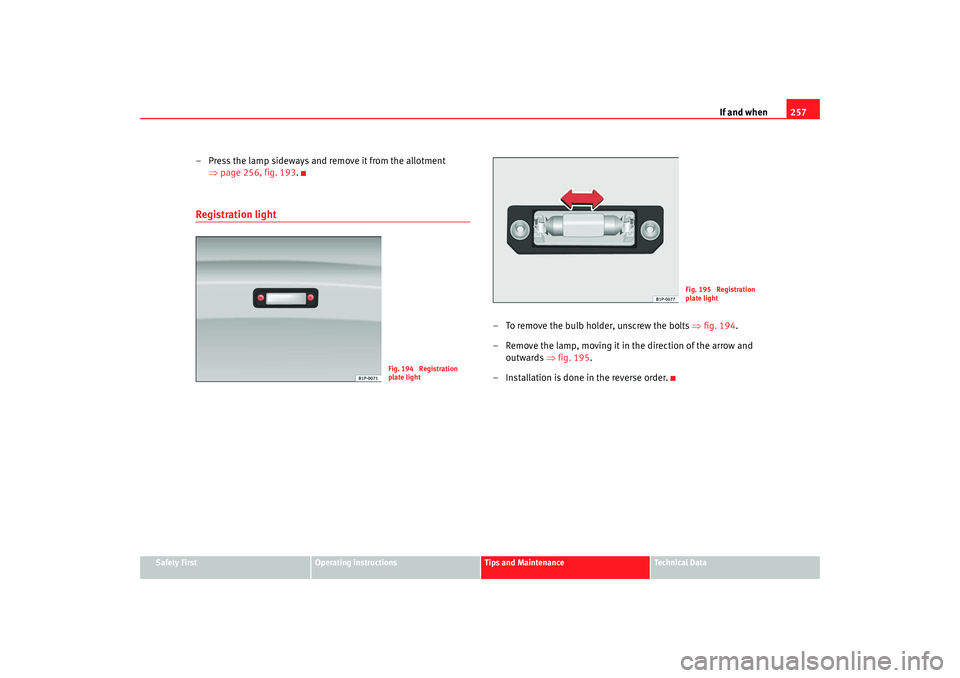

⇒page 256, fig. 193 .Registration light
– To remove the bulb holder, unscrew the bolts ⇒fig. 194.
– Remove the lamp, moving it in the direction of the arrow and outwards ⇒fig. 195.
– Installation is done in the reverse order.
Fig. 194 Registration
plate light
Fig. 195 Registration
plate light
AlteaXL_DEF_ingles Seite 257 Freitag, 25. August 2006 2:19 14
Page 260 of 298

If and when

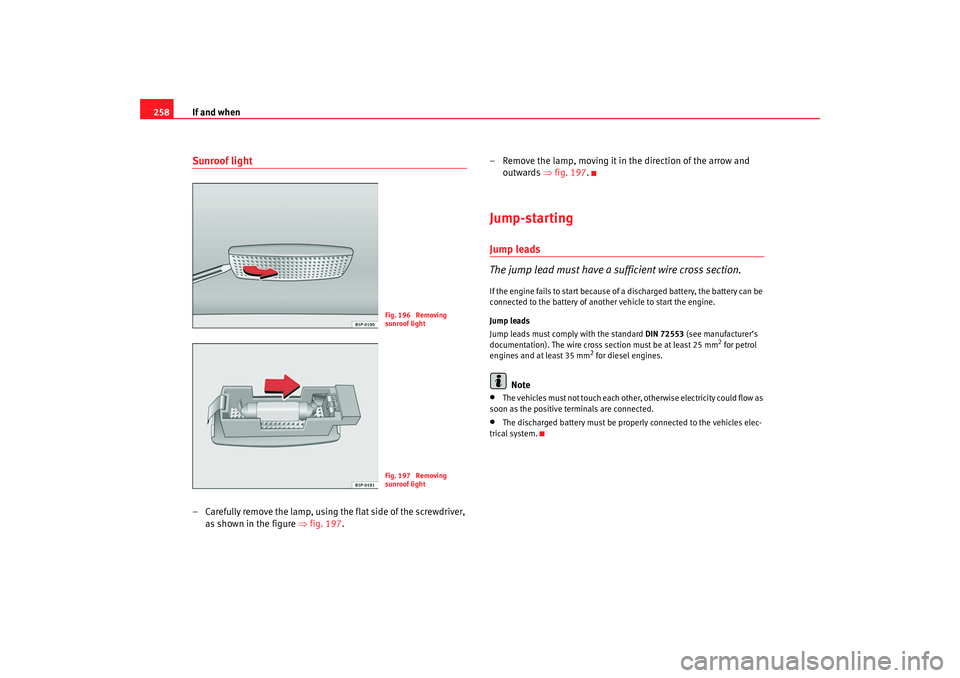

258Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 197 . – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 197 .
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of anot her vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer’s
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 196 Removing
sunroof lightFig. 197 Removing
sunroof light
AlteaXL_DEF_ingles Seite 258 Freitag, 25. August 2006 2:19 14
