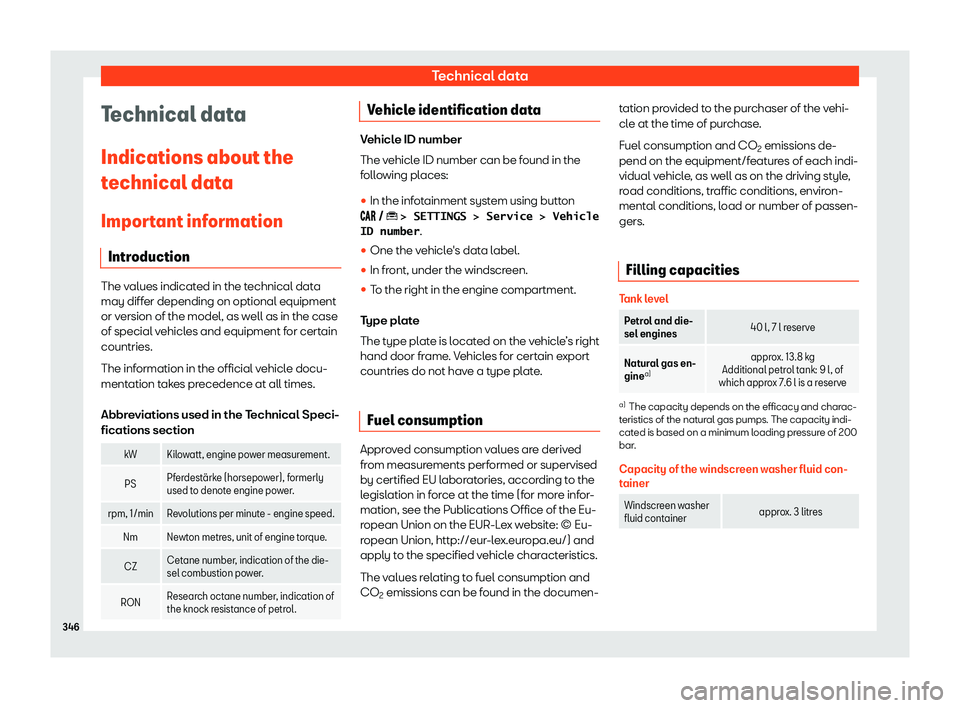

Technical data
Technical data
Indications about the
t echnical dat
a
Impor t
ant inf
ormation
Introduction The values indicated in the technical data
may diff
er depending on optional equipment
or v ersion of the model, as w ell as in the case
of special v ehicl
es and equipment for certain
countries.
The information in the official vehicle docu-
mentation takes precedence at all times.
Abbreviations used in the Technical Speci-
fications section kW Kilowatt, engine power measurement.
PS Pferdest
Page 349 of 372

Indications about the technical data

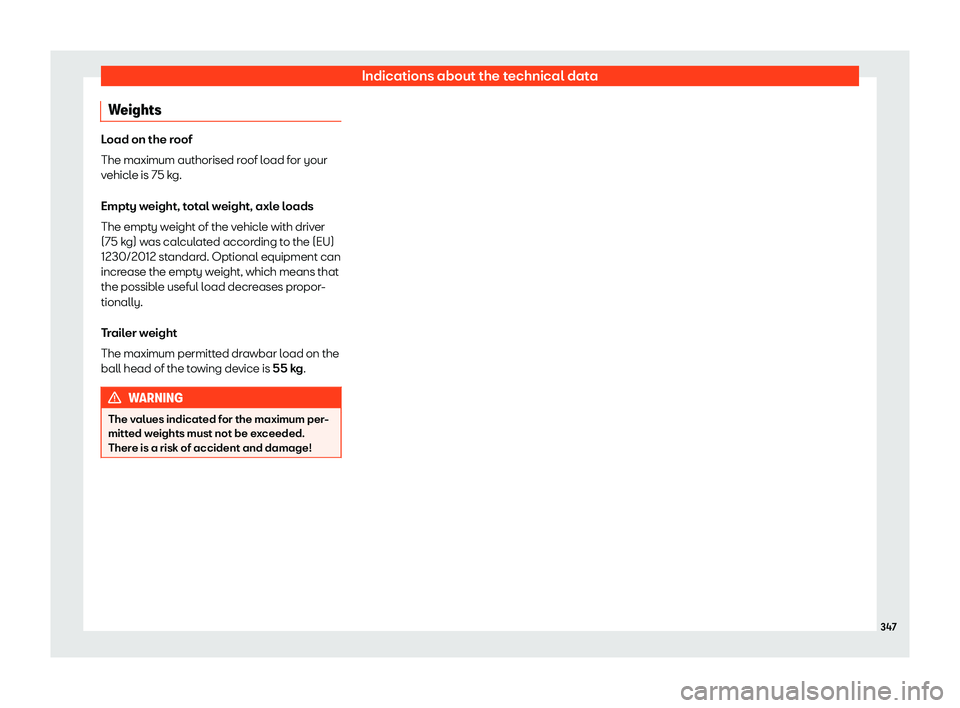

Weights Load on the roof
The maximum authorised roof load for your
v
ehicl
e is 75 kg.
Empty weight, total weight, axle loads
The empty weight of the vehicle with driver
(75 kg) was calculated according to the (EU)
1230/2012 standard. Optional equipment can
increase the empty weight, which means that
the possible useful load decreases propor-
tionally.
Trailer weight
The maximum permitted drawbar load on the
ball head of the towing device is 55 kg. WARNING
The values indicated for the maximum per-
mitted weights must not be ex ceeded.
Ther
e is a risk of accident and damage! 347
Page 350 of 372

Technical data

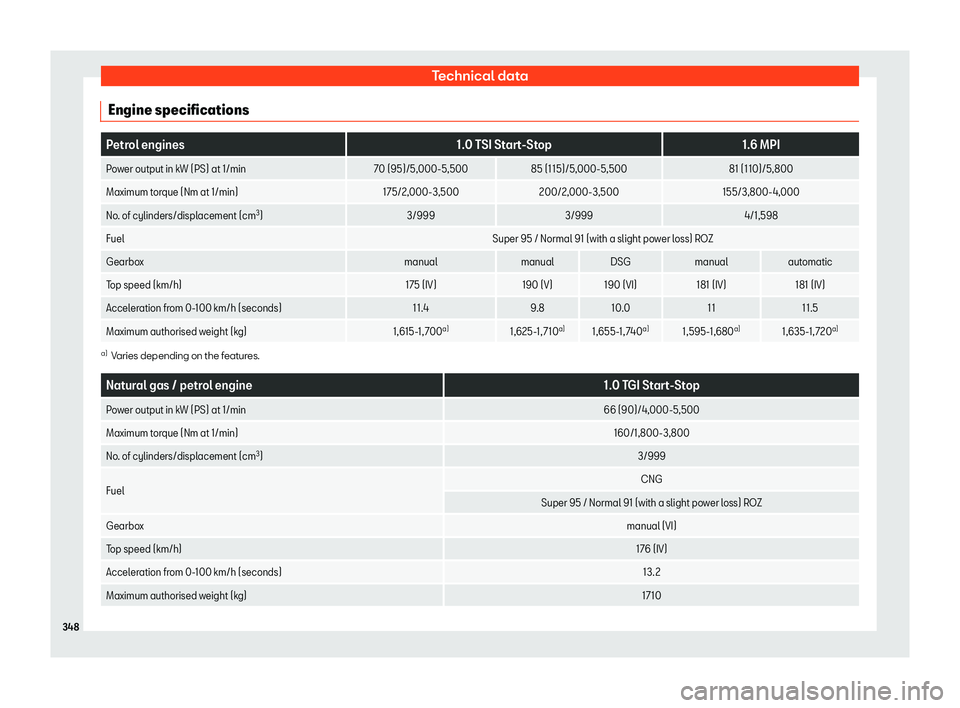

Engine specifications Petrol engines
1.0 TSI Start-Stop1.6 MPI
Power output in kW (PS) at 1/min 70 (95)/5,000-5,50085 (115)/5,000-5,500 81 (110)/5,800
Maximum torque (Nm at 1/min) 175/2,000-3,500200/2,000-3,500 155/3,800-4,000
No. of cylinders/displacement (cm 3
) 3/999 3/999 4/1,598
Fuel Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manualmanualDSGmanual automatic
Top speed (km/h) 175 (IV)190 (V) 190 (VI) 181 (IV)181 (IV)
Acceleration from 0-100 km/h (seconds) 11.49.810.0 1111.5
Maximum authorised weight (kg) 1,615-1, 700a)
1,625-1, 710a)
1,655-1, 740 a)
1,595-1,680 a)
1,635-1, 720 a) a)
Varies depending on the features. Natural gas / petrol engine
1.0 TGI Start-Stop
Power output in kW (PS) at 1/min 66 (90)/4,000-5,500
Maximum torque (Nm at 1/min) 160/1,800-3,800
No. of cylinders/displacement (cm 3
) 3/999
Fuel CNG
Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manual (VI)
Top speed (km/h) 176 (IV)
Acceleration from 0-100 km/h (seconds) 13.2
Maximum authorised weight (kg) 1710348
Page 351 of 372

Indications about the technical data

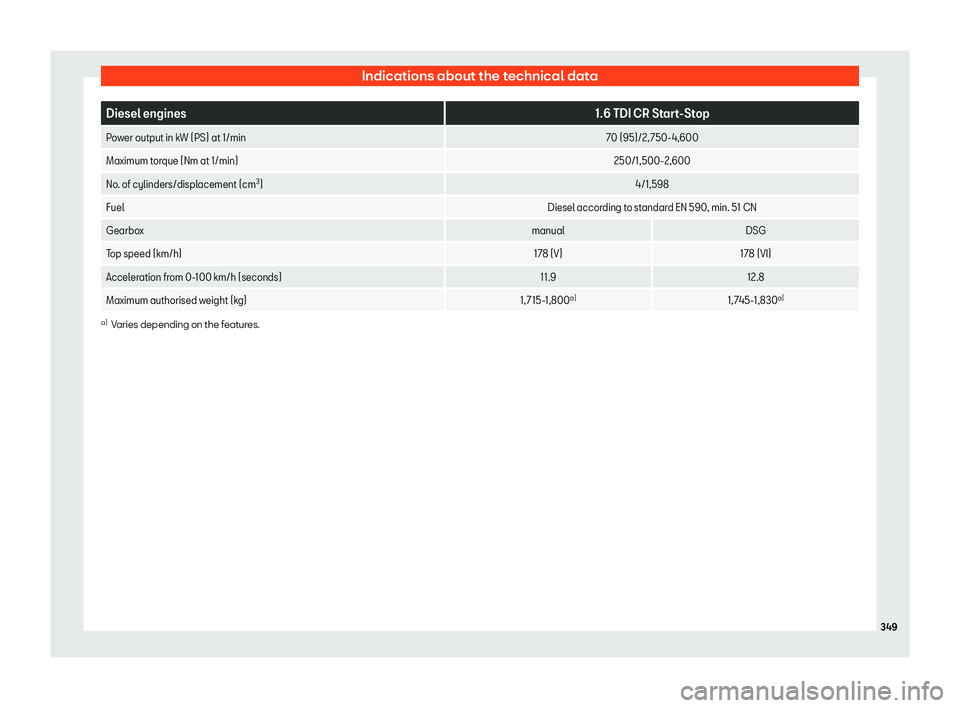

Diesel engines
1.6 TDI CR Start-Stop
Power output in kW (PS) at 1/min 70 (95)/2, 750-4,600
Maximum torque (Nm at 1/min) 250/1,500-2,600
No. of cylinders/displacement (cm 3
) 4/1,598
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualDSG
Top speed (km/h) 178 (V)178 (VI)
Acceleration from 0-100 km/h (seconds) 11.912.8
Maximum authorised weight (kg) 1, 715-1,800a)
1, 745-1,830a) a)
Varies depending on the features. 349
Page 352 of 372

Technical data

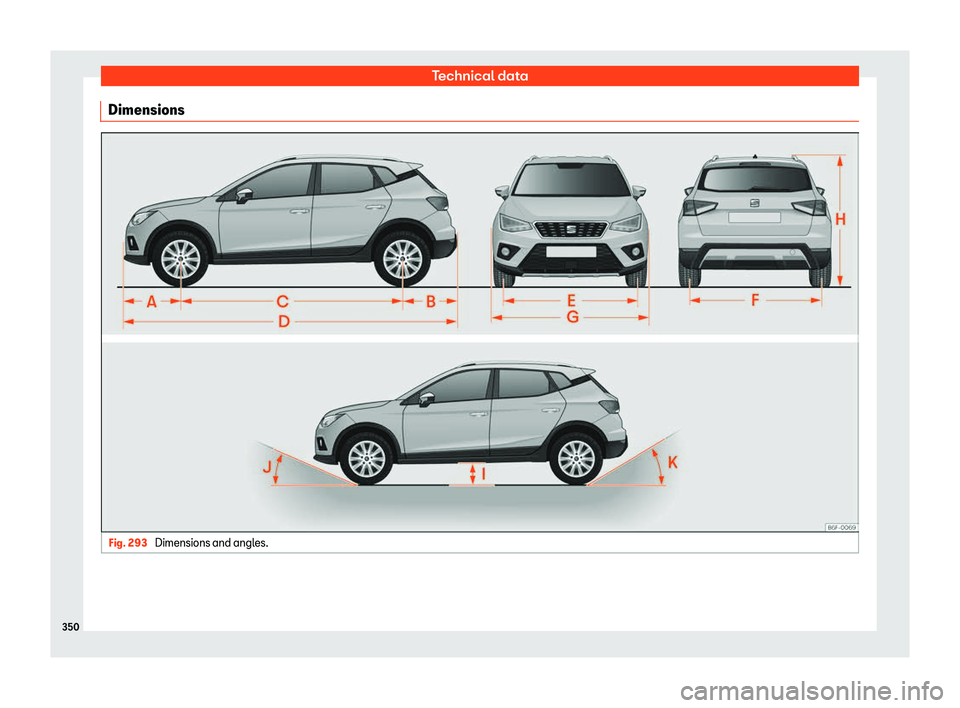

Dimensions Fig. 293
Dimensions and angles.350
Page 353 of 372

Indications about the technical data
Page 361 of 372

Index
K K eyl
ess Access
K eyl
ess Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
99
Keyless Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
99
Press & Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
special characteristics . . . . . . . . . . . . . . . . . . . . . 101
starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 220
unlocking and locking the vehicle . . . . . . . . . . 99
Keyless Access lock and ignition system: see Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . 99
Keyless Entry see Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . 99
Keyless Exit see Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . 99
Keys assign a key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
changing the battery . . . . . . . . . . . . . . . . . . . . . . . 94
remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
synchronise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
unlock and lock . . . . . . . . . . . . . . . . . . . . . . . . 97, 105
vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Key switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 25
Kick-down automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 229
driving profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
L Leather: clean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Leaving a parking space with the parking as- sist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 114
Levels control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Lift the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Light range control . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . 110
audible warnings . . . . . . . . . . . . . . . . . . . . . . . . . .
110
AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 111
change a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
coming home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
control and warning lamps . . . . . . . . . . . . . . . . 110
control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
controlling the lights . . . . . . . . . . . . . . . . . . . . . . . 110
cornering light . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 113
daylight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 111
dipped beam headlights . . . . . . . . . . . . . . . . . . . 110
fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 112
fog light with cornering light function . . . . . . . 113
headlight range control . . . . . . . . . . . . . . . . . . . . 115
instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . 116
interior light and front reading lights . . . . . . . . 62
interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 117
leaving home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
luggage compartment lighting . . . . . . . . . . . . . 62
main beam headlight lever . . . . . . . . . . . . . . . . . 112
main beam headlights . . . . . . . . . . . . . . . . . . . . . 110
motorway light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
number plate light . . . . . . . . . . . . . . . . . . . . . . . . . . 61
reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 117
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 110
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 110
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 110
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Loading the luggage compartment fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
general advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
luggage compartment . . . . . . . . . . . . . . . . 107, 127
positioning the load . . . . . . . . . . . . . . . . . . . . . . . . 127
positioning the luggage . . . . . . . . . . . . . . . . . . . . 127 roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . 132
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 289
Load on the r
oof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Lock and unlock in the locking cylinder . . . . . . . . . . . . . . . . . . . . . 105
with Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . 99
with the central locking switch. . . . . . . . . . . . . . 98
Luggage compartment . . . . . . . . . . . . . . . . . 107, 127 emergency unlocking . . . . . . . . . . . . . . . . . . . . . 107
luggage compartment lighting . . . . . . . . . . . . . 117
storing the rear shelf . . . . . . . . . . . . . . . . . . . . . . . 128
variable luggage compartment floor . . . . . . 129
Luggage compartment floor . . . . . . . . . . . . . . . . 129
Luggage compartment shelf storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 128
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 122
M Main beam headlight lever . . . . . . . . . . . . . . . . . . . 112
Maintenance see Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Maintenance frequencies . . . . . . . . . . . . . . . . . . . . 311
Malfunctions adaptive cruise control . . . . . . . . . . . . . . . . . . . 248
assisted parting system (Park Assist) . . . . . . 269
clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 231
emergency brake assistance system (FrontAssist) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 50
Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 14
359
Page 366 of 372

Index

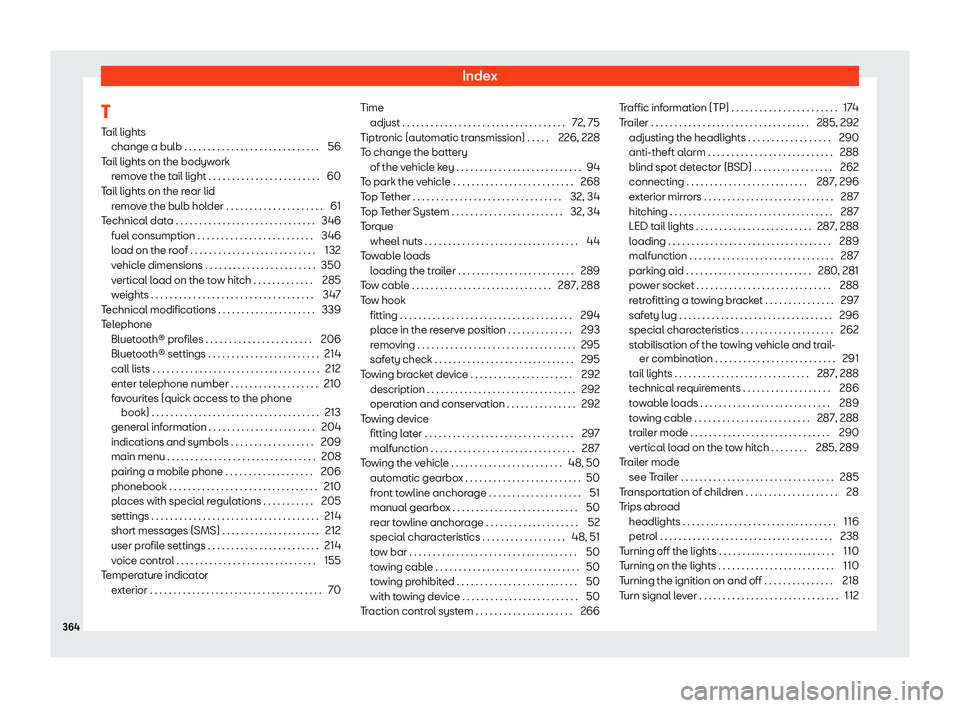

T
