The essentials

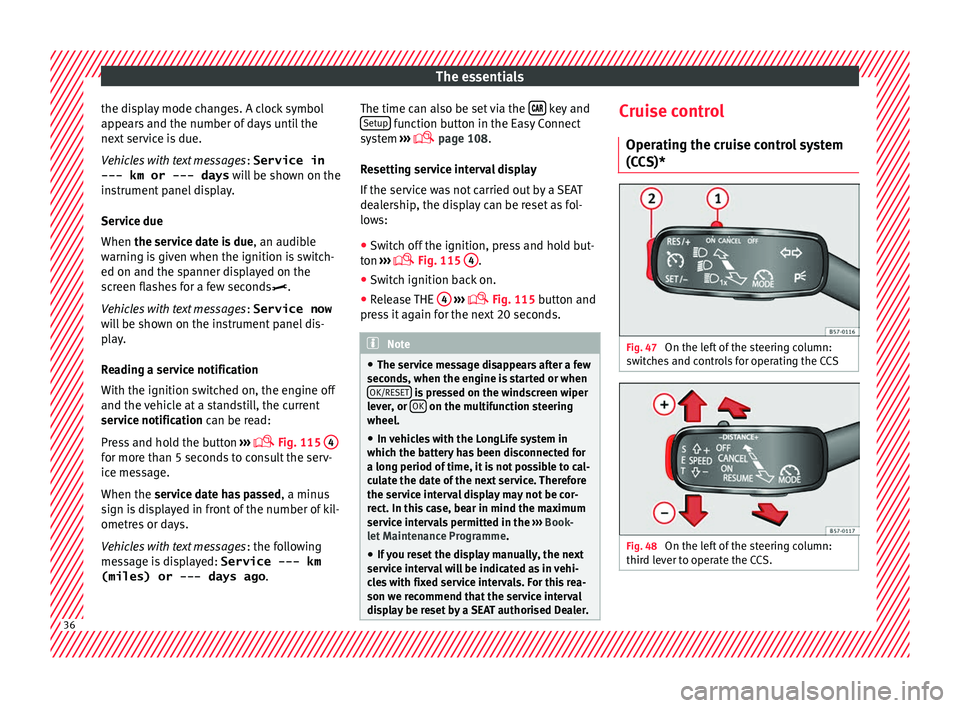

the display mode changes. A clock symbol
ap pe
ars and the number of days until the
next service is due.
Vehicles with text messages : Service in
--- km or --- days will be shown on the
instrument panel display.
Service due
When the service date is due , an audible
warning is given when the ignition is switch-
ed on and the spanner displayed on the
screen flashes for a few seconds .
Vehicles with text messages : Service now
will be shown on the instrument panel dis-
play.
Reading a service notification
With the ignition switched on, the engine off
and the vehicle at a standstill, the current
service notification can be read:
Press and hold the button ›››
 Fig. 115
4 for more than 5 seconds to consult the serv-
ic
e me

ssage.
When the service date has passed , a minus
sign is displayed in front of the number of kil-
ometres or days.
Vehicles with text messages : the following
message is displayed: Service --- km
(miles) or --- days ago .The time can also be set via the
 key and
Set up function button in the Easy Connect
sy s

tem ›››
 page 108.
Resetting service interval display
If the service was not carried out by a SEAT
dealership, the display can be reset as fol-
lows: ● Switch off the ignition, press and hold but-
ton ›

››  Fig. 115
4 .
● Switch ignition back on.
● Release THE 4
› ›
›
 Fig. 115 button and
press it again for the next 20 seconds. Note
● The ser v

ice message disappears after a few
seconds, when the engine is started or when OK/RESET is pressed on the windscreen wiper
l ev

er, or OK on the multifunction steering
wheel .
● In
vehicles with the LongLife system in
which the b
attery has been disconnected for
a long period of time, it is not possible to cal-
culate the date of the next service. Therefore
the service interval display may not be cor- rect. In this case, bear in mind the maximum
service intervals permitted in the ››› Book-
let Maintenance Programme.
● If you reset the display manually, the next
serv
ice interval will be indicated as in vehi-
cles with fixed service intervals. For this rea-
son we recommend that the service interval
display be reset by a SEAT authorised Dealer. Cruise control
Oper atin

g the cruise control system
(CCS)* Fig. 47
On the left of the steering column:
sw it

ches and controls for operating the CCS Fig. 48
On the left of the steering column:
thir d l

ever to operate the CCS. 36

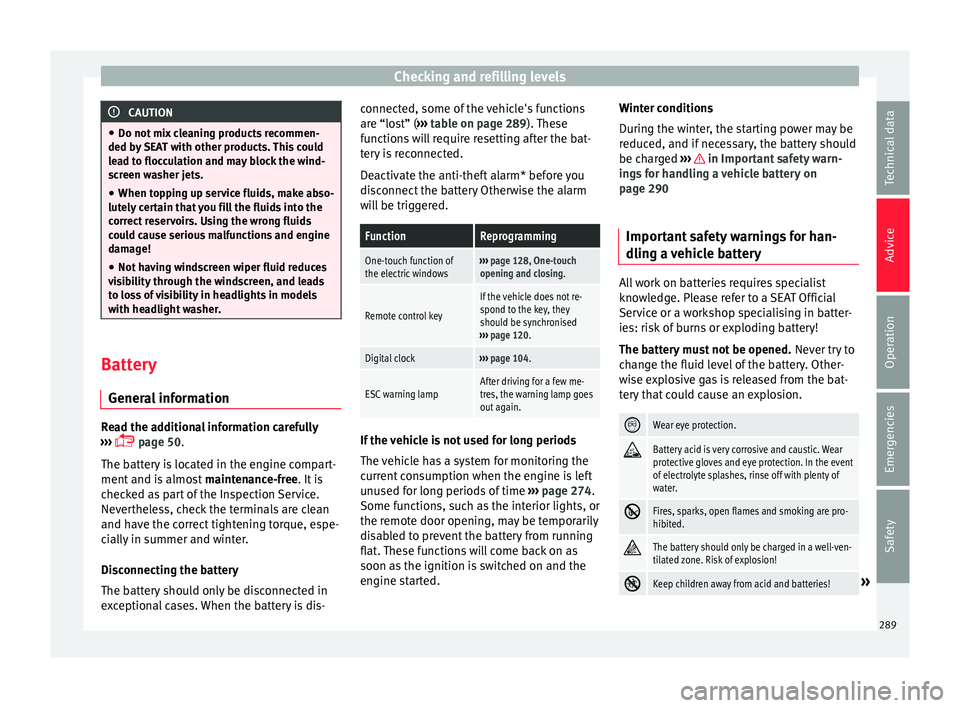

Checking and refilling levels
CAUTION
● Do not mi
x cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely
certain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage!
● Not having windscreen wiper fluid reduces
vi

sibility through the windscreen, and leads
to loss of visibility in headlights in models
with headlight washer. Battery
Gener a

l information Read the additional information carefully
› ›

›  page 50.
The battery is located in the engine compart-
ment and is almost maintenance-free. It is
checked as part of the Inspection Service.
Nevertheless, check the terminals are clean
and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in
exceptional cases. When the battery is dis- connected, some of the vehicle's functions
are “lo

st” (››› table on page 289). These
functions will require resetting after the bat-
tery is reconnected.
Deactivate the anti-theft alarm* before you
disconnect the battery Otherwise the alarm
will be triggered.
FunctionReprogramming
One-touch function of
the electric windows››› page 128, One-touch
opening and closing.
Remote control key
If the vehicle does not re-
spond to the key, they
should be synchronised
››› page 120.
Digital clock››› page 104.
ESC warning lampAfter driving for a few me-
tres, the warning lamp goes
out again. If the vehicle is not used for long periods
The
v

ehicle has a system for monitoring the
current consumption when the engine is left
unused for long periods of time ››› page 274.
Some functions, such as the interior lights, or
the remote door opening, may be temporarily
disabled to prevent the battery from running
flat. These functions will come back on as
soon as the ignition is switched on and the
engine started. Winter conditions
Durin

g the winter, the starting power may be
reduced, and if necessary, the battery should
be charged ››› in Important safety warn-
in g

s for handling a vehicle battery on
page 290
Important safety warnings for han-
dling a
vehicle battery All work on batteries requires specialist
kno
wl

edge. Please refer to a SEAT Official
Service or a workshop specialising in batter-
ies: risk of burns or exploding battery!
The battery must not be opened. Never try to
change the fluid level of the battery. Other-
wise explosive gas is released from the bat-
tery that could cause an explosion. 
Wear eye protection.

Battery acid is very corrosive and caustic. Wear
protective gloves and eye protection. In the event
of electrolyte splashes, rinse off with plenty of
water.

Fires, sparks, open flames and smoking are pro-
hibited.

The battery should only be charged in a well-ven-
tilated zone. Risk of explosion!

Keep children away from acid and batteries!»
289
Technical data
Advice
Operation
Emergencies
Safety

Index

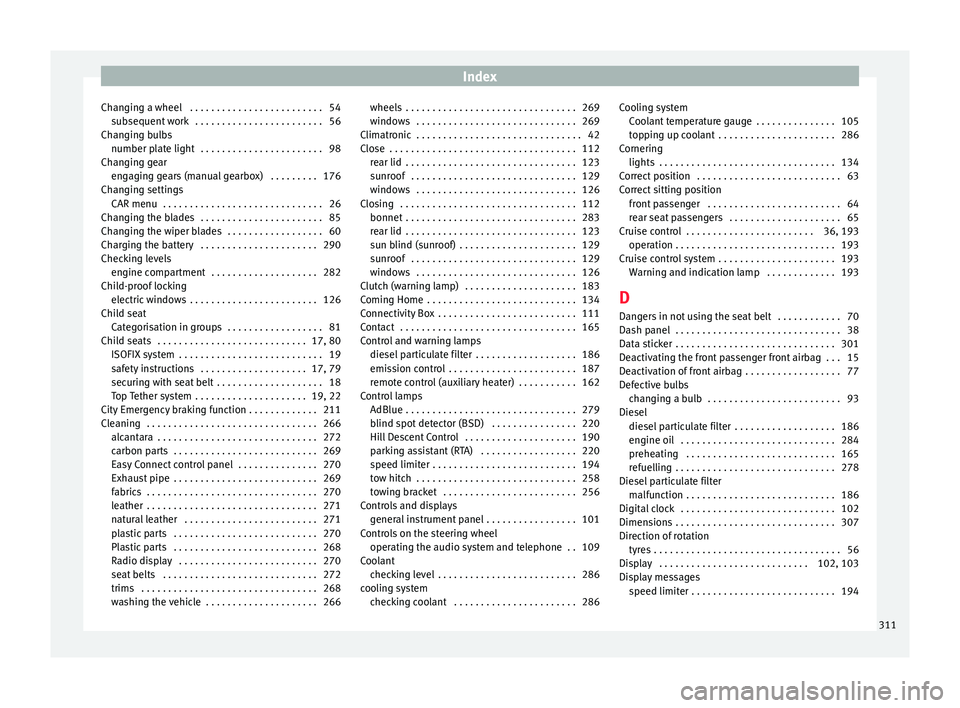

Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 54 sub
sequent work . . . . . . . . . . . . . . . . . . . . . . . . 56
Changing bulbs number plate light . . . . . . . . . . . . . . . . . . . . . . . 98
Changing gear engaging gears (manual gearbox) . . . . . . . . . 176
Changing settings CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 85
Changing the wiper blades . . . . . . . . . . . . . . . . . . 60
Charging the battery . . . . . . . . . . . . . . . . . . . . . . 290
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . 282
Child-proof locking electric windows . . . . . . . . . . . . . . . . . . . . . . . . 126
Child seat Categorisation in groups . . . . . . . . . . . . . . . . . . 81
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 80 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
safety instructions . . . . . . . . . . . . . . . . . . . . 17, 79
securing with seat belt . . . . . . . . . . . . . . . . . . . . 18
Top Tether system . . . . . . . . . . . . . . . . . . . . . 19, 22
City Emergency braking function . . . . . . . . . . . . . 211
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266 alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
carbon parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Easy Connect control panel . . . . . . . . . . . . . . . 270
Exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 271
plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . 270
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 266 wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
windo
ws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
sun blind (sunroof) . . . . . . . . . . . . . . . . . . . . . . 129
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . 183
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Control and warning lamps diesel particulate filter . . . . . . . . . . . . . . . . . . . 186
emission control . . . . . . . . . . . . . . . . . . . . . . . . 187
remote control (auxiliary heater) . . . . . . . . . . . 162
Control lamps AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
blind spot detector (BSD) . . . . . . . . . . . . . . . . 220
Hill Descent Control . . . . . . . . . . . . . . . . . . . . . 190
parking assistant (RTA) . . . . . . . . . . . . . . . . . . 220
speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 256
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . 101
Controls on the steering wheel operating the audio system and telephone . . 109
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 286
cooling system checking coolant . . . . . . . . . . . . . . . . . . . . . . . 286 Cooling system
Coo lant temperature gauge . . . . . . . . . . . . . . . 105
topping up coolant . . . . . . . . . . . . . . . . . . . . . . 286
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 64
rear seat passengers . . . . . . . . . . . . . . . . . . . . . 65
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 36, 193 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 193 Warning and indication lamp . . . . . . . . . . . . . 193
D Dangers in not using the seat belt . . . . . . . . . . . . 70
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Data sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Deactivating the front passenger front airbag . . . 15
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 77
Defective bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
Diesel diesel particulate filter . . . . . . . . . . . . . . . . . . . 186
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Diesel particulate filter malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102, 103
Display messages speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
