Air conditioning

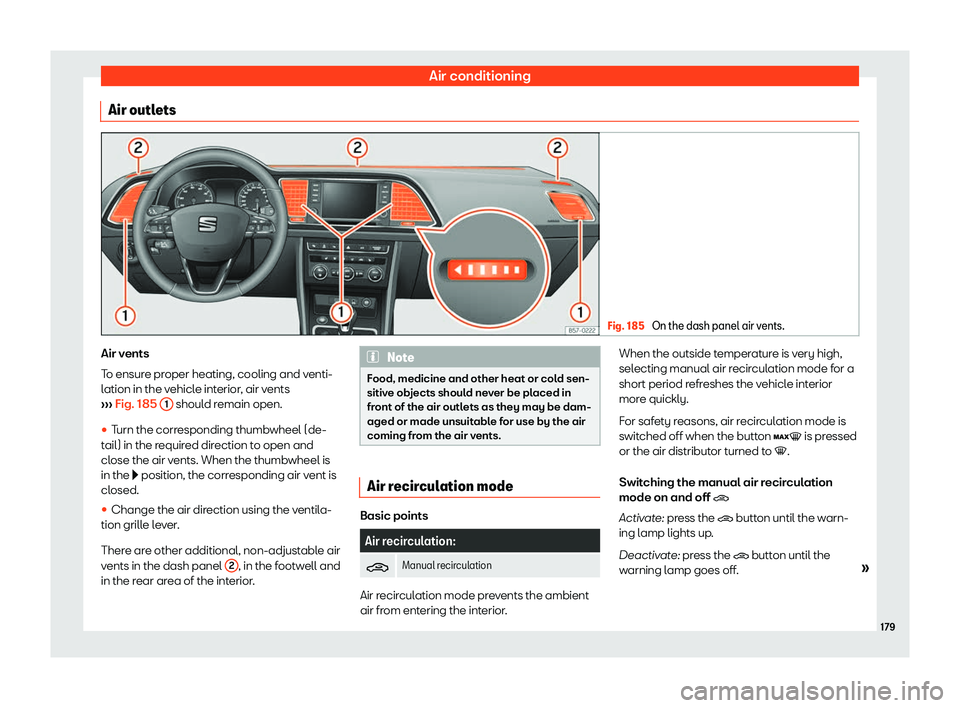

Air outlets Fig. 185
On the dash panel air vents. Air vents
T
o ensur
e pr
oper heating, cooling and venti-
lation in the vehicle interior, air vents

Operation

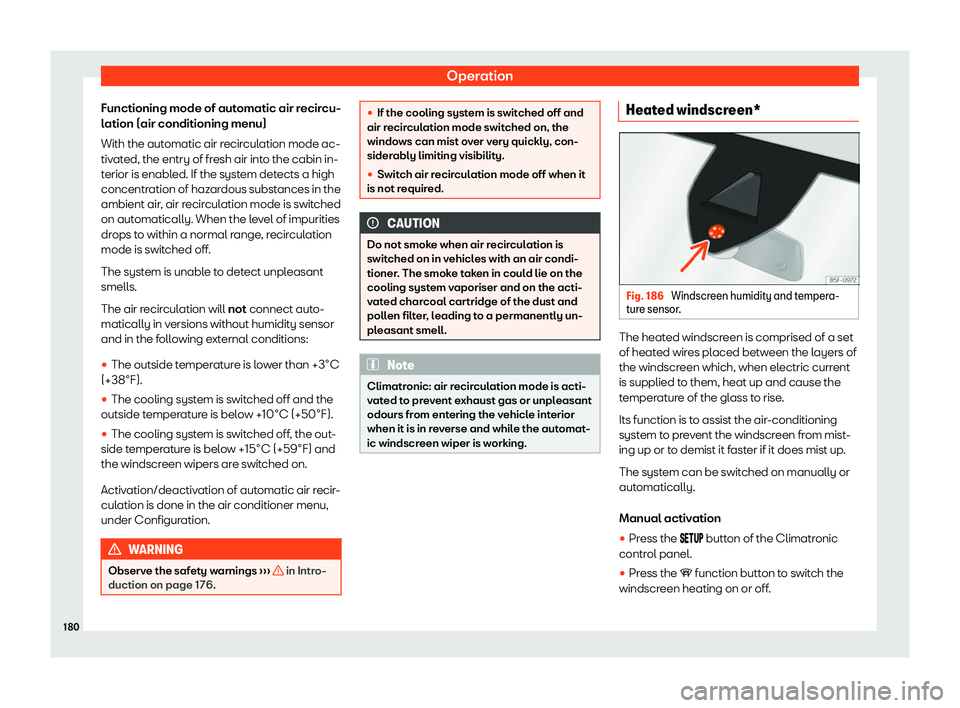

Functioning mode of automatic air recircu-
l ation (air conditioning menu)
With the aut omatic air r
ecirculation mode ac-
tivated, the entry of fresh air into the cabin in-
terior is enabled. If the system detects a high
concentration of hazardous substances in the
ambient air, air recirculation mode is switched
on automatically. When the level of impurities
drops to within a normal range, recirculation
mode is switched off.
The system is unable to detect unpleasant
smells.
The air recirculation will not connect auto-
matically in versions without humidity sensor
and in the following external conditions:

Air conditioning
Automatic activation

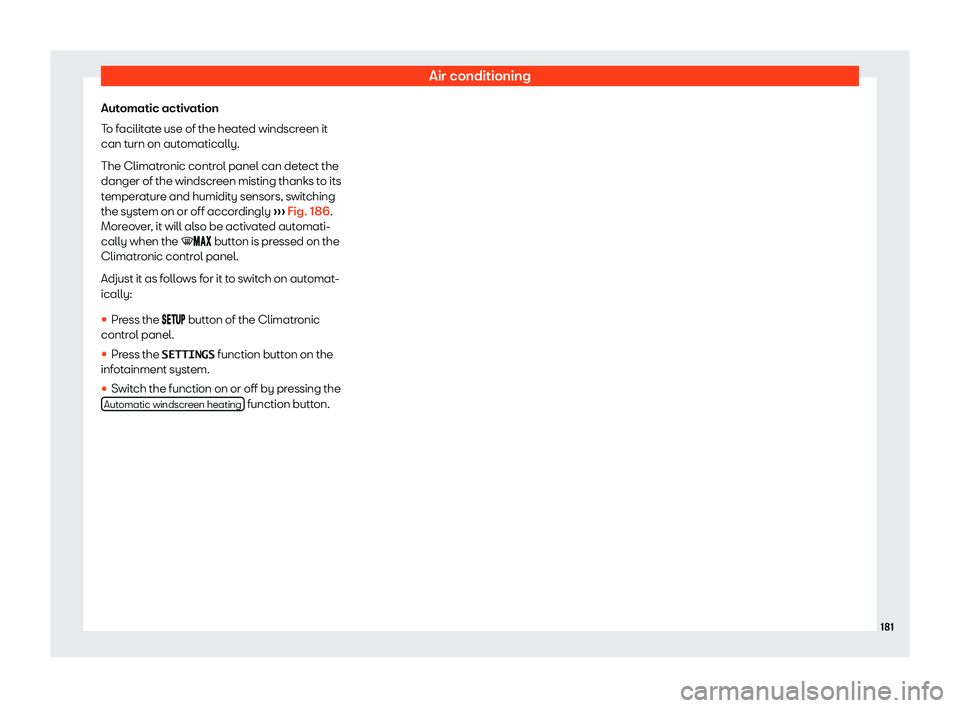

T o f
acilit
ate use of the heated windscreen it
can turn on automatically.
The Climatronic control panel can detect the
danger of the windscreen misting thanks to its
temperature and humidity sensors, switching
the system on or off accordingly

Operation
Auxiliary heater (additional
heat er)*
Intr oduction The auxiliary heater runs on fuel from the ve-
hicle

Air conditioning

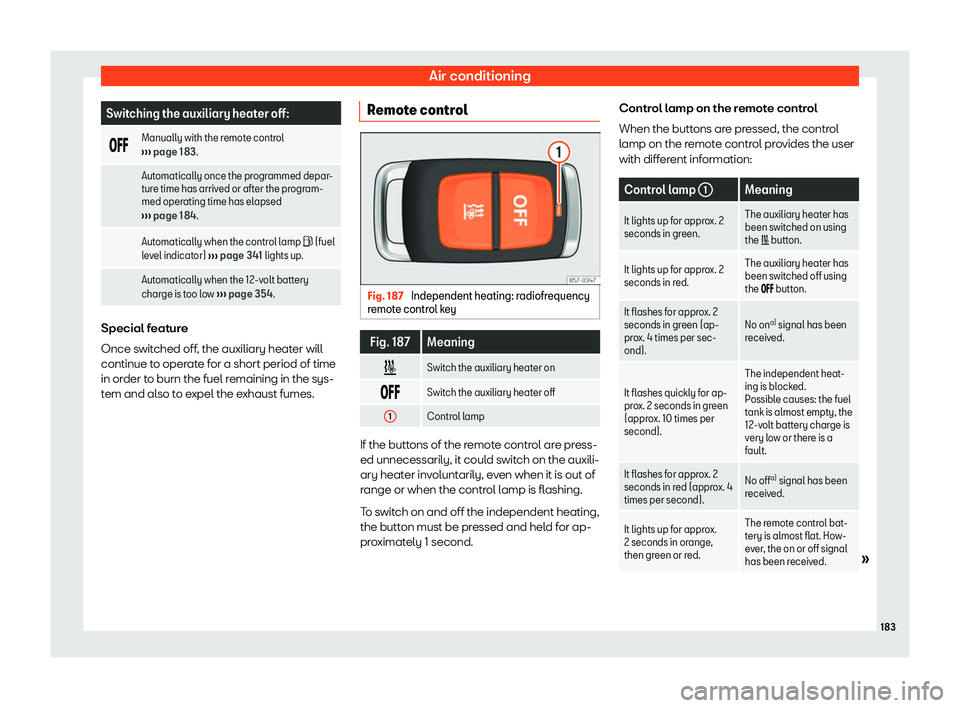

Switching the auxiliary heater off:
 Manually with the remote control

Operation

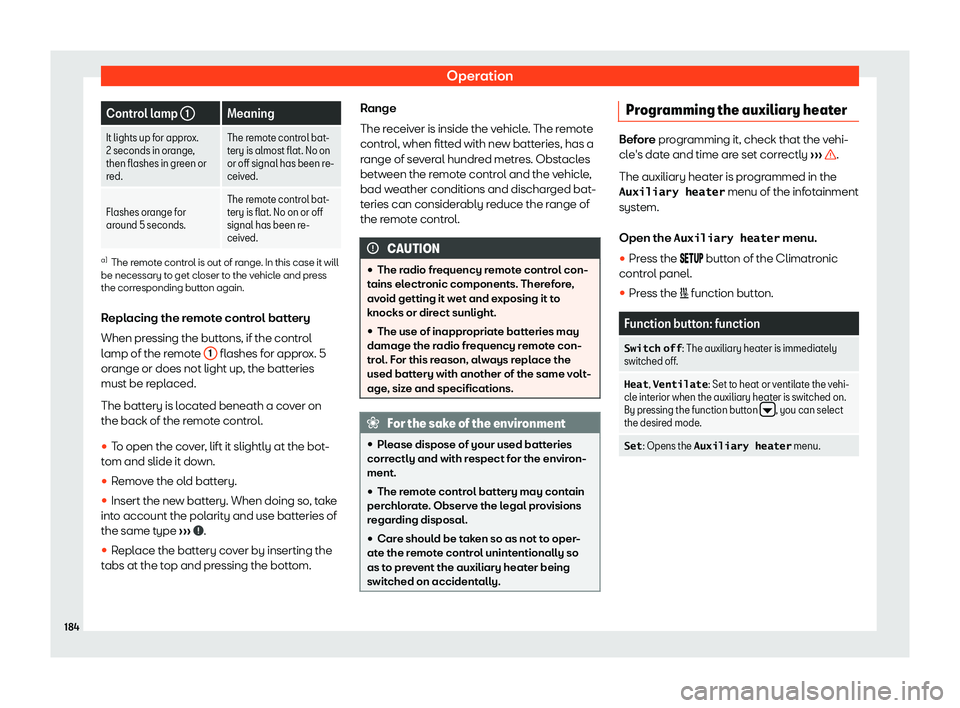

Control lamp
1 Meaning
It lights up for approx.
2 seconds in orange ,
then fl
ashes in green or
red. The remote control bat-
tery is almost flat. No on
or off signal has been r
e-
ceived.
Flashes orange for
around 5 seconds. The r
emot
e control bat-
tery is fl at. No on or off
signal has been r
e-
ceived. a)
The remote control is out of range. In this case it will
be necessary to get cl oser t

o the vehicle and press
the corresponding button again.
Replacing the remote control battery
When pressing the buttons, if the control
lamp of the remote 1 flashes for approx. 5
or ange or does not light up
, the batt

eries
must be replaced.
The battery is located beneath a cover on
the back of the remote control.

Air conditioning
Function button: function
Departure time 1 , Departure time
2, Departure time 3 : Three differ
ent de-
parture times (hh.mm) may be programmed. If
the auxiliary heater should only be switched
on a certain day of the week, this can also be
selected.
Duration : The duration det ermines the oper
-
ating time of the auxiliary heater when switch-
ed on using the fast heating button  on the air conditioning controls. The duration is also
used to calculate the departure time for the
manual air conditioner. It can be set between
10 and 60 minutes at 10-minute intervals.
E This returns to the main menu. The programmed departure time determines
the appr
oximat

e time it should take to reach
the temperature set in the vehicle. The start of
the heating operation is determined automat-
ically depending on the outside temperature.
Checking the programming
When a departure time is activated and the
ignition is switched off the control lamp of the
fast heating button  lights up for approxi- mately 10 seconds. WARNING
Never programme the auxiliary heater so
that it swit ches itself on and is running in an
encl

osed space or an area with no ventila-
tion. The auxiliary heater exhaust fumes contain carbon monoxide, an odourless
and colourl
ess t

oxic gas. Carbon monoxide
can cause people to lose consciousness. It
can also cause death. Operating instructions
The auxiliary heater exhaust system located
belo
w the v

ehicle must be kept clear of snow,
mud and other objects. The exhaust fumes
must be able to exit freely. The emissions
generated by the auxiliary heater are re-
moved via an exhaust pipe fitted underneath
the vehicle.
On heating the vehicle interior, depending on
the outside temperature, the warm air is first
directed at the windscreen and then to the
rest of the vehicle interior through the air
vents. Directing the diffusers
