Seat Ateca XL 2006 Owner's Manual

Seats and stowage139
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

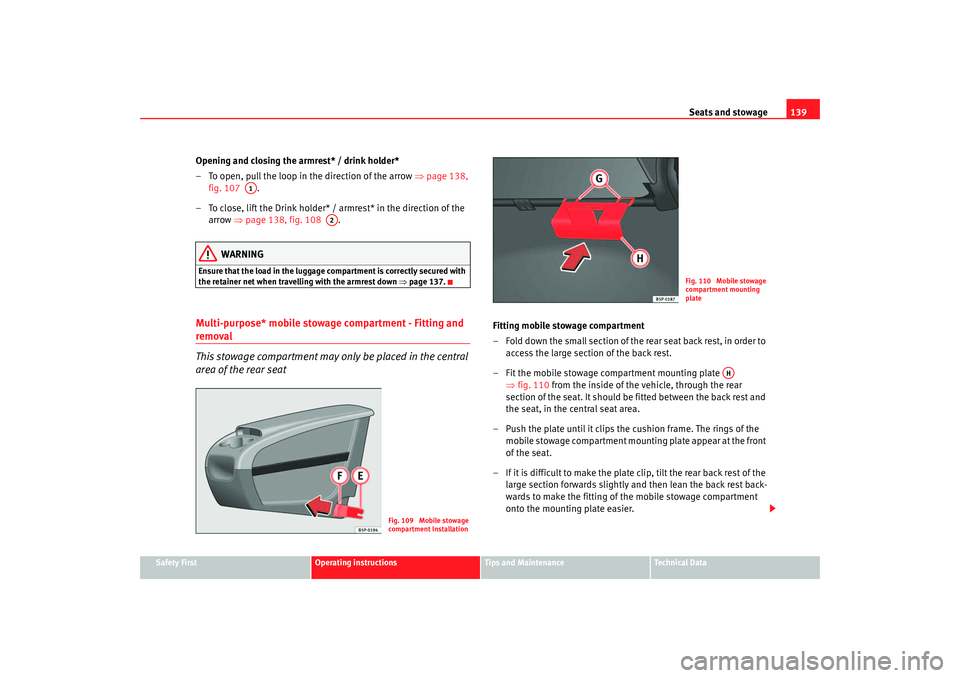

Opening and closing the armrest* / drink holder*
– To open, pull the loop in the direction of the arrow ⇒page 138,
fig. 107 .
– To close, lift the Drink holder* / armrest* in the direction of the
arrow ⇒page 138, fig. 108 .
WARNING
Ensure that the load in the luggage compartment is correctly secured with
the retainer net when travelling with the armrest down ⇒page 137.Multi-purpose* mobile stowage compartment - Fitting and removal
This stowage compartment may only be placed in the central
area of the rear seat
Fitting mobile stowage compartment
– Fold down the small section of the rear seat back rest, in order to
access the large section of the back rest.
– Fit the mobile stowage compartment mounting plate ⇒fig. 110 from the inside of the vehicle, through the rear
section of the seat. It should be fitted between the back rest and
the seat, in the central seat area.
– Push the plate until it clips the cushion frame. The rings of the mobile stowage compartment mounting plate appear at the front
of the seat.
– If it is difficult to make the plate clip, tilt the rear back rest of the large section forwards slightly and then lean the back rest back-
wards to make the fitting of the mobile stowage compartment
onto the mounting plate easier.
A1
A2
Fig. 109 Mobile stowage
compartment Installation
Fig. 110 Mobile stowage
compartment mounting
plate
AH
AlteaXL_ingles_02_06 Seite 139 Dienstag, 1. August 2006 11:11 11

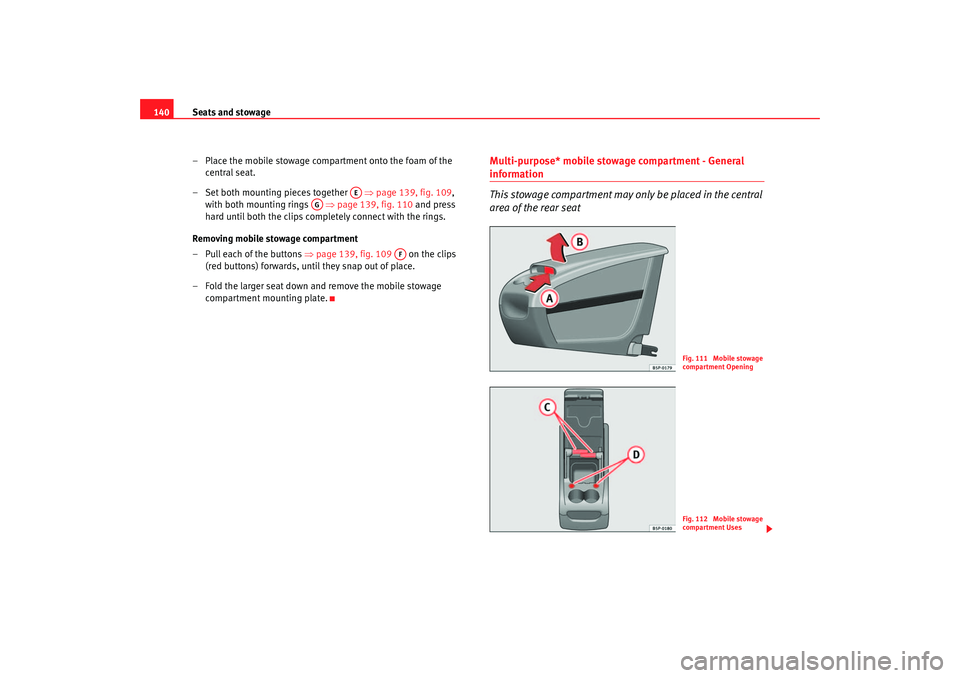

Seats and stowage
140
– Place the mobile stowage compartment onto the foam of the central seat.
– Set both mounting pieces together ⇒page 139, fig. 109 ,
with both mounting rings ⇒page 139, fig. 110 and press
hard until both the clips completely connect with the rings.
Removing mobile stowage compartment
– Pull each of the buttons ⇒page 139, fig. 109 on the clips
(red buttons) forwards, until they snap out of place.
– Fold the larger seat down and remove the mobile stowage compartment mounting plate.
Multi-purpose* mobile stowage compartment - General information
This stowage compartment may only be placed in the central
area of the rear seat
AE
AG
AF
Fig. 111 Mobile stowage
compartment OpeningFig. 112 Mobile stowage
compartment Uses
AlteaXL_ingles_02_06 Seite 140 Dienstag, 1. August 2006 11:11 11

Seats and stowage141
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Opening
– Lift the cover , in area ⇒ page 140, fig. 111.
Closing
– Push the cover down, until it clips into place.Uses of the mobile stowage compartment•
The front open glove box may be used to store small objects that will not
damage passengers in the event that the objects are flung around the interior
of the vehicle.
•
The drink holders are used for holding drink cans or cups.
•
The elastic belt on the side may be used for keeping papers and maga-
zines.
•
The tables may be used as a support for writing.
To use the table ⇒ page 140, fig. 112, it must be removed from its
compartment on the side of the mobile stowage compartment and fitted into
compartment ⇒page 140, fig. 112 on the front section of the mobile
stowage compartment.
The table in the right-hand compartment is fitted in the left-hand compart-
ment of the front of the mobile stowage compartment and the table in the left-
hand compartment is fitted in the right-hand compartment.
The tables have two positions for use and cannot be interchanged.
WARNING
•
The mobile stowage compartment supports a maximum load of 5 kg. Do
not overload.
•
Do not drive when the cover of the mobile stowage compartment is
open.
•
Do not drive when the tables are set up for use.
•
When the vehicle is moving, keep the tables stored inside the mobile
stowage compartment with the cover closed, and likewise when they are
not in use
•
Never place hot drinks in the drin k holders. The drink may spill and
cause burns when the vehicle is moving.
•
Do not leave cans in the drinkholde r when the vehicle is in motion,
there is a danger that the can may be flung around the vehicle and cause
injury.
•
Make sure that the mounting plate is correctly clipped onto the cushion
frame.
•
When the plate is not in use, store inside the stowage compartment.
•
When the mobile stowage compartment is not in use, it should always
be fastened by the retaining net in the luggage compartment.Note
•
Check that the mobile stowage compartment is correctly fitted, pulling it
forwards by the front glove box and checking that both safety clips are
correctly clipped onto the rings.
AB
AA
AC
AD
WARNING (continued)
AlteaXL_ingles_02_06 Seite 141 Dienstag, 1. August 2006 11:11 11

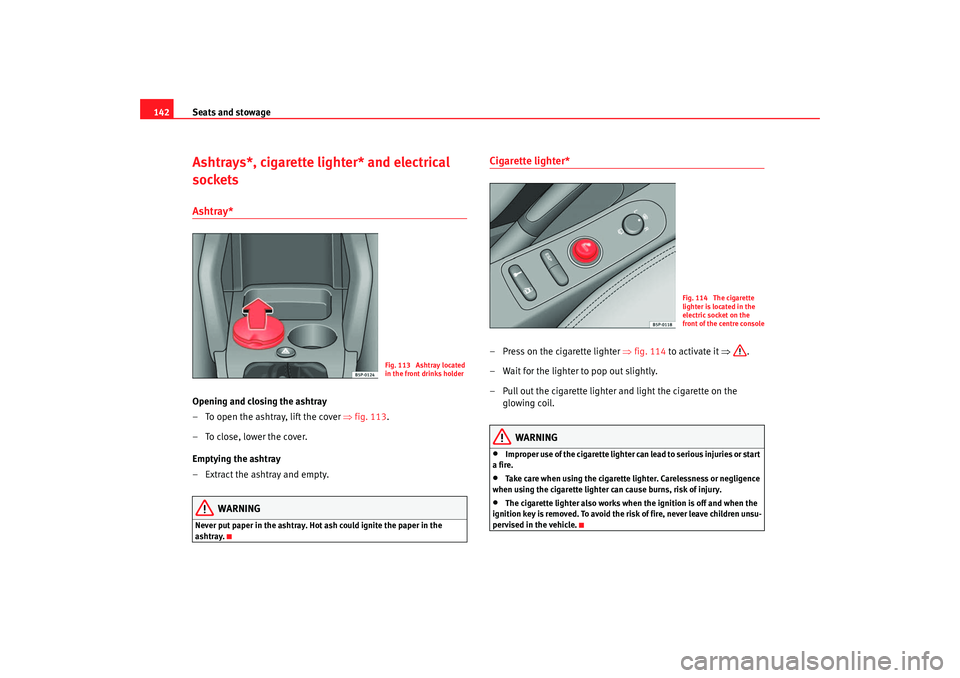

Seats and stowage
142Ashtrays*, cigarette lighter* and electrical
socketsAshtray* Opening and closing the ashtray
– To open the ashtray, lift the cover ⇒fig. 113 .
–To close, lower the cover.
Emptying the ashtray
– Extract the ashtray and empty.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray.
Cigarette lighter* – Press on the cigarette lighter ⇒fig. 114 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Take care when using the cigarette lighter. Carelessness or negligence
when using the cigarette lighter can cause burns, risk of injury.
•
The cigarette lighter also works when the ignition is off and when the
ignition key is removed. To avoid the risk of fire, never leave children unsu-
pervised in the vehicle.
Fig. 113 Ashtray located
in the front drinks holder
Fig. 114 The cigarette
lighter is located in the
electric socket on the
front of the centre console
AlteaXL_ingles_02_06 Seite 142 Dienstag, 1. August 2006 11:11 11

Seats and stowage143
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

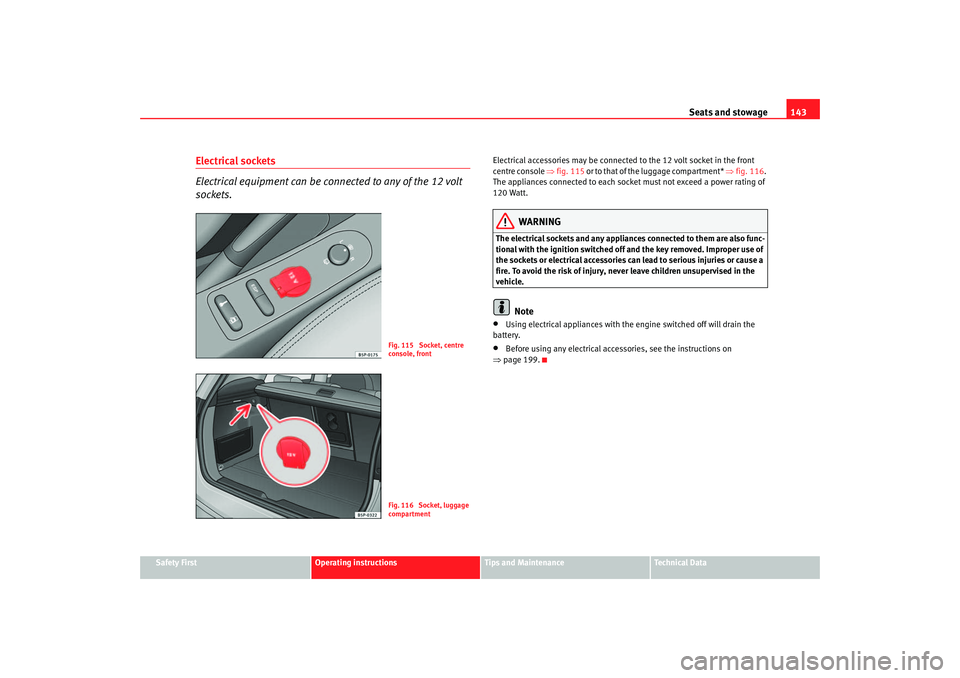

Electrical sockets
Electrical equipment can be connected to any of the 12 volt
sockets.
Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒fig. 115 or to that of the luggage compartment* ⇒fig. 116 .
The appliances connected to each socket must not exceed a power rating of
120 Watt.
WARNING
The electrical sockets and any appliances connected to them are also func-
tional with the ignition switched off and the key removed. Improper use of
the sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children unsupervised in the
vehicle.
Note
•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 199.
Fig. 115 Socket, centre
console, frontFig. 116 Socket, luggage
compartment
AlteaXL_ingles_02_06 Seite 143 Dienstag, 1. August 2006 11:11 11

Seats and stowage

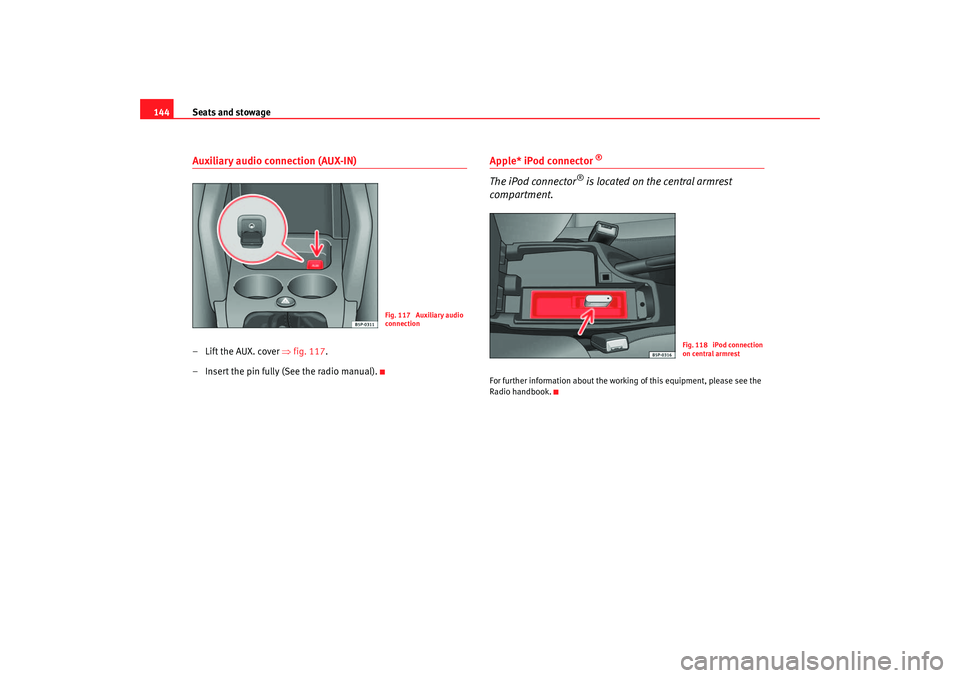

144Auxiliary audio connection (AUX-IN)–Lift the AUX. cover ⇒ fig. 117.
– Insert the pin fully (See the radio manual).
Apple* iPod connector
®
The iPod connector
® is located on the central armrest
compartment.
For further information about the working of this equipment, please see the
Radio handbook.
Fig. 117 Auxiliary audio
connection
Fig. 118 iPod connection
on central armrest
AlteaXL_ingles_02_06 Seite 144 Dienstag, 1. August 2006 11:11 11

Seats and stowage145
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

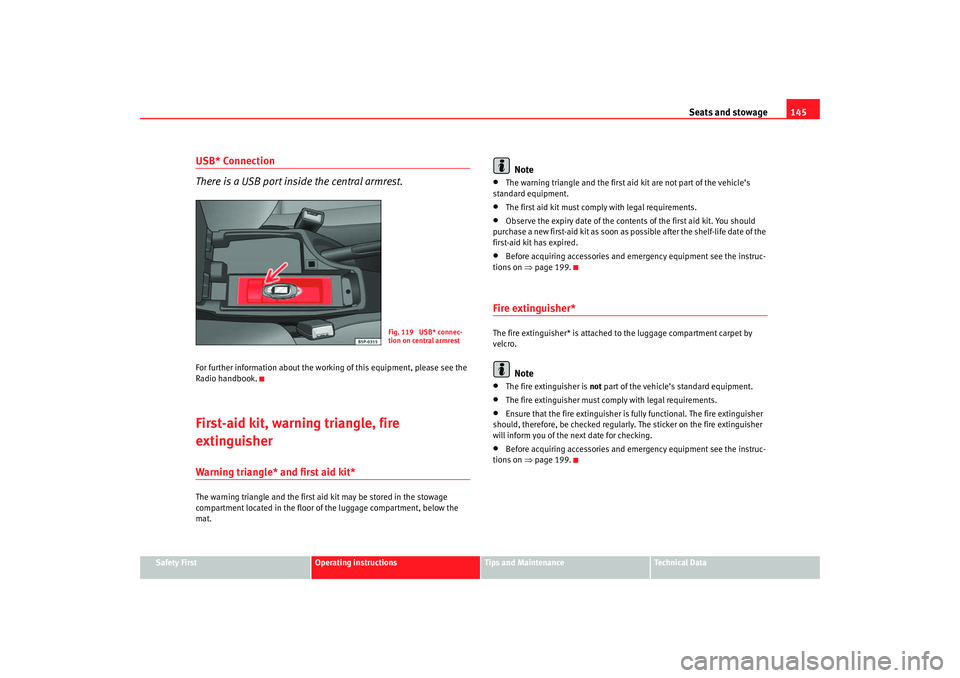

USB* Connection
There is a USB port inside the central armrest.For further information about the work ing of this equipment, please see the
Radio handbook.First-aid kit, warning triangle, fire
extinguisherWarning triangle* and first aid kit*The warning triangle and the first aid kit may be stored in the stowage
compartment located in the floor of the luggage compartment, below the
mat.
Note
•
The warning triangle and the first aid kit are not part of the vehicle’s
standard equipment.
•
The first aid kit must comply with legal requirements.
•
Observe the expiry date of the conten ts of the first aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 199.
Fire extinguisher* The fire extinguisher* is attached to the luggage compartment carpet by
velcro.
Note
•
The fire extinguisher is not part of the vehicle’s standard equipment.
•
The fire extinguisher must comp ly with legal requirements.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 199.
Fig. 119 USB* connec-
tion on central armrest
AlteaXL_ingles_02_06 Seite 145 Dienstag, 1. August 2006 11:11 11

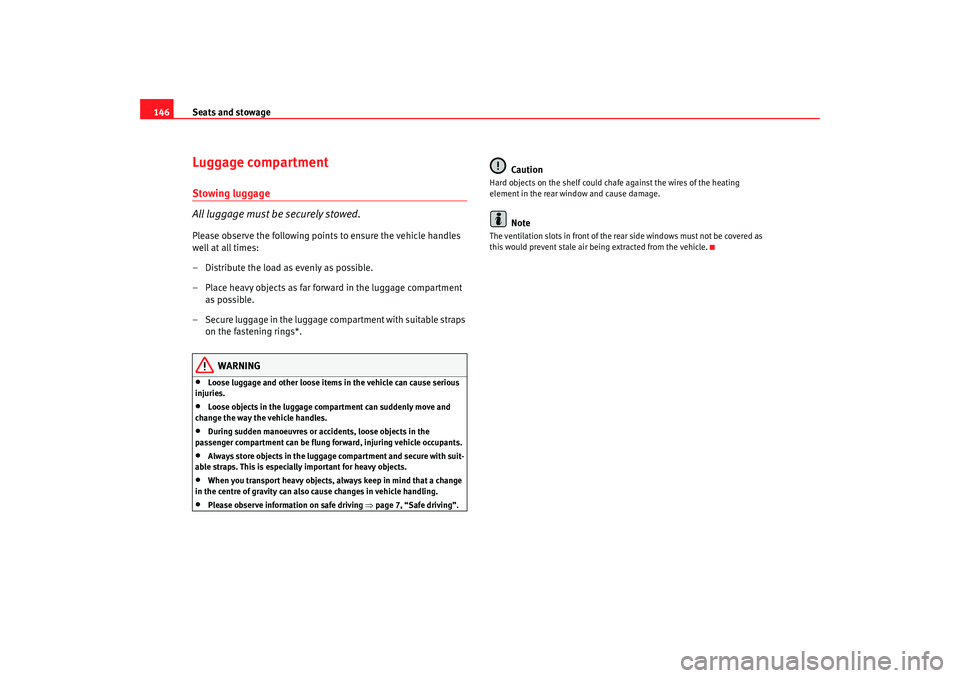

Seats and stowage
146Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
– Secure luggage in the luggage compartment with suitable straps on the fastening rings*.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.
•
When you transport heavy objects, always keep in mind that a change
in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.
Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
AlteaXL_ingles_02_06 Seite 146 Dienstag, 1. August 2006 11:11 11

Seats and stowage147
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

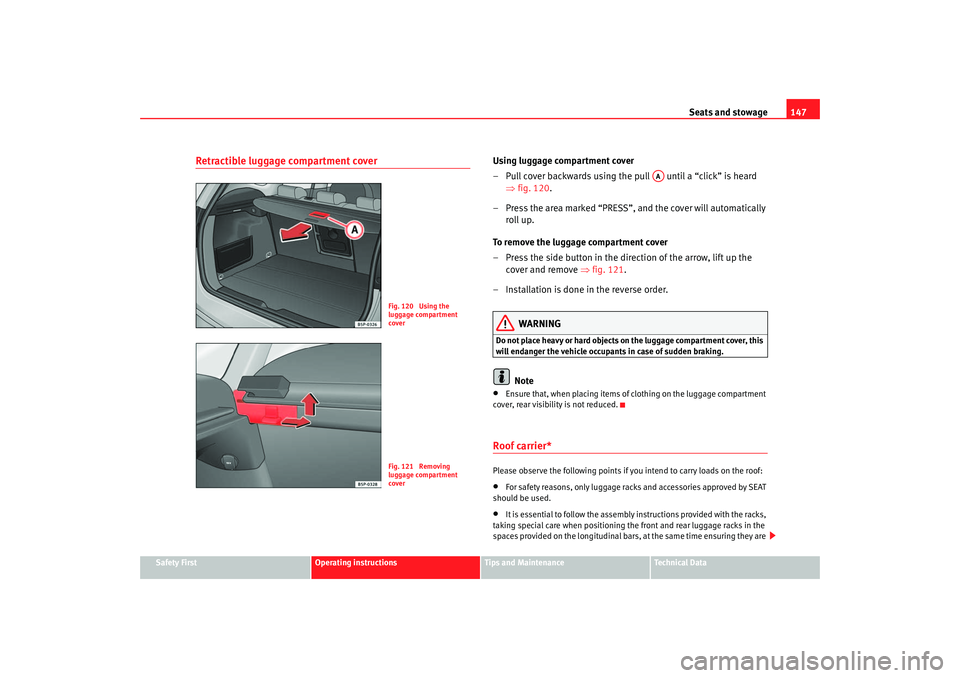

Retractible luggage compartment cover
Using luggage compartment cover
– Pull cover backwards using the pull until a “click” is heard
⇒fig. 120.
– Press the area marked “PRESS”, and the cover will automatically roll up.
To remove the luggage compartment cover
– Press the side button in the dire ction of the arrow, lift up the
cover and remove ⇒ fig. 121.
– Installation is done in the reverse order.
WARNING
Do not place heavy or hard objects on the luggage compartment cover, this
will endanger the vehicle occupants in case of sudden braking.
Note
•
Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.
Roof carrier*Please observe the following points if you intend to carry loads on the roof:•
For safety reasons, only luggage racks and accessories approved by SEAT
should be used.
•
It is essential to follow the assembly instructions provided with the racks,
taking special care when positioning the front and rear luggage racks in the
spaces provided on the longitudinal bars, at the same time ensuring they are
Fig. 120 Using the
luggage compartment
coverFig. 121 Removing
luggage compartment
cover
AA
AlteaXL_ingles_02_06 Seite 147 Dienstag, 1. August 2006 11:11 11

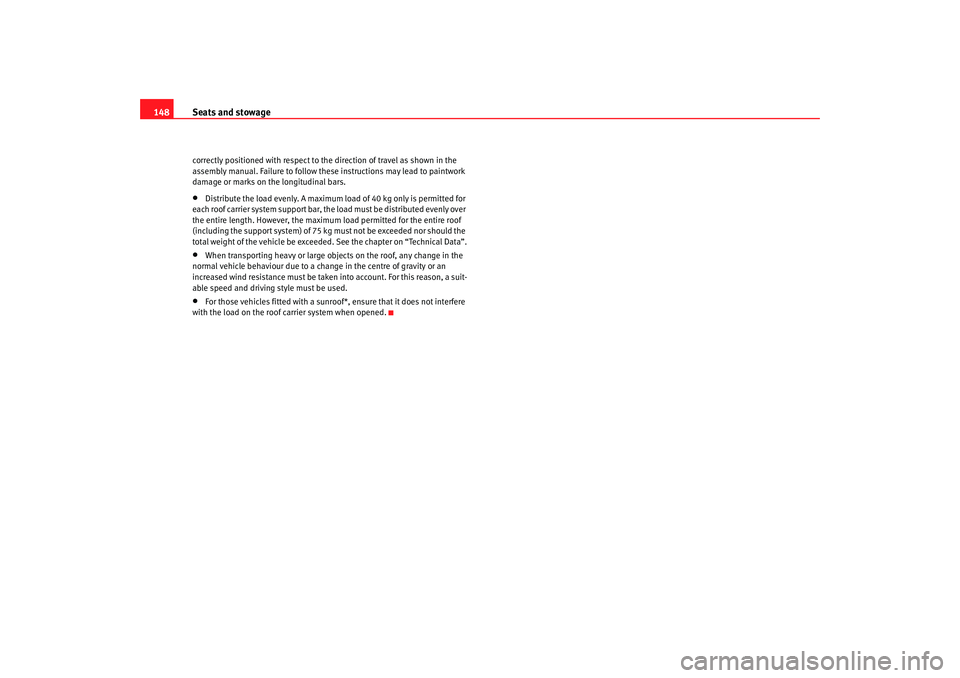

Seats and stowage
148correctly positioned with respect to the direction of travel as shown in the
assembly manual. Failure to follow thes e instructions may lead to paintwork
damage or marks on the longitudinal bars.•
Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly over
the entire length. However, the maximu m load permitted for the entire roof
(including the support system) of 75 kg must not be exceeded nor should the
total weight of the vehicle be exceeded. See the chapter on “Technical Data”.
•
When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•
For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
AlteaXL_ingles_02_06 Seite 148 Dienstag, 1. August 2006 11:11 11
