Cockpit
52InstrumentsInstrument overview
The instruments display the vehicle operating status.Fig. 32 Detail of the dash panel: InstrumentsThe layout of the instruments depends upon the model and engine.
Rev counter* ⇒ page 53
Coolant temperature gauge ⇒page 53
Fuel gauge ⇒ page 54
Speedometer ⇒page 54 Digital clock*/Outside temperature display*/Multifunction
d
ispla y ⇒ pa
ge 54
Display field for selector lever position ⇒page 58
Distance display with service interval display* ⇒page 55
A1A2A3A4
A5A6A7
cordoba_ingles Seite 52 Freitag, 7. Oktober 2005 6:00 18
Page 55 of 255
Cockpit53
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Rev counter
The rev. counter displays the engine speed in revolutions per
minute.The start of the red zone on the dial ⇒ page 52, fig. 32 indicates the
maximum engine speed which may be used briefly when the engine is warm
and after it has been run in properly. However, it is advisable to change up a
gear or move the selector lever to D (or li ft your foot off the accelerator) before
the needle reaches the red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
Changing up a gear early will help you to save fuel and minimise engine
noise.
Engine coolant temperature display
This gauge shows the engine coolant temperature.
Needle in cold zone
Avoid high engine speeds and heavy engine loads ⇒fig. 33.
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures. This is no cause for concern, as long
as the warning lamp does not light up on th e instrument panel.
Needle in warning zone
The warning lamp* ⇒page 60, fig. 40 will light up and a buzzer will be
heard if the needle is in the warning zone. Stop the car and switch off the
engine. Check the coolant level ⇒ page 177 ⇒ .
Even if the coolant level is correct do not continue driving. You should obtain
technical assistance.
A4
Fig. 33 Engine coolant
temperature
AAABACAC
A2
cordoba_ingles Seite 53 Freitag, 7. Oktober 2005 6:00 18
Page 56 of 255
Cockpit
54
WARNING
When working in the engine compartment, always bear in mind the safety
wa rnings ⇒ page 169.
Caution
Accessories in front of the air inlet reduce the cooling effect of the coolant. At
high outside temperatures and high engine loads, there is a risk of the
engine overheating.Fuel gauge
and reserve indicator
Details of the instrument panel: Fuel gauge
The fuel tank has a capacity of approx. 45 litres. When the needle reaches the red area of the reserve zone
⇒fig. 34 , the
warning lamp will light and an acoustic signal will sound reminding the driver
to refuel. At this point there are still about 7 litres of fuel in the tank.
SpeedometerThe speedometer is equipped with a digital odometer and a trip counter, in
addition to a service intervals display.
During the running-in period, the instructions shown on ⇒page 143 should
be followedDigital display in the instrument panelDigital clock *– Turn the setting knob ⇒page 52, fig. 32 anti-clockwise to
the stop to set the hour. If the kn ob is turned briefly anti-clock-
wise the clock will advance one hour further.
– Turn the setting knob clockwise to the limit stop to set the minutes. If the knob is turned briefly clockwise the clock will
advance one minute further.
Fig. 34 Fuel gauge
A5
cordoba_ingles Seite 54 Freitag, 7. Oktober 2005 6:00 18
Page 57 of 255
Cockpit55
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Ambient temperature display*
The outside temperature is displayed when the ignition is
switched on.At temperatures be t
ween +6°C to -7 °C
, in addition to the outside tempe ra-
ture, an ice crystal is displayed and if travel speed is over 10 km/h an acoustic
buzzer is heard.
The illumination of the crystal symbol ai ms to warn the driver of the risk of
ice, so that he/she proceeds with due care.
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of heat coming from the engine.
Mileage display or Service Interval DisplayDistance display
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the sh ort journeys. The last digit indicates
steps of 100 metres. The trip recorder counter may be reset by the reset
button ⇒page 52, fig. 32 .
Service interval display
A Service pre-warning will appear in the mileage displays if a service is due
soon. A “spanner” symbol appears and the display “km” with the distance
that can be driven until the next service appointment is due. The display will
change after approximately 10 seconds. A “clock symbol” appears and the
number of days until the service appointment should be carried out. The
following information text displayed in the instrument panel display: SERV. IN
... KM OR ... DAYS . The service message will disappear approximately 20 seconds after the igni
tion is switched on or the engine is running. The normal
display can be resumed by pressing the reset button on the trip counter or by
pressing the rocker switch of the MFI ⇒page 56, fig. 35 .
With the ignition switched on, you can call up the current service message by
pressing the trip counter reset knob for 2 seconds.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
A6
AB
cordoba_ingles Seite 55 Freitag, 7. Oktober 2005 6:00 18
Page 60 of 255
Cockpit
58Ø litre/100km - Average fuel consumption
The average fuel consumption will be shown ⇒page 57, fig. 38 after a
distance of approximately 100 metres has been travelled. Dashes will appear
in the display until that time. The display will be updated every 5 seconds
whilst the vehicle is in motion. The amount of fuel used will not be shown.
ltr/100km or ltr/ hr - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion ⇒page 151.
Ambient temperature display
The measurement margin extends from -45° C to +58° C. At temperatures
lower than +4° C, an “ice crystal symbol” is displayed and a “warning”
sounds if the vehicle is moving at more than 20 km/h (ice warning). This
symbol will flash for about 10 seconds and remains lit until the exterior
tempe r
ature ri ses abo v e +4°
C or 6°
C if it was already lit.
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. You should, for this reason, not rely exclusively on this
display - Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual ambient temperature as
a result of the heat radiated from the engine.
Display field for selector lever position* The position of the automatic gearbox selector lever is shown on the display
⇒page 129Mileage display or Service Interval DisplayDistance display
The upper counter in the display registers the total distance covered by the
vehicle.
The lower counter registers the short journeys. The last digit indicates steps
of 100 metres. The trip recorder counter may be reset by the reset button
⇒page 52, fig. 32 .
Fig. 39 Service interval
display
A6
cordoba_ingles Seite 58 Freitag, 7. Oktober 2005 6:00 18
Page 61 of 255
Cockpit59
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Service interval display
When it is time for a service, the lower counter (trip counter) of the speedom-
eter displays the symbol of a spanner, followed by one of the following
messages:
OIL
- Changing the engine oil
INSP - Maintenance service
The maintenance message switches off 3 minutes after the engine is started.
The trip counter can also be reset, by pressing the reset button for more than
0.5 seconds
2)
The Service Centre who carry out the maintenance service will reset the main-
tenance interval display on completion of the service.
We recommend that the repair and main tenance work only be carried out at
Authorised Service Centres.
The service indicator can also be reset by pressing the trip counter button.
Proceed as follows:
Switch off ignition.
Keep “Reset” button on distance counter pressed.
Connect ignition with the “Reset” button pressed. The fixed mode
display appears.
After a minimum of 10 sec, release the reset button.
Caution
We recommend that the resetting of the service interval indicator be carried
out in an Authorised Service Centre to avoid possible faults in the vehicle.
Note
•
Only the desired service message should be reset in each case. By
pressing the reset button it is possible to change from one message to
another.
•
Do not reset the display between two service intervals, otherwise the
dispaly will be incorrect.
•
The values are stored even when the battery is disconnected.
2)With “Ignition OFF” the maintenance display remains visible.A-A-A-A-
cordoba_ingles Seite 59 Freitag, 7. Oktober 2005 6:00 18
Page 63 of 255
Cockpit61
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

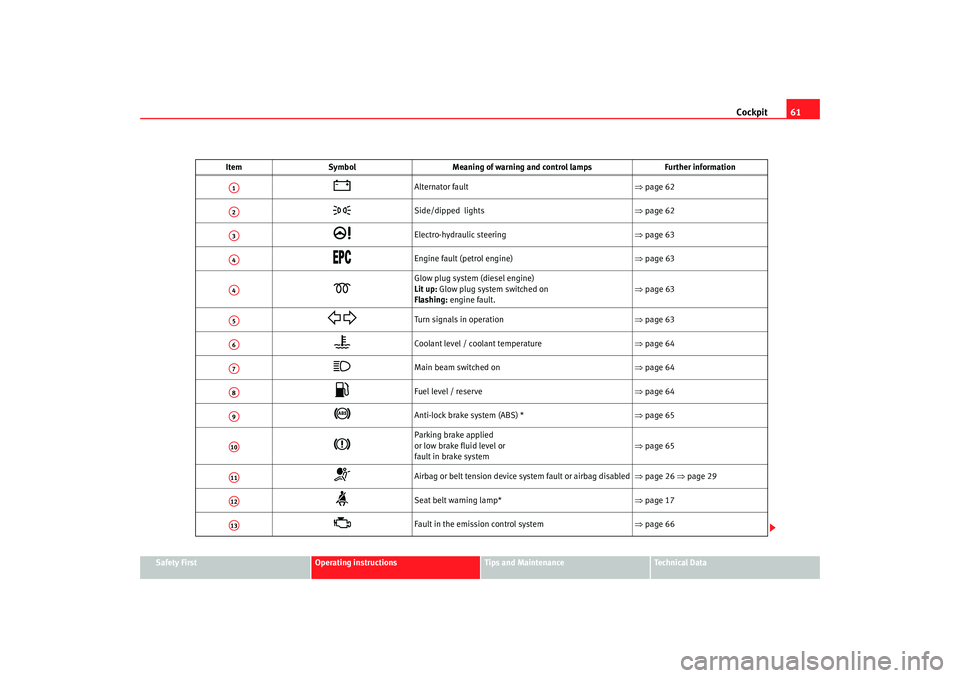

Item
Symbol Meaning of warning and control lamps Further information
Alternator fault ⇒page 62
Side/dipped lights ⇒page 62
Electro-hydraulic steering ⇒page 63
Engine fault (petrol engine) ⇒ page 63
Glow plug system (diesel engine)
Lit up: Glow plug system switched on
Flashing: engine fault.
⇒ page 63
Turn signals in operation ⇒page 63
Coolant level / coolant temperature ⇒page 64
Main beam switched on ⇒page 64
Fuel level / reserve ⇒page 64
Anti-lock brake system (ABS) * ⇒page 65
Parking brake applied
or low brake fluid level or
fault in brake system ⇒
page 65
Airbag or belt tension device system fault or airbag disabled ⇒page 26 ⇒page 29
Seat belt warning lamp* ⇒page 17
Fault in the emission control system ⇒page 66
A1A2A3A4A4A5A6A7A8A9A10A11A12A13
cordoba_ingles Seite 61 Freitag, 7. Oktober 2005 6:00 18
Page 64 of 255
Cockpit
62
WARNING
•
Failure to observe warning lamps and warning messages can result in
serious personal injury or damage to your vehicle.
•
The risk of an accident increases if your vehicle breaks down. Use a
warning triangle to draw the attention of other road users to your
stationary vehicle so that it does not represent a danger.
•
The engine compartment of any motor vehicle is a dangerous area!
Before you open the bonnet to work on the engine or in the engine compart-
ment, you must switch off the engine and allow it to cool to reduce the risk
of scalding or other injuries. Read and observe the relevant warnings
⇒ page 169.Note
•
The appropriate warning lamp for a fa ult will light up in vehicles without
warning or information texts in the display.
•
In vehicles with warning or information texts in the display, the appro-
priate warning lamp for a fault will ligh t up and a warning or information text
will also appear in the display.

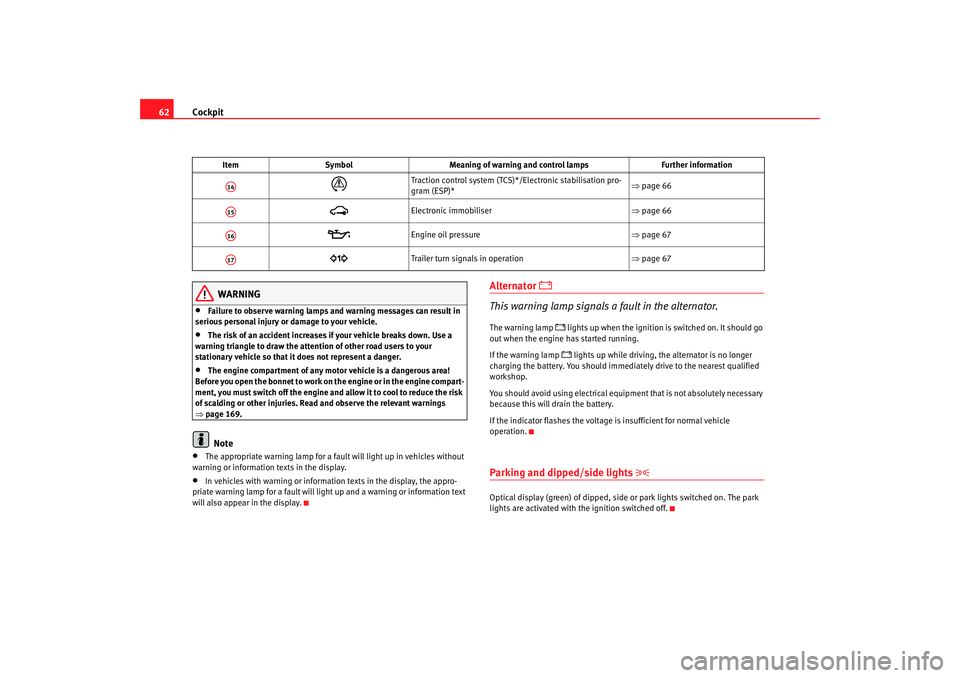

Alternator
This warning lamp signals a fault in the alternator.The warning lamp
lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest qualified
workshop.
You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery.
If the indicator flashes the voltage is insufficient for normal vehicle
operation.
Parking and dipped/side lights
Optical display (green) of dipped, side or park lights switched on. The park
lights are activated with the ignition switched off.
Traction control system (TCS)*/Electronic stabilisation pro-
gram (ESP)* ⇒
page 66
Electronic immobiliser ⇒page 66
Engine oil pressure ⇒page 67
Trailer turn signals in operation
⇒ page 67
Item
Symbol Meaning of warning and control lamps Further information
A14A15A16A17
cordoba_ingles Seite 62 Freitag, 7. Oktober 2005 6:00 18
