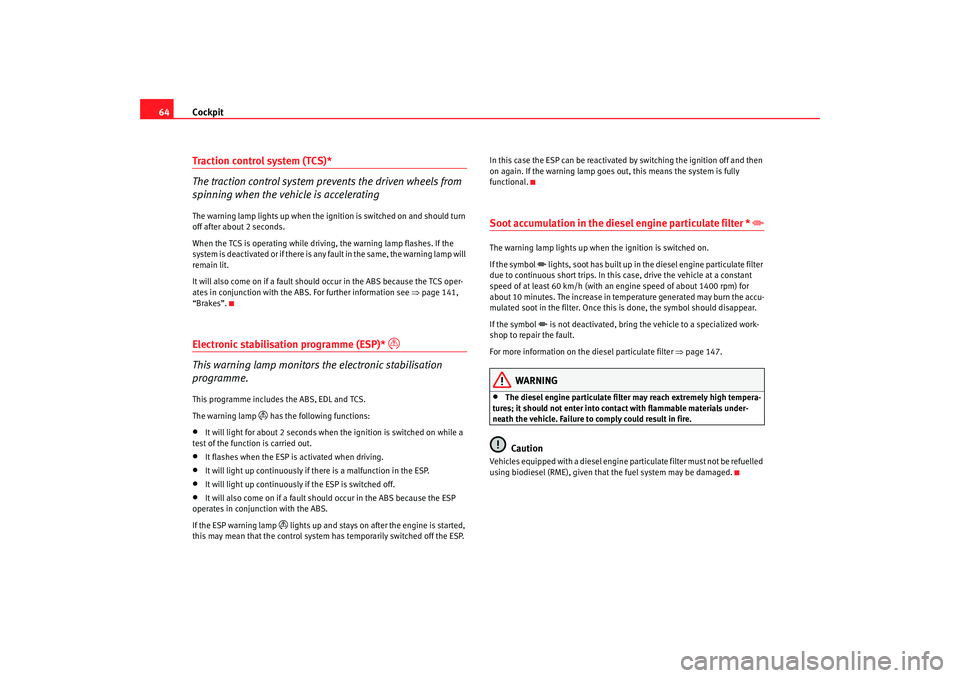

Cockpit
64Traction control system (TCS)*
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThe warning lamp lights up when the ignition is switched on and should turn
off after about 2 seconds.
When the TCS is operating while drivi ng, the warning lamp flashes. If the
system is deactivated or if there is any fault in the same, the warning lamp will
remain lit.
It will also come on if a fault should occur in the ABS because the TCS oper-
ates in conjunction with the ABS. For further information see ⇒page 141,
“Brakes”.Electronic stabilisation programme (ESP)*


This warning lamp monitors the electronic stabilisation
programme.
This programme includes the ABS, EDL and TCS.
The warning lamp
 has the following functions:
•
It will light for about 2 seconds when the ignition is switched on while a
test of the function is carried out.
•
It flashes when the ESP is activated when driving.
•
It will light up continuously if there is a malfunction in the ESP.
•
It will light up continuously if the ESP is switched off.
•
It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP. In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully
functional.
Soot accumulation in the diesel engine particulate filter *

The warning lamp lights up when the ignition is switched on.
If the symbol
 lights, soot has built up in the diesel engine particulate filter
due to continuous short trips. In this case, drive the vehicle at a constant
speed of at least 60 km/h (with an engine speed of about 1400 rpm) for
about 10 minutes. The increase in temperature generated may burn the accu-
mulated soot in the filter. Once this is done, the symbol should disappear.
If the symbol  is not deactivated, bring the vehicle to a specialized work-
shop to repair the fault.
For more information on the diesel particulate filter ⇒page 147.
WARNING
•
The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Failure to comply could result in fire.Caution
Vehicles equipped with a diesel engine particulate filter must not be refuelled
using biodiesel (RME), given that the fuel system may be damaged.
cordoba_ingles_0706 Seite 64 Montag, 28. August 2006 1:18 13

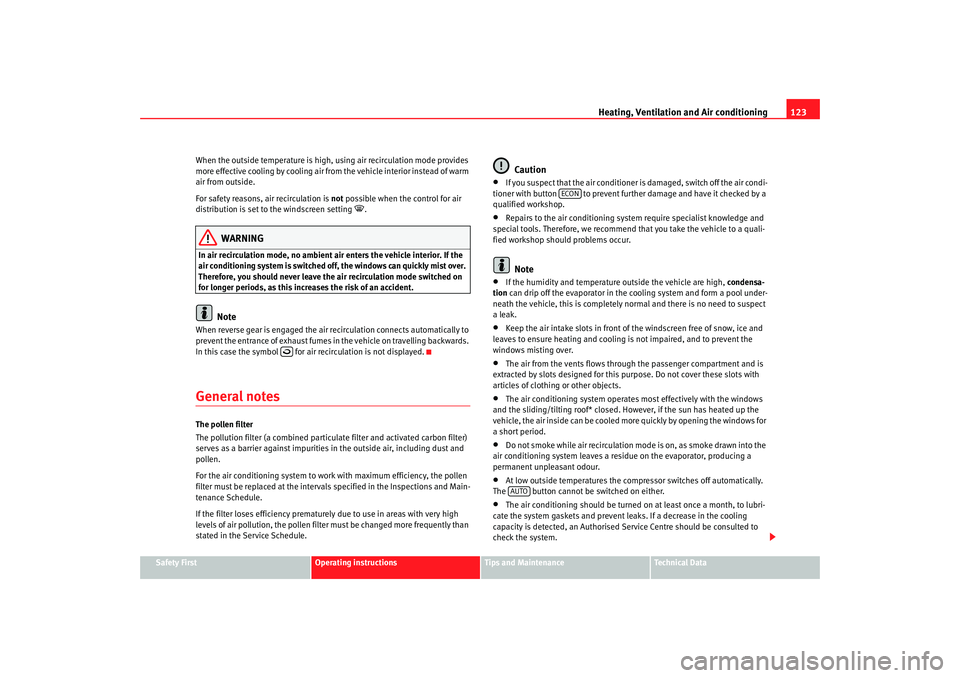

Heating, Ventilation and Air conditioning 123
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
When the outside temperature is high, using air recirculation mode provides
more effective cooling by cooling air fr
om the vehicle interior instead of warm
air from outside.
For safety reasons, air recirculation is not possible when the control for air
distribution is set to the windscreen setting
.
WARNING
In air recirculation mode, no ambient air enters the vehicle interior. If the
air conditioning system is switched of f, the windows can quickly mist over.
Therefore, you should never leave the air recirculation mode switched on
for longer periods, as this increases the risk of an accident.
Note
When reverse gear is engaged the air recirculation connects automatically to
prevent the entrance of exhaust fumes in the vehicle on travelling backwards.
In this case the symbol for air recirculation is not displayed.General notesThe pollen filter
The pollution filter (a combined pa rticulate filter and activated carbon filter)
serves as a barrier against impurities in the outside air, including dust and
pollen.
For the air conditioning system to work with maximum efficiency, the pollen
filter must be replaced at the intervals specified in the Inspections and Main-
tenance Schedule.
If the filter loses efficiency prematurely due to use in areas with very high
levels of air pollution, the pollen filter must be changed more frequently than
stated in the Service Schedule.
Caution
•
If you suspect that the air conditioner is damaged, switch off the air condi-
tioner with button to prevent further damage and have it checked by a
qualified workshop.
•
Repairs to the air conditioning system require specialist knowledge and
special tools. Therefore, we recommend that you take the vehicle to a quali-
fied workshop should problems occur.Note
•
If the humidity and temperature outside the vehicle are high, condensa-
tion can drip off the evaporator in the cooling system and form a pool under-
neath the vehicle, this is completely normal and there is no need to suspect
a leak.
•
Keep the air intake slots in front of the windscreen free of snow, ice and
leaves to ensure heating and cooling is not impaired, and to prevent the
windows misting over.
•
The air from the vents flows through the passenger compartment and is
extracted by slots designed for this purpose. Do not cover these slots with
articles of clothing or other objects.
•
The air conditioning system operates most effectively with the windows
and the sliding/tilting roof* closed. However, if the sun has heated up the
vehicle, the air inside can be cooled more quickly by opening the windows for
a short period.
•
Do not smoke while air recirculation mode is on, as smoke drawn into the
air conditioning system leaves a residue on the evaporator, producing a
permanent unpleasant odour.
•
At low outside temperatures the comp ressor switches off automatically.
The button cannot be switched on either.
•
The air conditioning should be turned on at least once a month, to lubri-
cate the system gaskets and prevent leaks. If a decrease in the cooling
capacity is detected, an Authorised Service Centre should be consulted to
check the system.

ECON
AUTO
cordoba_ingles_0706 Seite 123 Montag, 28. August 2006 1:18 13

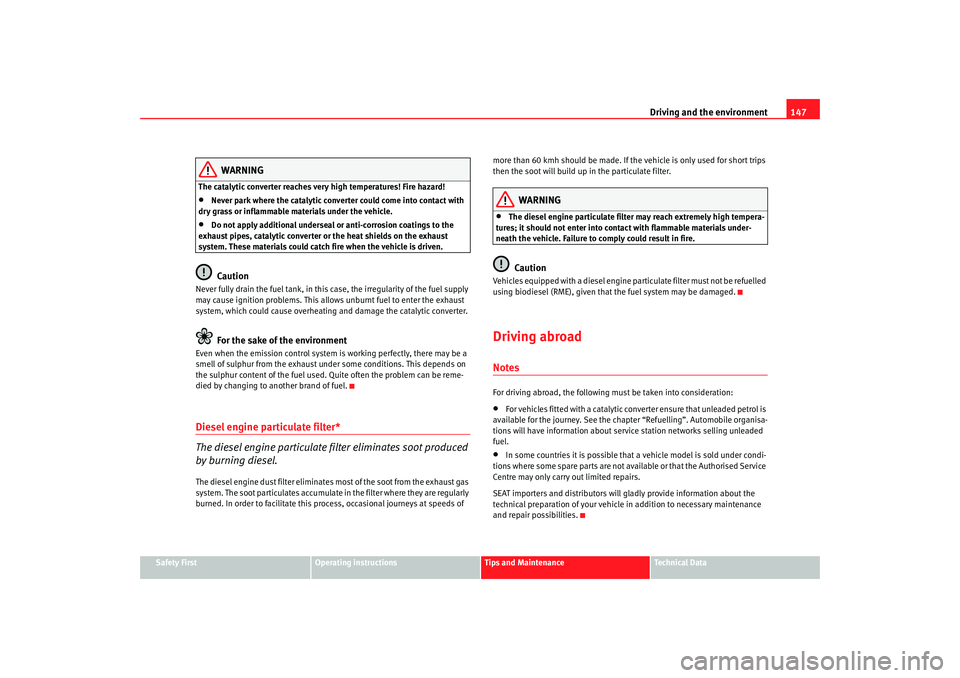

Driving and the environment147
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
The catalytic converter reaches very high temperatures! Fire hazard!•
Never park where the catalytic converter could come into contact with
dry grass or inflammable materials under the vehicle.
•
Do not apply additional underseal or anti-corrosion coatings to the
exhaust pipes, catalytic converter or the heat shields on the exhaust
system. These materials could catch fire when the vehicle is driven.Caution
Never fully drain the fuel tank, in this case, the irregularity of the fuel supply
may cause ignition problems. This allow s unburnt fuel to enter the exhaust
system, which could cause overheating and damage the catalytic converter.
For the sake of the environment
Even when the emission control system is working perfectly, there may be a
smell of sulphur from the exhaust unde r some conditions. This depends on
the sulphur content of the fuel used. Quite often the problem can be reme-
died by changing to another brand of fuel.Diesel engine particulate filter*
The diesel engine particulate filter eliminates soot produced
by burning diesel.The diesel engine dust filter eliminates most of the soot from the exhaust gas
system. The soot particulates accumulate in the filter where they are regularly
burned. In order to facilitate this process, occasional journeys at speeds of more than 60 kmh should be made. If the vehicle is only used for short trips
then the soot will build up in the particulate filter.
WARNING
•
The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Failure to comply could result in fire.Caution
Vehicles equipped with a diesel engine particulate filter must not be refuelled
using biodiesel (RME), given that the fuel system may be damaged.Driving abroadNotesFor driving abroad, the following must be taken into consideration:•
For vehicles fitted with a catalytic converter ensure that unleaded petrol is
available for the journey. See the chap ter “Refuelling”. Automobile organisa-
tions will have information about service station networks selling unleaded
fuel.
•
In some countries it is possible that a vehicle model is sold under condi-
tions where some spare parts are not available or that the Authorised Service
Centre may only carry out limited repairs.
SEAT importers and distributors will gladly provide information about the
technical preparation of your vehicle in addition to necessary maintenance
and repair possibilities.
cordoba_ingles_0706 Seite 147 Montag, 28. August 2006 1:18 13

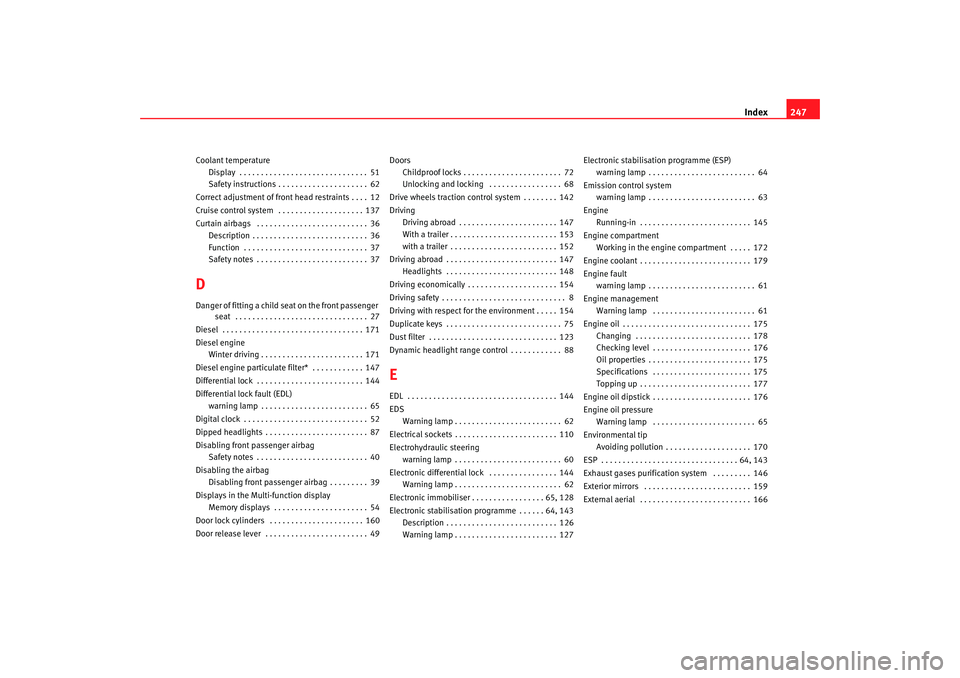

Index247
Coolant temperature
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Safety instructions . . . . . . . . . . . . . . . . . . . . . 62
Correct adjustment of front head restraints . . . . 12
Cruise control system . . . . . . . . . . . . . . . . . . . . 137
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 37DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 171
Diesel engine particulate filter* . . . . . . . . . . . . 147
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 144
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 65
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . . 87
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 39
Displays in the Multi-function display Memory displays . . . . . . . . . . . . . . . . . . . . . . 54
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 160
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 49 Doors
Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 72
Unlocking and locking . . . . . . . . . . . . . . . . . 68
Drive wheels traction control system . . . . . . . . 142
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 147
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 153
with a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 152
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Driving economically . . . . . . . . . . . . . . . . . . . . . 154
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with respect for the environment . . . . . 154
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Dynamic headlight range control . . . . . . . . . . . . 88
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 110
Electrohydraulic steering warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 60
Electronic differential lock . . . . . . . . . . . . . . . . 144 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Electronic immobiliser . . . . . . . . . . . . . . . . . 65, 128
Electronic stabilisation programme . . . . . . 64, 143 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 127 Electronic stabilisation programme (ESP)
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 63
Engine Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Engine compartment Working in the engine compartment . . . . . 172
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Engine fault warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 61
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 61
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Checking level . . . . . . . . . . . . . . . . . . . . . . . 176
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 175
Specifications . . . . . . . . . . . . . . . . . . . . . . . 175
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 176
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 170
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 143
Exhaust gases purification system . . . . . . . . . 146
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 159
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 166
cordoba_ingles_0706 Seite 247 Montag, 28. August 2006 1:18 13

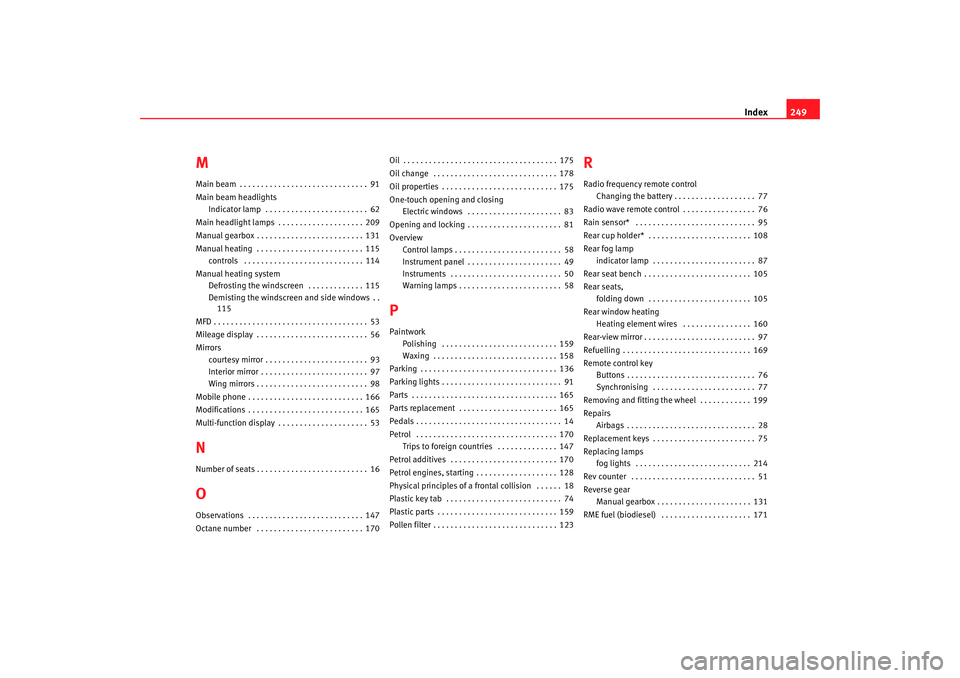

Index249
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Main beam headlights
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Main headlight lamps . . . . . . . . . . . . . . . . . . . . 209
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 131
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 115 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 115
Demisting the windscreen and side windows . .115
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Mileage display . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Mirrors courtesy mirror . . . . . . . . . . . . . . . . . . . . . . . . 93
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . 97
Wing mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Multi-function display . . . . . . . . . . . . . . . . . . . . . 53NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . . 16OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 170 Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . . 83
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 81
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 58
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 49
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 58
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 165
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Trips to foreign countries . . . . . . . . . . . . . . 147
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 170
Petrol engines, starting . . . . . . . . . . . . . . . . . . . 128
Physical principles of a frontal collision . . . . . . 18
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . . . 77
Radio wave remote control . . . . . . . . . . . . . . . . . 76
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Rear cup holder* . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear fog lamp indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 87
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear seats, folding down . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 160
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 77
Removing and fitting the wheel . . . . . . . . . . . . 199
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 75
Replacing lamps fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . . 131
RME fuel (biodiesel) . . . . . . . . . . . . . . . . . . . . . 171
cordoba_ingles_0706 Seite 249 Montag, 28. August 2006 1:18 13

Index
250Roll-back function
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 86
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Running-in Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Running-in tyres . . . . . . . . . . . . . . . . . . . . . . . . 145SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 62
Safety notes Belt tension devices . . . . . . . . . . . . . . . . . . . 25
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 37
Disabling front passenger airbag . . . . . . . . 40
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 32
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using child seats . . . . . . . . . . . . . . . . . . . . . . 41
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 20
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 69
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Seat adjustment . . . . . . . . . . . . . . . . . . . . 100, 103 Seat belt position
Pregnant women . . . . . . . . . . . . . . . . . . . . . . 23
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 24
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 16
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Incorrectly fastened . . . . . . . . . . . . . . . . . . . 24
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 16
Seat belts protect . . . . . . . . . . . . . . . . . . . . . . . . 20
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 70
Semiautomatic air conditioning controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front passenger . . . . . . . . . . . . . . . . . . . . . . 10
Incorrect sitting position . . . . . . . . . . . . . . . 13
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sitting position, occupants . . . . . . . . . . . . . . . . . 9
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 85
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 192, 229 Soot accumulation in the
diesel engine particulate
filter *
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Spare wheel* . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 129
Starting the engine . . . . . . . . . . . . . . . . . . 128, 129 After the fuel tank has been run dry . . . . . 130
Steam cleaners . . . . . . . . . . . . . . . . . . . . . . . . . 158
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 127
Steering wheel controls . . . . . . . . . . . . . . . . . . . 66
Steering wheel height adjustment . . . . . . . . . 125
Stowage frnt right seats . . . . . . . . . . . . . . . . . . . . . . . 107
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . 106
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 85
Switch Hazard warning lights . . . . . . . . . . . . . . . . . . 89
Rear window heating . . . . . . . . . . . . . . . . . . 88
Switches electric windows . . . . . . . . . . . . . . . . . . . . . . 82
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 85
Switching off the engine . . . . . . . . . . . . . . . . . 130
cordoba_ingles_0706 Seite 250 Montag, 28. August 2006 1:18 13
