dimensions Seat Cordoba 2007 Owner's Manual

Contents
4Cleaning and caring for your vehicle
. . . . . . .
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care of the vehicle exterior . . . . . . . . . . . . . . . . .
Care of the vehicle interior . . . . . . . . . . . . . . . . .
Accessories, parts replacement and
modifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories and parts . . . . . . . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mobile telephones and two-way radios . . . . . . .
Fitting a towing bracket* . . . . . . . . . . . . . . . . . . .
Checking and refilling levels
. . . . . . . . . . . . . .
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working in the engine compartment . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washer fluid and windscreen wiper blades . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If and when
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle tools, spare wheel . . . . . . . . . . . . . . . . .
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre repair kit* (Tyre Mobility System) . . . . . . . .
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb change . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing and tow-starting . . . . . . . . . . . . . . . . . . .
Te c h n i c a l D a t a
. . . . . . . . . . . . . . . . . . . . . . .
General notes on the technical data
. . . . . . .
What you should be aware of . . . . . . . . . . . . . . .
How are the figures measured? . . . . . . . . . . . . . Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Techn ical Data
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . .
Petrol engine 1.2 litre 51 kW (69 bhp) . . . . . . .
Petrol engine 1.4 litre 63 kW (86 bhp) . . . . . . .
Petrol engine 1.4 litre 55 kW (75 hp). Automatic
Petrol engine 1.4 litre 74 kW (100 bhp) . . . . . .
Petrol engine 1.6 litre 77 kW (105 bhp) . . . . . .
Diesel engine 1.4 litre TDI 51 kW (70 bhp) . . . .
Diesel engine 1.4 TDI 59 kW (80 bhp). . . . . . . .
Diesel engine 1.9l TDI 74 kW (100 bhp) . . . . . .
Diesel engine 1.9l TDI 96 kW (131 bhp) . . . . . .
Dimensions and capacities . . . . . . . . . . . . . . . .
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
156
156
157
162
165
165
165
166
166
167
169
169
170
171
172
175
179
181
183
185
187
193
193
194
200
202
208
218
221
225
225
225
227 228
228
230
230
231
232
233
235
236
237
238
240
241
243
245
cordoba_ingles_0706 Seite 4 Montag, 28. August 2006 1:18 13

Content
6ContentThis manual is structured to give you the information you need as quickly and
clearly as possible. The contents of t his Manual are grouped into relatively
short sections making up chapters (e.g. “Air conditioning”). The entire
manual is divided into five large chapters:1. Safety FirstInformation on the vehicle equipment relating to passive safety such as seat
belts, airbags, seats, etc.2. Controls and equipmentInformation about the distribution of co ntrols in the driver position of the
vehicle, about the seat adjustment possibilities, how to create a suitable
climate in the passenger compartment, etc.3. Tips and MaintenanceAdvice relating to driving, care and ma intenance of your vehicle and certain
problems which you may solve yourself.4. Technical DataFigures, data, dimensions and measurements (for example fuel consump-
tion) of your vehicle.5. Alphabetic indexAt the end of this manual there is a detailed alphabetical index, this will help
you to rapidly find the information you require.
cordoba_ingles_0706 Seite 6 Montag, 28. August 2006 1:18 13

Accessories, parts replacement and modifications
168If a towing bracket is to be fitted after the vehicle is purchased, this must be
completed according to the instructions of the towing bracket manufacturer.
The attachment points for the towing bracket are underneath the vehicle.
The distance between the centre of the ball coupling and the ground should
never be lower than the measurement indicated when the vehicle is fully
loaded including the maximum resting weight.
Measurement for securing the towing bracket:
72 mm (minimum)
from 350 mm to 420 mm (fully laden vehicle)
958 mm
413 mm
166 mm
Fitting a towing bracket•
Driving with a trailer implies additional work for the vehicle. Therefore,
before fitting a towing bracket, please contact an Authorised Service Centre
to check whether your cooling system needs modification.
•
Observe the legal requirements in your country (e.g. the fitting of a sepa-
rate warning lamp).
•
Certain vehicle components, e.g. the rear bumper must be removed and
reinstalled. The towing bracket securin g bolts must be tightened using a
torque wrench, and an electrical sock et must be used to connect to the
vehicle’s electrical system. This requ ires specialist knowledge and tools.
•
The figures in the illustration show the dimensions and attachment points
that must be observed if you are retrofitting a towing bracket.
WARNING
Towing brackets should be fitted by specialists.•
If the towing bracket is incorrectly installed, there is serious danger of
an accident.
•
For your own safety, please observe the instructions provided by the
manufacturer of the towing bracket.Caution
•
If the electrical socket is incorrectly installed, this could cause damage to
the vehicle’s electrical system.
AA
ABACADAEAF
WARNING (continued)
cordoba_ingles_0706 Seite 168 Montag, 28. August 2006 1:18 13

Technical Data243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Dimensions and capacities
Dimensions
Length, width 4,280 mm/ 1,698 mm
Height at kerb weight 1,447 mm
Front and rear projection 831 mm/ 839 mm
Wheelbase 2,460 mm
Turning circle 10.54 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,435 mm 1,424 mm
1,419 mm 1,408 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
cordoba_ingles_0706 Seite 243 Montag, 28. August 2006 1:18 13

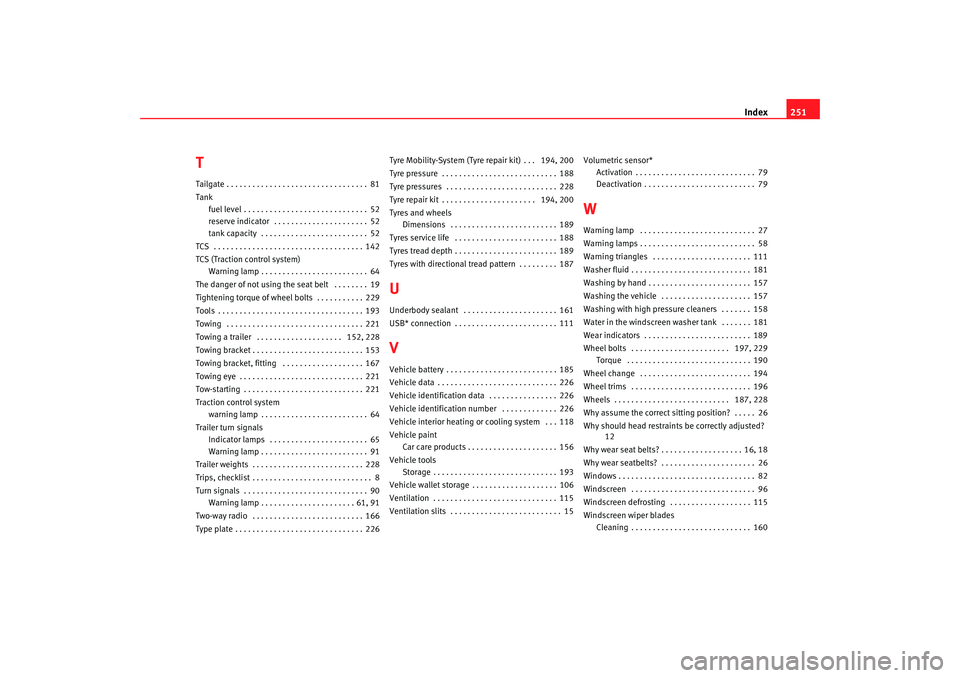

Index251
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Tank
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 52
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 52
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
The danger of not using the seat belt . . . . . . . . 19
Tightening torque of wheel bolts . . . . . . . . . . . 229
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Towing a trailer . . . . . . . . . . . . . . . . . . . . 152, 228
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 167
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 65
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 91
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Warning lamp . . . . . . . . . . . . . . . . . . . . . . 61, 91
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Tyre Mobility-System (Tyre repair kit) . . . 194, 200
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . 194, 200
Tyres and wheels
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 189
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 188
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 189
Tyres with directional tread pattern . . . . . . . . . 187
UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 161
USB* connection . . . . . . . . . . . . . . . . . . . . . . . . 111VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Vehicle identification data . . . . . . . . . . . . . . . . 226
Vehicle identification number . . . . . . . . . . . . . 226
Vehicle interior heating or cooling system . . . 118
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . . 156
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . . 106
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Volumetric sensor*
Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . 79
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Warning triangles . . . . . . . . . . . . . . . . . . . . . . . 111
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 157
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 157
Washing with high pressure cleaners . . . . . . . 158
Water in the windscreen washer tank . . . . . . . 181
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 189
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . 197, 229Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 187, 228
Why assume the correct sitting position? . . . . . 26
Why should head restraints be correctly adjusted? 12
Why wear seat belts? . . . . . . . . . . . . . . . . . . . 16, 18
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 26
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Windscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Windscreen defrosting . . . . . . . . . . . . . . . . . . . 115
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
