Seats and stowage107
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

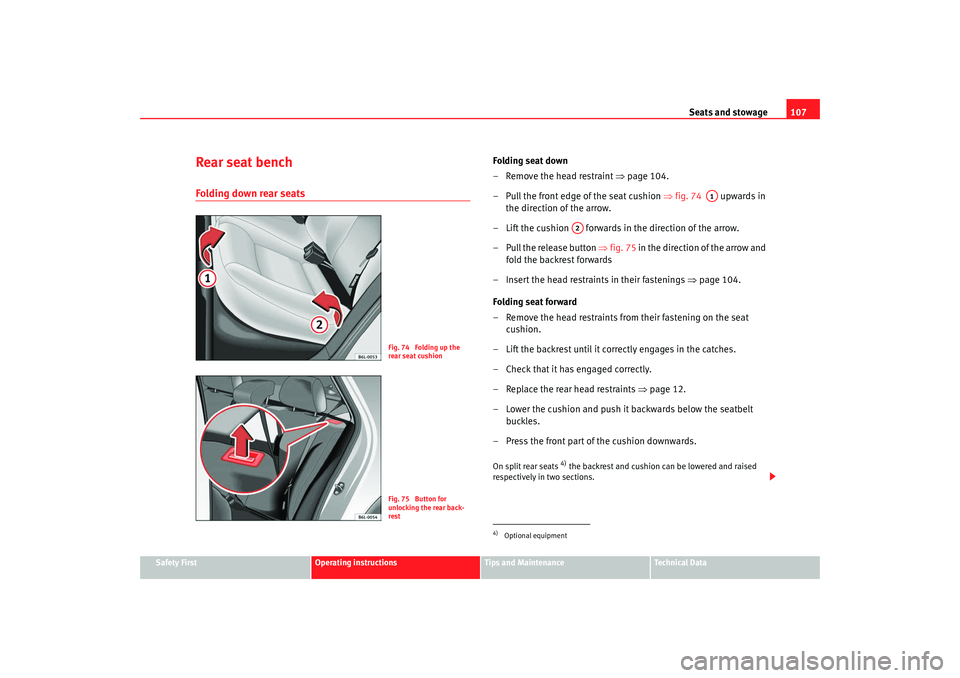

Rear seat benchFolding down rear seats
Folding seat down
– Remove the head restraint ⇒page 104.
– Pull the front edge of the seat cushion ⇒fig. 74 upwards in
the direction of the arrow.
– Lift the cushion forwards in the direction of the arrow.
– Pull the release button ⇒ fig. 75 in the direction of the arrow and
fold the backrest forwards
– Insert the head restraints in their fastenings ⇒page 104.
Folding seat forward
– Remove the head restraints from their fastening on the seat cushion.
– Lift the backrest until it correctly engages in the catches.
– Check that it has engaged correctly.
– Replace the rear head restraints ⇒page 12.
– Lower the cushion and push it backwards below the seatbelt buckles.
– Press the front part of the cushion downwards.On split rear seats
4) the backrest and cushion can be lowered and raised
respectively in two sections.
Fig. 74 Folding up the
rear seat cushionFig. 75 Button for
unlocking the rear back-
rest
4)Optional equipment
A1
A2
COR_ING_0707 Seite 107 Mittwoch, 1. August 2007 6:25 18

Seats and stowage
108
WARNING
•
Please be careful when folding back the backrest! Injuries can be
caused if the backrest is tilted without due care and attention.
•
Do no trap or damage seatbelts when raising the backrest.
•
After raising the backrest, check it has engaged properly in position.
•
The three point automatic seat belt only works correctly when the back-
rest of the central seat is correctly engaged.

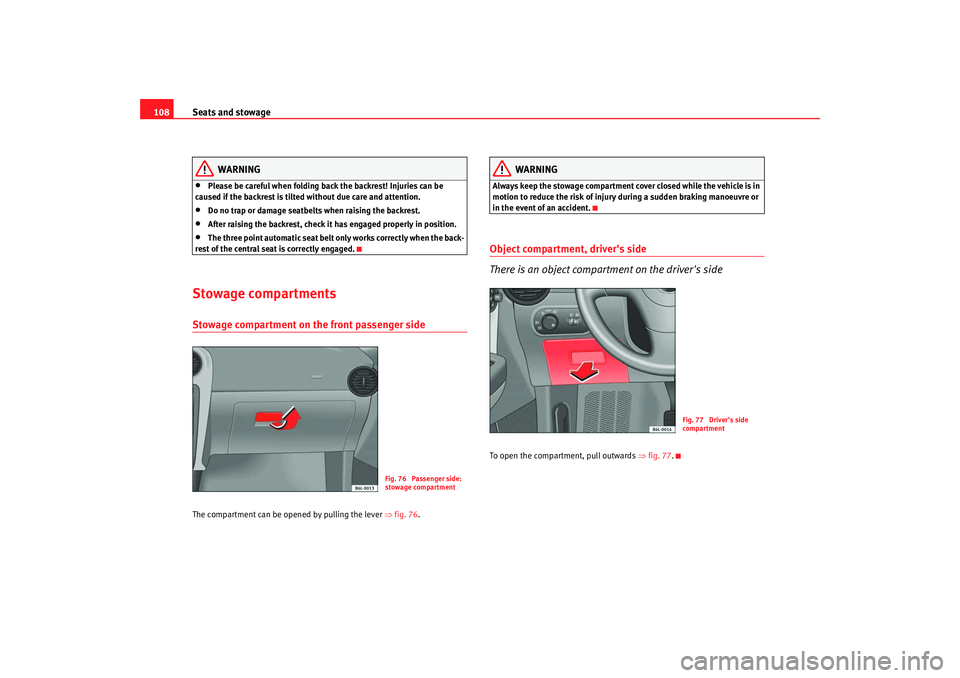

Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 76 .
WARNING
Always keep the stowage compartment co ver closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.Object compartment, driver's side
There is an object compartment on the driver's sideTo open the compartment, pull outwards ⇒ fig. 77.
Fig. 76 Passenger side:
stowage compartment
Fig. 77 Driver's side
compartment
COR_ING_0707 Seite 108 Mittwoch, 1. August 2007 6:25 18
