Fuses on left side of dash panelFuses
Number Consumer Amperes
1 Secondary water pump 1.8 20 VT (T16) 15
2A BS/E S P 10
3 Vacant
4 Brake light, clutch switch, relay coils 5
5 Engine control unit (petrol) 5
6 Right side light 5
7 Left side light 5
8 Mirror heating unit 5
9 Lambda probe 10
10 Signal“S”
a). Radio unit 5
11 Electric mirror power supply 5
12 Headlamp height adjustment 5
13 Oil pressure/level sensor 5
14 Additional heating engine/fuel pump 10
15 Automatic gearbox unit 10
16 Heated seats 15
17 Engine control unit 5
18 Instrument panel /Heating and ventilation, Navigation, Headlamp height adjustment, Electric mirror 10
19 Reversing light 10
20 Windscreen washer pump 10
21 Main beam headlight, right 10
COR_ING_0707 Seite 207 Mittwoch, 1. August 2007 6:25 18

If and when

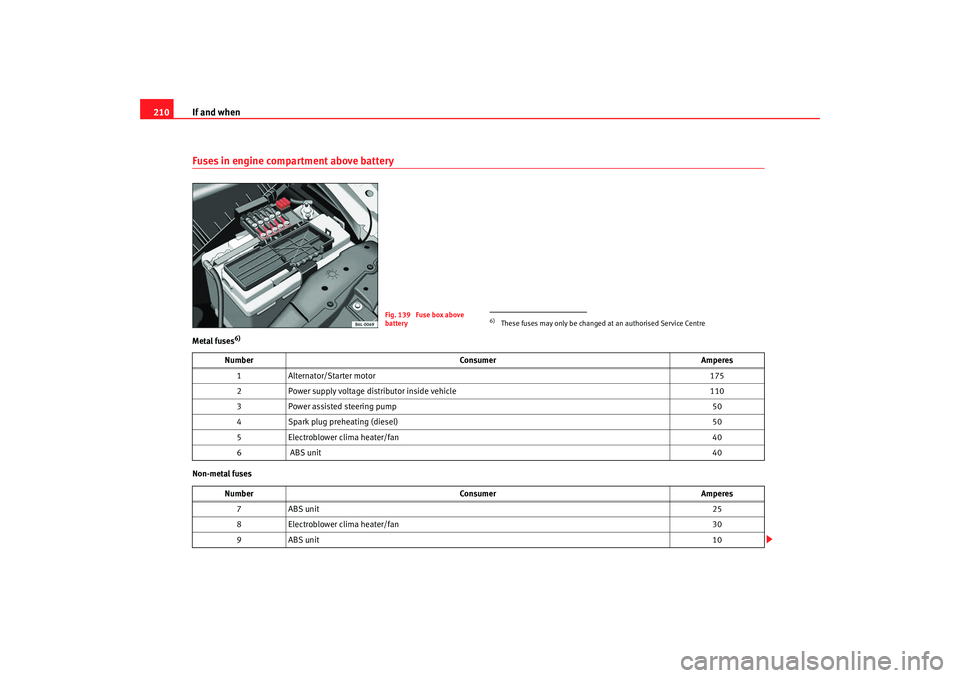

210Fuses in engine compartment above batteryMetal fuses
6)
Non-metal fuses
Fig. 139 Fuse box above
battery
6)These fuses may only be changed at an authorised Service Centre
Number Consumer Amperes
1 Alternator/Starter motor 175
2 Power supply voltage distributor inside vehicle 110
3 Power assisted steering pump 50
4 Spark plug preheating (diesel) 50
5 Electroblower clima heater/fan 40
6 A BS u nit 40
Number Consumer Amperes
7A BS u nit 25
8 Electroblower clima heater/fan 30
9A BS u nit 10
