Unlocking and locking
110
Opening the windows
– Press the switch as far as the first stop and hold it until the
window has moved to the desired position.
– Press the switch briefly to the second stop and the window will
automatically open all the way.
Closing the windows
– Pull the switch as far as the first stop and hold it until the window
has moved to the desired position.
– Pull the switch briefly to the second stop and the window will
automatically close all the way.
NoteThe windows will work for about ten minutes after the ignition has been
switched off. The electric window switches are only disabled when one of the
front doors is opened.Opening and closing the windows using the central locking function
The windows can be opened or closed simultaneously when
the vehicle is unlocked or locked.Opening the windows using the remote control
– Press and hold the unlock button on the remote control until the windows reach the desired position. Opening the windows using the ignition key
– Unlock the driver door with the key and hold the key in the unlock
position until all the windows are open.
Closing the windows using the remote control
– Press and hold the lock button until all windows are closed ⇒ .
Closing the windows using the ignition key
– Lock the driver door with the key and hold the key in the lock position until all the windows are closed ⇒.
The windows will stop moving when you release the remote control button or
turn the key back to its initial position in the door lock.
WARNING
•Be careful when closing the windows to ensure nobody is hurt.•For safety reasons, you should only use the remote control open and
close functions within about 2 metres of the vehicle. To avoid injuries,
always keep an eye on the windows when pressing the button to close
them. The windows stop moving as soon as the button is released.
Possible malfunctionsAutomatic open and close function not working
The automatic open and close function will not work if the battery has been
temporarily disconnected. The function can be restored as follows:•Close the window as far as it will go by lifting and holding the window
switch.


exeo_EN.book Seite 110 Montag, 30. August 2010 4:45 16

Unlocking and locking
112
– With the control in position 0, press the control briefly to make
the roof tilt open all the way.
– To open the roof as far as an intermediate setting, press and hold
the control until the roof has moved to the desired position.When you release the switch it will automatically spring back from position
to position .
The sliding sun blind in the headliner automatically opens when the sunroof
is slid open. If required, it can be closed by hand when the sunroof is closed.
It is advisable to close the sun blind when the vehicle is left standing in the
sun. It is important to remember to close the sunroof when parking the
vehicle or if it suddenly starts raining, especially when the sun blind is
closed.
For further information on the automatic close function, see ⇒page 112.ClosingClosing
– Turn the control to position ⇒page 111, fig. 81 to close the
sunroof ⇒.
Closing the sunroof from the tilt position
– Pull the specially formed rear end of the control and hold it until
the sunroof has moved down to the desired position.
– Pull the switch briefly to lower the sunroof automatically to the
fully closed position. If required, the sunroof can be stopped in
any position by briefly pulling the control again ⇒.
WARNING
Take care when closing the sunroof. There is a risk of suffering injury. For
this reason, always take out the ignition key when leaving the vehicle.Automatic close function
The sunroof can also be closed from outside the vehicle.– Turn the key in the lock on the driver door and hold it in the lock
position or press the lock button on the remote control until the
sunroof has closed all the way ⇒.
WARNING
Take care when closing the sunroof. There is a risk of suffering injury.Solar sunroof*The solar cells in the sunroof power the air conditioner fan.
The solar sunroof is operated in the sa me way as the normal sliding/tilting
sunroof.
The interior trim is fixed to the solar sunroof and cannot be opened and
closed separately.
A2
A1
A0
exeo_EN.book Seite 112 Montag, 30. August 2010 4:45 16

Lights and visibility
118Coming home and leaving home functions*
The coming home and leaving home functions are used to
light up the surroundings in the dark. The front fog lights, the
rear side lights and the number plate light switch on.Activating the function
– Briefly press the knob ⇒fig. 86 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Deactivating the function
– Briefly press the knob ⇒fig. 86 to release it from its set position.
– Turn the knob to position 0. – Press the knob in again to prevent the setting from being
changed unintentionally.
The coming home and leaving home functions are controlled by light sensors
in the interior mirror housing. The system will function when the following
requirements are met:•The knob is set to position 1.•The headlights and the ignition are switched off.•Dark conditions; the sensors register little or no light.
Coming home
When the system is enabled and it is dark, the corresponding exterior lights
switch on as soon as the driver door is opened.
The exterior lights will stay on for up to a maximum of 2 minutes as long as
one of the doors or the tailgate is open.
The exterior lights stay on for about 30 seconds to light up the area around
the vehicle after all the doors and the tailgate have been closed.
This time interval is factory-set, but you can have it changed by a qualified
workshop to suit your own requirements (max. setting is 60 seconds).
Leaving home
The exterior lights are switched on when the vehicle is unlocked with the
button on the remote control key.
The exterior lights go out when the driver door is opened or after 60 seconds
when the vehicle locks itself again automatically ⇒page 105.WARNING
Before leaving the vehicle, remove the key from the ignition, as the lights
will not go out if the coming home function is activated. This will lead to
battery discharge and vehicle breakdown.
Fig. 86 Detailed view of
the dash panel: Coming
home and leaving home
functions

exeo_EN.book Seite 118 Montag, 30. August 2010 4:45 16

Seats and storage compartments139
Safety First
Operating Instructions
Practical Tips
Technical Specifications
adjustment. Use of the button is recommended to disable the memory
system when the vehicle is being driven
temporarily by a different driver
whose settings do not need to be stored in the memory.
Note
You can also use the remote control to call up the stored settings
⇒ page 140.Storing settingsThe button must be in its down position (pressed in) before
you can store the desired settings.
– Adjust the driver seat as required ⇒page 136.
– Adjust both exterior mirrors ⇒page 132.
– Press and hold the button. At the same time, press one of the memory buttons for at least a second.
– Release both buttons. The settin g is now stored on the selected
memory button.Any new setting selected automatically cancels the existing setting stored on
the memory button. It is best to begin with memory button No. 1 for the first
driver and then assign the other memory buttons to each subsequent driver.
The seat and mirror positions are stored when the vehicle is locked with the
remote control and are assigned to the remote control key. The exterior
mirrors adjust automatically to the previous position when you unlock the
vehicle; the driver seat adjusts automatically when you open the driver door. However, this does not delete the settings stored in memory buttons 1 to 4.
These settings can be enabled at any time.
Activating settings
Stored settings can be recalled using either the memory
buttons or the remote control (remote control key).Using the memory buttons
– If the driver door is open, press the desired memory button
briefly.
– If the driver door is closed, press and hold down the appropriate memory button until the seat an d exterior mirrors reach their
programmed positions.
Using the remote control
– Unlock the vehicle using the remote control and open the driver door within the next ten minutes.The seat adjustment will have to be call ed up using the memory buttons if the
driver door is not opened within 10 minutes after unlocking the vehicle with
the remote control.
WARNING
•For safety reasons, the seat must only be adjusted when the vehicle is
at a standstill. Failure to do so could result in an accident.•In an emergency, the memory function can be stopped at any time by
pressing the STOP button or by briefly pressing any of the memory
buttons.
STOP
STOP
MEMO
exeo_EN.book Seite 139 Montag, 30. August 2010 4:45 16

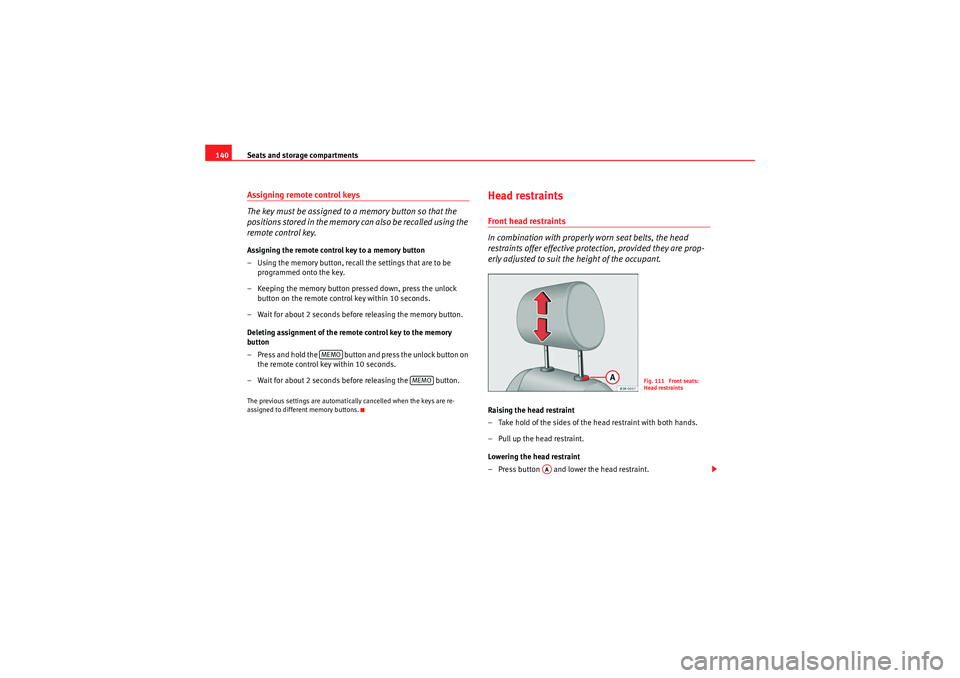

Seats and storage compartments
140Assigning remote control keys
The key must be assigned to a memory button so that the
positions stored in the memory can also be recalled using the
remote control key.Assigning the remote control key to a memory button
– Using the memory button, recall the settings that are to be
programmed onto the key.
– Keeping the memory button pressed down, press the unlock button on the remote control key within 10 seconds.
– Wait for about 2 seconds before releasing the memory button.
Deleting assignment of the remote control key to the memory
button
– Press and hold the button and press the unlock button on the remote control key within 10 seconds.
– Wait for about 2 seconds before releasing the button.The previous settings are automatically cancelled when the keys are re-
assigned to different memory buttons.
Head restraintsFront head restraints
In combination with properly worn seat belts, the head
restraints offer effective protection, provided they are prop-
erly adjusted to suit the height of the occupant.Raising the head restraint
– Take hold of the sides of the head restraint with both hands.
– Pull up the head restraint.
Lowering the head restraint
– Press button and lower the head restraint.
MEMO
MEMO
Fig. 111 Front seats:
Head restraints
AA
exeo_EN.book Seite 140 Montag, 30. August 2010 4:45 16

Index311
Headlight washer system . . . . . . . . . . . . . . 130
Leaving home function . . . . . . . . . . . . . . . . 118
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Heated rear window . . . . . . . . . . . . . . . . . . . . . . 126 Heating element wires . . . . . . . . . . . . . . . . 213
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
High pressure cleaners . . . . . . . . . . . . . . . . . . . 211
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57IIdentification number . . . . . . . . . . . . . . . . . . . . 292
Identification plate . . . . . . . . . . . . . . . . . . . . . . 292
Ignition key Safety interlock . . . . . . . . . . . . . . . . . . . . . . 167
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Indicator lamps Cruise control system . . . . . . . . . . . . . . . . . . 67
Glow plug system . . . . . . . . . . . . . . . . . . . . . 70
Main beam headlights . . . . . . . . . . . . . . . . . 69
Indicator lamps - overview . . . . . . . . . . . . . . . . . 65
Instruments Lighting . . . . . . . . . . . . . . . . . . . . . . . . 62, 119
Interior lights Ambient lighting . . . . . . . . . . . . . . . . . . . . . 124
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Luggage compartment . . . . . . . . . . . . . . . . 125
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Interior mirror With manual anti-dazzle setting . . . . . . . . . 131 Interior monitoring . . . . . . . . . . . . . . . . . . . . . . 107
Intermittent wipe . . . . . . . . . . . . . . . . . . . . . . . . 129
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
JJack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247, 252
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 284KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Air conditioner settings . . . . . . . . . . . . . . . . 164
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Remote control key . . . . . . . . . . . . . . . . . . . 104
Settings for the driver seat . . . . . . . . . . . . . 140
Kick-down feature . . . . . . . . . . . . . . . . . . . . . . . 181LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 216
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Instruments . . . . . . . . . . . . . . . . . . . . . . 62, 119
Lights Adaptive headlights . . . . . . . . . . . . . . . . . . 121
Automatic headlight control . . . . . . . . . . . . 115
Cornering light . . . . . . . . . . . . . . . . . . . . . . . 121
Dipped beam headlights faulty . . . . . . . . . . 82
Dynamic headlight range control . . . . . . . . 120
Headlight flasher . . . . . . . . . . . . . . . . . . . . . 123
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . 123 Reverse lights faulty . . . . . . . . . . . . . . . . . . . 82
Switching on and off . . . . . . . . . . . . . . . . . . 115
Xenon lights . . . . . . . . . . . . . . . . . . . . . . . . . 120
Load compartment in the luggage compartment See Loading the luggage compartment . . . . 16
Loading the luggage compartment . . . . . . . . . . 16
Locking the doors manually if the central locking fails to work
Locking the doors manually if the central lock- ing fails to work . . . . . . . . . . . . . . . . . . . . 102
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Long periods of non-use Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Luggage compartment . . . . . . . . . . . . . . . . . . . 143 Extending . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
See also Loading the luggage compartment 16
Luggage rack See Roof rack . . . . . . . . . . . . . . . . . . . . . . . . 146
MMain beam headlights . . . . . . . . . . . . . . 115, 122
Maintenance
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Maintenance and cleaning . . . . . . . . . . . . . . . . 209
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 177
Manual operation Closing the sunroof manually . . . . . . . . . . . 113
exeo_EN.book Seite 311 Montag, 30. August 2010 4:45 16

Index
312Mirrors
Activating stored settings . . . . . . . . . . . . . . 139
Automatic exterior mirror adjustment . . . . 138
Heated exterior mirrors . . . . . . . . . . . . . . . . 132
Storing settings . . . . . . . . . . . . . . . . . . . . . . 139
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . 126
Mobile phones and two-way radios . . . . . . . . . 219
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Driving with multitronic® . . . . . . . . . . . . . . 178NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 18OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 221
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Oil consumption . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil level
Check level . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . 85
Outside temperature display . . . . . . . . . . . . . . . 72
Overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PPaddle leverstiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 178
Parking aid SEAT Parking System . . . . . . . . . . . . . . . . . 172
SEAT Parking System plus . . . . . . . . . . . . . 172
Parking aid acoustic system . . . . . . . . . . . . . . . 171
Passenger See Correct sitting position . . . . . . . . . . 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 196
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 222
Photosensor faulty . . . . . . . . . . . . . . . . . . . . . . . 81
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 215
Power socket . . . . . . . . . . . . . . . . . . . . . . . 149, 150
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Products for vehicle maintenance . . . . . . . . . . 209QQuartz clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Rain sensor faulty . . . . . . . . . . . . . . . . . . . . . . . . 81
Reading lights Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . 148
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Rear side window sun blind . . . . . . . . . . . . . . . 128
Rear view mirrors Anti-dazzle interior mirror with automatic adjustment . . . . . . . . . . . . . . . . . . . . . . . . 131
Anti-dazzle setting . . . . . . . . . . . . . . . . . . . 131
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 131
Rear window sun blind . . . . . . . . . . . . . . . . . . . 128
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Registration light . . . . . . . . . . . . . . . . . . . . . . . 283
Remote control key Indicator light . . . . . . . . . . . . . . . . . . . . . . . . 97
Locking and unlocking . . . . . . . . . . . . . . . . 105
Locking and unlocking the vehicle . . . . . . 105
Replacing the battery . . . . . . . . . . . . . . . . . . 97
Remote control keys . . . . . . . . . . . . . . . . . . . . . . 96 Re-synchronising . . . . . . . . . . . . . . . . . . . . 106
Removing and fitting the wheel . . . . . . . . . . . . 253
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacement of parts . . . . . . . . . . . . . . . . . . . . 218
exeo_EN.book Seite 312 Montag, 30. August 2010 4:45 16
