tailgate Seat Exeo 2010 Owner's Guide

If and when

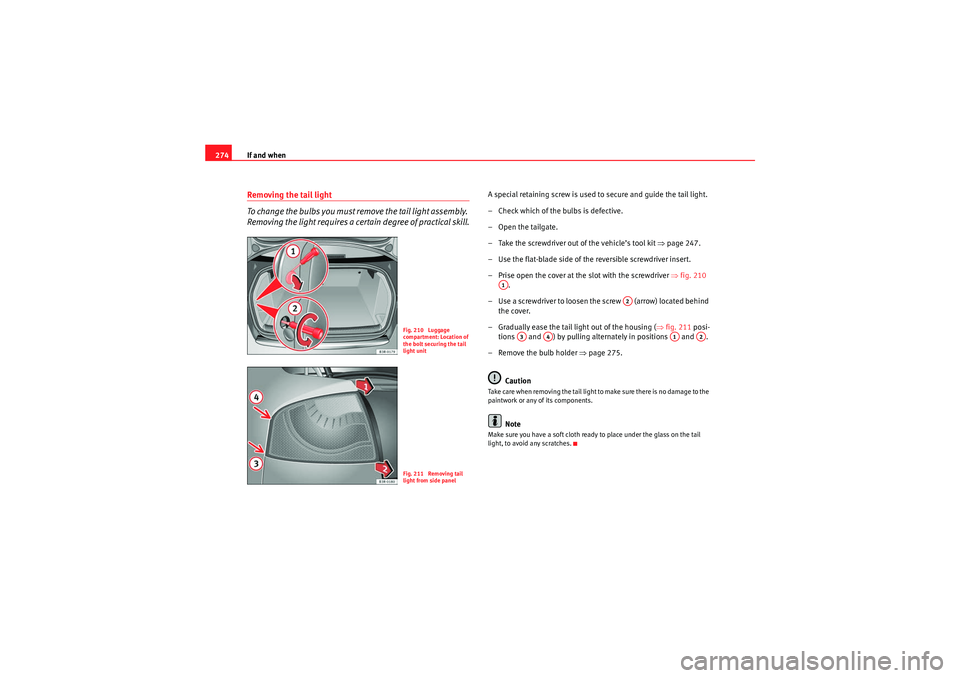

274Removing the tail light
To change the bulbs you must remove the tail light assembly.
Removing the light requires a certain degree of practical skill.
A special retaining screw is used to secure and guide the tail light.
– Check which of the bulbs is defective.
–Open the tailgate.
– Take the screwdriver out of the vehicle’s tool kit ⇒page 247.
– Use the flat-blade side of th e reversible screwdriver insert.
– Prise open the cover at the slot with the screwdriver ⇒ fig. 210
.
– Use a screwdriver to loosen the screw (arrow) located behind the cover.
– Gradually ease the tail light out of the housing ( ⇒fig. 211 posi-
tions and ) by pulling alternately in positions and .
– Remove the bulb holder ⇒page 275.
CautionTake care when removing the tail light to make sure there is no damage to the
paintwork or any of its components.
Note
Make sure you have a soft cloth ready to place under the glass on the tail
light, to avoid any scratches.
Fig. 210 Luggage
compartment: Location of
the bolt securing the tail
light unitFig. 211 Removing tail
light from side panel
A1
A2
A3
A4
A1
A2
exeo_EN.book Seite 274 Montag, 30. August 2010 4:45 16

If and when

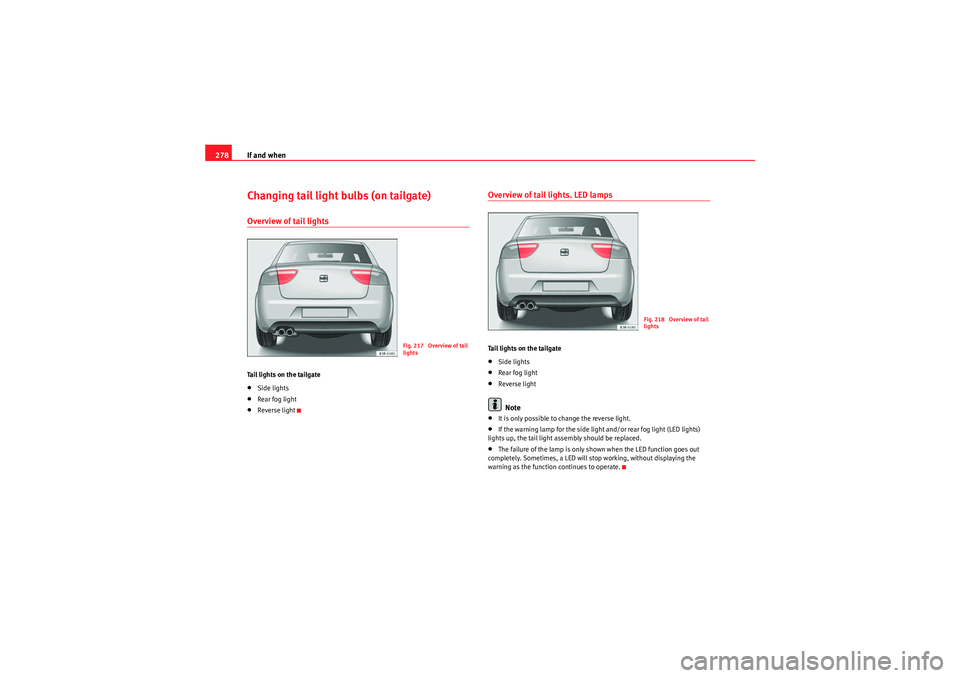

278Changing tail light bulbs (on tailgate)Overview of tail lightsTail lights on the tailgate•Side lights•Rear fog light•Reverse light
Overview of tail lights. LED lampsTail lights on the tailgate•Side lights•Rear fog light•Reverse lightNote
•It is only possible to change the reverse light.•If the warning lamp for the side light and/or rear fog light (LED lights)
lights up, the tail light assembly should be replaced.•The failure of the lamp is only shown when the LED function goes out
completely. Sometimes, a LED will stop working, without displaying the
warning as the function continues to operate.
Fig. 217 Overview of tail
lights
Fig. 218 Overview of tail
lights
exeo_EN.book Seite 278 Montag, 30. August 2010 4:45 16

If and when279
Safety First
Operating Instructions
Practical Tips
Technical Specifications

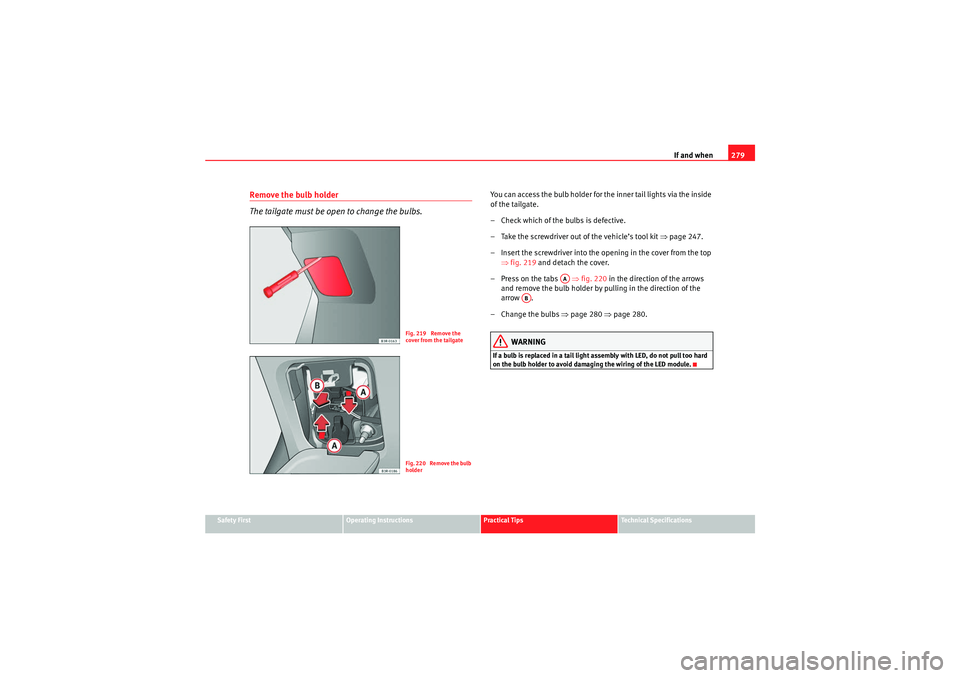

Remove the bulb holder
The tailgate must be open to change the bulbs.
You can access the bulb holder for the inner tail lights via the inside
of the tailgate.
– Check which of the bulbs is defective.
– Take the screwdriver out of the vehicle’s tool kit ⇒page 247.
– Insert the screwdriver into the opening in the cover from the top ⇒fig. 219 and detach the cover.
–Press on the tabs ⇒ fig. 220 in the direction of the arrows
and remove the bulb holder by pulling in the direction of the
arrow .
– Change the bulbs ⇒ page 280 ⇒page 280.
WARNING
If a bulb is replaced in a tail light assembly with LED, do not pull too hard
on the bulb holder to avoid damaging the wiring of the LED module.
Fig. 219 Remove the
cover from the tailgateFig. 220 Remove the bulb
holder
AA
AB
exeo_EN.book Seite 279 Montag, 30. August 2010 4:45 16

If and when

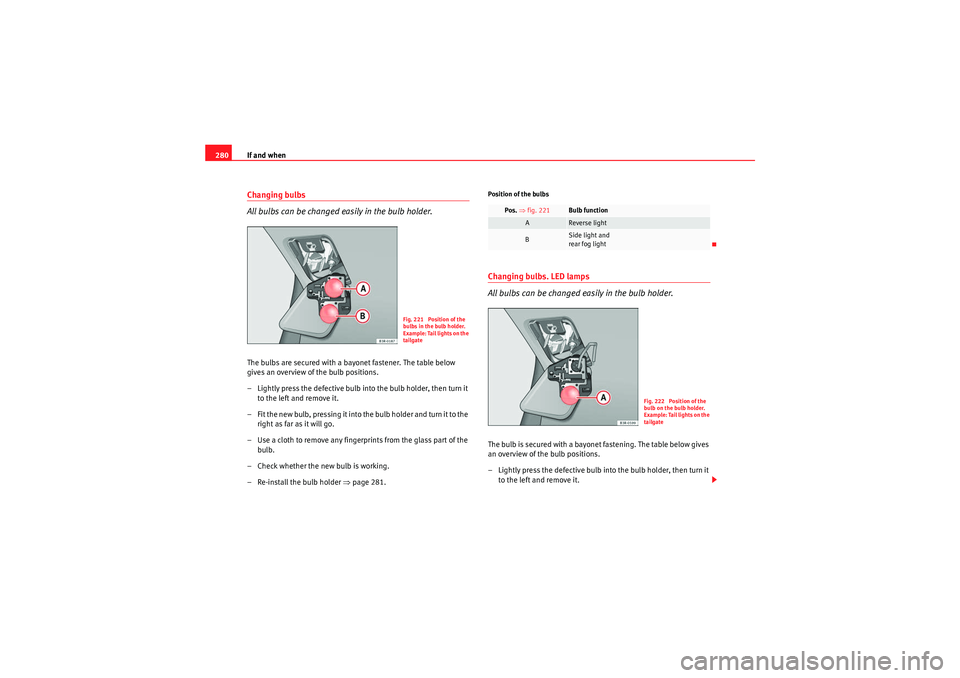

280Changing bulbs
All bulbs can be changed easily in the bulb holder.The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it to the right as far as it will go.
– Use a cloth to remove any fingerp rints from the glass part of the
bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒ page 281.
Position of the bulbsChanging bulbs. LED lamps
All bulbs can be changed easily in the bulb holder.The bulb is secured with a bayonet fastening. The table below gives
an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
Fig. 221 Position of the
bulbs in the bulb holder.
Example: Tail lights on the
tailgate
Pos. ⇒ fig. 221
Bulb function
A
Reverse light
B
Side light and
rear fog light
Fig. 222 Position of the
bulb on the bulb holder.
E x a m p l e : Ta i l l i g h t s o n t h e
tailgate
exeo_EN.book Seite 280 Montag, 30. August 2010 4:45 16
