bolt pattern Seat Exeo 2010 Owner's manual

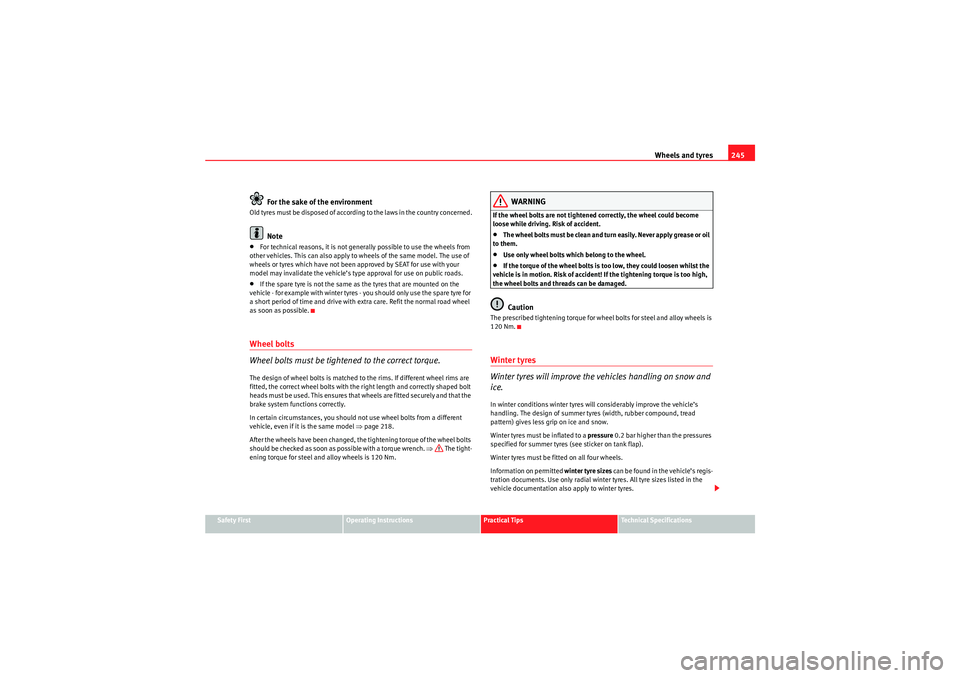

Wheels and tyres245
Safety First
Operating Instructions
Practical Tips
Technical Specifications
For the sake of the environment
Old tyres must be disposed of according to the laws in the country concerned.
Note
•For technical reasons, it is not generally possible to use the wheels from
other vehicles. This can also apply to wheels of the same model. The use of
wheels or tyres which have not been approved by SEAT for use with your
model may invalidate the vehicle’s type approval for use on public roads.•If the spare tyre is not the same as the tyres that are mounted on the
vehicle - for example with winter tyres - you should only use the spare tyre for
a short period of time and drive with extra care. Refit the normal road wheel
as soon as possible.Wheel bolts
Wheel bolts must be tightened to the correct torque.The design of wheel bolts is matched to the rims. If different wheel rims are
fitted, the correct wheel bolts with the right length and correctly shaped bolt
heads must be used. This ensures that wheels are fitted securely and that the
brake system functions correctly.
In certain circumstances, you should not use wheel bolts from a different
vehicle, even if it is the same model ⇒page 218.
After the wheels have been changed, the tightening torque of the wheel bolts
s ho uld b e ch ecke d as so on as possi ble wi th a to rq ue wre nch. ⇒ The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
If the wheel bolts are not tightened correctly, the wheel could become
loose while driving. Risk of accident.•The wheel bolts must be clean and turn easily. Never apply grease or oil
to them.•Use only wheel bolts which belong to the wheel.•If the torque of the wheel bolts is too low, they could loosen whilst the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads can be damaged.Caution
The prescribed tightening torque for wheel bolts for steel and alloy wheels is
120 Nm.Winter tyres
Winter tyres will improve the vehicles handling on snow and
ice.In winter conditions winter tyres will considerably improve the vehicle’s
handling. The design of summer tyre s (width, rubber compound, tread
pattern) gives less grip on ice and snow.
Winter tyres must be inflated to a pressure 0.2 bar higher than the pressures
specified for summer tyres (see sticker on tank flap).
Winter tyres must be fitted on all four wheels.
Information on permitted winter tyre sizes can be found in the vehicle’s regis-
tration documents. Use only radial winter tyres. All tyre sizes listed in the
vehicle documentation also apply to winter tyres.
exeo_EN.book Seite 245 Montag, 30. August 2010 4:45 16

If and when
254
– Insert the adapter onto the wheel bolt and push it on as far as it will go ⇒page 253, fig. 183 .
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Code
The code number of the anti-theft wheel bolt is stamped onto the front part of
the adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicate adaptor can be obtained from an
Authorised Service Centre.Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be identified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely carefully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.
Tyre repairs* (Tyre Mobility System)General information and safety notes
Repaired tyres are only suitable for temporary use over a
short period.Your vehicle is equipped with a tyre repair kit: the Tyre Mobilit y System.
In the event of a puncture you will find the TMS, which consists of a sealing
compound and a compressor, located under the floor panel in the luggage
compartment.
The Tyre Mobil it y Syste m will reliably seal tyres damaged by foreign bodies,
provided that the cuts or punctures are no larger than approx. 4 mm in diam-
eter.
It is not necessary to remove the foreign body from the tyre.
Fig. 184 The Tyre
Mobility System is not
suitable for repairing this
type of damage to tyres.
exeo_EN.book Seite 254 Montag, 30. August 2010 4:45 16

Index
314Steering
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Manual steering wheel adjustment . . . . . . 166
Steering wheel controls . . . . . . . . . . . . . . . . . . . 91
Stopping the engine . . . . . . . . . . . . . . . . . . . . . 169
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Switches in the driver door Electric windows . . . . . . . . . . . . . . . . . . . . . 109
Symbols Red symbols in central display . . . . . . . . . . 77
Yellow symbols in central display . . . . . . . . 79TTailgateCentral locking system . . . . . . . . . . . . . . . . 103
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
TCS How the system works . . . . . . . . . . . . . . . . 188
Technical modifications . . . . . . . . . . . . . . . . . . 218
The danger of not using the seat belt . . . . . . . . 20
The environment Heated rear window . . . . . . . . . . . . . . . . . . 126
Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Warming up the engine . . . . . . . . . . . . . . . 168
Tightening torque of wheel bolts . . . . . . . . . . . 294
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 177, 183
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Tow starting General notes . . . . . . . . . . . . . . . . . . . . . . . 287 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198, 287
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 200
Notes on towing . . . . . . . . . . . . . . . . . 198, 199
Removable towing bracket . . . . . . . . . . . . . 201
Technical requirements . . . . . . . . . . . . . . . 198
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 293
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 207
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Traction control system How the system works . . . . . . . . . . . . . . . . 188
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Turn signal lamps Hazard warning lights . . . . . . . . . . . . . . . . . . 68
Trailer turn signals . . . . . . . . . . . . . . . . . . . . 67
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Tyre Mobility System . . . . . . . . . . . . . . . . . . . . . 254
Tyre mobility system . . . . . . . . . . . . . . . . . . . . . 248
Tyre pressure . . . . . . . . . . . . . . . . . . . . . 66, 90, 238 Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 239
Tyre pressure monitoring system . . . . . . . . . . . . 89
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Tyre repair kit Tyre Mobility System . . . . . . . . . . . . . . . . . . 254
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 244 Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 241
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 242
Tyres with directional tread pattern . . . . . . . . . 238
UUnderbody protection . . . . . . . . . . . . . . . . . . . . 214VVehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Vehicle identification data . . . . . . . . . . . . . . . . 292
Vehicle identification number . . . . . . . . . . . . . 292
Vehicle keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Vehicle Maintenance
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 218
Vehicle paintwork Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 211
Products for vehicle maintenance . . . . . . . 209
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 210
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Warning lamps Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Anti-lock brake system . . . . . . . . . . . . . . . . . 67
Electronic differential lock . . . . . . . . . . . . . . 67
exeo_EN.book Seite 314 Montag, 30. August 2010 4:45 16
