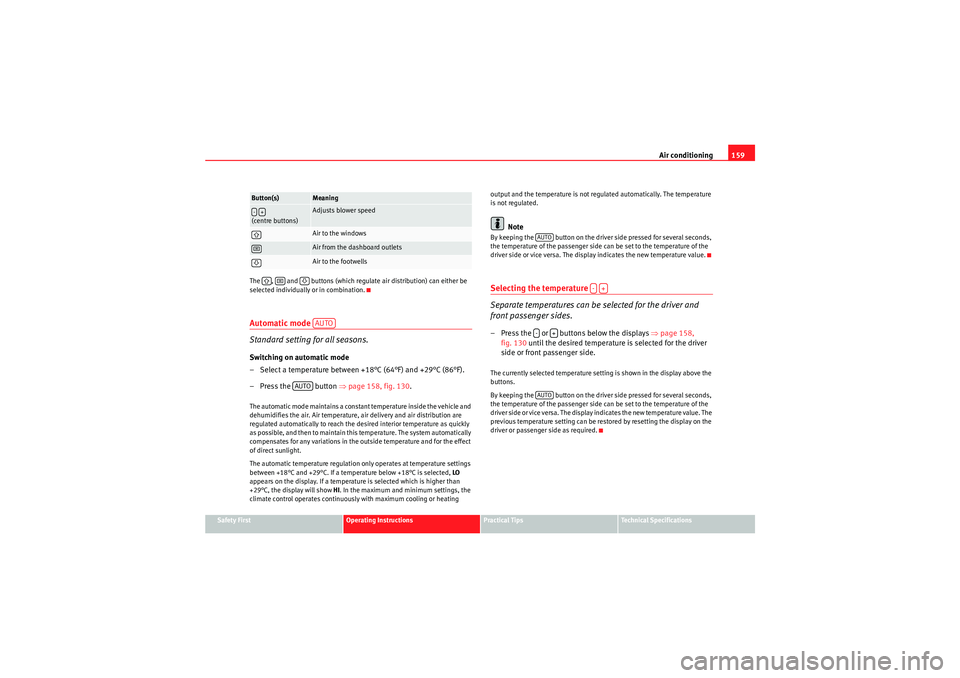

dashboard Seat Exeo 2010 Owner's manual

Air conditioning159
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The , and buttons (which regulate air distribution) can either be
selected individually or in combination.
Automatic mode
Standard setting for all seasons.Switching on automatic mode
– Select a temperature between +18°C (64°F) and +29°C (86°F).
– Press the button
⇒page 158, fig. 130 .The automatic mode maintains a constant temperature inside the vehicle and
dehumidifies the air. Air temperature, air delivery and air distribution are
regulated automatically to reach the desired interior temperature as quickly
as possible, and then to maintain this temperature. The system automatically
compensates for any variations in the outside temperature and for the effect
of direct sunlight.
The automatic temperature regulation only operates at temperature settings
between +18°C and +29°C. If a temperature below +18°C is selected, LO
appears on the display. If a temperature is selected which is higher than
+29°C, the display will show HI. In the maximum and minimum settings, the
climate control operates continuously with maximum cooling or heating output and the temperature is not regulated automatically. The temperature
is not regulated.
Note
By keeping the button on the driver side pressed for several seconds,
the temperature of the passenger side can be set to the temperature of the
driver side or vice versa. The display indicates the new temperature value.Selecting the temperature
Separate temperatures can be selected for the driver and
front passenger sides.– Press the or buttons below the displays
⇒page 158,
fig. 130 until the desired temperature is selected for the driver
side or front passenger side.The currently selected temperature setting is shown in the display above the
buttons.
By keeping the button on the driver side pressed for several seconds,
the temperature of the passenger side can be set to the temperature of the
driver side or vice versa. The display indicates the new temperature value. The
previous temperature setting can be restored by resetting the display on the
driver or passenger side as required.

(centre buttons)
Adjusts blower speedAir to the windowsAir from the dashboard outletsAir to the footwells
Button(s)
Meaning
-+


AUTO
AUTO
AUTO
-+
-
+
AUTO
