sensor Seat Exeo 2013 Owner's Guide

191
Intelligent technology
The traction control system (ASR) helps the car to start moving, accelerate
and climb a gradient in slippery conditions where this may otherwise be dif-
ficult or even impossible.
How it works
The ASR works automatically, i.e. without the driver's involvement. With the
aid of the ABS sensors , the ASR monitors the speed of the driven wheels
⇒  page 189. If the wheels start to spin, the engine speed is reduced auto-
matically to match the amount of grip available. The system is active across
the entire speed range.
The ASR works in conjunction with the ABS. If a failure occurs in the ABS,
the ASR will also stop working.
In general, the ASR should be left switched on at all times. It should only be
switched off manually in particular circumstances where a certain amount of
wheel slip may be desirable. Examples:
● when driving with snow chains
● when driving in deep snow or on loose surfaces
● when rocking the vehicle backwards and forwards to free it.
The ASR should be switched on again afterwards as soon as possible.
Note
To ensure that the ASR works properly, all four wheels must be fitted with
identical tyres. The difference in size of the wheels may lead to an unde-
sired reduction in engine power. Also see ⇒  page 248.
Safety FirstOperating instructionsPractical TipsTechnical Specifications

244Wheels and tyres
Significant tyre pressure loss
The tyre symbol  is displayed and indicates that the tyre pressure
of at least one tyre is insufficient.
– Stop the vehicle.
– Switch the ignition off.
– Check the tyre(s).
– Change the wheel if necessary. 
Tyre pressure monitoring (RKA+)*
The tyre pressure monitor display on the instrument panel
indicates if the pressure is too low.
Fig. 177 Detailed view of
the centre console: But-
ton for the tyre pressure
monitoring system The tyre pressure monitoring system makes use of the ABS sensors to com-
pare the rolling circumference and the frequency characteristics of the
wheels. If the rolling circumference or frequency characteristic changes on
one or more wheels, the tyre pressure warning lamp  will light up. The
fault will also be indicated by a warning buzzer. The position of the affected
tyre will also be shown (if only one tyre is affected) on the centre display of
the instrument panel.
The rolling circumference and frequency characteristics can change if:
●
the tyre pressure is too low.
● the tyre has suffered structural damage.
● the wheels or the inflation pressures have been changed without initial-
ising the system (see Adjusting the tyre pressure settings).
● there is a greater load on the wheels of one axle (e.g. if you are carrying
more passengers or luggage).
● the road surface under the left wheels is different to the road surface un-
der the right wheels for a long period.
● when driving with snow chains.
Adjusting the tyre pressure settings (initialising the tyre pressure
monitoring system)
After any incident regarding the wheels of your vehicle, e.g. after modifying
the tyre pressure ⇒ page 246 or after changing or swapping wheels
⇒ page 246 you should - with the vehicle at a standstill and the engine run- ning - press ⇒ Fig. 177. The yellow warning lamp  will light up. Hold the
button down for 2 seconds until the warning lamp goes out and an acoustic
warning is given. You can now release the button.
If the wheels are subjected to extreme stress (e.g. heavy load), the tyre
pressure must be increased to the recommended value for the maximum
load (see the adhesive label on the inside of the fuel tank flap) and then
initialise the system. 

Index
Numbers and Symbols
230 V socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 121 Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Airbag Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 30
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 32
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 38
Air conditioner 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 155
Air distribution . . . . . . . . . . . . . . . . . . . . . . 162
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Air purity sensor . . . . . . . . . . . . . . . . . . . . . 160
Air recirculation . . . . . . . . . . . . . . . . . . . . . 159
Air recirculation (automatic) . . . . . . . . . . . 160
Automatic mode . . . . . . . . . . . . . . . . . . . . . 158
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 159
ECON Mode (economy) . . . . . . . . . . . . . . . 159 Economical use . . . . . . . . . . . . . . . . . . . . . 163
Key settings . . . . . . . . . . . . . . . . . . . . . . . . 163
Solar-powered blower/sunroof . . . . . . . . . 163
Temperature selection . . . . . . . . . . . . . . . . 158
Air duct Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 267, 274
Removing . . . . . . . . . . . . . . . . . . . . . . 267, 273
Air purity sensor . . . . . . . . . . . . . . . . . . . . . . . . 160
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 70
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 124
Anti-lock brake system How it works . . . . . . . . . . . . . . . . . . . . . . . . 189
Anti-theft alarm system . . . . . . . . . . . . . . . . . . 107 Interior monitoring . . . . . . . . . . . . . . . . . . . 108
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Armrest Storage compartment in front armrest . . . 141
Armrests Adjusting the front armrest . . . . . . . . . . . . 141
Ashtray Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
ASR Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 69
How the system works . . . . . . . . . . . . . . . . 190
Athermic windscreen . . . . . . . . . . . . . . . . . . . . 223 Auto-check system . . . . . . . . . . . . . . . . . . . . . . . 76
Automatic car wash tunnel . . . . . . . . . . . . . . . 211
Automatic gearbox
Dynamic gear control programme . . . . . . . 184
Kick-down feature . . . . . . . . . . . . . . . . . . . . 184
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 180
Paddle levers (tiptronic mode) . . . . . . . . . 186
Safety interlock for ignition key . . . . . . . . . 166
Selector lever lock . . . . . . . . . . . . . . . . . . . 183
Selector lever positions . . . . . . . . . . . . . . . 182
Steering wheel with paddle levers . . . . . . 186
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
tiptronic mode . . . . . . . . . . . . . . . . . . . . . . 185
Automatic headlight control . . . . . . . . . . . . . . 115
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . 164
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238 Battery voltage . . . . . . . . . . . . . . . . . . . . . . . 82
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Disconnection . . . . . . . . . . . . . . . . . . . . . . . 239
Long periods of non-use . . . . . . . . . . 238, 239
Replacing . . . . . . . . . . . . . . . . . . . . . . 238, 239
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Winter operation . . . . . . . . . . . . . . . . 238, 239
Bicycle rack Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 226
307
Index

EmergenciesChanging a wheel . . . . . . . . . . . . . . . . . . . 254
Disconnecting the battery . . . . . . . . . . . . . 239
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 252, 257
Sunroof emergency activation . . . . . . . . . . 114
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Tyre mobility system . . . . . . . . . . . . . . . . . . 253
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 194
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 227
Engine coolant G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 232
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Specifications . . . . . . . . . . . . . . . . . . . . . . . 232
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 Checking oil level . . . . . . . . . . . . . . . . . . . . 231
Checking the level . . . . . . . . . . . . . . . . . . . . 81
Consumption . . . . . . . . . . . . . . . . . . . . . . . 231
Engine oil pressure too low . . . . . . . . . . . . . 79
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 230
Oil sensor defective . . . . . . . . . . . . . . . . . . . 81
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine speed governing . . . . . . . . . . . . . . . . . . 81
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Environmental friendliness . . . . . . . . . . . . 198
Roof racks . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Environmentally friendly driving . . . . . . . . . . . 196
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 225 ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
see also Electronic Stability Control . . . . . 165
Exhaust gas purification system . . . . . . . . . . . 195
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 213
F
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 35
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 146
Front passenger airbag deactivation . . . . . . . . 44
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Fuel level low . . . . . . . . . . . . . . . . . . . . . . . . 81
Instantaneous fuel consumption . . . . . . . . 86
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Fuel consumption . . . . . . . . . . . . . . . . . . . 196, 294
Fuel tank opening the fuel tank flap . . . . . . . . . . . . . 224
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Identifying blown fuses . . . . . . . . . . . . . . . 265
Identifying by colours . . . . . . . . . . . . . . . . 264
Preparation before replacing . . . . . . . . . . . 265
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 264 G
Gear display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 179
General overview of the engine compartment 297
Glove compartment . . . . . . . . . . . . . . . . . . . . . 152 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 70
Hazard warning lights . . . . . . . . . . . . . . . . . . . 121
Headlight range control . . . . . . . . . . . . . . . . . . 119 Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . 121
Automatic headlight control . . . . . . . . . . . 116
Automatic headlight control photosensors . .116
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 198
Front fog lights . . . . . . . . . . . . . . . . . . . . . . 117
Headlight range control . . . . . . . . . . . . . . . 119
Headlight washer system . . . . . . . . . . . . . 130
Head restraint Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Head restraints Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 139
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Removing and fitting . . . . . . . . . . . . . . . . . 139
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
310 Index

Storing settings . . . . . . . . . . . . . . . . . . . . . 138
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . 126
Mobile phones and two-way radios . . . . . . . . 223
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
N
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 18
O
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 225
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Oil consumption . . . . . . . . . . . . . . . . . . . . . . . . 231
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . 86
Outside temperature display . . . . . . . . . . . . . . . 73
Overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P Paddle levers tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 181 Parking aid
SEAT Parking System . . . . . . . . . . . . . . . . . 174
SEAT Parking System plus . . . . . . . . . . . . . 175
Parking aid acoustic system . . . . . . . . . . . . . . 174
Passenger see Correct sitting position . . . . . . . 10, 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 Driving abroad . . . . . . . . . . . . . . . . . . . . . . 198
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . 226
Photosensor faulty . . . . . . . . . . . . . . . . . . . . . . . 82
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 220
Power socket . . . . . . . . . . . . . . . . . . . . . . 148, 149
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . 193
Products for vehicle maintenance . . . . . . . . . . 210
Q Quartz clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
R Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Rain sensor faulty . . . . . . . . . . . . . . . . . . . . . . . . 82
Reading lights Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . 147 Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Rear lid
Central locking system . . . . . . . . . . . . . . . . 104
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rear side window sun blind . . . . . . . . . . . . . . . 127
Rear view mirrors Anti-dazzle interior mirror with automaticadjustment . . . . . . . . . . . . . . . . . . . . . . . 130
Anti-dazzle setting . . . . . . . . . . . . . . . . . . . 130
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 130
Rear window sun blind . . . . . . . . . . . . . . . . . . . 127
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Registration light . . . . . . . . . . . . . . . . . . . . . . . 285
Remote control key Indicator light . . . . . . . . . . . . . . . . . . . . . . . . 98
Locking and unlocking . . . . . . . . . . . . . . . . 106
Locking and unlocking the vehicle . . . . . . 106
Replacing the battery . . . . . . . . . . . . . . . . . . 98
Remote control keys . . . . . . . . . . . . . . . . . . . . . . 97 Re-synchronising . . . . . . . . . . . . . . . . . . . . 107
Removing and fitting the wheel . . . . . . . . . . . 258
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacement of parts . . . . . . . . . . . . . . . . . . . . 222
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Reverse gear Automatic gearbox . . . . . . . . . . . . . . . . . . . 182
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 179
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Attachment points . . . . . . . . . . . . . . . . . . . 145
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

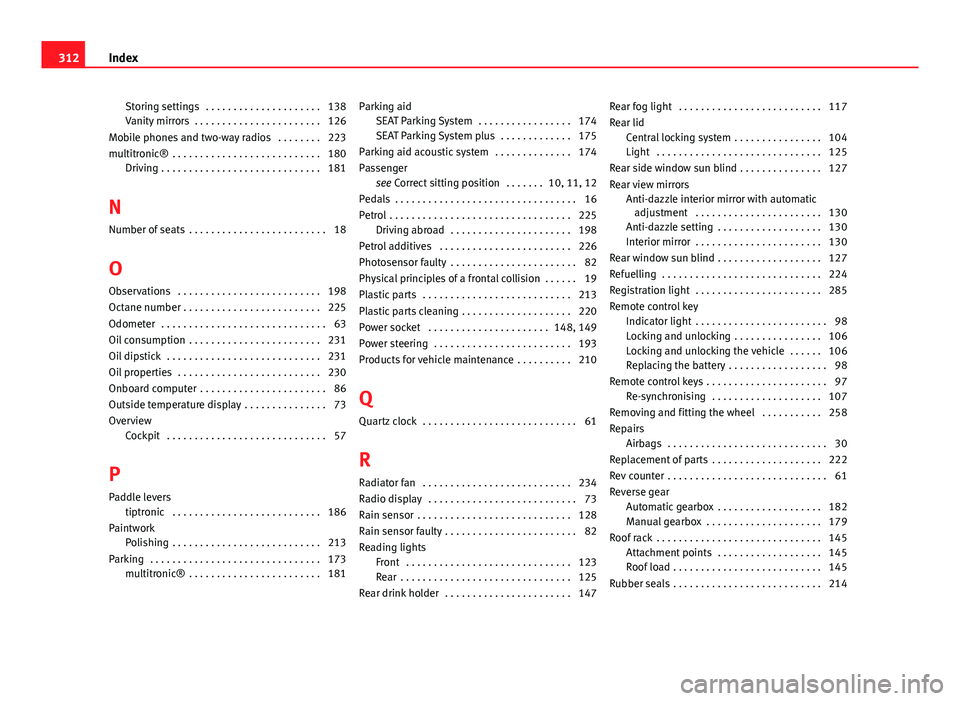

312 Index

Engine management (EPC) . . . . . . . . . . . . . 70
Exhaust emission control system . . . . . . . . 66
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Red symbols in central display . . . . . . . . . . 78
Seat belt warning lamp . . . . . . . . . . . . . . . . 68
Yellow symbols on central display . . . . . . . 80
Warning lamps - overview . . . . . . . . . . . . . . . . . 65
Washer fluid level . . . . . . . . . . . . . . . . . . . . . . . . 82
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 211
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 211
Washing with high pressure cleaners . . . . . . . 212
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . 246
Wearing suitable shoes . . . . . . . . . . . . . . . . . . . 16
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296 Tightening torque . . . . . . . . . . . . . . . . . . . . 250
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 242, 296 Changing a wheel . . . . . . . . . . . . . . . . . . . 254
Why assume the correct sitting position? . . . . . 28
Why should head restraints be correctly adjus- ted? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Why wear seat belts? . . . . . . . . . . . . . . . 18, 19, 28
Windows Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Windscreen washer system . . . . . . . . . . . . . . . 235
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 128 Changing blades . . . . . . . . . . . . . . . . . . . . 236
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 128
Washer jets . . . . . . . . . . . . . . . . . . . . . . . . . 128
Winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238 Winter conditions
Defrost function . . . . . . . . . . . . . . . . . . . . . 159
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 227
Winter operation Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Wiper and washer system . . . . . . . . . . . . . . . . 128
Wooden trim cleaning . . . . . . . . . . . . . . . . . . . 220
315
Index
