set clock Seat Exeo ST 2009 Owner's manual

Cockpit61
Safety First
Controls and equipment
Practical tips
Technical Data
Rev counter
The rev counter indicates the number of engine revolutions
per minute.You should select a lower gear if the engine speed drops below 1500 rpm.
The start of the red zone on the dial indicates the maximum engine speed
w hich may b e us ed wh en the e ngin e is war m a nd af te r it has b e e n r un i n p rop -
erly. However, it is advisable to change up a gear or lift your foot off the accel-
erator before the needle reaches the red zone.
Caution
The rev. counter needle ⇒fig. 39 must only reach the red zone for a short
period, otherwise the engine could be damaged. The start of the red zone on
the dial is different for some engine versions.
For the sake of the environment
Changing up a gear early will help you to save fuel and minimise engine
noise.Digital clock and date
Your vehicle is equipped with a quartz clock.The time and date are set using the and buttons.
Setting the hour
– Press the button. The hour display will start to flash.
– Use the and buttons to set the hour.
Fig. 39 Detailed view of
the dash panel insert:
Rev. counter
F ig. 40 Detail of th e dash
panel insert: Digital clock
+
-
MODE+
-
ExeoST_EN.book Seite 61 Donnerstag, 3. September 2009 12:24 12

Cockpit
62
Setting the minutes
– Keep pressing the button until the minutes display flashes.
– Use the and buttons to set the minutes.
Setting the date
– Keep pressing the button until the date display (day) flashes.
– Use the and buttons to set the day.
– Keep pressing the button until the month display flashes.
– Use the and buttons to set the month.
– Keep pressing the button until the year display flashes.
– Use the and buttons to set the year.
Disabling the date display
– Keep pressing the button until the complete date display flashes.
– Use the button to disable the date display.
Enabling the date display
– Keep pressing the button until the complete date display flashes.
– Use the button to enable the date display.When the display stops flashing, this means the setting you are performing
is completed and the time and date have been successfully stored. When the ignition is switched off, the mileage recorder and the digital clock
with date display can be switched on for a few seconds by pressing the CHECK
button
⇒page 59, fig. 37 .
Instrument lighting
The brightness of the instrument lighting can be adjusted as
required.– Press the "+" button to increase the brightness of the instrument
lighting.
– Press the "-" button to reduce the brightness of the instrument lighting.The instrument lighting (dials and needles), the centre console illumination
and the illumination of the displays are regulated by a light sensor incorpo-
rated in the instrument panel, depending on the outside light.
MODE
+
-MODE
+
-MODE
+
-MODE
+
-MODE
-
MODE
+
A8
Fig. 41 Instrument panel
lighting
ExeoST_EN.book Seite 62 Donnerstag, 3. September 2009 12:24 12

Cockpit
64CHECK buttonThe button has the following functions:
Enabling the digital clock and the distance display
When the ignition is switched off, the distance display and the digital clock
with date display can be enabled for a few seconds by pressing the
button ⇒fig. 43 .
Starting check procedure (auto-check control)
The auto-check control ⇒page 75 checks important components and vehicle
systems. These background checks are run constantly, as long as the ignition
is switched on.
You can start the “check procedure” manually by pressing the button
with the ignition switched on. This function check can be started with the
engine either stationary or running, but not at road speeds above 5 km/h. Calling up driver messages
If a Priority 1 symbol flashes in the display
⇒page 75, or if the bulb monitor
detects a failure of one of the lights ⇒page 81, the relevant driver informa-
tion can be called up again by briefly pressing the button. For
example:
Switch off engine, check oil level
The message will disappear from the display after about 5 seconds.
Speed warning
You can press the button to set speed limit warning 1 ⇒page 83,
“Setting speed limit warning 1” while the vehicle is moving. Speed limit
warning 2* can only be set when the ignition is switched off ⇒page 84,
“Setting speed limit warning 2”.
F ig. 43 Detail of th e dash
panel insert: CHECK
button
CHECK
CHECK
CHECK
CHECK
CHECK
ExeoST_EN.book Seite 64 Donnerstag, 3. September 2009 12:24 12

Cockpit
84with a brief push of the button, or until the memory is cleared with a long
push of the button.Setting speed limit warning 2
Speed limit warning 2 is set using the switches on the wind-
screen wiper lever.Setting the speed limit
– Switch the ignition off.
– Briefly press the CHECK button in the instrument cluster
⇒page 83, fig. 57 . The distance display and the digital clock
will light up.
– Press the CHECK button for at least two seconds. The display will show the speed limit which is currently set or , if no speed limit
has been set, the cr ossed out warning symbol for speed limit 2. – To change the speed limit, press the top or bottom of the function
selector switch on the windscreen wiper lever ⇒fig. 58 . The
speed limit displayed will then in crease or decrease by 10 km/h
at a time.
Clearing the speed limit
– Switch the ignition off.
– Briefly press the CHECK button in the instrument cluster ⇒page 83, fig. 57. The distance display and the digital clock
will light up.
– Press the CHECK button for at least two seconds. The display will show the speed limit which is currently set.
– Now press and hold the Reset button on the windscreen wiper lever ⇒fig. 58 until the crossed out warning symbol for
speed limit 2 appears on the display.
The display lighting for the mileage recorder and digital clock goes off again
a few seconds after the button is released.
Fig. 58 Windscreen wiper
lever: Function selector
switch
AA
AB
ExeoST_EN.book Seite 84 Donnerstag, 3. September 2009 12:24 12

Cockpit

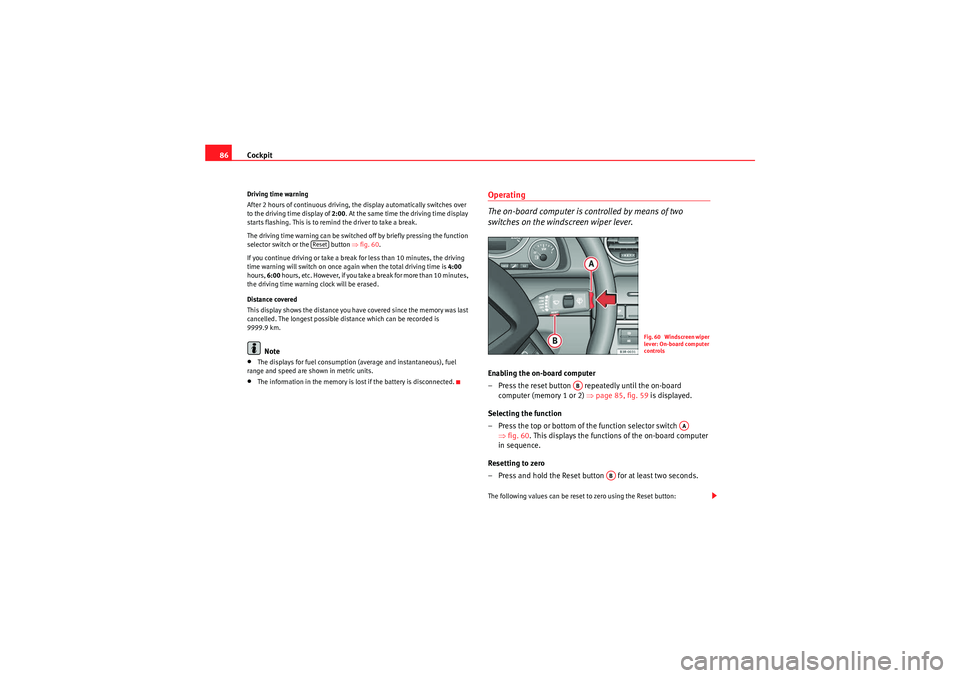

86Driving time warning
After 2 hours of continuous driving, the display automatically switches over
to the driving time display of 2:00 . At the same time the driving time display
starts flashing. This is to remind the driver to take a break.
The driving time warning can be switched off by briefly pressing the function
selector switch or the button ⇒fig. 60 .
If you continue driving or take a break for less than 10 minutes, the driving
time warning will switch on once again when the total driving time is 4:00
hours, 6:00 h o u r s , e t c . H o w e v e r, i f yo u ta ke a b r e a k f o r m o r e t ha n 1 0 m i n u te s ,
the driving time warning clock will be erased.
Distance covered
This display shows the distance you have covered since the memory was last
cancelled. The longest possible distance which can be recorded is
9999.9 km.
Note
•The displays for fuel consumption (average and instantaneous), fuel
range and speed are shown in metric units.•The information in the memory is lost if the battery is disconnected.
Operating
The on-board computer is controlled by means of two
switches on the windscreen wiper lever.Enabling the on-board computer
– Press the reset button repeatedly until the on-board computer (memory 1 or 2) ⇒page 85, fig. 59 is displayed.
Selecting the function
– Press the top or bottom of the function selector switch ⇒fig. 60 . This displays the functions of the on-board computer
in sequence.
Resetting to zero
– Press and hold the Reset button for at least two seconds.The following values can be reset to zero using the Reset button:
Reset
Fig. 60 Windscreen wiper
lever: On-board computer
controls
AB
AA
AB
ExeoST_EN.book Seite 86 Donnerstag, 3. September 2009 12:24 12

Cockpit
88Some of your vehicle's functions can be adjusted, activated and controlled by
menus . With the aid of the menus you can then also select the information
you wish to see displayed on the DIS display. This is only possible when the
ignition is on. The menu is enabled using the button on the wind-
screen wiper lever ⇒ page 87, fig. 61.
The main menu lists the different display types (or basic commands):
Programming
Check
Menu off
Help
The main menu options have the following submenus:
Controlling the menu
The menu display is called up via the button and the
rocker switch on the windscreen wiper lever. Use these
controls to make checks and adjust the settings.Functions of the ⇒fig. 63 and the rocker switch :
Enabling the menu
– Press the button until the menu display ⇒page 87,
fig. 62 appears.
Selecting and setting
– Press the rocker switch to select one of the menus. Press "up" or "down" on the switch to select the options accordingly.
Entering and confirming
–Press the button.
Programming
Clock
⇒ page 88
Computer
⇒page 88
Speed warning
⇒page 82
Radio info (on/off)Units: for measuring dis-
tance, fuel consumption and
temperature
⇒page 88
Language: you can select
one of 6 languages.
⇒page 88
Check
Service
⇒page 74
Menu off
When the menu is switched off, the display shows the
same information as on vehicles without the menu func-
tion.
Help
The help function may be used to understand the meaning
of symbols that can appear on different menus.
Reset
Reset
Fig. 63 Windscreen wiper
lever: Reset button and
rocker switch
Reset
AB
AA
ResetReset
ExeoST_EN.book Seite 88 Donnerstag, 3. September 2009 12:24 12

If and when269
Safety First
Controls and equipment
Practical tips
Technical Data
Changing the dipped beam headlight bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Move the brace ⇒fig. 210 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Pull the connector ⇒fig. 211 from the bulb.
– Unclip the retainer spring ⇒fig. 211 pressing inwards to the
right.
– Remove the bulb and fit the new one in the headlight casing with the tab upwards, starting to position it from below.
– Clip on the spring, raising it and pressing it slightly while turning
it anti-clockwise. To ensure correct lighting, the filament must be
vertical. When changing the bulb, you can check the position of
the bulb through the headlight glass.
– Connect the connector to the bulb.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.
– Have the headlight settings checked as soon as possible.
Fig. 210 Dipped head-
lightsFig. 211 Dipped head-
lights
A1A2
A3
ExeoST_EN.book Seite 269 Donnerstag, 3. September 2009 12:24 12

Index
306Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Brake assist system . . . . . . . . . . . . . . . . . . 190
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Worn brake pads . . . . . . . . . . . . . . . . . . . . . . 80
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 195
Bulb change general notes . . . . . . . . . . . . . . . . . . . . . . . 264CCar keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 196
CD-ROM player . . . . . . . . . . . . . . . . . . . . . . . . . 149
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 98Manual locking . . . . . . . . . . . . . . . . . . . . . . 102
Sunroof: opening and closing . . . . . . . . . . 113
Central locking system Anti-theft security system . . . . . . . . . . . . . . 100
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Locking and unlocking the vehicle from inside100
Opening and closing the windows . . . . . . 111
Security central locking . . . . . . . . . . . . . . . 101
Switch on the driver's door . . . . . . . . . . . . . 100
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 224
Changing the main headlight bulb Main headlight . . . . . . . . . . . . . . . . . . . . . . 268
Changing the main headlight bulbs Dipped beam headlight . . . . . . . . . . . . . . . 269 Changing the rear lights
luggage compartment lights . . . . . . . . . . . 283
Changing windscreen wiper blades . . . . . . . . . 235
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 292
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child safety seat ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 52
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Child seats on the front passenger seat . . . . . . . . . . . . . 29
Childproof lock Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 155
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 216
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 215
Cleaning engine compartment . . . . . . . . . . . . . 217
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 216
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 214
Climate control Air distribution . . . . . . . . . . . . . . . . . . . . . . 167
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Air purity sensor . . . . . . . . . . . . . . . . . . . . . 165
Air recirculation . . . . . . . . . . . . . . . . . . . . . . 164
Air recirculation (automatic) . . . . . . . . . . . . 165 Automatic mode . . . . . . . . . . . . . . . . . . . . . 163
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
ECON Mode (economy) . . . . . . . . . . . . . . . . 164
Economical use . . . . . . . . . . . . . . . . . . . . . . 168
Key settings . . . . . . . . . . . . . . . . . . . . . . . . . 168
Temperature selection . . . . . . . . . . . . . . . . 163
Clock, setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 218
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . 156 In the door trim . . . . . . . . . . . . . . . . . . . . . . 158
In the front seats . . . . . . . . . . . . . . . . . . . . . 159
Cool box in glove compartment . . . . . . . . . . . . 157
Cooling system Coolant temperature gauge . . . . . . . . . . . . . 60
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Cruise control system Adjust stored speed . . . . . . . . . . . . . . . . . . 179
Disabling . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Disabling temporarily . . . . . . . . . . . . . . . . . 180
Setting speed . . . . . . . . . . . . . . . . . . . . . . . 179
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42
ExeoST_EN.book Seite 306 Donnerstag, 3. September 2009 12:24 12

Index307
DDanger of fitting a child seat on the front passenger
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 217
Data entry control . . . . . . . . . . . . . . . . . . . . . . . . 88
Date display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Daytime running lights . . . . . . . . . . . . . . . . . . . 121
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 225
Diesel engine particulate filter . . . . . . . . . . . . . 197
Diesel particulate filter . . . . . . . . . . . . . . . . . . . . 80 Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 116
DIS Average fuel consumption . . . . . . . . . . . . . . 85
Average speed . . . . . . . . . . . . . . . . . . . . . . . . 85
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Instantaneous fuel consumption . . . . . . . . . 85
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 44
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Distance covered . . . . . . . . . . . . . . . . . . . . . . . . . 86
Distance display . . . . . . . . . . . . . . . . . . . . . . . . . 63
Door catch/ tailgate warning . . . . . . . . . . . . . . . 74 Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 215
Doors
Childproof lock . . . . . . . . . . . . . . . . . . . . . . 104
Locking the doors manually if the central lock-ing fails to work . . . . . . . . . . . . . . . . . . . . 102
Driver information system . . . . . . . . . . . . . . . . . . 71 Ambient temperature display . . . . . . . . . . . . 72
Auto-check system . . . . . . . . . . . . . . . . . . . . 75
CD and radio display . . . . . . . . . . . . . . . . . . . 72
Door catch/ tailgate warning . . . . . . . . . . . . 74
Driver messages . . . . . . . . . . . . . . . . . . . . . . 76
Handbrake warning . . . . . . . . . . . . . . . . . . . . 76
Menu display . . . . . . . . . . . . . . . . . . . . . . . . . 87
On-board computer . . . . . . . . . . . . . . . . . . . . 85
Red symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Speed warning . . . . . . . . . . . . . . . . . . . . . . . . 82
Warning messages . . . . . . . . . . . . . . . . . . . . 76
Yellow symbols . . . . . . . . . . . . . . . . . . . . . . . 79
Driver messages . . . . . . . . . . . . . . . . . . . . . . . . . 76
Driver's seat Assigning the key to the seat . . . . . . . . . . . 140
Enabling stored settings . . . . . . . . . . . . . . . 139
With memory . . . . . . . . . . . . . . . . . . . . . . . . 138
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 199
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 197
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 199 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dynamic gear control program . . . . . . . . . . . . . 186
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 197
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . 109 Central locking system . . . . . . . . . . . . . . . . 111
Possible malfunctions . . . . . . . . . . . . . . . . . 111
Switch on font passenger's door . . . . . . . . 110
Switch on rear doors . . . . . . . . . . . . . . . . . . 110
Switches in the driver's door . . . . . . . . . . . 110
Electrical power point . . . . . . . . . . . . . . . . . . . . 155
Electronic differential lock How it works . . . . . . . . . . . . . . . . . . . . . . . . 191
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . 98
Electronic stabilisation programme Description . . . . . . . . . . . . . . . . . . . . . . . . . . 170
How the system works . . . . . . . . . . . . . . . . 189
Warning light . . . . . . . . . . . . . . . . . . . . . . . . 171
Emergencies Changing a wheel . . . . . . . . . . . . . . . . . . . . 254
Disconnecting the battery . . . . . . . . . . . . . . 238
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 251, 256
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
tyre mobility system . . . . . . . . . . . . . . . . . . 252
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 227
ExeoST_EN.book Seite 307 Donnerstag, 3. September 2009 12:24 12

Index
310Manual operation
Closing the sunroof manually . . . . . . . . . . 114
Fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . 223
Mirrors Anti-dazzle interior rear-view mirror with auto-matic adjustment . . . . . . . . . . . . . . . . . . . 131
Automatic exterior mirror adjustment . . . . 138
Enabling stored settings . . . . . . . . . . . . . . . 139
Heated exterior mirrors . . . . . . . . . . . . . . . . 132
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 127
Storing settings . . . . . . . . . . . . . . . . . . . . . . 139
Mobile telephones and radiotelephones . . . . 221
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 Driving with multitronic® . . . . . . . . . . . . . . 182NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 18OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 224
Oil consumption . . . . . . . . . . . . . . . . . . . . . . . . 230
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Oil levelCheck level . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
On-board computer . . . . . . . . . . . . . . . . . . . . . . . 85
Override function Sunroof override function . . . . . . . . . . . . . . 114 Overview
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PPaddle leverstiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 182
Parking aid SEAT parking system . . . . . . . . . . . . . . . . . 176
SEAT parking system plus . . . . . . . . . . . . . 176
Parking aid acoustic system . . . . . . . . . . . . . . . 175
Partition grille Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 199
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 224
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 217
Power point . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Products for vehicle maintenance . . . . . . . . . . 211QQuartz clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Rain sensor faulty . . . . . . . . . . . . . . . . . . . . . . . . 80
Reading lights Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Rear drinks holder . . . . . . . . . . . . . . . . . . . . . . . 153
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . 149
Rear side window sun blind . . . . . . . . . . . . . . . 128
Rear view mirror With manual anti-dazzle setting . . . . . . . . 131
Rear view mirrors Anti-dazzle setting . . . . . . . . . . . . . . . . . . . 131
Interior rear view mirror . . . . . . . . . . . . . . . 131
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 215
Rear window sun blind . . . . . . . . . . . . . . . . . . . 128
Rear window wash/wipe Automatic rear window wash/wipe . . . . . . 130
Rear window wiper Automatic rear window wash/wipe . . . . . . 130
Intermittent wipe . . . . . . . . . . . . . . . . . . . . . 130
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Registration light . . . . . . . . . . . . . . . . . . . . . . . 284
ExeoST_EN.book Seite 310 Donnerstag, 3. September 2009 12:24 12
