Seat Exeo ST 2010 Owner's manual
Manufacturer: SEAT, Model Year: 2010, Model line: Exeo ST, Model: Seat Exeo ST 2010Pages: 325, PDF Size: 9.34 MB
Page 101 of 325
Unlocking and locking99
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Automatic locking function (Auto Lock)*
The
Auto Lock* function automatically locks all doors and the tailgate when
the vehicle exceeds a speed of about 15 km/h.
The vehicle is unlocked again automatically when the ignition key is
removed. Alternatively, the driver can also unlock the vehicle using the
central locking switch
or by opening one of the doors.
WARNING
Do not leave anyone (especially children) in the vehicle if it is locked from
the outside and the anti-theft security system is enabled, as the doors and
windows cannot then be opened from the inside. Locked doors could delay
assistance in an emergency, potentially putting lives at risk.
Note
•Should the central locking system fail to work, you can still lock and
unlock the driver door and the tailgate using the key. Locking the doors
manually if central locking fails to work ⇒page 102.•The anti-theft mechanism and the anti-theft alarm* cannot be enabled if
the central locking is not working.•Never leave any valuable items in the vehicle unattended. Even a locked
vehicle is not a safe.
Unlocking the vehicle with the key– To unlock the vehicle, turn the key in the driver door to position ⇒ fig. 70 .
– Pull the handle to open the door.•This will unlock all the doors, the tailgate and the tank flap simultane-
ously.•The anti-theft security system will be disabled.Locking the vehicle with the key– To lock the vehicle, turn the key in the driver door to position ⇒fig. 70 ⇒ .•This will lock all the doors and the tailgate.
Fig. 70 Turning the key to
enable the open and close
functions
AA
AB
ExeoST_EN.book Seite 99 Freitag, 3. September 2010 11:41 11
Page 102 of 325
Unlocking and locking

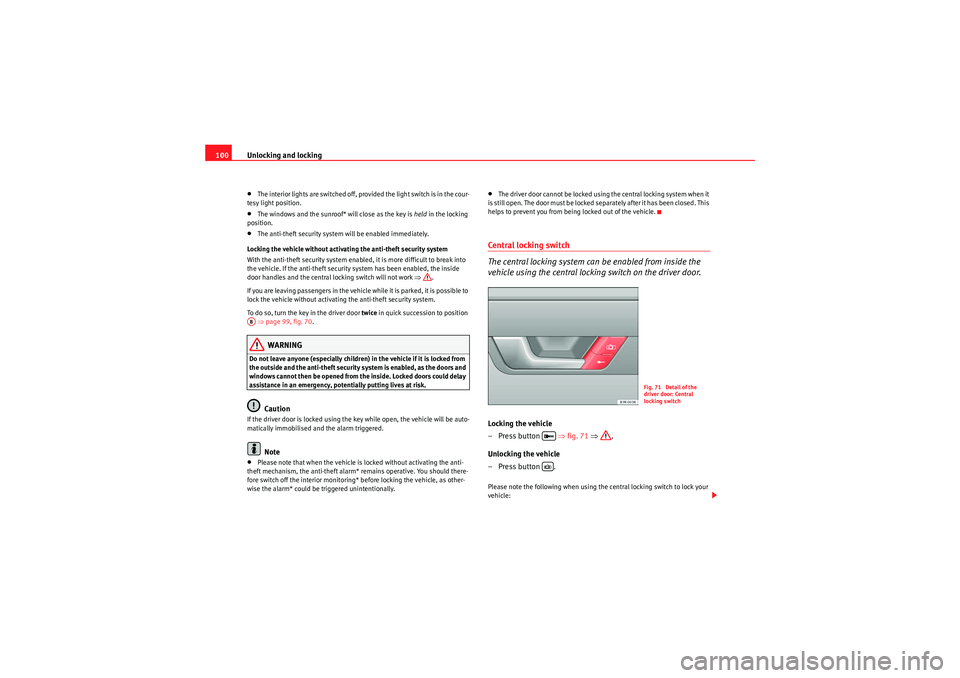

100•The interior lights are switched off, provided the light switch is in the cour-
tesy light position.•The windows and the sunroof* will close as the key is held in the locking
position.•The anti-theft security system will be enabled immediately.
Locking the vehicle without activating the anti-theft security system
With the anti-theft security system enabled, it is more difficult to break into
the vehicle. If the anti-theft security system has been enabled, the inside
door handles and the central locking switch will not work ⇒.
If you are leaving passengers in the vehicle while it is parked, it is possible to
lock the vehicle without activating the anti-theft security system.
To do so, turn the key in the driver door twice in quick succession to position
⇒ page 99, fig. 70.WARNING
Do not leave anyone (especially children) in the vehicle if it is locked from
the outside and the anti-theft security system is enabled, as the doors and
windows cannot then be opened from the inside. Locked doors could delay
assistance in an emergency, potentially putting lives at risk.
Caution
If the driver door is locked using the key while open, the vehicle will be auto-
matically immobilised and the alarm triggered.
Note
•Please note that when the vehicle is locked without activating the anti-
theft mechanism, the anti-theft alarm* remains operative. You should there-
fore switch off the interior monitoring* before locking the vehicle, as other-
wise the alarm* could be triggered unintentionally.
•The driver door cannot be locked using the central locking system when it
is still open. The door must be locked separately after it has been closed. This
helps to prevent you from being locked out of the vehicle.Central locking switch
The central locking system can be enabled from inside the
vehicle using the central locking switch on the driver door.Locking the vehicle
–Press button ⇒fig. 71 ⇒ .
Unlocking the vehicle
–Press button .Please note the following when using the central locking switch to lock your
vehicle:
AB
Fig. 71 Detail of the
driver door: Central
locking switch
ExeoST_EN.book Seite 100 Freitag, 3. September 2010 11:41 11
Page 103 of 325
Unlocking and locking101
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•The doors and the tailgate cannot be opened from the outside (for secu-
rity reasons, e.g. when stopped at traffic lights).•You can open the doors individually from the inside by pulling the inside
door handle.•When the driver door is open, it cannot be locked by pressing the central
locking switch and then closing the door. This helps to prevent you from
being locked out of the vehicle. The door has to be locked separately after it
has been closed.•In the event of an accident in which the airbags inflate, doors locked from
the inside will be automatically unlocked to facilitate access and assistance.WARNING
The central locking switch is still operative when the ignition is switched
off. This switch can be used to automatically lock all the doors and the tail-
gate. However, since this makes it difficult to enter the vehicle from the
outside, you should never leave children unattended in the vehicle. Locked
doors could delay assistance in an emergency, potentially putting lives at
risk.
Note
The central locking switch inside the vehicle will not be operative if the anti-
theft mechanism has been enabled.
Security central locking*
The security central locking feature allows you to only unlock
the driver door and the tank flap. All other doors and the tail-
gate remain locked.Unlocking the driver door and tank flap
–Turn the key once to the unlock position, or press the unlock
button on the remote control once.
Unlocking all the doors, the tailgate and the tank flap
simultaneously.
–Turn the key twice within five seconds, or press the unlock button
on the remote control twice within five seconds.The security system and the anti-theft alarm* are immediately disabled if you
unlock only the driver door, without unlocking the other doors ⇒page 107.
ExeoST_EN.book Seite 101 Freitag, 3. September 2010 11:41 11
Page 104 of 325
Unlocking and locking

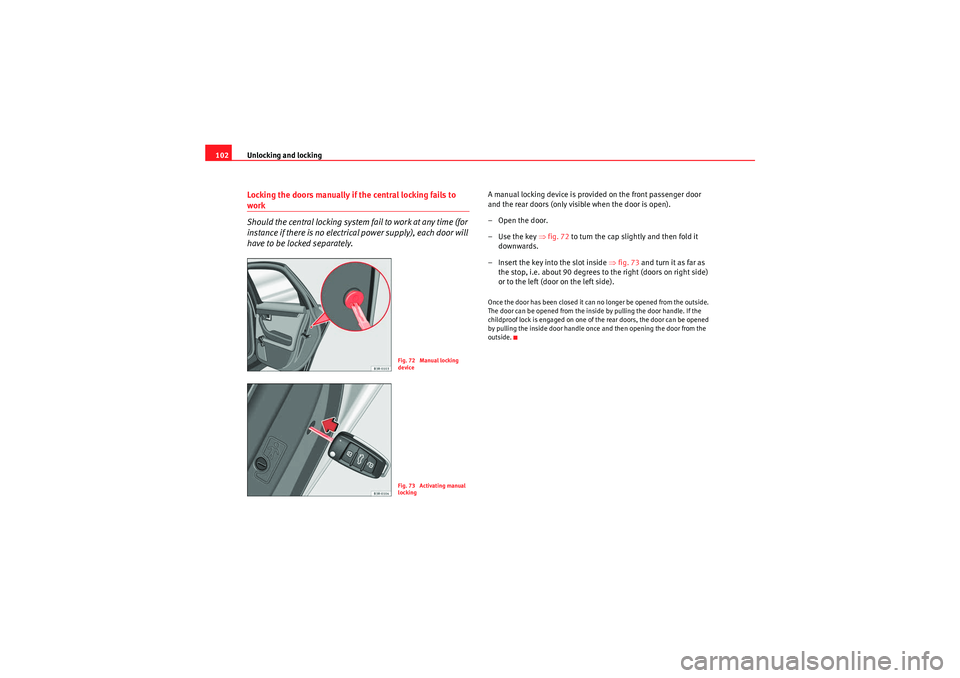

102Locking the doors manually if the central locking fails to work
Should the central locking system fail to work at any time (for
instance if there is no electrical power supply), each door will
have to be locked separately.
A manual locking device is provided on the front passenger door
and the rear doors (only visible when the door is open).
– Open the door.
–Use the key ⇒fig. 72 to turn the cap slightly and then fold it
downwards.
– Insert the key into the slot inside ⇒fig. 73 and turn it as far as
the stop, i.e. about 90 degrees to the right (doors on right side)
or to the left (door on the left side).Once the door has been closed it can no longer be opened from the outside.
The door can be opened from the inside by pulling the door handle. If the
childproof lock is engaged on one of the rear doors, the door can be opened
by pulling the inside door handle once and then opening the door from the
outside.
Fig. 72 Manual locking
deviceFig. 73 Activating manual
locking
ExeoST_EN.book Seite 102 Freitag, 3. September 2010 11:41 11
Page 105 of 325
Unlocking and locking103
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ta i l g a t eTailgate: opening and closingOpening the tailgate
– Pull on the release lever⇒ fig. 74 and lift the tailgate at the same
time.
– Then lift up the tailgate. If your vehicle is equipped accordingly, the tailgate will open automatically*.
Closing the tailgate
– Pull down the tailgate and let it drop into the latch ⇒.Use the recessed handle in the interior trim to make it easier to pull down the
tailgate.
WARNING
•After closing the tailgate, always check that the catch has engaged
properly. If not, the tailgate could open while driving, even if it has been
locked. Risk of accident!•The tailgate must always be completely closed when the vehicle is
moving, otherwise toxic exhaust fumes may be drawn into the vehicle.
Danger of poisoning!Note
•The door/tailgate warning symbol lights up on the instrument panel
display if the tailgate is not properly closed when the ignition is switched on
⇒ page 74.
Fig. 74 Luggage
compartment: opening
from the outside
ExeoST_EN.book Seite 103 Freitag, 3. September 2010 11:41 11
Page 106 of 325
Unlocking and locking

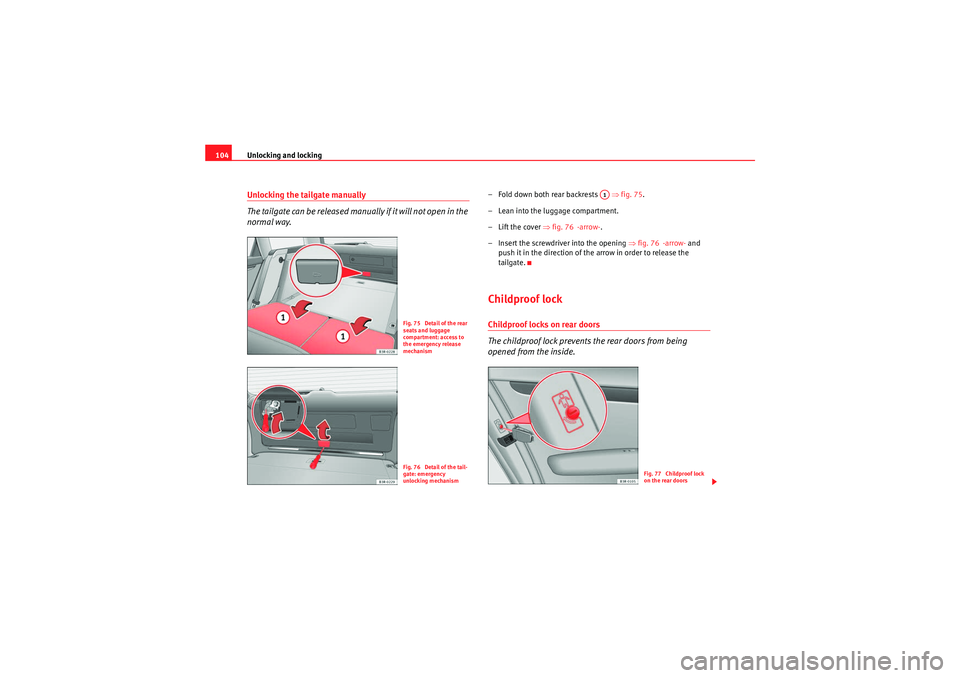

104Unlocking the tailgate manually
The tailgate can be released manually if it will not open in the
normal way.
– Fold down both rear backrests ⇒fig. 75 .
– Lean into the luggage compartment.
– Lift the cover ⇒ fig. 76 -arrow-.
– Insert the screwdriver into the opening ⇒fig. 76 -arrow- and
push it in the direction of th e arrow in order to release the
tailgate.Childproof lockChildproof locks on rear doors
The childproof lock prevents the rear doors from being
opened from the inside.
Fig. 75 Detail of the rear
seats and luggage
compartment: access to
the emergency release
mechanismFig. 76 Detail of the tail-
gate: emergency
unlocking mechanism
A1
Fig. 77 Childproof lock
on the rear doors
ExeoST_EN.book Seite 104 Freitag, 3. September 2010 11:41 11
Page 107 of 325
Unlocking and locking105
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The rear doors are equipped with childproof locks. These can be
operated using the ignition key. The childproof locks are only visible
with the doors open.
Activating the childproof lock
– Turn the key in the direction of the arrow ⇒page 104, fig. 77.
Deactivating the childproof lock
– Turn the key in the opposite direction of the arrow.W he n th e ch ild pro o f l ock is e na ble d , t he insi de d o or ha nd le will no t wo r k an d
the door can only be opened from the outside.Remote control keyDescription
The remote control key will lock and unlock the vehicle
without having to insert the key in the lock.The following functions are available:•Locking and unlocking the vehicle•Unlocking the tailgate
All the turn signals will flash as confirmation when the vehicle is locked or
unlocked. Furthermore, the interior lights will automatically light up when the
vehicle is unlocked and go out when the vehicle is locked, provided that the
switches are in the courtesy light position.
The remote control transmitter and the battery are integrated into the handle
of the key. The receiver is in the interior of the vehicle. The maximum range depends on different circumstances. The range is reduced when the battery
starts to lose power.
The remote control incorporates a foldaway key that can be used to manually
lock or unlock the vehicle, as well as to start the engine.
If the receiver has been repaired or replaced, or if a replacement key is used,
the system will need re-programming by a qualified workshop. Only then will
you be able use the remote control again.
The remote control meets all relevant authorisation requirements and has
b e e n a p p r o v e d b y t h e Fe d e r a l A p p r ov a l s O f f i ce f o r Te le co m m un i ca t i o n s o f t h e
Federal Republic of Germany. All components are marked in accordance with
the current legal requirements. This certification forms the basis for official
approval for use in other countries.
Note
•The remote control is automatically disabled when the ignition is
switched on.•The function of the remote control may be impaired by interference from
other nearby radio signals (e.g. from a mobile phone or TV transmitter) if
these are in the same frequency range.
ExeoST_EN.book Seite 105 Freitag, 3. September 2010 11:41 11
Page 108 of 325
Unlocking and locking
106Locking and unlocking the vehicleUnlocking the vehicle
–Press button ⇒fig. 78 for about 1 second.
Locking the vehicle
– Press button for about 1 second.
Opening the tailgate
– Press button and hold for at least one second.The turn signals will flash twice as confirmation when you unlock the vehicle.
The vehicle will be locked again automatically if you do not open one of the
doors or the tailgate within 60 seconds after unlocking the vehicle with
button . This function prevents the vehicle from remaining unlocked if the
unlocking button is pressed by mistake. In vehicles with the
security central locking* feature, you can unlock just the
driver door and the tank flap by pressing button once or the whole vehicle
by pressing the button twice.
The turn signals flash once when the vehicle is locked to confirm that the
doors and tailgate are properly locked.
Moreover, apart from unlocking the vehicle, the seat* and mirror* memory
programmed in the key is activated. The driver seat and exterior mirrors will
be automatically adjusted to the positions stored in the memory.
The interior lights will automatically light up when the vehicle is unlocked and
go out when the vehicle is locked, provided that the switch is in the courtesy
light position.
WARNING
Do not leave anyone (especially children) in the vehicle if it is locked from
the outside and the anti-theft security system is enabled, as the doors and
windows cannot then be opened from the inside. Locked doors could delay
assistance in an emergency, potentially putting lives at risk.
Note
•The remote control should only be used when the doors and the tailgate
are closed.•The remote control should not be used when the vehicle is out of sight.•The anti-theft alarm* can be accidentally triggered and the vehicle locked
if you press the locking button on the remote control inside the vehicle
before inserting the key in the ignition. If this should happen by mistake,
press the unlock button .
Fig. 78 Remote control
key: Control buttons
AA
AB
˜
AC
AA
AA
ExeoST_EN.book Seite 106 Freitag, 3. September 2010 11:41 11
Page 109 of 325
Unlocking and locking107
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Re-synchronising
Should the remote control fail to lock or unlock the vehicle,
the system must be re-synchronised.– If the vehicle is locked, use the key to unlock the driver door.
– Press the unlock button on the remote control.
– Insert the key into the ignition and switch on the ignition.
– Switch off the ignition and remove the key.
– Press the unlock or the lock button .Anti-theft alarm system*Description
The system triggers an alarm if anyone attempts to break into
the vehicle.The anti-theft alarm helps to prevent the vehicle being broken into or stolen.
If the system senses interference with the vehicle, it triggers an audible and
visible alarm.
How is the system enabled?
The anti-theft alarm system is enabled automatically when the vehicle is
locked with the remote control or by turning the key in the driver door (if the
door is closed). The anti-theft alarm is enabled about 30 seconds after the
vehicle is locked. How is the system disabled?
The anti-theft alarm is only disabled when the vehicle is unlocked using the
remote control. The vehicle will lock again automatically if none of the doors
is opened within 60 seconds after pressing the remote control button.
If the vehicle is unlocked by turning the key in the driver door, all the other
doors, the tailgate and the tank flap will remain locked.
If the vehicle has been unlocked with the key in the driver door, the key must
be inserted in the ignition lock and the ignition switched on within 15
seconds of opening the door in order to disable the alarm. The alarm will be
triggered
if the ignition is not switched on within 15 seconds.
When does the system trigger the alarm?
The following parts of the vehicle are monitored when the vehicle is locked:
•Engine compartment (bonnet)•Luggage compartment•Doors•Tilt angle (tow-away protection)•Ignition•Radio (only with a factory-fitted SEAT radio)•Interior ⇒page 108
If any of these areas are entered, the alarm will be triggered.
How is the alarm disabled?
The alarm can be switched off by unlocking the vehicle using the remote
control, or by switching on the ignition with the key, thus “disabling” the
alarm system. The alarm will also switch off when it comes to the end of its
cycle.
Turn sig nals
The turn signals flash briefly when the vehicle is locked to confirm that the
doors, the engine bonnet and the tailgate are properly closed and locked.
ExeoST_EN.book Seite 107 Freitag, 3. September 2010 11:41 11
Page 110 of 325

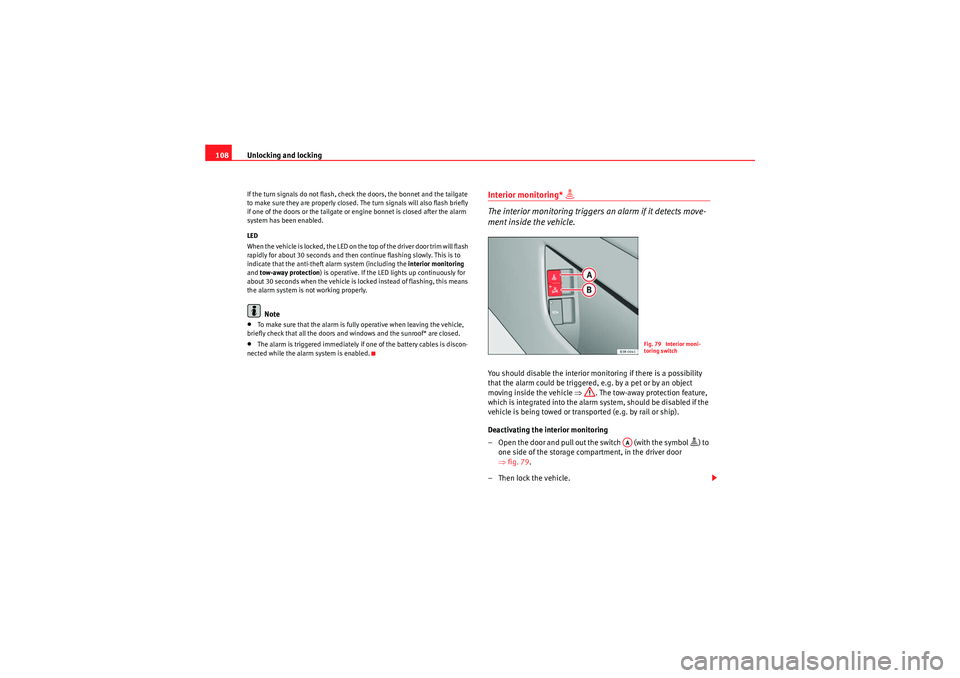

Unlocking and locking
108If the turn signals do not flash, check the doors, the bonnet and the tailgate
to make sure they are properly closed. The turn signals will also flash briefly
if one of the doors or the tailgate or engine bonnet is closed after the alarm
system has been enabled.
LED
When the vehicle is locked, the LED on the top of the driver door trim will flash
rapidly for about 30 seconds and then continue flashing slowly. This is to
indicate that the anti-theft alarm system (including the interior monitoring
and tow-away protection ) is operative. If the LED lights up continuously for
about 30 seconds when the vehicle is locked instead of flashing, this means
the alarm system is not working properly.
Note
•To make sure that the alarm is fully operative when leaving the vehicle,
briefly check that all the doors and windows and the sunroof* are closed.•The alarm is triggered immediately if one of the battery cables is discon-
nected while the alarm system is enabled.
Interior monitoring*
The interior monitoring triggers an alarm if it detects move-
ment inside the vehicle.You should disable the interior monitoring if there is a possibility
that the alarm could be triggered, e.g. by a pet or by an object
moving inside the vehicle ⇒. The tow-away protection feature,
which is integrated into the alarm system, should be disabled if the
vehicle is being towed or transported (e.g. by rail or ship).
Deactivating the interior monitoring
– Open the door and pull out the switch (with the symbol
) to
one side of the storage compartment, in the driver door
⇒ fig. 79 .
– Then lock the vehicle.
Fig. 79 Interior moni-
toring switch
AA
ExeoST_EN.book Seite 108 Freitag, 3. September 2010 11:41 11
