Seats and storage compartments143
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Please note that the armrest can restrict the driver's movements when it is
lowered. The armrest should therefore be raised when driving in city traffic.
Luggage compartmentLoading the luggage compartment
Loads in the luggage compartment should be safely secured.To maintain safe handling on the road, please observe the following
points:
– Distribute the load evenly.
– Position heavy items as far forward as possible
⇒fig. 116 . – Secure the load with a luggage net* or with non-elastic straps
secured to the fastening rings ⇒page 144.
WARNING
•Unsecured objects in the luggage compartment can suddenly shift and
cause changes in the handling of the vehicle.•In an accident or a sudden manoeuvre, loose objects in the passenger
compartment can be flung forward and might injure vehicle occupants.•Always keep all objects in the luggage compartment and use appro-
priate grips to secure them, particularly in the case of heavy objects.•When you transport heavy objects, always bear in mind that a change
of the centre of gravity can also cause changes in vehicle handling.•Please refer to the notes on ⇒page 7.Caution
Make sure that no hard objects chafe against the wires of the heating element
in the rear window and damage them.
Note
The tyre pressure must be adjusted according to the load. If necessary,
consult the tyre pressure label on the door pillar ⇒page 245.
Fig. 116 Position heavy
items as far forward as
possible.
ExeoST_EN.book Seite 143 Freitag, 3. September 2010 11:41 11

Seats and storage compartments145
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Retaining strap*
The retaining strap can be used to secure items of luggage to
the right-hand side lining in the luggage compartment.– Hook the retaining strap into housing or ⇒fig. 119 .You can attach the strap to the top or bottom housing, depending on the size
of the object you wish to secure.
To secure shorter objects, the retaining strap can also be attached to the
centre. However, this is only possible if the strap is attached to housing .
WARNING
The retaining strap should only be used to hold objects weighing up to 5
kg. Heavier objects cannot be safely secured (risk of injury).
Luggage compartment cover*
The cover blocks the view into the luggage compartment.Pulling out the luggage compartment cover
–Using handle ⇒fig. 120 , pull the rolled-up cover evenly
towards the rear of the vehicle.
– Insert the ends of the bar into the grooves in the left and right- hand side trim ⇒fig. 120 -arrows-.
Retracting the luggage compartment cover
– Lift the bar out of the grooves in the side trim.
– Let the cover roll up slowly.Removing and installing the luggage compartment cover ⇒page 147
Fig. 119 Retaining strap
attached to right-hand
side lining
AA
AB
AB
Fig. 120 Tailgate open
with luggage compart-
ment cover closed
AA
ExeoST_EN.book Seite 145 Freitag, 3. September 2010 11:41 11

Seats and storage compartments147
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Removing and installing luggage compartment cover / net partition
The luggage compartment cover / net partition can only be
removed when the rear backrests are folded forwards.
Removing luggage compartment cover / net partition
– Open the right-hand rear door.
– Fold down the backrests ⇒page 149.
– Pull the net partition in the direction indicated ⇒fig. 122 and lift
it out of the retaining rails.
Installing luggage compartment cover / net partition
– Open the right-hand rear door.
– Fold down the backrests ⇒page 149.
– Fit the net partition on the backrest so that the retainers are located next to the retaining rails ⇒fig. 123 .
– Push the luggage compartment cover / net partition towards the left-hand side of the vehicle as far as it will go.
Fig. 122 Removing
luggage compartment
cover / net partitionFig. 123 Installing
luggage compartment
cover / net partition
AA
AB
AC
ExeoST_EN.book Seite 147 Freitag, 3. September 2010 11:41 11

Seats and storage compartments149
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
It is advisable to secure the items by means of a strap secured to the
fastening rings on the left and the right hand side.Side storage compartment
The CD-ROM player for the navigation system* is located in
the left side compartment of the luggage compartment.– To open the storage compartment, pull the handle
forwards ⇒fig. 126 .CD-ROM player for navigation system*
The CD-ROM player for the navigation system is located in this storage
compartment in the luggage compartment. Separate operating instructions
are enclosed for this system.
Extending the luggage compartment
The two sections of the backrest can be folded forwards either
together or separately to increase the capacity of the luggage
compartment.Folding the backrest forwards
– Press the release lever ⇒fig. 127 in the direction indicated
by the arrow.
–Fold down the backrest.
Returning the backrest to its upright position
– Push the backrest up until it engages securely ⇒. The red
marking on the tab should no longer be visible when the
backrest is properly secured.
Fig. 126 Luggage
compartment: Side trim
with closed storage
compartment
Fig. 127 Backrest release
lever
AA
AB
ExeoST_EN.book Seite 149 Freitag, 3. September 2010 11:41 11

Seats and storage compartments151
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒page 150,
fig. 128 -arrow- and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
– Pull out and unfold the ski bag.
– The long items can now be loaded through the luggage compart- ment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒page 150, fig. 129 of the ski bag
into the centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-through hatch in the luggage compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
WARNING
The ski bag must be secured in place with the fastening belt after it has
been loaded.
Note
Do not fold away the ski bag after use if it is still damp.Roof rack / roof rails*Description
Additional luggage can be carried on the roof rack.Note the following points if you intend to carry loads on the roof:•We recommend using the cross bars from the of SEAT Genuine Accesso-
ries range.•These cross bars form the basic elements of a complete roof rack system.
For safety reasons, however, the corresponding additional fastenings must
be fitted to carry luggage, bicycles, surfboards, skis and boats. All the
components of this system are available from Authorised Service Centres.Caution
Any damage to the vehicle caused by the use of other types of roof rack or
incorrect installation will not be covered by the factory warranty. The roof rack
system must therefore be installed exactly according to the instructions
provided.
AA
AB
AC
ExeoST_EN.book Seite 151 Freitag, 3. September 2010 11:41 11

Seats and storage compartments153
Safety First
Operating Instructions
Practical Tips
Technical Specifications
uses more fuel. For this reason you should always take off the roof rack when
it is not in use.
Drink holderFront drink holder

– To open the drink holder, press the symbol
 on the drink holder
lid ⇒fig. 131
– To close the drink holder, press it in until it engages.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.
•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Drink holder in the rear armrest*Opening the drink holder
–Press the symbol
 ⇒fig. 132 .
Adjusting the retainer arm
– To adjust one of the retainer arms , release it by pressing in the direction indicated (arrow) and move it as required.
The retainer arm should be positioned against the drink holder so that it is
held securely.
Fig. 131 Detailed view of
the dash panel: Drink
holder
WARNING (continued)
Fig. 132 Drink holder in
the rear armrest
AA
AB
ExeoST_EN.book Seite 153 Freitag, 3. September 2010 11:41 11

Seats and storage compartments155
Safety First
Operating Instructions
Practical Tips
Technical Specifications

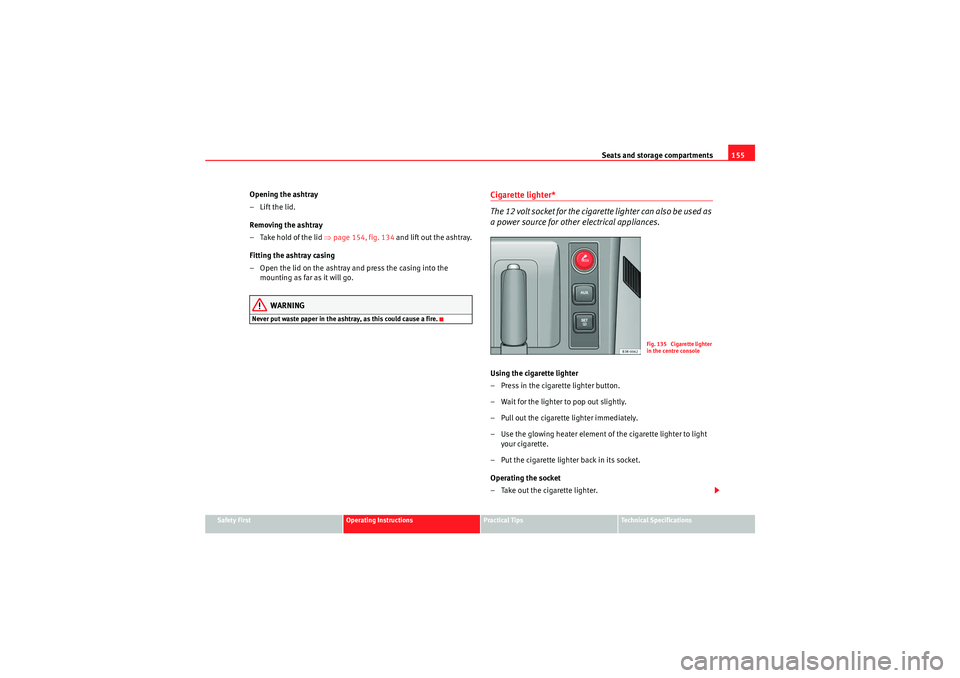

Opening the ashtray
– Lift the lid.
Removing the ashtray
– Take hold of the lid ⇒page 154, fig. 134 and lift out the ashtray.
Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.
Cigarette lighter*
The 12 volt socket for the cigarette lighter can also be used as
a power source for other electrical appliances.Using the cigarette lighter
–Press in the ciga rette lighter button.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter immediately.
– Use the glowing heater element of the cigarette lighter to light your cigarette.
– Put the cigarette lighter back in its socket.
Operating the socket
– Take out the cigarette lighter.
Fig. 135 Cigarette lighter
in the centre console
ExeoST_EN.book Seite 155 Freitag, 3. September 2010 11:41 11

Seats and storage compartments157
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.230 volt socket for Europlug*
Electrical equipment can also be connected to the 230 volt
socket in the centre console.The 230 Volt socket can only be used when the engine is running
⇒.
In vehicles with folding cover:
– Hold the cover of the socket at the lower recess.
– Lift the cover to open ⇒ fig. 137. Inserting the Europlug
– Insert the Europlug in the socket. The childproof safety device on
the socket is deactivated.
– If necessary, press the Europlug as far as possible into the socket
to ensure it is correctly inserted and will not jump out of place
while driving over a bump or similar.
LED warning lamp above socket
Equipment which may be connected
The 230 volt socket can be used to connect electrical equipment with a Euro-
plug. Please note that the power consumption in this socket must not exceed
150 watts (peaks of 300 watts).
Even when more than one appliance is connected, the total consumption of
all the appliances must not exceed 150 watts. If necessary, please refer to the
manufacturer's label to confirm the power consumption of the connected
equipment.
All connected appliances should be in perfect working order without any
faults.
WARNING
•Heavy appliances or connectors (for example, adapters) which hang
down directly from the Europlug socket may damage the socket with the
resultant risk of injury.
Fig. 137 Centre console:
230 volt socket
Steady green
light:
The childproof safety device is disconnected. The socket
is ready for use
Flashing red
light:
There is a fault, for example, disconnection due to
excess current or temperature
ExeoST_EN.book Seite 157 Freitag, 3. September 2010 11:41 11

Seats and storage compartments159
Safety First
Operating Instructions
Practical Tips
Technical Specifications
CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models or are
optional extras.
Glove compartment
The lockable glove compartment is equipped with a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 138 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are switched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
First-aid kit*Emergency triangle*Glove compartment
⇒ page 159
Storage compartment in the centre consoleOn-board documentation compartment*Compartments in the door trims
⇒page 160
Coat hooks
⇒page 160
Side storage compartment in luggage com-
partment
Fig. 138 Glove compart-
ment
ExeoST_EN.book Seite 159 Freitag, 3. September 2010 11:41 11

Seats and storage compartments161
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Compartments in the front seats
There is a storage compartment with a lid at the front of each
front seat.Opening
– Pull the handle to open the compartment.
Closing
– Close the lid and push it in until it engages.
NoteThe compartments will hold a maximum weight of 1 kg.
ExeoST_EN.book Seite 161 Freitag, 3. September 2010 11:41 11
