service indicator Seat Exeo ST 2011 User Guide

245
Wheels and tyres
Tyre service life
The service life of tyres is dependent on tyre pressure, driv-
ing style and fitting.
Fig. 187 Tyre tread wear
indicators
Fig. 188 Diagram for
changing wheels Wear indicators
The original tyres on your vehicle have 1.6 mm high “tread wear indicators”
⇒ fig. 187, running across the tread. Depending on the make, there will be
6 to 8 of them evenly spaced around the tyre. Markings on the tyre sidewall
(for instance the letters “TWI” or other symbols) indicate the positions of
the tread wear indicators. The minimum tread depth required by law is 1.6
mm (measured in the tread grooves next to the tread wear indicators). Worn
tyres must be replaced. Different figures may apply in export countries
⇒ 
.
Tyre pressure
Under-inflation or over-inflation will reduce the life of the tyres considerably
and also impair the vehicle's handling. The inflation pressures are listed on
a sticker on the inside of the fuel tank flap.
Correct inflation pressures are very important, especially at high speeds.
The pressure should therefore be checked at least once a month and before
starting any long journey.
Tyre pressure monitoring (RKA+)*
Monitoring of the tyre pressures is based on the tyre pressures you have
stored. The tyre pressure monitoring system cannot function as intended if
you store tyre pressure settings for a normal load, but then drive with the
vehicle fully laden. The tyre pressure must be adapted to the actual load
and stored accordingly in the tyre pressure monitoring system ⇒ page 243.
Driving style
Fast cornering, heavy acceleration and hard braking all increase tyre wear.
Changing wheels around
If the front tyres are worn considerably more than the rear ones it is advisa-
ble to change them around as shown ⇒ fig. 188. All the tyres will then last
for about the same time. 

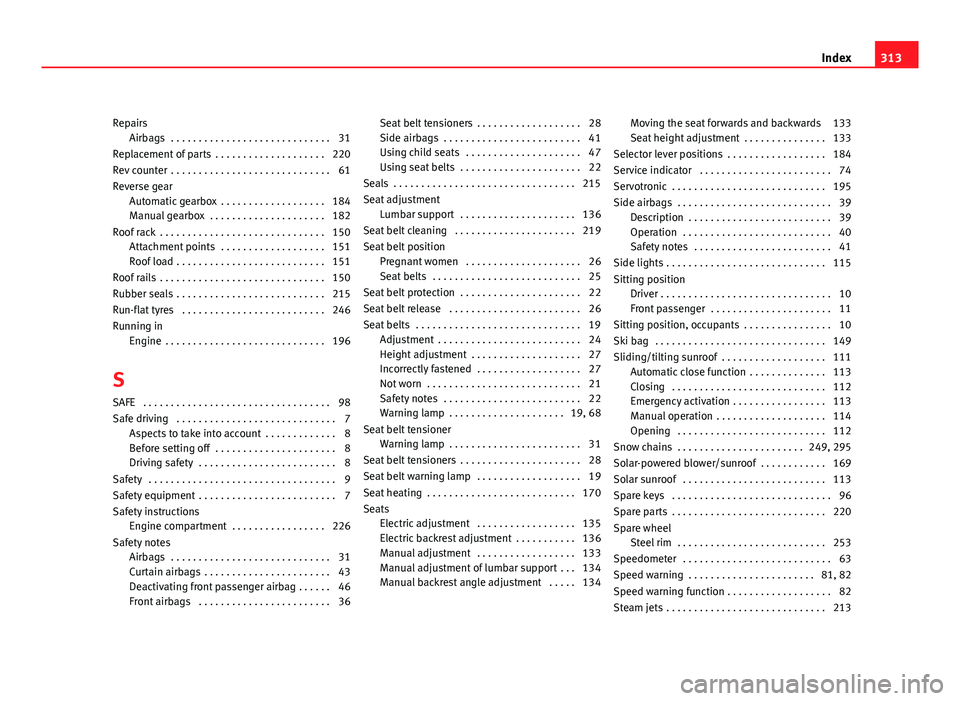

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

RepairsAirbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacement of parts . . . . . . . . . . . . . . . . . . . . 220
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Reverse gear Automatic gearbox . . . . . . . . . . . . . . . . . . . 184
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 182
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Attachment points . . . . . . . . . . . . . . . . . . . 151
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Roof rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Run-flat tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Running in Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
S SAFE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Aspects to take into account . . . . . . . . . . . . . 8
Before setting off . . . . . . . . . . . . . . . . . . . . . . 8
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Engine compartment . . . . . . . . . . . . . . . . . 226
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Deactivating front passenger airbag . . . . . . 46
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 36 Seat belt tensioners . . . . . . . . . . . . . . . . . . . 28
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using child seats . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 22
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . 136
Seat belt cleaning . . . . . . . . . . . . . . . . . . . . . . 219
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt protection . . . . . . . . . . . . . . . . . . . . . . 22
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Height adjustment . . . . . . . . . . . . . . . . . . . . 27
Incorrectly fastened . . . . . . . . . . . . . . . . . . . 27
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warning lamp . . . . . . . . . . . . . . . . . . . . . 19, 68
Seat belt tensioner Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 31
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 28
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . 19
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Seats Electric adjustment . . . . . . . . . . . . . . . . . . 135
Electric backrest adjustment . . . . . . . . . . . 136
Manual adjustment . . . . . . . . . . . . . . . . . . 133
Manual adjustment of lumbar support . . . 134
Manual backrest angle adjustment . . . . . 134 Moving the seat forwards and backwards 133
Seat height adjustment . . . . . . . . . . . . . . . 133
Selector lever positions . . . . . . . . . . . . . . . . . . 184
Service indicator . . . . . . . . . . . . . . . . . . . . . . . . 74
Servotronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 41
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . 11
Sitting position, occupants . . . . . . . . . . . . . . . . 10
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . 111 Automatic close function . . . . . . . . . . . . . . 113
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Emergency activation . . . . . . . . . . . . . . . . . 113
Manual operation . . . . . . . . . . . . . . . . . . . . 114
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 249, 295
Solar-powered blower/sunroof . . . . . . . . . . . . 169
Solar sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Spare keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Spare wheel Steel rim . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Speed warning . . . . . . . . . . . . . . . . . . . . . . . 81, 82
Speed warning function . . . . . . . . . . . . . . . . . . . 82
Steam jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
313
Index
