192Intelligent technology
Brake assist system
The brake assist system helps the driver to achieve optimum
braking effect.
The brake assist system helps to increase braking power and thus to ach-
ieve a shorter stopping distance. If the driver presses the brake pedal very
quickly, the brake assist system automatically boosts the braking force to
the maximum level, up to the point where the anti-lock brake function (ABS)
intervenes to stop the wheels from locking. You should then keep the brake
pedal pressed until the vehicle has braked to the required speed. The brake
assist system switches itself off as soon as you release the brake pedal.
The brake assist system will not be operative if there is a malfunction in the
ABS or the ESP.
WARNING
Please remember that the accident risk always increases if you drive too
fast, especially in corners or on a slippery road, or if you follow too close
behind the vehicle in front of you. An increased accident risk cannot be
compensated even by the brake assist system. Risk of accident.

Electronic differential lock (EDL)
The electronic differential lock prevents the loss of traction
caused if one wheel starts spinning. General notes
The electronic differential lock (EDL) helps the vehicle to start moving, ac-
celerate and climb a gradient in slippery conditions where this may other-
wise be difficult or even impossible. How it works
The EDL works automatically, without the driver's involvement. With the aid
of the ABS sensors, the system monitors the rotational speed of the drive
wheels
⇒ page 191. If a considerable difference in revs is detected (approx.
100 rpm) in the speed of the drive wheels, e.g. when only one part of the
surface supporting the wheels is slippery, the system applies the brake to
slow down the skidding wheel so that more of the power is directed to the
other wheels. The systems works up to a speed of approx. 80 km/h. The
system will make noise while it is working.
Starting the vehicle
If one wheel has less grip and starts spinning (for instance, if one of the
drive wheels is on ice), keep pressing the accelerator gradually until the ve-
hicle starts moving.
Overheating of the brakes
To prevent the brake disk of the braked wheel from overheating, the EDL
cuts out automatically if subjected to excessive loads. In this case, the vehi-
cle will continue to run and will have the same running properties as those
of another without EDL.
The EDL will switch on again automatically when the brake has cooled
down.
WARNING
● When accelerating on a uniformly slippery surface (for instance all
four wheels on ice or snow), press the accelerator gradually and careful-
ly. Despite EDL, the drive wheels may otherwise start to spin. This could
impair the vehicle's stability. Risk of accident.
● Even with EDL, you should always adjust your speed to suit the road
and traffic conditions. Do not let the extra safety features tempt you into
taking any risks when driving. Failure to do so could result in an accident. 

193
Intelligent technology
Note
If the ABS warning lamp lights up, this can also mean there is a fault in the
EDL. Take the vehicle to a specialised workshop as soon as possible. 
Traction control system (TCS)
The traction control system prevents the drive wheels from
spinning when the vehicle is accelerating. General notes
The traction control system (TCS) is one of the functions incorporated in the
Electronic Stability Programme (ESP).
The traction control system (TCS) helps the vehicle to start moving, acceler-
ate or climb a gradient in slippery conditions where this may otherwise be
difficult or even impossible.
How it works
The TCS acts automatically, without the driver's intervention. With the aid of
the ABS sensors ⇒ page 191, the TCS monitors the speed of the drive
wheels. If the wheels start to spin, the engine speed is reduced automati-
cally to match the amount of grip available. The system is active across the
entire speed range.
The TCS works in conjunction with the ABS. If a malfunction occurs in the
ABS, the TCS will also be inoperative.
Note
To ensure that the TCS works properly, all four wheels must be fitted with
identical tyres. The difference in size of the wheels may lead to an unde-
sired reduction in engine power. Also see ⇒  page 247.Brakes
General notes
New brake pads
New brake pads do not provide optimal performance during the first 200
km; first they must be “run in”. However, the reduced braking capacity may
be compensated by pressing on the brake pedal a little harder. Avoid over-
loading the brakes during run-in.
Wear
The rate of wear on the brake pads depends a great deal on how you drive
and the conditions in which the vehicle is operated. Negative factors are, for
instance, city traffic, frequent short trips or hard driving with abrupt starts
and stops.
Wet roads or road salt
In certain conditions, such as in heavy rain, or after washing the vehicle or
driving through water, the full braking effect can be delayed by moisture (or
in winter by ice) on the discs and brake pads. In this case the brakes should
be dried by pressing the brake pedal several times.
When the speed is over 80 km/h and the windscreen wipers are on, the
brake system moves the pads towards the brake discs for a few seconds.
This occurs - without the driver knowing - at regular intervals and allows a
faster response from the brakes when driving on wet roads.
The effectiveness of the brakes can also be temporarily reduced if the vehi-
cle is driven for some distance without using the brakes when there is a lot
of salt on the road in winter. In this case, the layer of salt on the brake discs
and pads has to wear off before braking.
Corrosion
There may be a tendency for corrosion to form on the discs and dirt to build
up on the brake pads if the vehicle is used infrequently or the brakes are
not used very often. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

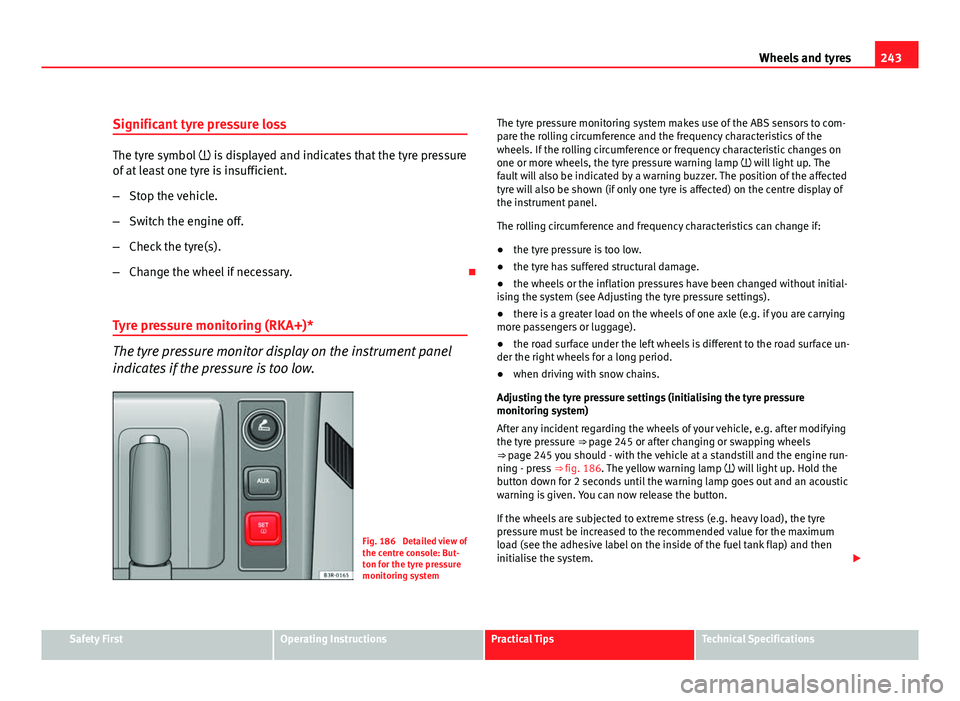

243
Wheels and tyres
Significant tyre pressure loss
The tyre symbol  is displayed and indicates that the tyre pressure
of at least one tyre is insufficient.
– Stop the vehicle.
– Switch the engine off.
– Check the tyre(s).
– Change the wheel if necessary. 
Tyre pressure monitoring (RKA+)*
The tyre pressure monitor display on the instrument panel
indicates if the pressure is too low.
Fig. 186 Detailed view of
the centre console: But-
ton for the tyre pressure
monitoring system The tyre pressure monitoring system makes use of the ABS sensors to com-
pare the rolling circumference and the frequency characteristics of the
wheels. If the rolling circumference or frequency characteristic changes on
one or more wheels, the tyre pressure warning lamp  will light up. The
fault will also be indicated by a warning buzzer. The position of the affected
tyre will also be shown (if only one tyre is affected) on the centre display of
the instrument panel.
The rolling circumference and frequency characteristics can change if:
●
the tyre pressure is too low.
● the tyre has suffered structural damage.
● the wheels or the inflation pressures have been changed without initial-
ising the system (see Adjusting the tyre pressure settings).
● there is a greater load on the wheels of one axle (e.g. if you are carrying
more passengers or luggage).
● the road surface under the left wheels is different to the road surface un-
der the right wheels for a long period.
● when driving with snow chains.
Adjusting the tyre pressure settings (initialising the tyre pressure
monitoring system)
After any incident regarding the wheels of your vehicle, e.g. after modifying
the tyre pressure ⇒ page 245 or after changing or swapping wheels
⇒ page 245 you should - with the vehicle at a standstill and the engine run- ning - press ⇒ fig. 186. The yellow warning lamp  will light up. Hold the
button down for 2 seconds until the warning lamp goes out and an acoustic
warning is given. You can now release the button.
If the wheels are subjected to extreme stress (e.g. heavy load), the tyre
pressure must be increased to the recommended value for the maximum
load (see the adhesive label on the inside of the fuel tank flap) and then
initialise the system. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

263
If and when
Fuse assignment
This list shows the fuses which can be replaced relatively
easily by the owner.
No.ConsumerAmps1Air conditioner102Footwell lamps53Heated washer jets54Radiator fan55Parking aid, automatic gearbox106Air conditioner (air purity sensor), pressure sensor5
7Electronic Stability Programme (ESP), brake light
switch, clutch pedal switch, steering angle sensor10
8Telephone59Vacant 10Adaptive headlights right5
11Airbag and disconnection of the front passenger air-
bag5
12Diagnostic socket1013Steering column unit1014Brake lights1015Instrument panel1016Vacant 17Tyre pressure control, rain/light sensor1018Adaptive headlights left519Vacant 20Vacant 21Vacant 22Driver door / front passenger door1523Rear doors15
No.ConsumerAmps24Central electrics unit for convenience equipment2025Heater blower3026Rear window heater3027Power socket for trailer (control unit)3028Fuel pump, auxiliary pump for diesel2029Vacant 30Sliding/tilting sunroof20
31Diagnosis connection, automatic anti-dazzle interior
mirror, reverse light, automatic gearbox15
32Towing socket1533Lighter2034Lambda probe heater1035Luggage compartment power socket*2036Wiper system30
37Pump for windscreen washer and headlight washer
system30
38Luggage compartment illumination, alarm1539Radio, amplifier2040Horn2541230 volt socket3042Electronic Stability Programme (ESP)2543Engine management1544Seat heating35
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
The electric windows and electric seat adjusters are protected by circuit
breakers. These reset automatically after a few seconds when the overload
(caused for example by frozen windows) has been corrected. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

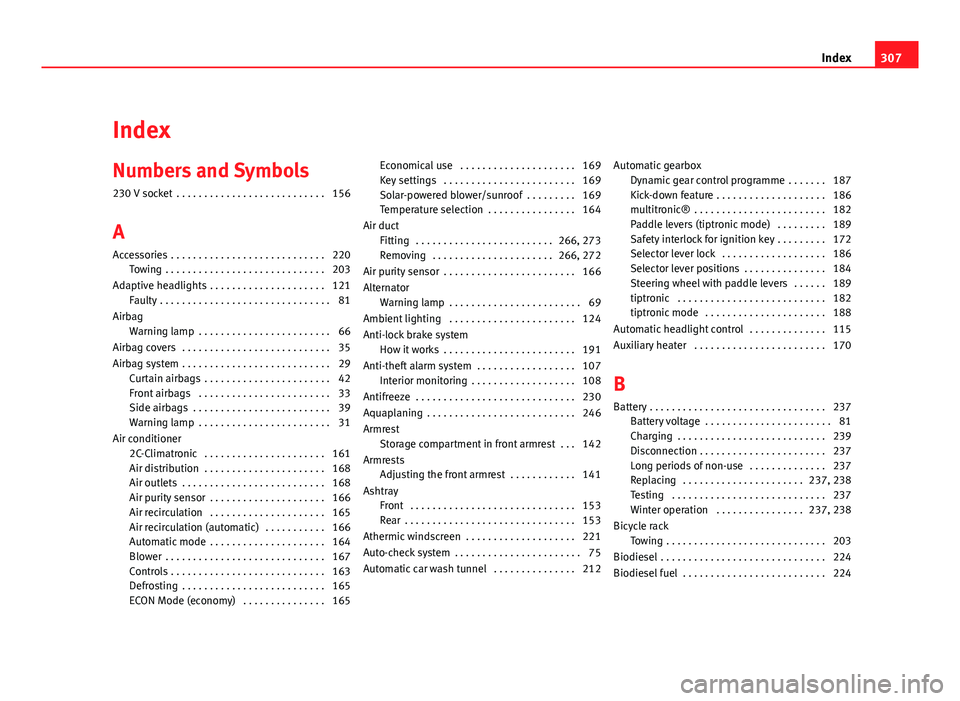

Index
Numbers and Symbols
230 V socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 121 Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Airbag Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 33
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 31
Air conditioner 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 161
Air distribution . . . . . . . . . . . . . . . . . . . . . . 168
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Air purity sensor . . . . . . . . . . . . . . . . . . . . . 166
Air recirculation . . . . . . . . . . . . . . . . . . . . . 165
Air recirculation (automatic) . . . . . . . . . . . 166
Automatic mode . . . . . . . . . . . . . . . . . . . . . 164
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 165
ECON Mode (economy) . . . . . . . . . . . . . . . 165 Economical use . . . . . . . . . . . . . . . . . . . . . 169
Key settings . . . . . . . . . . . . . . . . . . . . . . . . 169
Solar-powered blower/sunroof . . . . . . . . . 169
Temperature selection . . . . . . . . . . . . . . . . 164
Air duct Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 266, 273
Removing . . . . . . . . . . . . . . . . . . . . . . 266, 272
Air purity sensor . . . . . . . . . . . . . . . . . . . . . . . . 166
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 69
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 124
Anti-lock brake system How it works . . . . . . . . . . . . . . . . . . . . . . . . 191
Anti-theft alarm system . . . . . . . . . . . . . . . . . . 107 Interior monitoring . . . . . . . . . . . . . . . . . . . 108
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Armrest Storage compartment in front armrest . . . 142
Armrests Adjusting the front armrest . . . . . . . . . . . . 141
Ashtray Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Athermic windscreen . . . . . . . . . . . . . . . . . . . . 221
Auto-check system . . . . . . . . . . . . . . . . . . . . . . . 75
Automatic car wash tunnel . . . . . . . . . . . . . . . 212 Automatic gearbox
Dynamic gear control programme . . . . . . . 187
Kick-down feature . . . . . . . . . . . . . . . . . . . . 186
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 182
Paddle levers (tiptronic mode) . . . . . . . . . 189
Safety interlock for ignition key . . . . . . . . . 172
Selector lever lock . . . . . . . . . . . . . . . . . . . 186
Selector lever positions . . . . . . . . . . . . . . . 184
Steering wheel with paddle levers . . . . . . 189
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
tiptronic mode . . . . . . . . . . . . . . . . . . . . . . 188
Automatic headlight control . . . . . . . . . . . . . . 115
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . 170
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 Battery voltage . . . . . . . . . . . . . . . . . . . . . . . 81
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Disconnection . . . . . . . . . . . . . . . . . . . . . . . 237
Long periods of non-use . . . . . . . . . . . . . . 237
Replacing . . . . . . . . . . . . . . . . . . . . . . 237, 238
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Winter operation . . . . . . . . . . . . . . . . 237, 238
Bicycle rack Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 224
307
Index

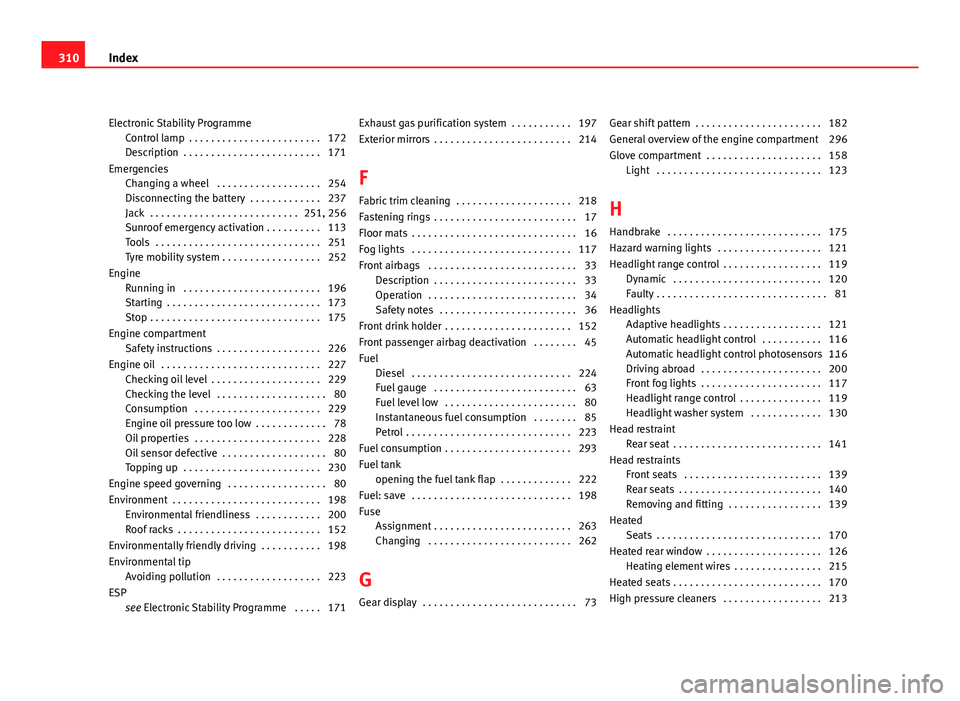

Electronic Stability ProgrammeControl lamp . . . . . . . . . . . . . . . . . . . . . . . . 172
Description . . . . . . . . . . . . . . . . . . . . . . . . . 171
Emergencies Changing a wheel . . . . . . . . . . . . . . . . . . . 254
Disconnecting the battery . . . . . . . . . . . . . 237
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 251, 256
Sunroof emergency activation . . . . . . . . . . 113
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Tyre mobility system . . . . . . . . . . . . . . . . . . 252
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 196
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 226
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227 Checking oil level . . . . . . . . . . . . . . . . . . . . 229
Checking the level . . . . . . . . . . . . . . . . . . . . 80
Consumption . . . . . . . . . . . . . . . . . . . . . . . 229
Engine oil pressure too low . . . . . . . . . . . . . 78
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 228
Oil sensor defective . . . . . . . . . . . . . . . . . . . 80
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 230
Engine speed governing . . . . . . . . . . . . . . . . . . 80
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 198 Environmental friendliness . . . . . . . . . . . . 200
Roof racks . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Environmentally friendly driving . . . . . . . . . . . 198
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 223
ESP see Electronic Stability Programme . . . . . 171 Exhaust gas purification system . . . . . . . . . . . 197
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 214
F
Fabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 218
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 36
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 152
Front passenger airbag deactivation . . . . . . . . 45
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Fuel level low . . . . . . . . . . . . . . . . . . . . . . . . 80
Instantaneous fuel consumption . . . . . . . . 85
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 293
Fuel tank opening the fuel tank flap . . . . . . . . . . . . . 222
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Fuse Assignment . . . . . . . . . . . . . . . . . . . . . . . . . 263
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 262
G
Gear display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 182
General overview of the engine compartment 296
Glove compartment . . . . . . . . . . . . . . . . . . . . . 158
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Hazard warning lights . . . . . . . . . . . . . . . . . . . 121
Headlight range control . . . . . . . . . . . . . . . . . . 119 Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . 121
Automatic headlight control . . . . . . . . . . . 116
Automatic headlight control photosensors . .116
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 200
Front fog lights . . . . . . . . . . . . . . . . . . . . . . 117
Headlight range control . . . . . . . . . . . . . . . 119
Headlight washer system . . . . . . . . . . . . . 130
Head restraint Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Head restraints Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 139
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Removing and fitting . . . . . . . . . . . . . . . . . 139
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Heated rear window . . . . . . . . . . . . . . . . . . . . . 126 Heating element wires . . . . . . . . . . . . . . . . 215
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
High pressure cleaners . . . . . . . . . . . . . . . . . . 213
310 Index

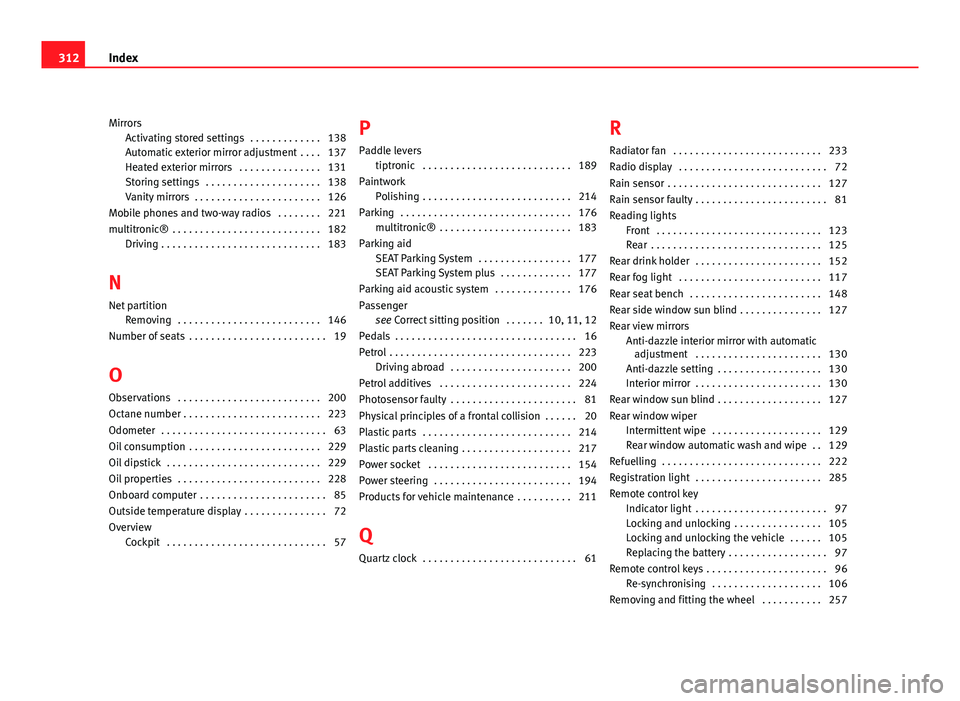

MirrorsActivating stored settings . . . . . . . . . . . . . 138
Automatic exterior mirror adjustment . . . . 137
Heated exterior mirrors . . . . . . . . . . . . . . . 131
Storing settings . . . . . . . . . . . . . . . . . . . . . 138
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . 126
Mobile phones and two-way radios . . . . . . . . 221
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
N
Net partition Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 19
O
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 223
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Oil consumption . . . . . . . . . . . . . . . . . . . . . . . . 229
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . 85
Outside temperature display . . . . . . . . . . . . . . . 72
Overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 P
Paddle levers tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 183
Parking aid SEAT Parking System . . . . . . . . . . . . . . . . . 177
SEAT Parking System plus . . . . . . . . . . . . . 177
Parking aid acoustic system . . . . . . . . . . . . . . 176
Passenger see Correct sitting position . . . . . . . 10, 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 Driving abroad . . . . . . . . . . . . . . . . . . . . . . 200
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . 224
Photosensor faulty . . . . . . . . . . . . . . . . . . . . . . . 81
Physical principles of a frontal collision . . . . . . 20
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 217
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . 194
Products for vehicle maintenance . . . . . . . . . . 211
Q
Quartz clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 R
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Rain sensor faulty . . . . . . . . . . . . . . . . . . . . . . . . 81
Reading lights Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . 152
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . 148
Rear side window sun blind . . . . . . . . . . . . . . . 127
Rear view mirrors Anti-dazzle interior mirror with automaticadjustment . . . . . . . . . . . . . . . . . . . . . . . 130
Anti-dazzle setting . . . . . . . . . . . . . . . . . . . 130
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 130
Rear window sun blind . . . . . . . . . . . . . . . . . . . 127
Rear window wiper Intermittent wipe . . . . . . . . . . . . . . . . . . . . 129
Rear window automatic wash and wipe . . 129
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Registration light . . . . . . . . . . . . . . . . . . . . . . . 285
Remote control key Indicator light . . . . . . . . . . . . . . . . . . . . . . . . 97
Locking and unlocking . . . . . . . . . . . . . . . . 105
Locking and unlocking the vehicle . . . . . . 105
Replacing the battery . . . . . . . . . . . . . . . . . . 97
Remote control keys . . . . . . . . . . . . . . . . . . . . . . 96 Re-synchronising . . . . . . . . . . . . . . . . . . . . 106
Removing and fitting the wheel . . . . . . . . . . . 257
312 Index

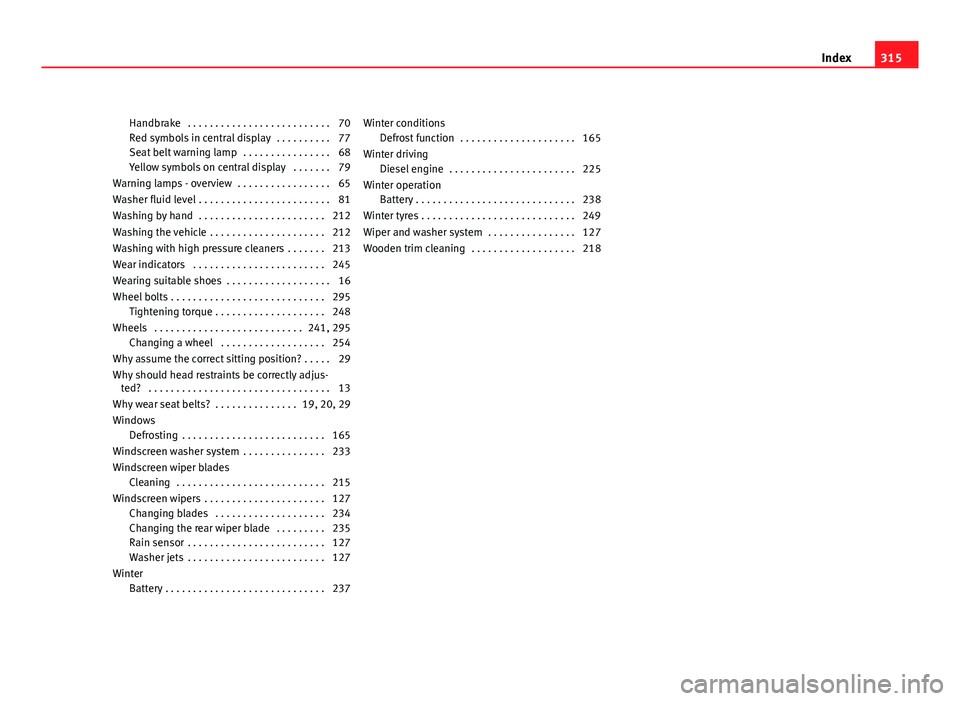

Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Red symbols in central display . . . . . . . . . . 77
Seat belt warning lamp . . . . . . . . . . . . . . . . 68
Yellow symbols on central display . . . . . . . 79
Warning lamps - overview . . . . . . . . . . . . . . . . . 65
Washer fluid level . . . . . . . . . . . . . . . . . . . . . . . . 81
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 212
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 212
Washing with high pressure cleaners . . . . . . . 213
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . 245
Wearing suitable shoes . . . . . . . . . . . . . . . . . . . 16
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 Tightening torque . . . . . . . . . . . . . . . . . . . . 248
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 241, 295 Changing a wheel . . . . . . . . . . . . . . . . . . . 254
Why assume the correct sitting position? . . . . . 29
Why should head restraints be correctly adjus- ted? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Why wear seat belts? . . . . . . . . . . . . . . . 19, 20, 29
Windows Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Windscreen washer system . . . . . . . . . . . . . . . 233
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 127 Changing blades . . . . . . . . . . . . . . . . . . . . 234
Changing the rear wiper blade . . . . . . . . . 235
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 127
Washer jets . . . . . . . . . . . . . . . . . . . . . . . . . 127
Winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 Winter conditions
Defrost function . . . . . . . . . . . . . . . . . . . . . 165
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 225
Winter operation Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Wiper and washer system . . . . . . . . . . . . . . . . 127
Wooden trim cleaning . . . . . . . . . . . . . . . . . . . 218
315
Index
