remote start Seat Exeo ST 2011 Owner's manual

Table of Contents
Manual structure . . . . . . . . . . . . . . . . . . . . 5
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 7
Proper sitting position for occupants . . . . . . . . . 10
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 19
Why wear seat belts? . . . . . . . . . . . . . . . . . . . . . . 20
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 28
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 29
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Knee airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 45
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 47
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Securing child seats . . . . . . . . . . . . . . . . . . . . . . . 52 Operating Instructions
. . . . . . . . . . . . . 57
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Warning and indicator lamps . . . . . . . . . . . . . . . . 65
Driver information system . . . . . . . . . . . . . . . . . . 71
Auto-check system . . . . . . . . . . . . . . . . . . . . . . . . 75
Speed warning*  . . . . . . . . . . . . . . . . . . . . . . . . 82
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . 85
Menu display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Tyre pressure monitoring* . . . . . . . . . . . . . . . . . . 89
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 91
Multifunction steering wheel* . . . . . . . . . . . . . . . 91
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . 96
Remote control keys . . . . . . . . . . . . . . . . . . . . . . . 96
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Remote control key . . . . . . . . . . . . . . . . . . . . . . . . 105
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 107
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Sliding/tilting sunroof* . . . . . . . . . . . . . . . . . . . . 111
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 115
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . . 127
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Seats and storage compartments . . . . . . . . . . 133
Manual adjustment of the front seats . . . . . . . . . 133
Electric adjustment of front seats* . . . . . . . . . . . 135
Lumbar support* . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Driver seat memory* . . . . . . . . . . . . . . . . . . . . . . . 137 Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 142
Roof rack / roof rails* . . . . . . . . . . . . . . . . . . . . . . 150
Drink holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Ashtray*, cigarette lighter* and electric sockets* . .153
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Starting and stopping the engine . . . . . . . . . . . . 173
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Parking aid acoustic system . . . . . . . . . . . . . . . . . 176
Cruise speed* (Cruise control system) . . . . . . . . 179
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Automatic gearbox* . . . . . . . . . . . . . . . . . . . . . . . 182
Practical Tips . . . . . . . . . . . . . . . . . . . . . . . . . 190
Intelligent technology . . . . . . . . . . . . . . . . . . . . . 190
Electronic Stability Programme (ESP) . . . . . . . . . 190
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Servotronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Driving and the environment . . . . . . . . . . . . . . . 196
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Exhaust gas purification system . . . . . . . . . . . . . 197
Economical and environmentally friendly driving 198
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
3
Table of Contents

96Unlocking and locking
Unlocking and locking

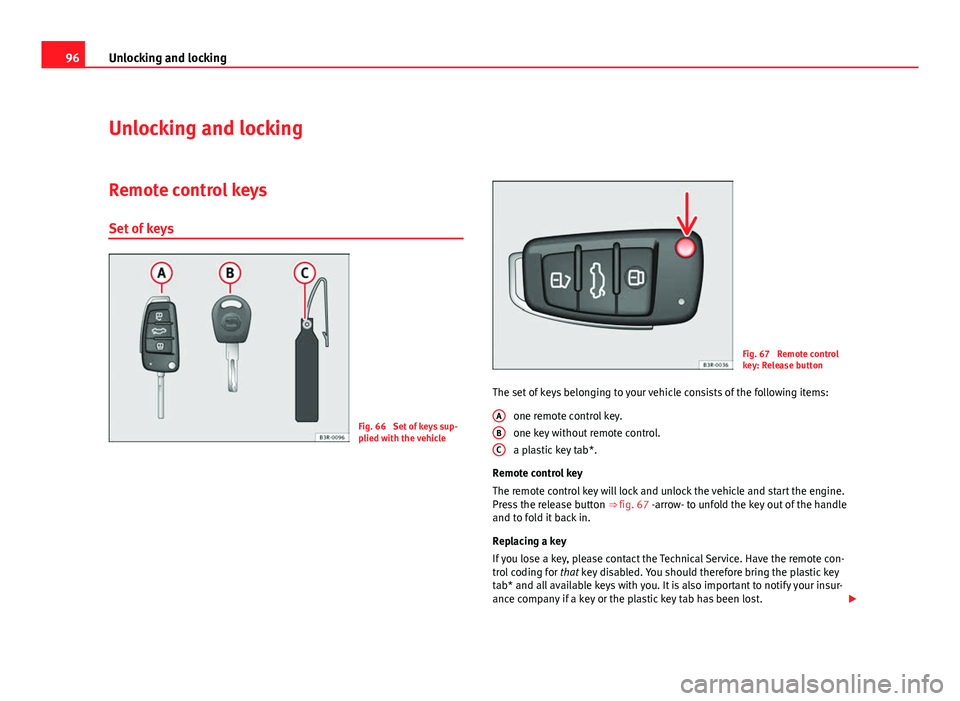

Remote control keys Set of keys
Fig. 66 Set of keys sup-
plied with the vehicle
Fig. 67 Remote control
key: Release button
The set of keys belonging to your vehicle consists of the following items: one remote control key.
one key without remote control.
a plastic key tab*.
Remote control key
The remote control key will lock and unlock the vehicle and start the engine.
Press the release button ⇒ fig. 67 -arrow- to unfold the key out of the handle
and to fold it back in.
Replacing a key
If you lose a key, please contact the Technical Service. Have the remote con-
trol coding for that key disabled. You should therefore bring the plastic key
tab* and all available keys with you. It is also important to notify your insur-
ance company if a key or the plastic key tab has been lost. 
A
BC

97
Unlocking and locking
2 remote control keys
In certain European markets, vehicles with alarm are equipped with 2 re-
mote control keys.
WARNING
● Always take the key with you when leaving the vehicle, even if you
only intend to be gone for a short time. This is particularly important if
there are children in the vehicle, as they might otherwise be able to start
the engine or use power-operated equipment (e.g. the electric windows),
which could cause injuries.
● Wait for the vehicle to come to a standstill before removing the igni-
tion key from the lock! Otherwise, the steering lock could engage sud-
denly, causing an accident.
 Indicator light on the remote control key
The condition of the battery in the remote control key is
monitored by the indicator light.
Fig. 68 LED on the re-
mote control key
Condition of the key battery
The indicator light ⇒ fig. 68 (arrow) flashes when one of the buttons is
pressed. If the indicator light does not light up or flash, this means that the
battery is exhausted and must be replaced.
Replacing the batteries ⇒ page 98. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

98Unlocking and locking

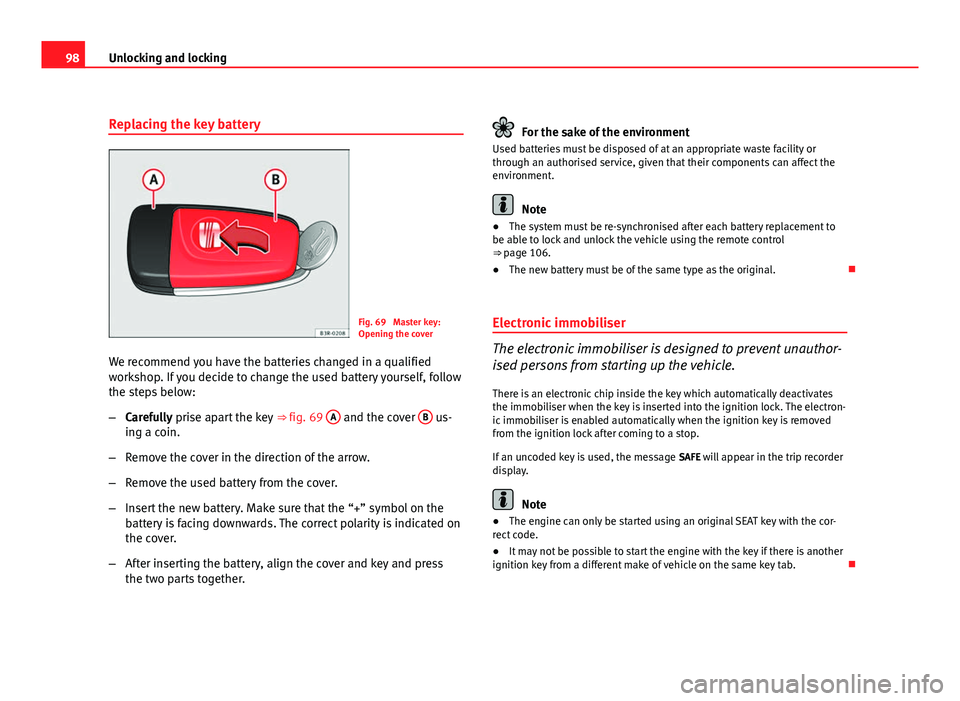

Replacing the key battery
Fig. 69 Master key:
Opening the cover
We recommend you have the batteries changed in a qualified
workshop. If you decide to change the used battery yourself, follow
the steps below:
– Carefully prise apart the key ⇒ fig. 69 A
and the cover B us-
ing a coin.
– Remove the cover in the direction of the arrow.
– Remove the used battery from the cover.
– Insert the new battery. Make sure that the “+” symbol on the
battery is facing downwards. The correct polarity is indicated on
the cover.
– After inserting the battery, align the cover and key and press
the two parts together.
For the sake of the environment
Used batteries must be disposed of at an appropriate waste facility or
through an authorised service, given that their components can affect the
environment.
Note
● The system must be re-synchronised after each battery replacement to
be able to lock and unlock the vehicle using the remote control
⇒ page 106.
● The new battery must be of the same type as the original. 
Electronic immobiliser
The electronic immobiliser is designed to prevent unauthor-
ised persons from starting up the vehicle.
There is an electronic chip inside the key which automatically deactivates
the immobiliser when the key is inserted into the ignition lock. The electron-
ic immobiliser is enabled automatically when the ignition key is removed
from the ignition lock after coming to a stop.
If an uncoded key is used, the message SAFE will appear in the trip recorder
display.
Note
● The engine can only be started using an original SEAT key with the cor-
rect code.
● It may not be possible to start the engine with the key if there is another
ignition key from a different make of vehicle on the same key tab. 

105
Unlocking and locking
Activating the childproof lock
– Turn the key in the direction of the arrow ⇒ fig. 77.
Deactivating the childproof lock
– Turn the key in the opposite direction of the arrow.
When the childproof lock is enabled, the inside door handle will not work
and the door can only be opened from the outside. 
Remote control key Description
The remote control key will lock and unlock the vehicle with-
out having to insert the key in the lock. The following functions are available:
● Locking and unlocking the vehicle
● Unlocking the tailgate
All the turn signals will flash as confirmation when the vehicle is locked or
unlocked. Furthermore, the interior lights will automatically light up when
the vehicle is unlocked and go out when the vehicle is locked, provided that
the switches are in the courtesy light position.
The remote control transmitter and the battery are integrated into the han-
dle of the key. The receiver is in the interior of the vehicle. The maximum
range depends on different circumstances. The range is reduced when the
battery starts to lose power.
The remote control incorporates a foldaway key that can be used to manual-
ly lock or unlock the vehicle, as well as to start the engine. If the receiver has been repaired or replaced, or if a replacement key is
used, the system will need re-programming by a qualified workshop. Only
then will you be able use the remote control again.
The remote control meets all relevant authorisation requirements and has
been approved by the Federal Approvals Office for Telecommunications of
the Federal Republic of Germany. All components are marked in accordance
with the current legal requirements. This certification forms the basis for of-
ficial approval for use in other countries.
Note
● The remote control is automatically disabled when the ignition is switch-
ed on.
● The function of the remote control may be impaired by interference from
other nearby radio signals (e.g. from a mobile phone or TV transmitter) if
these are in the same frequency range. 
Locking and unlocking the vehicle
Fig. 78 Remote control
key: Control buttons 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
I
Identification number . . . . . . . . . . . . . . . . . . . 293
Identification plate . . . . . . . . . . . . . . . . . . . . . . 293
Ignition key Safety interlock . . . . . . . . . . . . . . . . . . . . . . 172
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Indicator lamps Glow plug system . . . . . . . . . . . . . . . . . . . . . 69
Main beam headlights . . . . . . . . . . . . . . . . . 69
Indicator lamps - overview . . . . . . . . . . . . . . . . . 65
Instruments Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 62, 119
Interior lights Ambient lighting . . . . . . . . . . . . . . . . . . . . 124
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Luggage compartment . . . . . . . . . . . . . . . . 125
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Interior mirror With manual anti-dazzle setting . . . . . . . . 130
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . 108
Intermittent wipe . . . . . . . . . . . . . . . . . . . . . . . 127
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
J
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251, 256
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286 K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Air conditioner settings . . . . . . . . . . . . . . . 169
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Remote control key . . . . . . . . . . . . . . . . . . . 105
Settings for the driver seat . . . . . . . . . . . . 139
Kick-down feature . . . . . . . . . . . . . . . . . . . . . . . 186
L
Lamps Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . 67
Leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 218
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Instruments . . . . . . . . . . . . . . . . . . . . . 62, 119
Lights Adaptive headlights . . . . . . . . . . . . . . . . . . 121
Automatic headlight control . . . . . . . . . . . 115
Coming home function . . . . . . . . . . . . . . . 117
Cornering light . . . . . . . . . . . . . . . . . . . . . . 121
Dipped beam headlights faulty . . . . . . . . . . 82
Dynamic headlight range control . . . . . . . 120
Headlight flasher . . . . . . . . . . . . . . . . . . . . 123
Leaving home function . . . . . . . . . . . . . . . 117
Parking light . . . . . . . . . . . . . . . . . . . . . . . . 123
Reverse lights faulty . . . . . . . . . . . . . . . . . . . 82
Switching on and off . . . . . . . . . . . . . . . . . 115
Xenon lights . . . . . . . . . . . . . . . . . . . . . . . . 120
Load compartment in the luggage compart- ment
see Loading the luggage compartment . . . 16
Loading the luggage compartment . . . . . . . . . . 16 Locking the doors manually if the central lock-
ing fails to work
Locking the doors manually if the centrallocking fails to work . . . . . . . . . . . . . . . . 102
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Long periods of non-use Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Luggage compartment . . . . . . . . . . . . . . . . . . . 142 Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Extending . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Fastening rings . . . . . . . . . . . . . . . . . . . . . . 143
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Luggage compartment liner . . . . . . . . . . . 147
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . 143
Net partition . . . . . . . . . . . . . . . . . . . . . . . . 145
Retaining strap . . . . . . . . . . . . . . . . . . . . . . 144
Side storage compartment . . . . . . . . . . . . 148
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
see also Loading the luggage compartment . .16
Luggage compartment cover Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 146
M
Main beam headlights . . . . . . . . . . . . . . . 115, 122
Maintenance Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance and cleaning . . . . . . . . . . . . . . . 211
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 182
Manual operation Closing the sunroof manually . . . . . . . . . . 114
311
Index
