The essentials
Toggle between memories with the ignition
on and the memor y
di
splayed
Press the  button on the windscreen
w iper l
ev

er or the  button of the multifunc-
tion s t
eerin
g wheel.
MenuFunction
MFD from de-
parture
Display and storage of the values for
the journey and the consumption
from when the ignition is switched
on to when it is switched off.
If the journey is continued in less
than 2 hours after the ignition is
switched off, the new data is added
to the data already stored in the
memory. The memory will automati-
cally be deleted if the journey is in-
terrupted for more than 2 hours.
MFD from re- fuellingDisplay and storage of the values for
the journey and the consumption.
By refuelling, the memory will be
erased automatically.
MFD total
calculation
The memory records the values for a
specific number of partial trips, up
to a total of 19 hours and 59 mi-
nutes or 99 hours and 59 minutes,
or 1999.9 km or 9999 km, depend-
ing on the model of instrument pan-
el. On reaching either of these lim-
its a)
, the memory is automatically
erased and starts to count from 0
again.
a) It varies according to the instrument panel version.
Erasing a memory manually
● Select the memory that you wish to erase.
● Hold the  button of the multifunction
s t
eerin

g wheel or the  button of the multi-
f u
nction wheel
pressed down for about 2 sec-
onds.
Personalising the displays
In the Easy Connect system you can adjust
which of the possible displays of the MFD can
be shown on the instrument panel display
with the  button and the
S
ET
TINGS function
b utt
on ›

››  page 123.
Data summary
MenuFunction
Current fuel
consumption
The current fuel consumption dis-
play operates throughout the
journey, in litres/100 km; and
with the engine running and the
vehicle stopped, in litres/hour.
Average fuel consumption
After turning on the ignition, aver-
age fuel consumption in li-
tres/100 km will be displayed af-
ter travelling about 300 metres.
Otherwise horizontal lines are
displayed. The value shown is up-
dated approximately every 5 sec-
onds.
MenuFunction
Operating
range
Approximate distance in km that
can still be travelled with the fuel
remaining in the tank, assuming
the same style of driving is main-
tained. This is calculated using
the current fuel consumption.
Travelling
timeThis indicates the hours (h) and
minutes (min) since the ignition
was switched on.
JourneyDistance covered in km (m) after
switching on the ignition.
CNG quality
Whenever you refuel the quality
of the natural gas is automatically
verified and is displayed when
the ignition is switched on. The
display is made in a percentage
of between 70% and 100%. The
greater the percentage displayed
the lower the consumption may
be.
Average speed
The average speed will be shown
after a distance of about 100 me-
tres has been travelled. Otherwise
horizontal lines are displayed.
The value shown is updated ap-
proximately every 5 seconds.
Digital dis- play of speedCurrent speed displayed in digital
format.» 39

The essentialsMenuFunction
Speed warning
at --- km/h or
Speed warning
at --- mphIf the stored speed is exceeded
(between 30 - 250 km/h, or 19 -
155 mph), an audible warning is
given together with a visual warn-
ing.
Oil tempera-
tureUpdated engine oil temperature
digital display
Coolant tem-
perature gaugeDigital display of the current tem-
perature of the liquid coolant.
Convenience
consumersInformation about the vehicle’s
main convenience consumers. It
is displayed by means of a con-
sumption indicator bar.
Eco tipsTips on how to save fuel.
Reset data “when setting
off”Reset journey data when setting
off.
Reset data for“total calcu-
lation”Reset travel journey to zero. Storing a speed with the speed warning
● Select the display Speed warning at
--- km/h (---


mph)
● Press the button 
 on the windscreen
w iper l
ev
er or the button  on the multifunc-
tion s t
eerin
g wheel to store the current speed
and activate the warning.
● To switch system on: adjust to the desired
speed within 5 sec
onds using the rocker switch
 on the windscreen wiper lever or
b y
t

urning the thumbwheel on the multifunc-
tion steering wheel. Next, press the button  or
 again or wait several seconds.
The s peed i
s

stored and the warning activa-
ted.
● To switch system off: press the but-
ton  or
 . The stored speed is de-
l et
ed.
Assist systems menu
MenuFunction
ACCDisplay of Adaptive Cruise Control
(ACC) ››› page 216.
Front AssistSwitching the monitoring system
on and off ››› page 212.
Fatigue detec-
tion *Switching the fatigue detection
on or off (pause recommenda-
tion) ››› page 227. Status display
Bonnet, r e
ar lid and door

s open Fig. 49
A: bonnet open; B: rear lid open; C:
fr ont
l

eft door open; D: right rear door open. When the ignition is switched on or when
driv
in
g, the bonnet, r

ear lid or doors that are
open will be indicated on the instrument pan-
el display, and, as applicable, this will be in-
dicated audibly. The display may vary accord-
ing to the type of instrument panel fitted. 40

The essentialsIllustra-

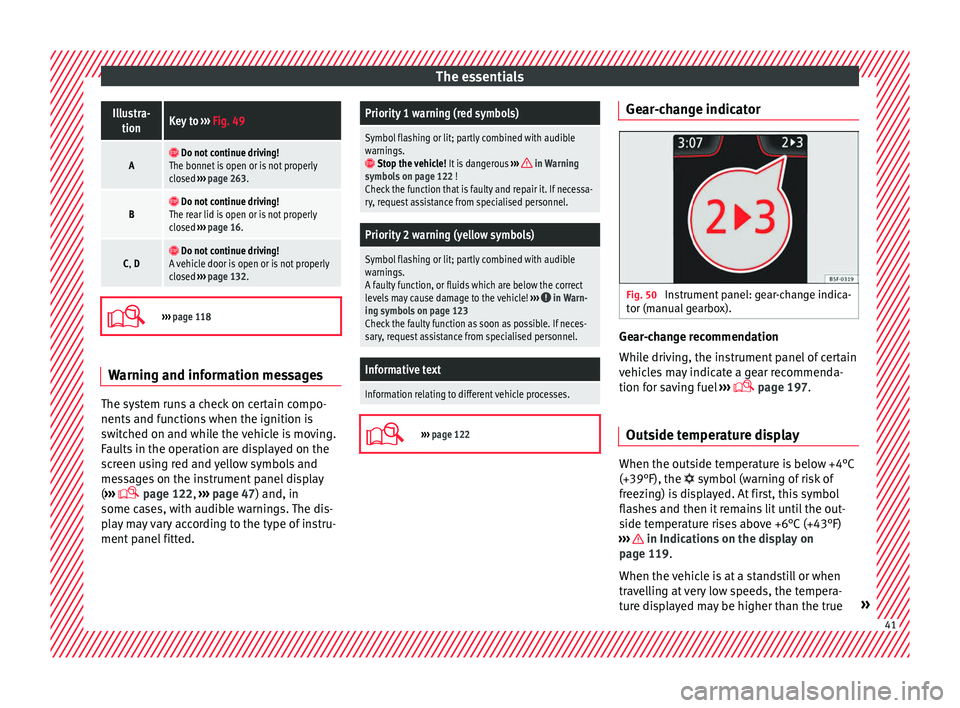

tionKey to ››› Fig. 49
A  Do not continue driving!
The bonnet is open or is not properly
closed ››› page 263.
B  Do not continue driving!
The rear lid is open or is not properly
closed ››› page 16.
C, D  Do not continue driving!
A vehicle door is open or is not properly
closed ››› page 132. 
›››
page 118 Warning and information messages
The system runs a check on certain compo-
nents
and f
u

nctions when the ignition is
switched on and while the vehicle is moving.
Faults in the operation are displayed on the
screen using red and yellow symbols and
messages on the instrument panel display
( ›››
 page 122,
››› page 47) and, in
some cases, with audible warnings. The dis-
play may vary according to the type of instru-
ment panel fitted.
Priority 1 warning (red symbols)
Symbol flashing or lit; partly combined with audible
warnings.
 Stop the vehicle! It is dangerous ››› in Warning
symbols on page 122 !
Check the function that is faulty and repair it. If necessa-
ry, request assistance from specialised personnel.
Priority 2 warning (yellow symbols)
Symbol flashing or lit; partly combined with audible
warnings.
A faulty function, or fluids which are below the correct
levels may cause damage to the vehicle! ›››
in Warn-
ing symbols on page 123
Check the faulty function as soon as possible. If neces-
sary, request assistance from specialised personnel.
Informative text
Information relating to different vehicle processes. 
›››
page 122 Gear-change indicator
Fig. 50
Instrument panel: gear-change indica-
t or (m
anual

gearbox). Gear-change recommendation
Whi
l
e driv

ing, the instrument panel of certain
vehicles may indicate a gear recommenda-
tion for saving fuel ›››
 page 197.
Outside temperature display When the outside temperature is below +4°C
(+39°F), the 
symbol
(w

arning of risk of
freezing) is displayed. At first, this symbol
flashes and then it remains lit until the out-
side temperature rises above +6°C (+43°F)
››› in Indications on the display on
p ag
e 119

.
When the vehicle is at a standstill or when
travelling at very low speeds, the tempera-
ture displayed may be higher than the true » 41

The essentials
outside temperature as a result of the heat
pr oduc
ed b
y the engine.
The temperatures measured range from
-40°C to +50°C (-40°F to +122°F).
Engine oil temperature display The engine reaches its operating temperature
when in normal
driv

ing conditions the oil
temperature is between 80°C (178°F) and
120°C (248°F). If the engine is required to
work hard and the outside temperature is
high, the engine oil temperature can in-
crease. This does not present any problem as
long as the warning lamps  ››› table on
page 48 or  ››› table on page 48 do not
appear on the display.
Vehicles without multifunction steering
wheel
● Press the rocker switch ››
›

Fig. 47 2 until
the m ain menu ap
pe
ars. Enter into Driving
data . With the button 2 move to the oil
t emper
at

ure gauge.
Vehicles with multifunction steering wheel
● Enter the submenu Driving data and
turn the thumbwheel
until the oil tempera-
ture display appears. Additional consumers ●
Operation with the windscreen wiper lever*:
Pre s

s the rocker switch ››› Fig. 47 2 until the
main menu ap pe
ars. Enter into the section
Driving data . With the rocker switch,
move to the display Convenience con-
sumers .
● Operation with the multi-function steering
wheel*:
move with the buttons 
 or
  to Driving data
and enter with
OK. Turn
the right thumbwheel until the Conven-
ience consumers display appears.
In addition, a scale will inform you of the cur-
rent sum of all the additional appliances.
Saving tips Tips on how to save fuel will be displayed in
c
ondition
s

that increase fuel consumption.
Follow them to reduce consumption. The indi-
cations appear automatically only with the ef-
ficiency programme. After a time, the tips will
disappear automatically.
If you wish to hide a saving tip immediately
after it appears, press any button on the
windscreen wiper lever*/multifunction steer-
ing wheel*. Note
● If y

ou hide a saving tip, it will reappear af-
ter you switch the ignition on again.
● The saving tips do not appear in all situa-
tions, but
rather with a large separation of
time. Speed warning device
The speed warning device warns the driver
when they h
av

e exceeded the pre-set speed
limit by 3 km/h (2 mph). An audible warning
signal sounds, and the warning lamp  and
the driver message Speed limit excee-
ded! will be displayed simultaneously on the
instrument panel. The warning lamp 
switches off when reducing speed below the
stored maximum limit.
Speed warning programming is recommen-
ded if you wish to be reminded of a maxi-
mum speed, such as when travelling in a
country with different speed limits or for a
maximum speed for winter tyres.
Setting speed limit warning
You can use the radio or the Easy Connect* to
set, alter or cancel the speed limit warning.
● Vehicles with radio : pres
s the SETUP button
> c ontr
o
l button  Driver Assistant >
Speed warning .42

The essentials
● Vehicle
s
with Easy Connect : Press the button and the function button SETTINGS >
Driver assistance > ACC > Dis-
tance .
The w arnin
g limit
can be set from 30 to
210 km/h (18 to 150 mph) ›››
 page 209.
The adjustment is made at 10 km/h (6 mph)
intervals. Note
● Ple a

se bear in mind that, even with the
speed warning function, it is still important
to keep an eye on the vehicle speed with the
speedometer and to observe the legal speed
limits.
● The speed limit warning function in the ver-
sion for some c
ountries warns you at a speed
of 120 km/h (75 mph). This is a factory-set
speed limit. Service intervals
Fig. 51
Instrument panel The service interval indication appears on the
in
s
trument

panel display ››› Fig. 51 1 .
S EA
T di
stinguishes between services with en-
gine oil change (e.g. Oil change service) and
services without engine oil change (e.g. In-
spection).
In vehicles with Services established by time
or mileage, the service intervals are already
pre-defined.
In vehicles with LongLife Service , the inter-
vals are determined individually. Thanks to
technological progress, maintenance work
has been greatly reduced. Because of the
technology used by SEAT, with this service
you only need to change the oil when the ve- hicle so requires. To calculate this change
(max. 2 y

ears), the vehicle's conditions of
use and individual driving styles are consid-
ered. The advance warning first appears 20
days before the date established for the cor-
responding service. The kilometres (miles)
remaining until the next service are always
rounded up to the nearest 100 km (miles)
and the time is given in complete days. The
current service message cannot be viewed
until 500 km after the last service. Prior to
this, only lines are visible on the display.
Inspection reminder
When the Service date is approaching, when
the ignition is switched on a Service remind-
er is displayed.
Vehicles without text messages : a span-
ner  will be displayed on the instrument
panel plus an indication in km.
The kilometres indicated are the maximum
number of kilometres that can be travelled
until the next service. After a few seconds,
the display mode changes. A clock symbol
appears and the number of days until the
next service is due.
Vehicles with text messages : Service in
--- km or --- days will be shown on the
instrument panel display. » 43

The essentials
Service due
When the ser v
ic
e date is due, an audible
warning is given when the ignition is switch-
ed on and the spanner displayed on the
screen flashes for a few seconds .
Vehicles with text messages : Service now
will be shown on the instrument panel dis-
play.
Reading a service notification
With the ignition switched on, the engine off
and the vehicle at a standstill, the current
service notification can be read:
Press and hold the button 0.0/SET for more
th an 5 sec
ond

s to consult the service mes-
sage 2 .
When the ser v
ic

e date has passed , a minus
sign is displayed in front of the number of kil-
ometres or days. Vehicles with text messages
: the fol
lowing
message is displayed: Service --- km
(miles) or --- days ago .
Resetting service interval display
If the service was not carried out by a SEAT
dealership, the display can be reset as fol-
lows: ● Switch off the ignition, press and hold the
button 0.0/S

ET
2 .
● Switch ignition back on.
● Release the button 0.0/S
ET and press it
ag ain f
or the ne

xt 20 seconds. Note
● The serv ic

e message disappears after a few
seconds, when the engine is started or when OK/RESET is pressed on the windscreen wiper
lev er

, or OK on the multifunction steering
wheel.
● In v
ehicles with the LongLife system in
which the batt
ery has been disconnected for
a long period of time, it is not possible to cal-
culate the date of the next service. Therefore the service interval display may not be cor-
rect
. In thi

s case, bear in mind the maximum
service intervals permitted in the ››› Booklet
Maintenance Programme.
● If you reset the display manually, the next
servic
e interval will be indicated as in vehi-
cles with fixed service intervals. For this rea-
son we recommend that the service interval
display be reset by a SEAT authorised Dealer. 44

The essentials

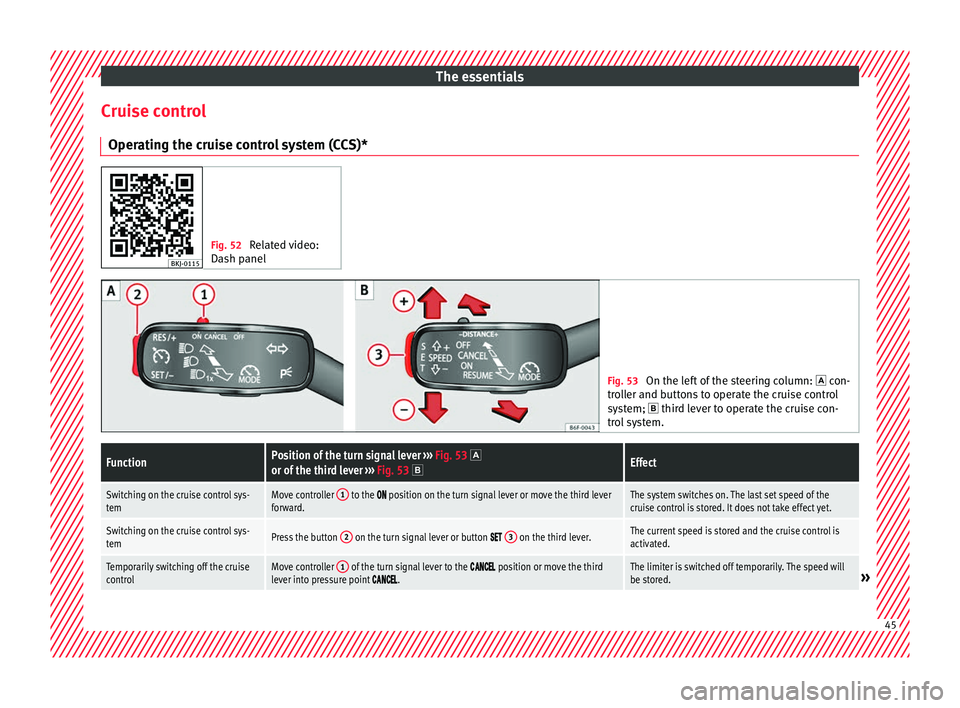

Cruise control Oper atin
g the c
ruise control system (CCS)* Fig. 52
Related video:
Dash panel Fig. 53
On the left of the steering column:  con-
tro

ller and buttons to operate the cruise control
system;  third lever to operate the cruise con-
trol system.
FunctionPosition of the turn signal lever ››› Fig. 53 or of the third lever ››› Fig. 53 Effect
Switching on the cruise control sys-
temMove controller 1 to the  position on the turn signal lever or move the third lever
forward.The system switches on. The last set speed of the
cruise control is stored. It does not take effect yet.
Switching on the cruise control sys-
temPress the button 2 on the turn signal lever or button  3 on the third lever.The current speed is stored and the cruise control is
activated.
Temporarily switching off the cruise
controlMove controller 1 of the turn signal lever to the  position or move the third
lever into pressure point .The limiter is switched off temporarily. The speed will
be stored.» 45

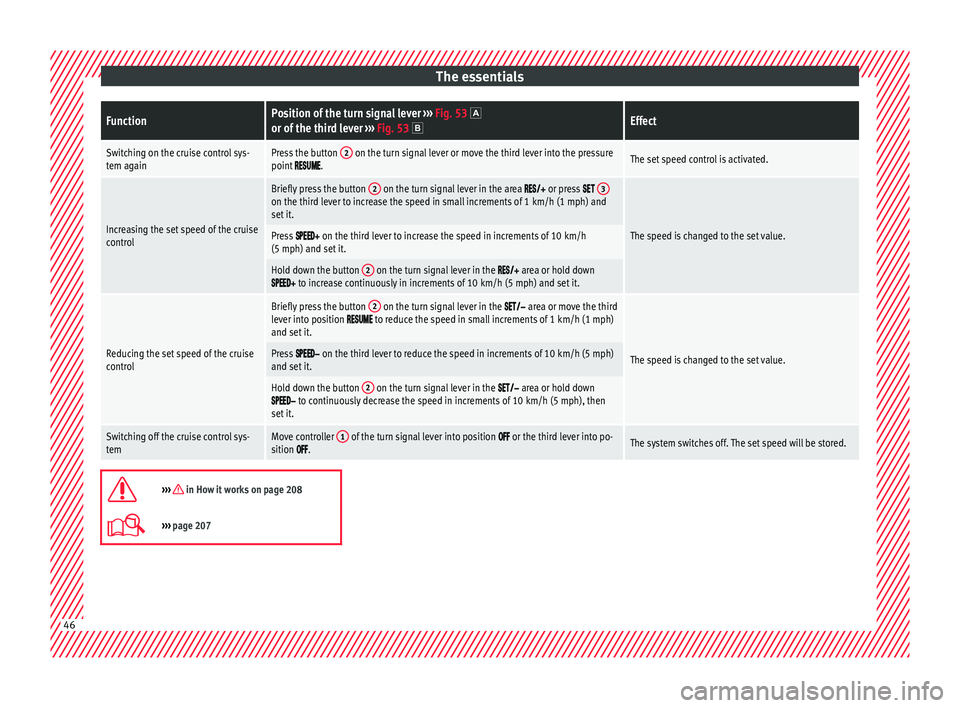

The essentialsFunctionPosition of the turn signal lever
››› Fig. 53 or of the third lever ››› Fig. 53 Effect
Switching on the cruise control sys-
tem againPress the button 2 on the turn signal lever or move the third lever into the pressure
point .The set speed control is activated.
Increasing the set speed of the cruise
control
Briefly press the button 2 on the turn signal lever in the area  or press  3on the third lever to increase the speed in small increments of 1 km/h (1 mph) and
set it.
The speed is changed to the set value.Press  on the third lever to increase the speed in increments of 10 km/h
(5 mph) and set it.
Hold down the button 2 on the turn signal lever in the  area or hold down to increase continuously in increments of 10 km/h (5 mph) and set it.
Reducing the set speed of the cruise
control
Briefly press the button 2 on the turn signal lever in the  area or move the third
lever into position  to reduce the speed in small increments of 1 km/h (1 mph)
and set it.
The speed is changed to the set value.Press  on the third lever to reduce the speed in increments of 10 km/h (5 mph)
and set it.
Hold down the button 2 on the turn signal lever in the  area or hold down to continuously decrease the speed in increments of 10 km/h (5 mph), then
set it.
Switching off the cruise control sys-
temMove controller 1 of the turn signal lever into position  or the third lever into po-
sition .The system switches off. The set speed will be stored. 
››› in How it works on page 208
›››
page 207 46

The essentials

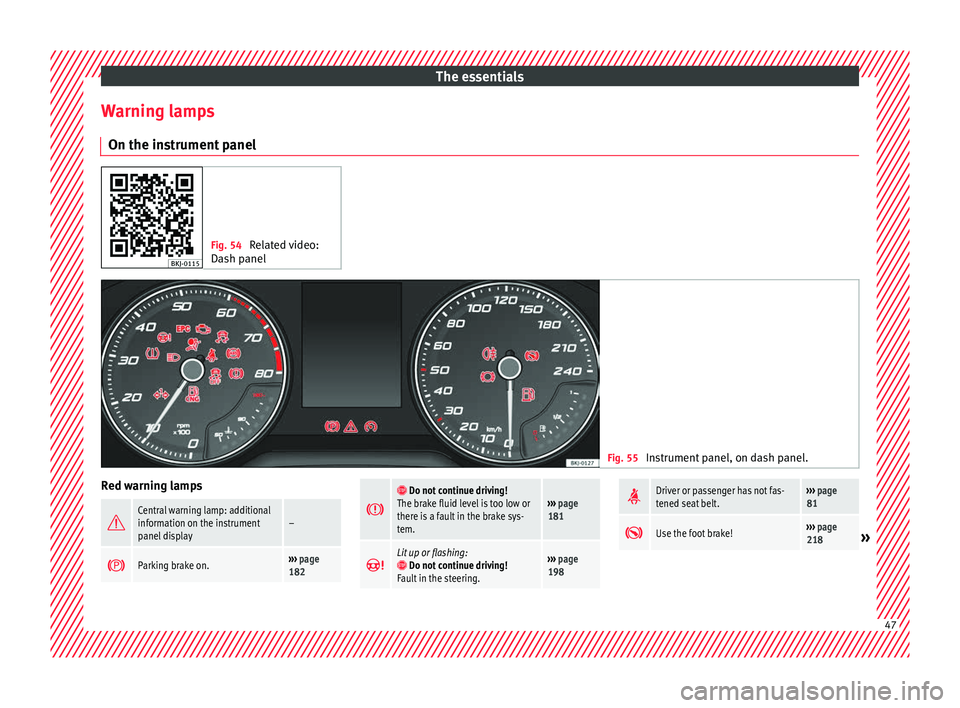

Warning lamps On the in s
trument
panel Fig. 54
Related video:
Dash panel Fig. 55
Instrument panel, on dash panel. Red warning lamps

Central warning lamp: additional
information on the instrument
panel display–

Parking brake on.›››
page
182  
Do not continue driving!
The brake fluid level is too low or
there is a fault in the brake sys-
tem.››› page
181 
Lit up or flashing: Do not continue driving!
Fault in the steering.››› page
198 
Driver or passenger has not fas-
tened seat belt.›››
page
81 
Use the foot brake!›››
page
218» 47

The essentials
Yellow warning lamps Central warning lamp: additional
information on the instrument
panel display–

Front brake pads worn.›››
page
181 
it lights up:
Fault in the ESC, or
disconnection caused by the sys-
tem.
››› page
183
flashes: ESC or ASR activated. 
it lights up:
fault in the ASR or
disconnection caused by the sys-
tem.
››› page
184
flashes: ASR working. 
ASR manually deactivated.
Or else
: ESC in Sport mode.››› page
183 
ABS faulty or does not work.›››
page
187 
Rear fog light switched on.›››
page 31 
lights up or flashes:
fault in the
emission control system.››› page
203 
it lights up:
pre-heating of diesel
engine.
››› page
203
flashes: fault in the diesel engine
management. 
fault in the petrol engine man-
agement.›››
page
203 
lights up or flashes:
fault in the
steering system.››› page
198 
Tyre pressure too low, or fault in
the tyre pressure monitoring sys-
tem.›››
page
278 
Fuel tank almost empty.›››
page
121 
Fault in airbag system and seat
belt tensioners.›››
page
91 Other warning lamps

Left or right turn signal.›››
page 32
Hazard warning lights on.››› page 32
››› page
150 
Trailer turn signals›››
page
243 
it lights up green:
Press the brake
pedal!
It blinks in green: the selector lev-
er locking button has not engag-
ed.
››› page
190 
it lights up green:
cruise control
activated or speed limiter switch-
ed on and active.
››› page 45
››› page
209
it blinks in green: the speed set
by the speed limiter has been ex-
ceeded. 
Main beam on or flasher on.›››
page 32 
Natural gas operating mode›››
page
121 
››› in Warning symbols on page 122
›››
page 122 On the instrument panel display
Fig. 56
On the instrument panel display: door
open.  
Do not continue driving!
With the corresponding indica-
tion: door(s), rear lid or bonnet
open or not properly closed.
››› page 40 48
