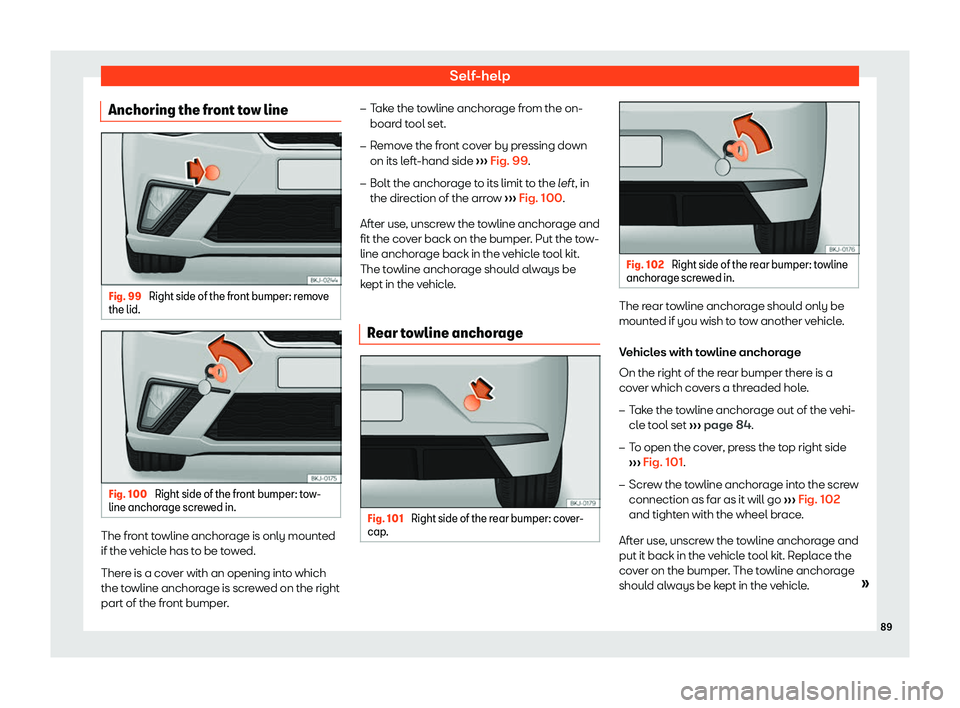

Anchoring the front tow line Fig. 99
Right side of the front bumper: remove
the lid. Fig. 100
Right side of the front bumper: tow-
line anchor age scr
e
wed in. The front towline anchorage is only mounted
if the v
ehicl
e has t

o be towed.
There is a cover with an opening into which
the towline anchorage is screwed on the right
part of the front bumper.

Emergencies
WARNING

Fuses and bulbs
Fuses and bulbs
Fuses Intr oduction In general, a fuse can be assigned to various
electrical components. Lik
e
wise, an electrical
component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible. WARNING
The high voltages in the electrical system
can give serious el ectrical shocks, causing
burns and e

ven death!

Emergencies

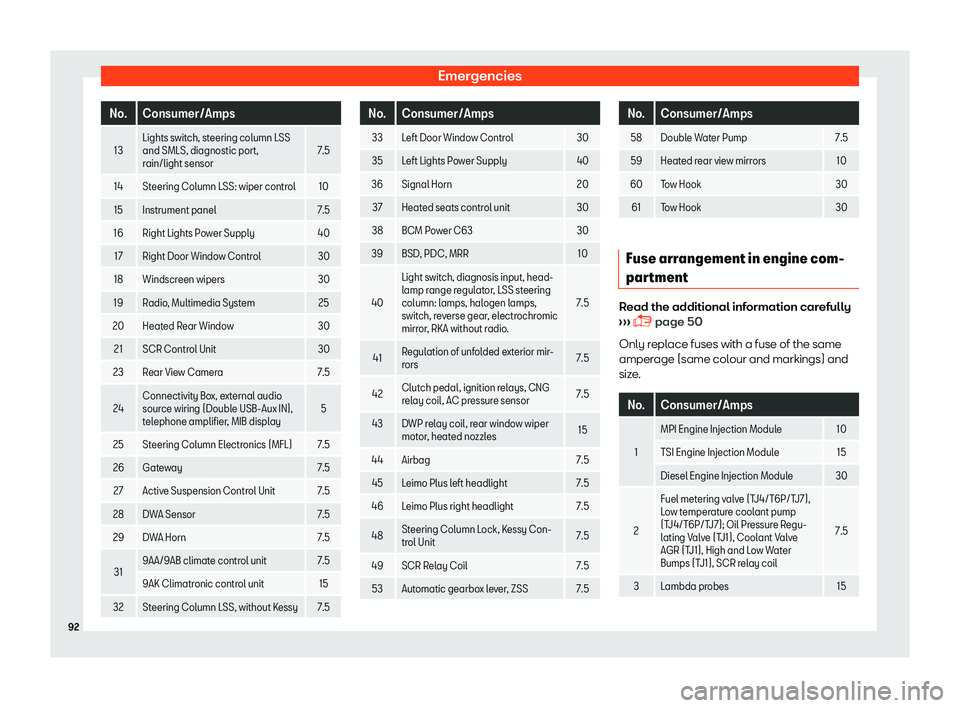

No. Consumer/Amps
13 Lights switch, steering column LSS
and SMLS, diagnostic port,
r
ain/light sensor 7.5
14
Steering Column LSS: wiper control 10
15 Instrument panel 7.5
16 Right Lights Power Supply 40
17 Right Door Window Control 30
18 Windscreen wipers 30
19 Radio, Multimedia System 25
20 Heated Rear Window 30
21 SCR Control Unit 30
23 Rear View Camera 7.5
24 Connectivity Box, external audio
sour
ce wiring (Doubl
e USB-Aux IN),
t

elephone amplifier, MIB display 5
25 Steering Column Electronics (MFL) 7.5
26 Gateway 7.5
27 Active Suspension Control Unit 7.5
28 DWA Sensor 7.5
29 DWA Horn 7.5
31 9AA/9AB climate control unit 7.5
9AK Climatronic control unit
15
32 Steering Column LSS, without Kessy 7.5 No. Consumer/Amps
33 Left Door Window Control 30
35 Left Lights Power Supply 40
36 Signal Horn 20
37 Heated seats control unit 30
38 BCM Power C63 30
39 BSD, PDC, MRR 10
40 Light switch, diagnosis input, head-
l
amp r
ange r

egulator, LSS steering
column: lamps, halogen lamps,
switch, reverse gear, electrochromic
mirror, RKA without radio. 7.5
41 Regulation of unfolded exterior mir-
rors 7.5
4 2 Clut

ch pedal, ignition relays, CNG
relay coil
, AC pressure sensor 7.5
43 DWP relay coil, rear window wiper motor, heat
ed nozzles 15
44 Airbag 7.5
45 Leimo Plus left headlight 7.5
46 Leimo Plus right headlight 7.5
48 Steering Column Lock, Kessy Con-
trol Unit 7.5
49 SCR R

elay Coil 7.5
53 Automatic gearbox lever, ZSS 7.5 No. Consumer/Amps
58 Double Water Pump 7.5
59 Heated rear view mirrors 10
60 Tow Hook 30
61 Tow Hook 30 Fuse arrangement in engine com-
partment
Read the additional information carefully

Fuses and bulbs

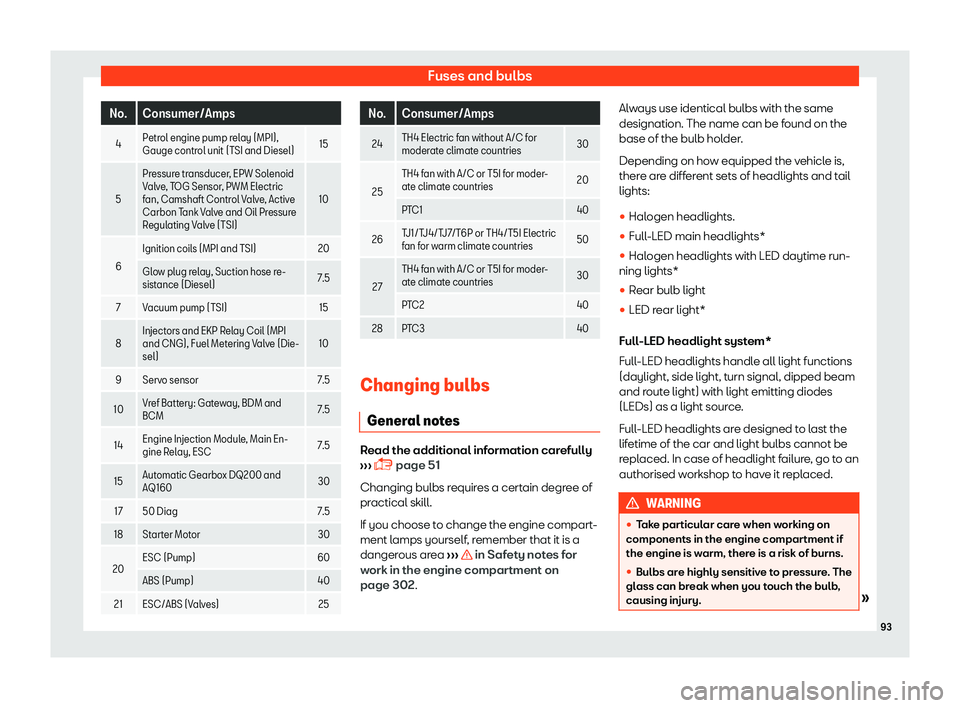

No. Consumer/Amps
4 Petrol engine pump relay (MPI),
Gauge control unit (T
SI and Diesel)15
5 Pr
essure transducer, EPW Solenoid
Val v

e, TOG Sensor, PWM Electric
fan, Camshaft Control Valve, Active
Carbon Tank Valve and Oil Pressure
Regulating Valve (TSI) 10
6 Ignition coils (MPI and TSI)
20
Glow plug relay, Suction hose re-
sistance (Diesel) 7.5
7 V

acuum pump (TSI) 15
8 Injectors and EKP Relay Coil (MPI
and CNG), Fuel Metering V
al

ve (Die-
sel) 10
9 Servo sensor 7.5
10 Vref Battery: Gateway, BDM and
BCM 7.5
14 Engine Injection Module, Main En-
gine Relay, ESC 7.5
15 Aut

omatic Gearbox DQ200 and
AQ160 30
17 50 Diag 7.5
18 Starter Motor 30
20 ESC (Pump)
60
ABS (Pump) 40
21 ESC/ABS (Valves) 25 No. Consumer/Amps
24 TH4 Electric fan without A/C for
moderat
e climat

e countries 30
25 TH4 fan with A/C or T5I for moder-
ate climat
e countries 20
P

TC1 40
26 TJ1/TJ4/TJ7/T6P or TH4/T5I Electric
fan f
or w

arm climate countries 50
27 TH4 fan with A/C or T5I for moder-
ate climat
e countries 30
P

TC2 40
28 PTC3 40 Changing bulbs
Gener al not
es Read the additional information carefully

Emergencies

Fuses and bulbs

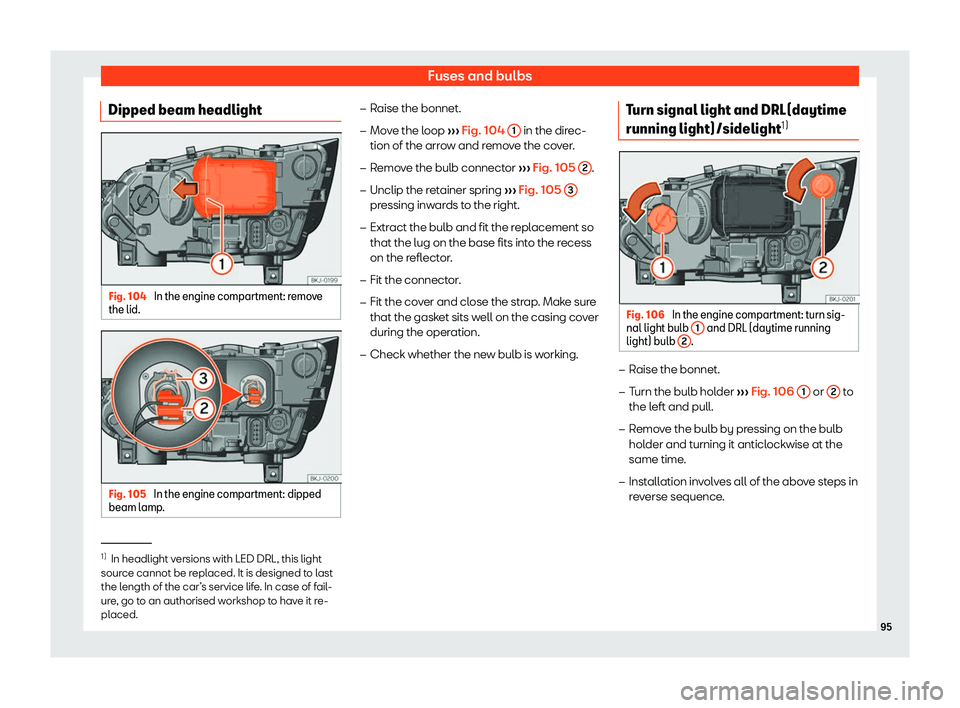

Dipped beam headlight Fig. 104
In the engine compartment: remove
the lid. Fig. 105
In the engine compartment: dipped
beam l amp
.

Emergencies

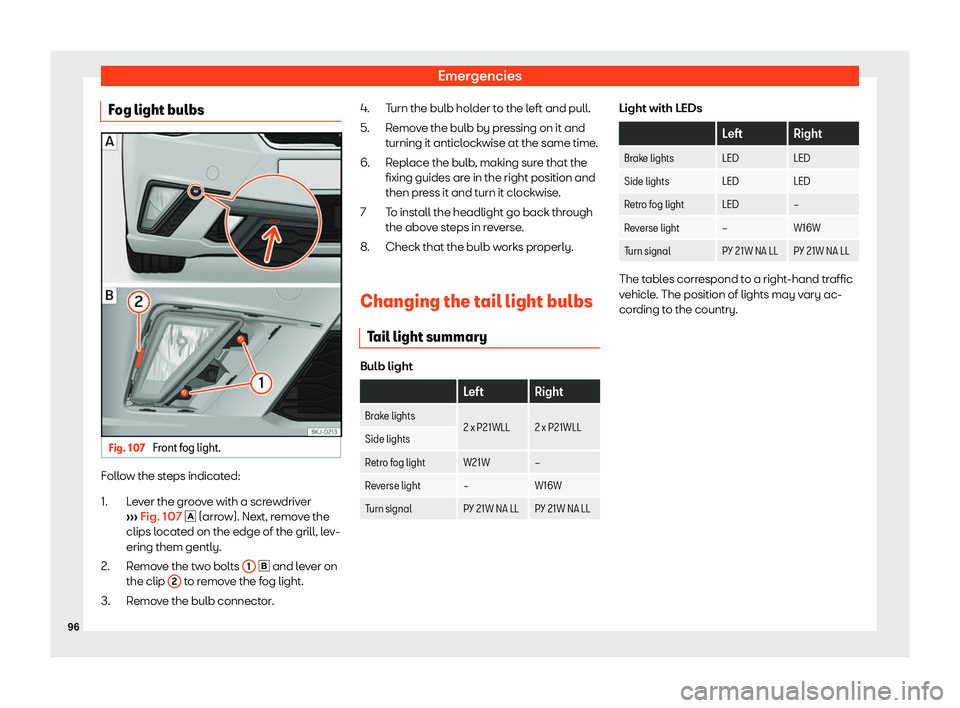

Fog light bulbs Fig. 107
Front fog light. Follow the steps indicated:
Le
v
er the groove with a screwdriver

Fuses and bulbs

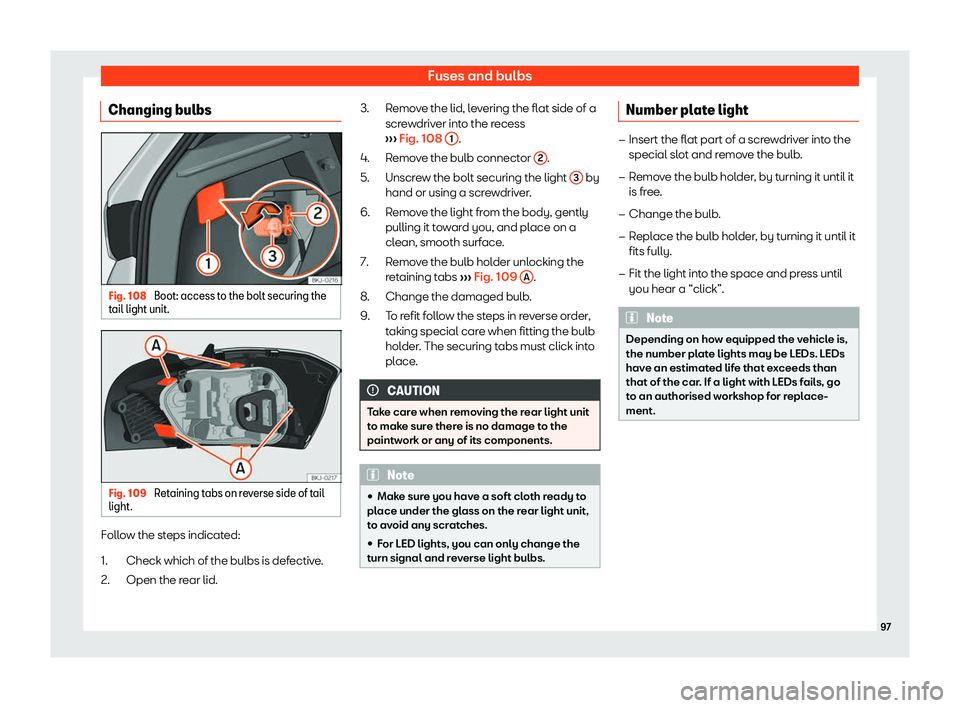

Changing bulbs Fig. 108
Boot: access to the bolt securing the
t ail light unit. Fig. 109
Retaining tabs on reverse side of tail
light. Follow the steps indicated:
Check which of the bulbs is def ectiv
e
.
Open the rear lid.
1.
2. Remove the lid, levering the flat side of a
screw

driver into the recess

Emergencies

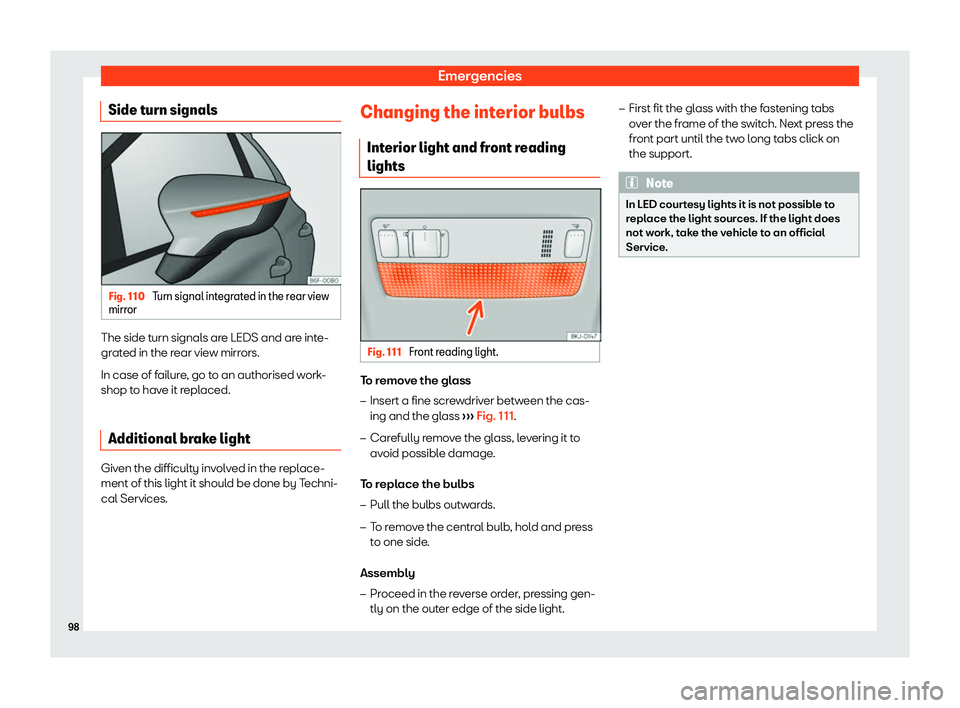

Side turn signals Fig. 110
Turn signal integrated in the rear view
mirr or The side turn signals are LEDS and are inte-
gr
at
ed in the r
ear view mirrors.
In case of failure, go to an authorised work-
shop to have it replaced.
Additional brake light Given the difficulty involved in the replace-
ment of this light it shoul
d be done by Techni-
cal Services. Changing the int

erior bulbs
Interior light and front r
eading
lights Fig. 111
Front reading light. To remove the glass
