Page 21 of 360
The essentials

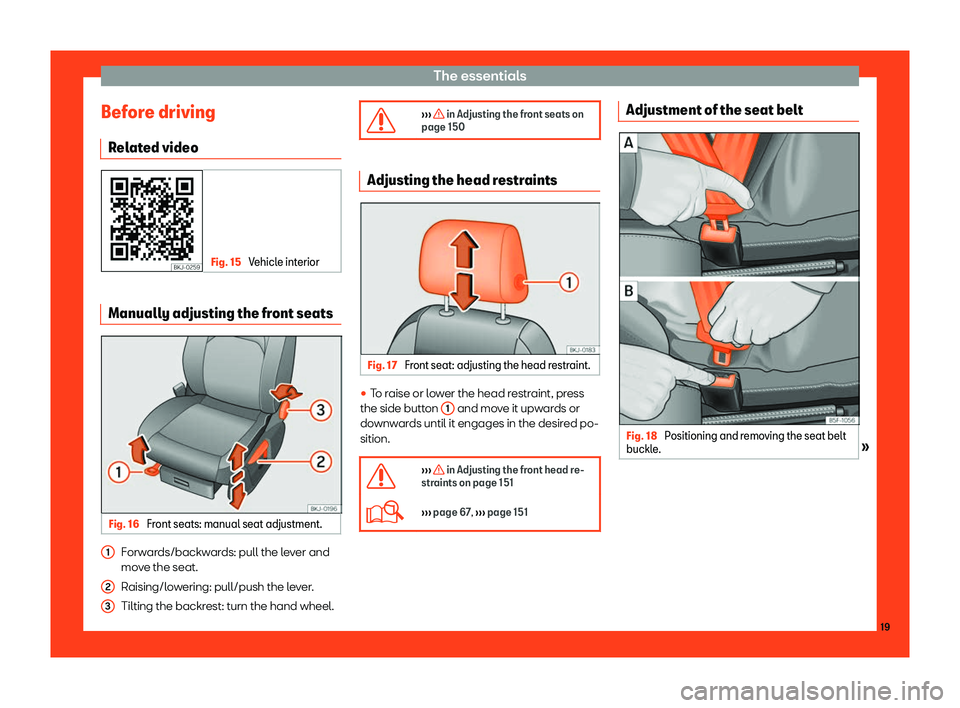

Before driving R el
at
ed video Fig. 15
Vehicle interior Manually adjusting the front seats
Fig. 16
Front seats: manual seat adjustment. Forwards/backwards: pull the lever and
mo
v
e the seat.
R
aising/lowering: pull/push the lever.
Tilting the backrest: turn the hand wheel.
1 2
3
Page 22 of 360
The essentials
Fig. 19
Correct seat belt and head restraint
positions, view ed fr
om front and the side.To adjust the seat belt around your shoulders,
adjust the height of the seats.
The shoul
der part of the seat belt shoul
d be
w
ell centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.
Page 23 of 360
The essentials

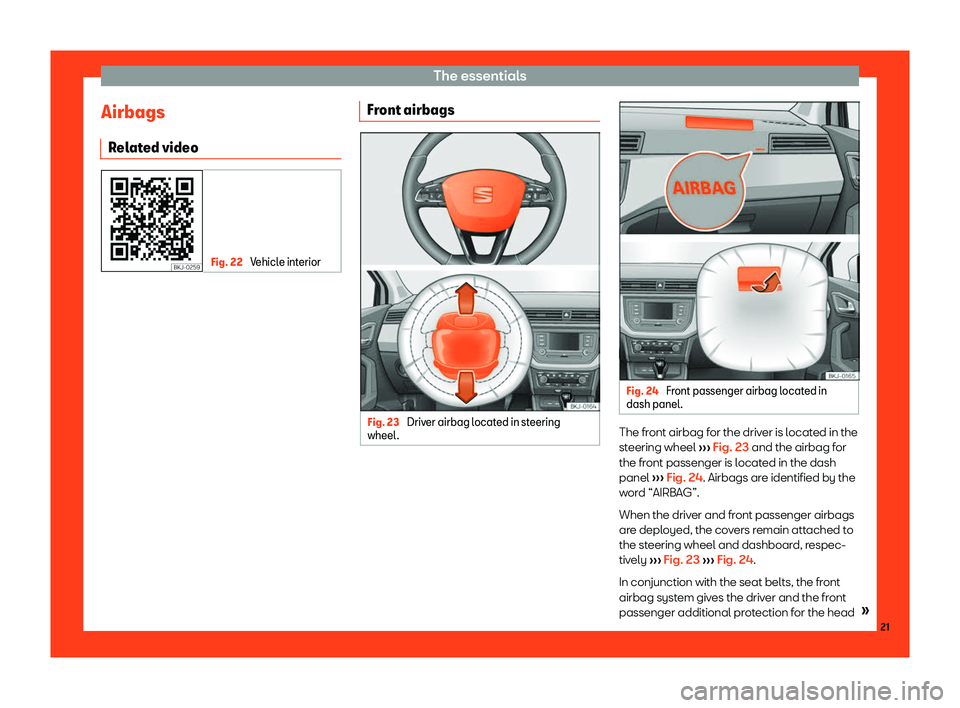

Airbags R el
at
ed video Fig. 22
Vehicle interior Front airbags
Fig. 23
Driver airbag located in steering
wheel . Fig. 24
Front passenger airbag located in
dash panel . The front airbag for the driver is located in the
st
eering wheel
Page 24 of 360
The essentials

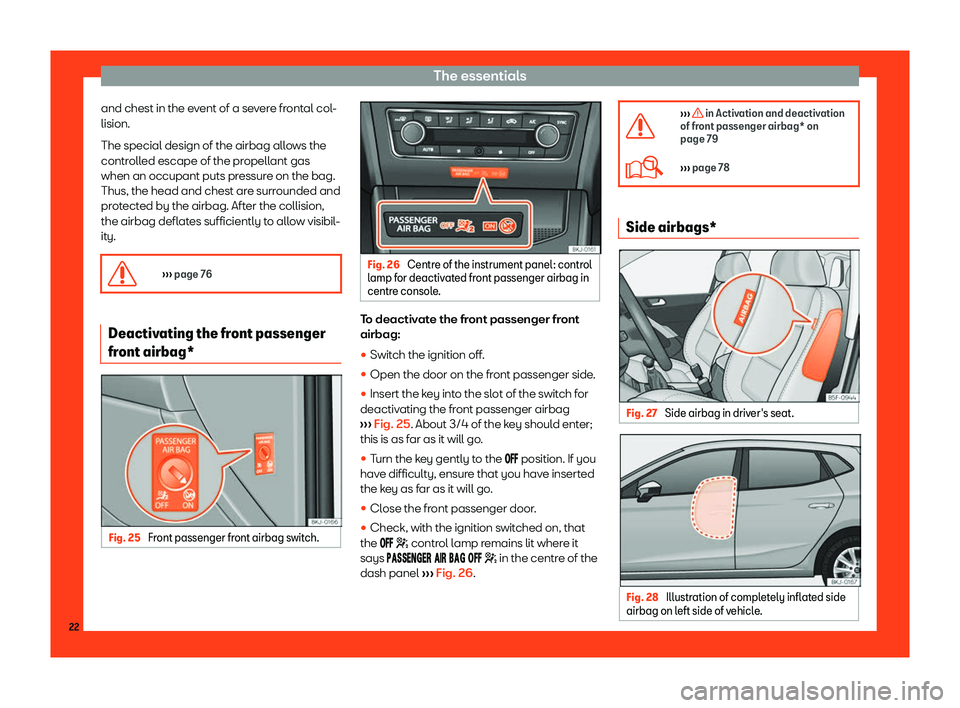

and chest in the event of a severe frontal col-
lision.
The special design of the airbag all o
ws the
contr
olled escape of the propellant gas
when an occupant puts pressure on the bag.
Thus, the head and chest are surrounded and
protected by the airbag. After the collision,
the airbag deflates sufficiently to allow visibil-
ity.
Page 25 of 360
The essentials

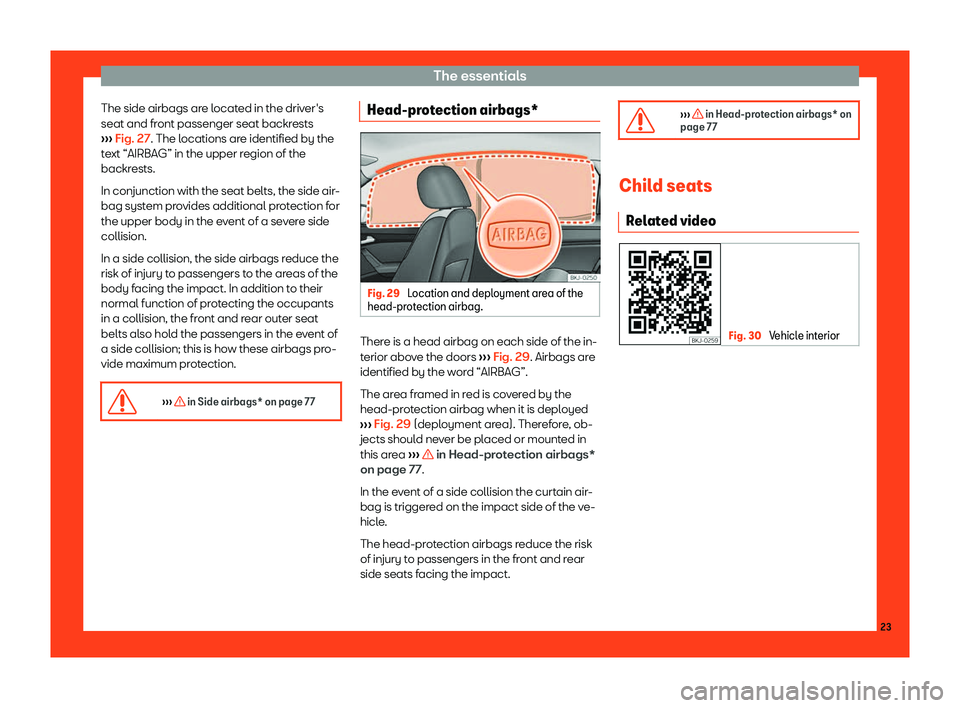

The side airbags are located in the driver
Page 26 of 360
The essentials

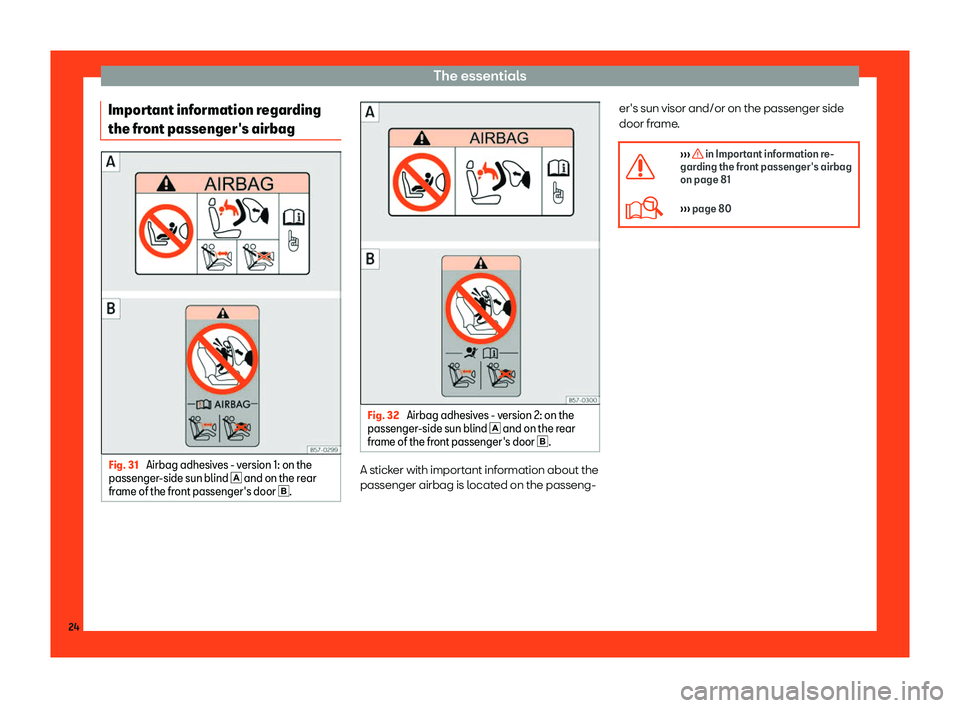

Important information regarding
the fr ont passenger
Page 27 of 360
The essentials

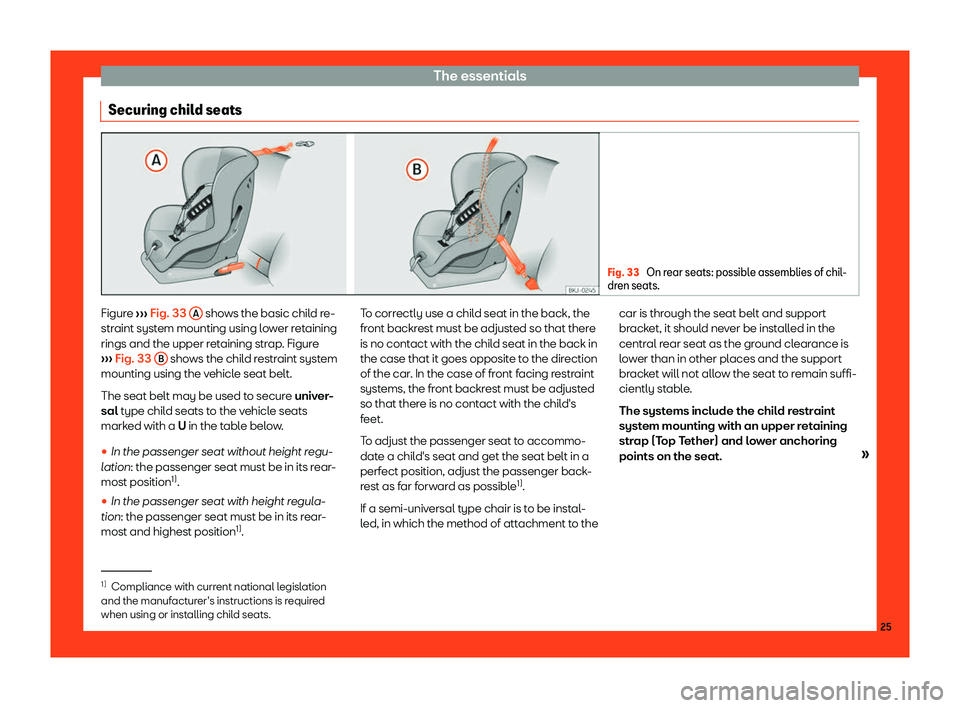

Securing child seats Fig. 33
On rear seats: possible assemblies of chil-
dren seats. Figure
Page 28 of 360
The essentials
Weight group
Seating position
Front passenger seat a)
Rear side seat Rear central seat b)
airbag on airbag off
Group 0 to 10 kg XUc)
U U
Group 0+ to 13 kg XUc)
U U
Group I 9 to 18 kg XUc)
U U
Group II 15 to 25 kg XUFc)
UF UF
Group III 22 to 36 kg XUFc)
UF UF
X: It is not compatible to install chairs in this configuration.
U: Suit abl
e f
or universal restraint systems for use in this weight group.
UF: Acceptable for front-facing universal-category child restraint systems approved for this mass group. a)
Compliance with current national legislation and the manufacturer
Page 29 of 360
The essentials

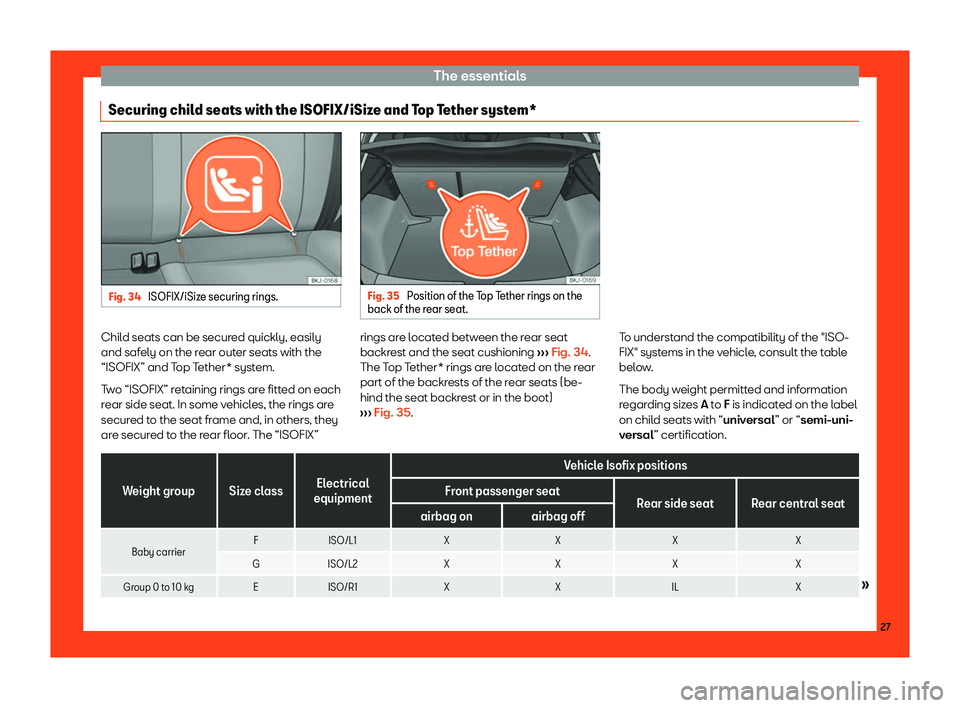

Securing child seats with the ISOFIX/iSize and Top Tether system* Fig. 34
ISOFIX/iSize securing rings. Fig. 35
Position of the Top Tether rings on the
back of the rear seat. Child seats can be secured quickly, easily
and saf
ely on the r
ear out
er seats with the
“ISOFIX” and Top Tether* system.
Two “ISOFIX” retaining rings are fitted on each
rear side seat. In some vehicles, the rings are
secured to the seat frame and, in others, they
are secured to the rear floor. The “ISOFIX” rings are located between the rear seat
backrest and the seat cushioning
Page 30 of 360
The essentials
Weight group Size class
Electrical
equipment Vehicle Isofix positions
Front passenger seat Rear side seat Rear central seat
airbag on airbag off
Group 0+ to 13 kg E
ISO/R1 XX IL X
D ISO/R2 XX IL X
C ISO/R3 XX IL X
Group I 9 to 18 kg D
ISO/R2 XX IL X
C ISO/R3 XX IL X
B ISO/F2 XXIUF/IL X
B1 ISO/F2X XXIUF/IL X
A ISO/F3 XXIUF/IL X
Group II 15 to 25 kg --- --- --- ---
Group III 22 to 36 kg --- --- --- ---
IUF: Suitable for forward-facing ISOFIX universal child restraint systems approved for use in this mass group.
IL: It is suit abl
e for certain ISOFIX child restraint systems (CRS) that can be for the specific vehicle, restricted or semi-universal categories. Take the child seat manufacturer
