L73vw2 Seat Ibiza 2020 Directive 2014/53/EU Bluetooth

Name and address of the Manufacturer
Name and Surname / Function:
LG Electronics European Shared Service Center B.V.
Krijgsman 1, 1186 DM Amstelveen, The Netherlands Yun Hee Yang / Director EU DECLARATION OF CONFORMITY
Object of the declarationNumber
DoC_MIB2 GP_200901
This declaration of conformity is issued under the sole responsibility of the manufacturer.
The object of the declaration described above is in conformity with the relevant Union harmonisation
legislation :
- References to the relevant harmonised standards used or references to the technical specifications in relation to
which conformity is declared
Signed for and on behalf of: LG Electronics Inc.
Authorised Representative:
2020.09.01Date of issue: 1
2
3
4
5
8
9
11
1/2LG Electronics Inc
LG Twin Towers
128 Yeoui - daero , Yeongdeungpo - gu
Seoul 150 – 721
Korea
Additional information 7Product information Product Name
Model Name CAR NAVIGATION
MIB2 GP, L64SK2, L60SK2, L62VW2, L73SK2, L72SK2, L77VW2, L73VW2, L81SE2, L81SK2, L82SE2
Additional information 6
10
The notified body performed
and issued the certificate N/AName:N /A
Number:N /A
N/ARadio Equipment Directive 2014/53/EU
EN 62368 - 1:2014/A11:2017 and EN IEC 62368 - 1:2020+A11:2020 EN 62311:2008
EN 301 489 - 1 V2.1.1
EN 301 489 - 17 V3.1.1
EN 55020:2007+A11:2011
EN 55024:2010
EN 55032:2015
EN 300 328 V2.1.1
EN 303 345 V1.1.7 7

IEC 62368-1:2018
See Test Report for National Differences
JPTUV-113336
2020-08-31JongMan Kim
N/A
CAR AUDIO
00160404488
LG Electronics Inc
Seoul, Republic of Korea10, Magokjungang 10-ro, Gangseo-gu,
See additional page(s)
LG Electronics Inc
Seoul, Republic of Korea10, Magokjungang 10-ro, Gangseo-gu,
TÜV Rheinland Japan Ltd.Global Technology Assessment Center4-25-2 Kita-Yamata, Tsuzuki-kuYokohama 224-0021, JapanPhone + 81 45 914-3888Fax + 81 45 914-3354Mail: [email protected] : www.tuv.com
DC 12 V; 3.5 A; Class III
Volkswagen
L60VW2, MIB2GP, L73VW2, L77VW2
For model differences, refer to the test report.

Page 2 of 89 Report No.: 60404488 001


TRF No. IEC62368_1C


Test item description ....................... : CAR AUDIO
Trade Mark ........................................ : Volkswagen or
Manufacturer ..................................... : LG Electronics Inc (same as applicant)
Model/Type reference ...................... : L60VW 2, MIB2GP, L73VW2, L77VW2
(see page 10)
Ratings .............................................. : 12 V, 3.5 A, Class III
Responsible Testing Laboratory (as applicable), testing procedure and testing location(s):
CB Testing Laboratory:
Testing location/ address ............................ : Young City, N-Tower, 25, Mullae-ro 28-gil,
Yeongdeungpo-gu, Seoul #07298 Korea, Rep. of
Tested by (name, function, signature) ....... : Jong-Hun Shin /
Project Engineer
Approved by (name, function, signature) .. : Kyeong-June Kim /
Reviewer

Testing procedure: CTF Stage 1:

Testing location/ address ............................ :
Tested by (name, function, signature) ....... :
Approved by (name, function, signature) .. :
Testing procedure: CTF Stage 2:

Testing location/ address ............................ :
Tested by (name + signature) ..................... :
Witnessed by (name, function, signature) . :
Approved by (name, function, signature) .. :
Testing procedure: CTF Stage 3:

Testing procedure: CTF Stage 4:
Testing location/ address ............................ :
Tested by (name, function, signature) ....... :
Witnessed by (name, function, signature) . :
Approved by (name, function, signature) .. :
Supervised by (name, function, signature) :

Page 10 of 89 Report No. : 60404488 001


TR F No. IEC62368_1 C

General product information and other remarks:

This product(CAR AUDIO) is a building - in type as component which has Bluetooth, Radio and DAB
functions.
It is Class III equipment supplied by a 12 V EV b attery.
It is intended to be built in a vehicle by an instructed person or skilled person as service person and user’s
manual shall be provided in the end equipment.
The Model L60 VW 2 is basic model and the model MIB2GP is identical to the basic model excep t for model
designation .
The models L73VW2 and L77VW2 are similar to the basic model except for model designation and
mechanical frame . It does not affect to safety factor.
The maximum ambient temperature permitted by the manufacturer (Tma): 85 o
C
This rep ort is for standard up - date from IEC 60065:2014 to IEC 62368 - 1:2018 by earlier test report No.
50040904 001, 50040904 002, 50040904 003 and 50040904 004 with the certificate No. JPTUV - 071621,
JPTUV - 071621 - A1, JPTUV - 071621 - A1/M1 and JPTUV - 071621 - A1/M2 .
The samples submitted for evaluation are representative of the final product and have the same quality in
items of safety aspect from each factory.
When installing, all the requirements of IEC 62368 - 1 must be fulfilled.

Report Number…….....:
6040448 8 001
Model…………………...:
L 60VW2 , MIB2GP , L7 3 VW2 , L77VW2

Page 8 of 11

Front view for models L73VW2 and L77VW2




Rear view for models L73VW2 and L77VW2

Report Number…….....:
6040448 8 001
Model…………………...:
L 60VW2 , MIB2GP , L7 3 VW2 , L77VW2

Page 9 of 11

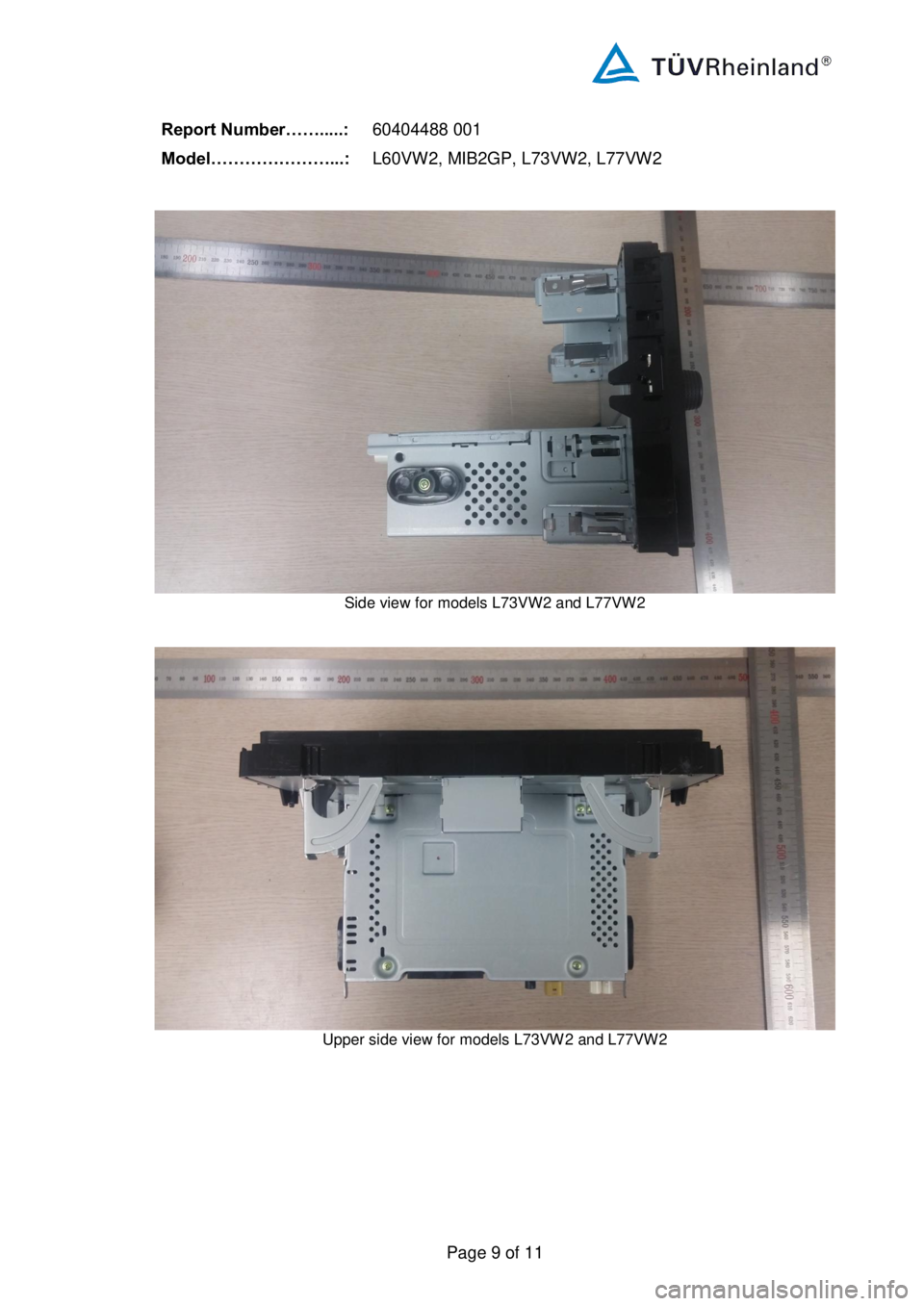

Side view for models L73VW2 and L77VW2



U pper side view for models L73VW 2 and L77VW 2

Report Number…….....:
6040448 8 001
Model…………………...:
L 60VW2 , MIB2GP , L7 3 VW2 , L77VW2

Page 10 of 11
Front panel rear view for models L73VW2 and L77VW2



Inside view for models L73VW 2 and L77VW 2

Report Number…….....:
6040448 8 001
Model…………………...:
L 60VW2 , MIB2GP , L7 3 VW2 , L77VW2

Page 11 of 11
Main PCB view I for models L73VW2 and L77VW2



Main PCB view II for model s L73VW2 and L 77VW2
