Seats and stowage109
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Object compartment, driver's side
There is an object compartment on the driver's sideTo open the compartment, pull outwards ⇒ fig. 79.
Stowage drawer under front right seat*To o p e n
– Press button and pull outwards, holding it with a hand.
To close
– Press inwards until it engages.

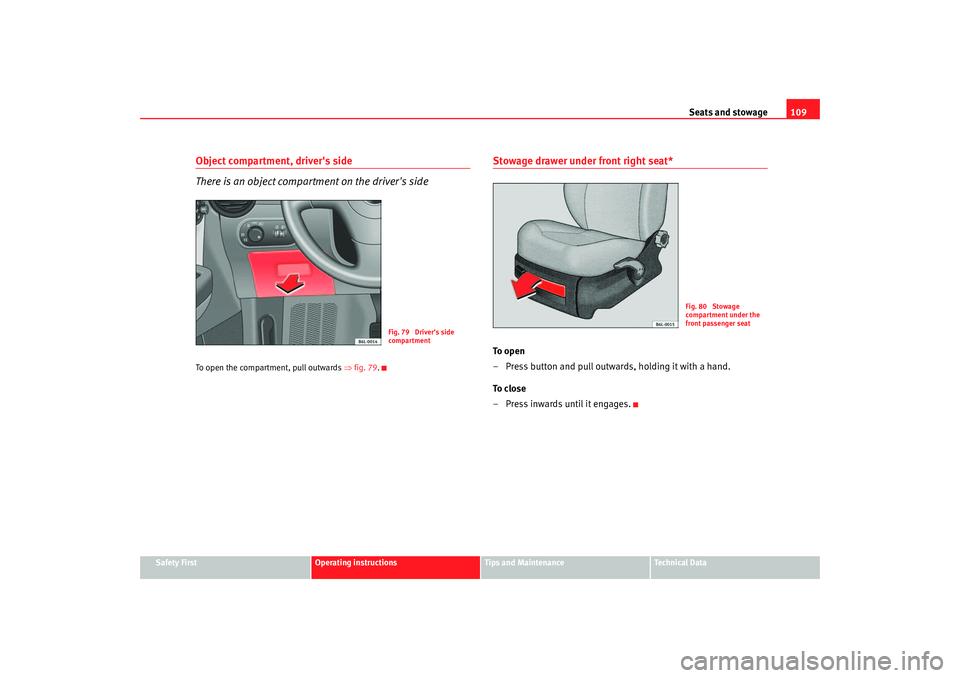

Fig. 79 Driver's side
compartment
Fig. 80 Stowage
compartment under the
front passenger seat
ibiza_angles_0706_DEF Seite 109 Freitag, 1. September 2006 1:18 13

Seats and stowage
110Seat storage pocket*There is a storage pocket on the rear of the front seats.
Front cup holder* To o p e n
– Press on the edge of cup holder, this opens with a spring action.
To close
– Press the cup holder until it is completely closed.
WARNING
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
•
When travelling, the drinks holder should always be closed to prevent
risk in the event of sudden breaking or accident.

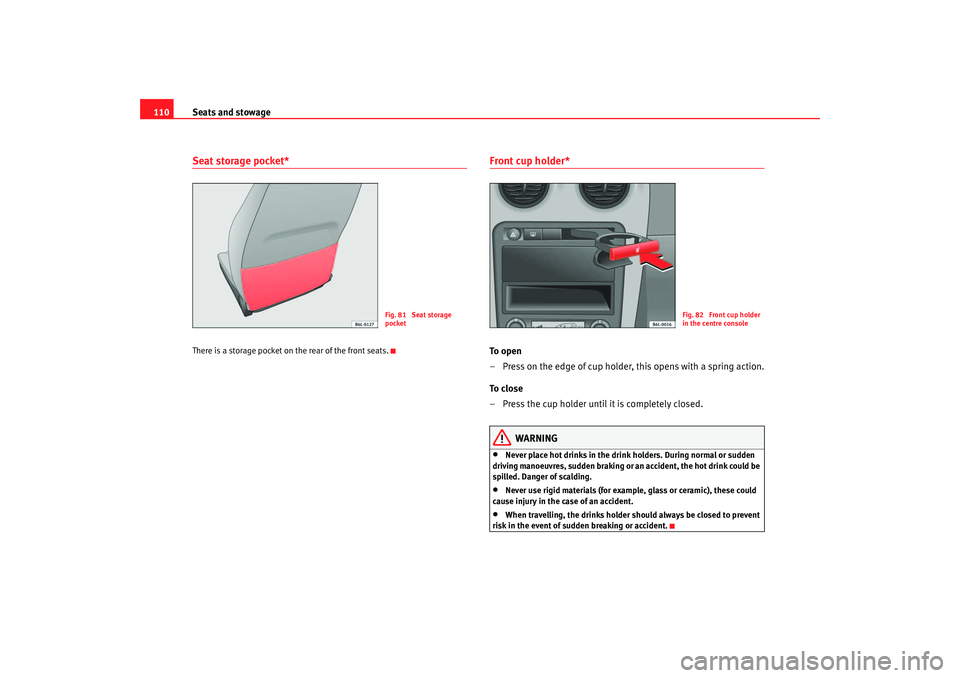

Fig. 81 Seat storage
pocket
Fig. 82 Front cup holder
in the centre console
ibiza_angles_0706_DEF Seite 110 Freitag, 1. September 2006 1:18 13

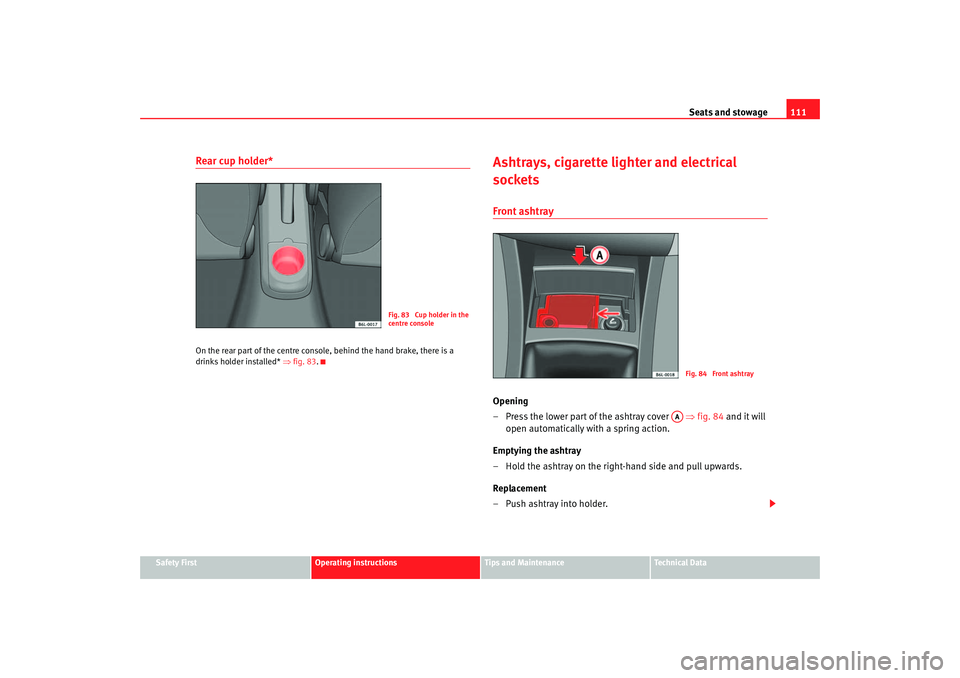

Seats and stowage111
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Rear cup holder* On the rear part of the centre console, behind the hand brake, there is a
drinks holder installed* ⇒fig. 83.
Ashtrays, cigarette lighter and electrical
socketsFront ashtrayOpening
– Press the lower part of the ashtray cover ⇒fig. 84 and it will
open automatically with a spring action.
Emptying the ashtray
– Hold the ashtray on the right-hand side and pull upwards.
Replacement
– Push ashtray into holder.
Fig. 83 Cup holder in the
centre console
Fig. 84 Front ashtray
AA
ibiza_angles_0706_DEF Seite 111 Freitag, 1. September 2006 1:18 13

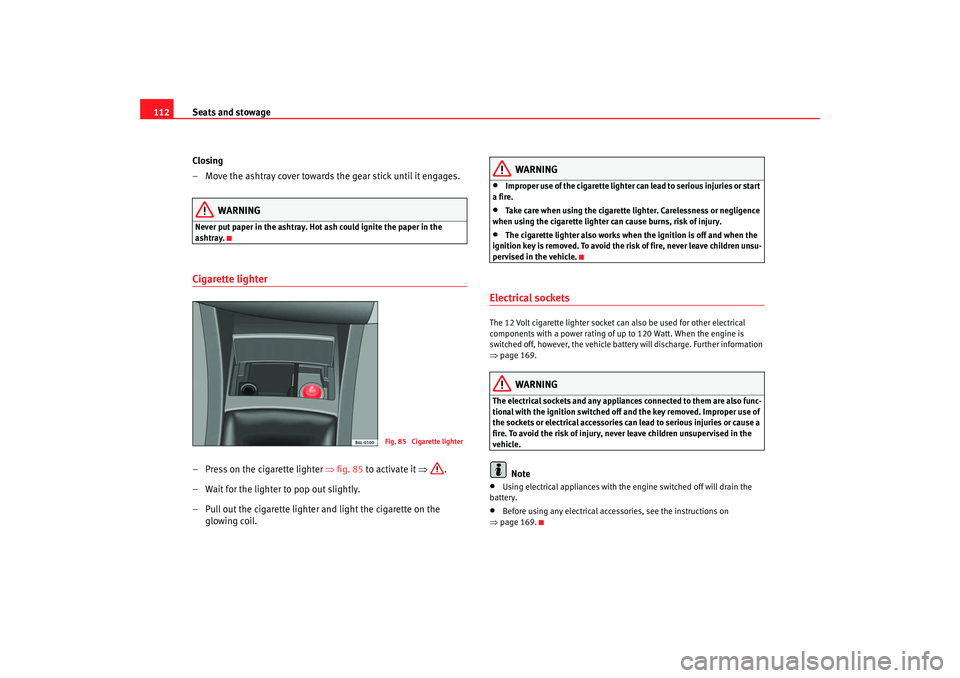

Seats and stowage
112
Closing
– Move the ashtray cover towards the gear stick until it engages.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray.Cigarette lighter– Press on the cigarette lighter ⇒fig. 85 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Take care when using the cigarette lighter. Carelessness or negligence
when using the cigarette lighter can cause burns, risk of injury.
•
The cigarette lighter also works when the ignition is off and when the
ignition key is removed. To avoid the risk of fire, never leave children unsu-
pervised in the vehicle.
Electrical sockets The 12 Volt cigarette lighter socket can also be used for other electrical
components with a power rating of up to 120 Watt. When the engine is
switched off, however, the vehicle battery will discharge. Further information
⇒ page 169.
WARNING
The electrical sockets and any appliances connected to them are also func-
tional with the ignition switched off and the key removed. Improper use of
the sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children unsupervised in the
vehicle.
Note
•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 169.
Fig. 85 Cigarette lighter
ibiza_angles_0706_DEF Seite 112 Freitag, 1. September 2006 1:18 13

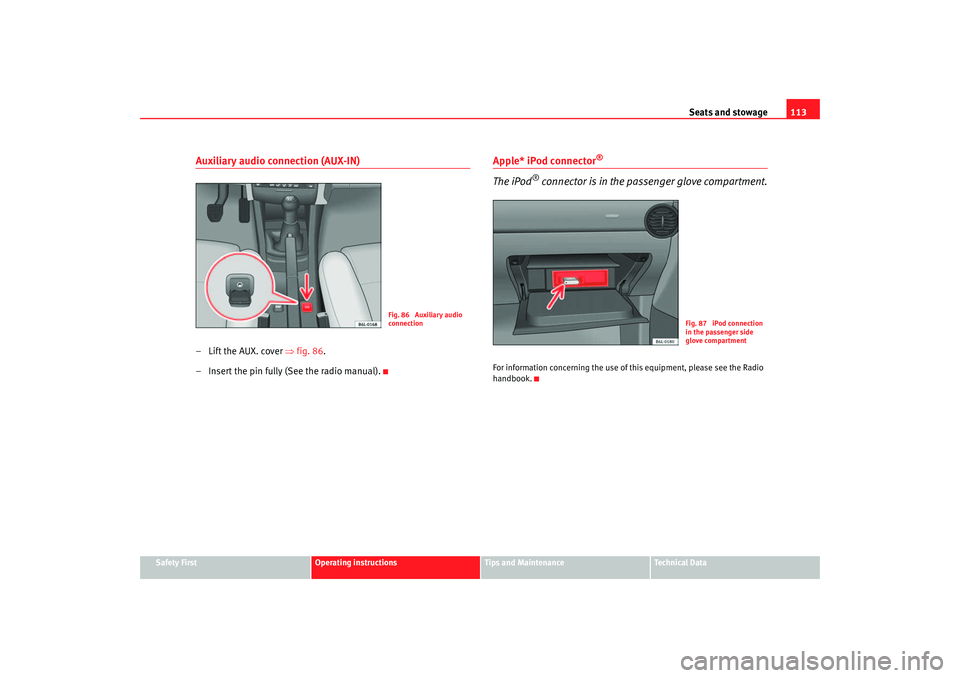

Seats and stowage113
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Auxiliary audio connection (AUX-IN)– Lift the AUX. cover ⇒fig. 86 .
– Insert the pin fully (See the radio manual).
Apple* iPod connector
®
The iPod
® connector is in the passenger glove compartment.
For information concerning the use of this equipment, please see the Radio
handbook.
Fig. 86 Auxiliary audio
connection
Fig. 87 iPod connection
in the passenger side
glove compartment
ibiza_angles_0706_DEF Seite 113 Freitag, 1. September 2006 1:18 13

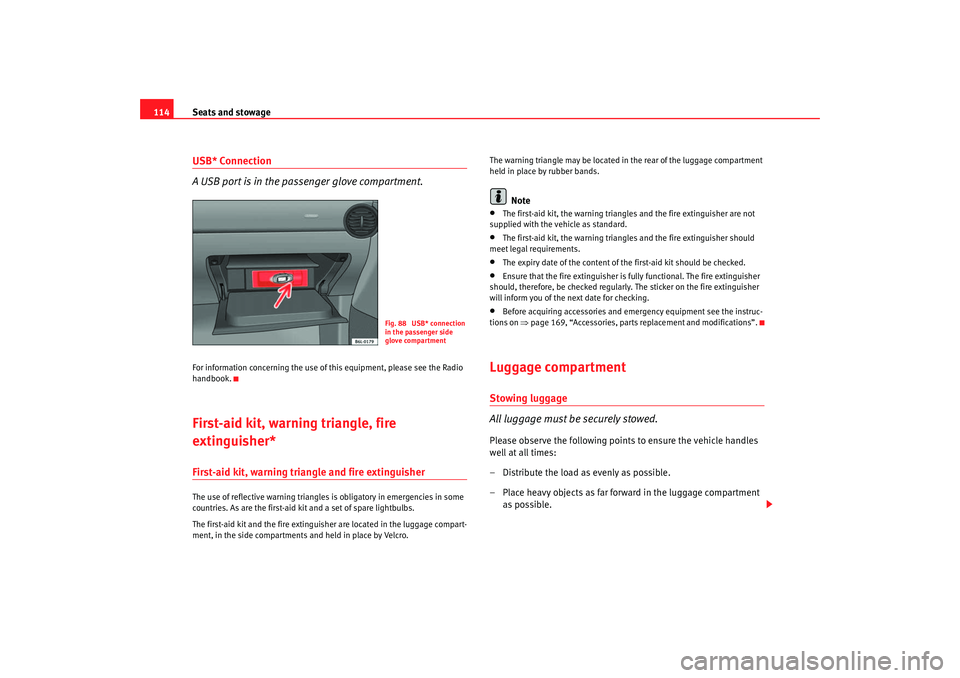

Seats and stowage
114USB* Connection
A USB port is in the passenger glove compartment.For information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisher*First-aid kit, warning triangle and fire extinguisherThe use of reflective warning triangles is obligatory in emergencies in some
countries. As are the first-aid kit and a set of spare lightbulbs.
The first-aid kit and the fire extinguisher are located in the luggage compart-
ment, in the side compartments and held in place by Velcro. The warning triangle may be located in
the rear of the luggage compartment
held in place by rubber bands.
Note
•
The first-aid kit, the warning triangles and the fire extinguisher are not
supplied with the vehicle as standard.
•
The first-aid kit, the warning triangles and the fire extinguisher should
meet legal requirements.
•
The expiry date of the content of the first-aid kit should be checked.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 169, “Accessories, parts replacement and modifications”.
Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
Fig. 88 USB* connection
in the passenger side
glove compartment
ibiza_angles_0706_DEF Seite 114 Freitag, 1. September 2006 1:18 13

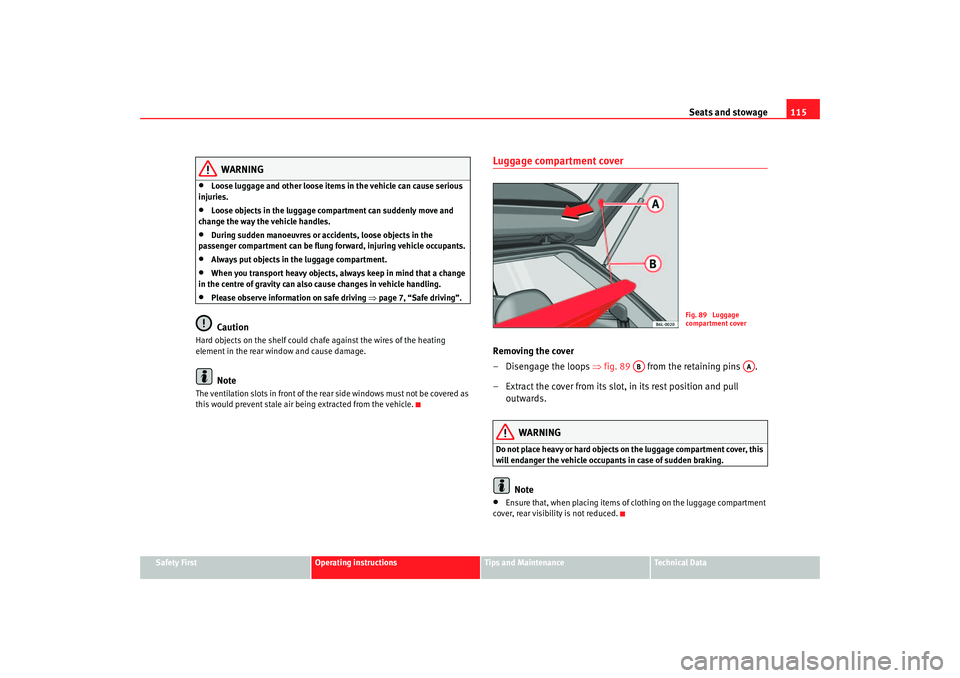

Seats and stowage115
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always put objects in the luggage compartment.
•
When you transport heavy objects, always keep in mind that a change
in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent st ale air being extracted from the vehicle.
Luggage compartment coverRemoving the cover
–Disengage the loops ⇒fig. 89 from the retaining pins .
– Extract the cover from its slot, in its rest position and pull outwards.
WARNING
Do not place heavy or hard objects on the luggage compartment cover, this
will endanger the vehicle occupants in case of sudden braking.
Note
•
Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.
Fig. 89 Luggage
compartment cover
AB
AA
ibiza_angles_0706_DEF Seite 115 Freitag, 1. September 2006 1:18 13

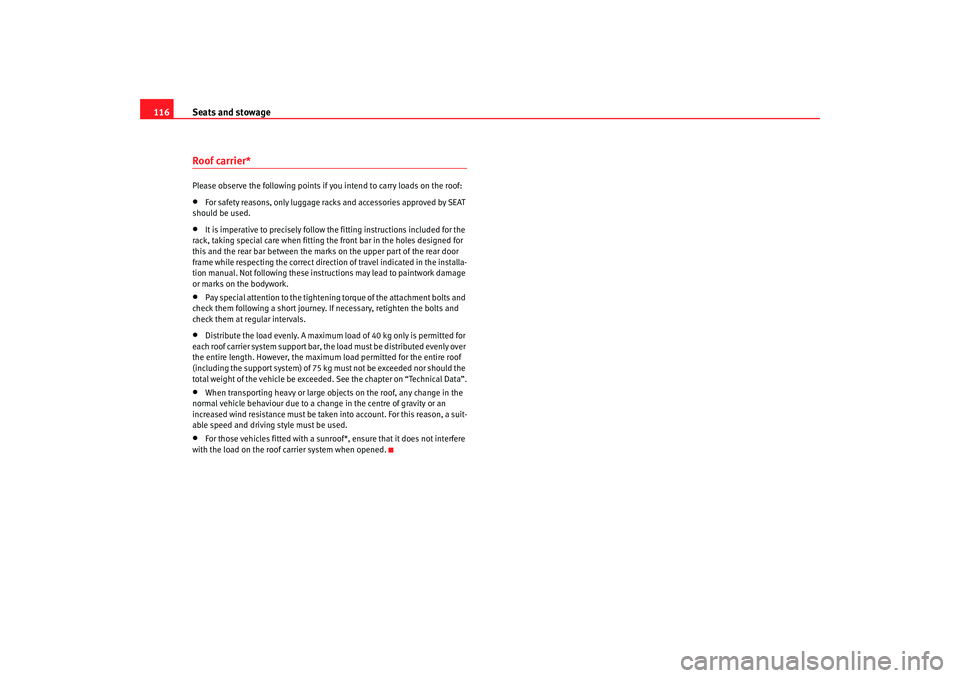

Seats and stowage
116Roof carrier*Please observe the following points if you intend to carry loads on the roof:•
For safety reasons, only luggage racks and accessories approved by SEAT
should be used.
•
It is imperative to precisely follow the fitting instructions included for the
rack, taking special care when fitting the front bar in the holes designed for
this and the rear bar between the marks on the upper part of the rear door
frame while respecting the correct direction of travel indicated in the installa-
tion manual. Not following these instructions may lead to paintwork damage
or marks on the bodywork.
•
Pay special attention to the tightening torque of the attachment bolts and
check them following a short journey. If necessary, retighten the bolts and
check them at regular intervals.
•
Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly over
the entire length. However, the maximu m load permitted for the entire roof
(including the support system) of 75 kg must not be exceeded nor should the
total weight of the vehicle be exceeded. See the chapter on “Technical Data”.
•
When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•
For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
ibiza_angles_0706_DEF Seite 116 Freitag, 1. September 2006 1:18 13

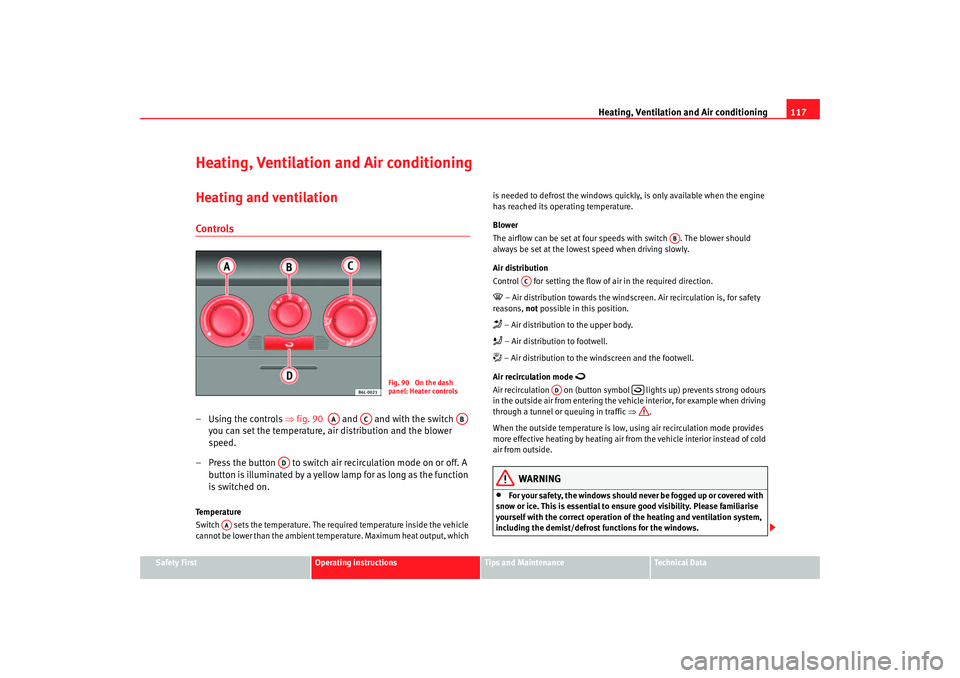

Heating, Ventilation and Air conditioning 117
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Heating, Ventilation and Air conditioningHeating and ventilationControls– Using the controls ⇒fig. 90 and and with the switch
you can set the temperature, air distribution and the blower
speed.
– Press the button to switch air recirculation mode on or off. A button is illuminated by a yellow lamp for as long as the function
is switched on.Temperature
Switch sets the temperature. The required temperature inside the vehicle
cannot be lower than the ambient tem perature. Maximum heat output, which is needed to defrost the windows quickly, is only available when the engine
has reached its operating temperature.
Blower
The airflow can be set at four speeds with switch . The blower should
always be set at the lowest speed when driving slowly.
Air distribution
Control for setting the flow of air in the required direction.
 – Air distribution towards the windsc
reen. Air recirculation is, for safety
reasons, not possible in this position. – Air distribution to the upper body. – Air distribution to footwell. – Air distribution to the windscreen and the footwell.
Air recirculation mode

Air recirculation on (button symbol lights up) prevents strong odours
in the outside air from entering the vehicle interior, for example when driving
through a tunnel or queuing in traffic ⇒.
When the outside temperature is low, using air recirculation mode provides
more effective heating by heating air from the vehicle interior instead of cold
air from outside.
WARNING
•
For your safety, the windows should never be fogged up or covered with
snow or ice. This is essential to ensure good visibility. Please familiarise
yourself with the correct operation of the heating and ventilation system,
including the demist/defrost functions for the windows.
Fig. 90 On the dash
panel: Heater controls
AA
AC
AB
AD
AA
AB
AC
AD

ibiza_angles_0706_DEF Seite 117 Freitag, 1. September 2006 1:18 13

Heating, Ventilation and Air conditioning
118•
In air recirculation mode, no ambient air enters the vehicle interior. The
windows can quickly fog over if the heating is switched off. Therefore, you
should never leave the air recirculation mode switched on for longer
periods, as this increases the risk of an accident.Note
•
Please observe the general notes ⇒page 126.
Vehicle ventilation or heatingVentilating the passenger compartment
– Turn the temperature selector ⇒fig. 91 anti-clockwise.
– Turn blower switch to speed settings 1-4. – Set the airflow to the desired direction using air distribution
control .
– Open the relevant air outlets.
Heating the interior
– Turn the temperature selector ⇒fig. 91 clockwise to select
the required temperature.
– Turn blower switch to speed settings 1-4.
– Set the airflow to the desired direction using air distribution control .
– Open the relevant air outlets.

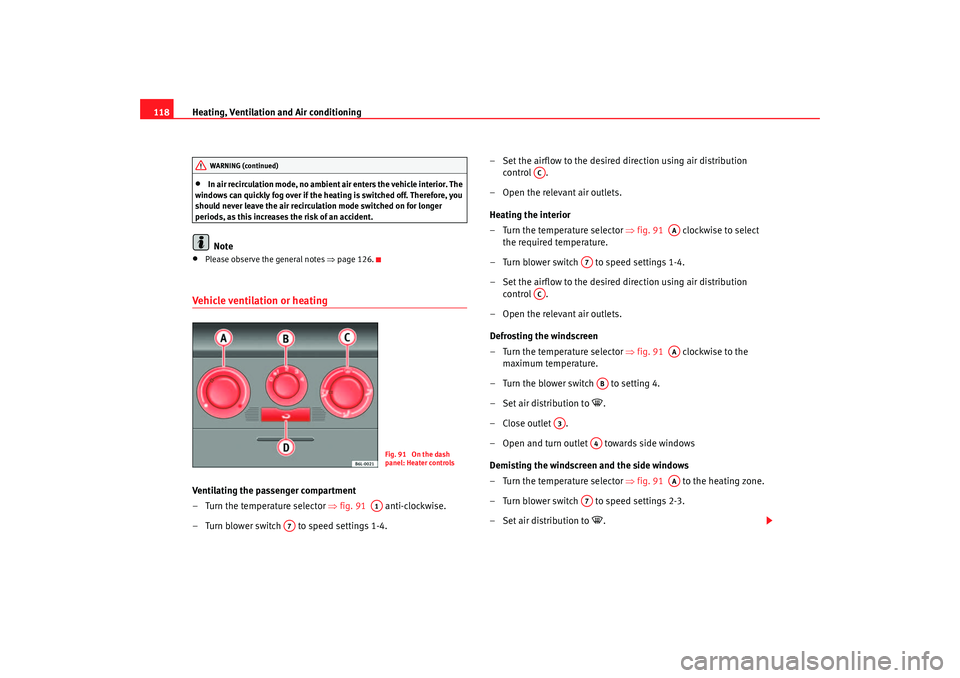

Defrosting the windscreen
– Turn the temperature selector ⇒fig. 91 clockwise to the
maximum temperature.
– Turn the blower switch to setting 4.
– Set air distribution to

.
–Close outlet .
– Open and turn outlet towards side windows
Demisting the windscreen and the side windows
– Turn the temperature selector ⇒fig. 91 to the heating zone.
– Turn blower switch to speed settings 2-3.
– Set air distribution to

.
WARNING (continued)
Fig. 91 On the dash
panel: Heater controls
A1
A7
AC
AA
A7
AC
AA
AB
A3
A4
AA
A7
ibiza_angles_0706_DEF Seite 118 Freitag, 1. September 2006 1:18 13
