display Seat Ibiza 5D 2013 SOUND SYSTEM 1.X

27Audio modeConnecting a portable navigator*
Introduction
The radio system will only operate with a special portable navigator, theSEAT Portable System, bought through SEAT.
Different media sources can be played through the portable navigator.
The portable navigator allows an additional display and controls of CD andMP3 played through the radio system (track display, track selected from thetrack list).
Additional information and warnings:
●
Safety notes  ⇒ page 4
●
Unit overview ⇒ page 6
●
Basic information on use ⇒ page 8
●
Media mode ⇒ page 19
Note
Please read and observe the manufacturer operating manual for the Mediaand Telephone modes for navigating with the portable navigator.

Connection and use
Mount and connect the portable navigator in the holder as described in themanufacturer operating manual.
Starting playback over the vehicle loudspeakers●
With the radio system in media mode, press the MEDIA ⇒ Fig. 1 unit but-ton to display the selection menu for available media sources, and follow-ing this, press the NAV function button.
●
OR: Repeatedly press the MEDIA unit button until NAV is selected.
PORTABLE will be shown on the screen of the radio system.
Playback will continue from the last track played when the correspondingmedia source is still available through the portable navigator.
When, at this moment, there is no media source available through the port-able navigator, NO MEDIA will be briefly displayed on the screen of the radiosystem and playback will resume from the last audio source activated onthe radio system.
Portable navigator media mode
Different media sources can be played through the portable navigator usingthe vehicle speakers. Practically all playback control is carried out throughthe portable navigator.
It is also possible to change tracks with the arrow button ⇒ Fig. 1
10
of theradio system ⇒ page 19.
Displaying the track on the radio system is not possible.
The change to another audio source played through the portable navigationsystem is carried out through the portable navigation system.
Only audio sources available on the system (Radio, CD, AUX) can bechanged through the radio system.
Navigation instructions
Navigation announcements are made through the vehicle speakers.
Operations are controlled through the portable navigator.

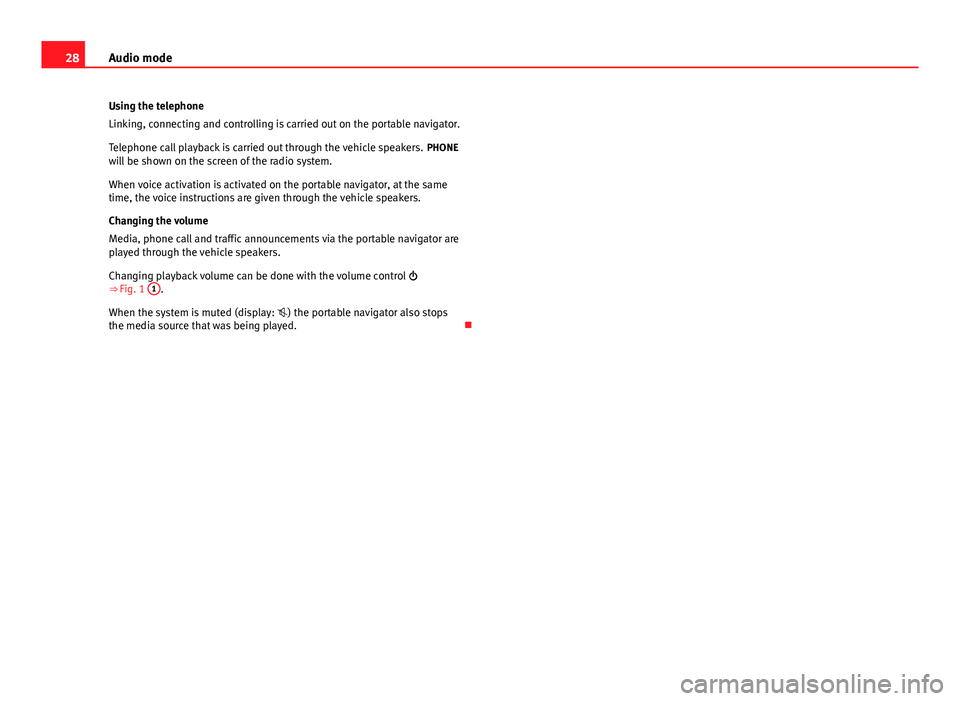

28Audio modeUsing the telephone
Linking, connecting and controlling is carried out on the portable navigator.
Telephone call playback is carried out through the vehicle speakers. PHONEwill be shown on the screen of the radio system.
When voice activation is activated on the portable navigator, at the sametime, the voice instructions are given through the vehicle speakers.
Changing the volume
Media, phone call and traffic announcements via the portable navigator areplayed through the vehicle speakers.
Changing playback volume can be done with the volume control ⇒ Fig. 1
1
.
When the system is muted (display: ) the portable navigator also stopsthe media source that was being played.


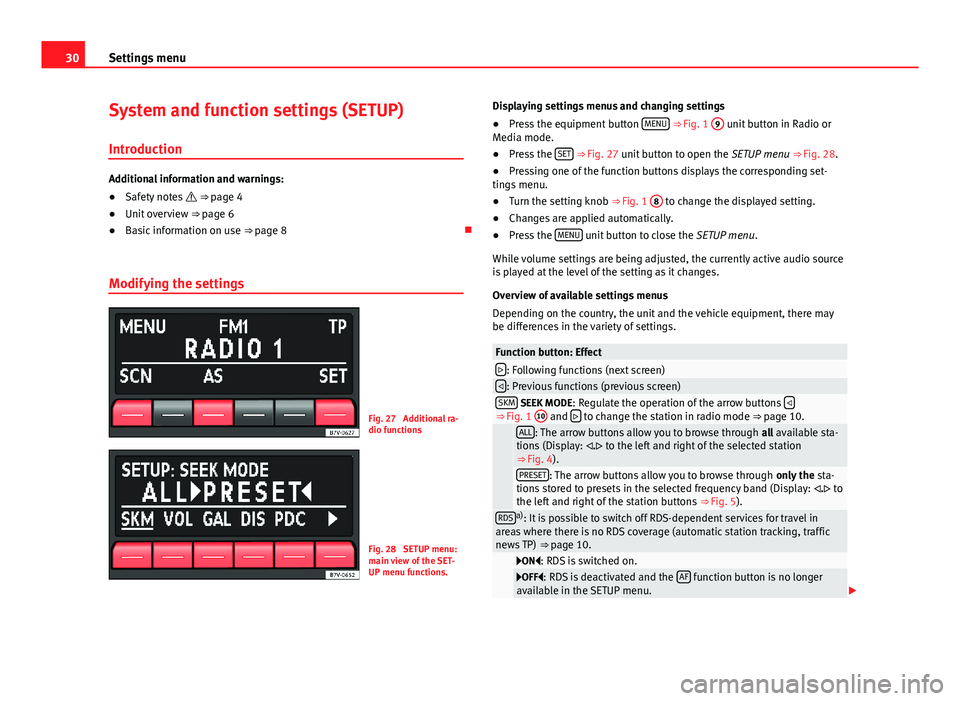

30Settings menuSystem and function settings (SETUP)
Introduction
Additional information and warnings:
●
Safety notes  ⇒ page 4
●
Unit overview ⇒ page 6
●
Basic information on use ⇒ page 8

Modifying the settings
Fig. 27
Additional ra-dio functions
Fig. 28
SETUP menu:main view of the SET-UP menu functions.
Displaying settings menus and changing settings●
Press the equipment button MENU ⇒ Fig. 1
9
unit button in Radio orMedia mode.
●
Press the SET ⇒ Fig. 27 unit button to open the SETUP menu ⇒ Fig. 28.
●
Pressing one of the function buttons displays the corresponding set-tings menu.
●
Turn the setting knob ⇒ Fig. 1
8
to change the displayed setting.
●
Changes are applied automatically.
●
Press the MENU unit button to close the SETUP menu.
While volume settings are being adjusted, the currently active audio sourceis played at the level of the setting as it changes.
Overview of available settings menus
Depending on the country, the unit and the vehicle equipment, there maybe differences in the variety of settings.
Function button: Effect: Following functions (next screen): Previous functions (previous screen)SKM SEEK MODE: Regulate the operation of the arrow buttons ⇒ Fig. 1
10
and  to change the station in radio mode ⇒ page 10.

ALL: The arrow buttons allow you to browse through all available sta-tions (Display: . to the left and right of the selected station⇒ Fig. 4).
PRESET: The arrow buttons allow you to browse through only the sta-tions stored to presets in the selected frequency band (Display: . tothe left and right of the station buttons ⇒ Fig. 5).
RDSa): It is possible to switch off RDS-dependent services for travel inareas where there is no RDS coverage (automatic station tracking, trafficnews TP) ⇒ page 10.
ON: RDS is switched on.OFF: RDS is deactivated and the AF function button is no longeravailable in the SETUP menu.

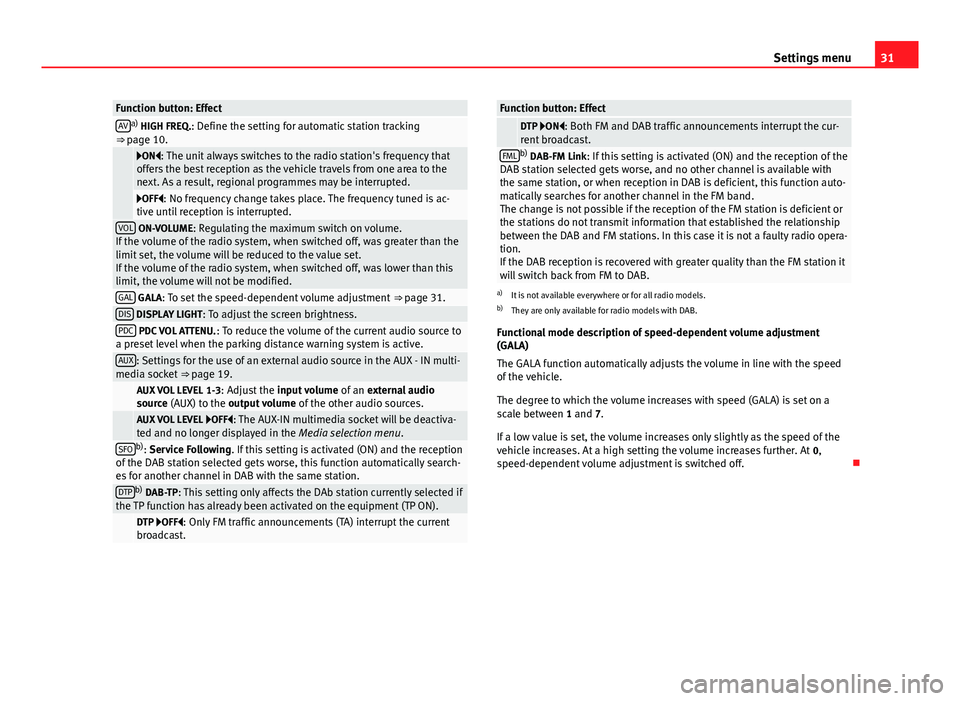

31Settings menuFunction button: EffectAVa) HIGH FREQ.: Define the setting for automatic station tracking⇒ page 10.
ON: The unit always switches to the radio station's frequency thatoffers the best reception as the vehicle travels from one area to thenext. As a result, regional programmes may be interrupted.
OFF: No frequency change takes place. The frequency tuned is ac-tive until reception is interrupted.VOL ON-VOLUME: Regulating the maximum switch on volume.If the volume of the radio system, when switched off, was greater than thelimit set, the volume will be reduced to the value set.If the volume of the radio system, when switched off, was lower than thislimit, the volume will not be modified.
GAL GALA: To set the speed-dependent volume adjustment ⇒ page 31.DIS DISPLAY LIGHT: To adjust the screen brightness.PDC PDC VOL ATTENU.: To reduce the volume of the current audio source toa preset level when the parking distance warning system is active.AUX: Settings for the use of an external audio source in the AUX - IN multi-media socket ⇒ page 19. AUX VOL LEVEL 1-3: Adjust the input volume of an external audiosource (AUX) to the output volume of the other audio sources. AUX VOL LEVEL OFF: The AUX-IN multimedia socket will be deactiva-ted and no longer displayed in the Media selection menu.SFOb): Service Following. If this setting is activated (ON) and the receptionof the DAB station selected gets worse, this function automatically search-es for another channel in DAB with the same station.
DTPb) DAB-TP: This setting only affects the DAb station currently selected ifthe TP function has already been activated on the equipment (TP ON). DTP OFF: Only FM traffic announcements (TA) interrupt the currentbroadcast.Function button: Effect DTP ON: Both FM and DAB traffic announcements interrupt the cur-rent broadcast.FMLb) DAB-FM Link: If this setting is activated (ON) and the reception of theDAB station selected gets worse, and no other channel is available withthe same station, or when reception in DAB is deficient, this function auto-matically searches for another channel in the FM band.The change is not possible if the reception of the FM station is deficient orthe stations do not transmit information that established the relationshipbetween the DAB and FM stations. In this case it is not a faulty radio opera-tion.If the DAB reception is recovered with greater quality than the FM station itwill switch back from FM to DAB.
a)
It is not available everywhere or for all radio models.
b)
They are only available for radio models with DAB.
Functional mode description of speed-dependent volume adjustment(GALA)
The GALA function automatically adjusts the volume in line with the speedof the vehicle.
The degree to which the volume increases with speed (GALA) is set on ascale between 1 and 7.
If a low value is set, the volume increases only slightly as the speed of thevehicle increases. At a high setting the volume increases further. At 0,speed-dependent volume adjustment is switched off.


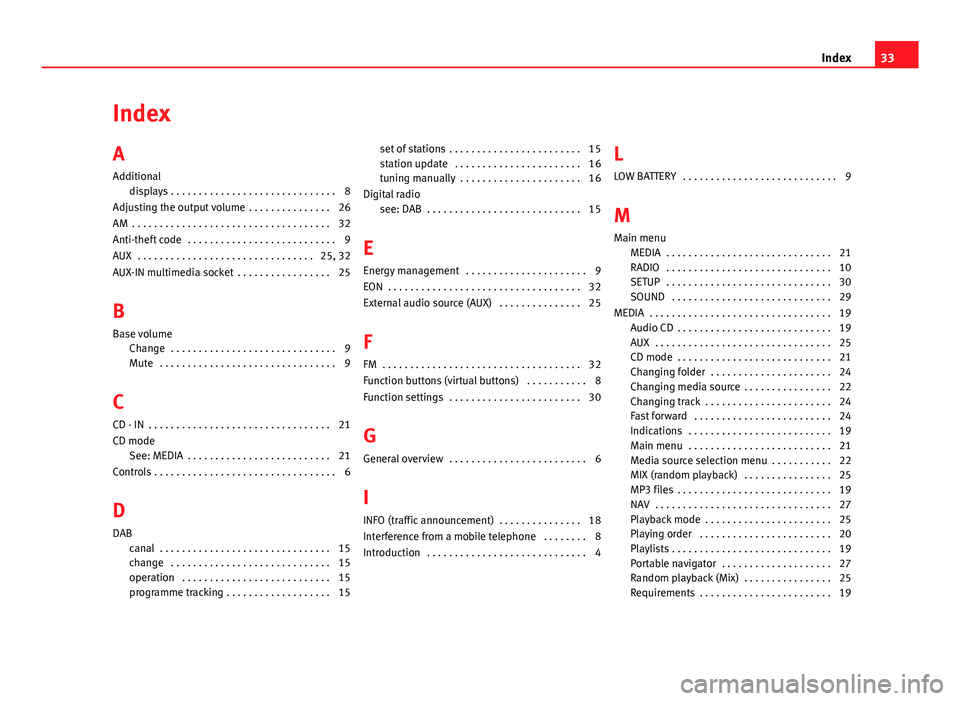

IndexA
Additional
displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the output volume . . . . . . . . . . . . . . . 26
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Anti-theft code . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 32
AUX-IN multimedia socket . . . . . . . . . . . . . . . . . 25
B
Base volume
Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C
CD - IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CD modeSee: MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D
DABcanal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 15programme tracking . . . . . . . . . . . . . . . . . . . 15
set of stations . . . . . . . . . . . . . . . . . . . . . . . . 15station update . . . . . . . . . . . . . . . . . . . . . . . 16tuning manually . . . . . . . . . . . . . . . . . . . . . . 16
Digital radiosee: DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
E
Energy management . . . . . . . . . . . . . . . . . . . . . . 9
EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
External audio source (AUX) . . . . . . . . . . . . . . . 25
F
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function buttons (virtual buttons) . . . . . . . . . . . 8
Function settings . . . . . . . . . . . . . . . . . . . . . . . . 30
G
General overview . . . . . . . . . . . . . . . . . . . . . . . . . 6
I
INFO (traffic announcement) . . . . . . . . . . . . . . . 18
Interference from a mobile telephone . . . . . . . . 8
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
L
LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
M
Main menuMEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Audio CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Changing folder . . . . . . . . . . . . . . . . . . . . . . 24Changing media source . . . . . . . . . . . . . . . . 22Changing track . . . . . . . . . . . . . . . . . . . . . . . 24Fast forward . . . . . . . . . . . . . . . . . . . . . . . . . 24Indications . . . . . . . . . . . . . . . . . . . . . . . . . . 19Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 21Media source selection menu . . . . . . . . . . . 22MIX (random playback) . . . . . . . . . . . . . . . . 25MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Playback mode . . . . . . . . . . . . . . . . . . . . . . . 25Playing order . . . . . . . . . . . . . . . . . . . . . . . . 20Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Portable navigator . . . . . . . . . . . . . . . . . . . . 27Random playback (Mix) . . . . . . . . . . . . . . . . 25Requirements . . . . . . . . . . . . . . . . . . . . . . . . 19
33Index
