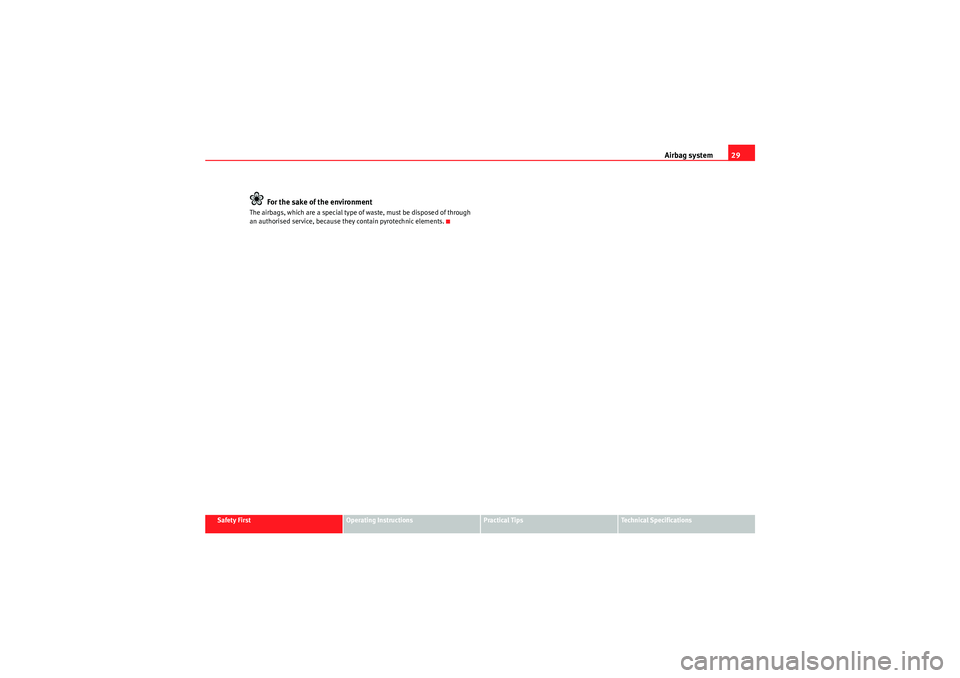

Page 31 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system29
Safety First
Operating Instructions
Practical Tips
Technical Specifications
For the sake of the environment
The airbags, which are a special type of waste, must be disposed of through

Page 32 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system
30Front airbagsDescription of front airbags
The airbag system is not a substitute for the seat belts.
The front airbag for the driver is located in the steering wheel  ⇒fig. 16  and
t

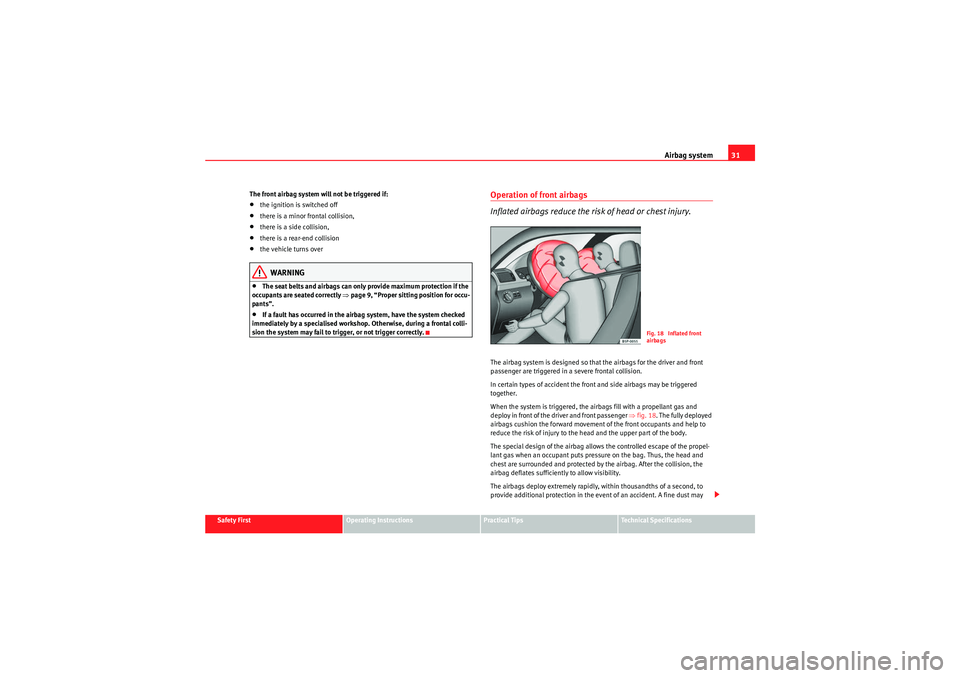

Page 33 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system31
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The front airbag system will not be triggered if:
•the ignition is switched off•there is a minor frontal

Page 34 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system
32develop when the airbag deploys. This is normal and it is not an indication of
fire in the vehicle.Safety notes on the front airbag system
If you use airbags correctly, they can consi

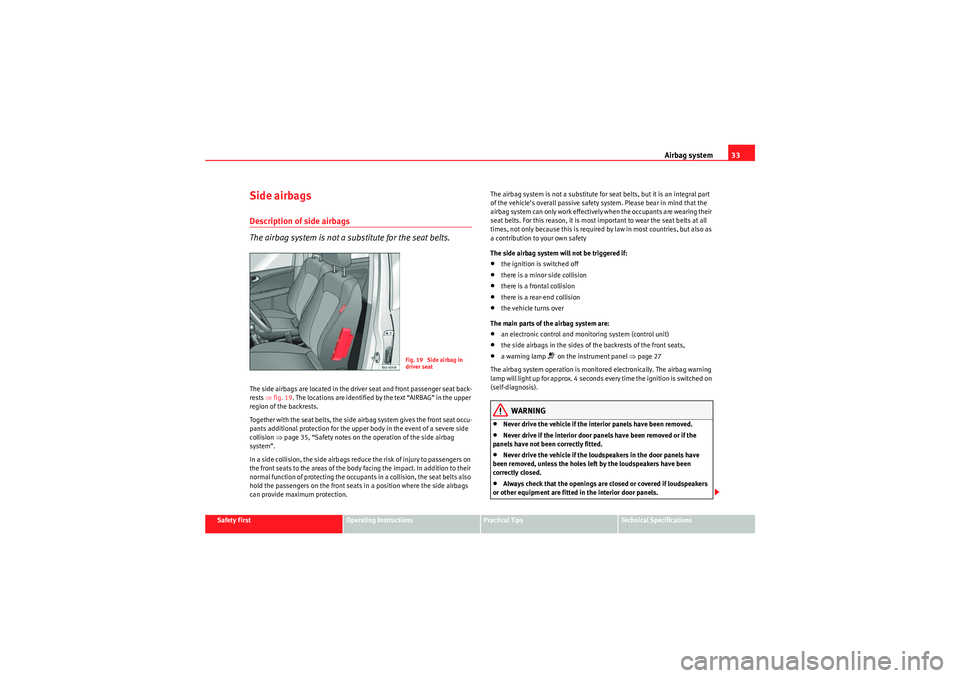

Page 35 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system33
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Side airbagsDescription of side airbags
The airbag system is not a substitute for the seat belts.The side ai

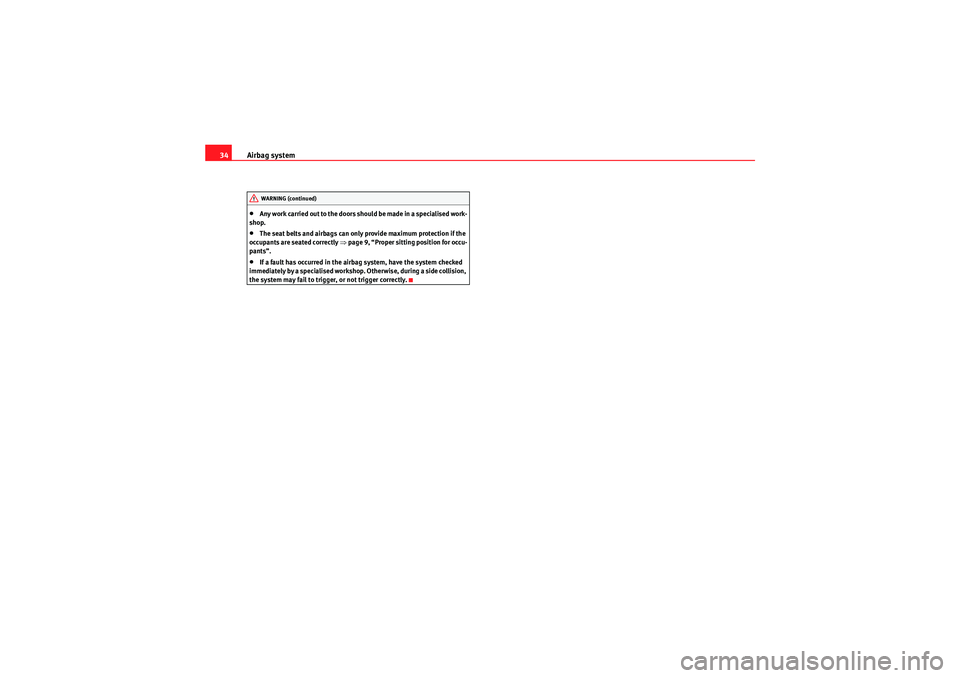

Page 36 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system
34•Any work carried out to the doors should be made in a specialised work-
shop.•The seat belts and airbags can only provide maximum protection if the
occupants are seated correctly

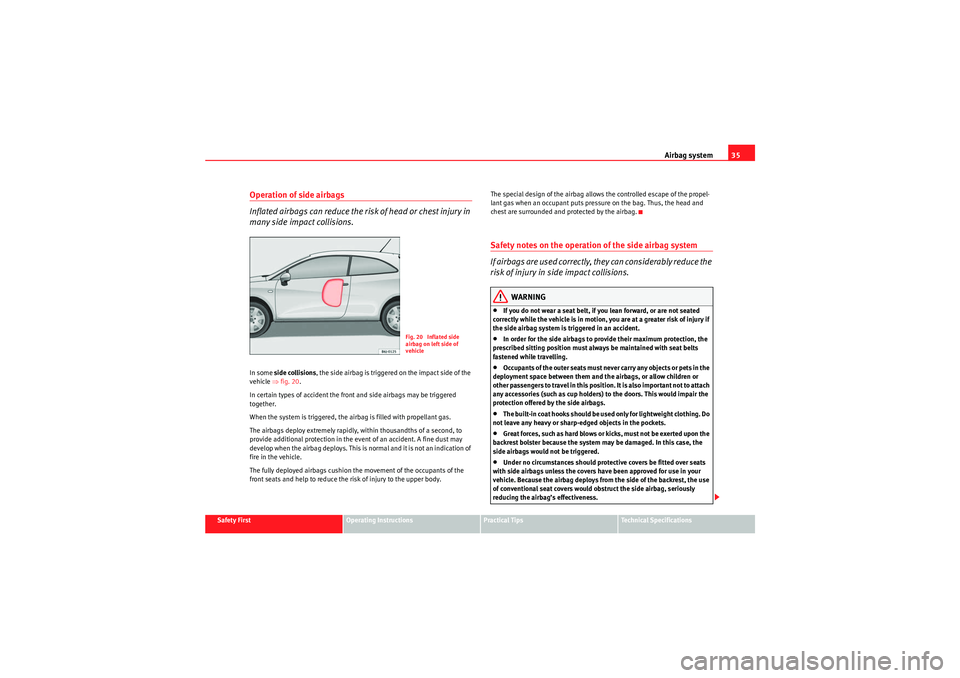

Page 37 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system35
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Operation of side airbags
Inflated airbags can reduce the risk of head or chest injury in
many side impact

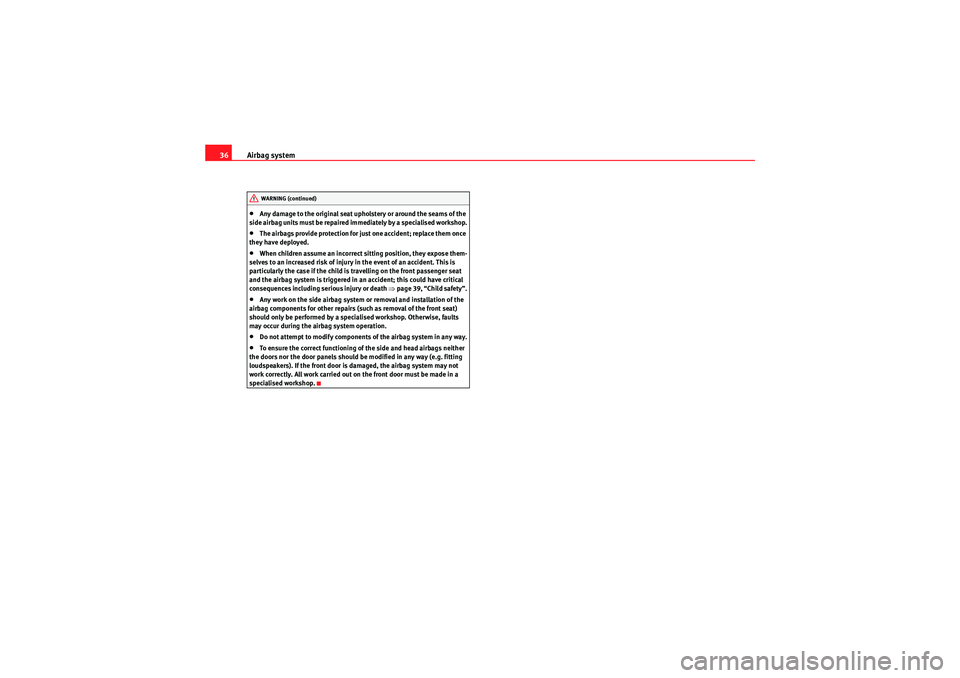

Page 38 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system
36•Any damage to the original seat upholstery or around the seams of the
side airbag units must be repaired immediately by a specialised workshop.•The airbags provide protection for

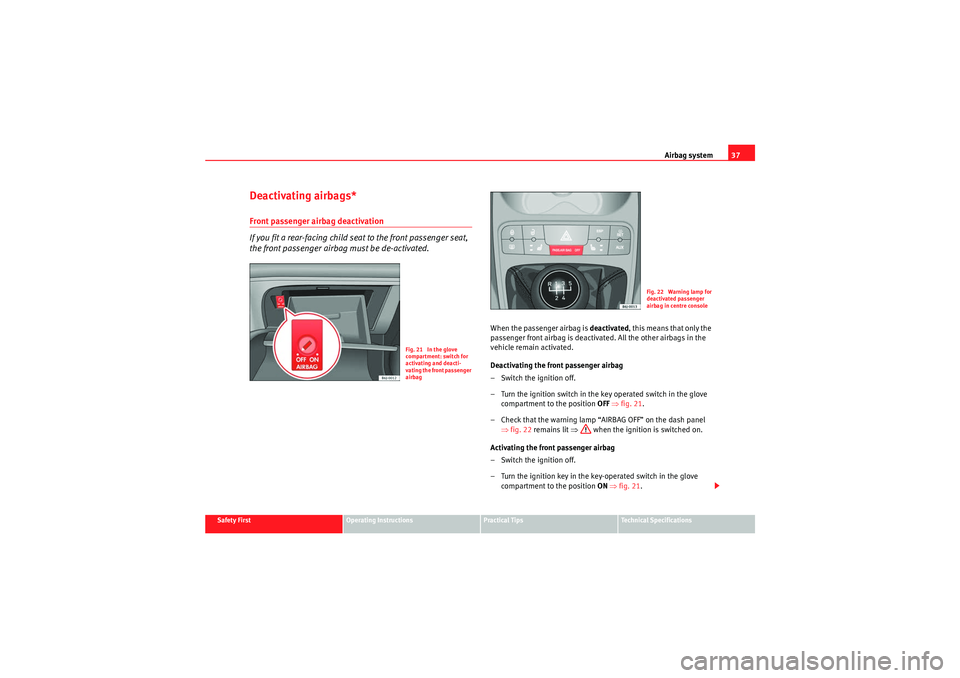

Page 39 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system37
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Deactivating airbags*Front passenger airbag deactivation
If you fit a rear-facing child seat to the front pa

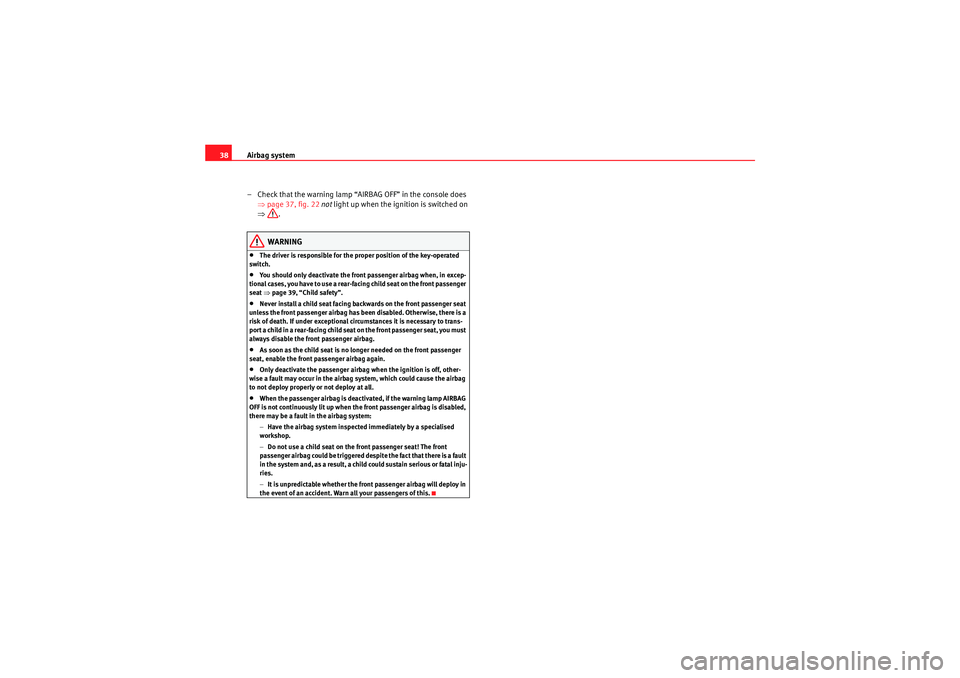

Page 40 of 266

Seat Ibiza SC 2010 Owners Guide Airbag system
38
– Check that the warning lamp “AIRBAG OFF” in the console does ⇒page 37, fig. 22  not  light up when the ignition is switched on
⇒ .
WARNING
•The driver is responsible fo
