fog light bulb Seat Ibiza SC 2014 Owner's manual

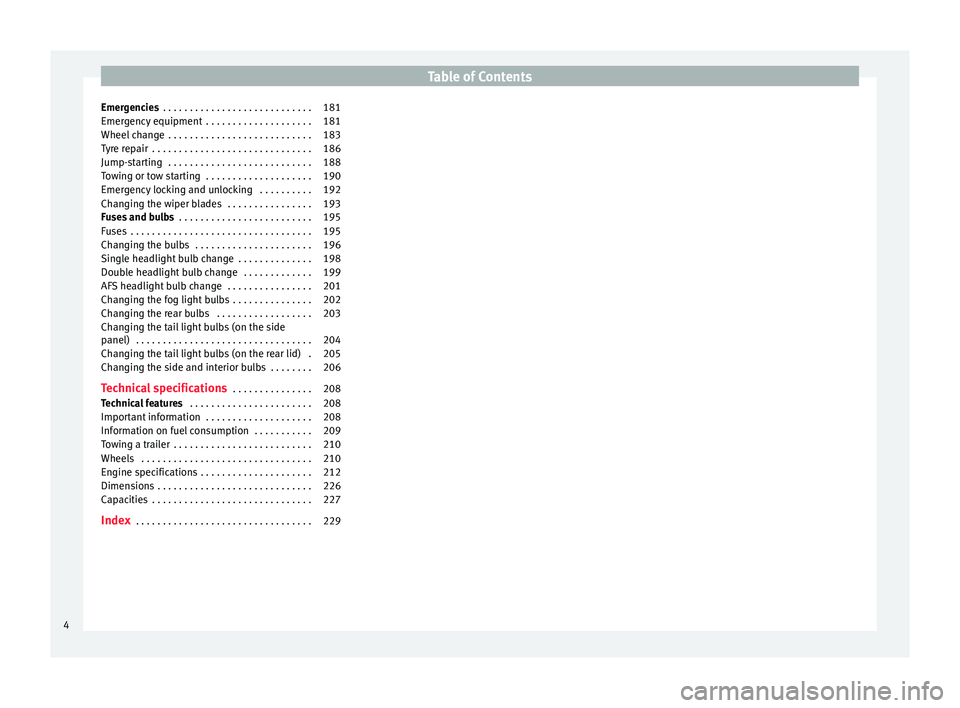

Table of Contents
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Emergency equipment . . . . . . . . . . . . . . . . . . . . 181
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Towing or tow starting . . . . . . . . . . . . . . . . . . . . 190
Emergency locking and unlocking . . . . . . . . . . 192
Changing the wiper blades . . . . . . . . . . . . . . . . 193
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 195
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Changing the bulbs . . . . . . . . . . . . . . . . . . . . . . 196
Single headlight bulb change . . . . . . . . . . . . . . 198
Double headlight bulb change . . . . . . . . . . . . . 199
AFS headlight bulb change . . . . . . . . . . . . . . . . 201
Changing the fog light bulbs . . . . . . . . . . . . . . . 202
Changing the rear bulbs . . . . . . . . . . . . . . . . . . 203
Changing the tail light bulbs (on the side
panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Changing the tail light bulbs (on the rear lid) . 205
Changing the side and interior bulbs . . . . . . . . 206
Technical specifications . . . . . . . . . . . . . . . 208
Technical features . . . . . . . . . . . . . . . . . . . . . . . 208
Important information . . . . . . . . . . . . . . . . . . . . 208
Information on fuel consumption . . . . . . . . . . . 209
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Engine specifications . . . . . . . . . . . . . . . . . . . . . 212
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
4

The essentials

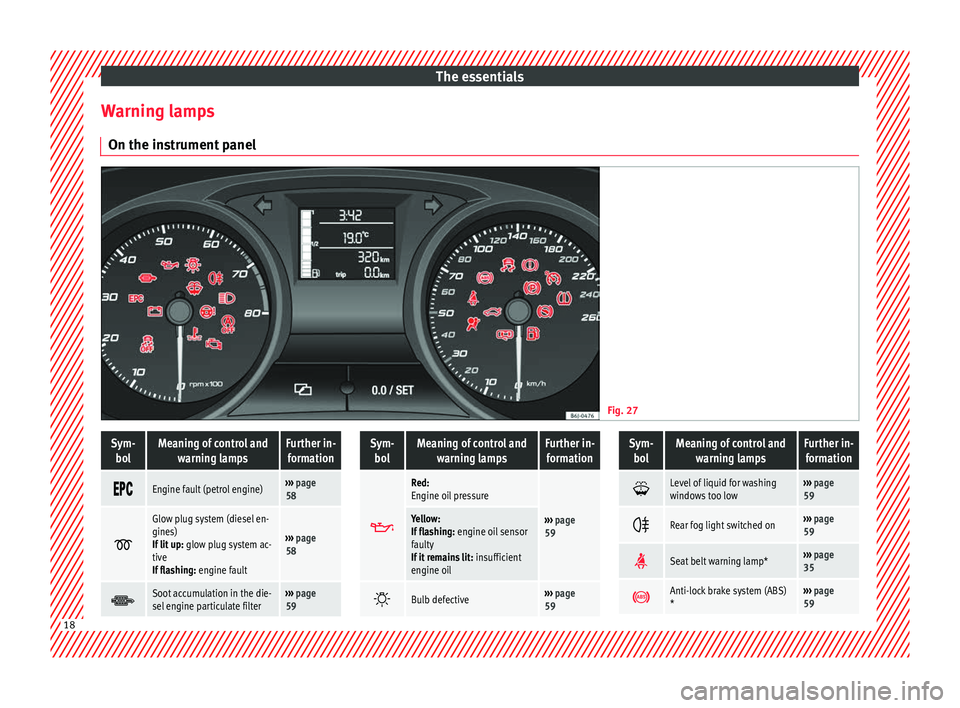

Warning lamps On the instrument panel Fig. 27
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Engine fault (petrol engine)›››
page
58 
Glow plug system (diesel en-
gines)
If lit up:
glow plug system ac-
tive
If flashing: engine fault
››› page
58 
Soot accumulation in the die-
sel engine particulate filter›››
page
59
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Red:
Engine oil pressure
›››
page
59Yellow:
If flashing: engine oil sensor
faulty
If it remains lit: insufficient
engine oil 
Bulb defective›››
page
59
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Level of liquid for washing
windows too low›››
page
59 
Rear fog light switched on›››
page
59 
Seat belt warning lamp*›››
page
35 
Anti-lock brake system (ABS)
*›››
page
59 18

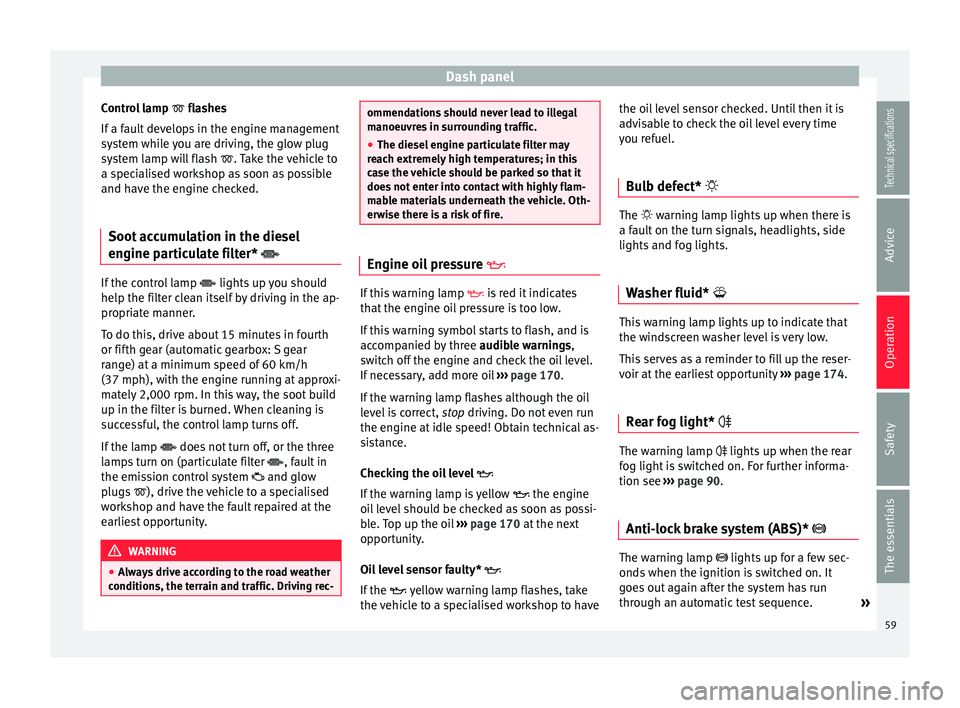

Dash panel
Control lamp  flashes
If a f
ault develops in the engine management
system while you are driving, the glow plug
system lamp will flash 
. Take the vehicle to
a specialised workshop as soon as possible
and have the engine checked.
Soot accumulation in the diesel
engine particulate filter*  If the control lamp
 lights up you should
help the filter clean itself by driving in the ap-
propriate manner.
To do this, drive about 15 minutes in fourth
or fifth gear (automatic gearbox: S gear
range) at a minimum speed of 60 km/h
(37 mph), with the engine running at approxi-
mately 2,000 rpm. In this way, the soot build
up in the filter is burned. When cleaning is
successful, the control lamp turns off.
If the lamp  does not turn off, or the three
lamps turn on (particulate filter , fault in
the emission control system  and glow
plugs ), drive the vehicle to a specialised
workshop and have the fault repaired at the
earliest opportunity. WARNING
● Always drive according to the road weather
conditions, the terrain and traffic. Driving rec- ommendations should never lead to illegal
manoeuvres in surrounding traffic.
●
The diesel engine particulate filter may
reach extremely high temperatures; in this
case the vehicle should be parked so that it
does not enter into contact with highly flam-
mable materials underneath the vehicle. Oth-
erwise there is a risk of fire. Engine oil pressure
 If this warning lamp
 is red it indicates
that the engine oil pressure is too low.
If this warning symbol starts to flash, and is
accompanied by three audible warnings,
switch off the engine and check the oil level.
If necessary, add more oil ››› page 170.
If the warning lamp flashes although the oil
level is correct, stop driving. Do not even run
the en gine at

idle speed! Obtain technical as-
sistance.
Checking the oil level 
If the warning lamp is yellow  the engine
oil level should be checked as soon as possi-
ble. Top up the oil ››› page 170 at the next
opportunity.
Oil level sensor faulty* 
If the  yellow warning lamp flashes, take
the vehicle to a specialised workshop to have the oil level sensor checked. Until then it is
advisable to check the oil level every time
you refuel.
Bulb defect*  The 
warning lamp lights up when there is
a f

ault on the turn signals, headlights, side
lights and fog lights.
Washer fluid*  This warning lamp lights up to indicate that
the windscreen washer level is very low.
This serves as a reminder to fill up the reser-
voir at the earliest opportunity
›››
page 174.
Rear fog light*  The warning lamp 
lights up when the rear
fog light is switched on. For further informa-
tion see ›››
page 90 .
Anti-loc k

brake system (ABS)*  The warning lamp  lights up for a few sec-
onds when the ignition is switched on. It
goes out again after the system has run
through an automatic test sequence.
»
59
Technical specifications
Advice
Operation
Safety
The essentials

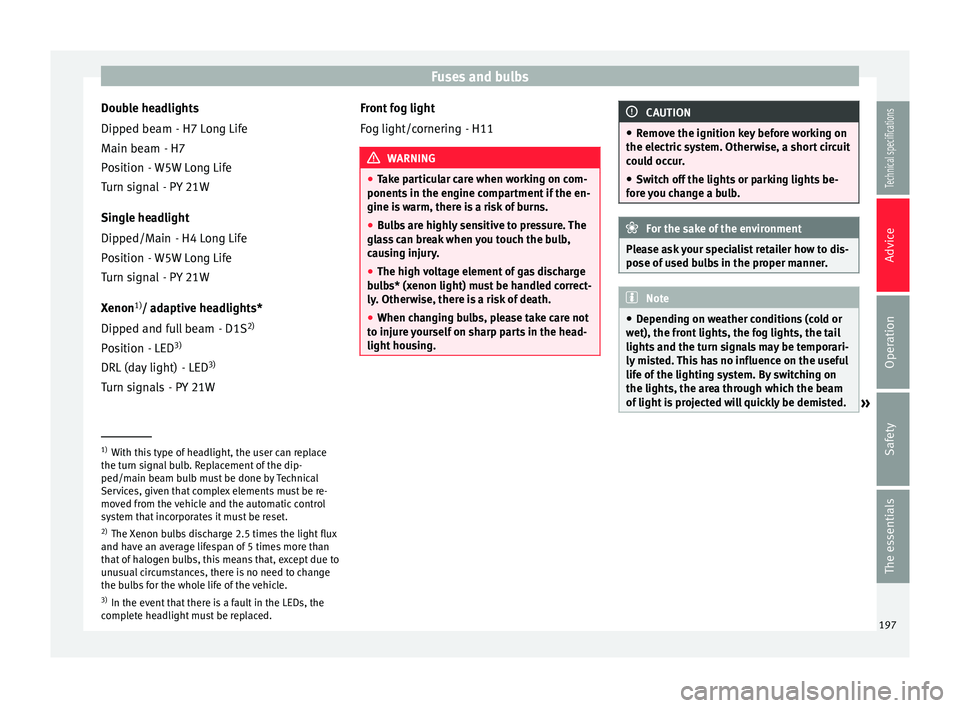

Fuses and bulbs
Double headlights - H7 Long Life
- H7
- W5W Long Life - PY 21W
Single headlight - H4 Long Life
- W5W Long Life - PY 21W
Xenon 1)
/ adaptive headlights*
- D1S2)
- LED 3)
- LED 3)
- PY 21W
Dipped beam
Main beam
Position
Turn signal
Dipped/Main
Position
Turn signal
Dipped and full beam
Position
DRL (day light)
Turn signals Front fog light
- H11 WARNING
● Take particular care when working on com-
ponents in the engine compartment if the en-
gine is warm, there is a risk of burns.
● Bulbs are highly sensitive to pressure. The
glass can break when you touch the bulb,
causing injury.
● The high voltage element of gas discharge
bulbs* (xenon light) must be handled correct-
ly. Otherwise, there is a risk of death.
● When changing bulbs, please take care not
to injure yourself on sharp parts in the head-
light housing. Fog light/cornering CAUTION
● Remove the ignition key before working on
the electric system. Otherwise, a short circuit
could occur.
● Switch off the lights or parking lights be-
fore you change a bulb. For the sake of the environment
Please ask your specialist retailer how to dis-
pose of used bulbs in the proper manner. Note
● Depending on weather conditions (cold or
wet), the front lights, the fog lights, the tail
lights and the turn signals may be temporari-
ly misted. This has no influence on the useful
life of the lighting system. By switching on
the lights, the area through which the beam
of light is projected will quickly be demisted. »1)
With this type of headlight, the user can replace
the turn signal bulb. Replacement of the dip-
ped/main beam bulb must be done by Technical
Services, given that complex elements must be re-
moved from the vehicle and the automatic control
system that incorporates it must be reset.
2) The Xenon bulbs discharge 2.5 times the light flux
and have an average lifespan of 5 times more than
that of halogen bulbs, this means that, except due to
unusual circumstances, there is no need to change
the bulbs for the whole life of the vehicle.
3) In the event that there is a fault in the LEDs, the
complete headlight must be replaced. 197Technical specifications
Advice
Operation
Safety
The essentials

Advice

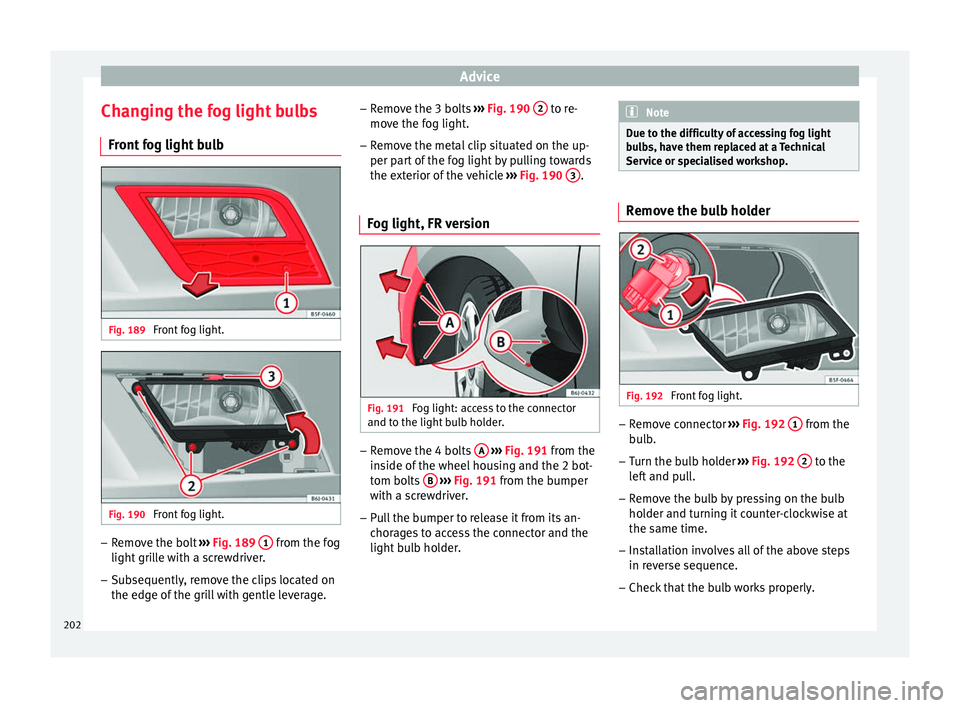

Changing the fog light bulbs Front fog light bulb Fig. 189
Front fog light. Fig. 190
Front fog light. –
Remove the bolt ››› Fig. 189 1 from the fog
light grille with a screwdriver.
– Subsequently, remove the clips located on
the edge of the grill with gentle leverage. –
Remove the 3 bolts ››› Fig. 190 2 to re-
move the fog light.
– Remove the metal clip situated on the up-
per part of the fog light by pulling towards
the exterior of the vehicle ››› Fig. 190 3 .
Fog light, FR version Fig. 191
Fog light: access to the connector
and to the light bulb holder. –
Remove the 4 bolts A
››› Fig. 191 from the
in s
ide of the wheel housing and the 2 bot-
tom bolts B
››› Fig. 191 from the bumper
with a screwdriver.
– Pull the bumper to release it from its an-
chorages to access the connector and the
light bulb holder. Note
Due to the difficulty of accessing fog light
bulbs, have them replaced at a Technical
Service or specialised workshop. Remove the bulb holder
Fig. 192
Front fog light. –
Remove connector ››› Fig. 192 1 from the
bulb.
– Turn the bulb holder ››› Fig. 192 2 to the
left and pull.
– Remove the bulb by pressing on the bulb
holder and turning it counter-clockwise at
the same time.
– Installation involves all of the above steps
in reverse sequence.
– Check that the bulb works properly.
202

Fuses and bulbs

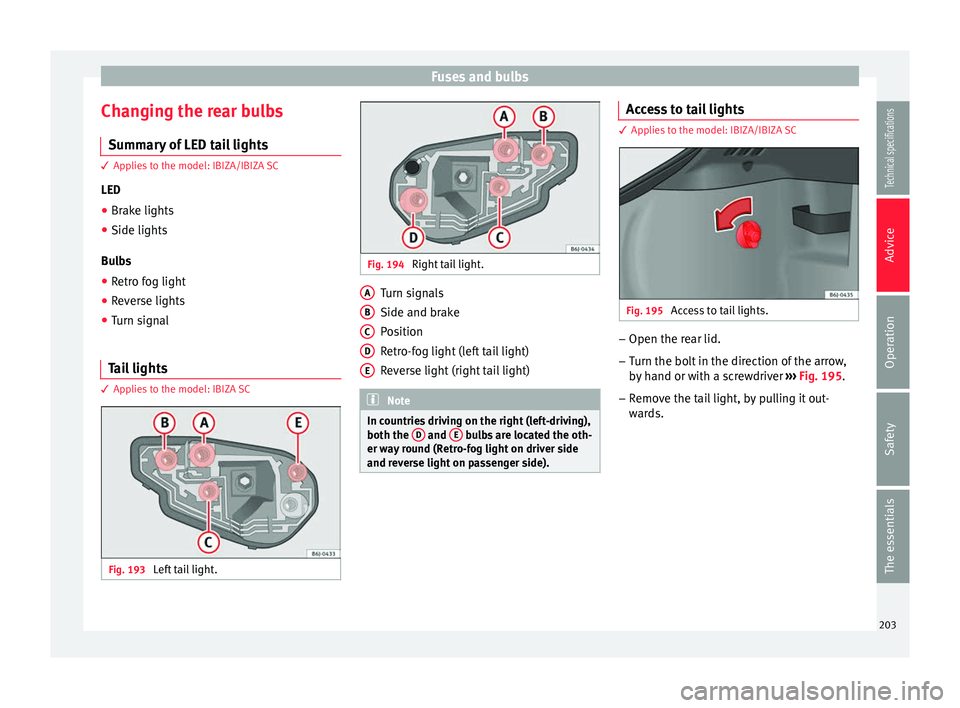

Changing the rear bulbs Summary of LED tail lights 3 Applies to the model: IBIZA/IBIZA SC
LED
●
Br ak
e lights
● Side lights
Bulbs
● Retro fog light
● Reverse lights
● Turn signal
Tail lights 3 Applies to the model: IBIZA SC
Fig. 193
Left tail light. Fig. 194
Right tail light. Turn signals
Side and brake
Position
Retro-fog light (left tail light)
Reverse light (right tail light)
Note
In countries driving on the right (left-driving),
both the D and
E bulbs are located the oth-
er way round (Retro-fog light on driver side
and reverse light on passenger side). A
B
C
D
E Access to tail lights
3 Applies to the model: IBIZA/IBIZA SC
Fig. 195
Access to tail lights. –
Open the rear lid.
– Turn the bolt in the direction of the arrow,
by hand or with a screwdriver ››› Fig. 195 .
– Remo

ve the tail light, by pulling it out-
wards.
203
Technical specifications
Advice
Operation
Safety
The essentials

Fuses and bulbs

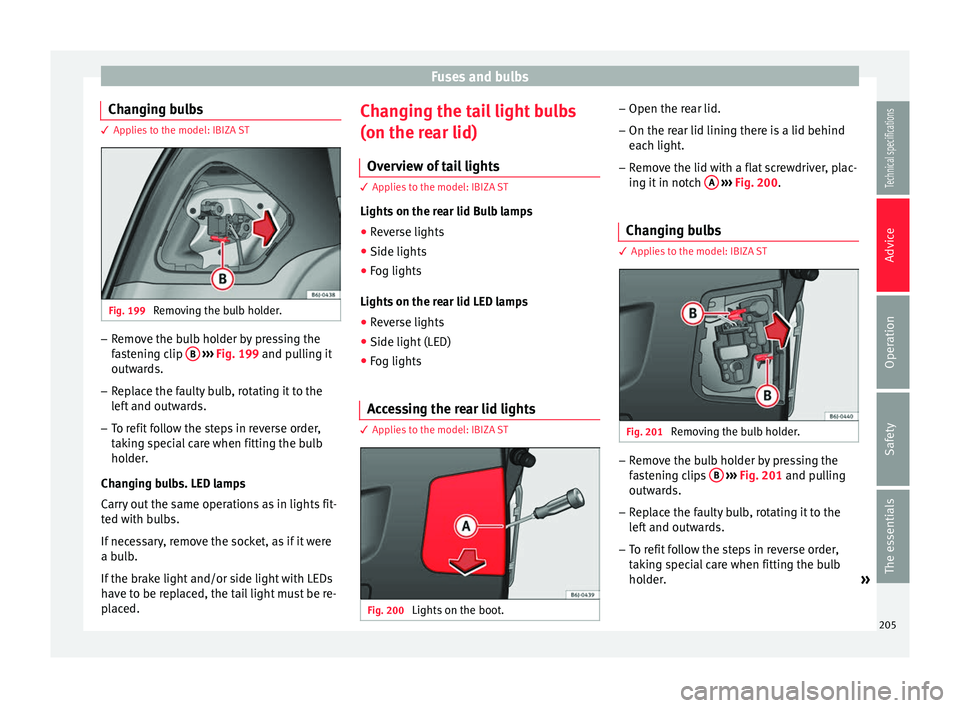

Changing bulbs 3 Applies to the model: IBIZA ST
Fig. 199
Removing the bulb holder. –
Remove the bulb holder by pressing the
fastening clip B
››› Fig. 199 and pulling it
outw ar
ds.
– Replace the faulty bulb, rotating it to the
left and outwards.
– To refit follow the steps in reverse order,
taking special care when fitting the bulb
holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed. Changing the tail light bulbs
(on the rear lid)
Overview of tail lights 3 Applies to the model: IBIZA ST
Light s

on the rear lid Bulb lamps
● Reverse lights
● Side lights
● Fog lights
Lights on the rear lid LED lamps
● Reverse lights
● Side light (LED)
● Fog lights
Accessing the rear lid lights 3 Applies to the model: IBIZA ST
Fig. 200
Lights on the boot. –
Open the rear lid.
– On the rear lid lining there is a lid behind
each light.
– Remove the lid with a flat screwdriver, plac-
ing it in notch A
››› Fig. 200 .
Ch an
ging bulbs 3 Applies to the model: IBIZA ST
Fig. 201
Removing the bulb holder. –
Remove the bulb holder by pressing the
fastening clips B
››› Fig. 201 and pulling
outw ar

ds.
– Replace the faulty bulb, rotating it to the
left and outwards.
– To refit follow the steps in reverse order,
taking special care when fitting the bulb
holder.
»
205
Technical specifications
Advice
Operation
Safety
The essentials

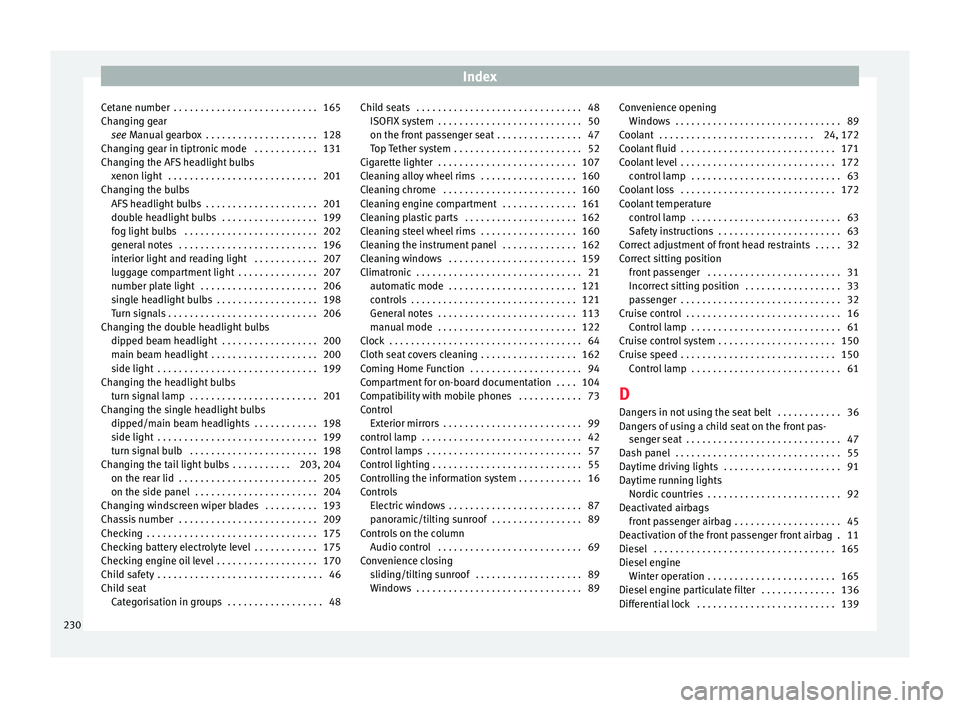

Index
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Changing gear see Manual gearbox . . . . . . . . . . . . . . . . . . . . . 128
Ch an
ging gear in tiptronic mode . . . . . . . . . . . . 131
Changing the AFS headlight bulbs xenon light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Changing the bulbs AFS headlight bulbs . . . . . . . . . . . . . . . . . . . . . 201
double headlight bulbs . . . . . . . . . . . . . . . . . . 199
fog light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 202
general notes . . . . . . . . . . . . . . . . . . . . . . . . . . 196
interior light and reading light . . . . . . . . . . . . 207
luggage compartment light . . . . . . . . . . . . . . . 207
number plate light . . . . . . . . . . . . . . . . . . . . . . 206
single headlight bulbs . . . . . . . . . . . . . . . . . . . 198
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Changing the double headlight bulbs dipped beam headlight . . . . . . . . . . . . . . . . . . 200
main beam headlight . . . . . . . . . . . . . . . . . . . . 200
side light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Changing the headlight bulbs turn signal lamp . . . . . . . . . . . . . . . . . . . . . . . . 201
Changing the single headlight bulbs dipped/main beam headlights . . . . . . . . . . . . 198
side light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
turn signal bulb . . . . . . . . . . . . . . . . . . . . . . . . 198
Changing the tail light bulbs . . . . . . . . . . . 203, 204 on the rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . 205
on the side panel . . . . . . . . . . . . . . . . . . . . . . . 204
Changing windscreen wiper blades . . . . . . . . . . 193
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Checking battery electrolyte level . . . . . . . . . . . . 175
Checking engine oil level . . . . . . . . . . . . . . . . . . . 170
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat Categorisation in groups . . . . . . . . . . . . . . . . . . 48 Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
on the front passenger seat . . . . . . . . . . . . . . . . 47
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 52
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . . . 160
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . . 160
Cleaning engine compartment . . . . . . . . . . . . . . 161
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . . 162
Cleaning steel wheel rims . . . . . . . . . . . . . . . . . . 160
Cleaning the instrument panel . . . . . . . . . . . . . . 162
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . . 159
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 automatic mode . . . . . . . . . . . . . . . . . . . . . . . . 121
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . 113
manual mode . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cloth seat covers cleaning . . . . . . . . . . . . . . . . . . 162
Coming Home Function . . . . . . . . . . . . . . . . . . . . . 94
Compartment for on-board documentation . . . . 104
Compatibility with mobile phones . . . . . . . . . . . . 73
Control Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 99
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controlling the information system . . . . . . . . . . . . 16
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 87
panoramic/tilting sunroof . . . . . . . . . . . . . . . . . 89
Controls on the column Audio control . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Convenience closing sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . . 89
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Convenience opening
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 172
Coolant fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Coolant level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coolant loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Coolant temperature control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 63
Correct adjustment of front head restraints . . . . . 32
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 31
Incorrect sitting position . . . . . . . . . . . . . . . . . . 33
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 150
Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
D Dangers in not using the seat belt . . . . . . . . . . . . 36
Dangers of using a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Daytime driving lights . . . . . . . . . . . . . . . . . . . . . . 91
Daytime running lights Nordic countries . . . . . . . . . . . . . . . . . . . . . . . . . 92
Deactivated airbags front passenger airbag . . . . . . . . . . . . . . . . . . . . 45
Deactivation of the front passenger front airbag . 11
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Diesel engine Winter operation . . . . . . . . . . . . . . . . . . . . . . . . 165
Diesel engine particulate filter . . . . . . . . . . . . . . 136
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . . 139
230

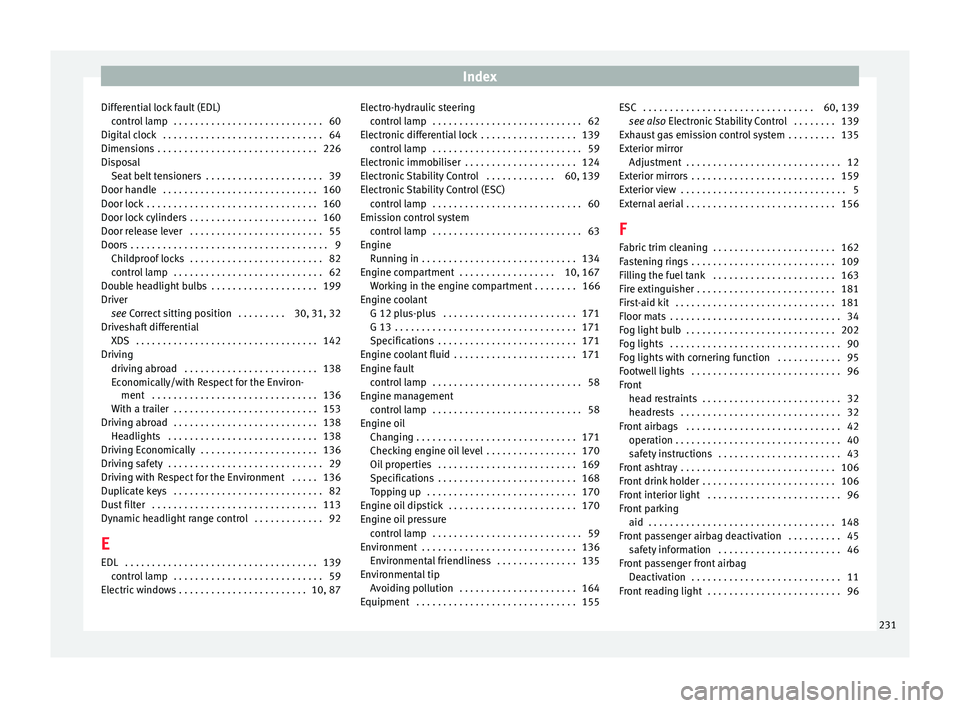

Index
Differential lock fault (EDL) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Disposal Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 39
Door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . . . 160
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . 55
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . 82
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Double headlight bulbs . . . . . . . . . . . . . . . . . . . . 199
Driver see Correct sitting position . . . . . . . . . 30, 31, 32
Driv e
shaft differential
XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Driving driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 138
Economically/with Respect for the Environ-ment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Driving Economically . . . . . . . . . . . . . . . . . . . . . . 136
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Driving with Respect for the Environment . . . . . 136
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Dynamic headlight range control . . . . . . . . . . . . . 92
E EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . 10, 87 Electro-hydraulic steering
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Electronic differential lock . . . . . . . . . . . . . . . . . . 139 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 124
Electronic Stability Control . . . . . . . . . . . . . 60, 139
Electronic Stability Control (ESC) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Emission control system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Engine compartment . . . . . . . . . . . . . . . . . . 10, 167 Working in the engine compartment . . . . . . . . 166
Engine coolant G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . 171
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Engine coolant fluid . . . . . . . . . . . . . . . . . . . . . . . 171
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Engine management control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Engine oil Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Checking engine oil level . . . . . . . . . . . . . . . . . 170
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . 170
Engine oil pressure control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 Environmental friendliness . . . . . . . . . . . . . . . 135
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . . . 164
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 139
see also Electronic Stability Control . . . . . . . . 139
Exhau

st gas emission control system . . . . . . . . . 135
Exterior mirror Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
F Fabric trim cleaning . . . . . . . . . . . . . . . . . . . . . . . 162
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . 163
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . 181
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Fog lights with cornering function . . . . . . . . . . . . 95
Footwell lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Front head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . 32
headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 43
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . . . 106
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . . 96
Front parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Front passenger airbag deactivation . . . . . . . . . . 45 safety information . . . . . . . . . . . . . . . . . . . . . . . 46
Front passenger front airbag Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . . 96
231
