Seat Ibiza ST 2010 Maintenance programme

General Service Programme9
General Service ProgrammeOil change serviceOperations to be carried out on your vehic le•Check the thickness of brake pads and the condition of front and rear
brake discs.•Change the engine oil and replace the oil f ilter.
1)
•The date of the next service is entered on th e service sticker which is
attached to the driver side door pillar•The service interval display is resetInterval serviceOperations to be performed on your vehicl e:•Check the battery.•Check the depth of the tyre tread (incl. the s pare wheel), that tread wear
is even, check the age and pressure of the ty res. Where applicable, adjust the
tyre pressure monitor.•Brake system inspected for leaks and dama ge.•Check the brake fluid level and wear of pads .•Check the thickness of brake pads and the condition of front and rear
brake discs.
•Check the correct operation of the front and rear lighting, the turn signals,
the hazard warning lights, the daytime dr iving lights, the static cornering
lights and the automatic dipped beam contr ol (where applicable) and the
horn.•Check if the windscreen is damaged.•Check the coolant and anti-freeze liquid an d top up as required.•Inspect the engine and components of the en gine compartment (from
above) for leaks and damage.•Inspect the engine and components of the en gine compartment, the
gearbox, the transmission, the final driv e (especially flanges) and the track
rod boots (from below) for leaks and damag e.•Change the engine oil and replace the oil filter
1).
•Check the expiry date of the puncture kit tyr e sealant (where applicable)
and record; check whether the bottle is d amaged and the level of the sealant.•Check the windscreen wipers and headligh t washers (where applicable)
operate correctly; check the blades, the res t position, the final position and
for possible damage, and top up the washe r fluid as required.•The headlight adjustment is checked•The date of the next service is entered on th e service sticker which is
attached to the driver side door pillar•The service interval display is reset.
1)If diesel with a high sulphur conten t is used, the fuel filter and the oil shoul d be
changed every 7,500 km (5,000 miles). Your Technical Service will be able to tell you
which countries have diesel with a h igh sulphur content.
Prog Manto Ibizas-Alteas_EN.book Seite 9 Dienstag, 14. September 2010 11:40 11

General Service Programme
10Inspection ServiceOperations to be performed on your vehicl e:•The exhaust system is checked for leaks, da mage and secure fitting•ATF in the automatic gearbox: check and top up as required.•Check the battery.•Check the depth of the tyre tread (incl. the spare wheel), that tread wear
is even, check the age and pressure of th e tyres. Where applicable, adjust the
tyre pressure monitor.•Check brake system and dampers for leaks a nd damage.•Check the sunroof (where applicable) operates correctly and if necessary
clean and lubricate guides.•Check the thickness of brake pads and the c ondition of front and rear
brake discs.•Check the correct operation of the front and r ear lighting, the turn signals,
the hazard warning lights, the daytime d riving lights, the static cornering
lights and the automatic dipped beam cont rol (where applicable) and the
horn.•Check if the windscreen is damaged.•Check that the interior and glove box lighting, the cigarette lighter/power
socket, horn and warning lamps work co rrectly.•Body: check for visible rust.•Check the condition and, if required, the te nsion of the Poly V-belt.•Check the coolant and anti-freeze liquid an d top up as required.•Inspect the engine and components of the en gine compartment (from
above) for leaks and damage.
•Inspect the engine and components of the engine compartment, the
gearbox, the end drive and the track rod boo ts (from below) for leaks and
damage.•Check the oil level.•Check the expiry date of the puncture kit ty re sealant (where applicable)
and record; check whether the bottle is dam aged and the level of the sealant.•Take the car for a test drive and check that the brakes, handbrake,
steering,and air conditioning operate correc tly and perform a kickdown.•Check the windscreen wipers and headlight washers (where applicable)
operate correctly; check the blades, the res t position, the final position and
for possible damage, and top up the washer fl uid as required.•The headlight adjustment is checked•Coil spring (suspension) and bump stop, front and rear: visual check for
damage•The date of the next service is entered on t he service sticker which is
attached to the driver side door pillar•Check the play, fastening and boot of the trac k rods and the front and rear
axle bearings.•Lubricate door arresters•Inspected the underside protection for dam age.Note
•It may be more convenient, taking the individual usage conditions of your
vehicle into account, to have certain scop es of the interval service inspection
done earlier or at a later, separate date. The se rvice advisor at your Official
SEAT Service will advise you accordingly .•The engine type determines toothed belt re placement intervals. For more
information on the replacement of the too thed belt, check the chapter on
Prog Manto Ibizas-Alteas_EN.book Seite 10 Dienstag, 14. September 2010 11:40 11

General Service Programme11
additional tasks. The service advisor at you r Official SEAT Service will advise
you accordingly.Additional tasksIn addition to the Inspection Service, addit ional maintenance jobs may have
to be carried out, depending on the conditions in which your vehicle is used
and on the equipment carried. This add itional work should be carried out in
accordance with time/distance travelled to ensure your vehicle remains reli-
able. Your Service Centre will provide de tailed information about the addi-
tional work that may be necessary. This can be done independently of the
obligatory services, taking into account the no tes on the Maintenance
Programme (or the label: Next service). Y our SEAT Service Centre will be
happy to advise you and quote the prices for th is additional work. Additional
jobs completed are marked on the work shop sheet with the receipt.Every 7,500 km (5,000 miles)•Replace the fuel filter in TDI
® diesel engines that use diesel with a sulphu r
content of more than 2,000 ppm.
Every 15,000 km (10,000 miles)•Replace the rubber bearings of the engine c over (only engines with
engine codes CDLA and CDLD).•LPG installation filter
2): Replace. Only engines with LPG (engine c ode
CHGA).
Every 30,000 km (20,000 miles)•Fuel filter: Replace in diesel engine vehicle s if the fuel does not comply
with the EN 590 standard.•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Ibiza, Ibiza SC, Ibiza ST).•Gas hoses: inspect for damage: Only engin es with LPG
2) (engine code
CHGA).
•LPG filler neck and cap
2): Check condition and clean and inspect se als if
necessary. Only engines with LPG (engine cod e CHGA).
Every 60,000 km (40,000 miles)•Change oil and oil filter for DSG
® automatic gearboxes (where equipped)
- only 6-speed DSG
® gearboxes.
•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Altea, Altea XL, Altea Freetrack and Leon)•Spark plugs : Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).•Air filter: Clean casing and replace filter elemen t (only engines codes
CDLA and CDLD).•LPG evaporator: Check for traces of oil or o ther dirt. Only engines with
LPG2) (engine code CHGA).
2)LPG: Liquefied petroleum gas.
Prog Manto Ibizas-Alteas_EN.book Seite 11 Dienstag, 14. September 2010 11:40 11

General Service Programme
12Every 90,000 km (60,000 miles)•Air filter: Clean casing and replace filter elemen t (except engine codes
CDLA and CDLD).•Fuel filter: Replacement (only diesel engines using fuel complying with
the DIN EN 590 standard)•Replace spark plugs – only vehicles driven o ver 90,000 km (60,000 miles)
in 6 years (only 1.8 TSI and 2.0 TSI
® engines up to 147 kW)
•LPG evaporator paper filter: Replace. Only engi nes with LPG
2) (engine
code CHGA).
At 90,000 km (60,000 miles) the first time, then every 30,000 km (20,000 miles)•Timing belt for camshaft: Check condit ion and replace if necessary (only
petrol engines, except 2.0 TFSI).At 120,000 km (80,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (only 125 kW TDI-PD e ngines).
At 150,000 km (90,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (TDI-PD engines, except 125 kW).Every 150,000 km (90,000 miles)•Timing belt for camshaft: Replace (only TDI-PD engines).At 180,000 km (120,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (TDI Common Rail e ngines).Every 210,000 km (130,000 miles)•Timing belt for camshaft: Replace (TDI Common Rail engines).•Camshaft timing belt tension roller: Replace (T DI Common Rail engines).Every 300,000 km (200,000 miles)•Camshaft timing belt tension roller: Replace (TDI-PD engines).
Prog Manto Ibizas-Alteas_EN.book Seite 12 Dienstag, 14. September 2010 11:40 11

General Service Programme13
Every 2 years•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Ibiza, Ibiza SC, Ibiza ST).After 3 years the first time, then every 2 years•Brake fluid: Replace.•Check the gas system (LPG). Only engines with LPG (engine code
CHGA).Every 3 years•Haldex clutch: Replace oil (four-wheel drive vehicles).Every 4 years•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Altea, Altea XL, Altea Freetrack, Leo n)•Spark plugs : Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).•Air filter: Clean casing and replace filter elemen t (only engines codes
CDLA and CDLD).
Every 6 years•Air filter element replaced and housing cleane d•Replace spark plugs.Note
•We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle.•SEAT keeps its Technical Services up-to-da te on new product develop-
ments. They have tools and highly specia lised personnel who can guarantee
the safety and performance of your vehicle.•Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Services will ensure you m aintain greater value for your
vehicle.
Prog Manto Ibizas-Alteas_EN.book Seite 13 Dienstag, 14. September 2010 11:40 11

Other services available
14Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the interval s
prescribed.Many countries have legal requirements ob liging owners to have their vehicle
tested at specified intervals for safety for the user and for other traffic, as well
as ensuring that vehicle exhaust emissions meet the countries' regulations.
These revisions must be overseen by officially certified centres.
Your Technical Service can inform you abou t the inspections required by law,
and can check your vehicle in the course of an Inspection Service. This will
save you both time and money.
The Technical Service can also carry out the inspections required by law at the
client's request.
Even if you do not wish to take advanta ge of this service and decide to take
your car to an officially certified centre for this c heck, we recommend that you
speak to the manager of your Technica l Service first.
This person will be able to inform you of any p oints that require attention so
that your car does not fail the test and ha ve to be re-tested.Approved spare partsAll parts of your vehicle have been approve d by SEAT, especially those parts
on which your safety depends. For this reason , the parts used in the
Programmed Inspection Services or in an y vehicle repair must correspond
exactly to the manufacturer-defined requiremen ts. The approved SEAT spare parts have been designed especially for you
r vehicle. For this reason, we
recommend that Genuine approved SEAT spar es are always used.
In the Authorised SEAT Service Centres you wil l find the most important
approved spare parts. If in an exceptional case, the necessary parts are not in
stock, they can, in general, be obtained s wiftly.
The SEAT Service Centres in the EU provide a 24 mon th warranty
3) for
Approved Spare parts from the date they are fi tted or sold. It is therefore
advisable to retain the original invoice from th e Technical Service as proof of
the existing warranty.
More information about this may be obtain ed from your Technical Service.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblie s, the most common being: the
lightened engine, gearboxes, cylinder head s, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same S EAT approved spare parts warranty.
However, these parts are considerably cheap er as they are factory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts as
proof of the start of the existing warranty.3)The warranty is not available for all e xport markets. For more information, ple ase ask
your Authorised SEAT Service Centre.
Prog Manto Ibizas-Alteas_EN.book Seite 14 Dienstag, 14. September 2010 11:40 11

Other services available15
More information about this may be obtain ed at the Technical Service.Genuine accessoriesWe recommend that you use only Genuine SEAT Access ories
and accessories approved by SEAT.If you wish to equip your car with accessories , you should remember the
following points:
We recommend that you use only genuine S EAT and SEAT approved accesso-
ries.
SEAT provides a warranty for Genuine Access ories valid from the date of
purchase or fitting. It is therefore advis able to retain the original invoice from
the Technical Service as proof of the existing warranty.
More information about this may be ob tained from your Technical Service.
The accessories service also offers you expert advi ce and, if required, fitting
by a specialist.
In addition, Technical Services can supply car ca re products and parts subject
to normal wear, such as tyres, batteries a nd light bulbs.Paintwork and body serviceSEAT vehicles are designed in such a way th at, in case of bodywork damage,
there is only need to replace and paint t he parts that have been really
affected. Both operations must be carried out ac
cording to the requirements of the
manufacturer; this is an essential condition fo r conservation of the bodywork
and paintwork warranties.
Prog Manto Ibizas-Alteas_EN.book Seite 15 Dienstag, 14. September 2010 11:40 11

Warranty
16WarrantyFault-free operation warrantyAccording to the clauses of the warranty appl ied to SEAT vehicles in the sales
contract, A fault-free operation warranty of 2 years in ac cordance with legal
requirements
4) 5) is provided from the date of delivery.
We hope that it is understood that natural wear as well as damage caused by
the abuse of vehicle performance throug h inappropriate use or by unaccept-
able modifications are excluded from the warran ty. The warranty is also
invalid when the vehicle is damaged by th e use of parts and accessories that
are not SEAT approved or damage due to ignoring the maintenance and repair
requirements.
Paintwork and body warrantyTechnical Services provide a warranty on bodywork and
paintwork for vehicles sold in the EU.In addition to the warranty conditions for b rand new SEAT vehicles (as
detailed in the purchase contract), a defined pe riod warranty is also provided
covering paintwork and bodywork rusting:•The additional warranty on paint faults cov ers the first 3 years following
delivery
•Covered against perforation rusting on the body during the first 12 years
following delivery.
I f , h o w e v e r, t h i s t y p e o f d a m a g e s h o u l d o cc u r, i t w i l l b e r e p a i r e d f r e e o f ch a r g e
including parts and labour by any SEAT Tec hnical Service in Europe.
Warranty claims will not be accepted in t he following circumstances:•if damage is caused by external influence o r carelessness, or•if damage to the body is not repaired promptly and appropriately in
accordance with the manufacturer's instru ctions using genuine, approved
spare parts and materials, or•if perforation rusting is caused by the use o f non-genuine parts and mate-
rials for body repairs and if these repairs we re not carried out in accordance
with the manufacturer's instructions.
If the bodywork is repaired or painted, you r Technical Service will certify your
warranty against through-rusting for the repai red sections.Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblie s, the most common being: the
lightened engine, gearboxes, cylinder head s, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same S EAT approved spare parts warranty.
4)The warranty is not available for all export markets. For more information, ple ase ask
your Authorised SEAT Service Centre.5)As well as the legally required warran ty, SEAT offers an extended warranty to t heir cli-
ents in some European countries. The spe cific conditions of this extended warranty
are detailed in the vehicle sales con tract.
Prog Manto Ibizas-Alteas_EN.book Seite 16 Dienstag, 14. September 2010 11:40 11

Warranty17
However, these parts are considerably chea per as they are factory-recondi-
tioned used parts. Keep the invoice for t he approved SEAT exchange parts as
proof of the start of the existing warranty.
More information about this may be ob tained at the Technical Service.Genuine accessoriesWe recommend that you use only Genuine SEAT Access ories
and accessories approved by SEAT.If you wish to equip your car with accessories , you should remember the
following points:
We recommend that you use only genuine S EAT and SEAT approved accesso-
ries.
SEAT provides a warranty for Genuine Access ories valid from the date of
purchase or fitting. It is therefore advisabl e to retain the original invoice from
the Technical Service as proof of the existing warranty.
More information about this may be obtai ned from your Technical Service.
The accessories service also offers you expert advi ce and, if required, fitting
by a specialist.
In addition, Technical Services can supply car ca re products and parts subject
to normal wear, such as tyres, batteries and light bulbs.
Paintwork and body serviceSEAT vehicles are designed in such a way that, in case of bodywork damage,
there is only need to replace and paint the par ts that have been really
affected.
Both operations must be carried out ac cording to the requirements of the
manufacturer; this is an essential condition for conservation of the bodywork
and paintwork warranties.
Prog Manto Ibizas-Alteas_EN.book Seite 17 Dienstag, 14. September 2010 11:40 11

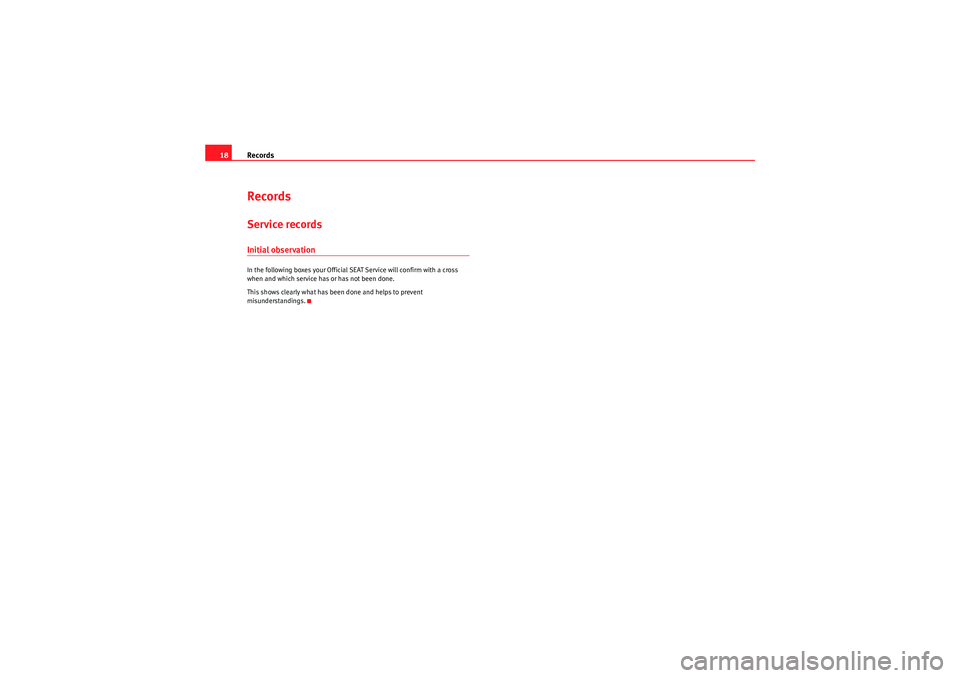

Records
18RecordsService recordsInitial observationIn the following boxes your Official SEAT Se rvice will confirm with a cross
when and which service has or has not be en done.
This shows clearly what has been done and helps to prevent
misunderstandings.
Prog Manto Ibizas-Alteas_EN.book Seite 18 Dienstag, 14. September 2010 11:40 11
