Service information
6•If LongLife engine oil is not used, th e service dependent on time/distance
travelled then applies. In this case, an oil c hange service will have to be
carried out every 15,000 km (10,000 miles) or every year.Importance of the Maintenance ProgrammeThe Maintenance Programme confirms the date of deliv ery of
your vehicle and thus the beginning of its warranty cover.The vehicle data that appears in the Maintenance Programme guarantees
that the appropriate Genuine SEAT
® Parts are installed. This data helps
ensure that your car can be repaired without difficulty even after many years
of use.
The Maintenance Programme also informs you of which service should be
carried out when, and the work this entails.
Your Official SEAT Service will note down in this booklet the services carried
out.
Your Maintenance Programme should be kept in the vehicle with the on-
board documentation so that it is at han d whenever you need it.
Please remember to give the Maintenanc e Programme to the new owner if
you sell your car.
The SEAT Service Centre network is equ ipped with modern workshop tech-
nology and well-trained specialists. Many S EAT Service Centres offer different
service packages at special prices
Safety notesAll fluids and consumables , such as timing belts, tyres, coolant liquid, en gine
oil, spark plugs and vehicle batteries are cont inuously being developed.
Therefore, we recommend you take the veh icle to a qualified workshop to
have fluids or consumables changed. The Official SE AT Services receive
regular up-to-date information about mo difications. This is why SEAT recom-
mends you have fluids and other consumables replaced by an Official SEAT
Service.
Unless the vehicle is regularly and correctly s erviced as required in the
service plan, the vehicle could breakdown wh ile driving, leading to serious
accident and injury.•S e r v i c e s s h o u l d b e c a r r i e d o u t b y a q u a l i f i e d w o r k s h o p i n a c c o r d a n ce w i t h
the Maintenance Programme.•Please observe the instructions for use.Note
•Only use suitable fluids. Fluids should nev er be mixed up. This could
result in serious faults and engine dama ge.•SEAT is not responsible for damage to the v ehicle as a result of the use of
poor quality fuel, inadequate servicing o r non-availability of original spare
parts.•Spilt brake fluid may pollute the environme nt. If fluids leak or are spilt,
they should be collected and disposed of a ccordingly.•Regular servicing of your vehicle not only helps to ensure it remains in
good working order but also contributes to road safety. Therefore, we recom-
mend work is carried out in accordance with the Maintenance Programme.
Prog Manto Ibizas-Alteas_EN.book Seite 6 Dienstag, 14. September 2010 11:40 11

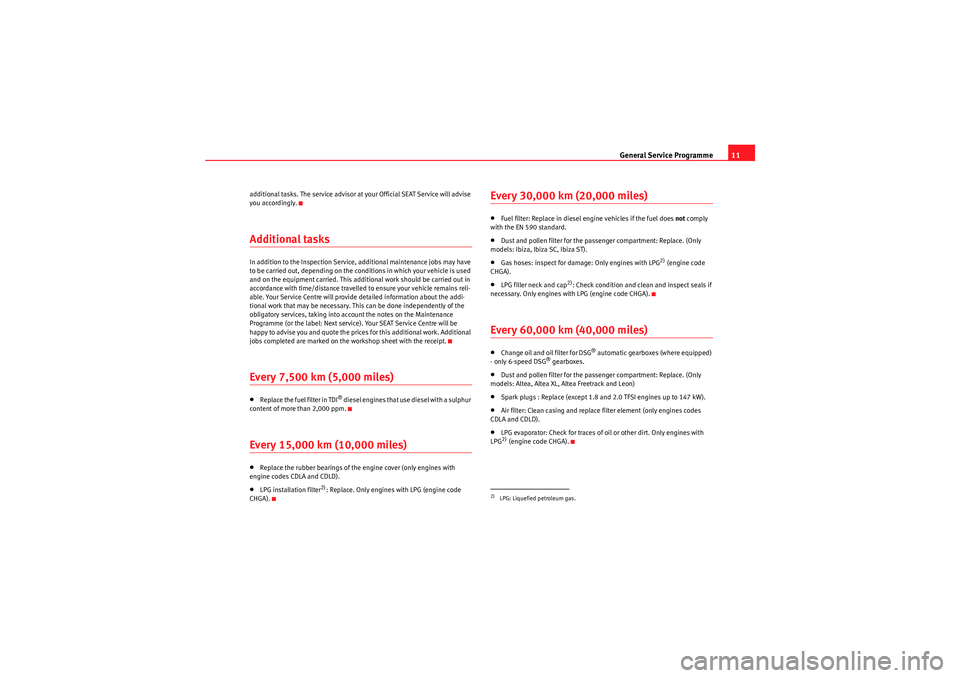

General Service Programme11
additional tasks. The service advisor at you r Official SEAT Service will advise
you accordingly.Additional tasksIn addition to the Inspection Service, addit ional maintenance jobs may have
to be carried out, depending on the conditions in which your vehicle is used
and on the equipment carried. This add itional work should be carried out in
accordance with time/distance travelled to ensure your vehicle remains reli-
able. Your Service Centre will provide de tailed information about the addi-
tional work that may be necessary. This can be done independently of the
obligatory services, taking into account the no tes on the Maintenance
Programme (or the label: Next service). Y our SEAT Service Centre will be
happy to advise you and quote the prices for th is additional work. Additional
jobs completed are marked on the work shop sheet with the receipt.Every 7,500 km (5,000 miles)•Replace the fuel filter in TDI
® diesel engines that use diesel with a sulphu r
content of more than 2,000 ppm.
Every 15,000 km (10,000 miles)•Replace the rubber bearings of the engine c over (only engines with
engine codes CDLA and CDLD).•LPG installation filter
2): Replace. Only engines with LPG (engine c ode
CHGA).
Every 30,000 km (20,000 miles)•Fuel filter: Replace in diesel engine vehicle s if the fuel does not comply
with the EN 590 standard.•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Ibiza, Ibiza SC, Ibiza ST).•Gas hoses: inspect for damage: Only engin es with LPG
2) (engine code
CHGA).
•LPG filler neck and cap
2): Check condition and clean and inspect se als if
necessary. Only engines with LPG (engine cod e CHGA).
Every 60,000 km (40,000 miles)•Change oil and oil filter for DSG
® automatic gearboxes (where equipped)
- only 6-speed DSG
® gearboxes.
•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Altea, Altea XL, Altea Freetrack and Leon)•Spark plugs : Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).•Air filter: Clean casing and replace filter elemen t (only engines codes
CDLA and CDLD).•LPG evaporator: Check for traces of oil or o ther dirt. Only engines with
LPG2) (engine code CHGA).
2)LPG: Liquefied petroleum gas.
Prog Manto Ibizas-Alteas_EN.book Seite 11 Dienstag, 14. September 2010 11:40 11

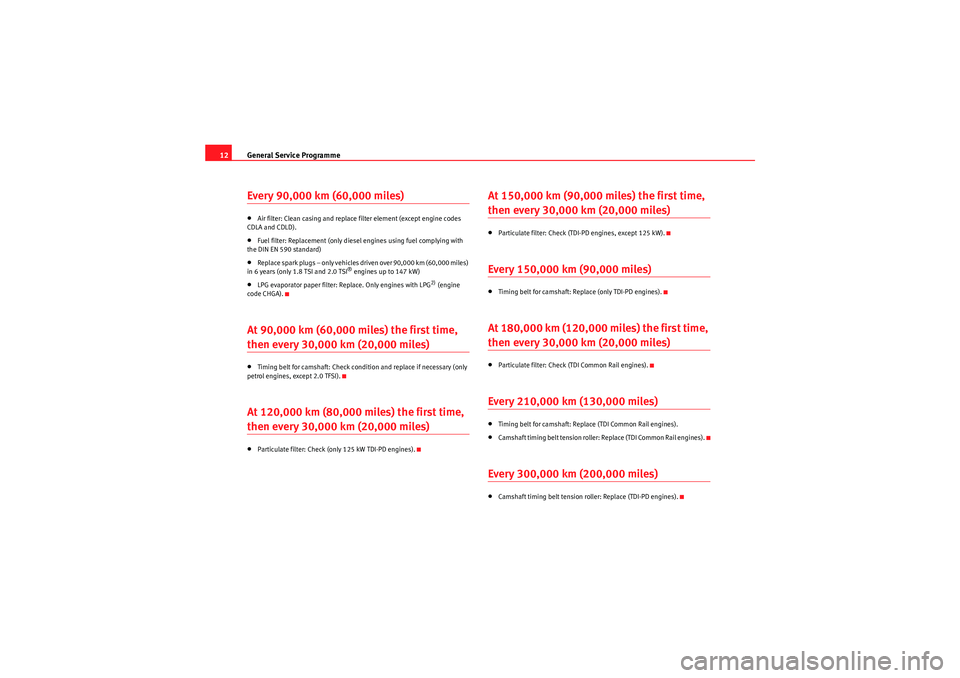

General Service Programme
12Every 90,000 km (60,000 miles)•Air filter: Clean casing and replace filter elemen t (except engine codes
CDLA and CDLD).•Fuel filter: Replacement (only diesel engines using fuel complying with
the DIN EN 590 standard)•Replace spark plugs – only vehicles driven o ver 90,000 km (60,000 miles)
in 6 years (only 1.8 TSI and 2.0 TSI
® engines up to 147 kW)
•LPG evaporator paper filter: Replace. Only engi nes with LPG
2) (engine
code CHGA).
At 90,000 km (60,000 miles) the first time, then every 30,000 km (20,000 miles)•Timing belt for camshaft: Check condit ion and replace if necessary (only
petrol engines, except 2.0 TFSI).At 120,000 km (80,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (only 125 kW TDI-PD e ngines).
At 150,000 km (90,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (TDI-PD engines, except 125 kW).Every 150,000 km (90,000 miles)•Timing belt for camshaft: Replace (only TDI-PD engines).At 180,000 km (120,000 miles) the first time, then every 30,000 km (20,000 miles)•Particulate filter: Check (TDI Common Rail e ngines).Every 210,000 km (130,000 miles)•Timing belt for camshaft: Replace (TDI Common Rail engines).•Camshaft timing belt tension roller: Replace (T DI Common Rail engines).Every 300,000 km (200,000 miles)•Camshaft timing belt tension roller: Replace (TDI-PD engines).
Prog Manto Ibizas-Alteas_EN.book Seite 12 Dienstag, 14. September 2010 11:40 11

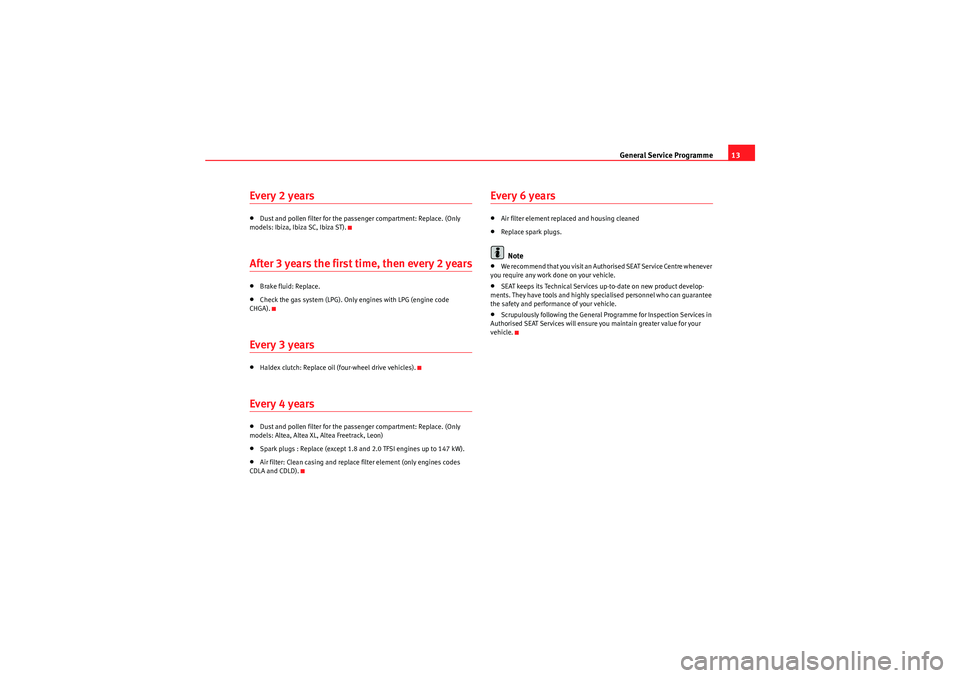

General Service Programme13
Every 2 years•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Ibiza, Ibiza SC, Ibiza ST).After 3 years the first time, then every 2 years•Brake fluid: Replace.•Check the gas system (LPG). Only engines with LPG (engine code
CHGA).Every 3 years•Haldex clutch: Replace oil (four-wheel drive vehicles).Every 4 years•Dust and pollen filter for the passenger com partment: Replace. (Only
models: Altea, Altea XL, Altea Freetrack, Leo n)•Spark plugs : Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).•Air filter: Clean casing and replace filter elemen t (only engines codes
CDLA and CDLD).
Every 6 years•Air filter element replaced and housing cleane d•Replace spark plugs.Note
•We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle.•SEAT keeps its Technical Services up-to-da te on new product develop-
ments. They have tools and highly specia lised personnel who can guarantee
the safety and performance of your vehicle.•Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Services will ensure you m aintain greater value for your
vehicle.
Prog Manto Ibizas-Alteas_EN.book Seite 13 Dienstag, 14. September 2010 11:40 11

Records19
Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YE S NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travell ed: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 19 Dienstag, 14. September 2010 11:40 11

Records
20Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YES NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travel led: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 20 Dienstag, 14. September 2010 11:40 11

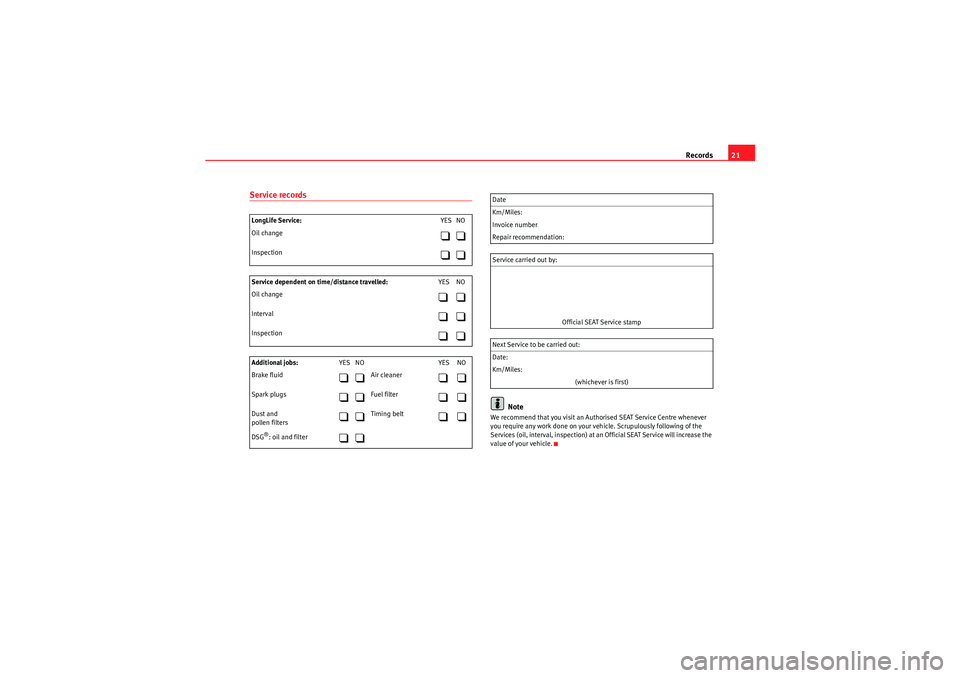

Records21
Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YE S NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travell ed: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 21 Dienstag, 14. September 2010 11:40 11

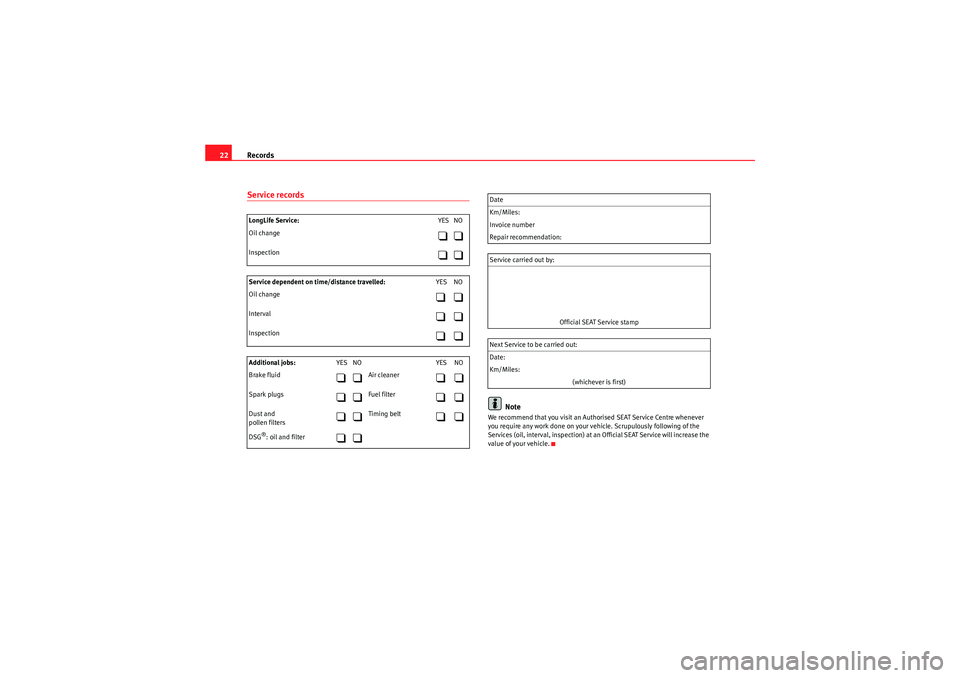

Records
22Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YES NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travel led: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 22 Dienstag, 14. September 2010 11:40 11

Records23
Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YE S NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travell ed: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 23 Dienstag, 14. September 2010 11:40 11

Records
24Service records
Note
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Sc rupulously following of the
Services (oil, interval, inspection) at an Offi cial SEAT Service will increase the
value of your vehicle.
LongLife Service:
YES NO
Oil change
cc
Inspection
cc
Service dependent on time/distance travel led: YES NO
Oil change
cc
Interval
cc
Inspection
cc
Additional jobs: YES NO YES NO
Brake fluid
cc
Air cleaner
cc
Spark plugs
cc
Fuel filter
cc
Dust and
pollen filters
cc
Timing belt
cc
DSG
®: oil and filter
cc

Date
Km/Miles:
Invoice number
Repair recommendation:
Service carried out by:
Official SEAT Service stamp
Next Service to be carried out:
Date:
Km/Miles: (whichever is first)
Prog Manto Ibizas-Alteas_EN.book Seite 24 Dienstag, 14. September 2010 11:40 11
