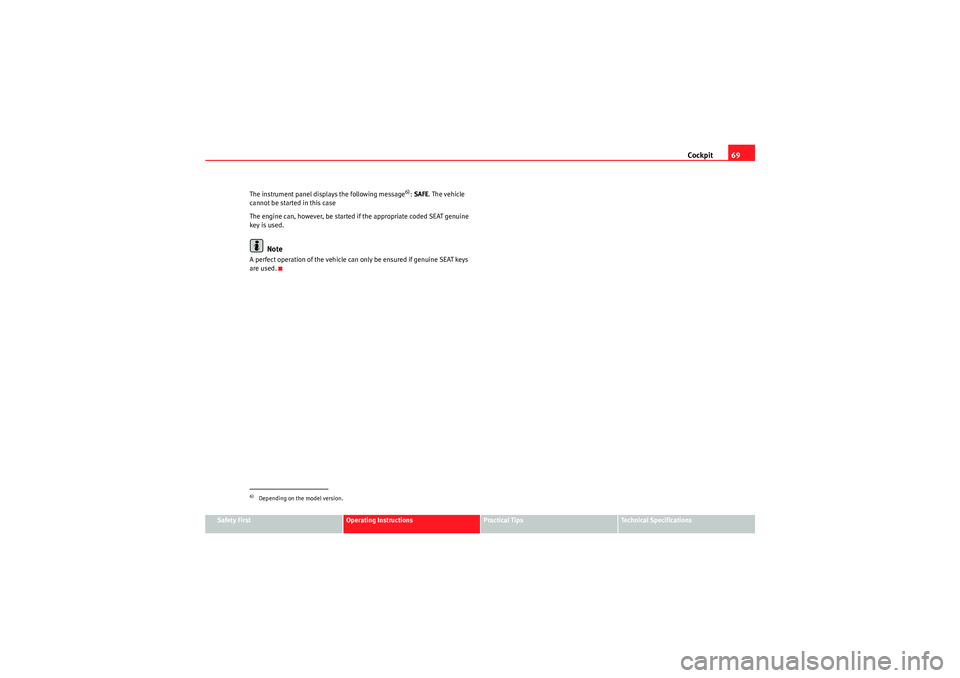

The instrument panel displays the following message
6):
SAFE . The vehicle
cannot be started in this case
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
Note
A perfect operation of the vehicle can only be ensured if genuine SEAT keys
are used.6)Depending on the model version.
IbizaST_EN.book Seite 69 Dienstag, 14. September 2010 1:31 13

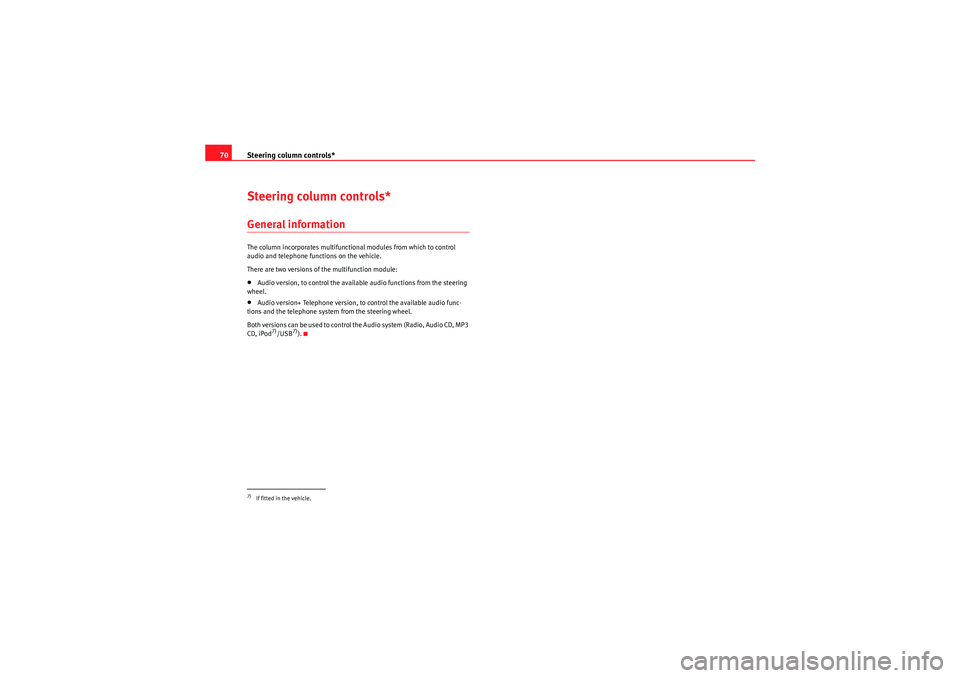

Steering column controls*
70Steering column controls*General informationThe column incorporates multifunctional modules from which to control
audio and telephone functions on the vehicle.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio version+ Telephone version, to control the available audio func-
tions and the telephone system from the steering wheel.
B ot h ve rsio ns ca n b e us e d to co ntr ol th e A ud i o s yste m ( Rad io, A ud io CD, MP 3
CD, iPod
7)/USB
7)).
7)If fitted in the vehicle.
IbizaST_EN.book Seite 70 Dienstag, 14. September 2010 1:31 13

Steering column controls*71
Safety First
Operating Instructions
Practical Tips
Technical Specifications

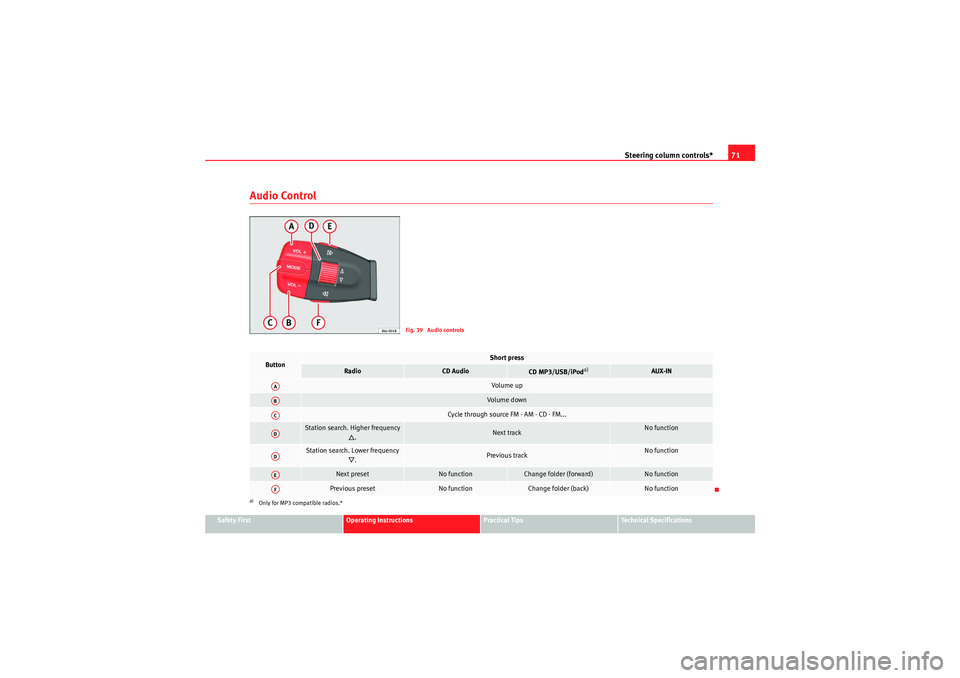

Audio Control
Fig. 39 Audio controls
Button
Short press
Radio
CD Audio
CD MP3/USB/iPod
a)
a)Only for MP3 compatible radios.*
AUX-IN
Vol u m e upVol um e d own
Cycle through source FM - AM - CD - FM...
Station search. Higher frequency
….
Next track
No function
Station search. Lower frequency
†.
Previous track
No function
Next preset
No function
Change folder (forward)
No function
Previous preset
No function
Change folder (back)
No function
AAABACADADAEAF
IbizaST_EN.book Seite 71 Dienstag, 14. September 2010 1:31 13

Steering column controls*

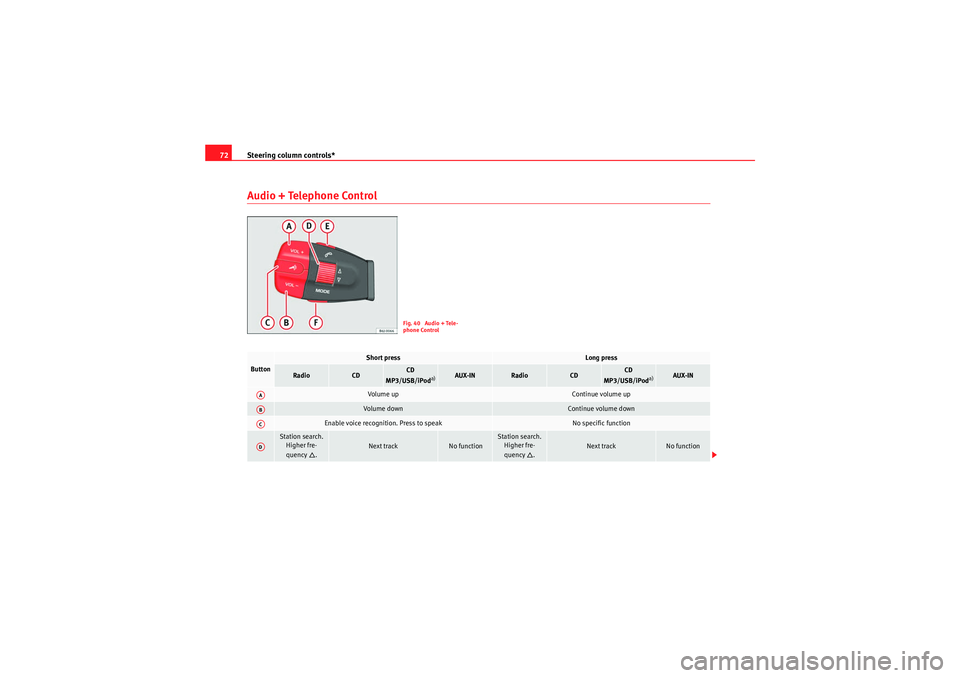

72Audio + Telephone Control
Fig. 40 Audio + Tele-
phone Control
Button
Short press
Long press
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Vol um e up
Continue volume up
Volume down
Continue volume down
Enable voice recognition. Press to speak
No specific function
Station search. Higher fre-
quency
….
Next track
No function
Station search. Higher fre-
quency
….
Next track
No function
AAABACAD
IbizaST_EN.book Seite 72 Dienstag, 14. September 2010 1:31 13

Steering column controls*73
Safety First
Operating Instructions
Practical Tips
Technical Specifications

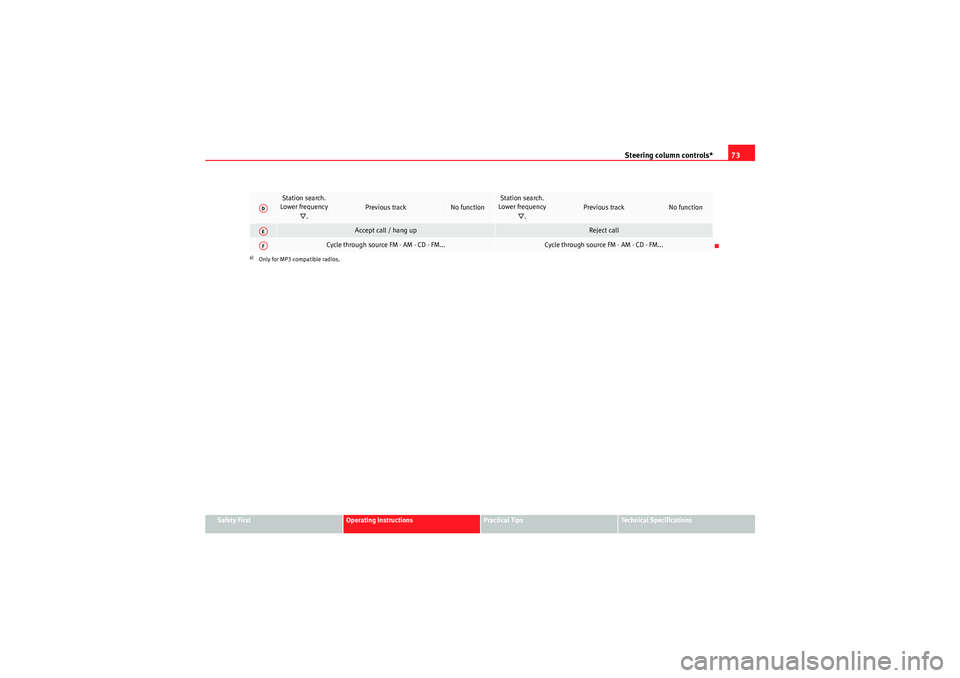

Station search.
Lower frequency
†.
Previous track
No function
Station search.
Lower frequency
†.
Previous track
No function
Accept call / hang up
Reject call
Cycle through source FM - AM - CD - FM...
Cycle through source FM - AM - CD - FM...
a)Only for MP3 compatible radios.ADAEAF
IbizaST_EN.book Seite 73 Dienstag, 14. September 2010 1:31 13

Unlocking and locking
74Unlocking and lockingCentral l ocking Description
The central locking system enables you to lock and unlock all
doors by just pushing the button.Central locking can be activated by using any of the following options:•the key , by inserting it into the driver door cylinder and rotating it in the
opening direction. Depending on the vehicle version, either all doors will be
unlocked or only the driver door will be unlocked. All doors will be locked on
locking the vehicle using the key.•the interior central locking button ⇒ page 77.•the remote control , using the buttons on the key ⇒ page 80.
Various functions are available to improve the vehicle safety:
- “Safe*” security system
- Selective unlocking system*
- Self-locking system to prevent involuntary unlocking
- Automatic speed-dependent locking and unlocking system*
- Emergency unlocking systemWARNING
•Locking from the outside carelessly or without good visibility may lead
to bruising, particularly in the case of children.•When locking a vehicle, never leave children unaccompanied inside, as
from the outside it will be difficult to provide assistance if required.
•Having the doors locked prevents an intrusion from getting in, for
example when stopped at a traffic light.Note
For anti-theft security, only the driver door is fitted with a lock cylinder.Safe security system*
This is an anti-theft device that consists of a double lock for
the door locks and a disabling function for the luggage
compartment in order to prevent a forced entry (depending
on country).Activation
The “safe” system is activated when the vehicle is locked using the key or the
remote control.
To activate it with the key, rotate once it is inserted in the door lock cylinder
in the locking direction.
To activate the system using the remote control, press the lock button once on the remote.
Once this system is activated, opening doors from the outside and the inside
is not possible. The tailgate can not be opened. The central locking button
does not work.
WARNING (continued)

IbizaST_EN.book Seite 74 Dienstag, 14. September 2010 1:31 13

Unlocking and locking75
Safety First
Operating Instructions
Practical Tips
Technical Specifications

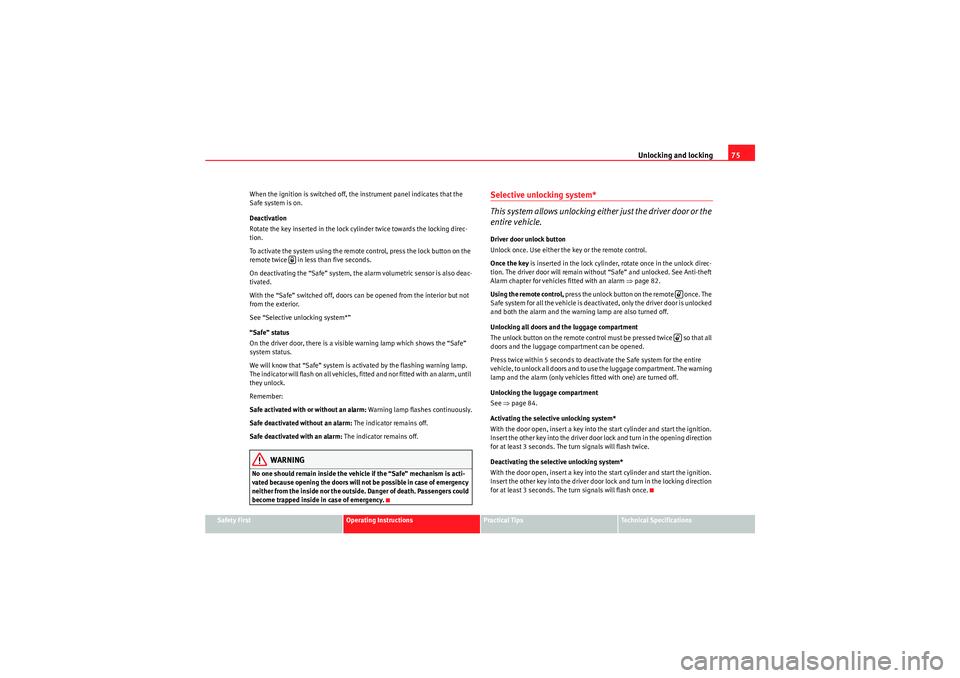

When the ignition is switched off, the instrument panel indicates that the
Safe system is on.
Deactivation
Rotate the key inserted in the lock cylinder twice towards the locking direc-
tion.
To activate the system using the remote control, press the lock button on the
remote twice in less than five seconds.
On deactivating the “Safe” system, the alarm volumetric sensor is also deac-
tivated.
With the “Safe” switched off, doors can be opened from the interior but not
from the exterior.
See “Selective unlocking system*”
“Safe” status
On the driver door, there is a visible warning lamp which shows the “Safe”
system status.
We will know that “Safe” system is activated by the flashing warning lamp.
The indicator will flash on all vehicles, fitted and nor fitted with an alarm, until
they unlock.
Remember:
Safe activated with or without an alarm:
Warning lamp flashes continuously.
Safe deactivated without an alarm: The indicator remains off.
Safe deactivated with an alarm: The indicator remains off.
WARNING
No one should remain inside the vehicle if the “Safe” mechanism is acti-
vated because opening the doors will not be possible in case of emergency
neither from the inside nor the outside. Danger of death. Passengers could
become trapped inside in case of emergency.
Selective unlocking system*
T h i s sy ste m all ow s u nl o ck in g eit h er just the driver door or the
entire vehicle.Driver door unlock button
Unlock once. Use either the key or the remote control.
Once the key is inserted in the lock cylinder, rotate once in the unlock direc-
tion. The driver door will remain with out “Safe” and unlocked. See Anti-theft
Alarm chapter for vehicles fitted with an alarm ⇒page 82.
Using the remote control, press the unlock button on the remote once. The
Safe system for all the vehicle is deactivated, only the driver door is unlocked
and both the alarm and the warning lamp are also turned off.
Unlocking all doors and the luggage compartment
The unlock button on the remote control must be pressed twice so that all
doors and the luggage compartment can be opened.
Press twice within 5 seconds to deactivate the Safe system for the entire
vehicle, to unlock all doors and to use the luggage compartment. The warning
lamp and the alarm (only vehicles fitted with one) are turned off.
Unlocking the luggage compartment
See ⇒page 84.
Activating the selective unlocking system*
With the door open, insert a key into the start cylinder and start the ignition.
Insert the other key into the driver door lock and turn in the opening direction
for at least 3 seconds. The turn signals will flash twice.
Deactivating the selective unlocking system*
With the door open, insert a key into the start cylinder and start the ignition.
Insert the other key into the driver door lock and turn in the locking direction
for at least 3 seconds. The turn signals will flash once.


IbizaST_EN.book Seite 75 Dienstag, 14. September 2010 1:31 13

Unlocking and locking
76Involuntary unlocking
It is an anti-theft system and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and any of the doors (including the tailgate) are
opened within 30 seconds, it gets re-locked automatically.Automatic speed dependent locking and unlocking system*
This is a safety system which prevent the access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors lock automatically after exceeding 15km/h. The tailgate locks
automatically after exceeding 6 km/h.
If the vehicle is stopped and any of its doors open, when starting again and
exceeding the mentioned speed, all doors will lock again.
Unlocking
On withdrawing the ignition key, the vehicle will returns to its status prior to
self-locking.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do it, simply operate the lever
inside the door.
Activating the system*
With the ignition on, press the locking key on the central locking system
within 3 to 10 seconds. Deactivating the system*
With the ignition on, press the unlocking key on the central locking system
within 3 to 10 seconds.
In both cases, if the operation has been carried out correctly, the locking lamp
will flash ⇒
page 77, fig. 41 .
WARNING
The door handles must not be operated when the vehicle is running: the
door would open.
Note
If the airbags are triggered during an accident, the vehicle is unlocked, except
for the luggage compartment. It is possible to lock the vehicle from inside
with the central locking, after turning the ignition off and back on again.Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle is unlocked, except
for the luggage compartment. It is possible to lock the vehicle from inside
with the central locking, after turning the ignition off and back on again.

IbizaST_EN.book Seite 76 Dienstag, 14. September 2010 1:31 13

Unlocking and locking77
Safety First
Operating Instructions
Practical Tips
Technical Specifications

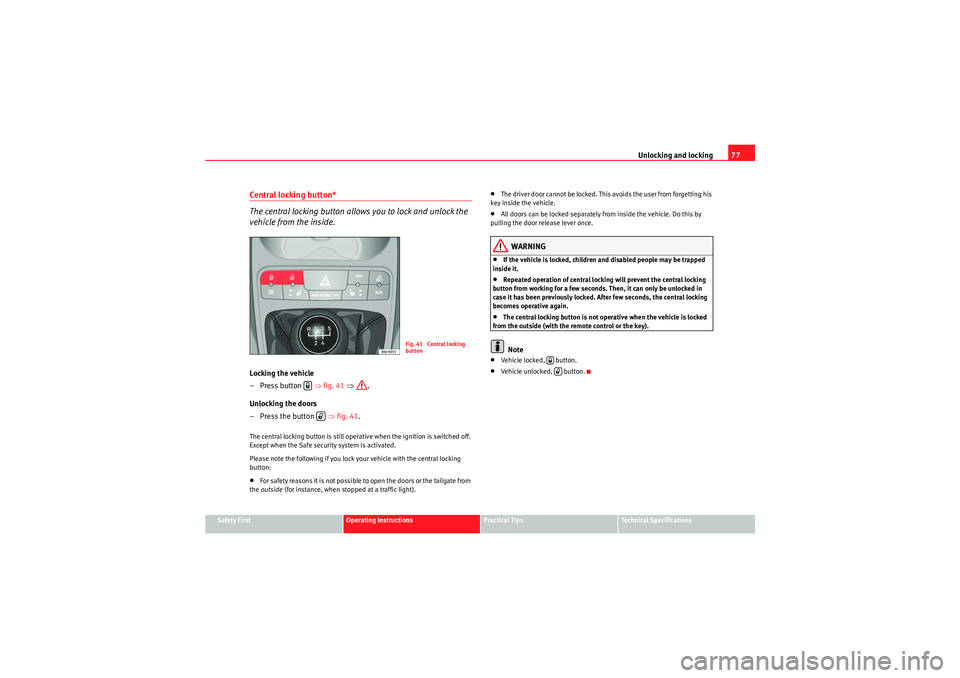

Central locking button*
The central locking button allows you to lock and unlock the
vehicle from the inside.Locking the vehicle
– Press button ⇒fig. 41 ⇒ .
Unlocking the doors
– Press the button ⇒fig. 41 .The central locking button is still operative when the ignition is switched off.
Except when the Safe security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•For safety reasons it is not possible to open the doors or the tailgate from
the outside (for instance, when stopped at a traffic light).
•The driver door cannot be locked. This avoids the user from forgetting his
key inside the vehicle.•All doors can be locked separately from inside the vehicle. Do this by
pulling the door release lever once .WARNING
•If the vehicle is locked, children and disabled people may be trapped
inside it.•Repeated operation of central locking will prevent the central locking
button from working for a few seconds. Then, it can only be unlocked in
case it has been previously locked. After few seconds, the central locking
becomes operative again.•The central locking button is not operative when the vehicle is locked
from the outside (with the remote control or the key).Note
•Vehicle locked, button.•Vehicle unlocked, button.
Fig. 41 Central locking
button



IbizaST_EN.book Seite 77 Dienstag, 14. September 2010 1:31 13

Unlocking and locking

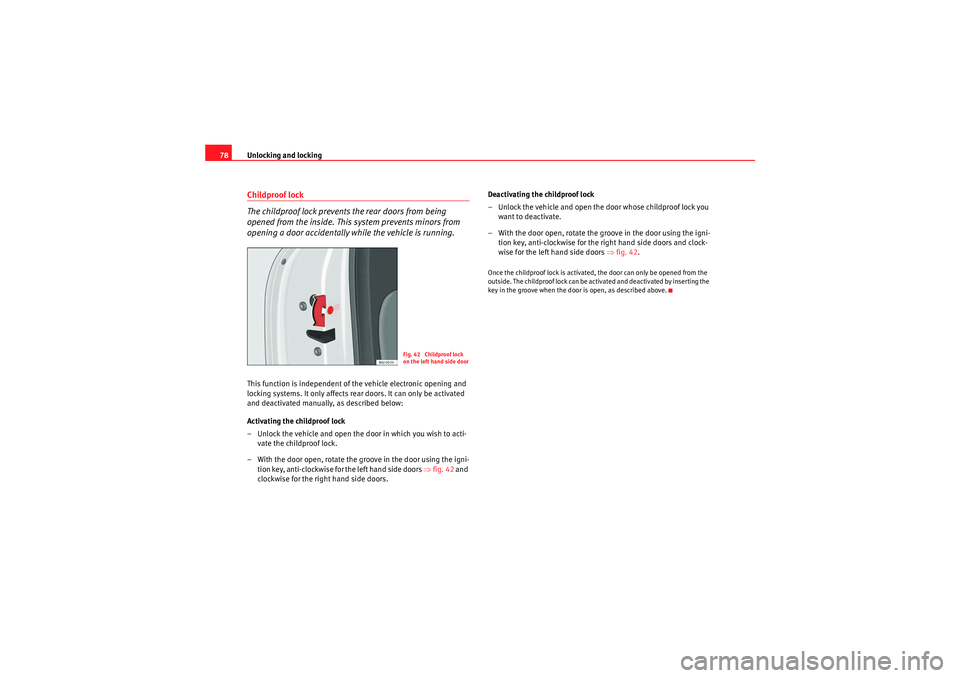

78Childproof lock
The childproof lock prevents the rear doors from being
opened from the inside. This system prevents minors from
opening a door accidentally while the vehicle is running.This function is independent of the vehicle electronic opening and
locking systems. It only affects rear doors. It can only be activated
and deactivated manually, as described below:
Activating the childproof lock
– Unlock the vehicle and open the door in which you wish to acti- vate the childproof lock.
– With the door open, rotate the groove in the door using the igni- tion key, anti-clockwise for the left hand side doors ⇒fig. 42 and
clockwise for the right hand side doors. Deactivating the childproof lock
– Unlock the vehicle and open the door whose childproof lock you
want to deactivate.
– With the door open, rotate the groove in the door using the igni- tion key, anti-clockwise for the right hand side doors and clock-
wise for the left hand side doors ⇒fig. 42 .
Once the childproof lock is activated, the door can only be opened from the
outside. The childproof lock can be activated and deactivated by inserting the
key in the groove when the door is open, as described above.
Fig. 42 Childproof lock
on the left hand side door
IbizaST_EN.book Seite 78 Dienstag, 14. September 2010 1:31 13
